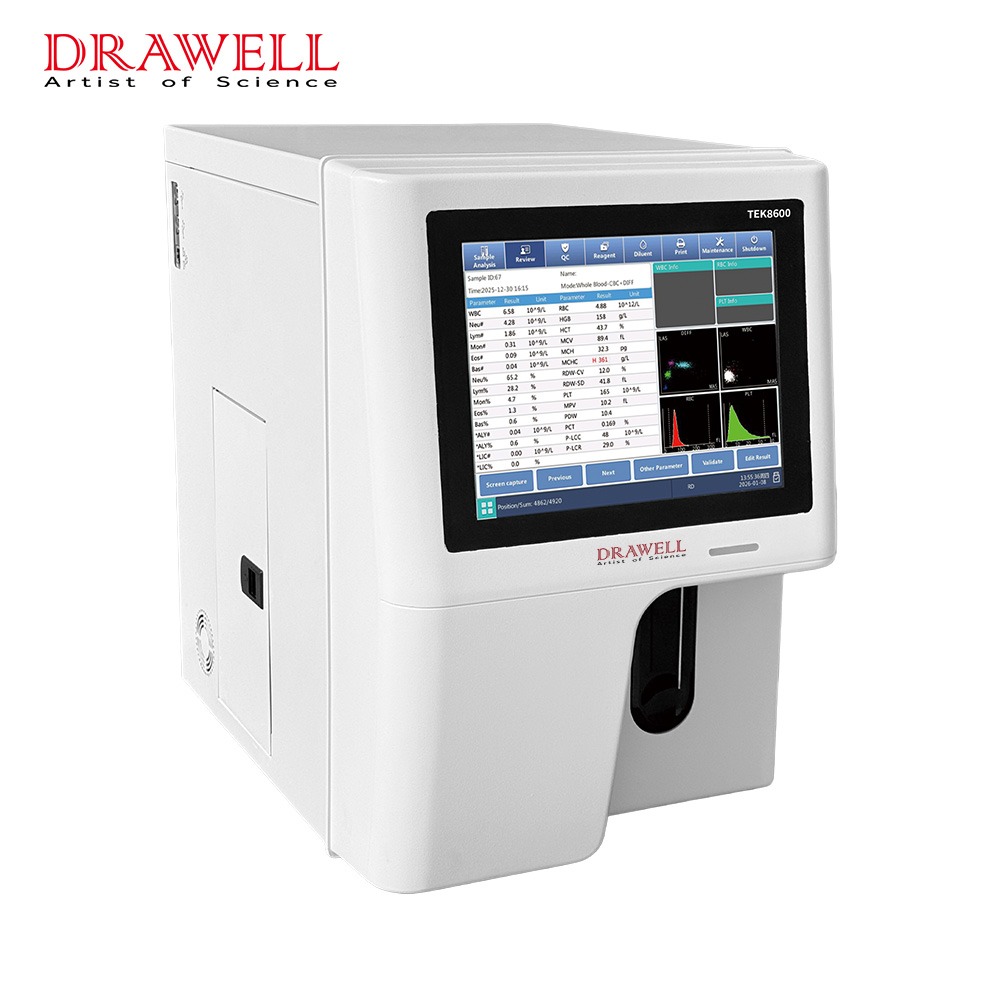

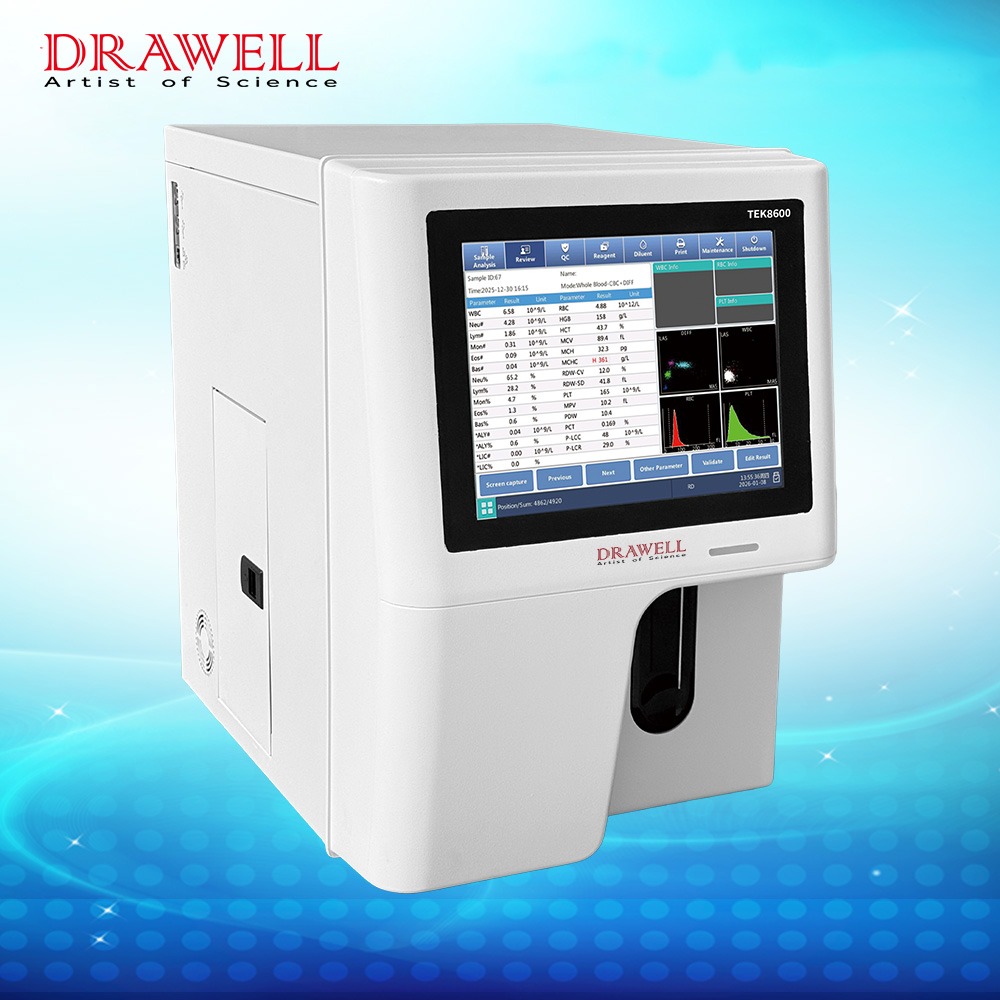

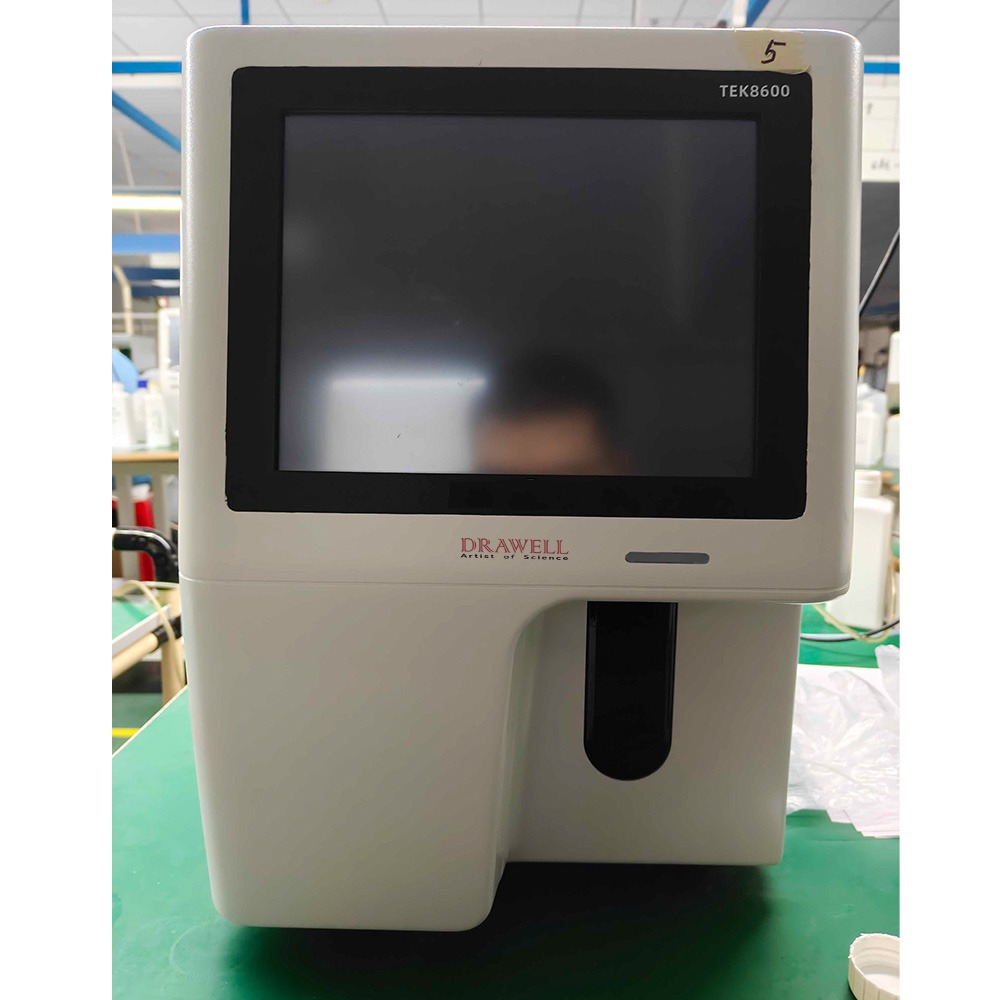

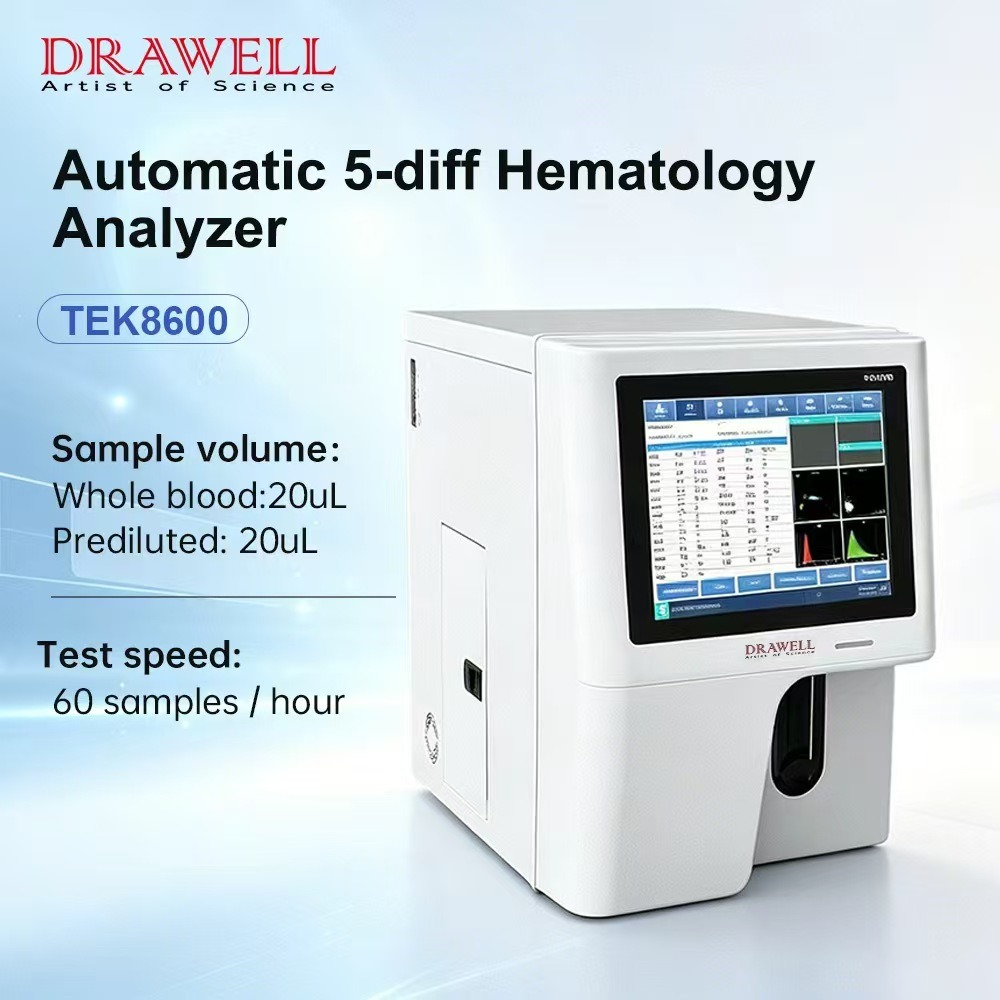

TEK8600 Automatic 5-diff Hematology Analyzer

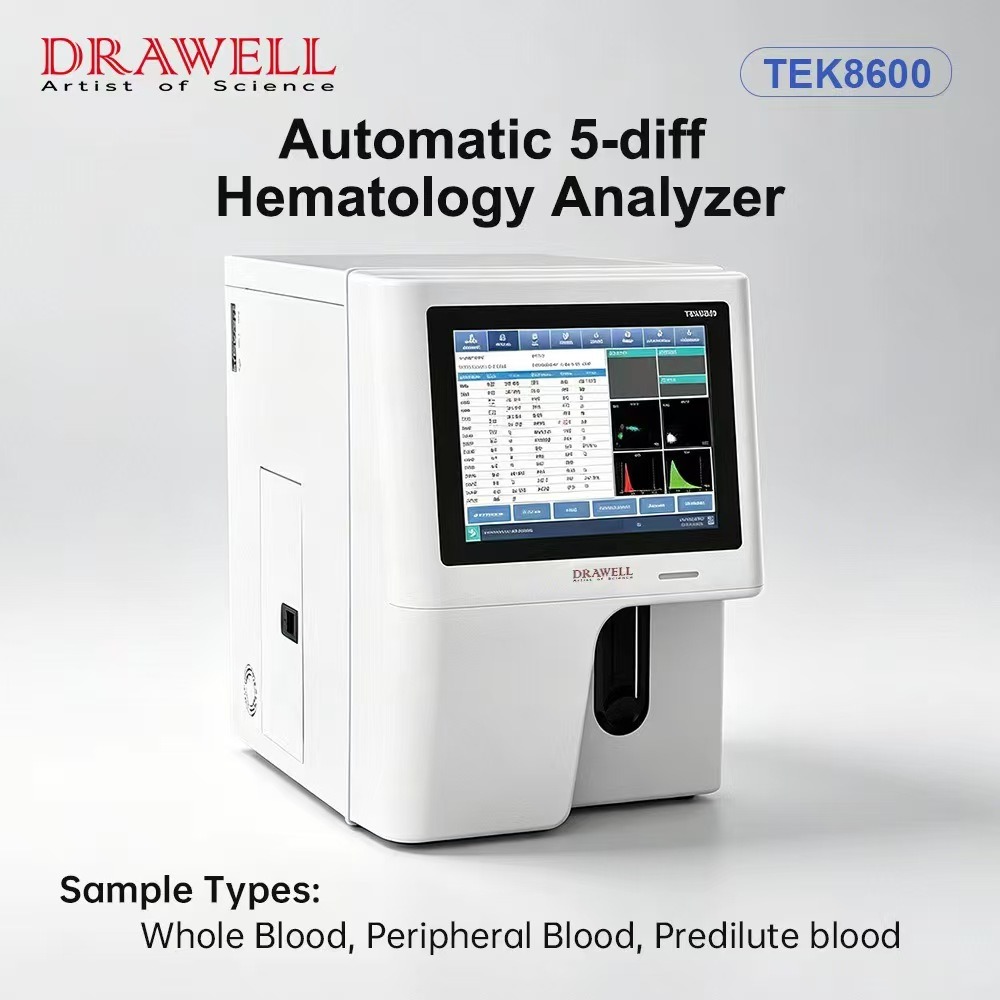

TEK8600 is a compact automatic 5-part hematology analyzer designed for routine hematology workflows where bench space, data management and connectivity are important. It supports whole blood, peripheral blood and prediluted samples, with integrated touch-screen operation and no external computer required.
- 5-Part WBC Differential
- 60 Samples/Hour
- 25 Parameters

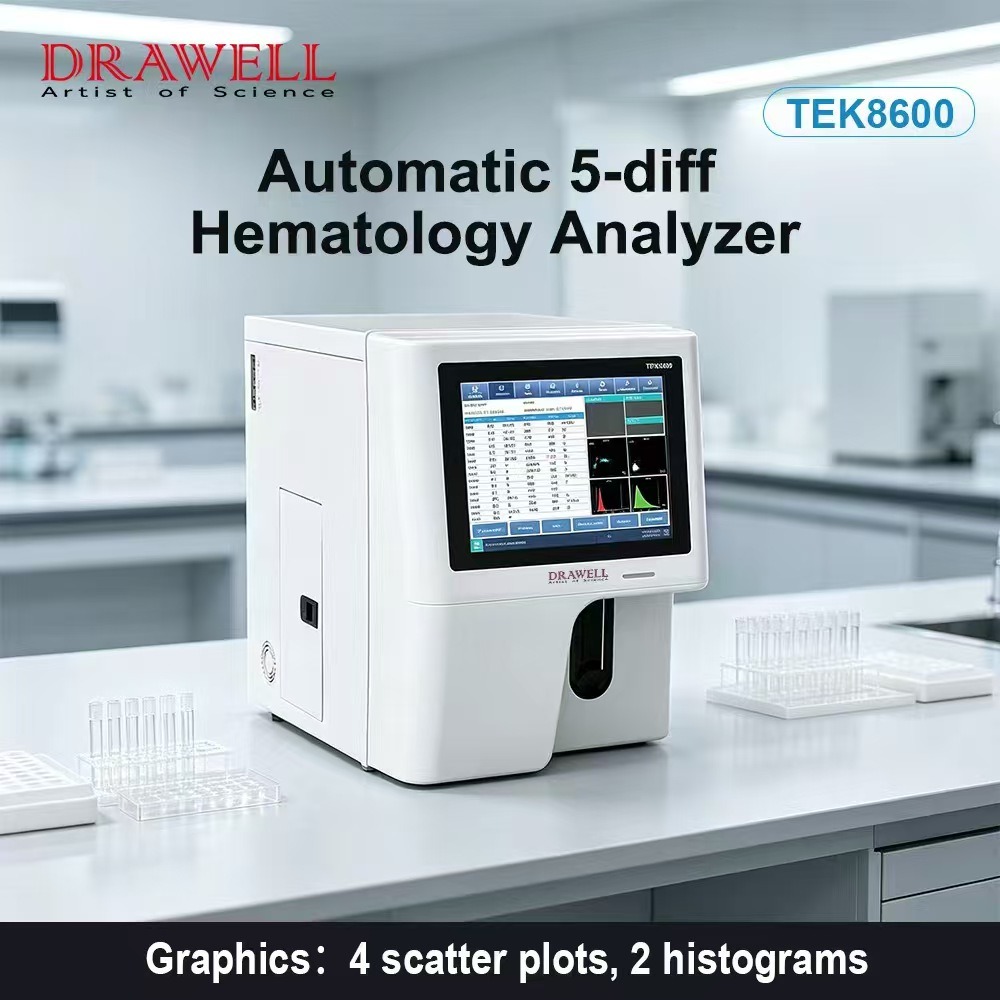

- 4 Scattergrams + 2 Histograms
- 20 μL Sample Volume
- Bidirectional LIS / HL7
Features of TEK8600 Automatic 5-diff Hematology Analyzer
- Compact footprint for outpatient, emergency and space-limited laboratories.

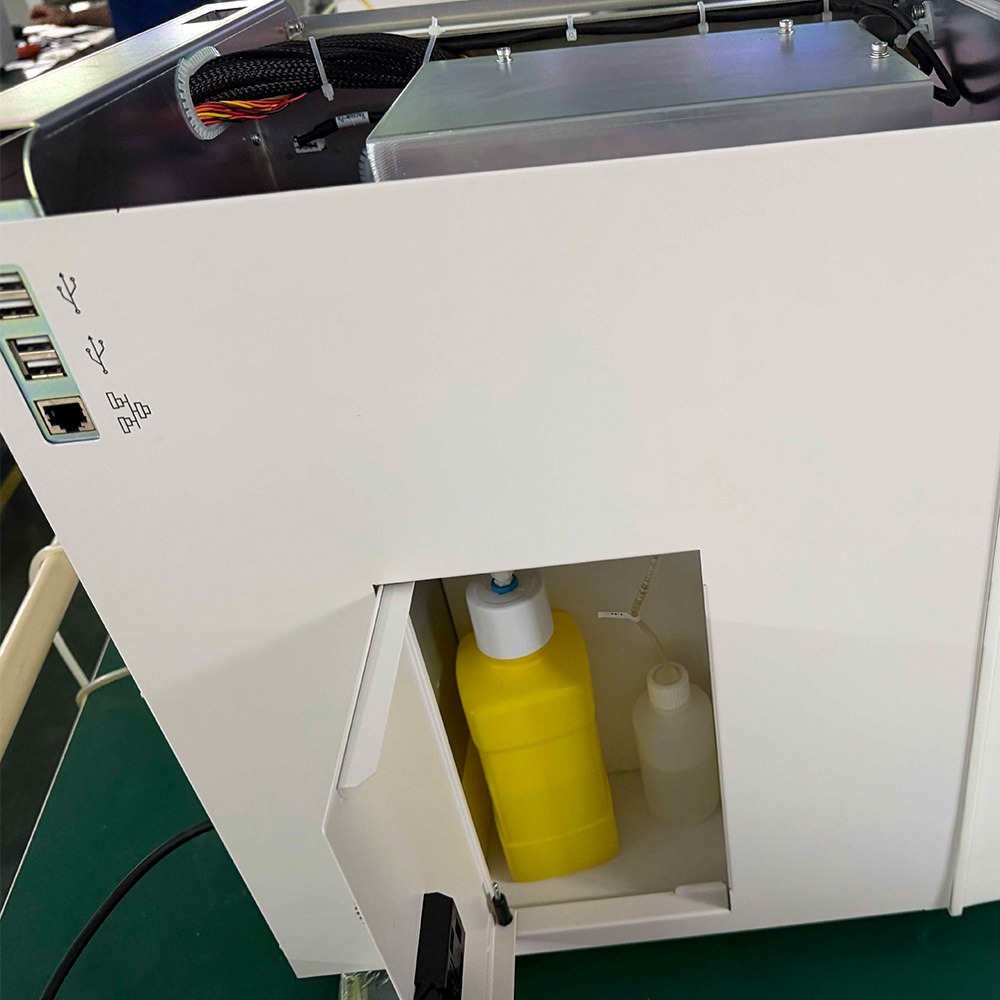

- Integrated hemolytic-reagent design reduces external tubing and helps keep installation cleaner and simpler.

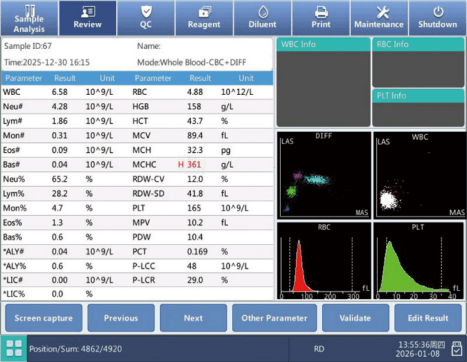

- Large color touch screen with direct operation and multiple result display formats.
- Supports centralized management of reagents, quality control, calibration and patient information, with traceability records.
- Provides abnormal-data alarms to help operators identify results that may require review.
- Supports bidirectional LIS/HIS communication, with optional Wi-Fi and Bluetooth for wireless data transfer and printing.
Main Technical Specifications
Laser scattering sheath flow classification technology
By using semiconductor lasers, the lifespan is longer and the laser signal is stable. Through laser scattering combined with sheath flow technology, information on cell size, nucleus, and particle complexity can be provided, resulting in more accurate classification and counting.

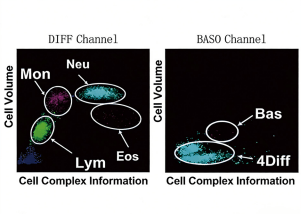

Floating classification technology
Similar white blood cells exhibit high similarity and clear clustering, with relatively fixed positions on the scatter plot. However, due to individual differences in the population, the positions on the scatter plot may fluctuate. Floating classification technology can automatically adapt to changes in the scatter plot, effectively identify the boundaries of various types of cells, and obtain more accurate white blood cell classification results.
Applications of of TEK8600 Automatic 5-diff Hematology Analyzer
- Outpatient Laboratories: Compact 5-part hematology testing where bench space and routine throughput are important.
- Emergency Laboratories: Supports routine hematology workflows requiring 60 samples/hour throughput and direct touch-screen operation.
- Compact Clinical Laboratories: The 325 × 465 × 470 mm footprint allows installation in laboratories with limited workspace.
- Networked Laboratory Workflows: Bidirectional LIS/HIS and optional wireless connectivity support laboratories that require centralized result management.

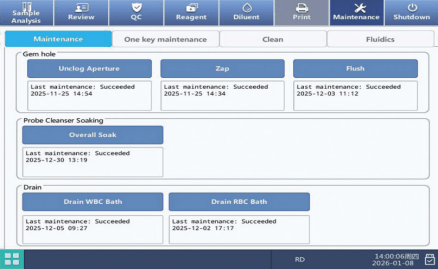

Maintenance
- Easy to operate, one click maintenance and upkeep
- Automatic maintenance can be set as needed
- Automatic fault diagnosis, one click troubleshooting
