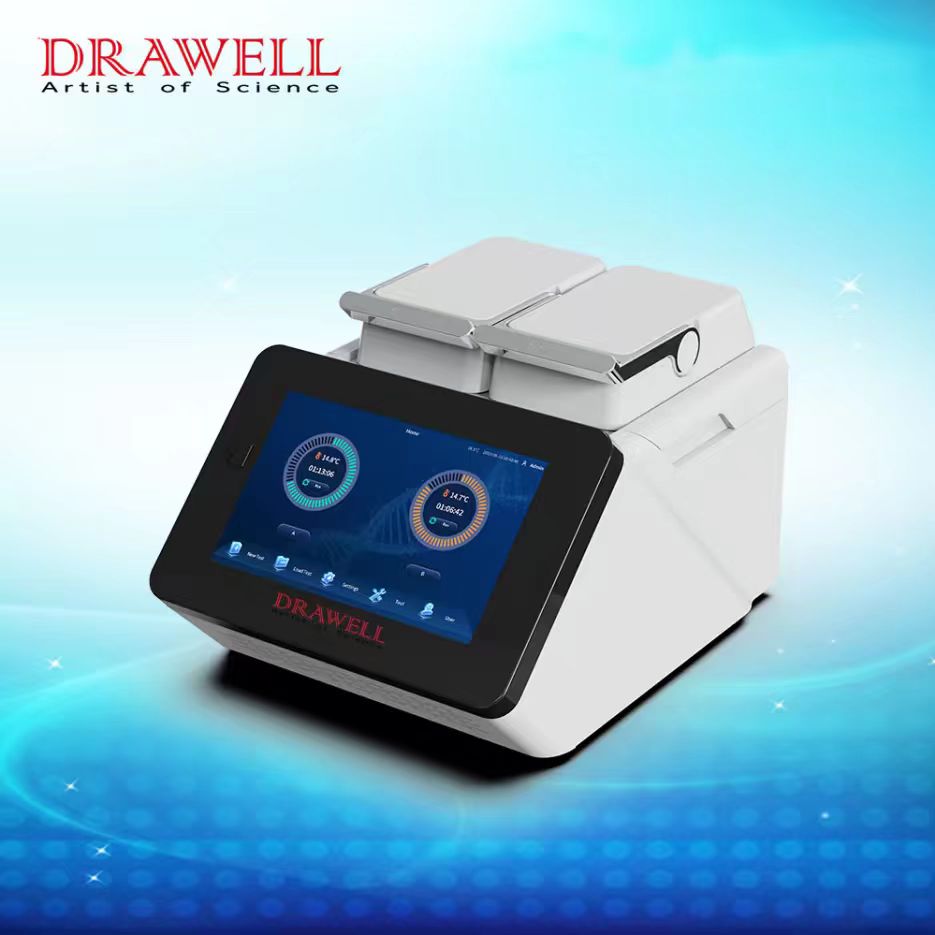

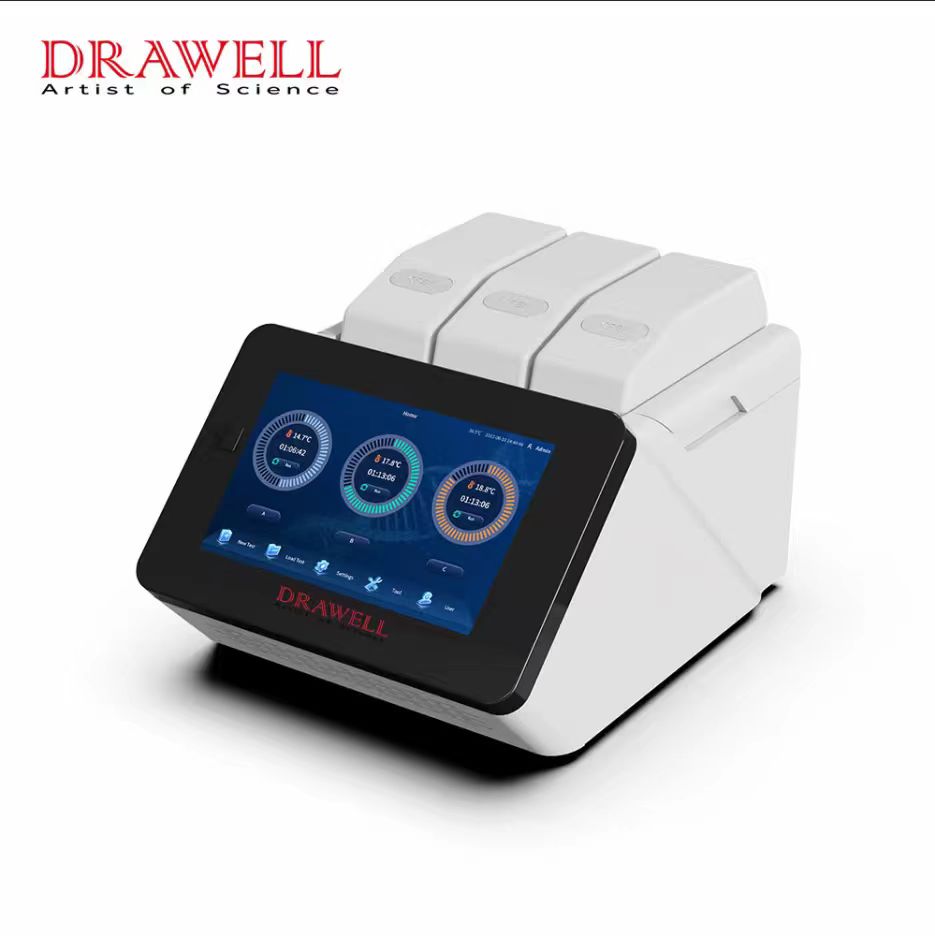

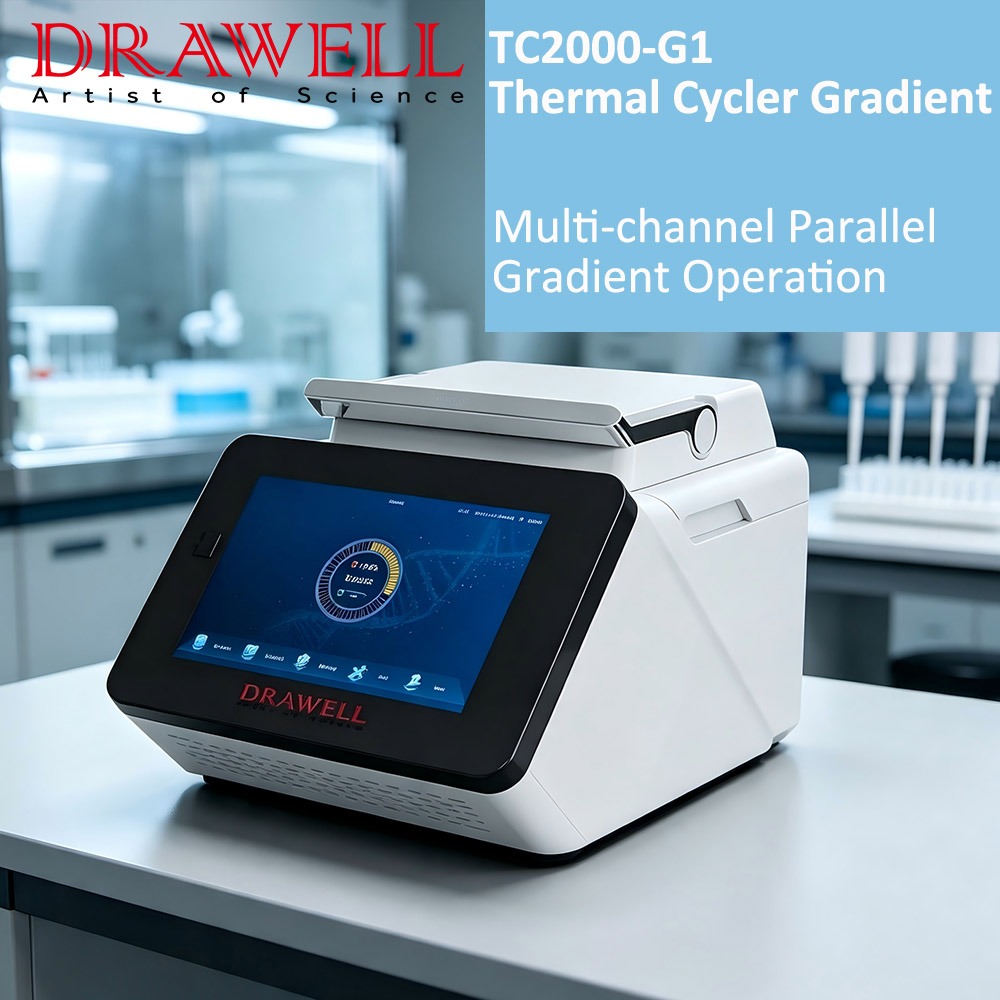

TC2000-G1/G2/G3 Thermal Cycler Gradient

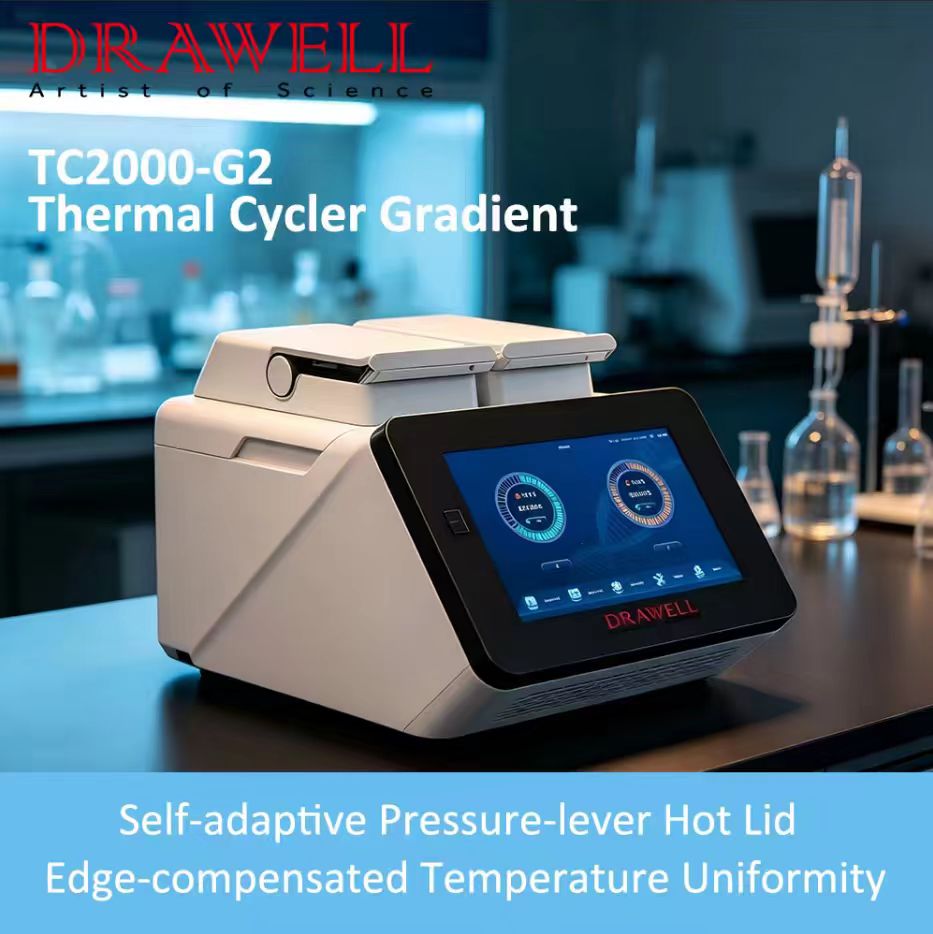

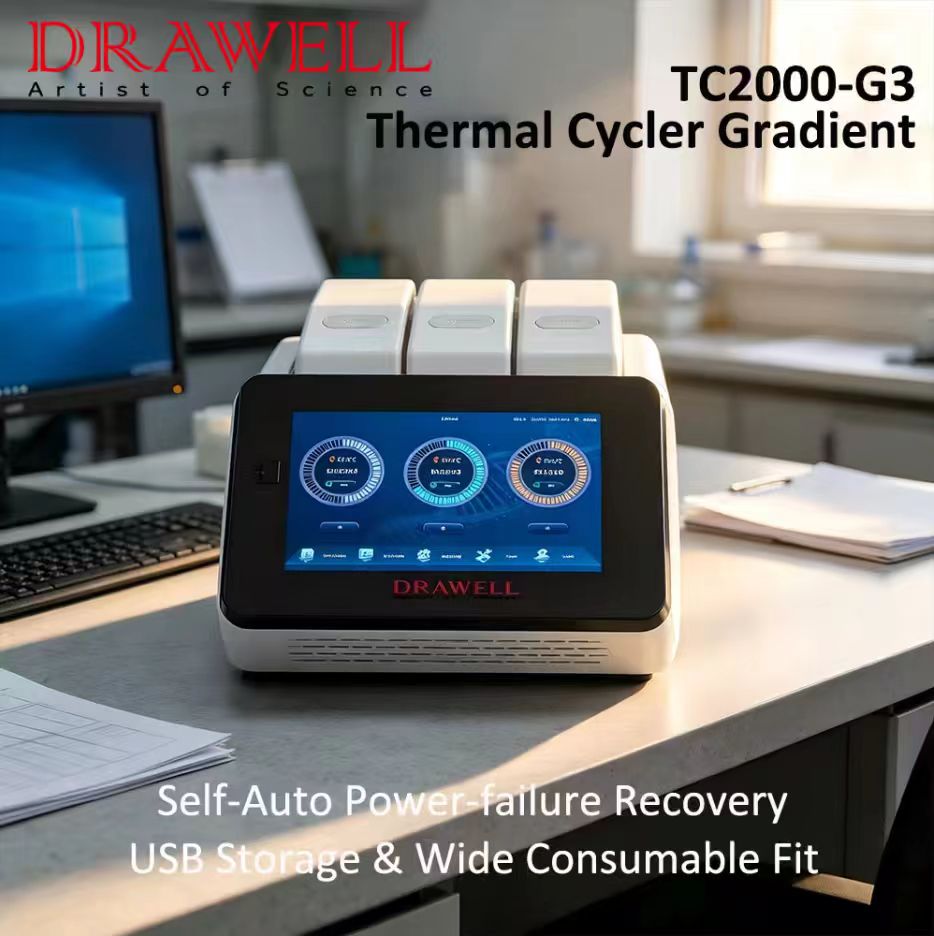

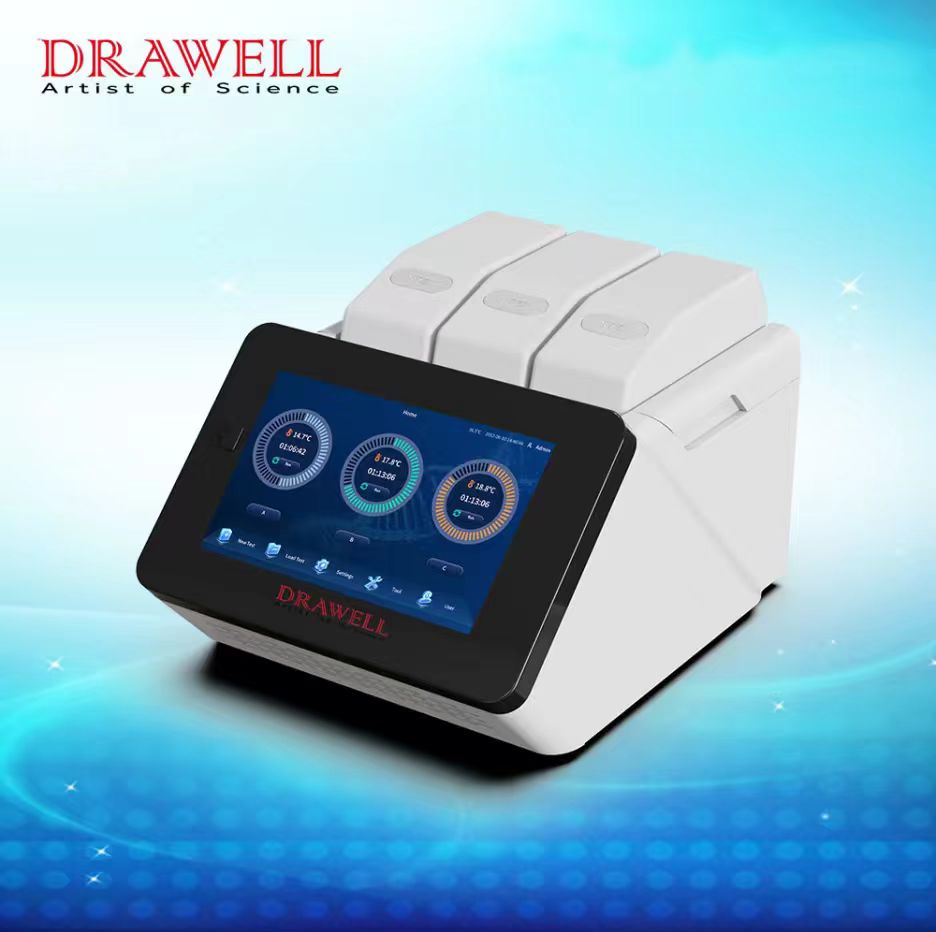

TC2000-G Series is a modular gradient thermal cycler platform available in single-, dual- and three-channel configurations. It is designed for laboratories that need to run one or several PCR programs at the same time while maintaining precise temperature control and flexible gradient settings. These three models differ in terms of channel configuration, module layout, and gradient span.
- 96 Wells
- 5°C/sec
- 1 / 2 / 3 Channels
- 30–105°C Gradient
- 199 Cycles
Features of TC2000-G1/G2/G3

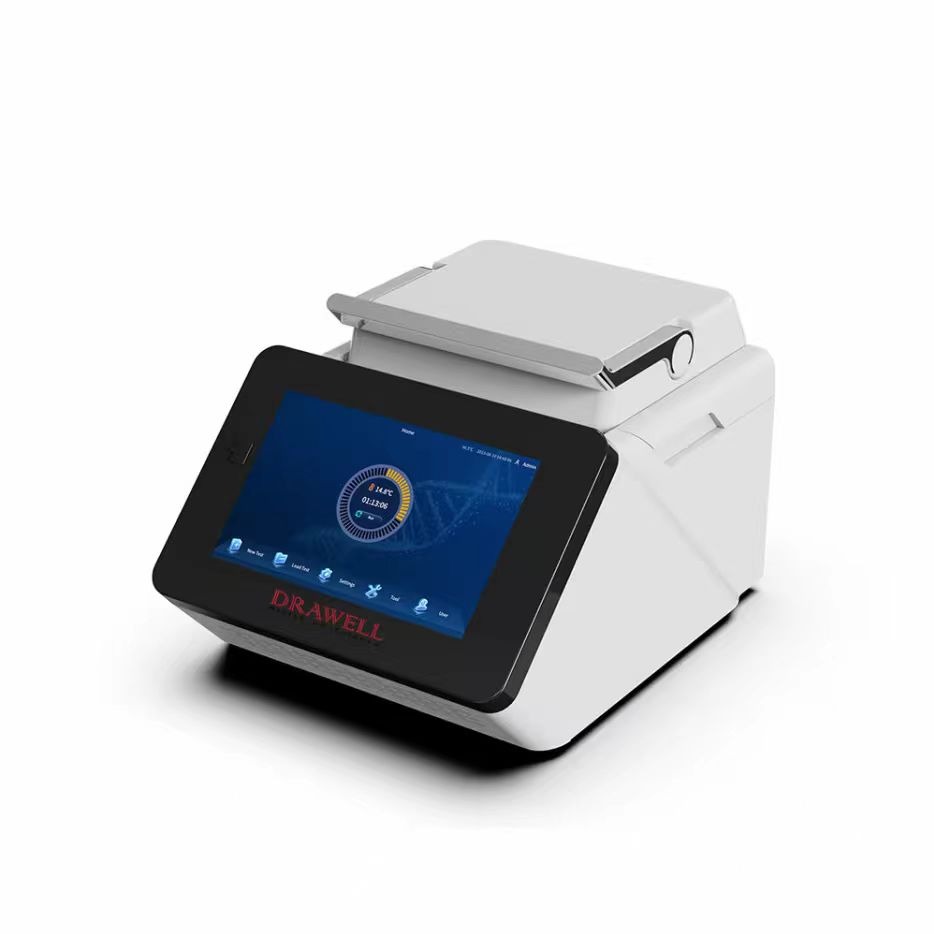

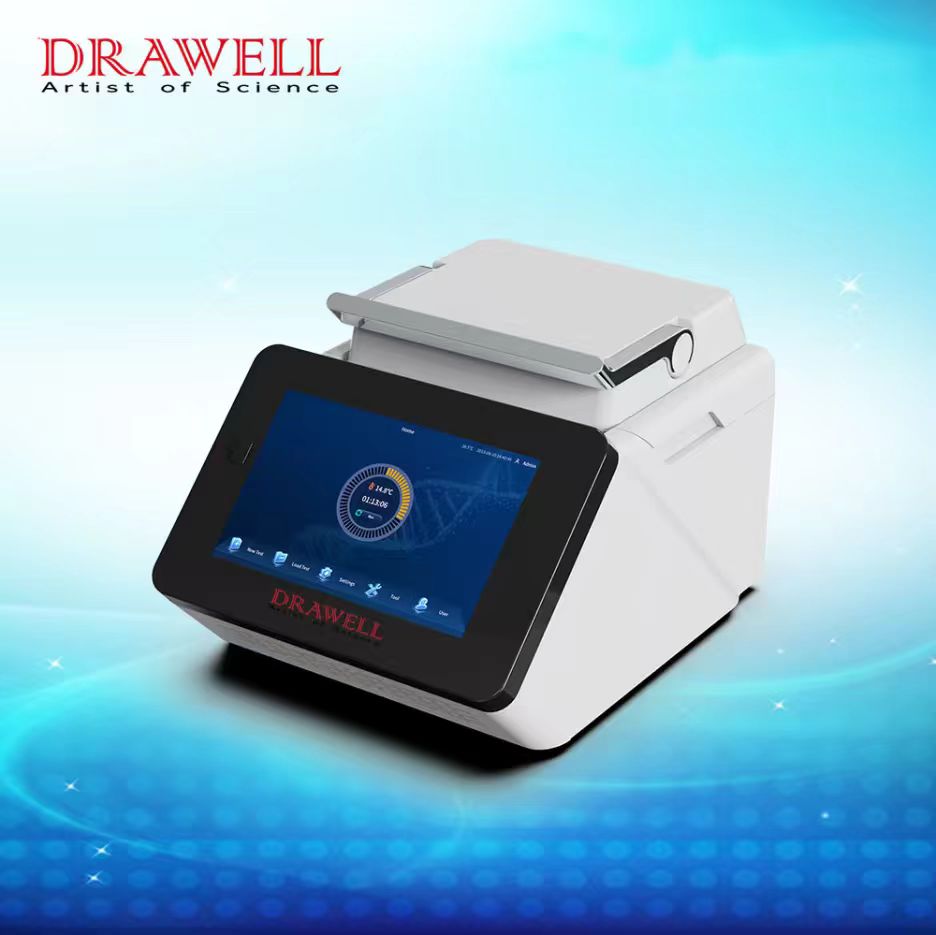

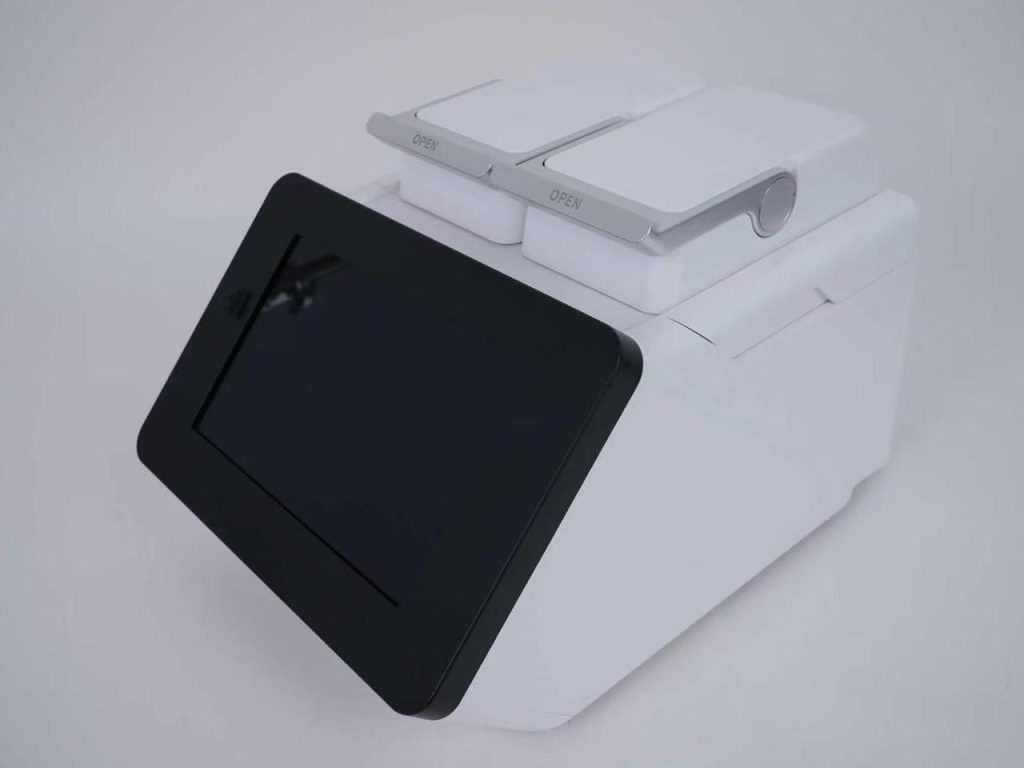

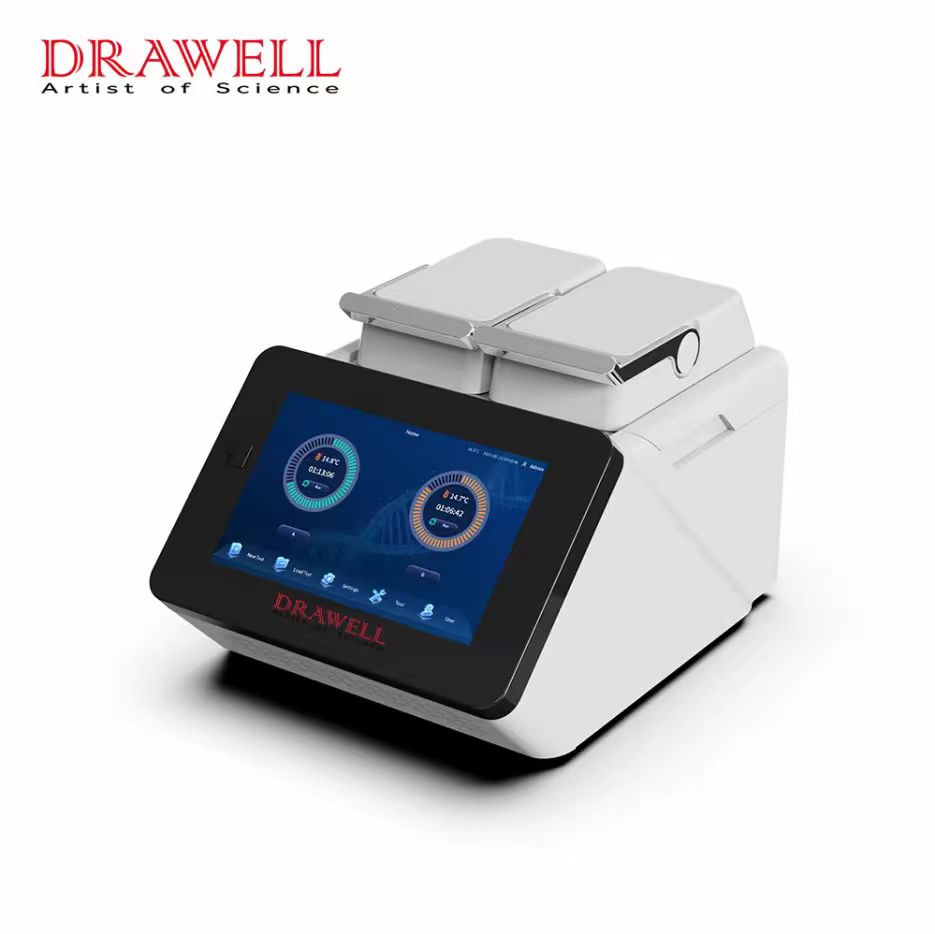

- Single / Dual / Triple Channel Design: Available as G1, G2 and G3 with 1×96, 2×48 or 3×32 modules while maintaining 96-well total capacity.
- Multiple PCR Programs at the Same Time: The multi-channel design allows different PCR gradient programs to run simultaneously across the available channels.
- 30–105°C Gradient PCR: Gradient temperature can be set from 30–105°C, with a gradient span of 1–42°C on G1 and 1–25°C on G2/G3.
- 5°C/sec Temperature Change: Peltier heating and cooling provides a maximum temperature change rate of 5°C/sec.
- Up to 30 Steps & 199 Cycles: Each program supports up to 30 steps and 199 cycles, with real-time progress and remaining-time display.
- 10.1″ Touch Screen + USB / Wi-Fi: The 10.1-inch 1280×800 touch display supports program operation, while USB and Wi-Fi provide data and connectivity options.
Applications of TC2000-G1/G2/G3
TC2000-G1/G2/G3 is an indispensable laboratory instrument in the field of molecular biology, which can be used for gene sequencing, gene cloning, gene expression, mutation, and plays an important role in various fields such as agriculture,food testing, environmental science, drug development and so on.
Medical Research
For pathogen detection, e.g. gene identification of viruses, bacteria and fungi, mutation analysis of disease-associated genes, gene expression analysis in cancer research, etc.
Biological Research
Genotyping, gene cloning, species identification, evolutionary analyses, and other studies
Forensic Science
DNA analysis of crime scene samples to help identify suspects and provide a basis for public security case detection
Agricultural sector
For genetic research on crops and livestock, e.g. breed improvement, genetic disease detection, etc.
Food testing
Detection of pathogenic bacteria, genetically modified ingredients in food, etc.
Environmental Science
Analysing microbial communities in the environment and detecting genetic effects of pollutants on organisms
Drug Development
Screening of drug targets, assessment of drug effects on gene expression
Genetic studies
Conducting diagnosis and research on human genetic diseases
Palaeontology
Analyses species identification and classification, development and evolution, extinction event studies and the origin of species in ancient organisms

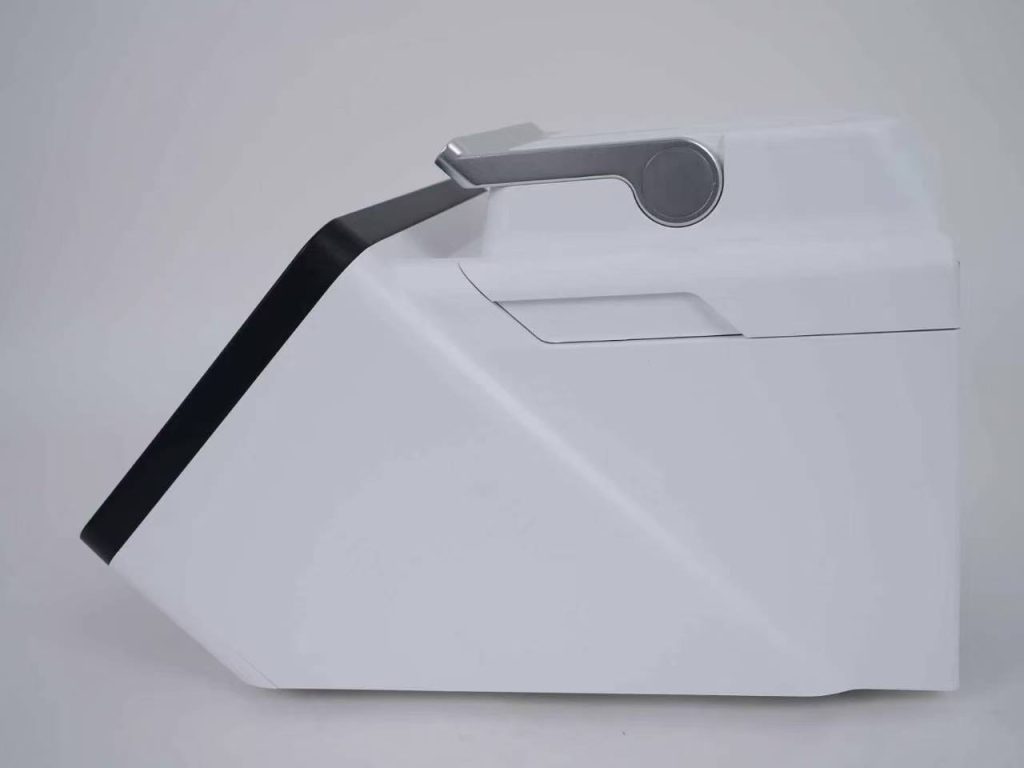

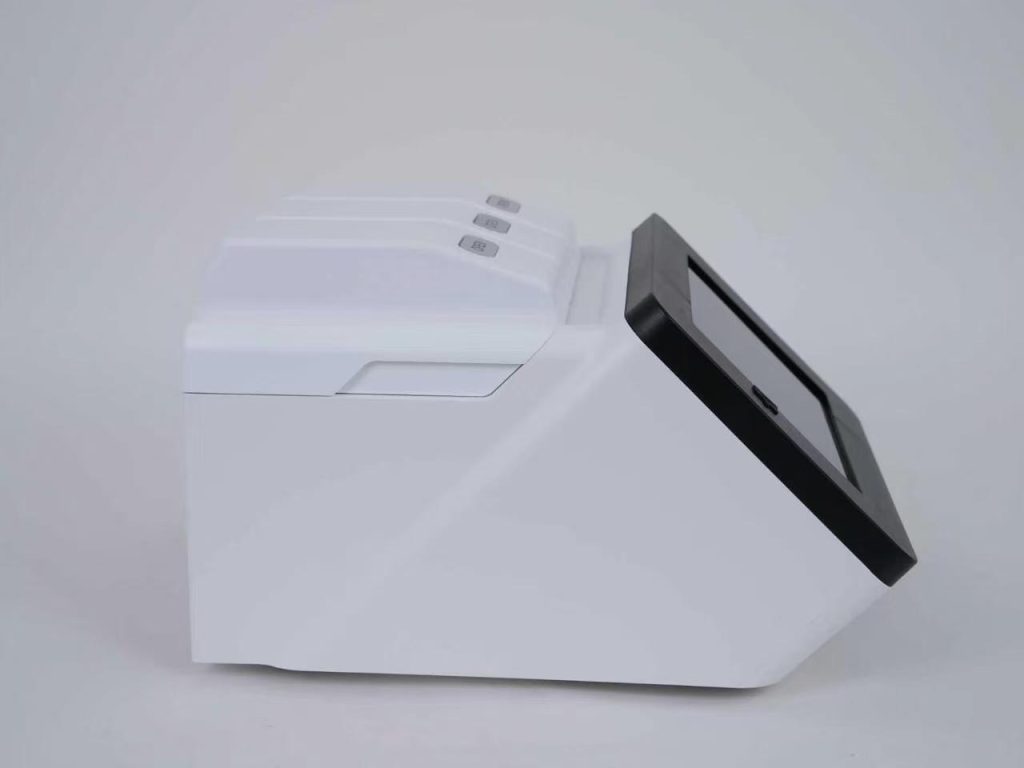

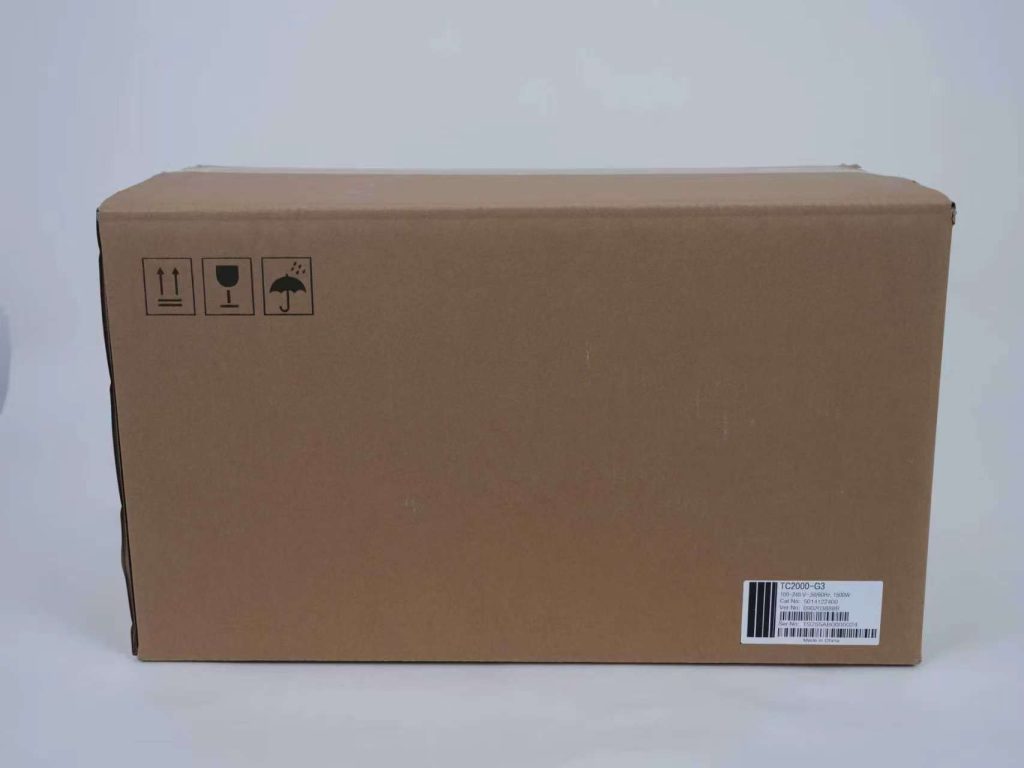

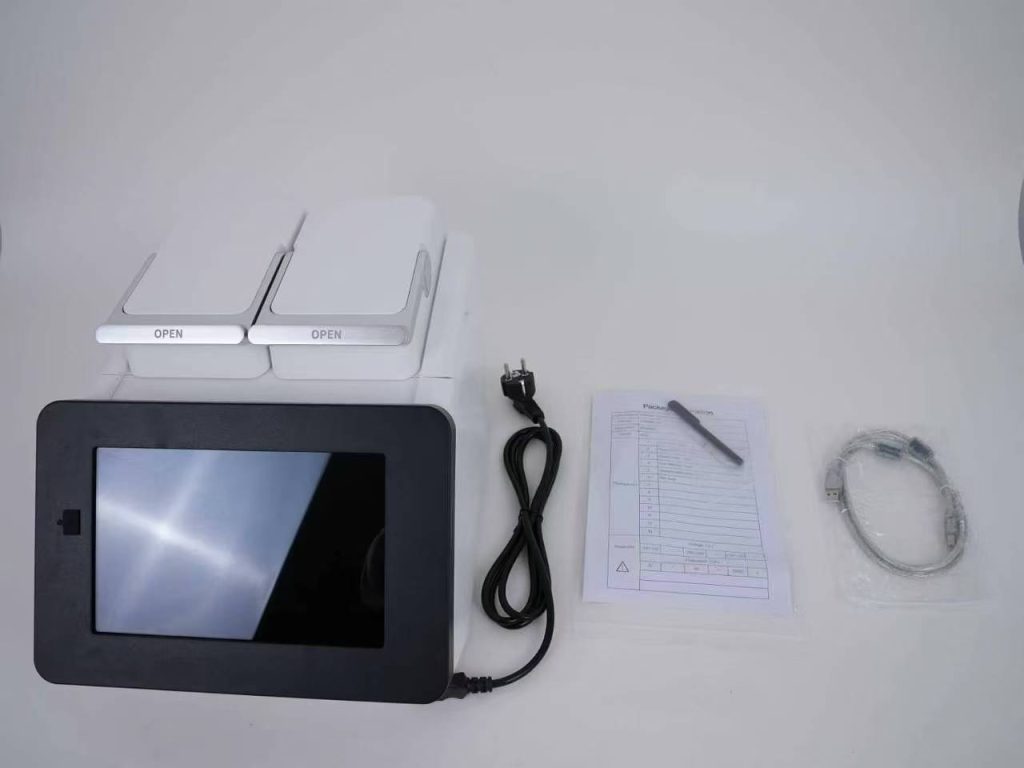

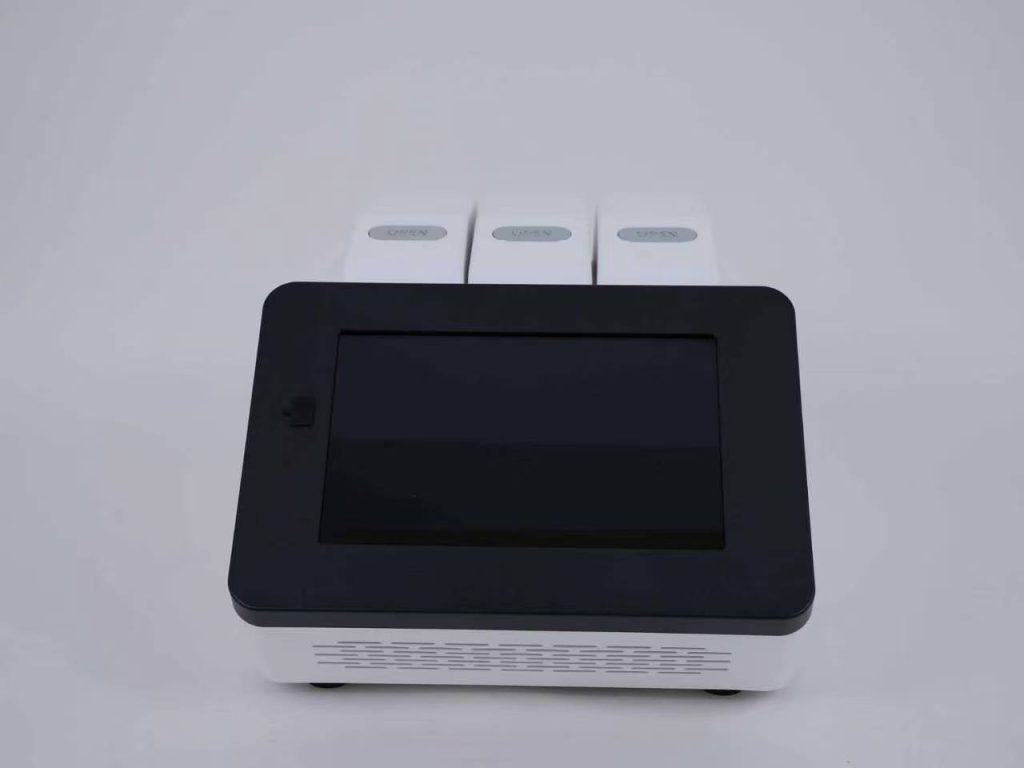

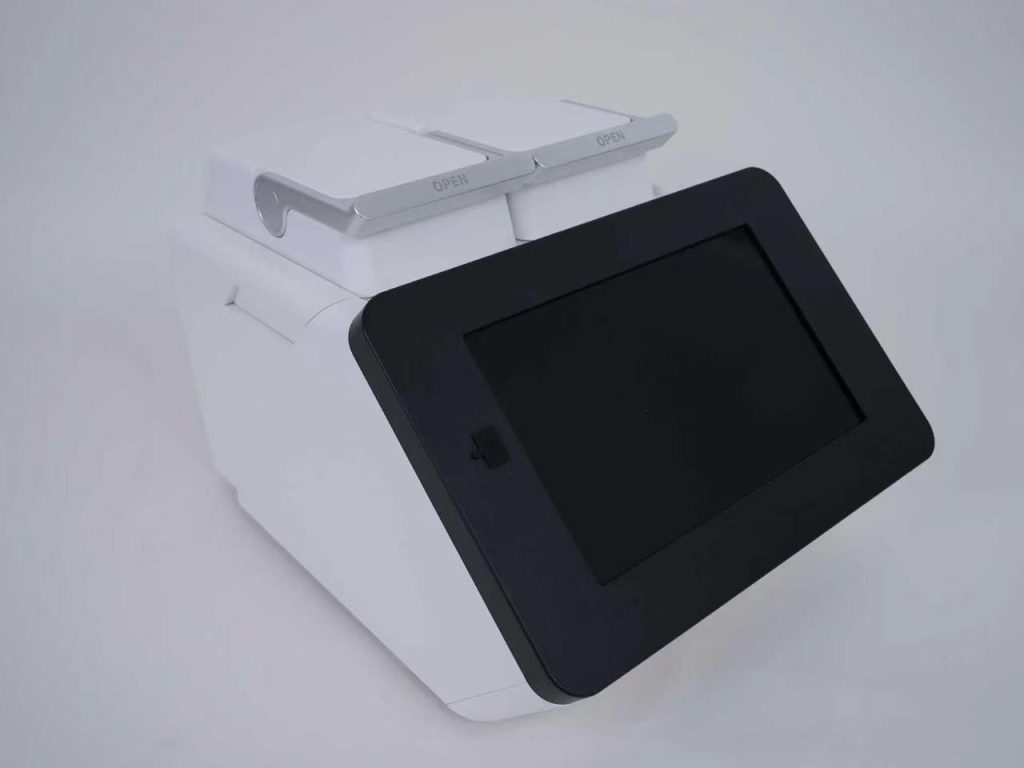

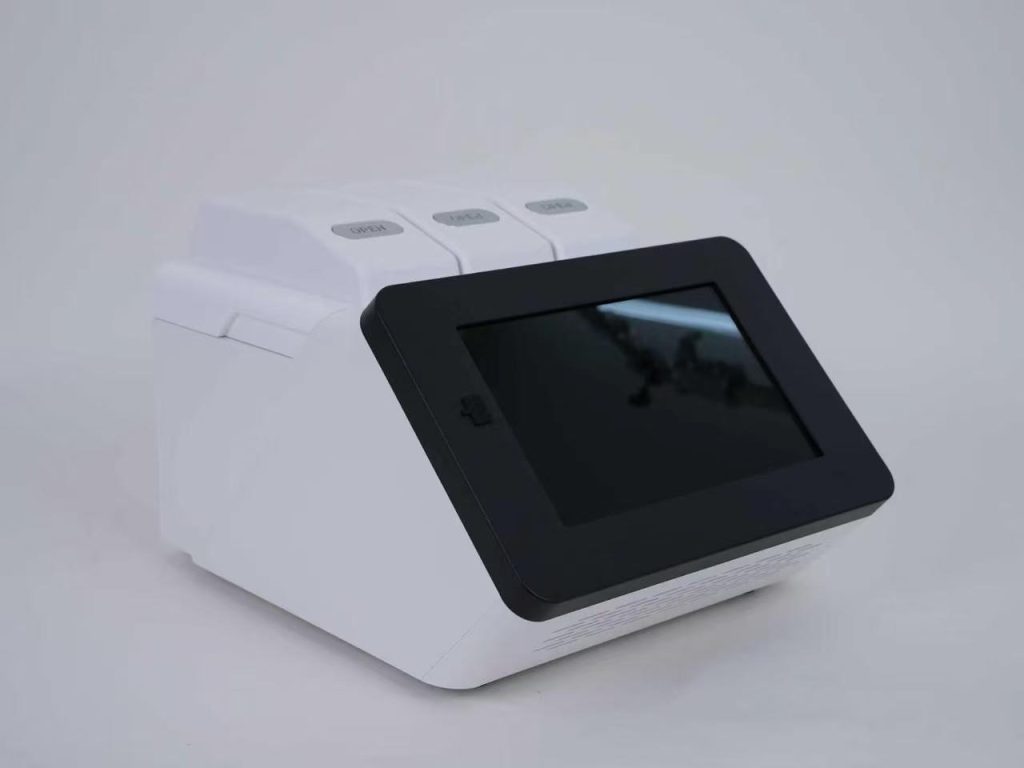

Product Display
