Portable Real-Time PCR System Gentier-Mini

Gentier-Mini is a compact real-time PCR system designed for small-batch molecular testing in mobile laboratories, compact laboratories and on-site testing environments. It combines dual-channel fluorescence detection with a 16-well thermal block and standalone result analysis, making it suitable for workflows where portability and rapid setup are important. Widely used in food safety, infectious disease prevention, and control, scientific research, animal diseases, environmental monitoring, etc.

  • 16 Wells
  • 1 s Scan
  • 2 Fluorescence Channels
  • 3.2 kg Net Weight

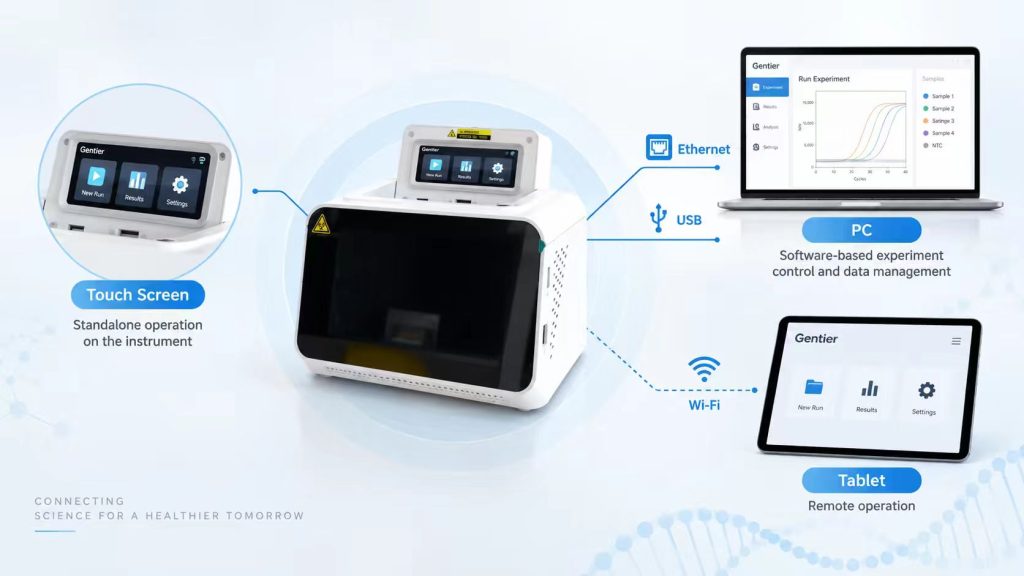

Features of Portable Real-Time PCR

Features of Portable Real Time PCR

Thoughtful design

  • Compact size, 3.2kg, hand-held, easy to carry.
  • 7-inch high-definition LCD touch screen, for your smooth operating experience.
  • Patented design, no need for fluorescent calibration after moving.
  • Instant power failure protection, seamless automatic recovery of the operation, and no fear of unexpected situations.

High efficiency testing

  • 16-well dual-color fluorescence scanning within 1 second, to fight for your results against time.
  • Independent temperature control module, supporting touchdown PCR, long-range PCR, qualitative and quantitative, melting curve, SNP site analysis, etc.
  • The software analysis function is powerful, to meet the diverse testing needs of customers in various fields!

Easy to operate

  • Special shortcut mode, preset programs for convenient and fast testing.
  • Various ways to stay online: Internet interface, USB, WiFi.
  • It can directly analyze the data in the stand-alone state, and the results are printable immediately after connecting to the printer.
  • Various control modes including stand-alone, PC, and table for the applications of multiple scenarios.

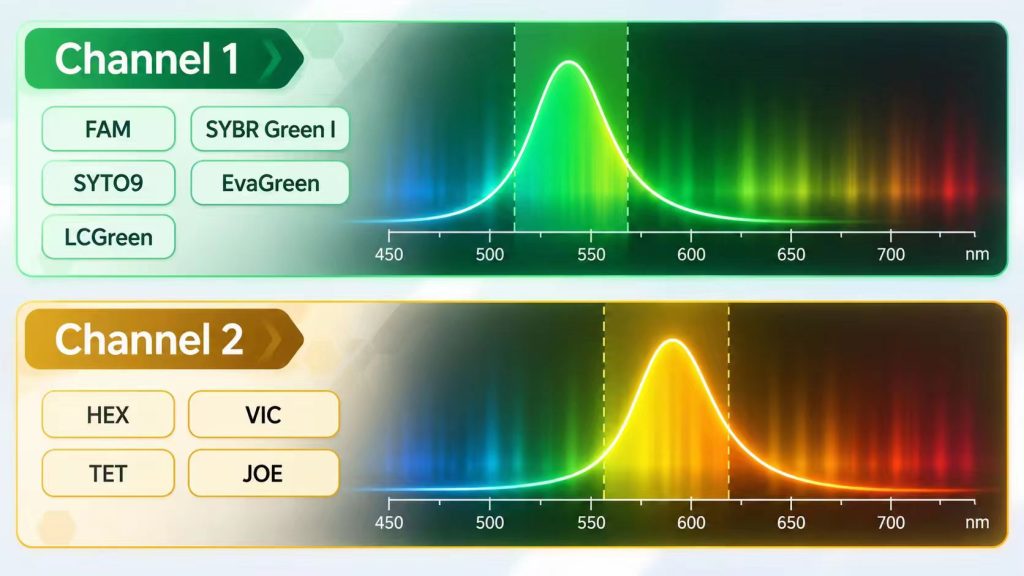

Dual-Channel Fluorescence Detection

Dual Channel Fluorescence Detection

Applications of Portable Real-Time PCR

  • Animal Disease Testing: Portable real-time PCR workflows for applicable animal-health testing.
  • Food Safety Testing: Small-batch molecular testing for food-related laboratory workflows.
  • Infectious Disease Research & Testing: Real-time PCR workflows for applicable nucleic-acid detection applications.
  • Environmental Monitoring: PCR-based molecular analysis of environmental samples.
  • Scientific Research: Qualitative and quantitative nucleic-acid analysis in molecular biology research.
Applications of Portable Real Time PCR System Gentier Mini

Portable Real-Time PCR Display

Mini-PCR
Mini-PCR
Mini-PCR
Mini-PCR
Real-Time PCR

FAQ

Gentier-Mini supports 16 samples per run.

It provides 2 fluorescence channels for dual-color real-time PCR detection.

Fluorescence information from all 16 wells can be acquired within 1 second.

Channel 1 supports FAM / SYBR Green I / SYTO9 / EvaGreen / LCGreen, while Channel 2 supports HEX / VIC / TET / JOE.

The manufacturer specifies that fluorescence recalibration is not required after relocation.

Yes. The built-in 7-inch touch screen supports standalone operation and result analysis.

It supports 0.2 mL single PCR tubes and 0.2 mL 8-strip tubes.

The power-off protection function allows the unfinished experiment to continue after restart.

Specifications of the Portable Real-Time PCR

Sample Throughput16Fluorescence Channels2
Suitable Consumables0.2mL transparent single tubes and 8-strip tubes
Compatible FluorophoresChannel1:FAM,SYBRGreenⅠ,SYTO9,EvaGreen,LCGreen
Channel2:HEX,VIC,TET,JOE
Heating RateAverage heating rate of 3.3℃/s; maximum heating rate of 5.0℃/s.
Cooling RateAverage cooling rate of 3.0℃/s; maximum cooling rate of 4.0℃/s.
Temperature Accuracy≤0.1℃
Light sourceHigh-brightness, long-life, maintenance-free LED light source
Detection DurationFluorescence channel information acquisition within 1 second for all holes.
Temperature- Controlled Supporting conventional PCR, touchdown PCR, long-range PCR, etc.
Programs
Hot Lid Temperature40℃-110℃
Software Analysisqualitative analysis, absolute quantitative analysis,
relative quantitative analysis,
endpoint fluorescence analysis,
dissociation curve analysis, and SNP analysis, etc.
Disisplay7-inch full-color HD LCD capacitive touch screen
Control MethodsModel 1: touch-screen of Gentier-Mini, with at least 1000 times storage data stand-alone.
Model 2: computer software
Model 3: remote control via tablet
Result AnalysisThe results can be analyzed directly on Genter-Mini and can be printed out directly when connected to a thermal printer.
The results can also be analyzed through PC software depending on your preference.
Network ConnectionInternet interface, USB, WiFi
Power Failure ProtectionInstant power failure protection seamless automatic recovery of the experiment when restarted.
Specifications and Weight205mm(L)*156mm(W)*153mm(H)); 3.2kg
