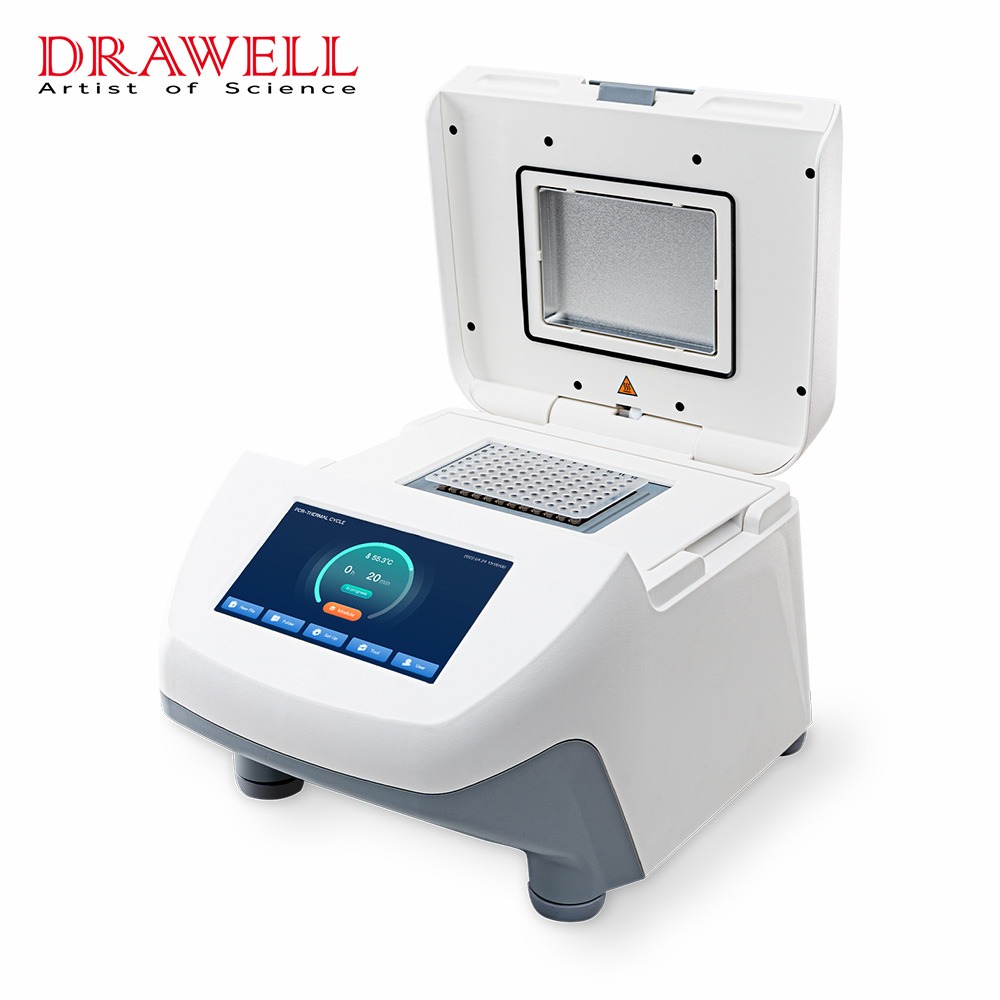

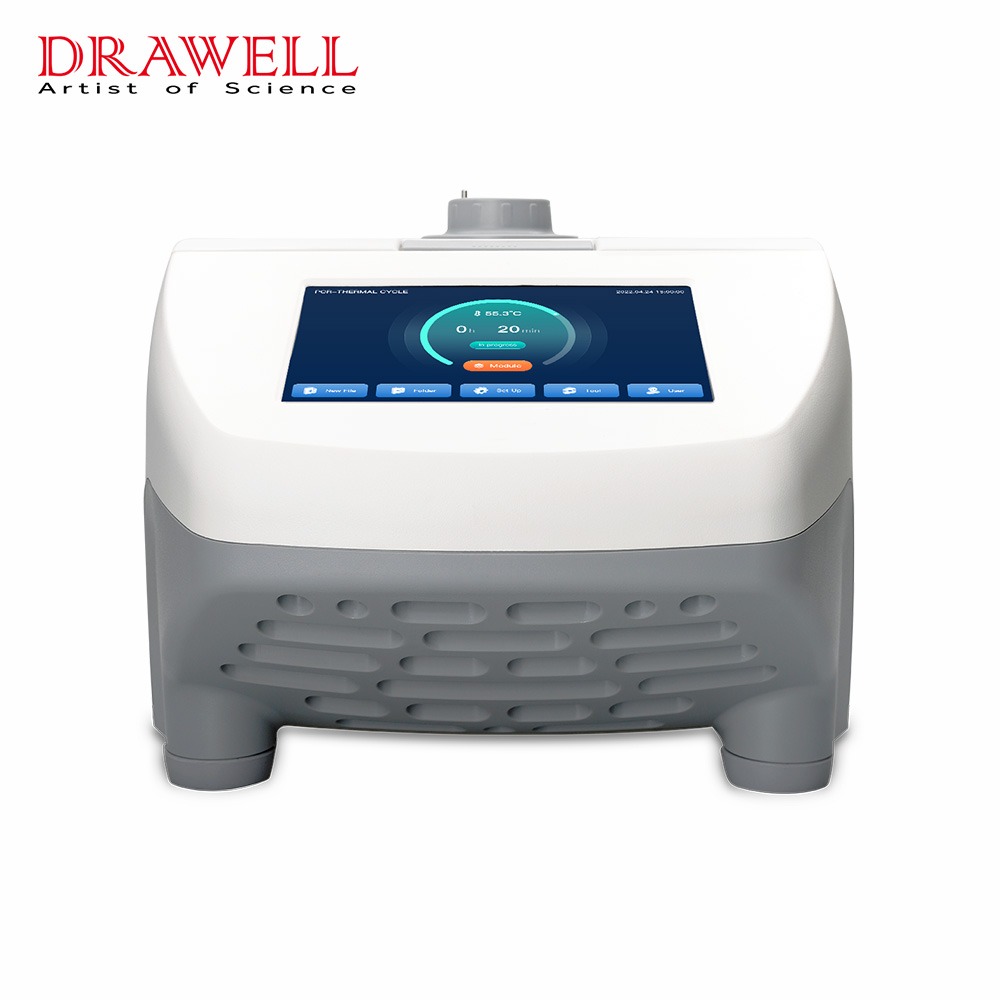

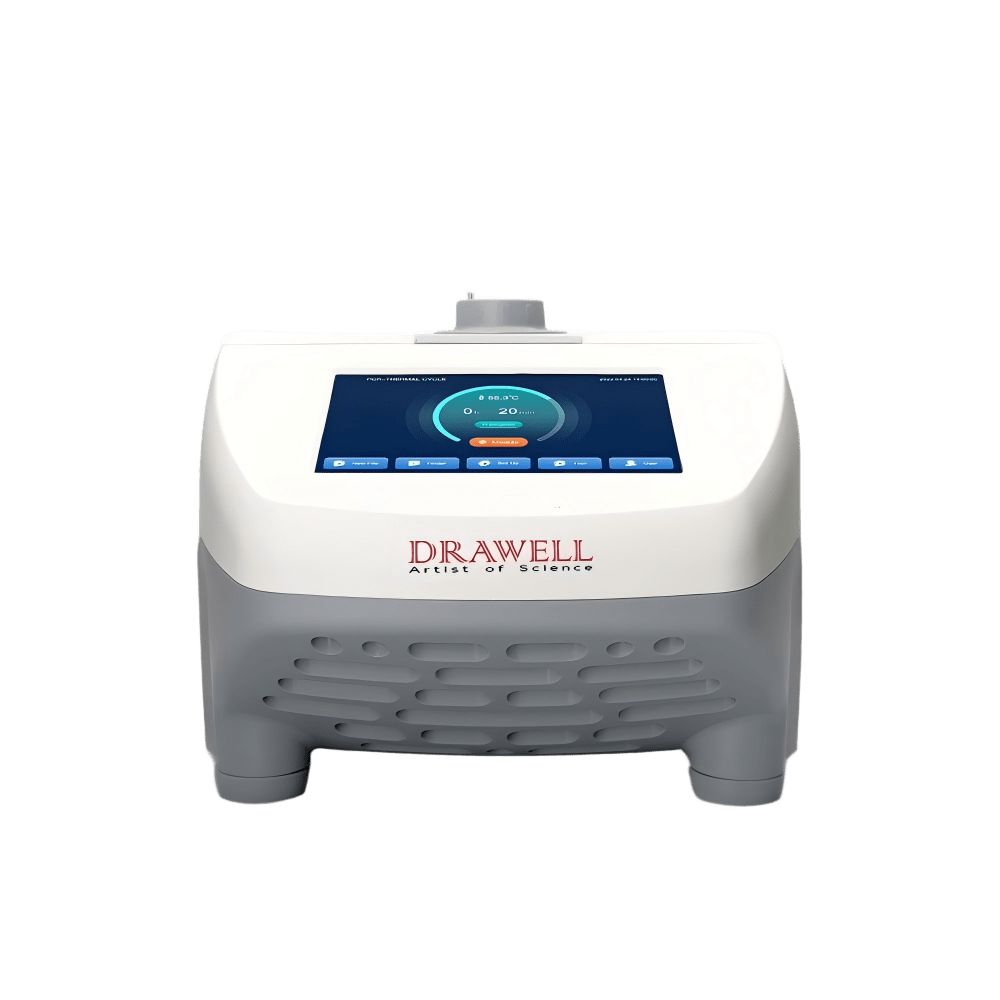

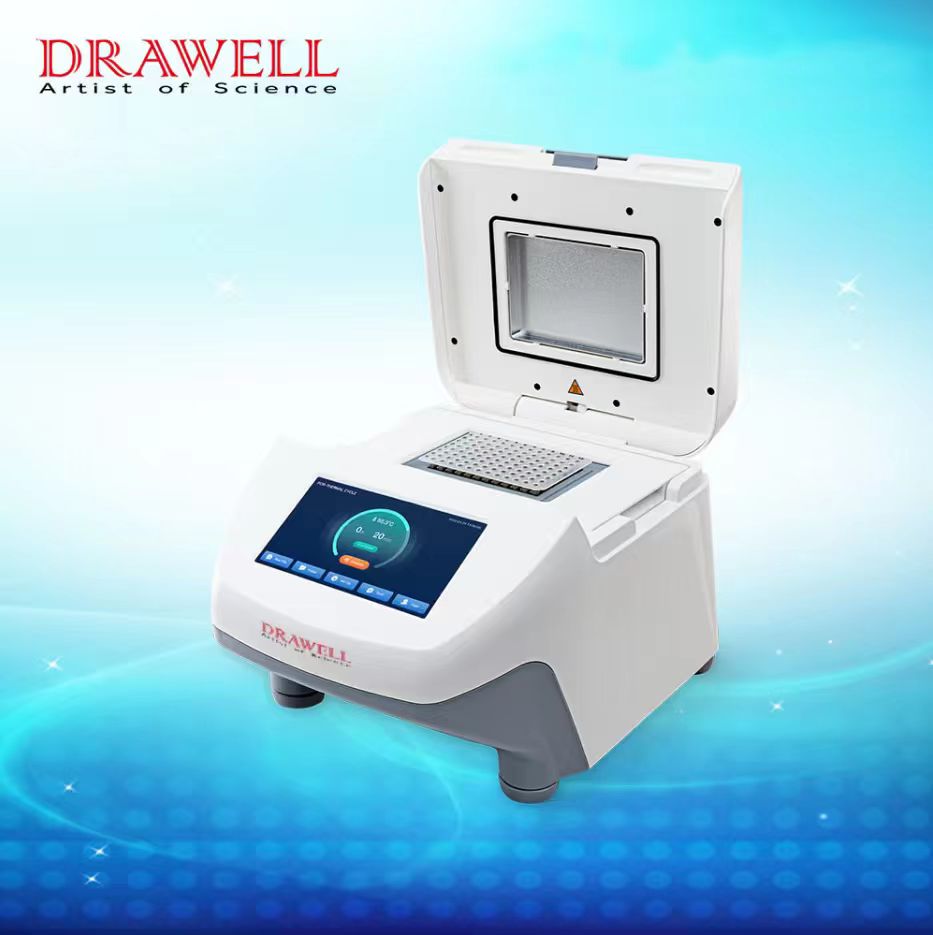

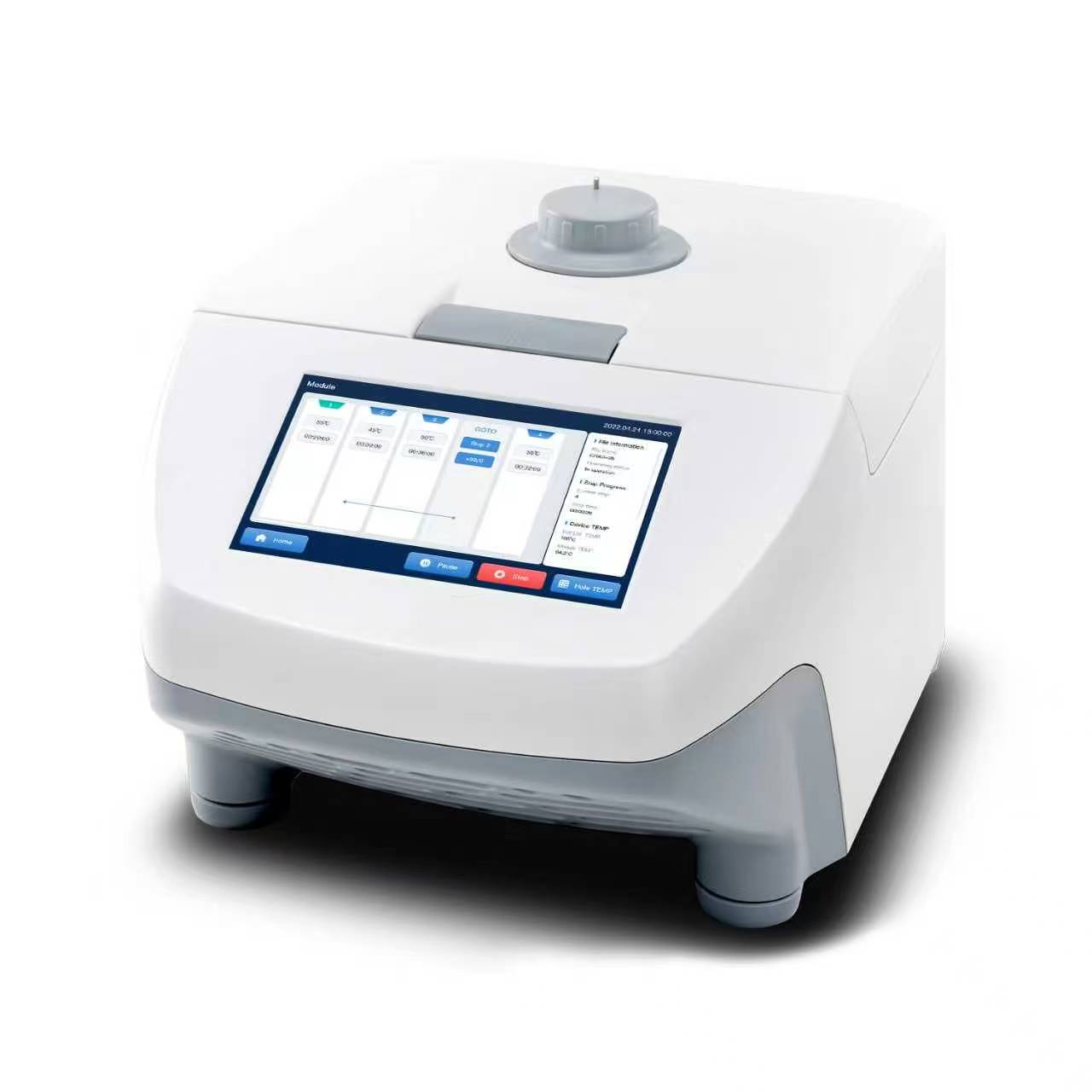

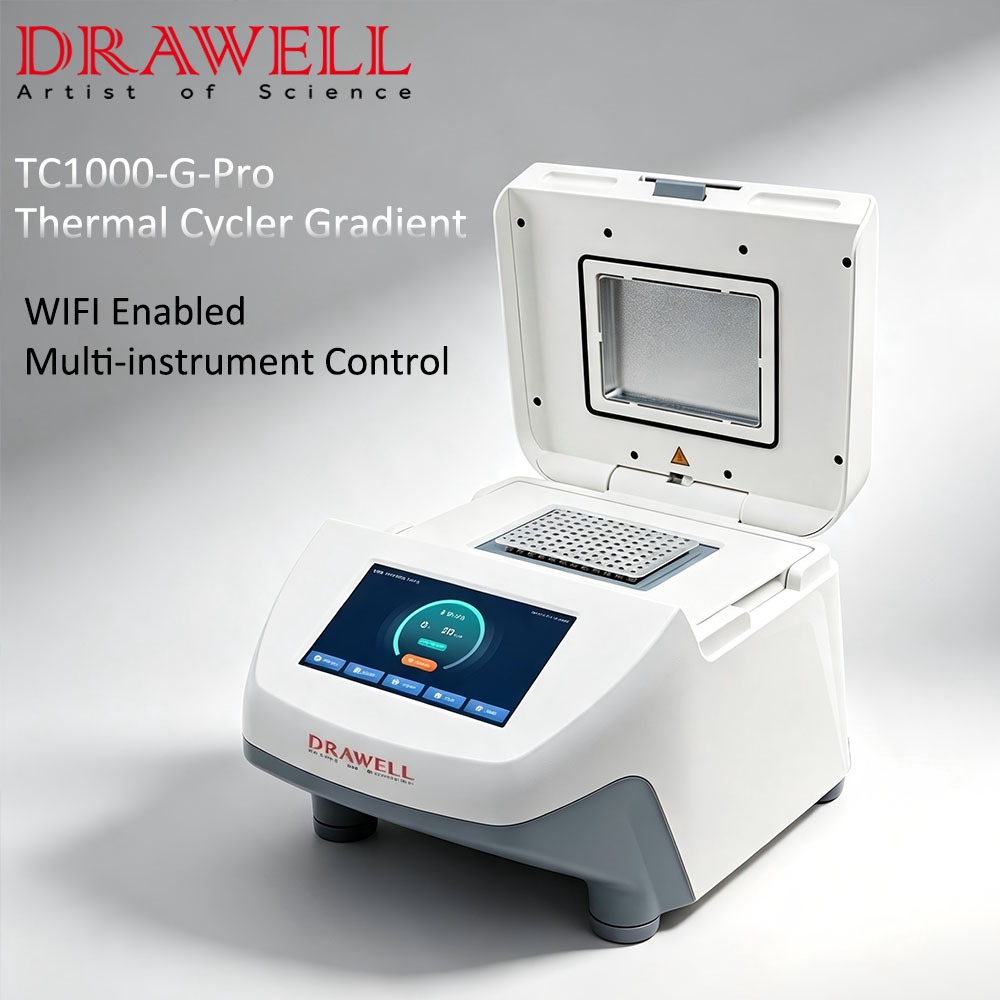

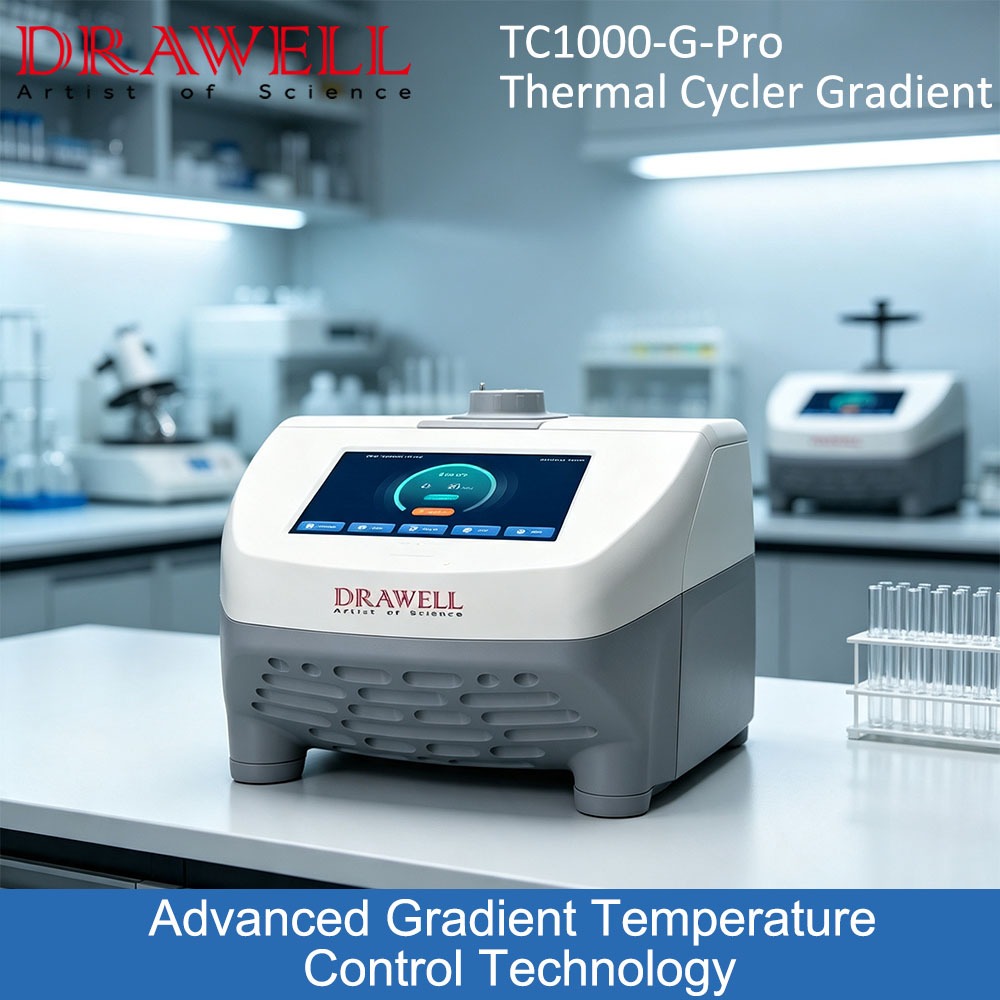

TC1000-G/S Gradient PCR Thermal Cycler

Thermal cycler is an essential laboratory instrument in the field of molecular biology research such as sequencing, gene cloning, gene expression, mutagenesis applications, and applied market like drug discovery, agriculture, food industry, etc.

Features:

  1. High-performance long-life Peltier and independent control circuits for different heating segments implement accurate temperature control
  2. The auxiliary heating mechanism diminishes the “edge effect” and enhances the temperature uniformity.
  3. Wide touchdown PCR temperature range (-9.9°C~+9.9°C) and Long PCR time range (-9min59s~+9min59s)
  4. Gradient temperature setting supported, optimizing temperature easily in the single run.
  5. The user-friendly interface on a 7-inch color touch screen enables you to edit the program very simple
  6. The PCR touch screen pen improves the operation experience and reduces the cross-contamination risk.

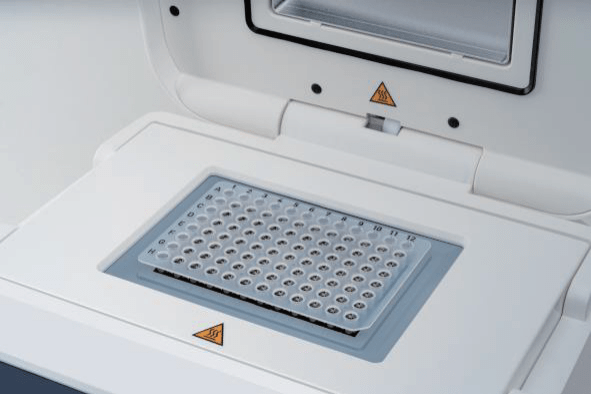

  7. Wide options of consumables common PCR tubes, 8-well PCR strips, and 96-well PCR plates can be used.
  8. File customization, multi-file storage

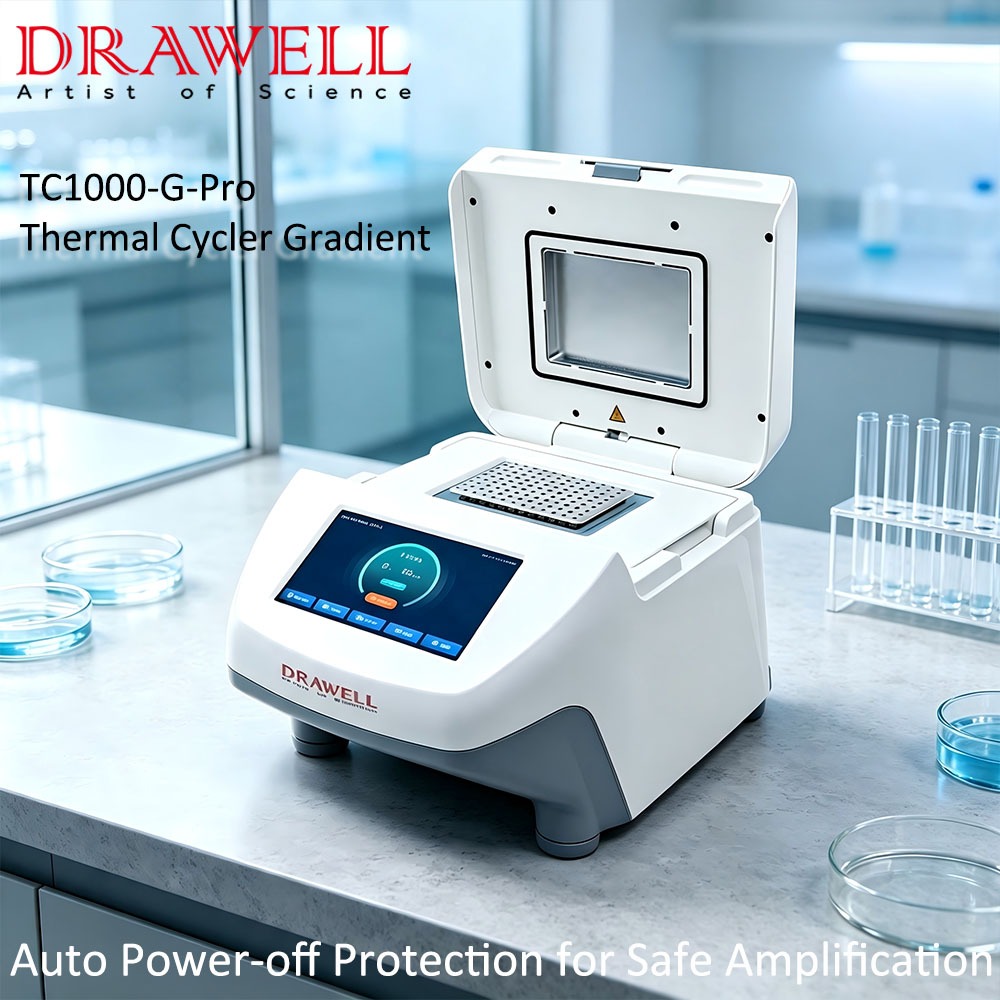

  9. Power-off protection function, automatic program recovery
  10. Hot lid auto-off function: If the module temperature is lower than 30°C, the hot lid function will automatically turn off.

Specifications of the Product

Specifications

TC1000-G

TC1000-S

Sample Capacity

96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate

96X0.2mL PCR tube,  8X12 PCR plate or 96 well plate

Heating Temperature Range

4-105℃

4-105℃

Lid Temperature Range

30-110℃

30-110℃

Temperature Display Accuracy

±0.1℃

±0.1℃

Temperature Control Accuracy [at 55℃]

±0.3℃

±0.3℃

Temperature uniformity[at 55℃]

<0.3℃

<0.3℃

Max. Heating/Cooling Rate

3℃Sec

3℃/Sec

Gradient Temperature Setting Range

30-99℃

aluminum

Gradient Range

1-42℃

7” LCD 800×480

Adapter block material

aluminum

Touch panel

Display

7” LCD 800×480

Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder

Input

Touch panel

Yes

User defined file system

Max. 30 segments 99 cycles  max. 16 folder and 16 files each folder

100-120V/200-240V,50/60Hz

Power off protection

Yes

280x370x250 mm

Power Supply

100-120V/200-240V,50/60Hz

11kg

Dimension [D×W×H]
( without the heating block )

280x370x250 mm



Weight

11kg

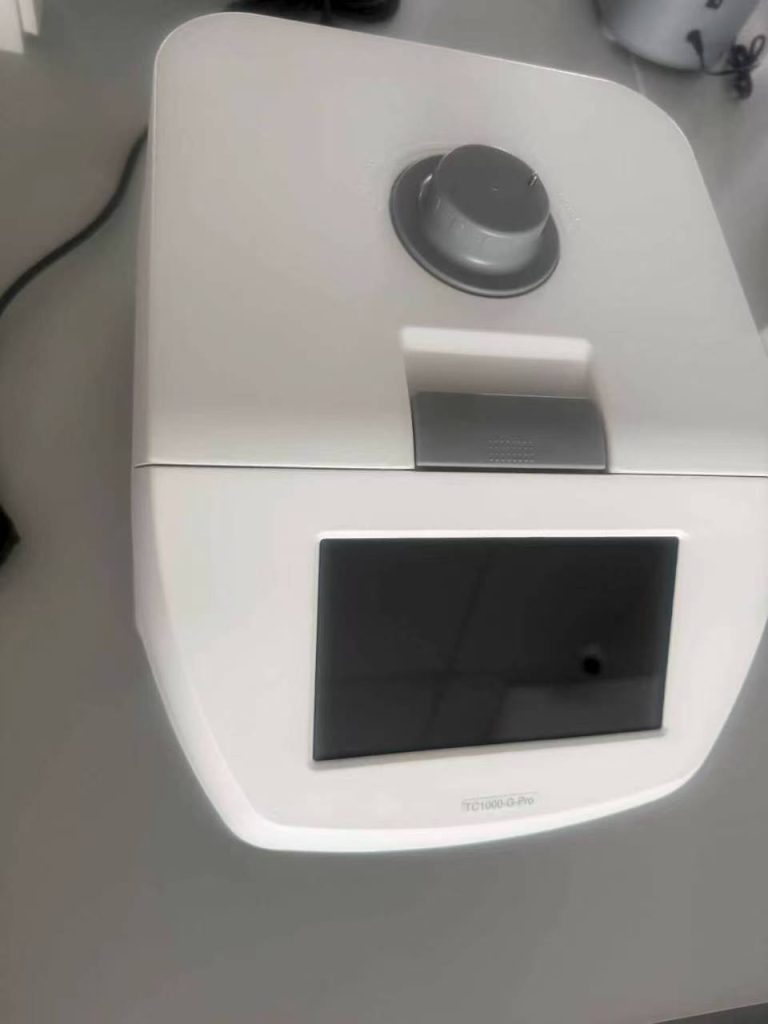

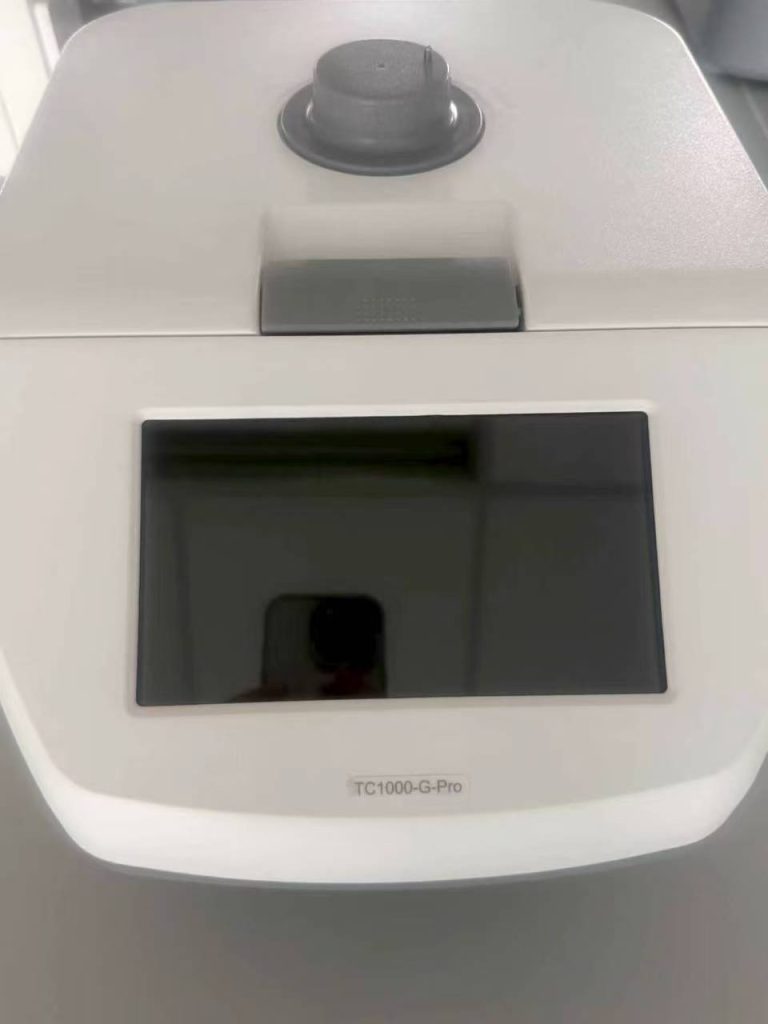

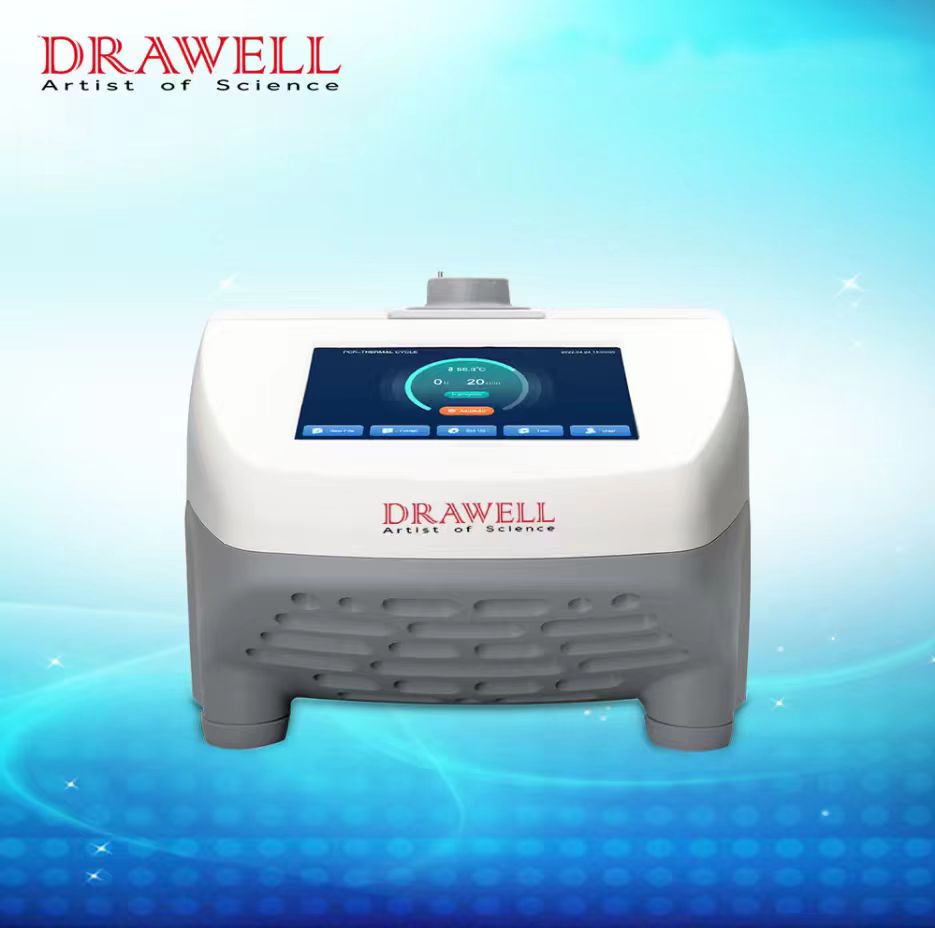

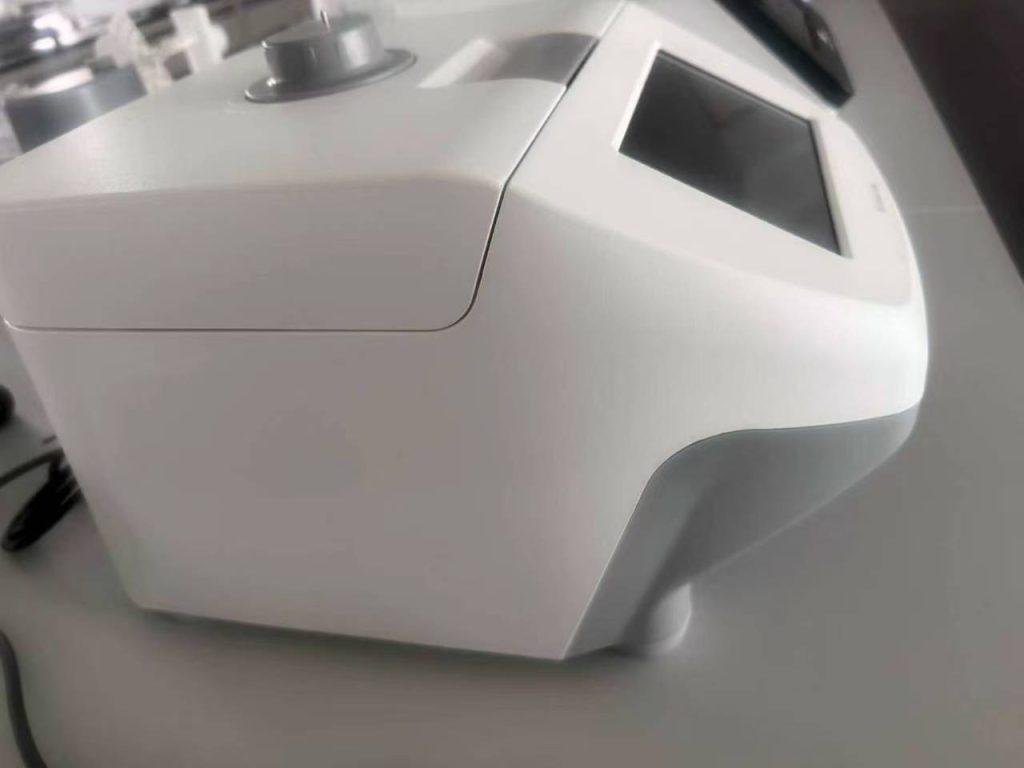

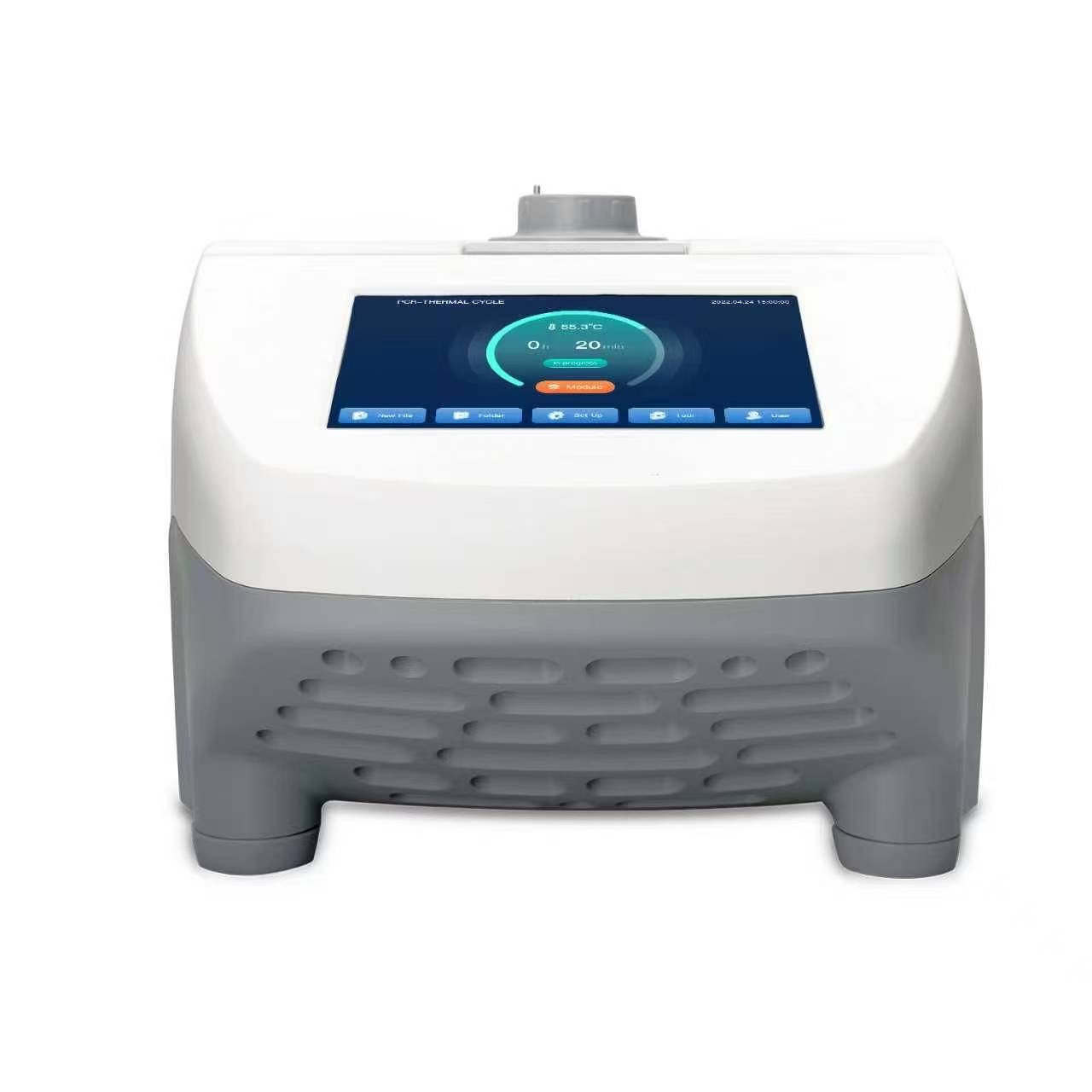

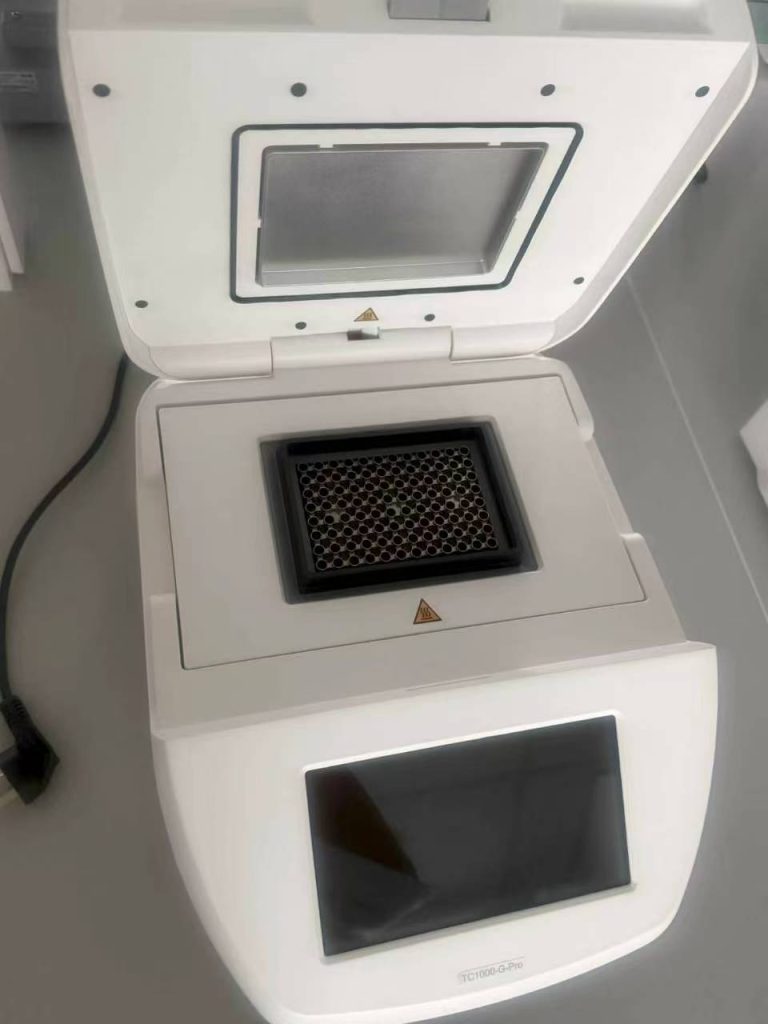

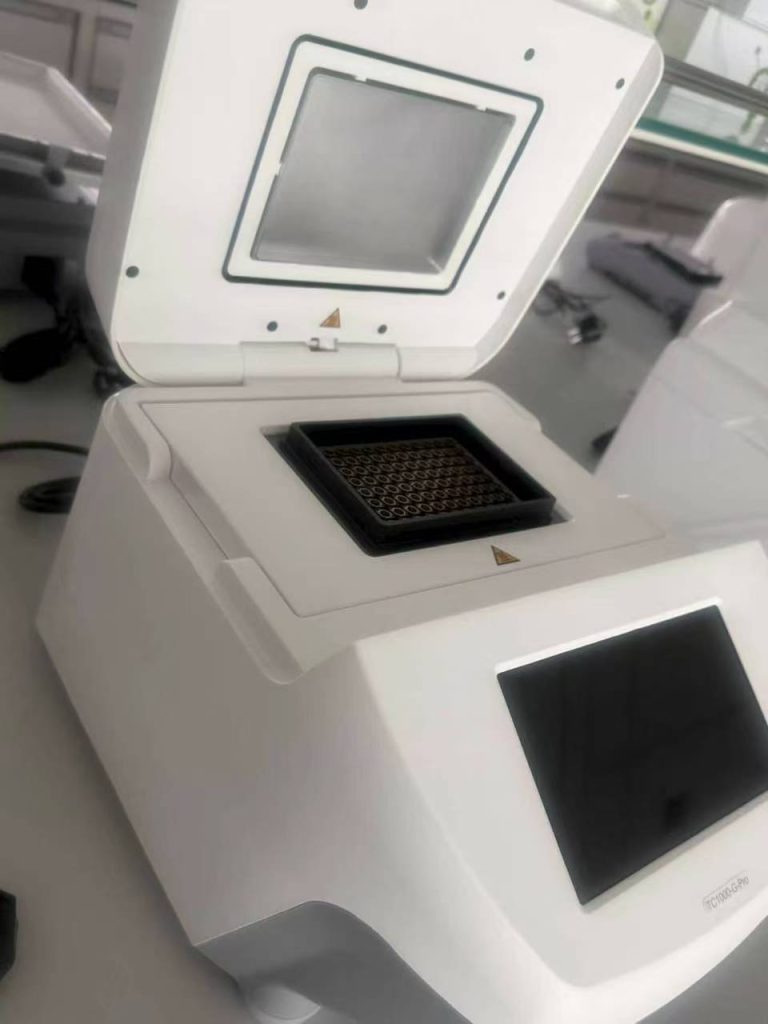

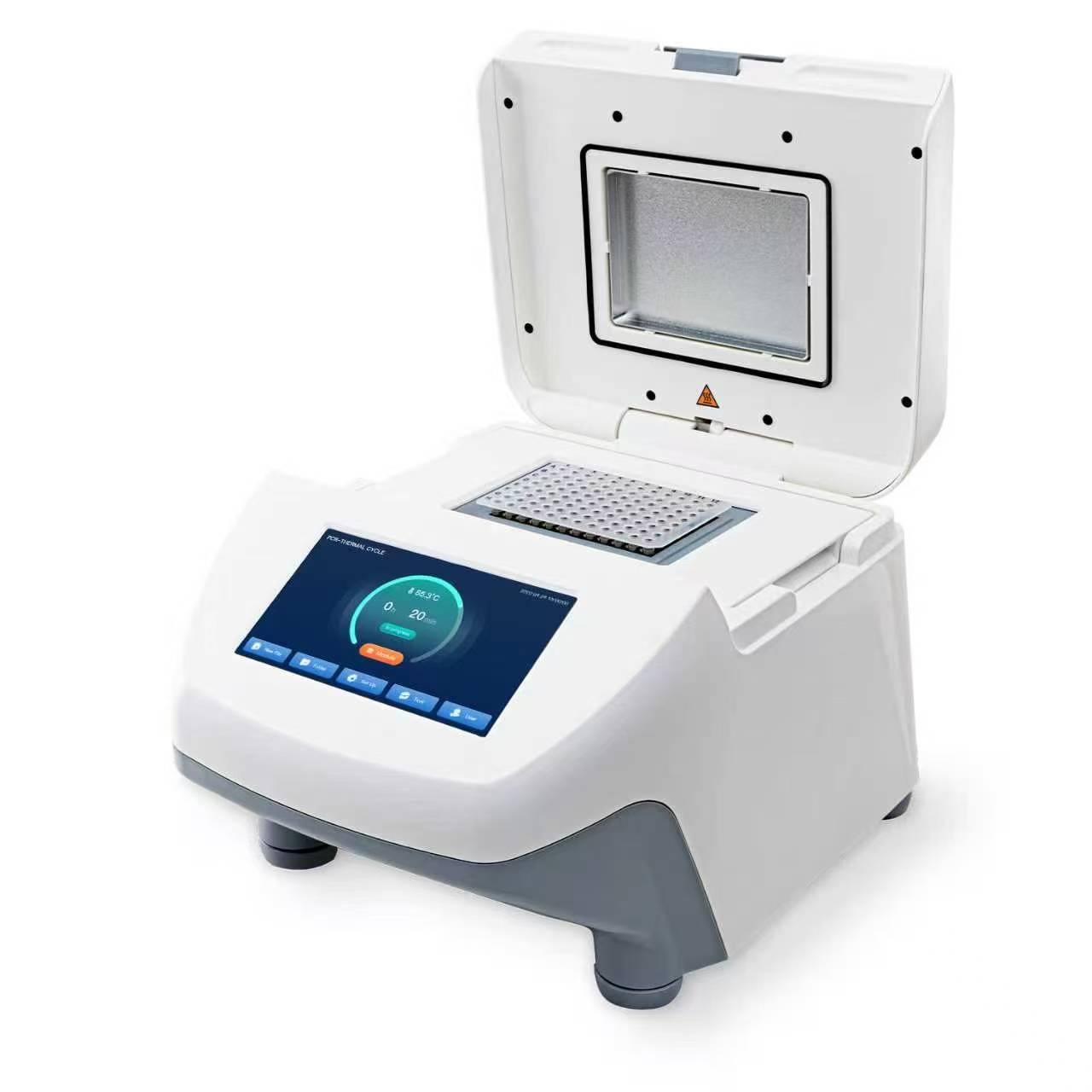

Product Display
