Gentier 48E Real-time PCR System

Gentier-48E is a 48-well real-time PCR system for fluorescence-based nucleic acid amplification and quantitative analysis. It combines four-channel fluorescence detection with Peltier thermal cycling and supports quantitative, genotyping, melting-curve and HRM analysis for routine molecular laboratory workflows.

  • 48 Wells
  • 2 s Scan
  • 10¹–10¹⁰ Copies
  • 4 Fluorescence Channels
Gentier-48E Manual Gentier-48E Brochure

Features of Gentier 48E Real-time PCR System

  1. DESIGN FOR FLEXIBLE USE

Standard with a 7″ LCD touch screen, functions quickly, accessible through simple, one-touch commands.

A unique power-off protection function can save all the setted configurations for sudden power outages, and allow the experiment continues when the power supply is restored.

  1. FAST AND UNIFORM HEATING SYSTEM

A highly efficient PID&DSP control algorithm ensures faster response and stronger interference resistance, fast and uniform heating and heat sinking.

  1. HIGH SENSITIVE AND PRECISE OPTICAL SYSTEM

High-sensitivity and wide dynamic range of fluorescence detection system, sample dynamic range could be from 101 to 1010 copies.

A fast and precise mechanical scanning structure ensures the illumination uniformity of 96 wells, eliminates edge effects, and no need for ROX calibration.

  1. EASY-TO-USE SOFTWARE

USB or WLAN easily transfers experiments data anywhere you needed.

Multi-options for experiments: New, New for Existed, Open data file, Double click data file.

Pre-installed templates can help users easier to edit the protocols.

  1. RUN MONITORING

Users can define each model to see what they like on the screen: Real-time Fluorescence, Heat map, Run info, Sample Setting, and Sample info.

  1. DATA ANALYSIS

Optional baseline setting: Automatic or Manual.

Multi-option analytical method for different requirements: Automatic or Manual threshold method, normalization method.

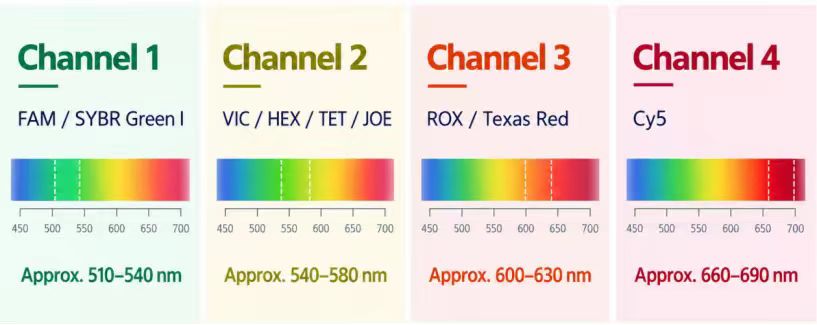

4-Channel Fluorescence Detection

4 Channel Fluorescence Detection

Applications of Gentier 48E Real-time PCR System

applications of Gentier 48E 2

Molecular Biology Research

Real-time PCR amplification and quantitative nucleic-acid analysis.

applications of Gentier 48E

Gene Expression Analysis

Relative and absolute quantification workflows.

applications of Gentier 48E 6

Genotyping

Fluorescence-based genotyping analysis using compatible dyes and probes.

applications of Gentier 48E 4

Melt Curve & HRM Analysis

PCR workflows requiring melt-curve or high-resolution melting analysis.

applications of Gentier 48E 5

Clinical Laboratory Research

Real-time PCR workflows in applicable molecular laboratory settings.

applications of Gentier 48E 3

Forensic Research

PCR-based nucleic-acid analysis in forensic laboratory workflows.

FAQ

Gentier-48E supports 48 samples per run.

It provides 4 fluorescence detection channels.

All four channels across 48 wells can be scanned in approximately 2 seconds.

The specified reaction volume is 5–100 μL.

The product specification gives Ct value CV ≤0.5%.

Yes. The official manual lists Gradient among the supported PCR step modes for Gentier-48E.

It supports qualitative, absolute quantification, relative quantification, genotyping, endpoint, melt curve and HRM analysis.

Yes. The built-in 7-inch touchscreen supports standalone operation.

Specifications of Gentier 48E Real-time PCR System

ModelGentier 48E
Thermal Block
Sample capacity(wells)48
Reaction Volume5-100 μL
Consumables0.2ml 8-strip tubes ,0.2ml PCR single tube(Optical flat cap,clear tube)
Temperature range0°C-100°C
Heating/cooling methodPeltier
Heat Lid
Temperature rangeRoom Temperature–110°C
Optical System
Excitation Source4LEDs
DetectorPhotodiode
Detection PositionExcitation and scan from lateral
Detection method4 channels scanning at the same time, no edge effect.
Detection time2 seconds for 48 wells for all channels
Performance
Sample Linearity/r/≥0.999
Sample repeatabilityCt value CV≤0.5%
Sample Dynamic Range1-1010 copies
Software Funtions
Data Analysis modesQualitative analysis,
Absolute quantification,
Relative quantification,
Genotyping analysis,
Endpoint analysis，
Melt curve analysis,
High Resolution Melting
Others
PC operating systemWin 7, Win 10
Communication Port1 ethernet and 2  USB
Footprint(WxDxH)260mm X 400mm X 2605mm
Weight11kg
Power usageAC 100 to 125 V / 200 to 240 V (50/60 Hz).
power consumption600VA
Work environmentTempereture:10°C~30°C  Humidity:20%~85%
