Biochemical Incubator (BOD Incubator)

What is Biochemical Incubator?

The biochemical incubator has a two-way temperature adjustment system for cooling and heating, and the temperature is controllable. It is suitable for environmental protection, sanitation and epidemic prevention, drug inspection, agricultural and livestock, aquatic products, and other scientific research. The biochemical incubator is special constant temperature equipment for water body analysis and BOD determination, cultivation and preservation of bacteria, molds, and microorganisms, plant cultivation, and breeding experiments.

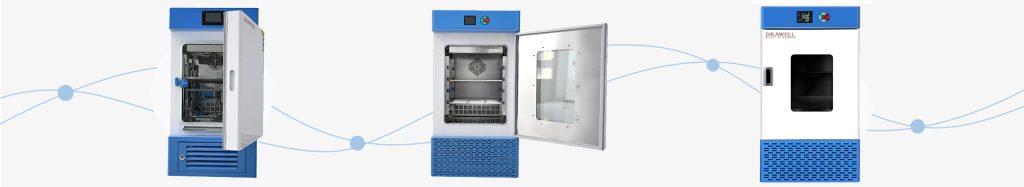

Biochemical Incubator

Features of Biochemical Incubator

  1. Imported compressor, automatic control for hot and cold.
  2. Microprocessor temperature control with large LCD display, high precision.
  3. Polished stainless steel chamber, moveable shelves can be freely adjusted, easy for cleaning.
  4. Equipped with a power supply outlet and lamp inside, easy observation.
  5. The chamber is equipped with a fan for forced convection.
  6. The surface is coated with a good appearance and maintenance.
  7. Double door design, the inner door is made of tempered glass for easy observation, magnetic sealing design for outer door, good sealing.
  8. Equipped with leakage protection.
  9. Equipped with spare temperature control which ensures the product work normally even if the main temperature control failed (for heating).
  10. RS485 connector to connect computer and printer, temperature and time data can be displayed on computer and print.

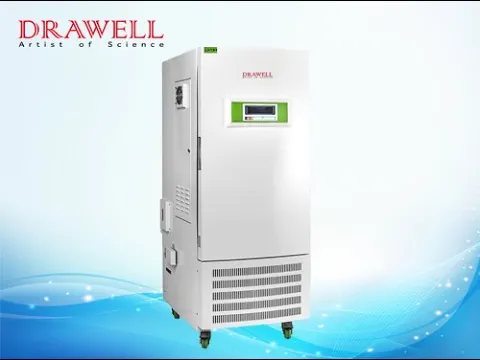

DRAWELL’s Biochemical Incubator

Application of Biochemical Incubator

The biochemical incubator is also called the biochemical constant temperature incubator. The main purpose is the BOD determination of water analysis. It is widely used in the cultivation and preservation of bacteria, serum, microorganisms, plant cultivation and breeding experiments; enzymes and enzyme engineering research; biology, medical products, Preservation and aging test of vaccines, blood and various specimens, and constant temperature tests for other purposes. The biochemical incubator is also called the BOD incubator, which is common laboratory equipment that integrates cooling and heating functions.

Application of Biochemical Incubator

Specifications of Biochemical Incubator

(1) LBI Series

Model

DW-LBI-80

DW-LBI-150

DW-LBI-200

DW-LBI-250

DW-LBI-300

DW-LBI-400

Chamber Volume

80L

150L

200L

250L

300L

400L

Temperature Range

0~60 ℃

Display Resolution

0.1 ℃

Temperature Stability

Heating: ±0.5℃; Cooling: ±1℃

Temperature Uniformity

±1℃

Timing Range

1~9999min

Power Rating (W)

180

250

300

350

400

550

Refrigerant

R134a

Power Supply

220±10%V   50Hz

Continuous Operation

Long continuous operation

Chamber Size(W×D×H)cm

40×37×55

45×42×85

45×45×100

48×49×107

52×50×117

58×54×127

Exterior Size(W×D×H)cm

54×57×107

59×62×137

59×64×152

62×68×159

66×69×169

72×74×179

Package Size (W×D×H)cm

70×73×126

75×78×156

75×80×171

78×84×178

82×85×188

88×90×198

Net/Gross Weight (kg)

50/85

90/120

95/138

103/147

115/157

135/170

(2) LBI-N Series

Model

DW-LBI-175-N

DW-LBI-275-N

DW-LBI-375-N

DW-LBI-475-N

DW-LBI-800-N

DW-LBI-1075-N

Chamber Volume

175L

275L

375L

475L

800L

1075L

Temperature Range

-10~75 ℃

Display Resolution

0.1℃

Temperature Stability

±0.5℃

Temperature Uniformity

±1℃

Timing Range

0~99h59min

Power Rating

300W

350W

450W

500W

800W

1000W

Refrigerant

R134a

Power Supply

AC 220V±10%, 50Hz±2%

Continuous Operation

Long continuous operation

Exterior Size(W×D×H)cm

61×62×150

74×71×157

75×75×173

86×75×182

113×93×198

101×90×224

Chamber Size(W×D×H)cm

45×42×93

58×51×93.5

59×55×116

70×55×125

96.5×61×137

95×70×160

Net/Gross weight(kg)

75/115

85/128

93/137

105/147

175/240

205/290

(3)  What is the difference between LBI and LBI-N?

① Different temperature range

–LBI: 0~60℃; LBI-N: -10~75℃

② Different compressors

–LBI equipped with Italy brand compressor

–LBI-N equipped with German Danfoss compressor

③ LBI-N series adopt USB conversion interface, used to connect to a computer

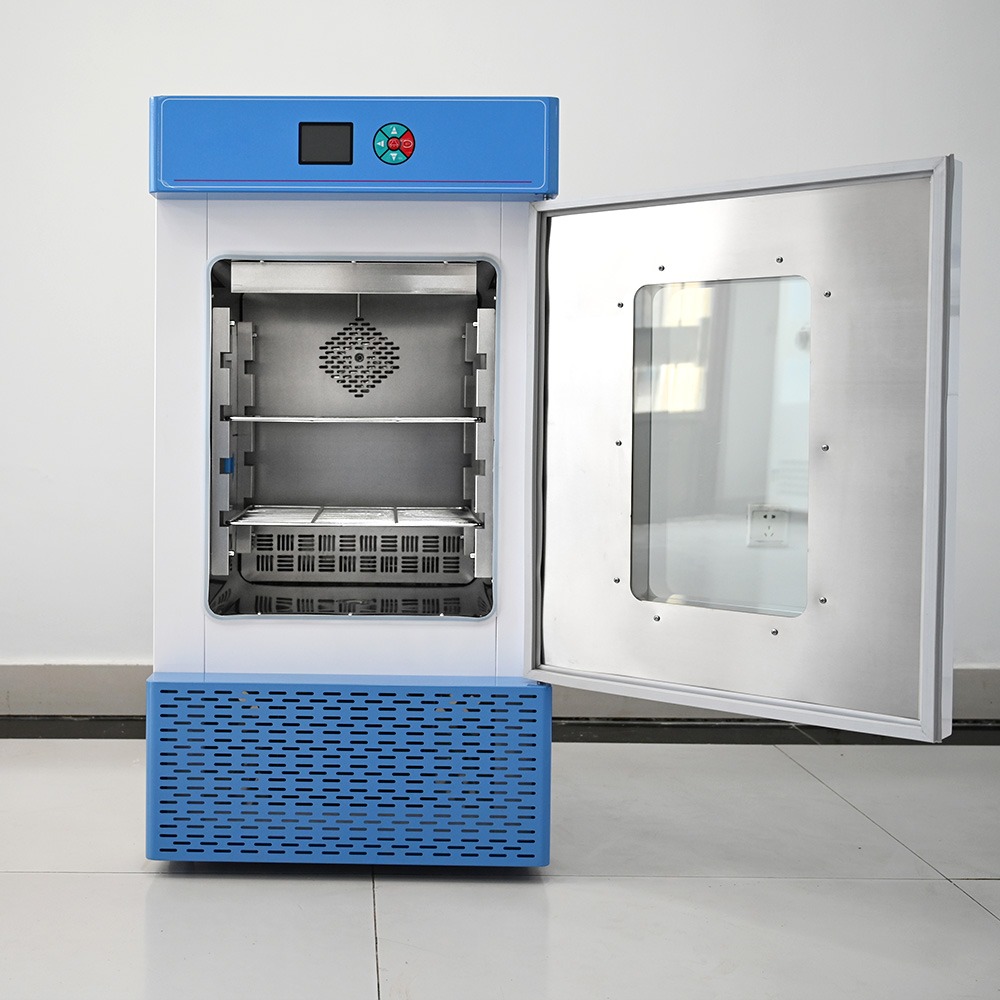

Biochemical Incubator Display
