DPX-B Series Basic Biochemical Incubator

Model: DPX-50B DPX-80B DPX-150B DPX-250B DPX-350B DPX-460B

DPX-B Brochure

Features of DPX-B Biochemical Incubator:

  1. The box body shell is made of high-quality galvanized sheet, and its surface is treated by electrostatic spraying technology. The design is elegant and practical, with excellent corrosion resistance and durability.
  2. The inner liner is made of high-quality stainless steel. The four corners smoothly transition into semi-circular shapes, facilitating cleaning. The height of the shelves can be adjusted freely.
  3. Single-door structure design: An tempered glass observation window is installed, and it is sealed with magnetic rubber strips. The working area is equipped with lighting, facilitating observation.
  4. Microcomputer control system, large-screen liquid crystal display, touch-type operation buttons, easy to operate;
  5. Using high-end compressors and circulating fans, it achieves low energy consumption and energy savings.
  6. Install a temperature alarm system with automatic temperature limit function and automatic power-off feature to ensure the safety of the experiment.
  7. The excellent insulation design ensures good sealing performance and prevents temperature loss.

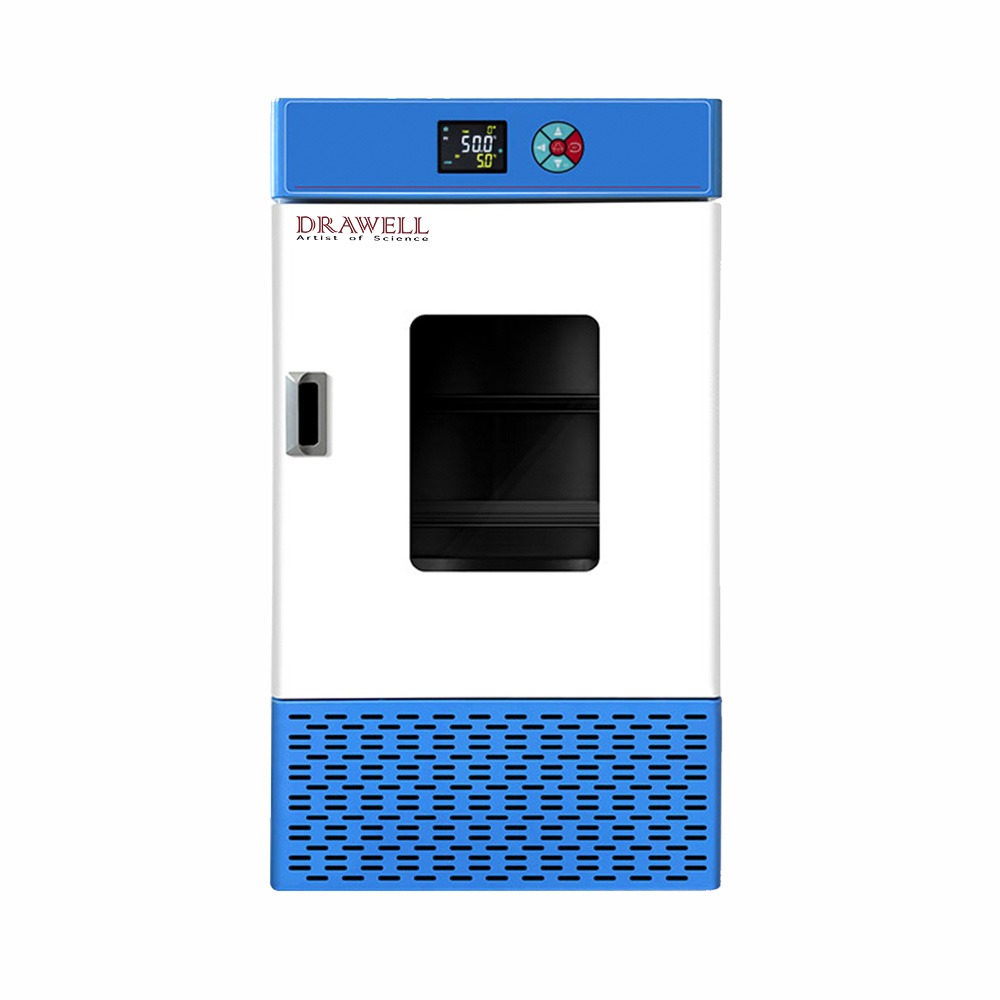

DPX 50B DPX 80B DPX 150B DPX 250B DPX 350B DPX 460B 6

Specifications of DPX-B Biochemical Incubator:

ModelDPX-50BDPX-80BDPX-150BDPX-250BDPX-350BDPX-460B
Capacity50L80L150L250L350L460L
Power supply220V 50Hz
Temperature control range5℃-65℃
Temperature distribution accuracy±1℃
Temperature resolution0.1℃
Temperature fluctuation degreeHigh temperature ± 0.5℃, low temperature ± 1℃
Inner liner material 201 stainless steel inner liner
Shell materialGalvanized sheet (electrostatic spraying)
Insulation layer Polyurethane
CompressorAir-cooled hermetic compressor
RefrigerantR134a
HeaterStainless steel heating tube
Defrosting functionIntelligent control for automatic defrosting
Temperature controlSingle-stage liquid crystal intelligent PID controller
Timer function0-9999min
Operation modeFixed-value operation, timed operation, automatic stop
Test hole Standard configuration – one
SensorPT100
Power500w600w800w1000w1200w1400w
Inner liner dimensions (mm)350×350×400400×400×500400×500×750500×550×910600×600×1000650×650×1100
Overall dimensions (mm)580×460×900610×560×1070600×660×1400700×720×1590790×760×1640850 ×805×1630
Packaging dimensions (mm)615×510×980690×620×1150770×735×1520820×800×1660870×860×1800990× 1040×1970
Standard/Maximum number of partitions2/32/42/72/92/102/11
Partition spacing75mm75mm80mm80mm83mm80mm
Partition load-bearing capacity 20kg
Additional functionsLighting lamp
Optional functionsWaterproof socket

DPX-B Biochemical Incubator Display

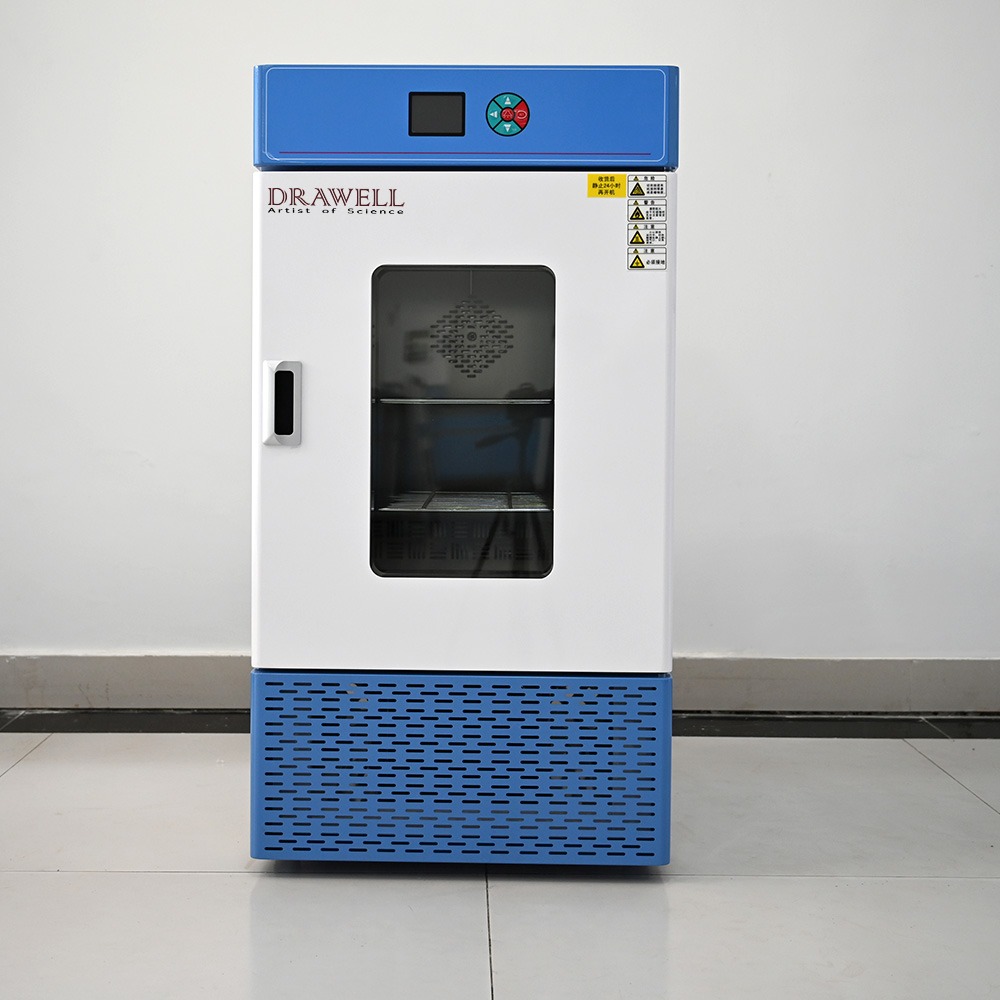

  • DPX 50B DPX 80B DPX 150B DPX 250B DPX 350B DPX 460B实物图 1

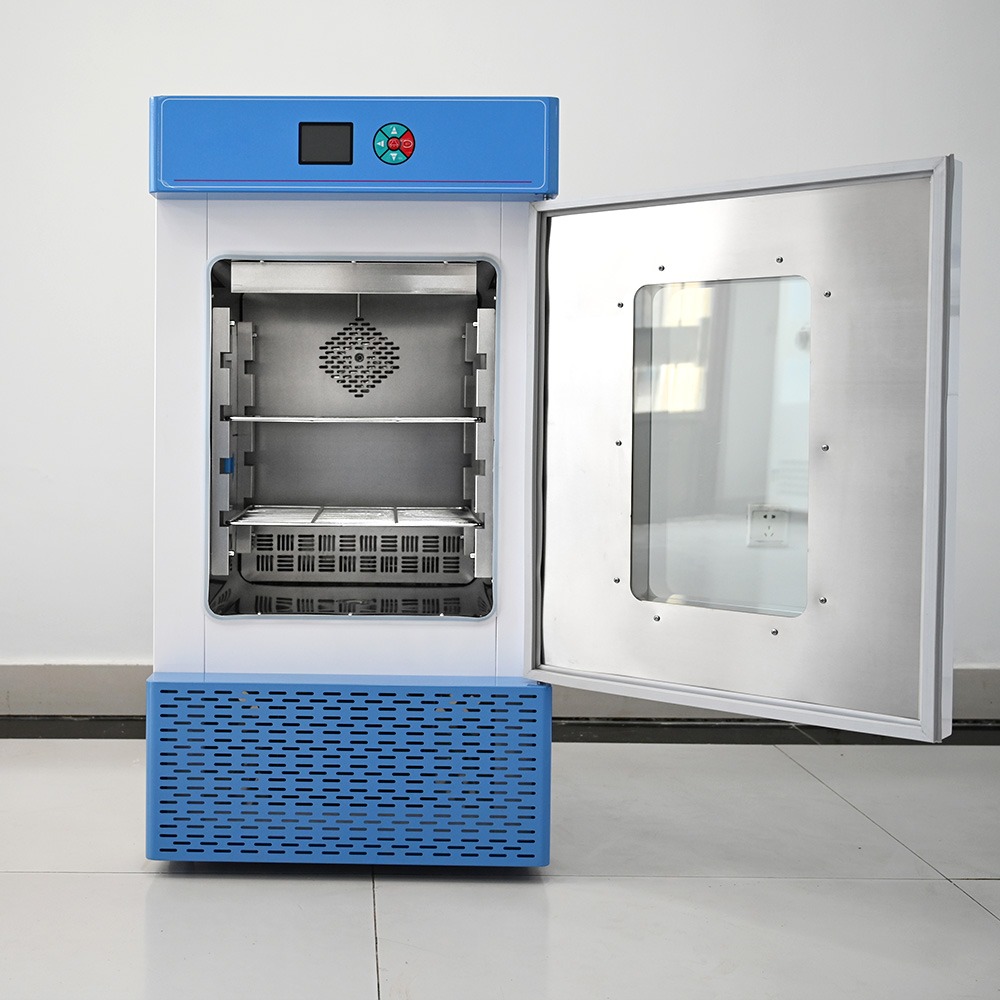

  • DPX 50B DPX 80B DPX 150B DPX 250B DPX 350B DPX 460B实物图 2
