Circulating Water Vacuum Pump
Drawell circulating water vacuum pumps provide a water-based vacuum source for routine reduced-pressure laboratory workflows. Available in compact dual-outlet and larger five-outlet configurations, the series supports independent or parallel vacuum connections for different laboratory setups.
Features of Circulating Water Vacuum Pump
- Two- and five-outlet configurations are available for different laboratory setups.
- Vacuum outlets can be used independently or in parallel according to the connection requirement.
- 3. -0.098 MPa maximum vacuum, both configurations provide the same specified maximum vacuum level.
- Circulating water supports continuous vacuum generation without a conventional oil-sealed vacuum system.
- Vacuum regulating valves are available for applicable configurations when manual adjustment is required.
SHZ-95B Circulating Water Vacuum Pump
• 10 L/min Unit Extraction
• ≥50 L Tank
• ≥80 L/min Water Flow
SHZ-III Circulating Water Vacuum Pump
• 10 L/min / Head
• 15 L Tank
• 60 L/min Water Flow

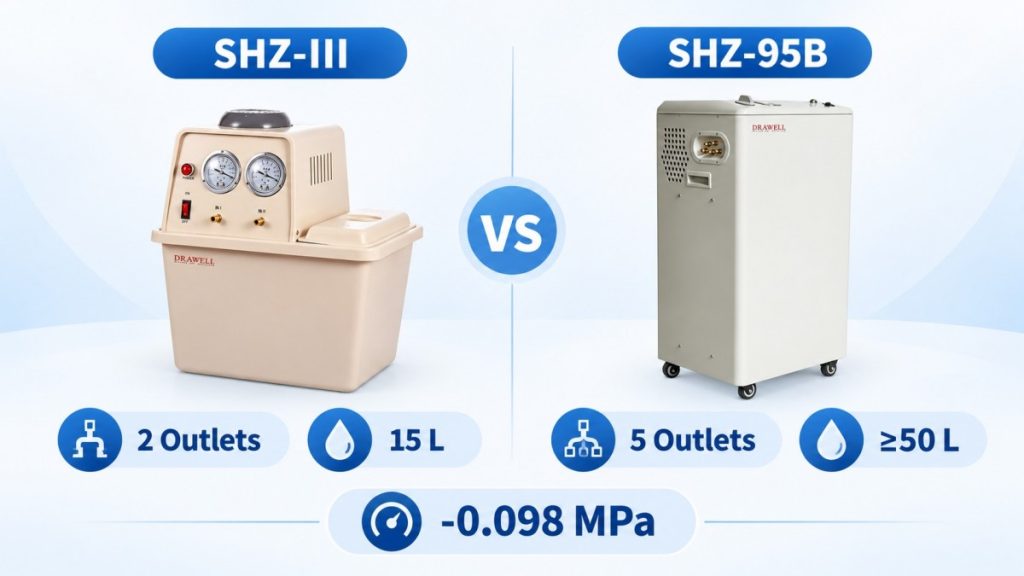

How to Choose a Circulating Water Vacuum Pump?
How Many Vacuum Lines Do You Need?
1–2 lines: Choose SHZ-III
More connection points: Choose SHZ-95B
Check Water Circulation Capacity
SHZ-III: 60 L/min / 15 L
SHZ-95B: ≥80 L/min / ≥50 L
Check Available Space
Limited benchtop space: SHZ-III (400 × 280 × 420 mm)
If prioritizing the number of ports and a larger water tank: SHZ-95B
Need Vacuum Adjustment?
Optional vacuum regulating valve available

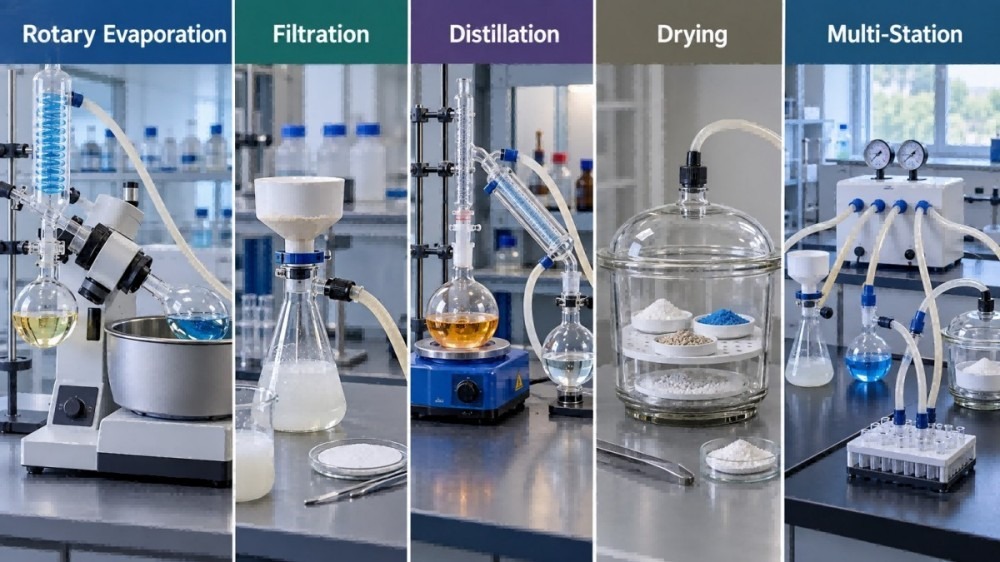

Applications of Circulating Water Vacuum Pump
- Rotary Evaporation: Provides vacuum for rotary evaporators handling solvent mixtures, extracts and concentrated solutions during reduced-pressure evaporation.
- Vacuum Filtration: Vacuum source for filtration of laboratory suspensions, precipitates and liquid samples using compatible filtration setups.
- Reduced-Pressure Distillation: Supports vacuum operation for organic solvent mixtures and reaction solutions during laboratory distillation.
- Vacuum Drying: Provides vacuum for compatible solid samples, powders and laboratory materials during reduced-pressure drying workflows.
- Multi-Station Laboratory Vacuum: Five outlets support multiple compatible laboratory vacuum lines from one centralized vacuum source.
