Gentier 96 Real-Time Quantitative PCR

Gentier 96E/96R is a real-time PCR platform designed for fluorescence-based nucleic acid amplification, quantitative analysis and multiplex detection. It supports absolute and relative quantification, genotyping, melting-curve analysis and gradient PCR for a wide range of molecular testing workflows.

  • 96 Wells
  • >6.1°C/sec
  • 10¹- 10¹⁰ Copies
  • 6 / 4 Fluorescence Channels
Gentier 96 Manual
Gentier 96 Brochure

Features of Gentier 96 Real-Time Quantitative PCR

  1. The temperature rises and falls rapidly, and the heating rate is more than or equal to 6.1 ℃ / s.
  2. The homogeneity of temperature is ± 0.1℃.
  3. High brightness maintenance-free LED light source, with 6 / 4 fluorescence detection channels, and fast fluorescence scanning.
  4. 4-inch full-color touch screen.
  5. The device can run independently without the computer and store more than 1000 times of experimental data.
  6. It has the function of automatically recovering the experiment when the power is off, without waiting for the PC and software to open.
  7. LED-excitation and PD-detection, 7 seconds top optical scanning.

Applications of Gentier 96 Real-Time Quantitative PCR

applications of Gentier 48E 2

Molecular Biology Research

Real-time PCR amplification and quantitative nucleic-acid analysis.

applications of Gentier 48E

Gene Expression Analysis

Absolute and relative quantification workflows.

applications of Gentier 48E 6

Genotyping & SNP Analysis

Fluorescence-based genotype and SNP analysis.

applications of Gentier 48E 5

Multiplex qPCR

Multi-target amplification using 4- or 6-channel fluorescence detection.

applications of Gentier 48E 4

Melt Curve & HRM Analysis

PCR workflows requiring melting-curve and high-resolution melting analysis.

applications of Gentier 48E 3

Laboratory Testing

Suitable for applicable molecular testing workflows in research, food, veterinary, forensic and other laboratory settings.

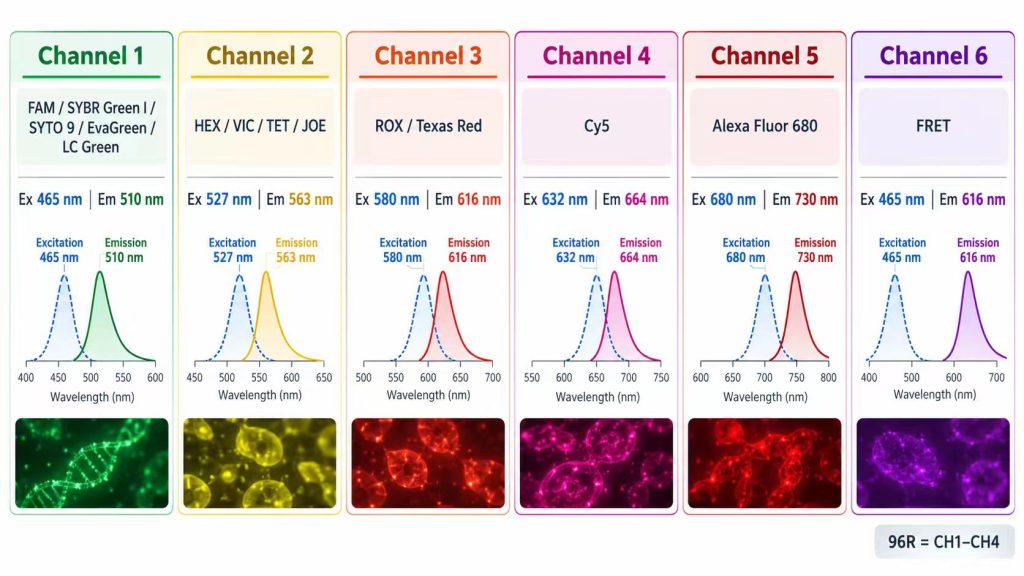

Fluorescence Channels & Compatible Dyes

Fluorescence Channels Compatible Dyes

Gentier 96E vs Gentier 96R

ParameterGentier 96EGentier 96R
Sample Capacity96 Wells96 Wells
Fluorescence Channels64
MultiplexingUp to 6 TargetsUp to 4 Targets
Scan Time7 s7 s
CH1–CH4YesYes
CH5 Alexa Fluor 680Yes—
CH6 FRETYes—
Gradient PCRYesYes

Choose Gentier 96R for routine 4-channel qPCR assays, and Gentier 96E when additional fluorescence channels or higher multiplexing capacity are required.

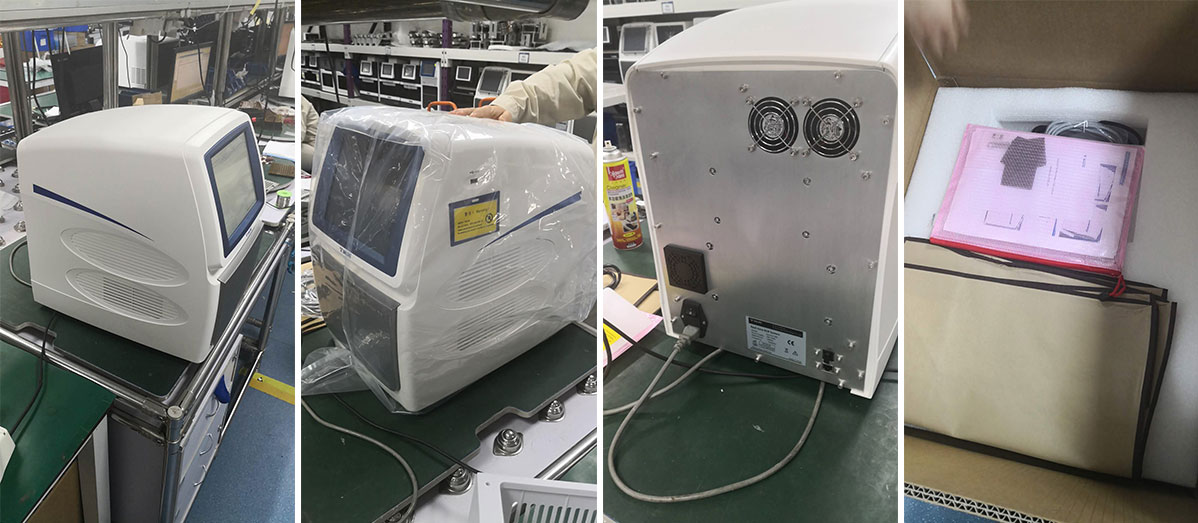

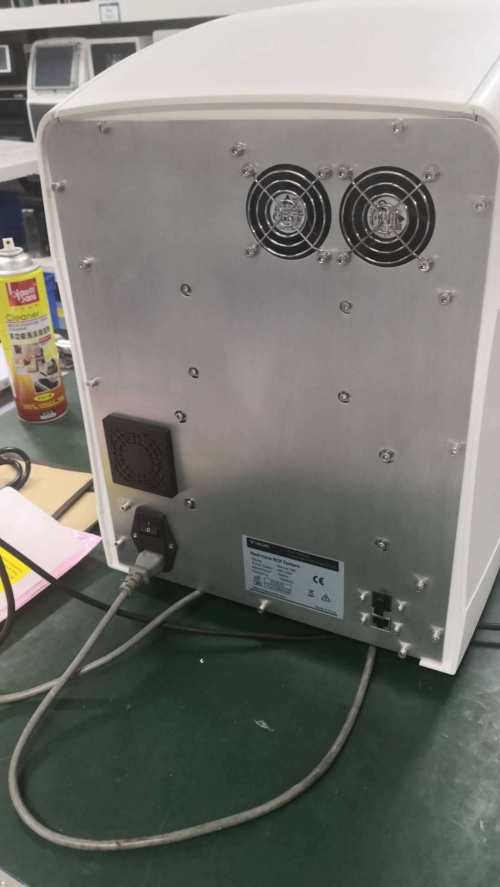

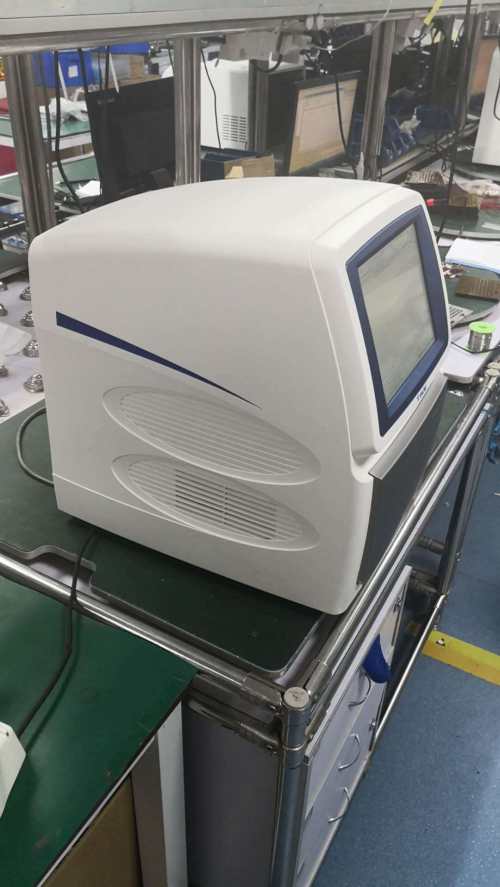

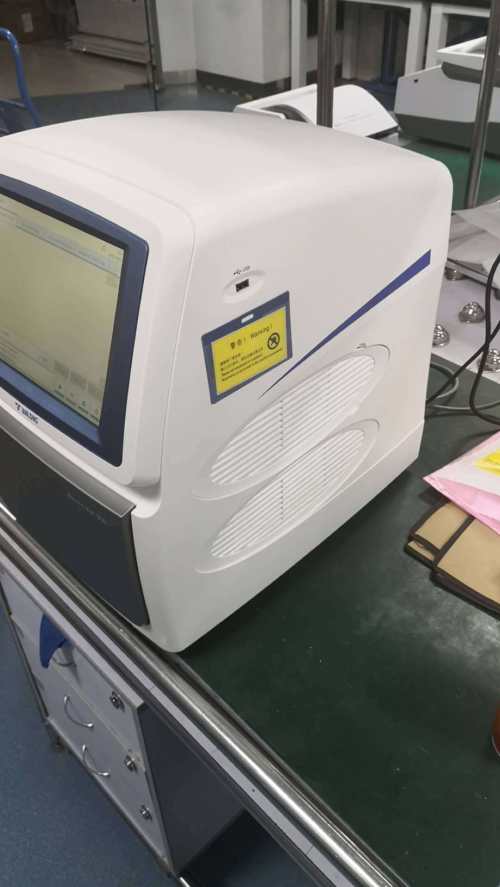

Gentier 96 PCR Display

Gentier 96 Real-Time Quantitative PCR

FAQ

Gentier 96E provides 6 fluorescence channels, while Gentier 96R provides 4 channels.

Both models support up to 96 samples per run.

All 96 wells can be scanned across the available channels in approximately 7 seconds.

The specified range is 10¹–10¹⁰ copies.

Temperature uniformity is specified as ±0.1°C.

Yes. It provides a 12-row gradient block and supports Gradient PCR, Touchdown PCR and Long PCR.

Yes. The built-in 10.4-inch touchscreen supports standalone operation.

The system supports 0.2 mL non-skirted 96-well plates, 8-strip tubes and single PCR tubes.

Specifications of the Gentier 96 PCR

Real-Time Quantitative PCRGentier 96EGentier 96R
Thermal Block
Sample capacity(wells)96
Reaction Volume0-100 μL
Consumables0.2ml 96-well Plates（unskirt）;
0.2ml 8-strip tubes, 0.2ml PCR single tube(Optical flat cap, clear, frosted, white tube)
Temperature range0°C-100°C
Heating/cooling methodPeltier
Max heating rate6.1°C/sec
Average heating rate4.5°C/sec
Max cooling rate5.0°C/sec
Average cooling rate2.8°C/sec
Temperature accuracy±0.1℃
Temperature uniformity±0.1℃
Gradient Range1°C-40°C1°C-40°C
Gradient block12 row12 row
Special temperature portocolGradient PCR, Long PCR, Touch Down PCRGradient PCR, Long PCR, Touch Down PCR
Heat Lid
Temperature rangeRoom Temperature–110°C
Optical System
Excitation Source6 LEDs4LEDs
DetectorPhotodiode
Detection PositionExcitation and scan at top
Detection method6 channels scanning at the same time, no edge effect.
Detection time7 seconds for 96 wells for all channels
Range of excitation/emission wavelengths (nm)1  465 /510 (FAM, SYBR Green I，SYTO9，EvaGreen，LC Green)1  465 /510 (FAM, SYBR Green I，SYTO9，EvaGreen，LC Green)
2  527/ 563 (HEX,VIC,TET,JOE)2  527/ 563 (HEX,VIC,TET,JOE)
3  580 /616 (ROX, Texas Red)3  580 /616 (ROX, Texas Red)
4  632/ 664( Cy5)4  632/ 664( Cy5)
5  680 /730 (Alexa Fluor680)
6  465 /616 (FRET)
ProbeTaqman Probe, Molecular beacons probe, Scorpion probe, FRETTaqman Probe, Molecular beacons probe, Scorpion probe
MultiplexingUp to 6 targetsUp to 4 targets
Fluorescence Linearityr≥0.990
Fluorescence Dynamic RangeAdjustable
Performance
Sample Linearity/r/≥0.999
Sample repeatabilityCt value CV≤0.5%
Sample Dynamic Range1-1010 copies
Software Functions
Data Analysis modesQualitative analysis, Absolute quantification, Relative quantification, Genotyping analysis, Endpoint analysis， Melt curve analysis, High-Resolution Melting
Control modes1.10.4′ touch screen
2. PC direct control
3. WLAN control(One PC can control max 10 units, and the device can be controlled by any PC in the WLAN)
Sample DrawerTouch screen commend
Data StorageUpload and download through USB disk,1000 results can be stored  in the machine
Power failure protectionAutomatically start running experiments after power supply, no need to wait for PC software
Customize ReportTemplates reserved, the report can be customized
Administration ManagementThe administrator can set functions limits for users
Transport LockerAutomatically detect transport locker
Fault ManagementFault report and analysis, solution instruction
LIS connectionCSV,Excel,TXT format data output,open port for LIS connection
Others
PC operating systemWin 7, Win 10
Communication Port1 ethernet and 3  USB
Footprint(WxDxH)355mm X 480mm X 485mm
Weight30kg
Power usageAC 100 to 125 V / 200 to 240 V (50/60 Hz).
power consumption900VA
Work environmentTempereture:10°C~30°C  Humidity:20%~85%
