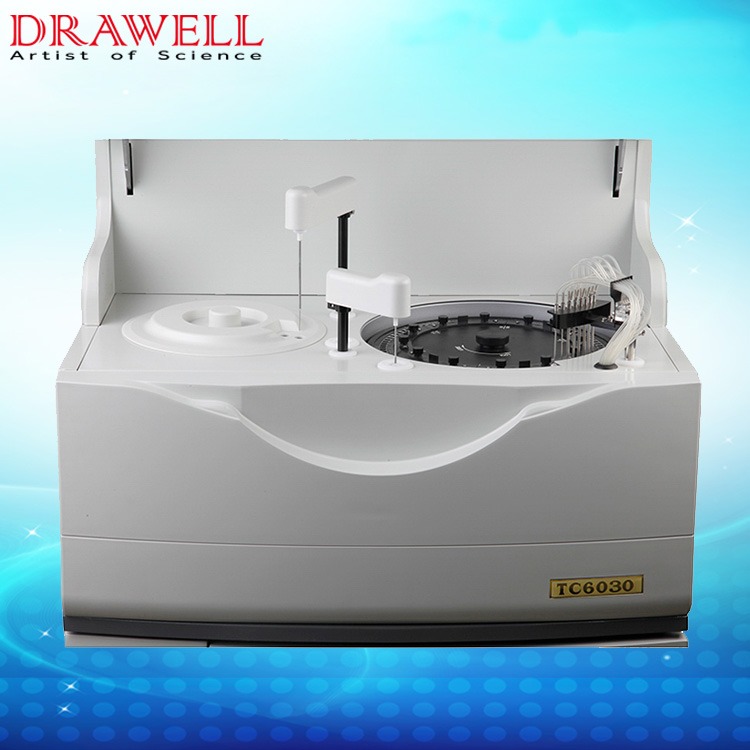

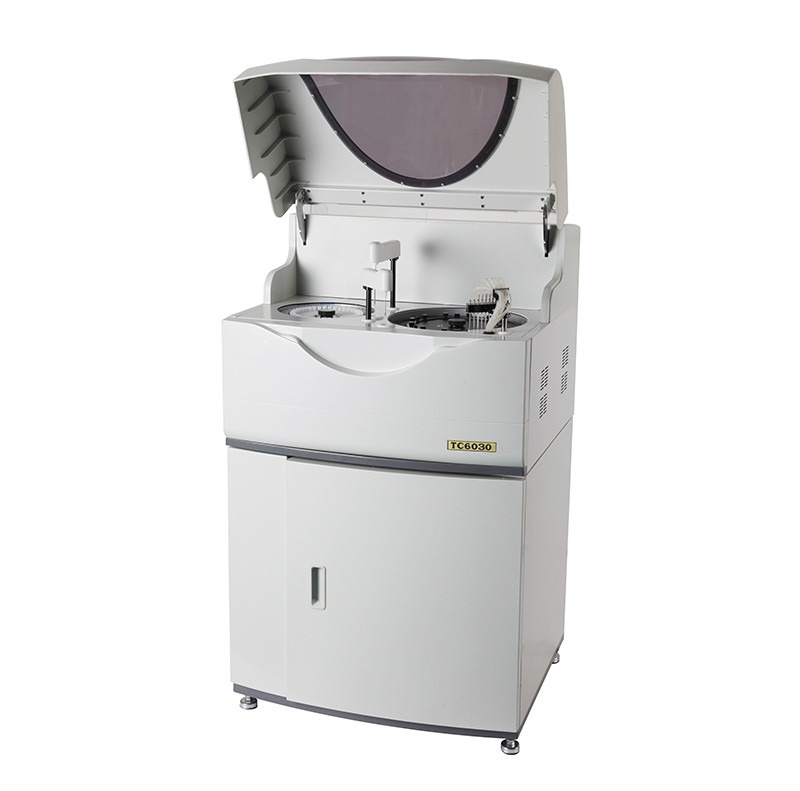

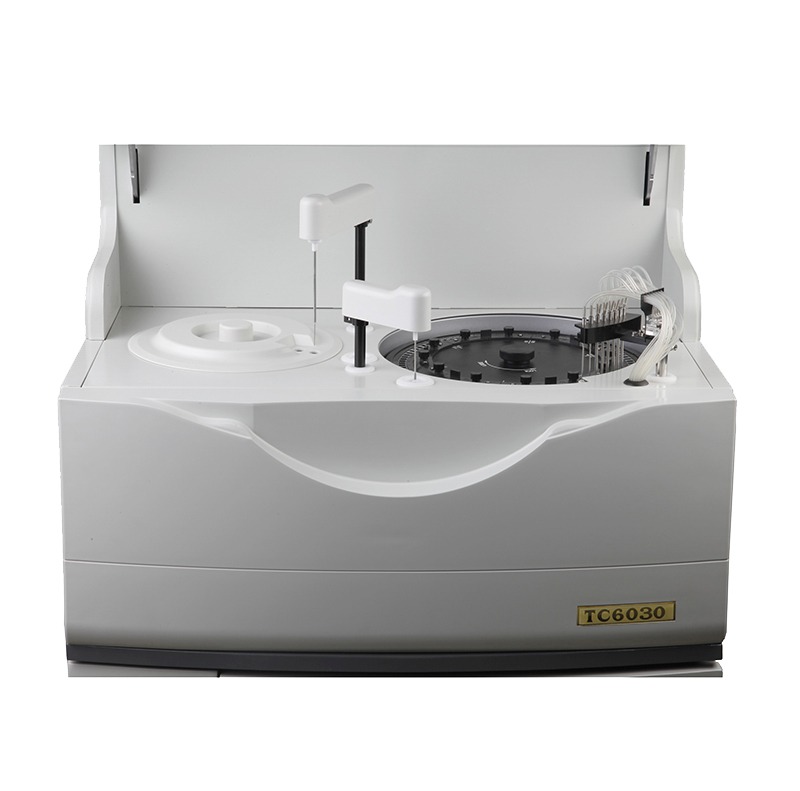

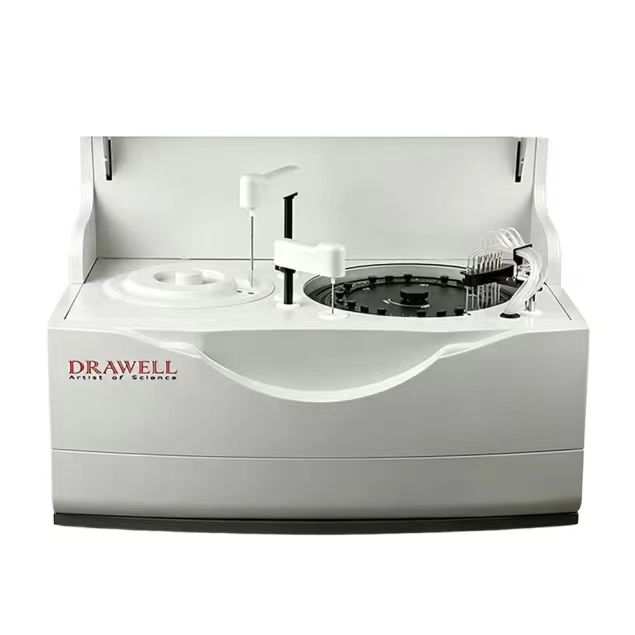

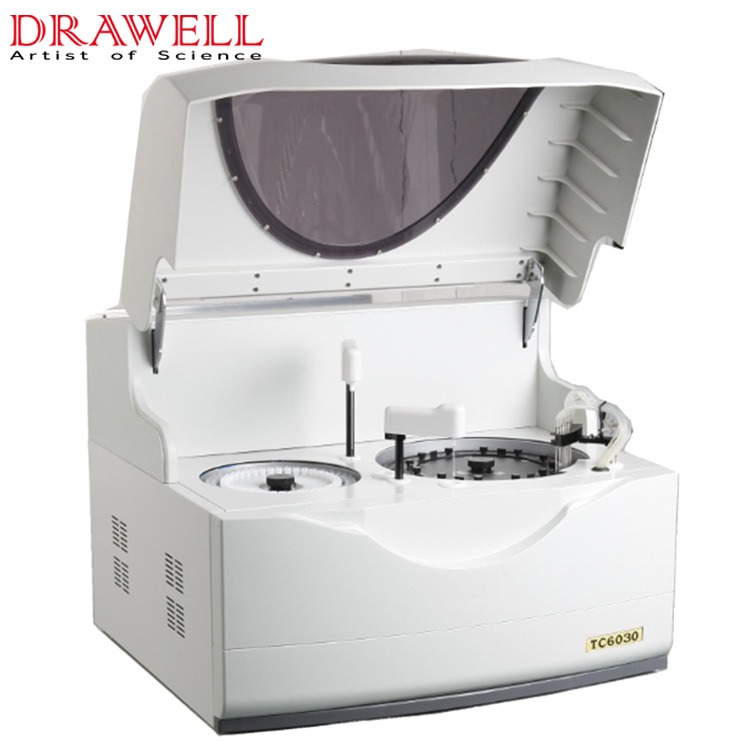

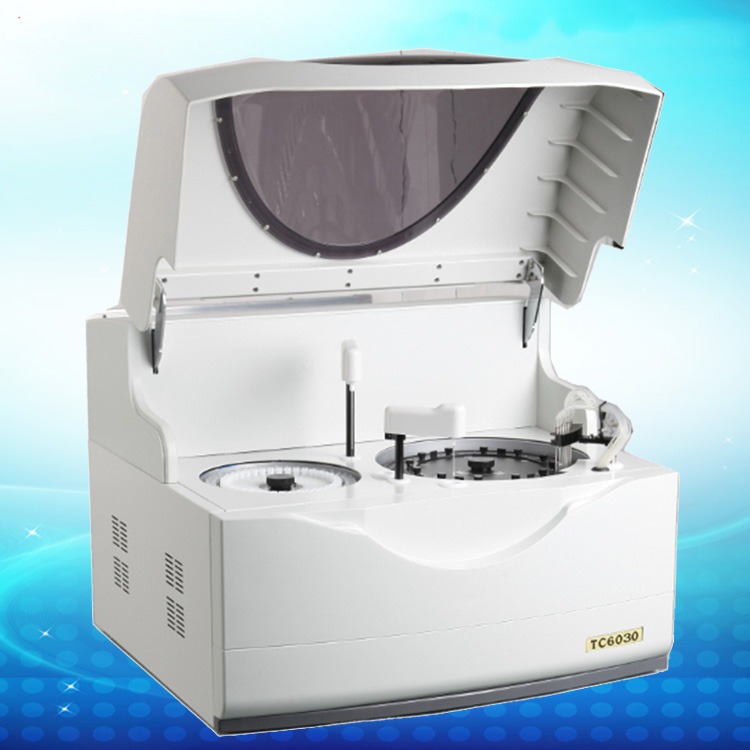

DW-TC6030 Automatic Chemistry Analyzer
The DW-TC6030 is a fully automatic, discrete and random-access chemistry analyzer. The open reagent system supports end-point, kinetic, two-point, double-reagent, double-wavelength and multi-standard methods, with automatic dilution, re-testing and QC management for routine laboratory workflows.
- 260 Tests/Hour
- 40 Sample Positions
- 40 Reagent Positions
- 2–50 μL Sample Volume
- 340–690 nm
- Up to 1:100 Dilution
Features of DW-TC6030 Automatic Chemistry Analyzer
- 260 Tests/Hour & STAT Testing: Up to 260 tests/hour with fully automatic, discrete and random-access operation. Supports 40 online test items and 40 sample positions, including standard, QC and STAT positions.
- 40 Refrigerated Reagent Positions: Provides 40 reagent positions with 2–8°C refrigeration. Reagent volume ranges from 10–500 μL in 1 μL steps, with automatic liquid-level detection.
- Automatic Dilution & Re-Test: Supports 2–50 μL sample volume in 0.1 μL steps and automatic/manual pre-dilution up to 1:100. Samples can be automatically diluted and re-tested when the absorbance or linear range is exceeded.
- Stable Reaction & Optical System: Uses 90 reusable cuvettes with automatic blank testing and maintains 37°C ±0.1°C reaction temperature. The optical system covers 340–690 nm across 9 wavelengths, with ±2 nm wavelength precision.
- 8-Step Automatic Washing: Features 8-step automatic cuvette washing and drying, plus internal and external probe washing. Water consumption is approximately 4 L/hour.
- QC & Real-Time Monitoring: Supports linear/nonlinear multi-point calibration, random QC insertion and QC chart management. Operators can monitor the sample tray, reagent tray, cuvettes, reagent residual volume and waste volume in real time.
Applications of DW-TC6030 Automatic Chemistry Analyzer
Product Details

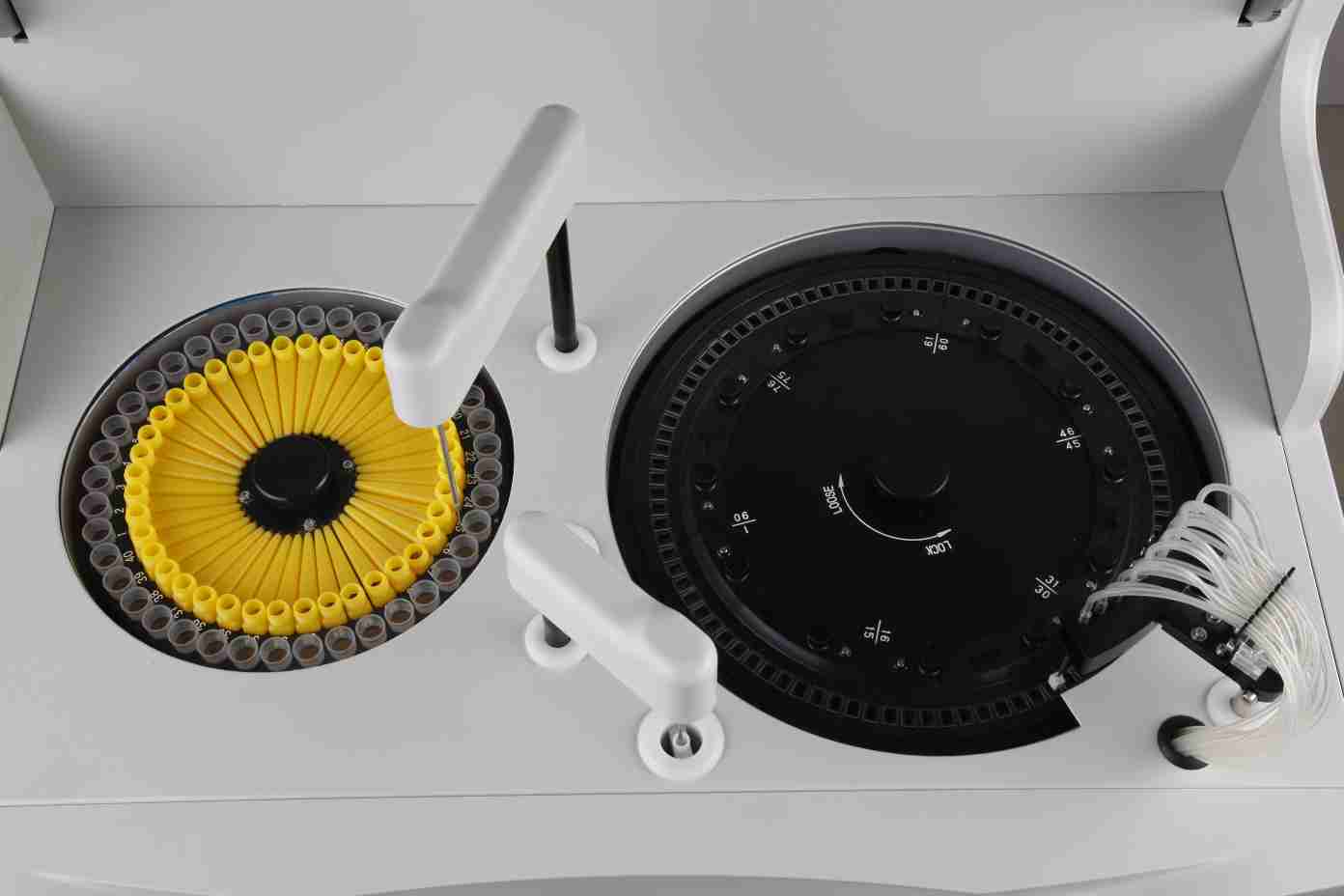

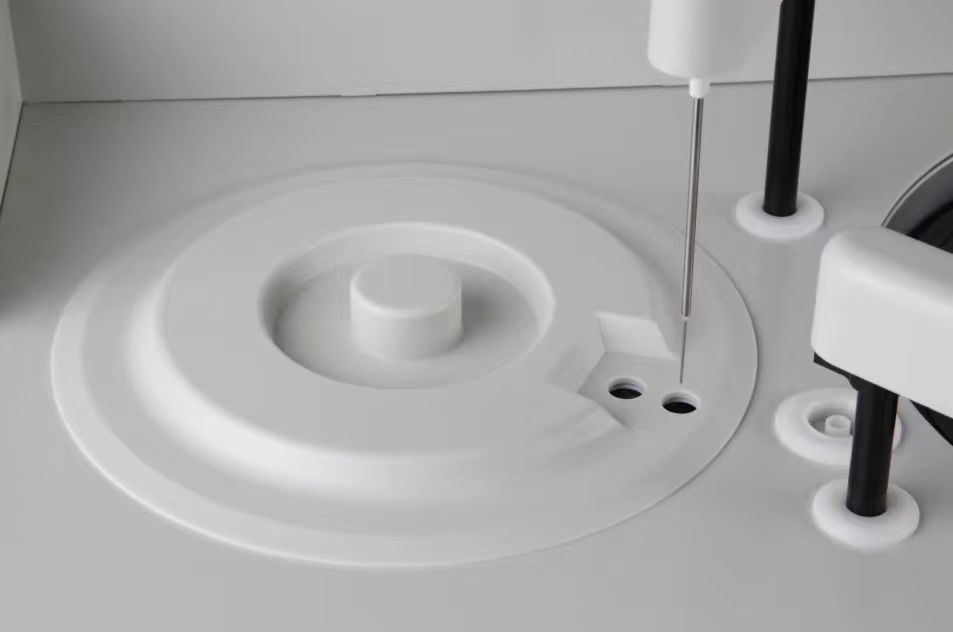

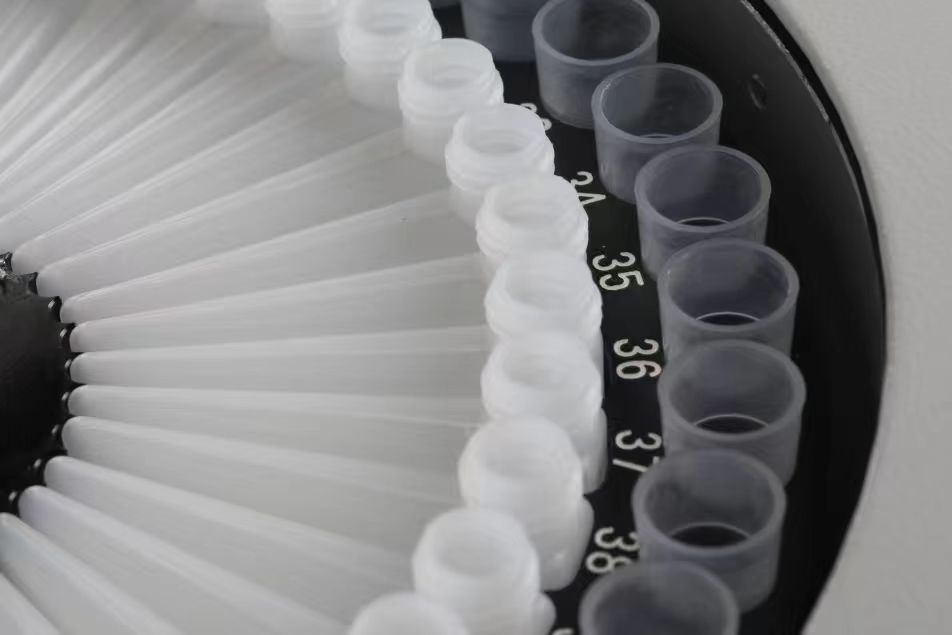

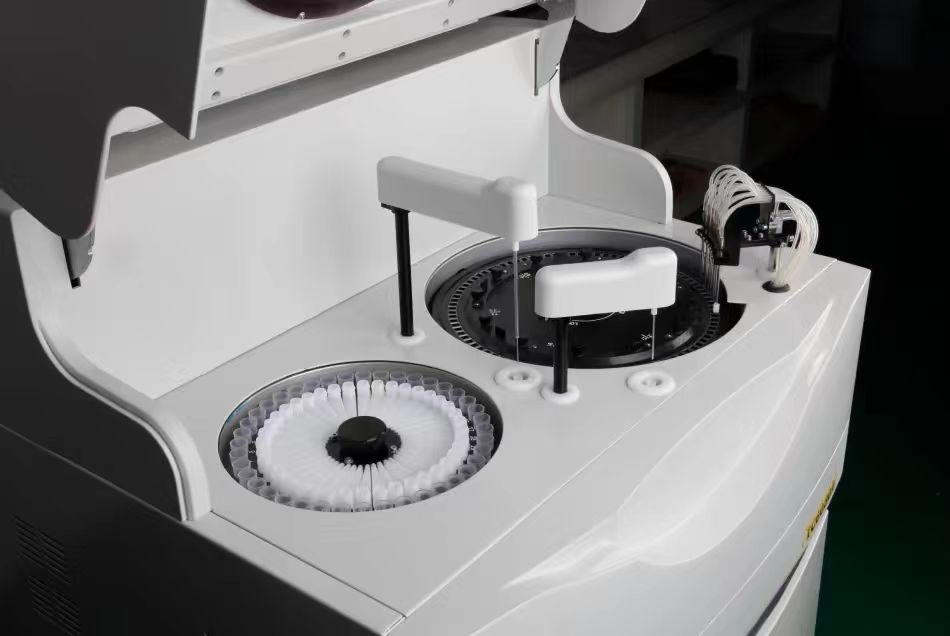

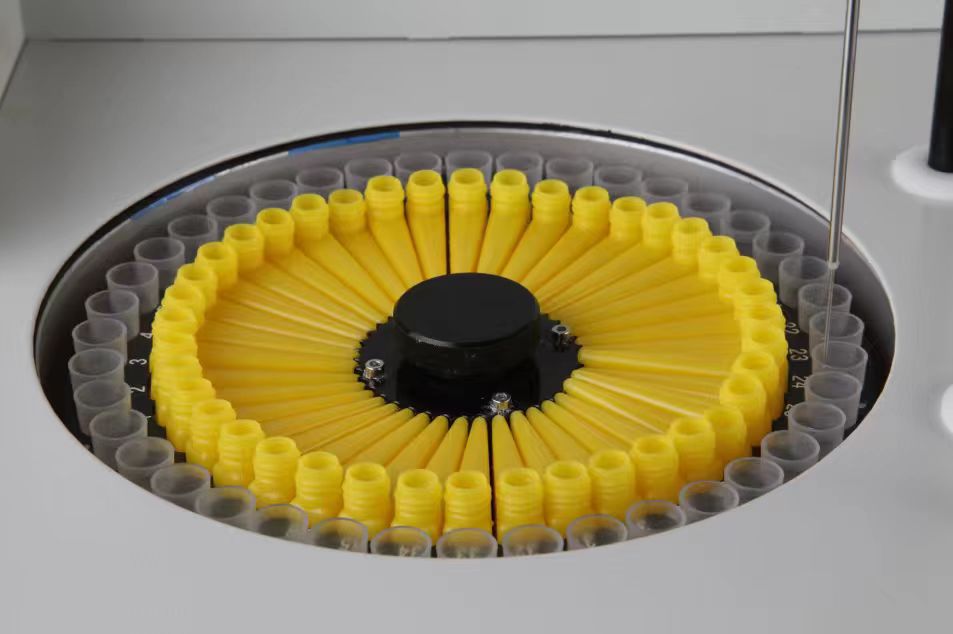

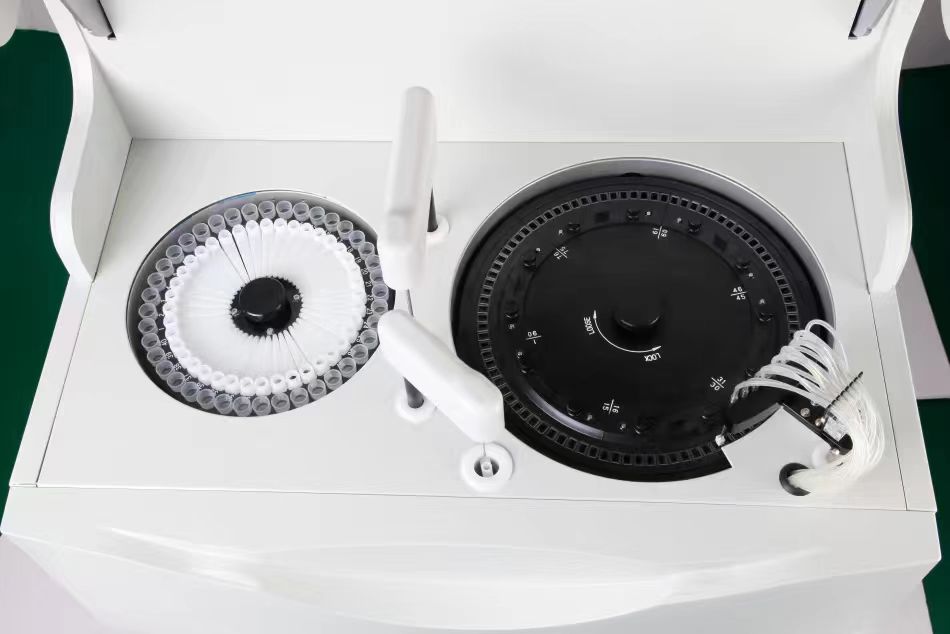

Sample/Reagent Position
- 40 pcs sample position
- 40 pcs reagent position
- Reagents refrigerated function
- Primary tube and blood serum cup can be used

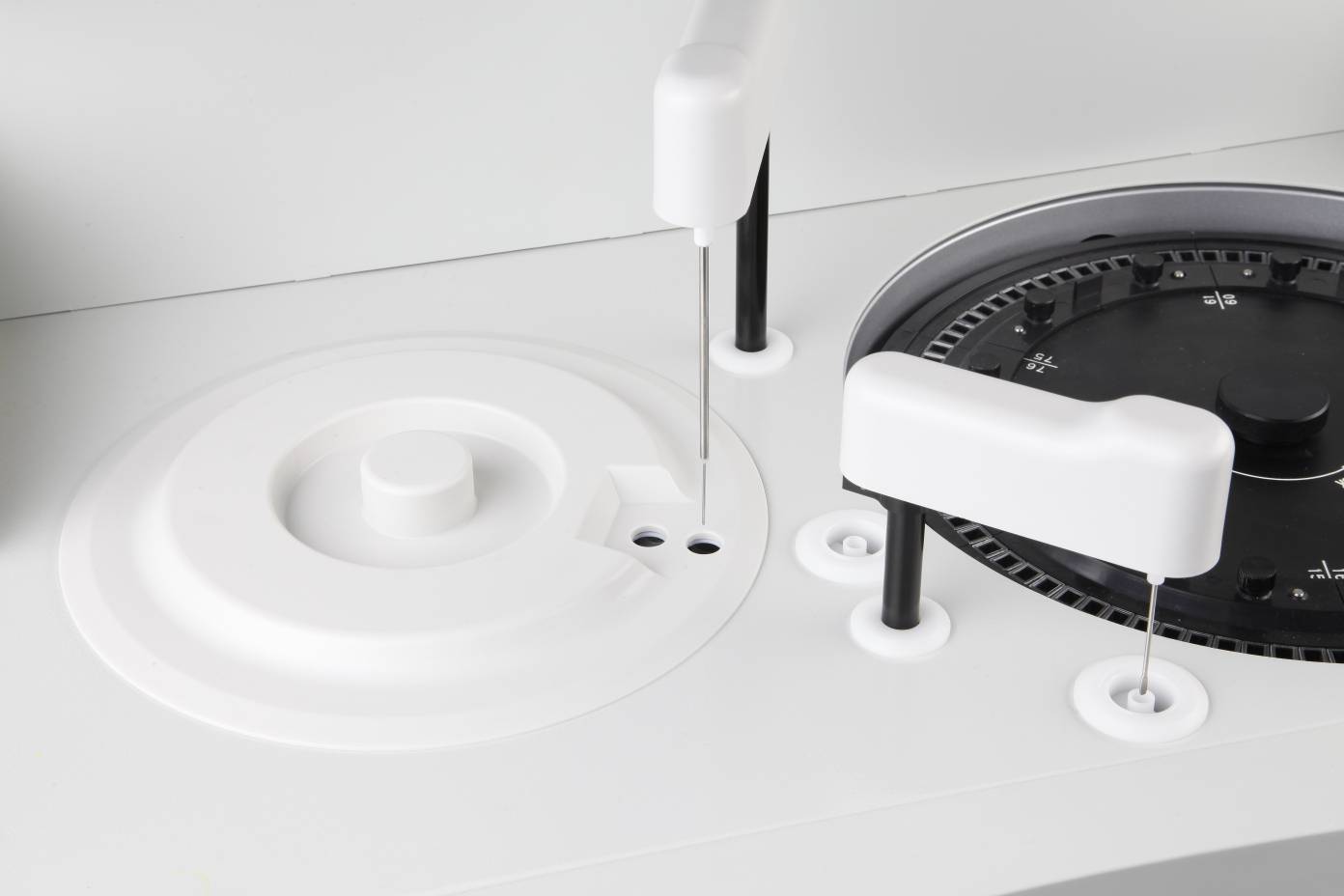

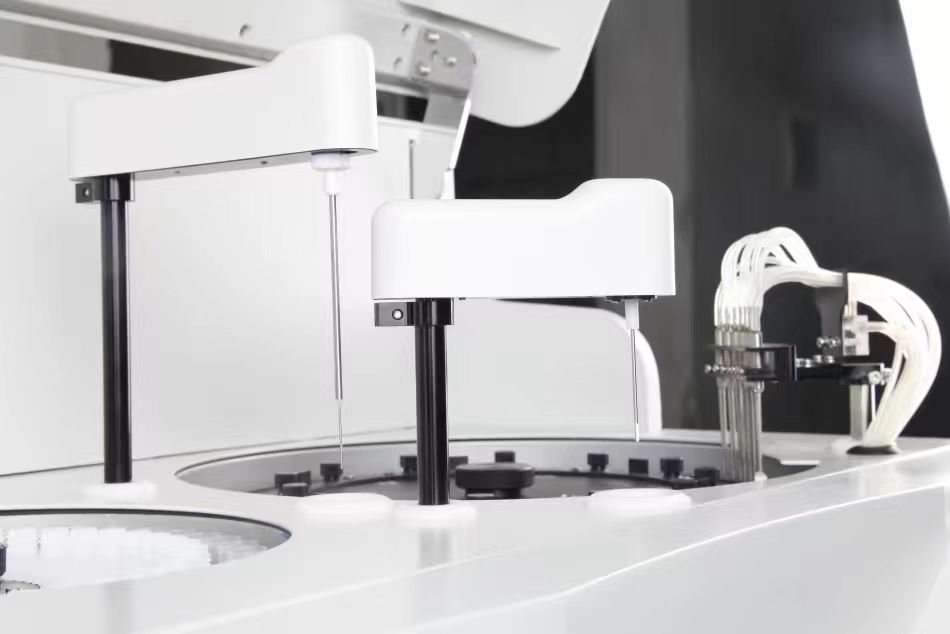

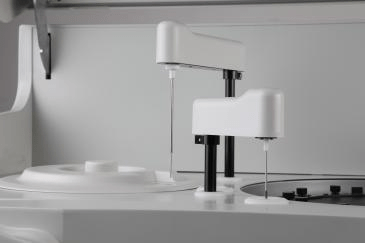

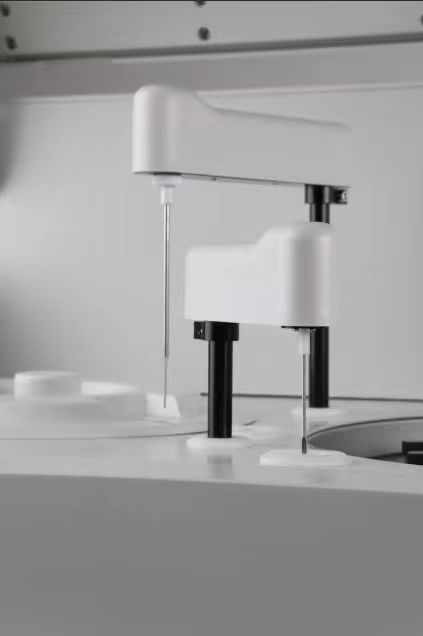

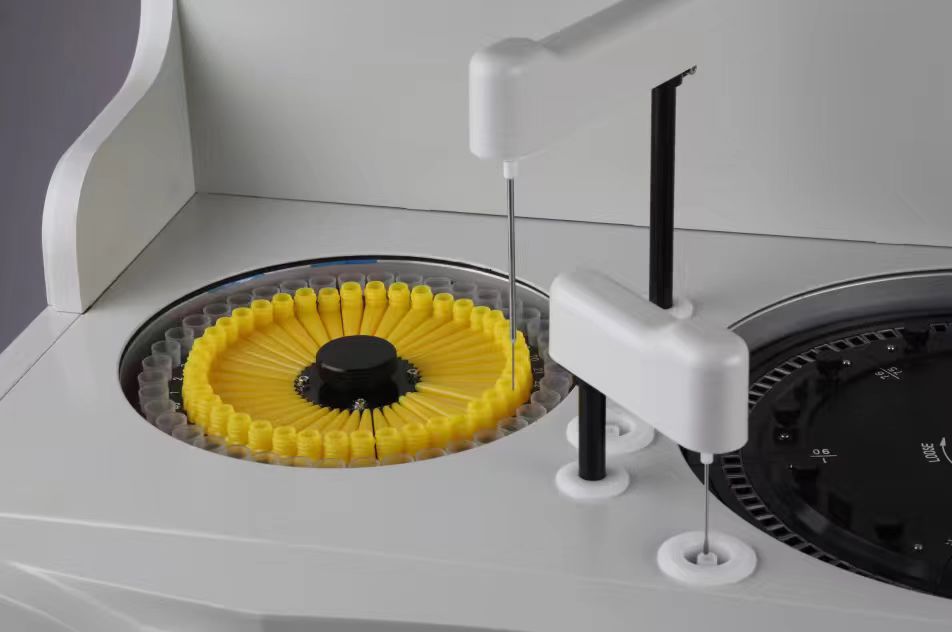

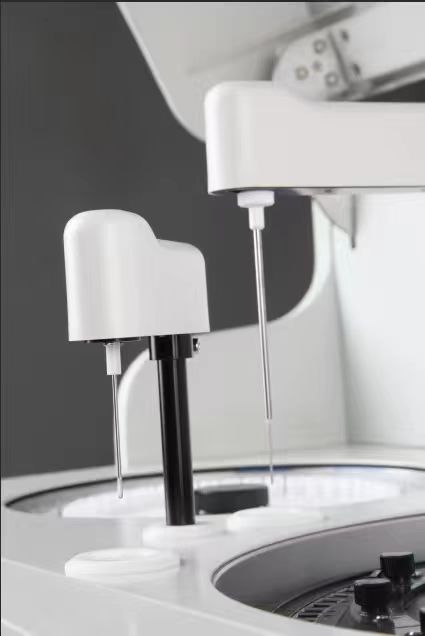

Sample/Reagent/Mixing Probe
- Probe telflon coating technology
- Automatic liquid level detect
- Collision protection function
- Independent mixing probe
- Probe internal/external washing
- Clot detection function

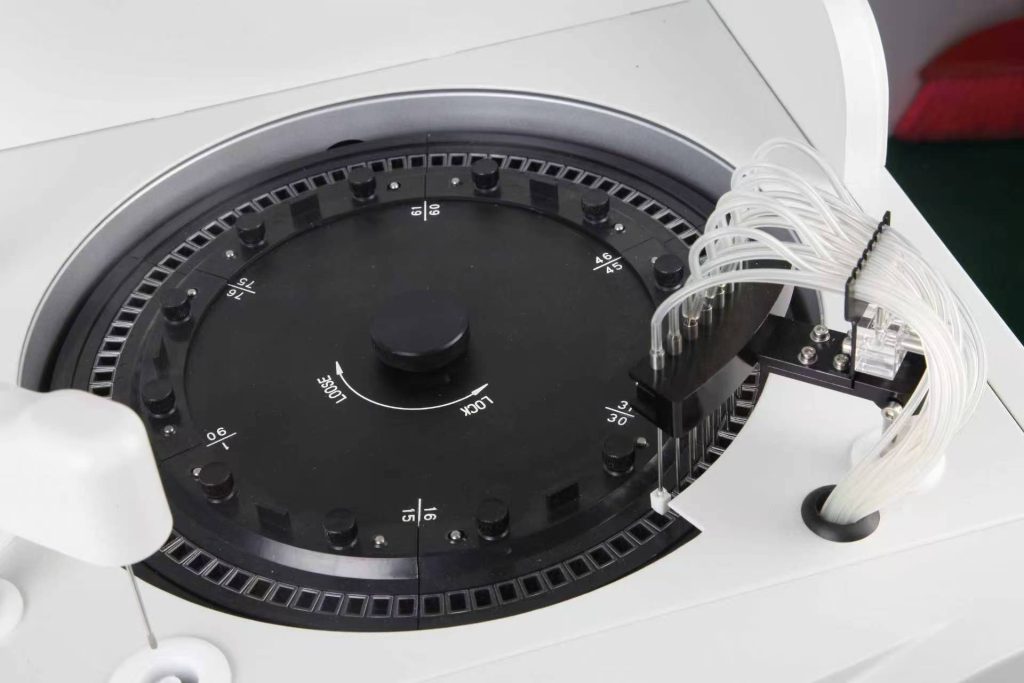

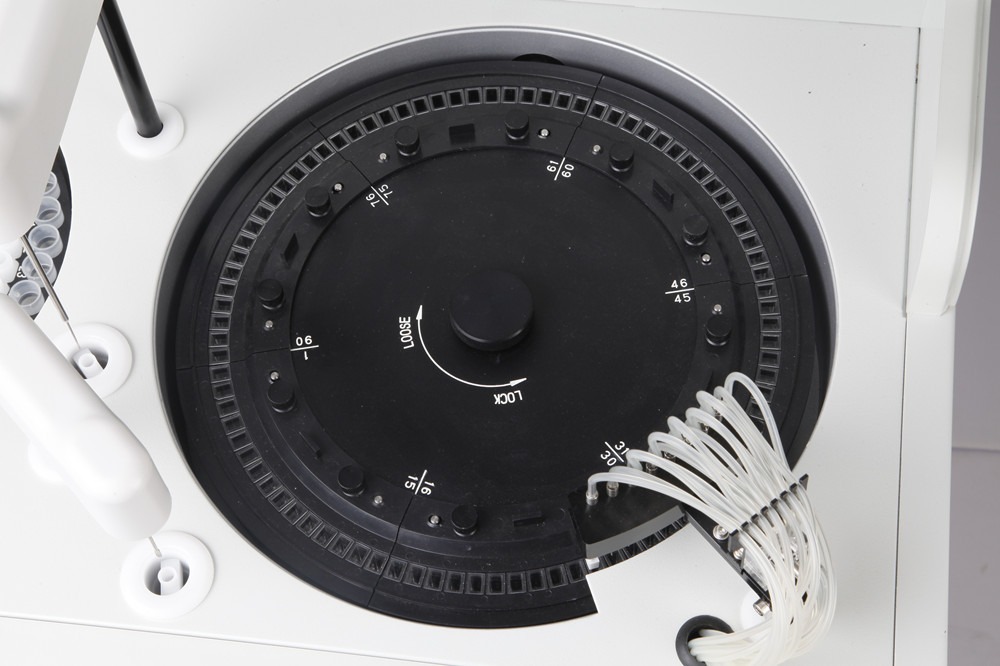

Reaction Cuvettes
- 90 pcs reusable cuvettes
- Automatic blank testing for cuvette
- Colorimetry system in the pattern of light splitting behind cuvette
- Dismountable, easily replace cuvette

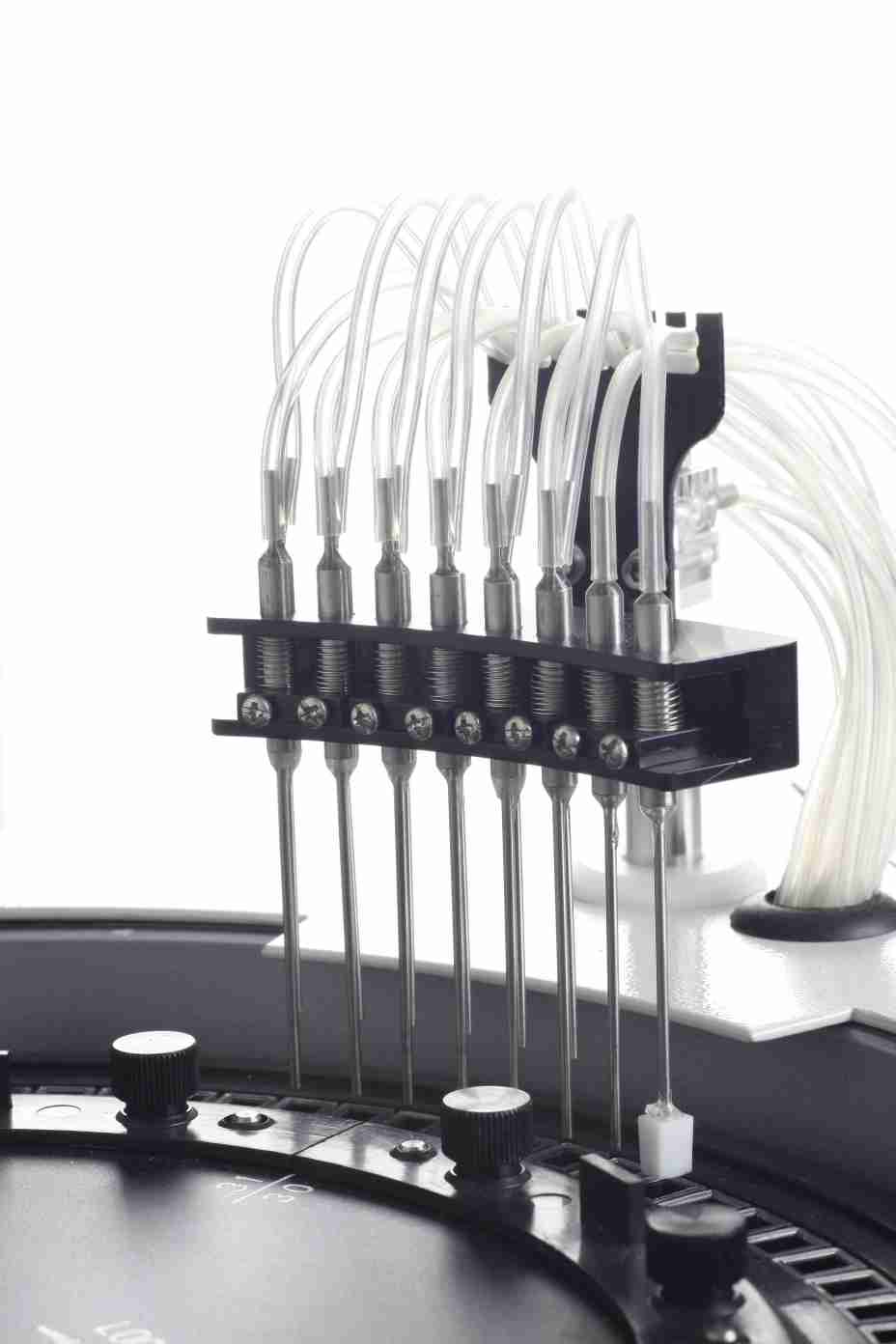

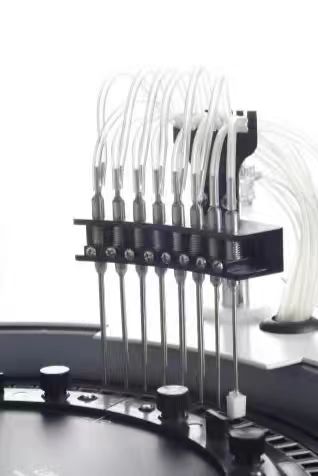

8-step auto cleaning System
- Automatic 8-step washing
- Automatic cuvette dry function
- Hi-tech washing station to ensure accurate test results
- With low water consumption: 4L/H
Operation Demonstration
- Automatic washing cuvette when start up & shut down the instrument
- Test order setting program is available to avoid carry-over

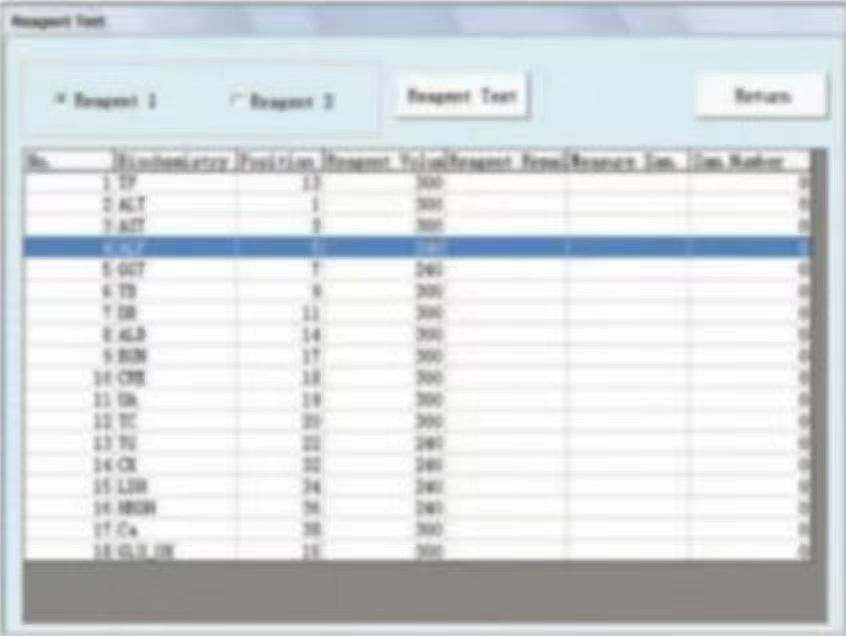

- Automatic detect reagent volume during every startup of the instrument
- Show reagent plate temperature during every startup of the instrument

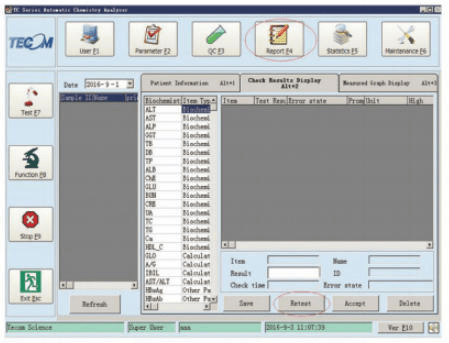

- Automatic dilute and re-test when absorbance range is overrange
- Automatic dilute and re-test when linear limit is overrange
- Three modes (no dilute, autodilute and handwork dilute) are available
- Freely set the autodilute ratio and dilute water position
- Automatic Cuvette blank testing
- Automatic wash selected cuvettes
- Real-time online monitoring running status of cuvette
- Real-time online monitoring running status of sample tray, reagent tray cuvette
- Real-time online monitoring reagents residual volume
- Real-time online monitoring waste volume
- Freely set the autodilute ratio when re-testing
- “No dilute” re-testing mode is available

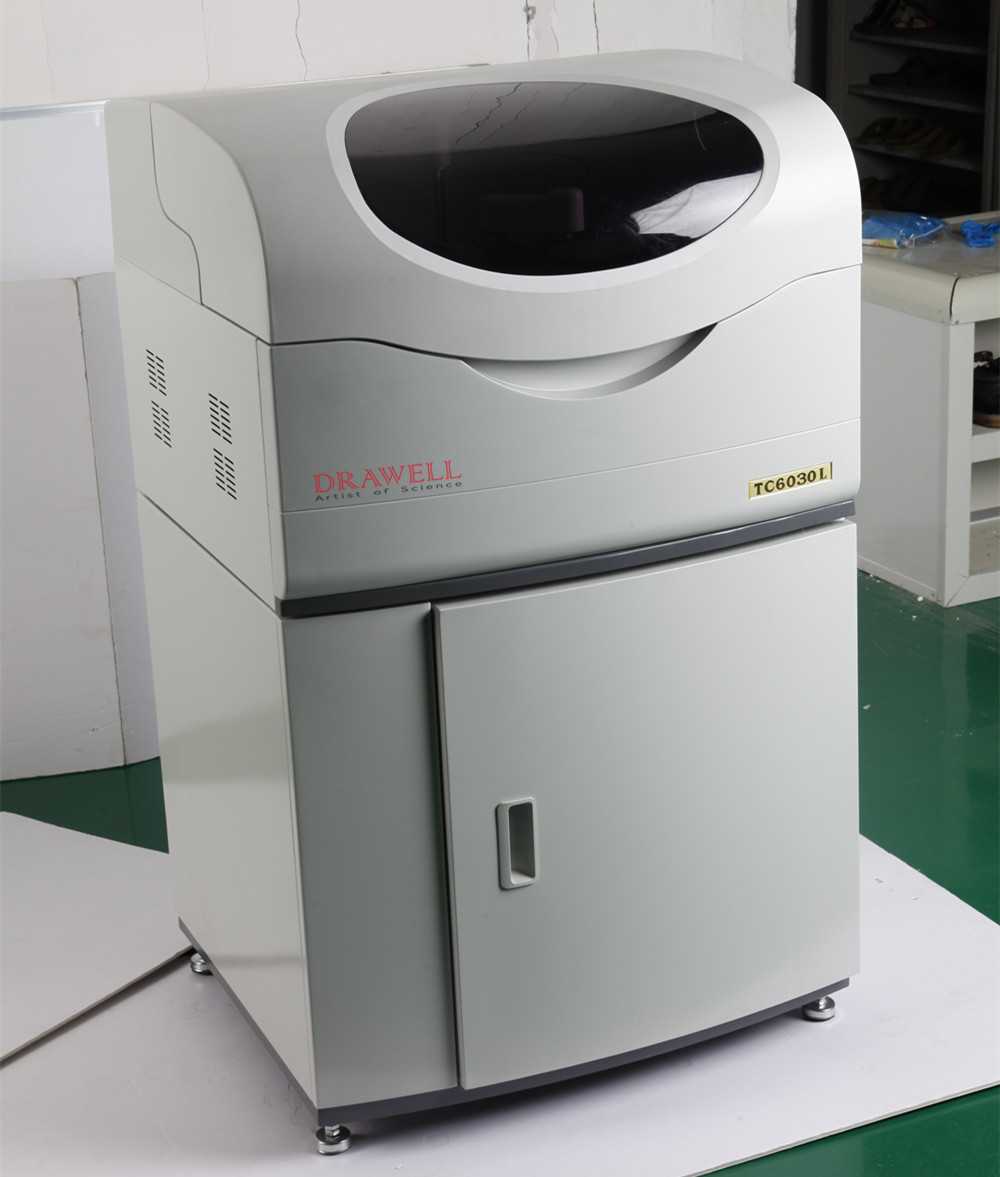

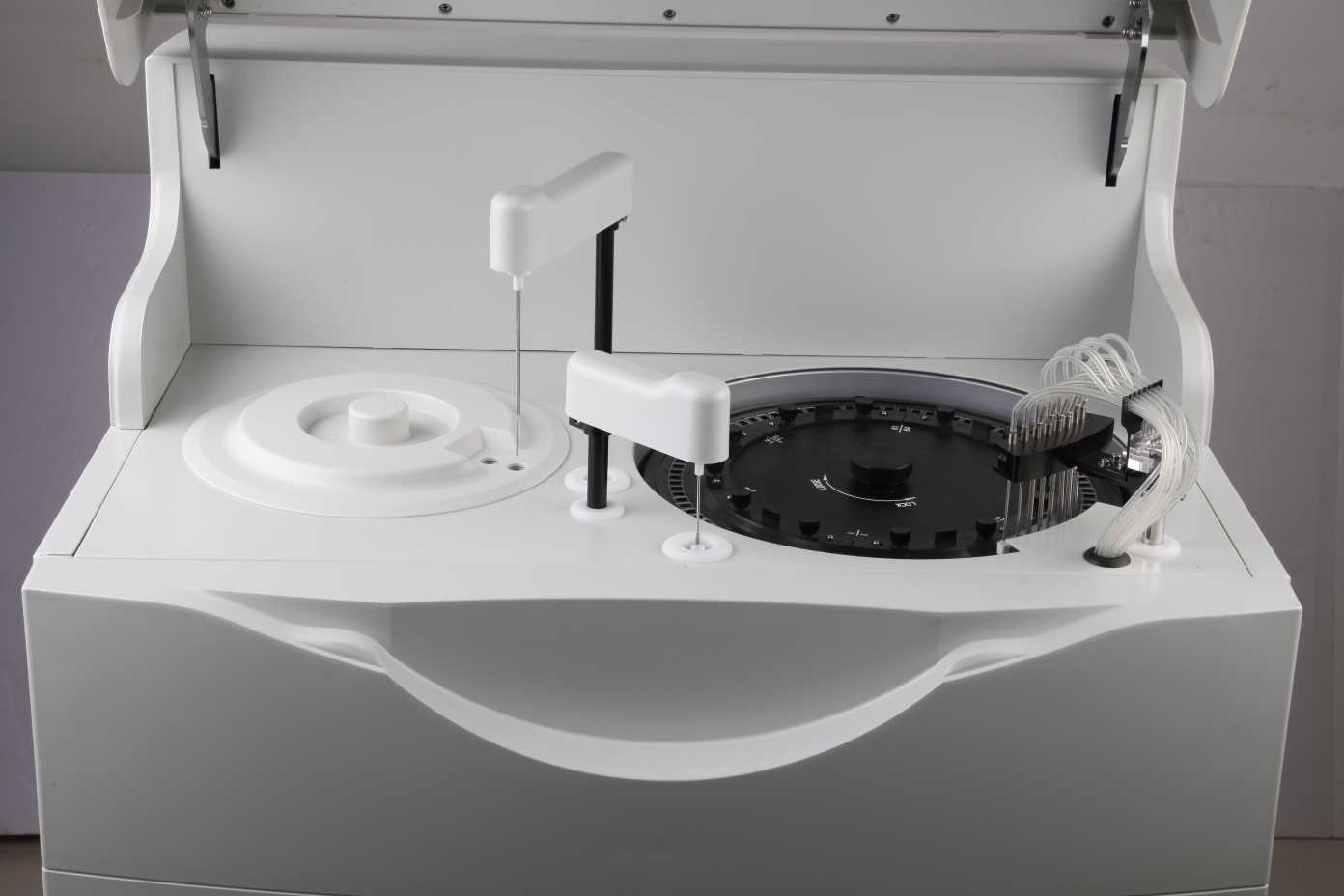

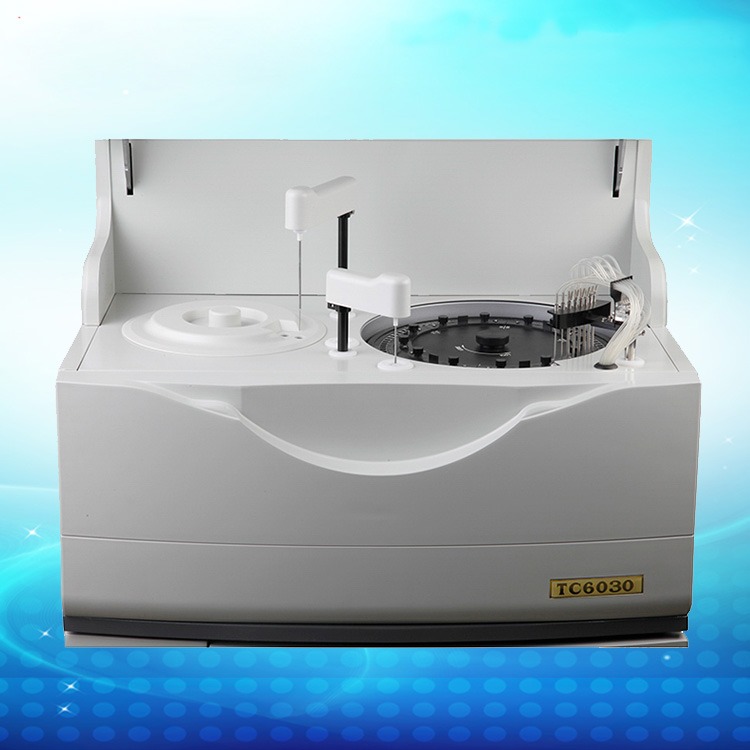

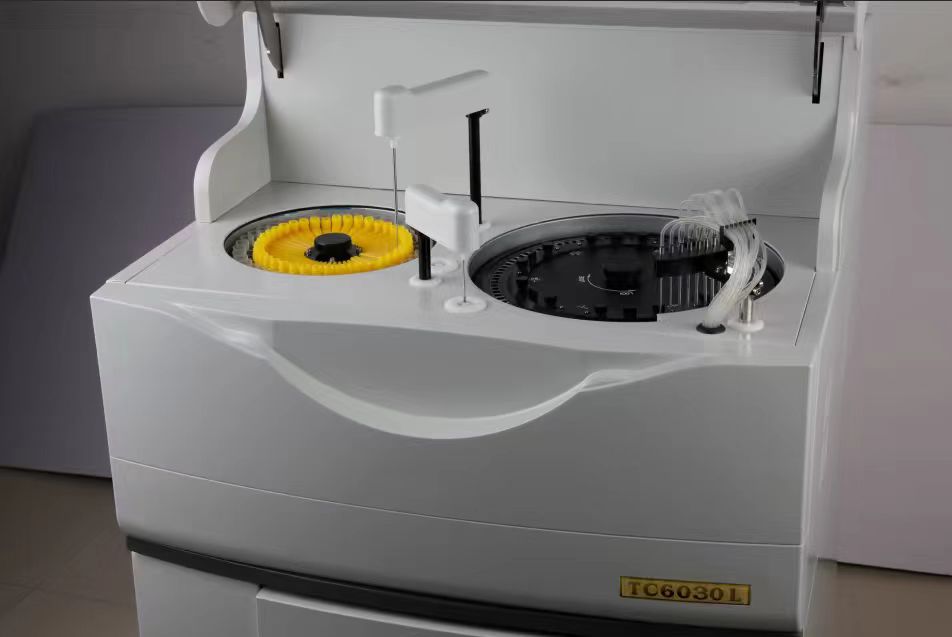

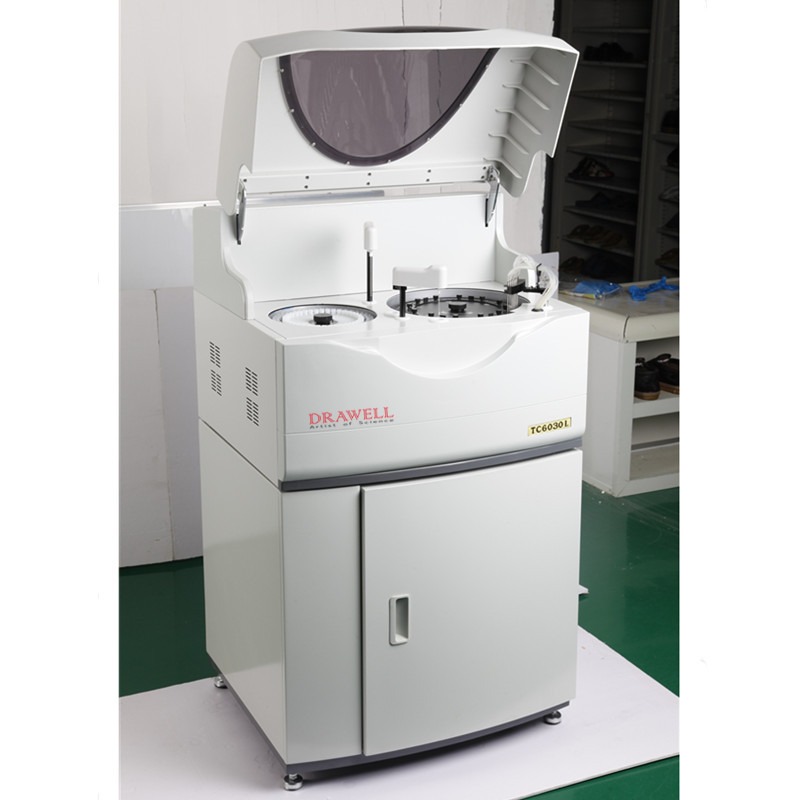

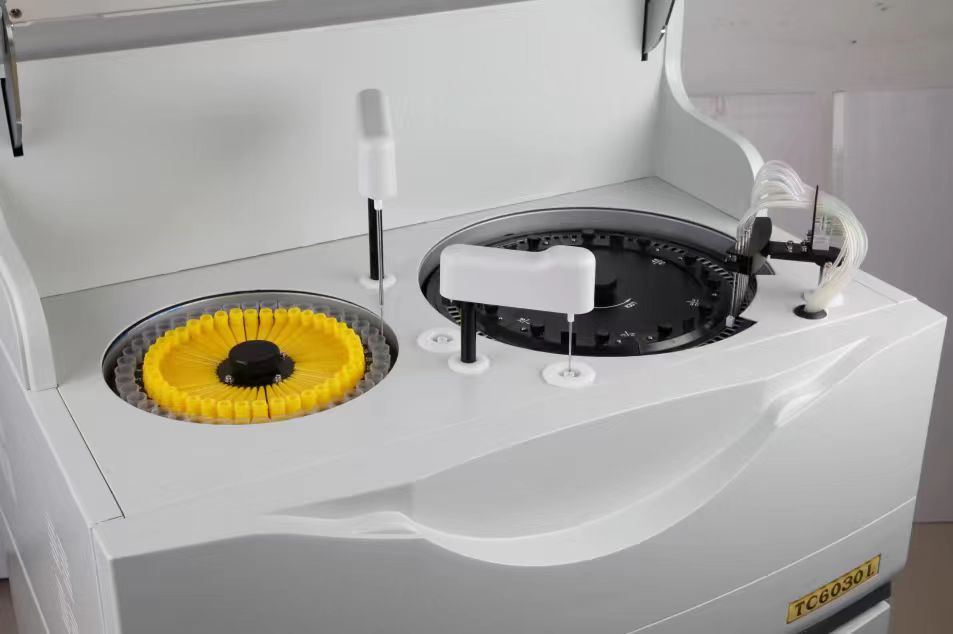

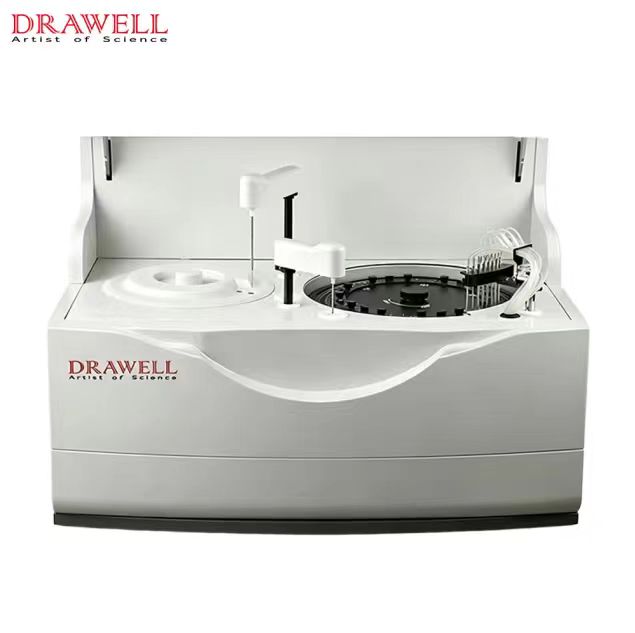

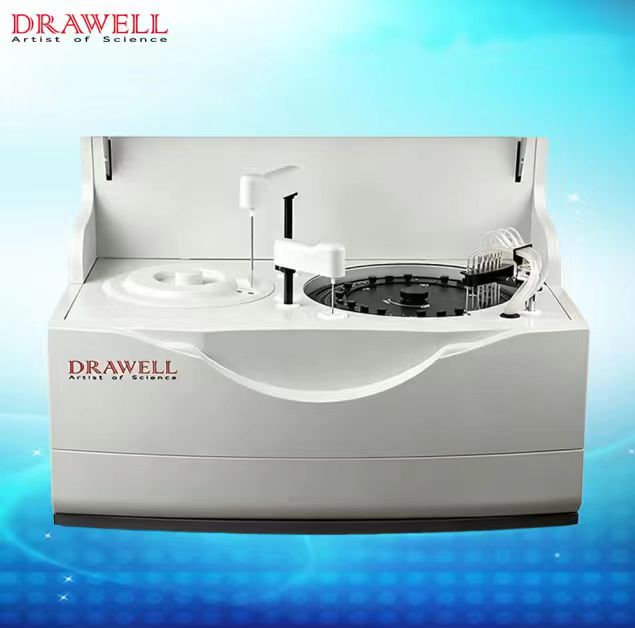

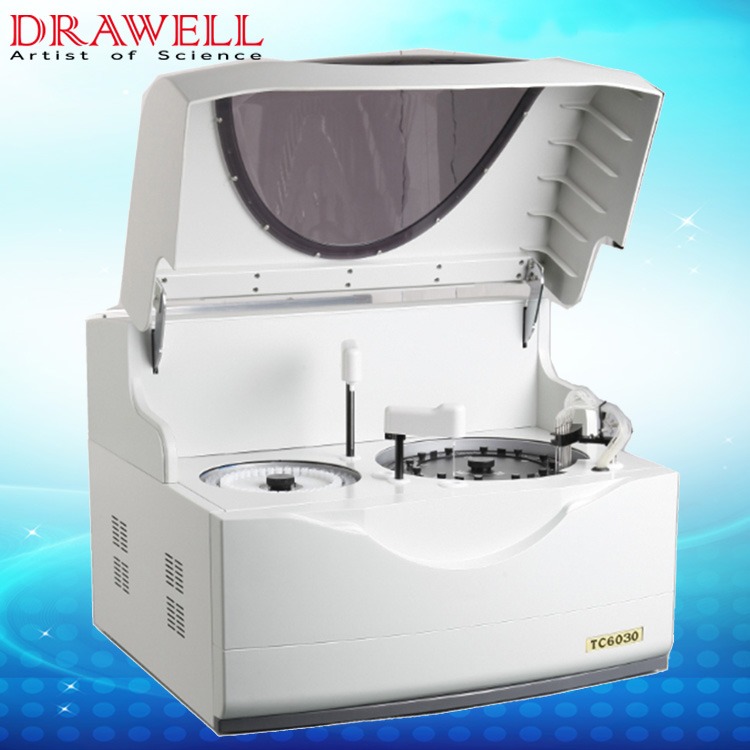

Product Display
