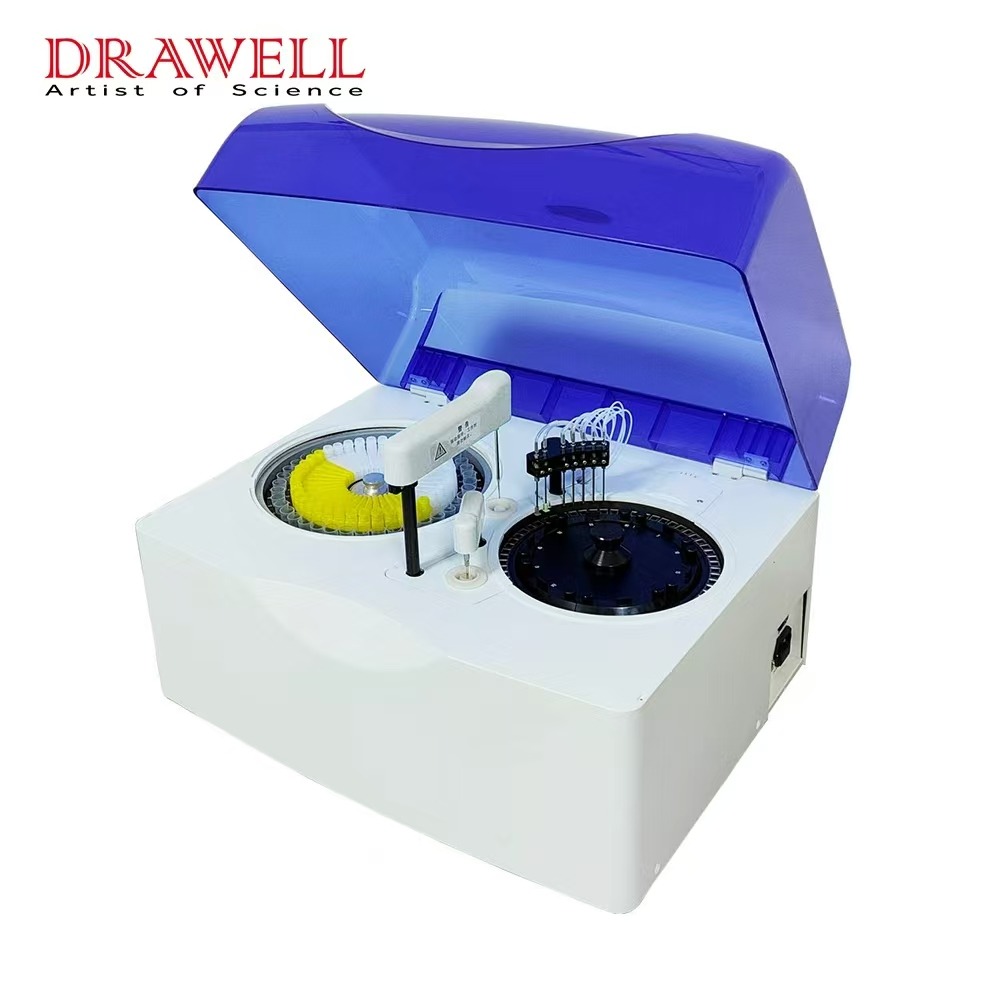

DW-TC200 Automatic Chemistry Analyzer

The DW-TC200 is a compact automatic chemistry analyzer with a throughput of 200 tests/hour, 40 sample positions, 40 refrigerated reagent positions, and 60 reusable reaction cuvettes.

Automatic sample handling, dilution and re-testing, real-time reagent monitoring, independent mixing and a 7-step washing system reduce repetitive manual work while keeping routine chemistry testing organized and efficient.

DW-TC200 Brochure

Features of DW-TC200 Automatic Chemistry Analyzer

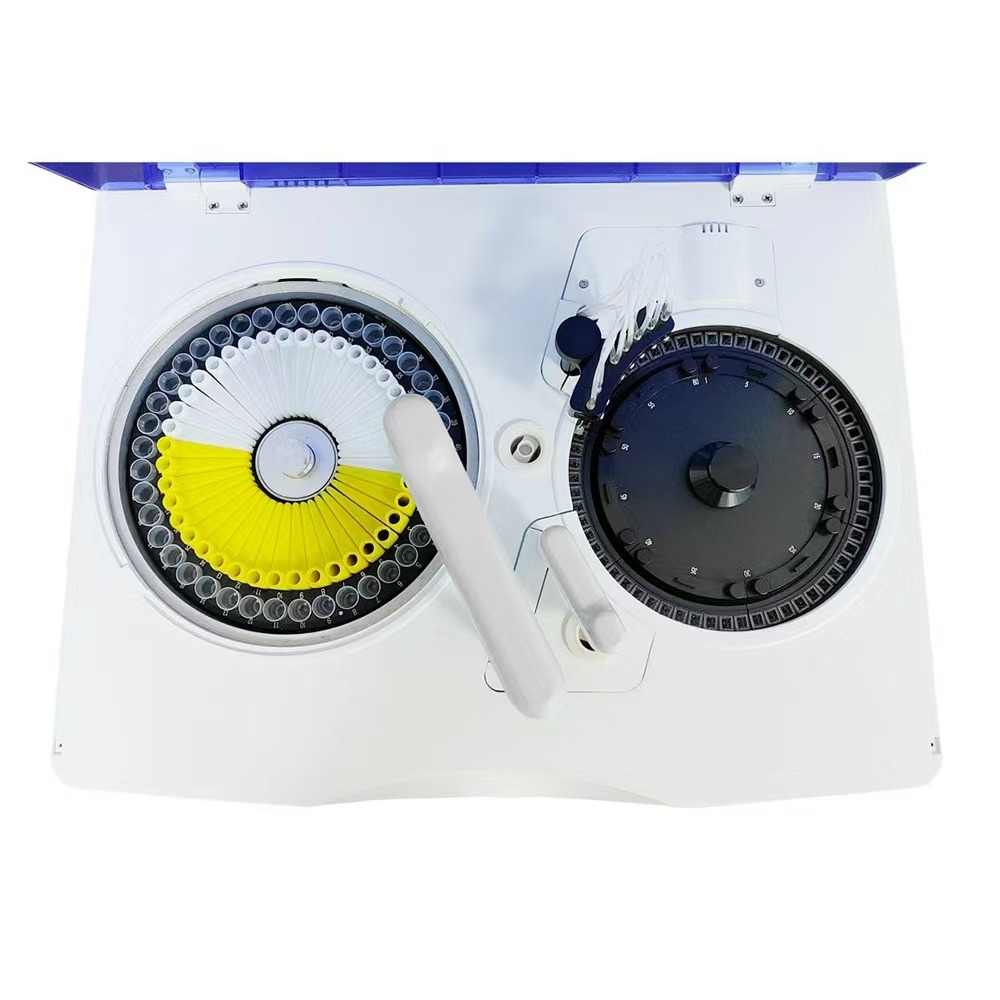

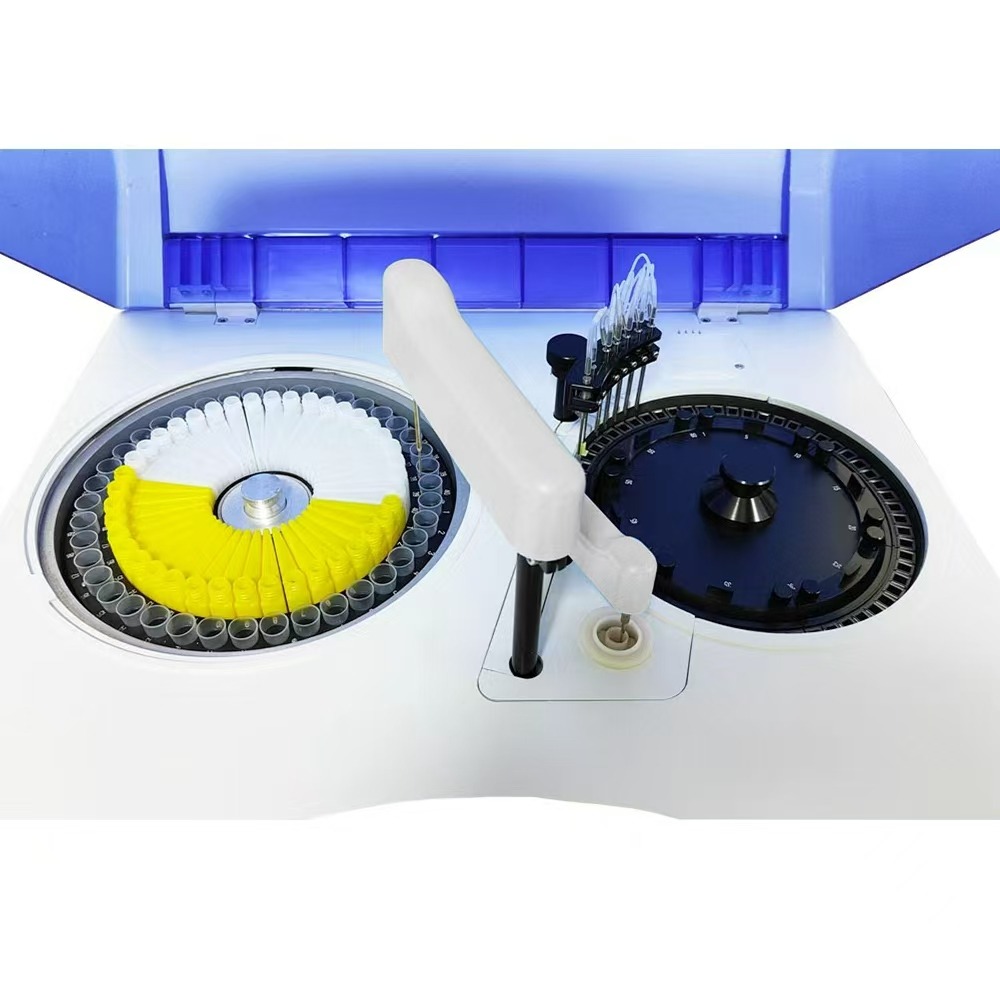

Sample/Reagent Position

  • 40pcs sample position
  • Reagent refrigerated function
  • 40pcs reagent position
DW TC200
DW TC200 2

Reaction Cuvettes

  • 60 pcs reusable plastic cuvettes
  • Automatic blank testing for cuvette
  • Colorimetry system in the pattern of light splitting behind cuvette
  • Dismountable,easily replacement

Sample/Reagent/Mixing Probe

  • Automatic liquid level detect
  • Collision protection function
  • Probe internal/external washing
  • Independent mixing probe
DW TC200 3
DW TC200 4

7-Step Auto Cleaning System

  • Automatic 7-step washing
  • Hi-tech washing station to ensure accurate results
  • With low water consumption: 1-2L/H

Optimum calibration cuvette

  • Automatic Cuvette blank testing
  • Automatic wash selected cuvettes
DW TC200 5
DW TC200 6

Intellective software

  • Automatic washing cuvette when startup & shut down
  • Automatic detect reagent volume during every startup
  • Reagent plate temperature detecting when startup

Dynamic and Real-time display of running status

  • Real-time online monitoring
  • Running status of sample tray, reagent tray and cuvette
  • Real-time online monitoring reagents residual volume
  • Real-time online monitoring waste volume

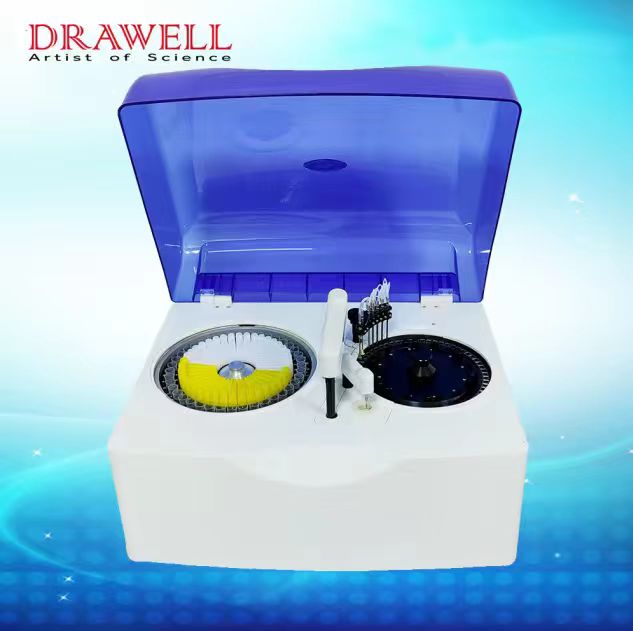

DW TC200 7
DW TC200 8

Automatic dilute and re-test

  • Automatic dilute and re-test when absorbance range is out of range
  • Automatic dilute and re-test when linear limit is out of range
  • Automatic dilute and re-test when linear range is out of range
  • Freely set the auto dilute ratio and dilute water position

Applications of DW-TC200 Automatic Chemistry Analyzer

  • Serum Plasma
    Serum & Plasma
  • Urine Samples
    Urine Samples
  • Clinical Biochemical Samples
    Clinical Biochemical Samples
  • Quality Control Samples
    Quality Control Samples

Product Display

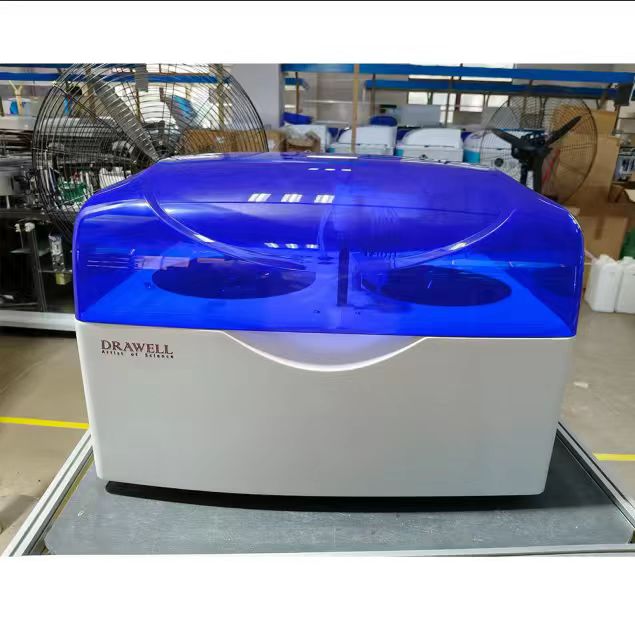

  • DW TC200 4 1

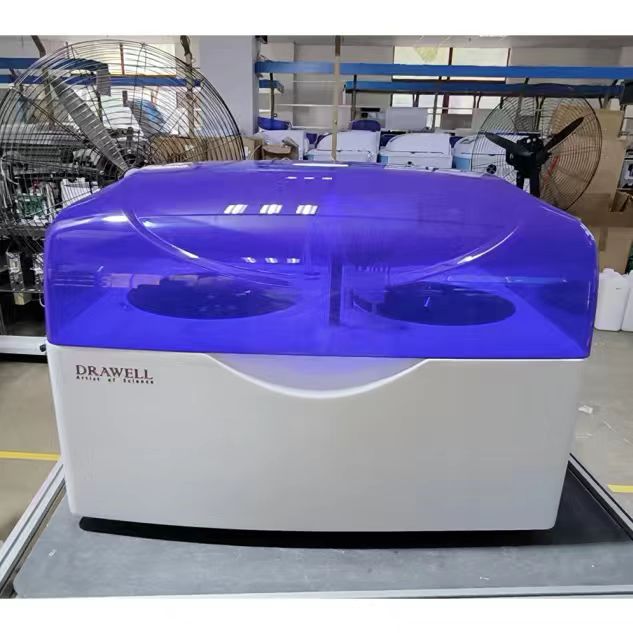

  • DW TC200 7 1
  • DW TC200 2 1

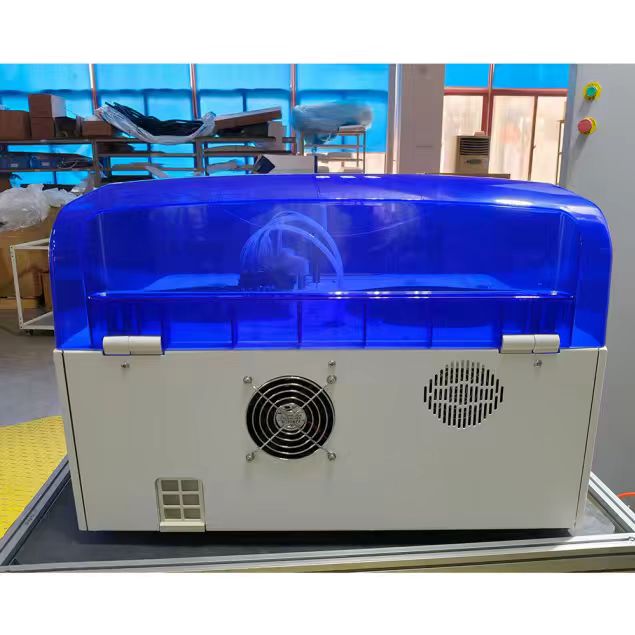

  • DW TC200 3 1

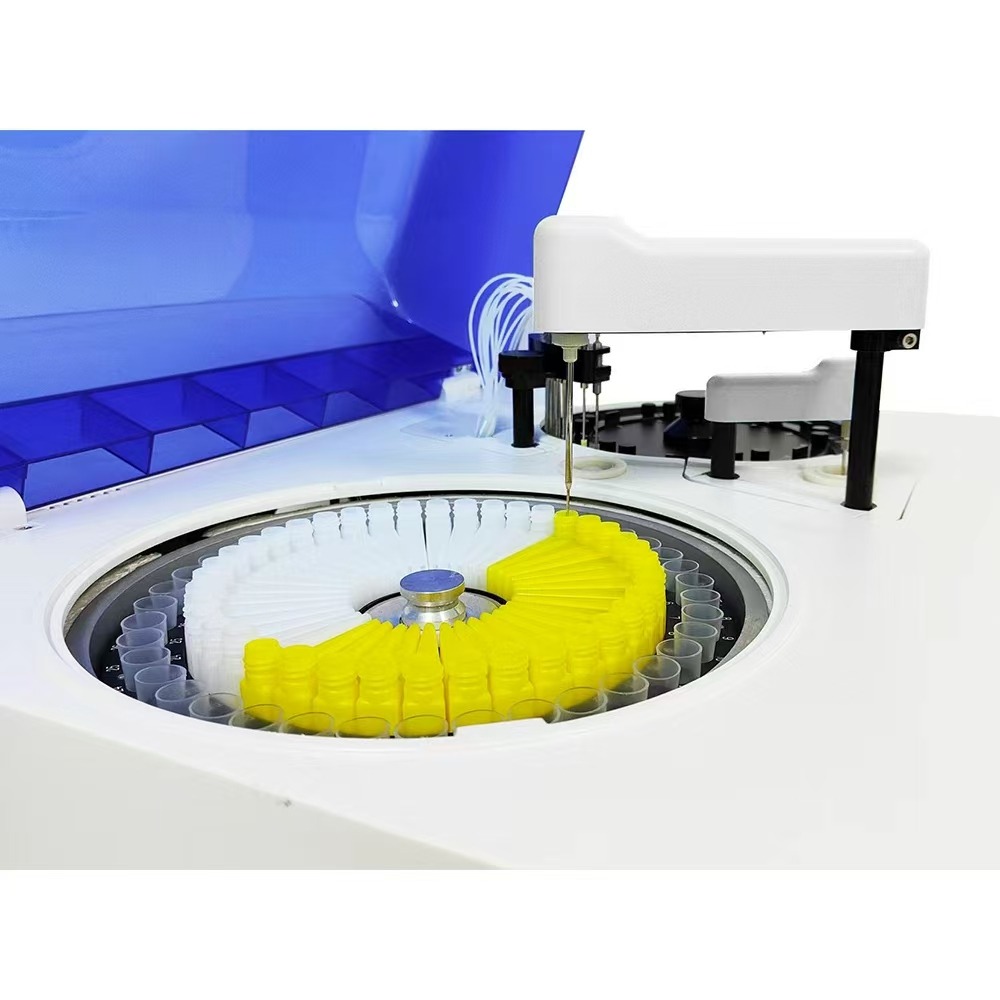

  • DW TC200 9 1
  • DW TC200 13

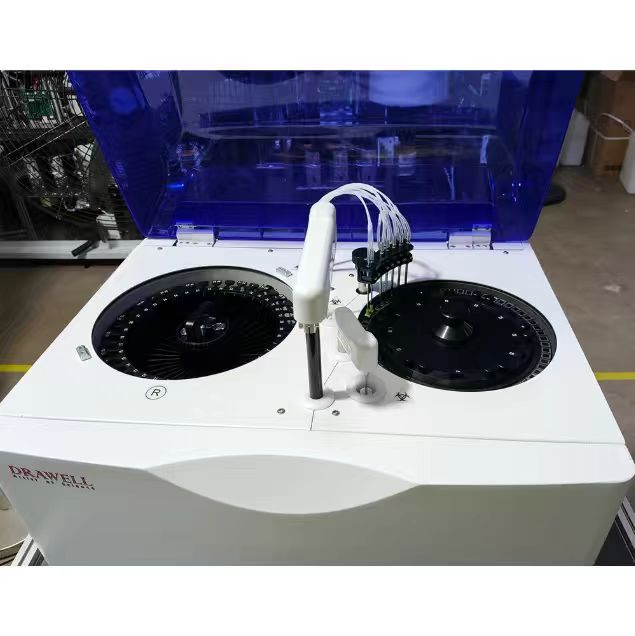

  • DW TC200 1

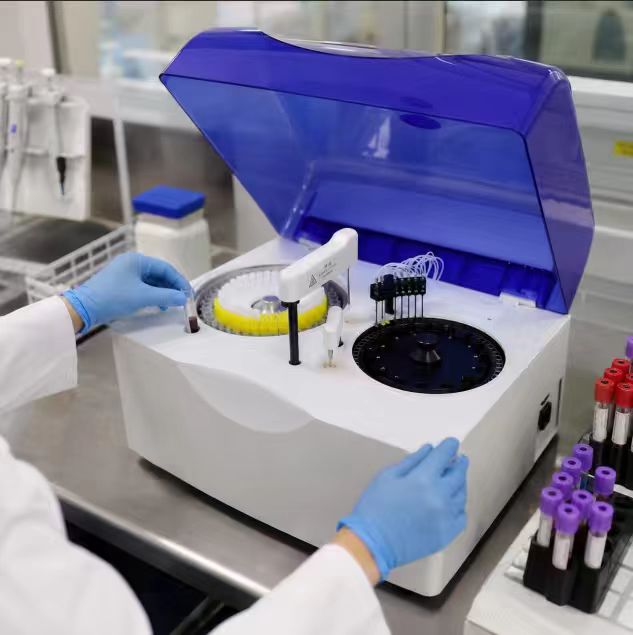

  • DW TC200 12

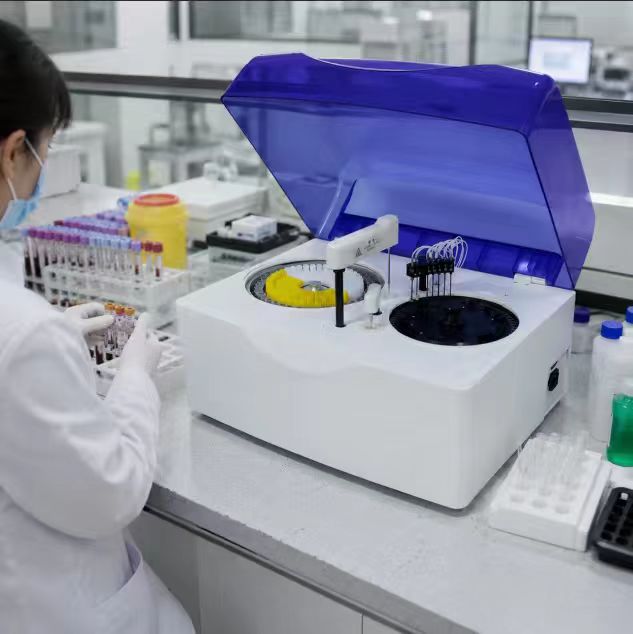

  • DW TC200 11
  • DW TC200 10

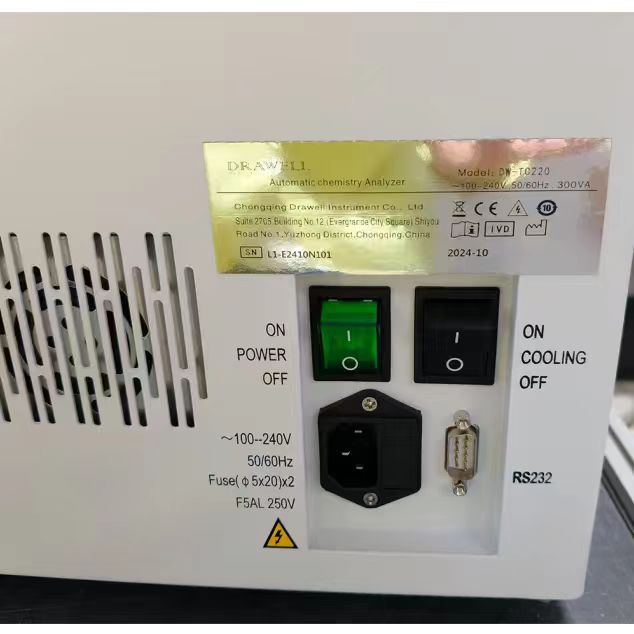

  • DW TC200 6 1

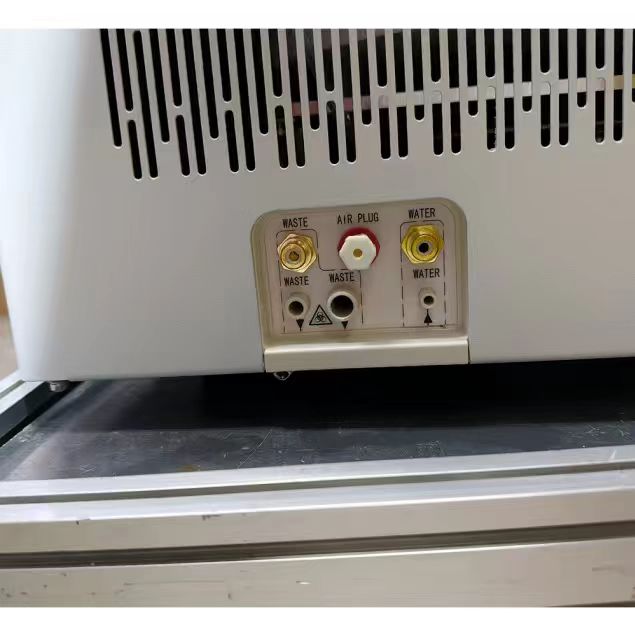

  • DW TC200 8 1
  • DW TC200 5 1

FAQ

The sample volume is 1.6–50 μL, adjustable in 0.1 μL steps.

Reagent volume can be set from 10 to 500 μL in 0.5 μL steps.

Yes. Automatic and manual pre-dilution are supported, with dilution ratios up to 1:100.

Yes. Automatic re-testing is supported when a result is outside the linearity range or when the sample is insufficient.

The reaction system contains 60 reusable plastic cuvettes.

Yes. The analyzer uses a 7-step automatic washing system, and automatic cuvette washing is also performed during startup and shutdown.

The brochure lists end-point, kinetic, two-point, double-reagent, double-wavelength and multi-standard methods.

Yes. The system is open to various reagents.

Windows 10 or Windows 7.

Specifications of DW-TC200 Automatic Chemistry Analyzer

A revolutionary automatic chemistry analyzer with
Compact design54.8cmX42.2cmX38.3cm
Easy to carrynet weight≤23kg
Optimal substitution of semi-auto chemistry analyzer
Minimal labor required
Independent mixing probe
Utility of reagents decreased300μl/test
Efficiency speed200 tests/hour
User friendlySmart and easy-operating software
High AccuracyMinimal operating/random errors
High reputation from clinics
System Functions
Analysis Methodsend-point, kinetic, two-point,double-reagent, double-wavelength, multi-standard etc, open to various reagents
Sample/Reagents Handling
Sample volume1.6-50μl,0.1μl step
Sample DilutionAutomatic/Manual pre-dilution, with dilution ratio up to 1:100
Reagent Position40 pcs
Reagent Volume10-500μl, 0.5μl step
Reaction System
Reaction Cuvette60 reusable plastic units
Optical Length of Cuvette6mm
Reaction Volume180~400μl
Max reaction Time10 minutes
Reaction Temperature37±0.1℃
Optical System
Light Sourcehalogen-tungsten lamp
Wavelength340-690nm,9 wavelengths, precision ±1.5nm
Absorbance Range0~5.0 Abs
Resolution0.0001 Abs
Rear spectrophotometry
Calibration
CalibrationLinear/nonlinear multi-points calibration
Re-testretest the sample automatically when the result is out of the linearity range or the sample is not sufficient
Working Condition

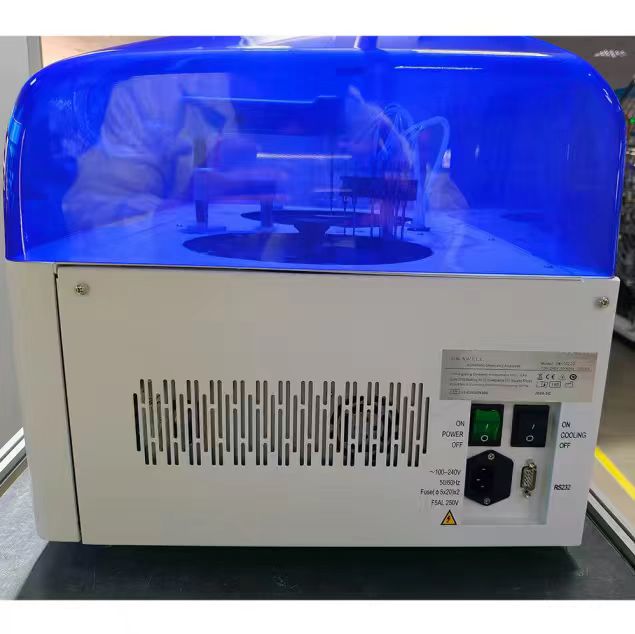

Power Supply~100-240V,50/60Hz,300VA
Temperature10-35℃
Humidity≤90%, no dew
Operation System
Windows 10 or Windows 7
Input and Output
InputRS-232 interface/computer
Outputmulti-format printout
