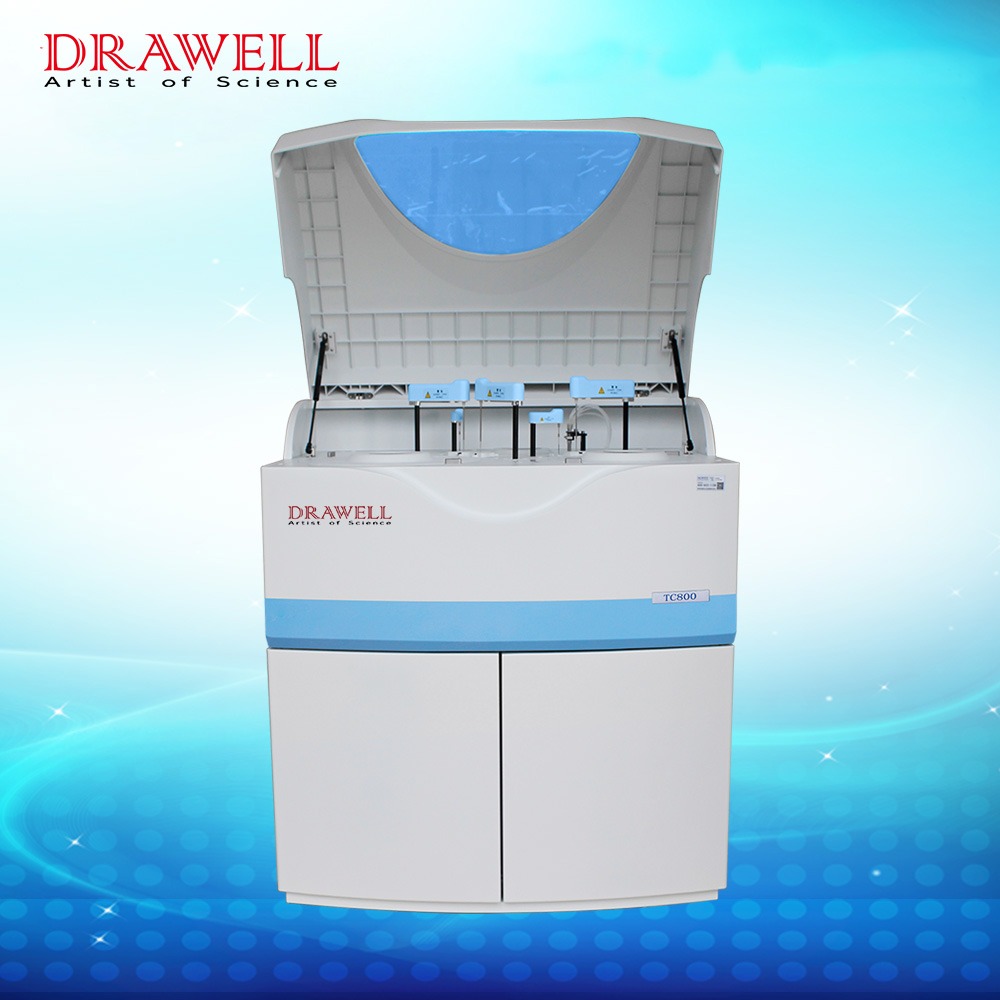

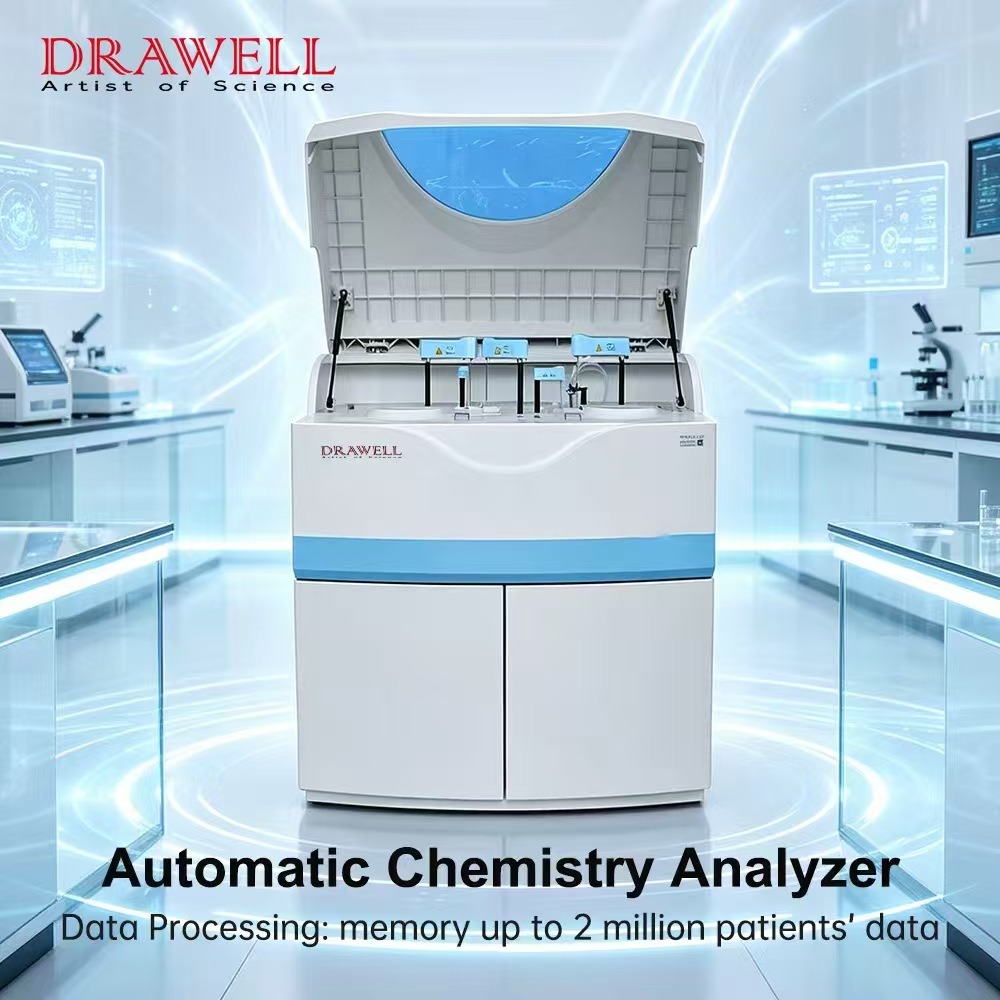

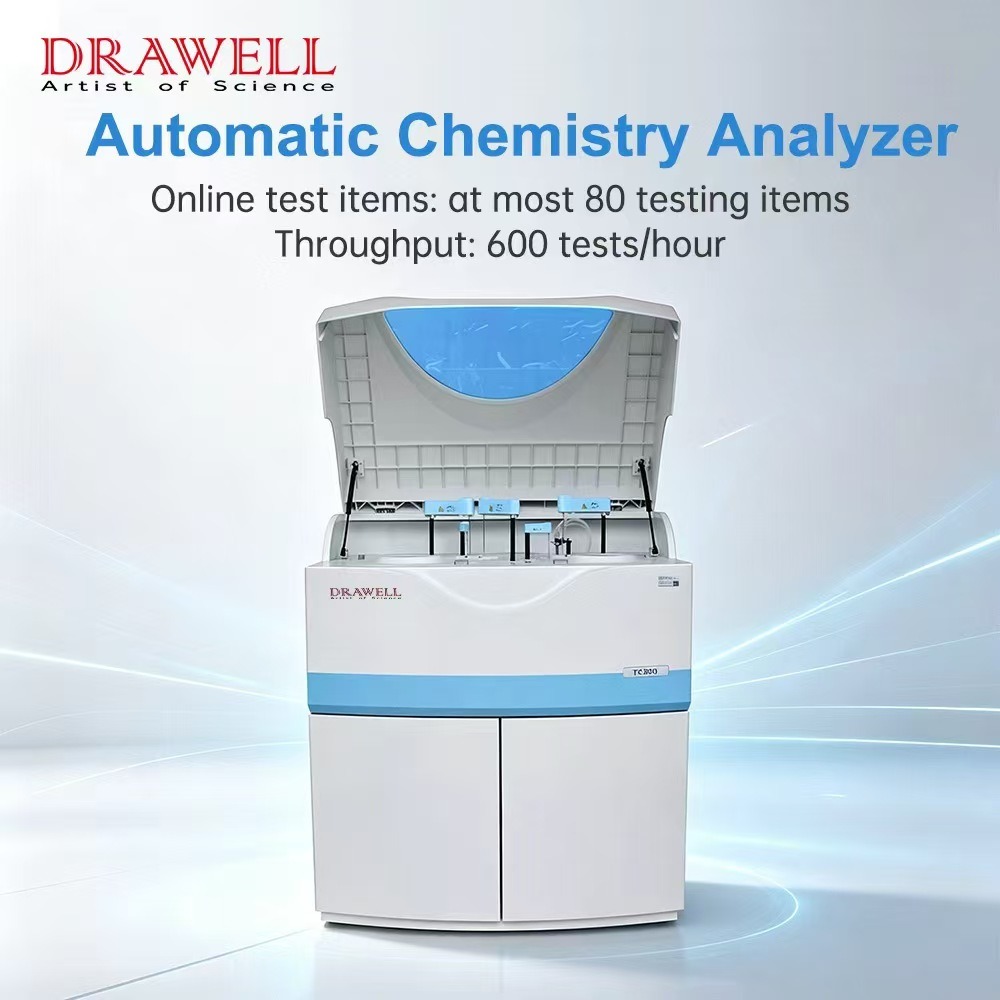

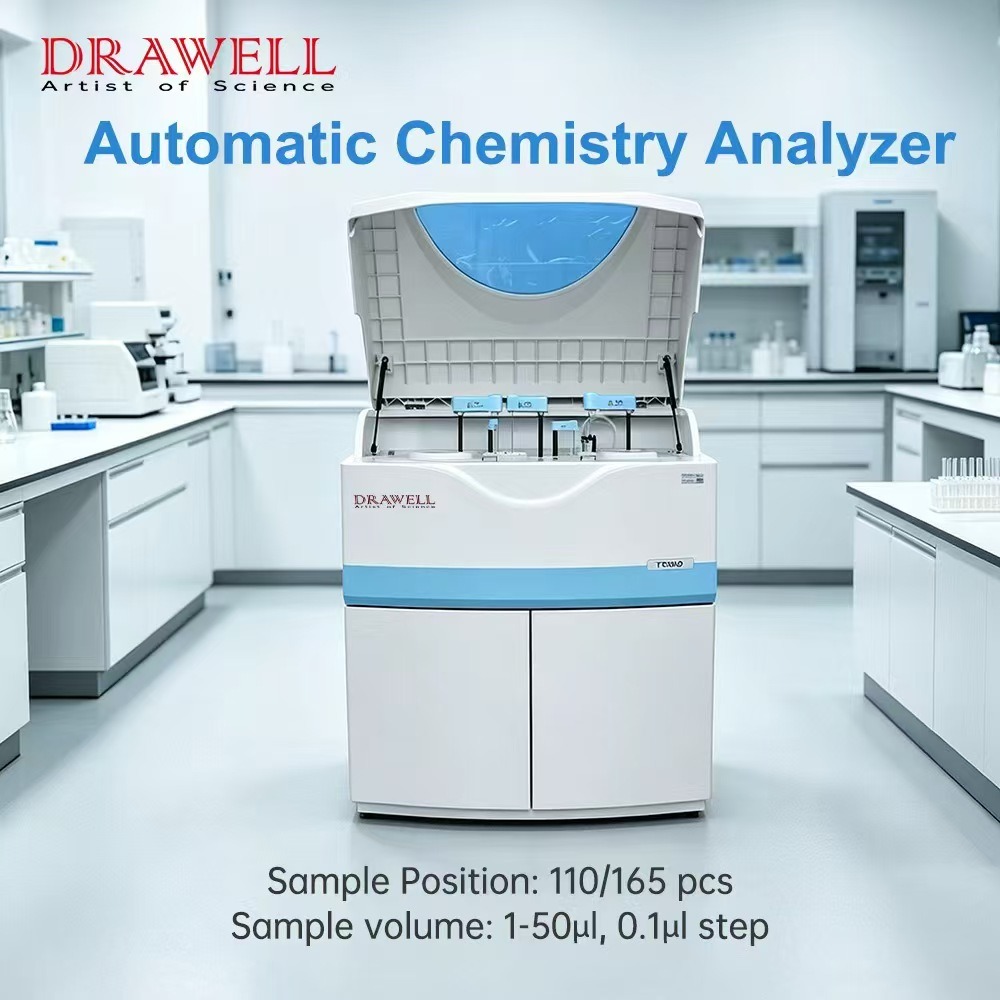

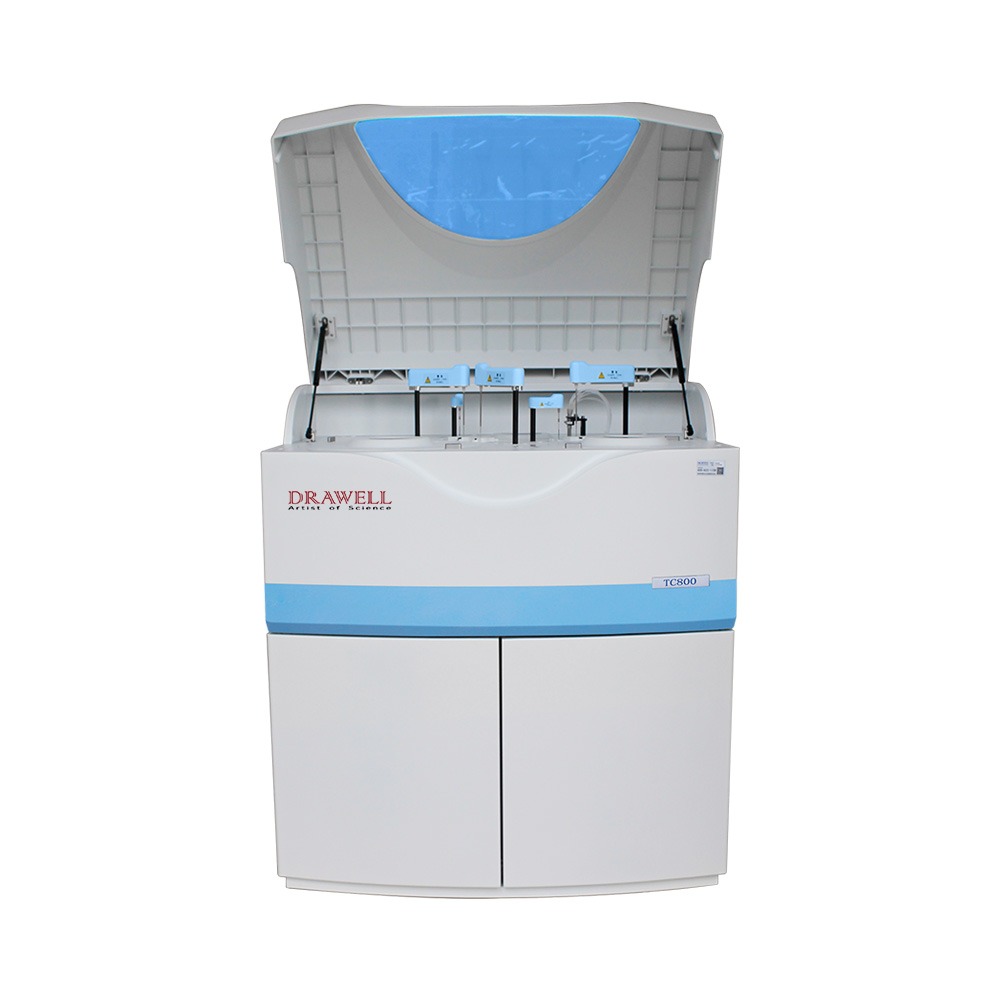

TC800 Automatic Chemistry Analyzer

TC800 is a fully automatic, discrete and random-access chemistry analyzer. The system supports end-point, kinetic, two-point, double-reagent, double-wavelength and multi-standard methods, with an open reagent design for flexible laboratory use.

  • Photometric throughput：600 Tests/Hour
  • Including standard, QC and STAT：110 / 165 Sample Positions
  • 2–8°C refrigeration：80 / 120 Reagent Positions
  • 0.1 μL step：1–50 μL Sample Volume
  • 12 wavelengths：290–1100 nm
TC800 Brochure

Features of TC800 Automatic Chemistry Analyzer

  1. 600 Tests/Hour & STAT Testing: Up to 600 tests/hour with fully automatic, discrete and random-access operation. Supports 80 online test items and 110/165 sample positions, including standard, QC and STAT positions.
  2. 80/120 Refrigerated Reagent Positions: Provides 80/120 reagent positions with 2–8°C refrigeration. Reagent volume is 10–400 μL in 1 μL steps, with automatic liquid-level detection and probe collision protection.
  3. Automatic Dilution & Re-Test: Supports 1–50 μL sample volume in 0.1 μL steps and automatic/manual pre-dilution up to 1:100. Automatic dilution and re-testing are available when results exceed the linear range.
  4. Wide-Range Photometric System: Covers 290–1100 nm across 12 wavelengths, with a test range of 0.0000–4.50000 Abs and 0.0001 Abs resolution.
  5. Stable Reaction & Automatic Washing: Uses 90 reaction cuvettes, maintains 37°C ±0.1°C, and provides two independent mixing probes. An 8-step automatic washing system with cuvette drying supports routine operation.
  6. QC, Calibration & Data Management: Supports linear/nonlinear multi-point calibration, QC management and random QC insertion, with storage for up to 2 million patients’ data.

Applications of TC800 Automatic Chemistry Analyzer

Hospitals Clinical Laboratories
Hospitals & Clinical Laboratories
Routine biochemical testing of serum and other compatible clinical samples for daily diagnostic workflows.
Independent Diagnostic Laboratories
Independent Diagnostic Laboratories
Suitable for laboratories handling continuous batches of routine samples together with priority or STAT samples.
Health Examination Centers
Health Examination Centers
Supports automated chemistry testing where multiple samples need to be processed efficiently during concentrated testing periods.
Medical Research Laboratories
Medical & Research Laboratories
Suitable for laboratories requiring flexible photometric methods and an open reagent system for validated chemistry assays.

FAQ

The TC800 provides a throughput of up to 600 tests/hour.

It is available with 110 or 165 sample positions, including standard, QC and STAT positions.

The TC800 provides 80 or 120 reagent positions with 2–8°C refrigeration.

Sample volume ranges from 1 to 50 μL in 0.1 μL steps.

Yes. Automatic and manual pre-dilution are supported with dilution ratios up to 1:100.

The photometric system covers 290–1100 nm with 12 wavelengths.

Yes. An optional K, Na and Cl ISE module is available with a throughput of up to 300 tests/hour.

Yes. An optional barcode reader can be used for sample and reagent programming.

Technical specifications of TC800 Automatic Chemistry Analyzer

ModelTC800
System FunctionsFully automatically, discrete, random STAT function
Online test items: at most 80 testing items
Throughput: 600 tests/hour
Analysis Method: end-point, kinetic, two-point, double-reagents, double-wavelength, multi-standard etc, open to various reagents
Data Processing: memory up to 2 million patients’ data
Sample/Reagents HandlingSample Position: 110/165 pcs (Include standard, QC, STAT positions)
Sample volume: 1-50μl, 0.1μl step
Sample Probe Cleaning: automatic internal & external washing
Sample Dilution: automatic/Manual pre-dilution, with dilution ratio up to 1:100
Reagent Position: 80/120 pcs (With refrigerated function, 2℃-8℃ )
Reagent Volume: 10-400μl, 1.0μl step
Reagent Probe: automatic liquid level detect, with collision protection function
Reagent Probe Cleaning: automatic internal & external washing
Reaction System Reaction Cuvette: 90 pcs made of special material
Optical Length of Cuvette: 6mm
Reaction Volume: 200～500μl
Reaction Time: 8-14 minutes
Reaction Temperature: 37℃±0.1℃
Mixing System: two independent mixing probe
Optical System Light Source: halogen lamp
Wavelength: 290nm~1100nm, 12 wavelengths
Spectrophotometry: rear spectrophotometry
Test Range: 0.0000-4.50000 Abs
Resolution: 0.0001Abs
Bar-code Reader (Optional)Bar-code reader used for sample/reagent programming
ISE Module (Optional)Optional : K, Na, Cl
Throughput: 300 tests/hour
QCVarious QC management function and random QC insert
Control and CalibrationCalibration: linear/nonlinear multi-points calibration
Re-test: retest the sample automatically when the result is out of the linearity range or the sample is not sufficient
Automatic sample dilute function
Cleaning System8-step automatic washing, automatic cuvette dry function
Water Consumption: 10L/hour
Working ConditionPower Supply: ~100-240V, 50/60Hz, 1KVA
Temperature: 10-35℃
Humidity: ≤90%, no dew
Operation SystemWindows
Input and OutputInput: RS-232 interface / keyboard / computer
Output: multi-format printout
Dimension and WeightUpper cabinet: W950mm×D710mm×H1180mm
Net Weight: 144kg
Packing InformationW1140mm×D895mm×H1400mm;
G.W.: 208.5Kg (With plywood case)
Main unit 1 set
Certificate of Conformity 1 set
Instruction Manual 1 set
Warranty card1 set
