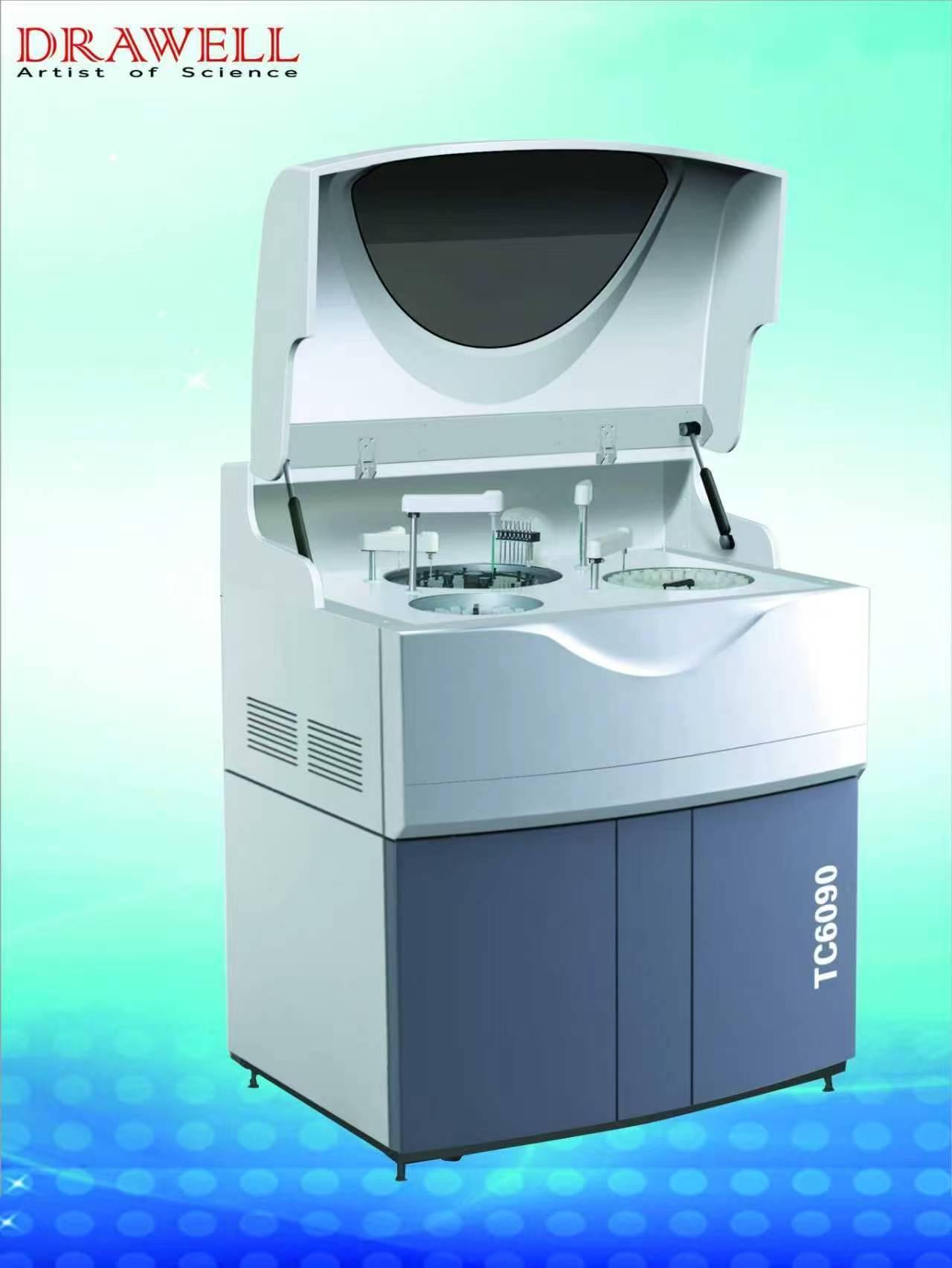

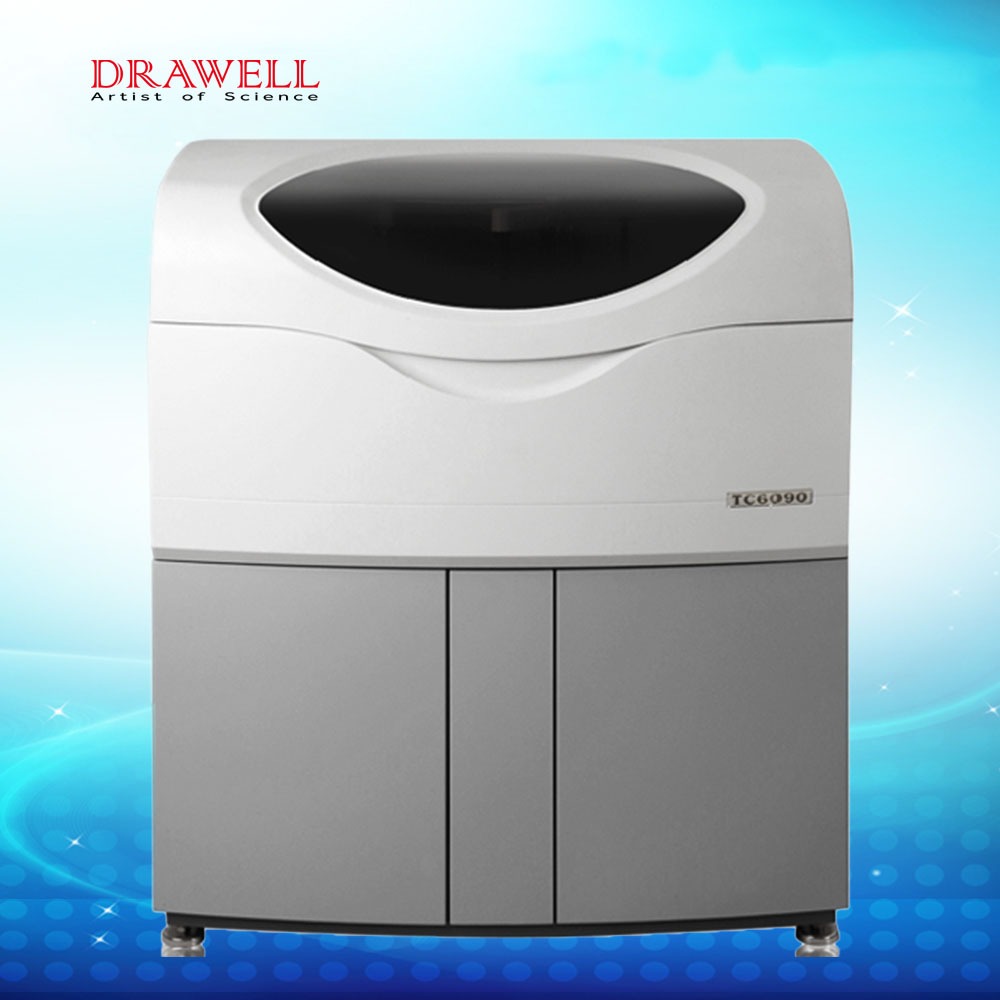

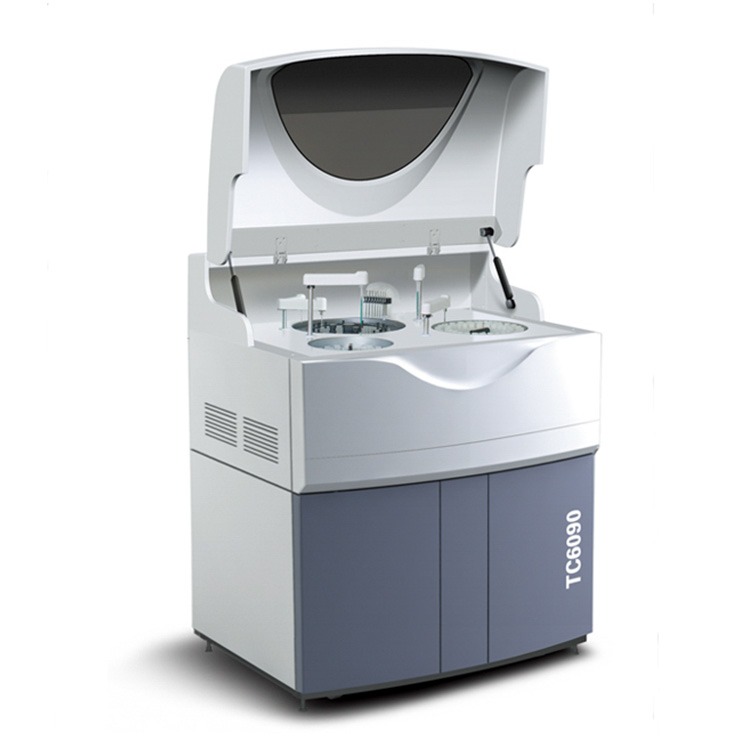

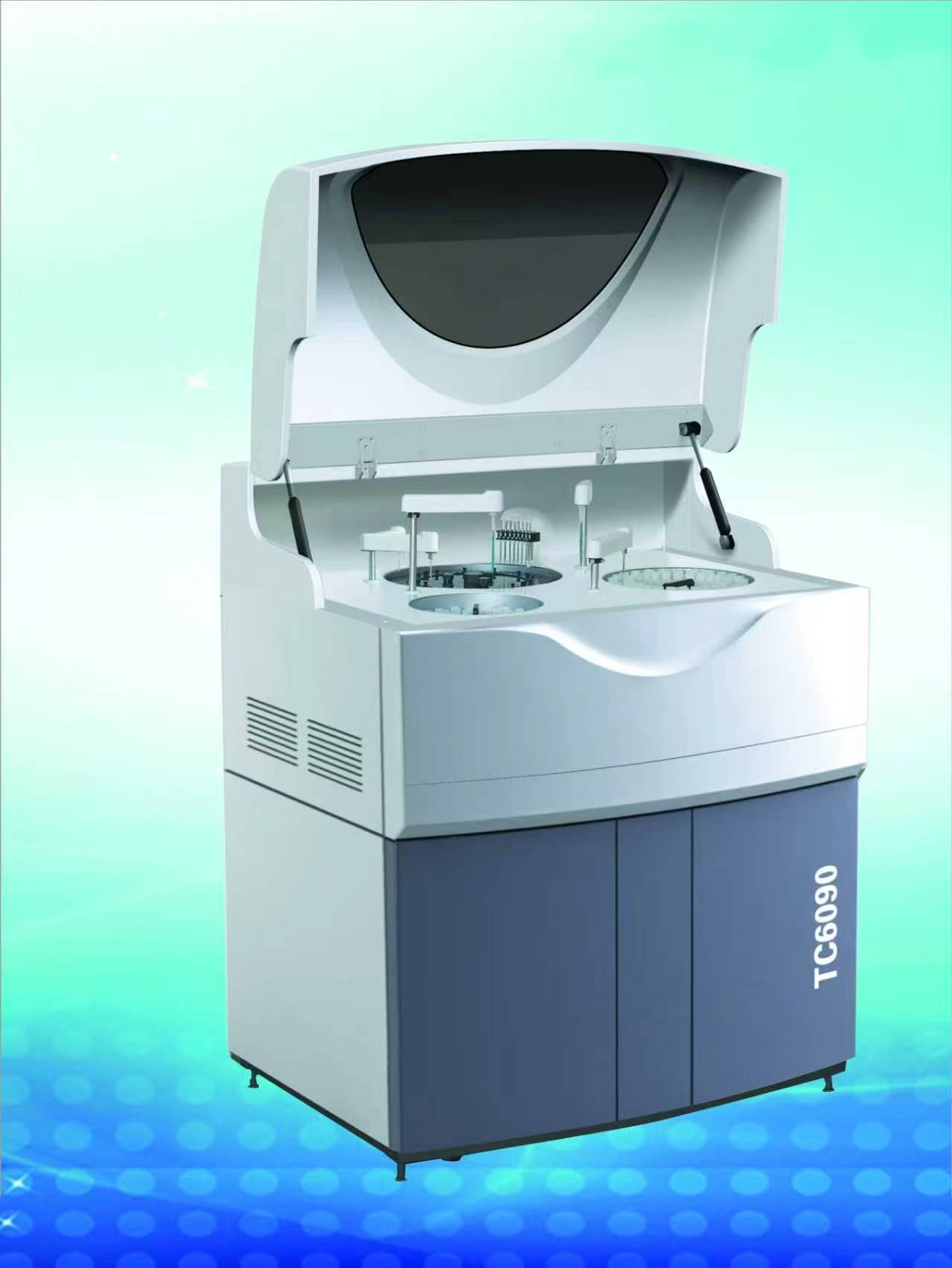

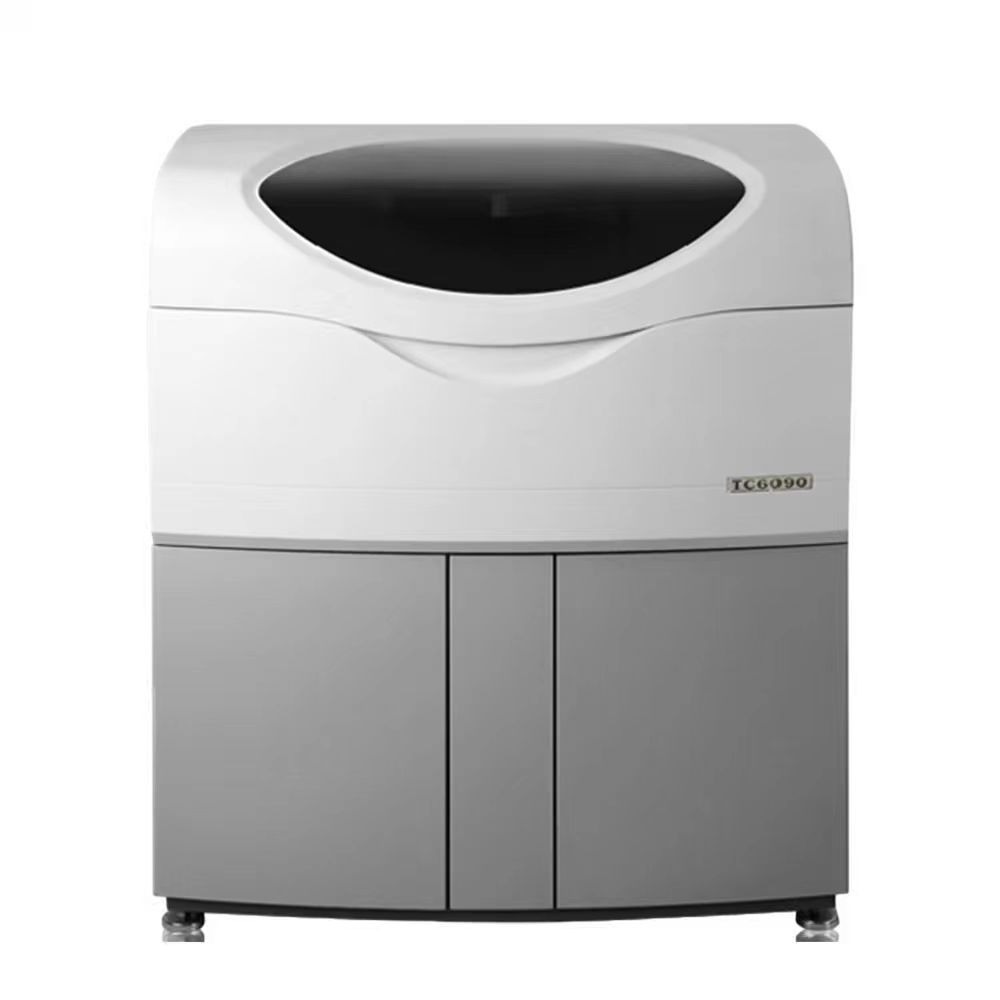

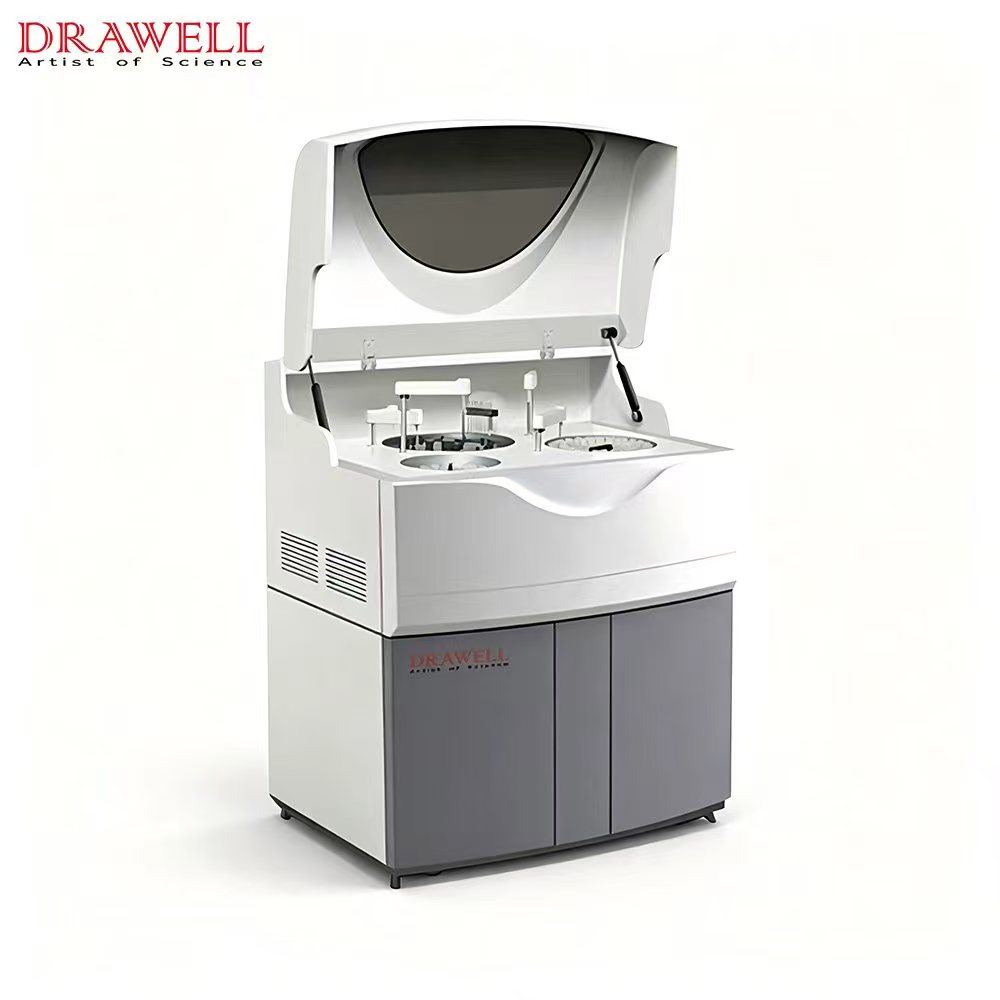

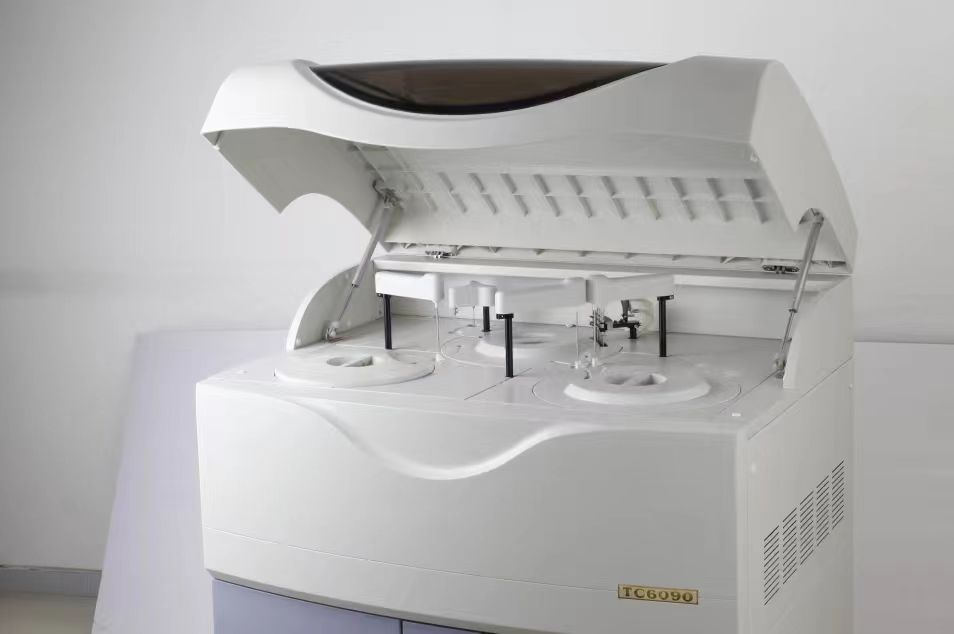

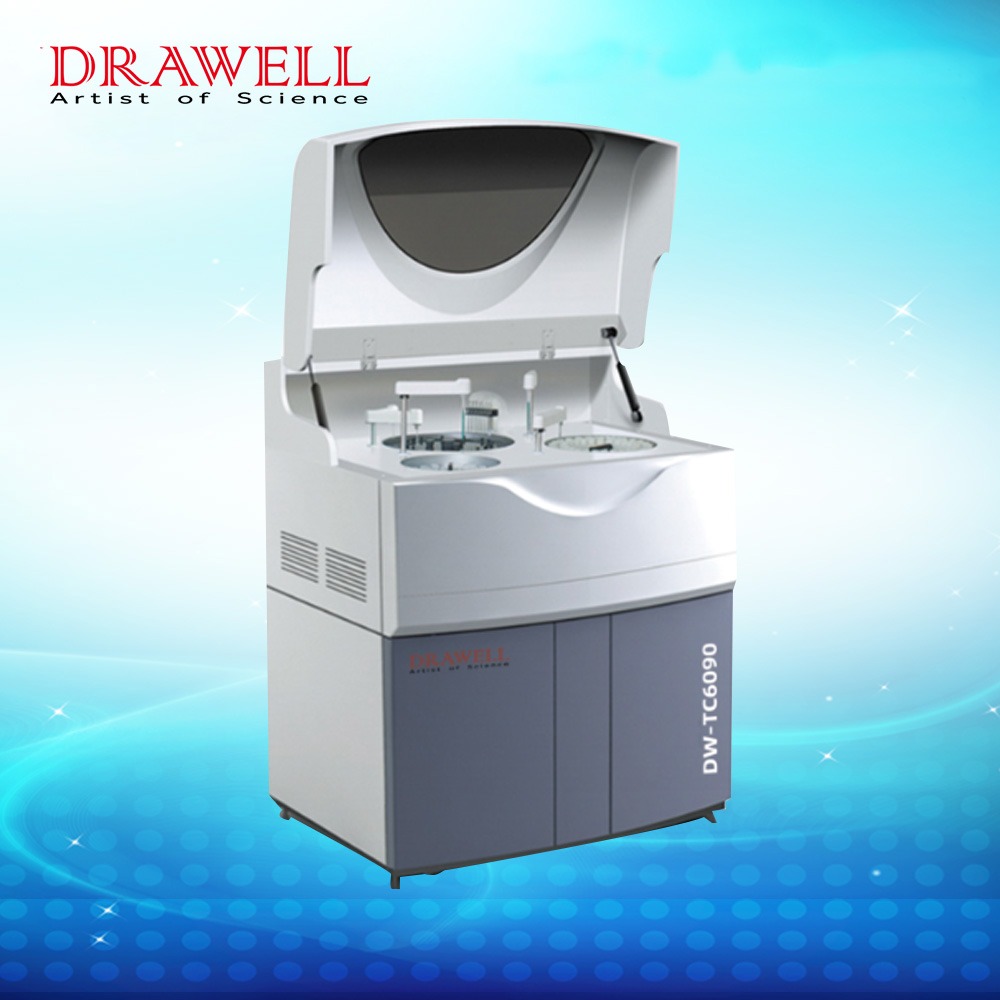

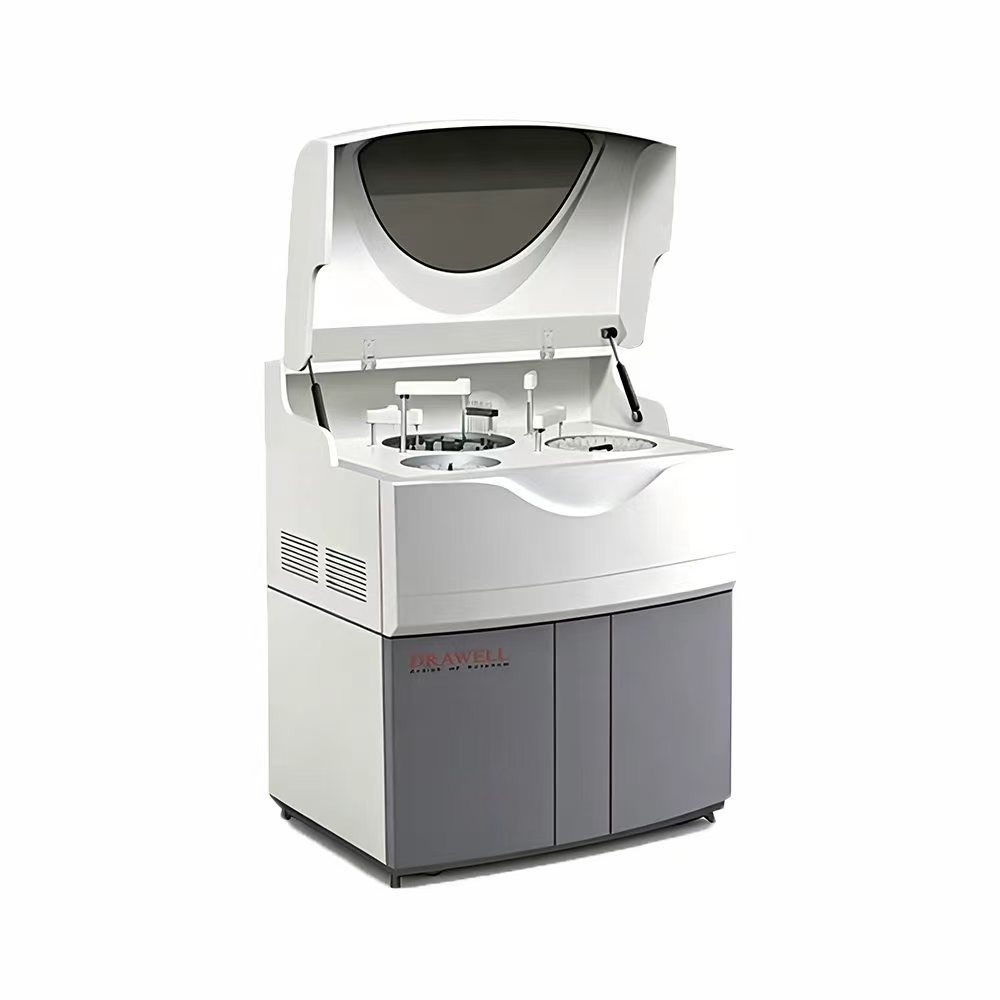

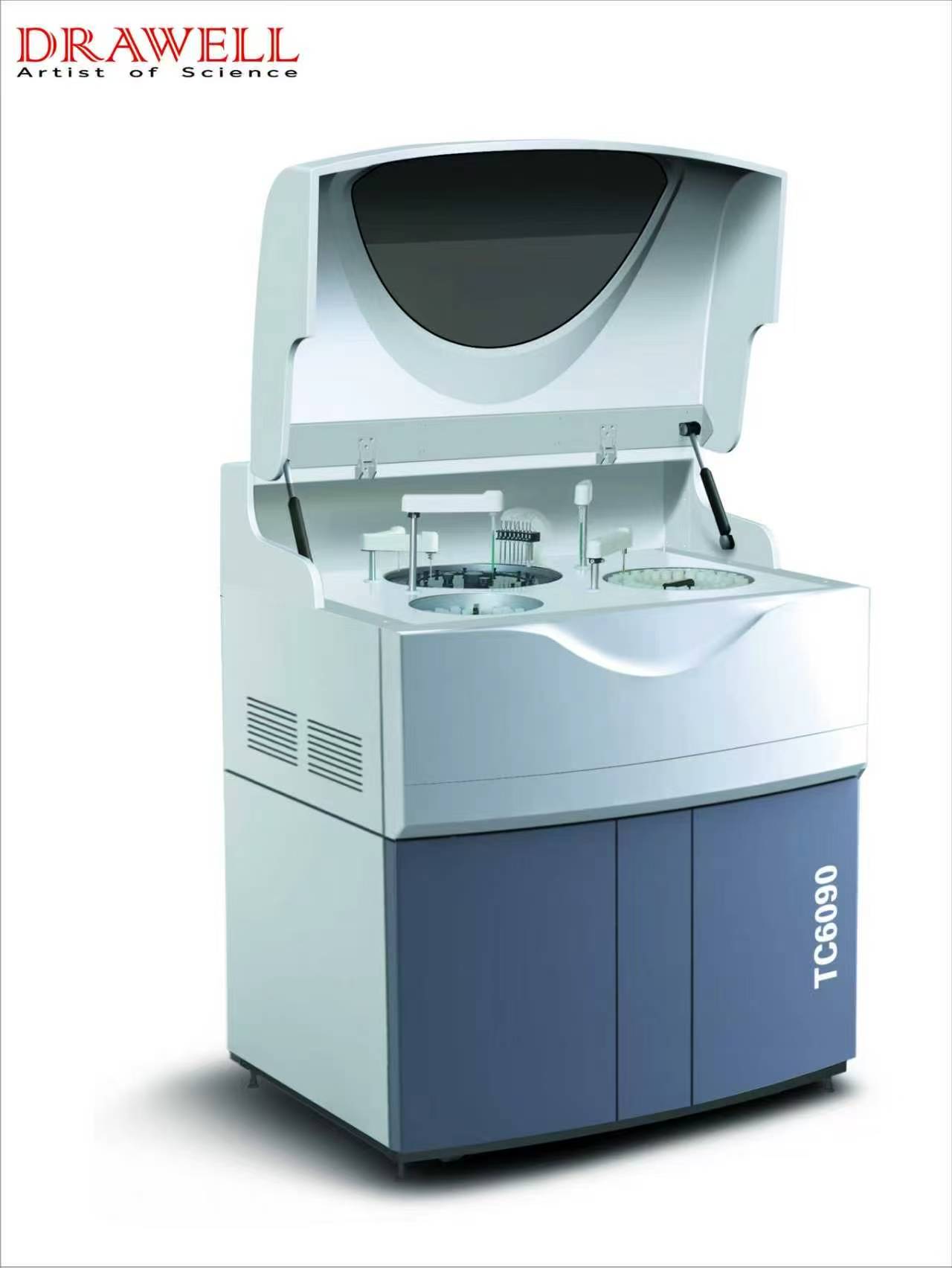

DW-TC6090 Automatic Chemistry Analyzer

Features of DW-TC6090 Automatic Chemistry Analyzer

1. 400 Tests/Hour & STAT Testing: Up to 400 tests/hour with fully automatic, discrete and random-access operation. 93 sample positions support standard, QC and STAT samples.
2. 80 Refrigerated Reagent Positions: Provides 80 reagent positions (40 R1 + 40 R2) with continuous 2–8°C refrigeration and automatic reagent-volume detection.
3. Automatic Sample Dilution & Re-Test: Supports 2–50 μL sample volume in 0.1 μL steps and dilution up to 1:100. Automatic dilution and re-testing are available for results exceeding the absorbance or linear range.
4. Stable Reaction & Photometric System: Uses 90 reusable cuvettes with automatic blank testing and maintains 37°C ±0.1°C reaction temperature. Covers 340–750 nm / 12 wavelengths, with ±2 nm precision, 0–4.0 Abs range and 0.001 Abs resolution.
5. 8-Step Automatic Washing: Features 8-step cuvette washing with automatic drying, plus internal and external probe washing to help reduce carry-over.
6. Real-Time System Monitoring: Real-time monitoring of sample tray, reagent tray and cuvette status, including remaining reagent and waste volume.

Applications of DW-TC6090 Automatic Chemistry Analyzer

Hospitals & Clinical Laboratories

Routine biochemical testing of serum and other compatible clinical samples for daily diagnostic workflows.

Independent Diagnostic Laboratories

Suitable for laboratories handling continuous batches of routine samples together with priority or STAT samples.

Health Examination Centers

Supports automated chemistry testing where multiple samples need to be processed efficiently during concentrated testing periods.

Medical & Research Laboratories

Suitable for laboratories requiring flexible photometric methods and an open reagent system for validated chemistry assays.

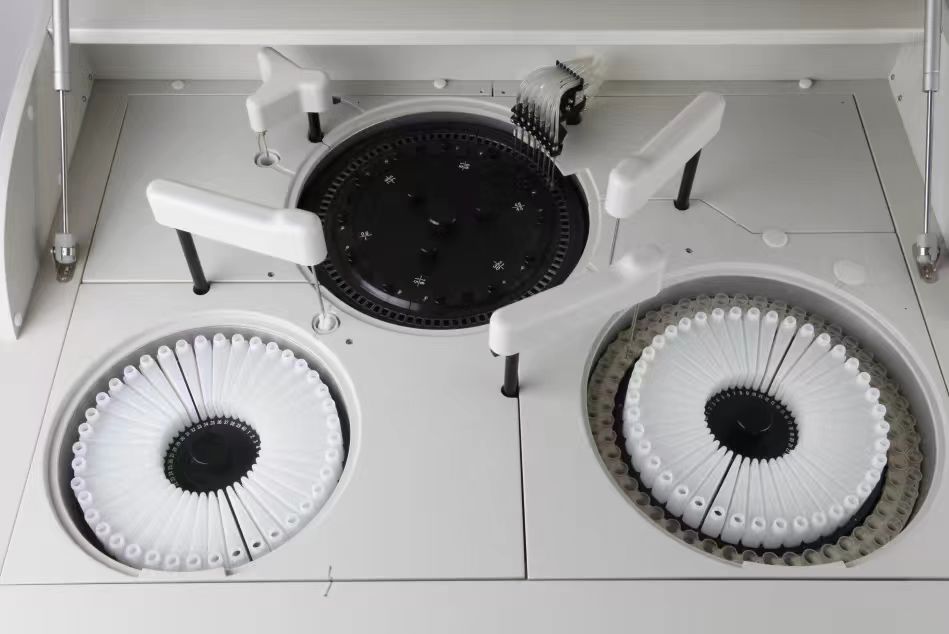

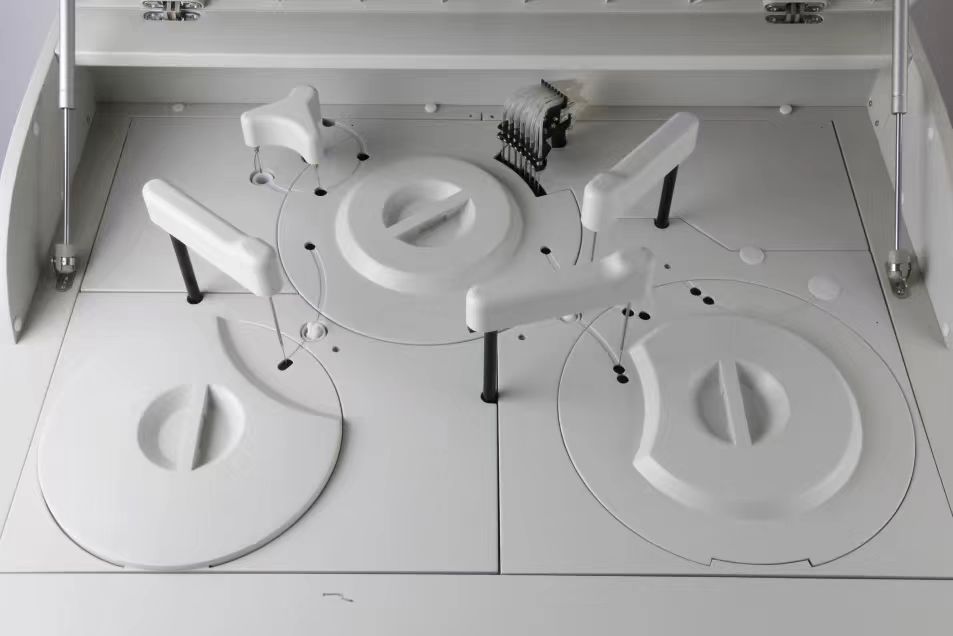

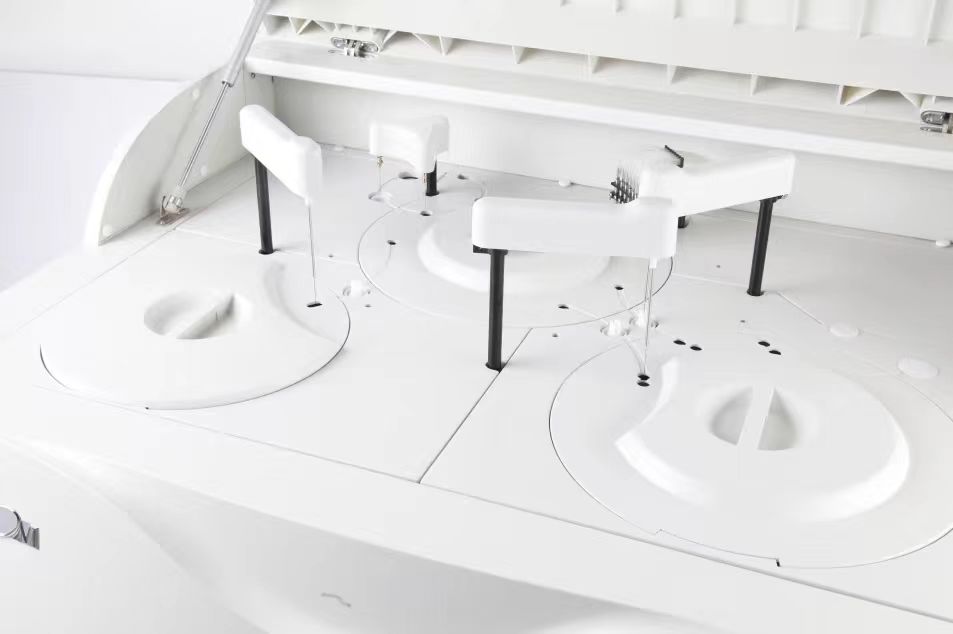

Product Details

R1 Reagent Position

• 40 pcs R1 reagent positions
• Non-stop reagents refrigerating
• Auto detect of reagent volume

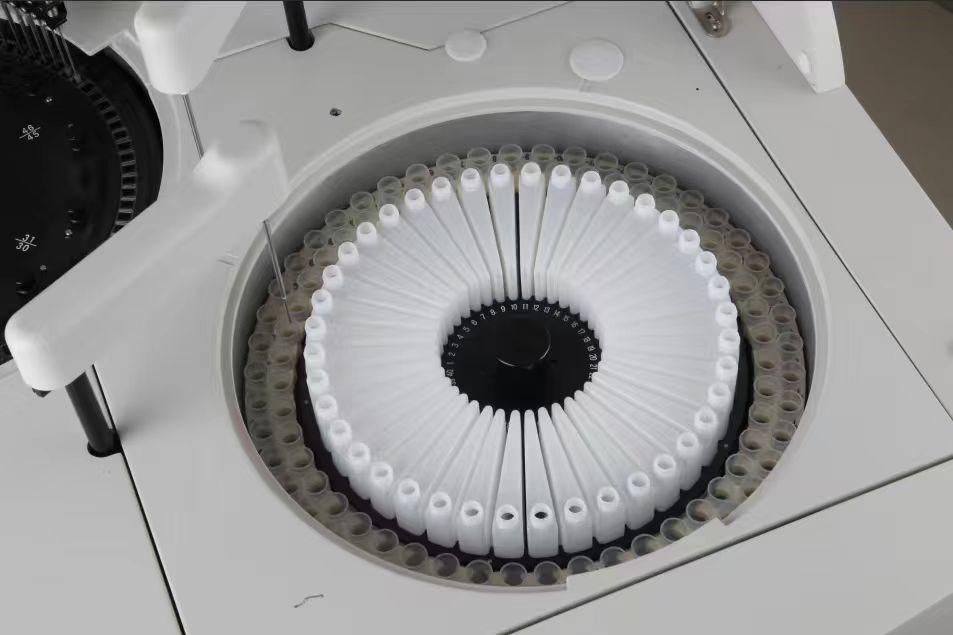

R2 Reagent/Sample position

• 40 pcs R2 reagent positions
• 93 sample positions, suitable for
• primary tube abd serum cup
• Non-stop reagents refrigerating
• Auto detect of reagent volume

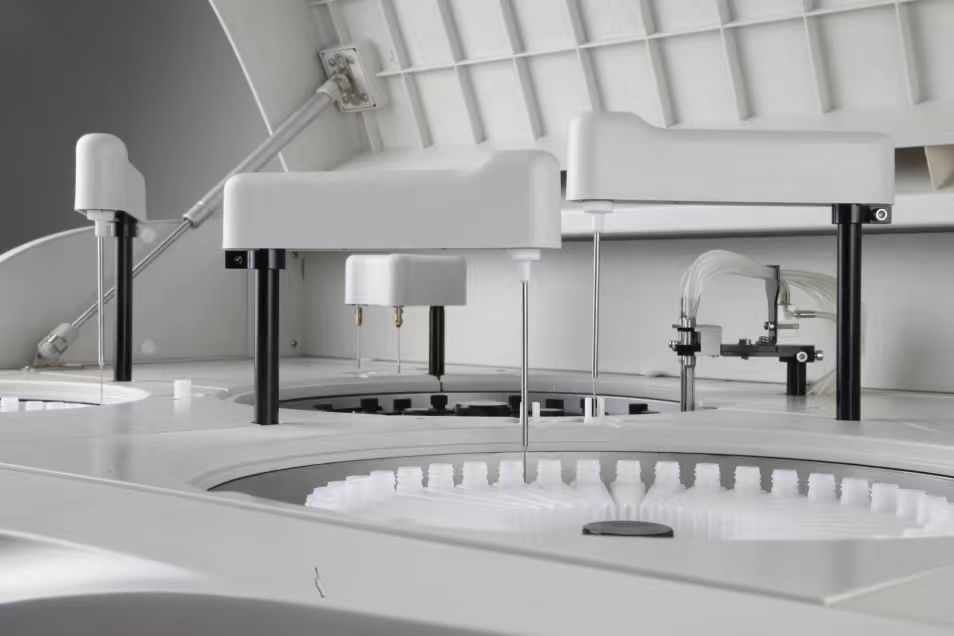

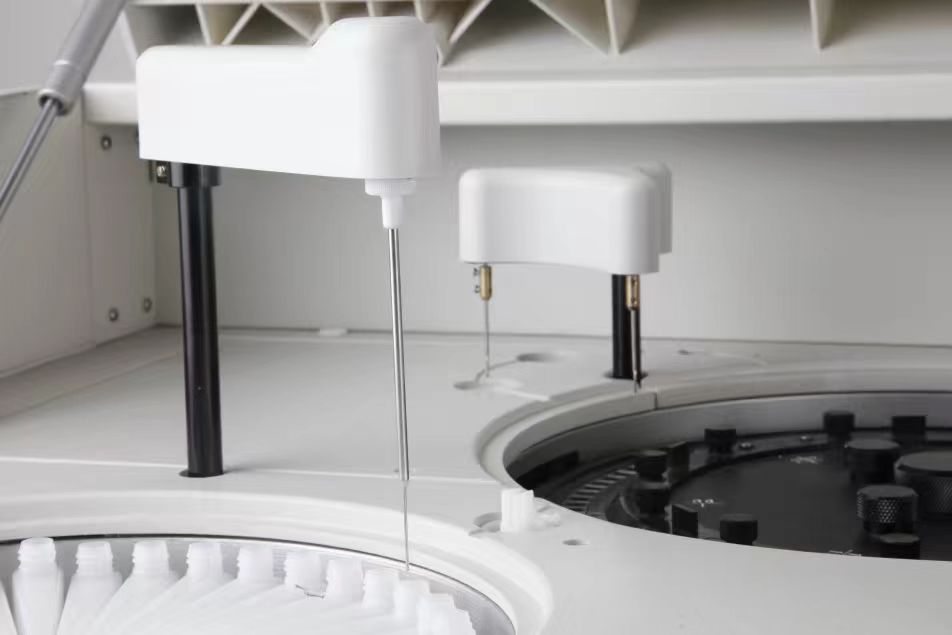

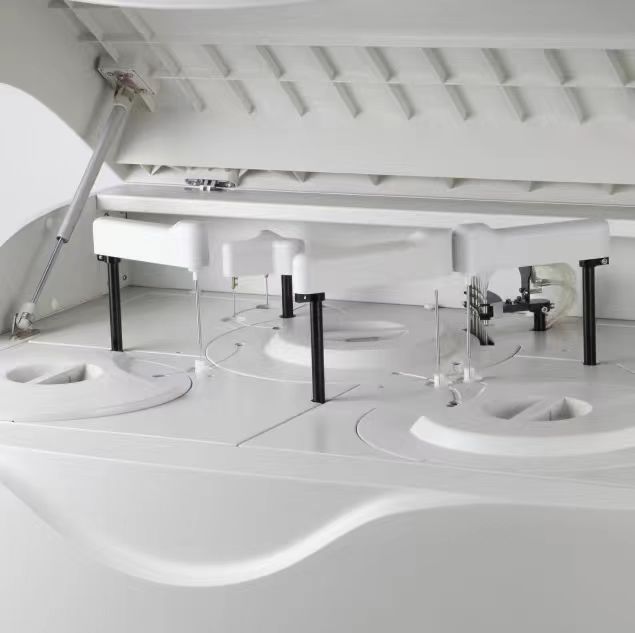

Sample/Reagent Probe

• Probe telflon coating technology
• Automatic liquid level detect
• Collision protection function
• Independent mixing probe
• Probe internal/external washing

Reaction Cuvettes

• 90 pcs reusable cuvettes
• Automatic blank testing for cuvette
• Dismountable, easy to replace Cuvette
• Advanced thermostat to ensure accurate test result

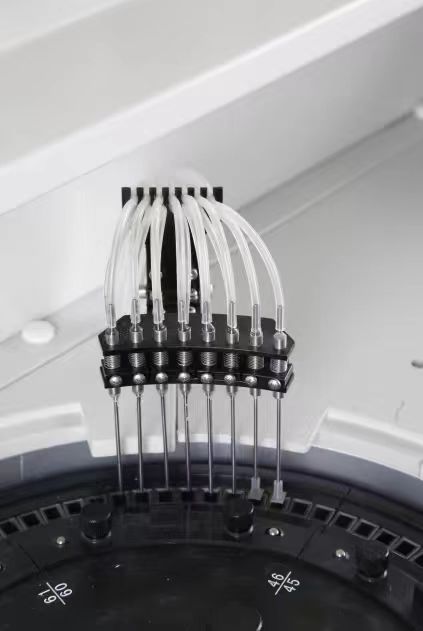

8-step auto cleaning System

• Automatic 8-step washing
• Automatic cuvette dry function
• Hi-tech washing station to ensure accurate test results
• With low water consumption: 8L/H

Mixing Probe

• Two independant mxing probes
• High precision mixing station
• Collision protection function
• Probe internal/external washing
• Probe telflon coating technology

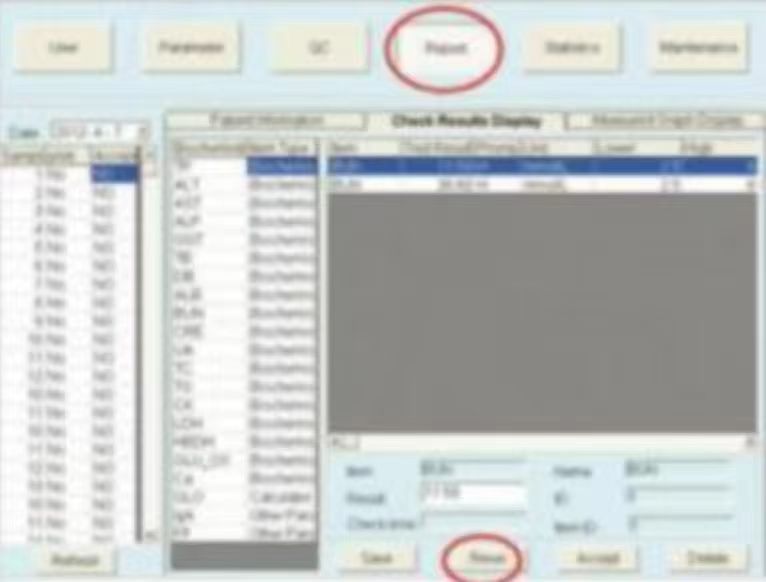

Operation Demonstration

• Automatic washing cuvette when start up & shut down the instrument
• Test order setting program is available to avoid carry-over
• Automatic detect reagent volume during every startup of the instrument
• Show reagent plate temperature during every startup of the instrument

• Automatic dilute and re-test when absorbance range is overrange
• Automatic dilute and re-test when linear limit is overrange
• Three modes (no dilute, autodilute and handwork dilute) are available
• Freely set the autodilute ratio and dilute water position

• Automatic Cuvette blank testing
• Automatic wash selected cuvettes
• Real-time online monitoring running status of cuvette

• Real-time online monitoring running status of sample tray, reagent tray cuvette
• Real-time online monitoring reagents residual volume
• Real-time online monitoring waste volume

• Freely set the autodilute ratio when re-testing
• “No dilute” re-testing mode is available

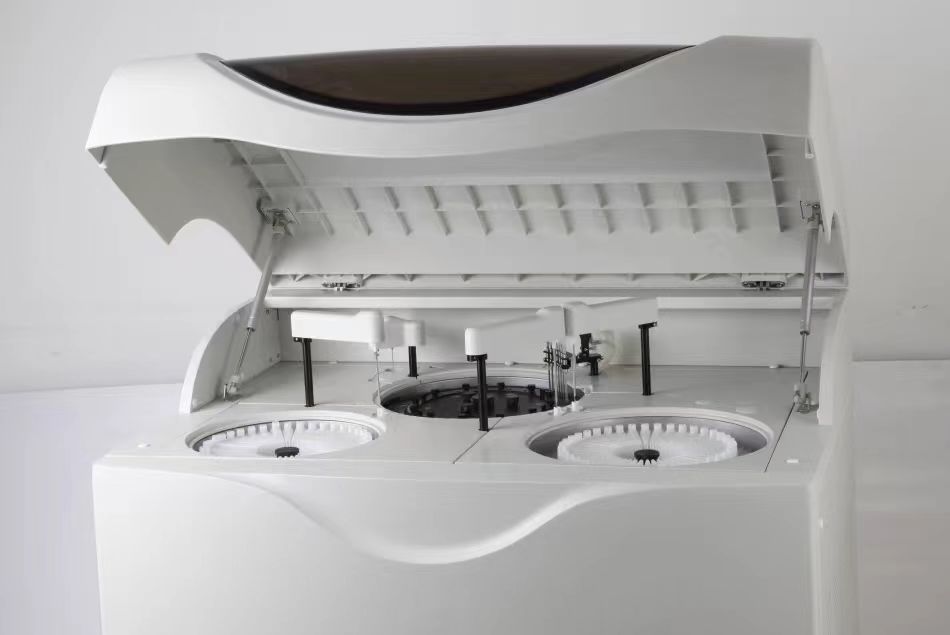

Product Display
