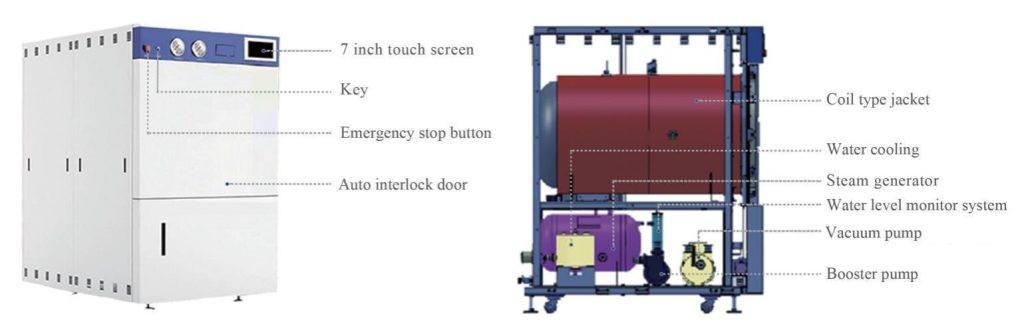

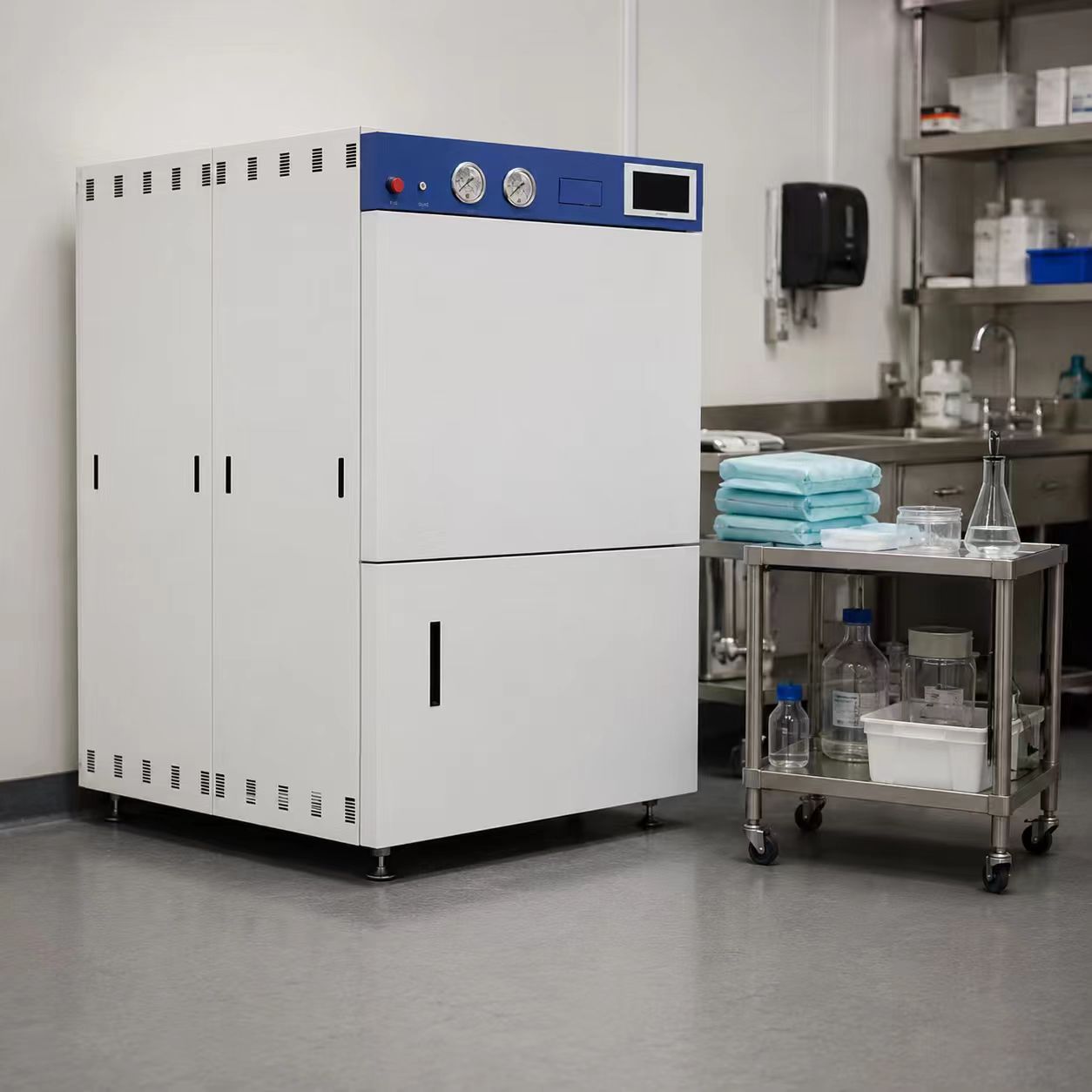

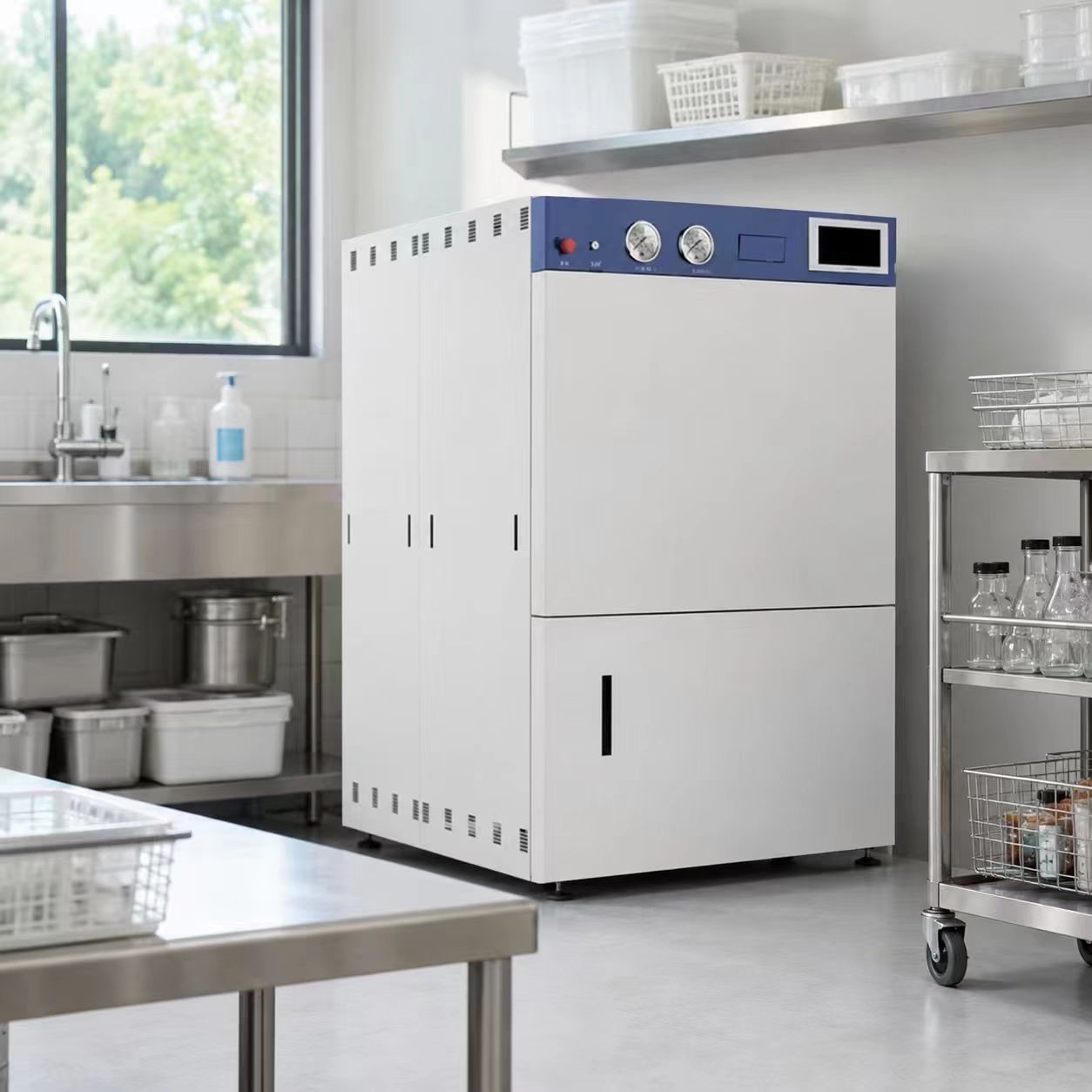

DW-GWA Series Horizontal Autoclave

Description

Advanced Features of DW-GWA Series Vertical Autoclave

Automatic door

Simply push the chamber door lightly and the system will automatically lock.

Click the open door button, the chamber door will automatically open.

Fast cooling system(DQ only)

After sterilization,water will flow into the pipe around chamber to cool the chamber rapidly, good for the liquid or media.

PLC Industrial control system

Professional industrial control system with high stability, achieving fully automatic and dynamic control of the sterilization process, and can be easily maintained, queried, verified, recorded, and extended for upgrading.

6 level of exhaust speed control

After sterilization,you can choose different exhaust speed, and you can adjust it freely at any time of exhausting.

7 inch touch screen

LCD touch screen, using text, data, and graphical methods to dynamically display various states, and using touch control to facilitate human-machine dialogue and editing operation steps.

Pre vacuum+vacuum drying(DQ only)

Equipped with internationally renowned brand vacuum pumps, with good pre vacuum effect and fast vacuum drying

Speed.

Separate steam generator

Adopting a high-power three-way heating device, it automatically generates steam to supply the sterilization chamber, and has functions such as automatic control of water inlet, heating, and prevention of dry burning and overpressure.

Drainage temperature can be set

Provide a large capacity water tank that can set the temperature for the discharge of sterilized water, so as to protect your sewer Piping.

L models (Option)

Chamber material can be updated to SUS316L.

Safety Features of the DW-GWA Series Vertical Autoclave

Evenly distributed inter lock:Pressure evenly distributed,safer than traditional door.
Managment:The instrument requires a key to power on for a good control of the instrument.
Auto door lock:Machine can not start if lid is not locking well by checking mechanically and electrically.
Emergency stop button:Can stop the machine by one button in emergency situation.
Water level monitor system:Automatic detection of steam generator water level, automatic supply in case of water shortage, no lower limit requirement for conductivity, suitable for users with pure water pipelines, superior to traditional conductivity water level detection methods.
Double protection for over pressure:Mechanical and electric sensing system, once pressure is abnormal, system will cut power, release the pressure and send out alarm.
Automatic trouble shooting:System will monitor the working status, and will cut the power, send out alarm, and report the error information once any abnormal situation detected.
Multiple monitoring system:Multiple pressure and temperature sensors to detect temperature and pressure in different parts.
Temperature detection:The system monitors the temperature changes in the sterilization chamber in real-time. Once the temperature is too high or abnormal, the power is immediately cut off for protection.
5 level of permission management:The operation permissions for instruments are divided into five levels, with each level of user having an independent password and multiple IDs that can be assigned. Each level of user has limited access to certain usage permissions.
Electrical protection:Equipped with a highly sensitive electrical protection system, effectively providing leakage, overcurrent, and short circuit protection.
Support/Anti pressure system(Option):A system to help prevent overflow of the sterilized liquid during the sterilization process and to help prevent bursting of the sealed bags/cans/bottles.
