DW-B Digital Vertical Autoclave

Features:

  • High quality SUS304 stainless steel material
  • Dual scale indicate pressure gauge
  • Light indicate working status
  • LED digital display screen
  • Microcomputer control system
  • Temperature, time of sterilization can be set.
  • Water lack auto-protection
  • Over pressure auto-discharging
  • Over current auto-protection
  • Over temperature auto-protection
  • Drying function can be add(best large than 75L）
DW-B Digital Manual
DW-B Digital Brochure

Specifications of the DW-B Digital Vertical Autoclave

ModelDW-B35LDigitalDW-B50L DigitalDW-B75L Digital
Volume35L50L75L
Chamber size Φ300*485mmΦ320*545mm Φ388*480mm
Working temperature100-134℃100-134℃100-134℃
Working pressure0.22Mpa0.22Mpa0.22Mpa
Time scope0-999min0-999min0-999min
Packing size53*52*92cm56*56*105cm62*60*109cm
G.W/N.W49kg/34kg60kg/40kg80kg/57kg
PowerAC220V/50Hz/2.5KWAC220V/50Hz/2.5KWAC220V/50Hz/3.5KW

ModelDW-B100L DigitalDW-B120L DigitalDW-B150L Digital
Volume100L120L150L
Chamber size Φ388*630mmΦ460*590mm Φ460*700mm
Working temperature100-134℃100-134℃100-134℃
Working pressure0.22Mpa0.22Mpa0.22Mpa
Time scope0-999min0-999min0-999min
Packing size63*61*118cm66*67*121cm67*68*128cm
G.W/N.W85kg/66kg97kg/75kg110kg/80kg
PowerAC220V/50Hz/4.0KWAC220V/50Hz/4.0KWAC220V/50Hz/4.0KW

DW-B Digital Vertical Autoclave Display

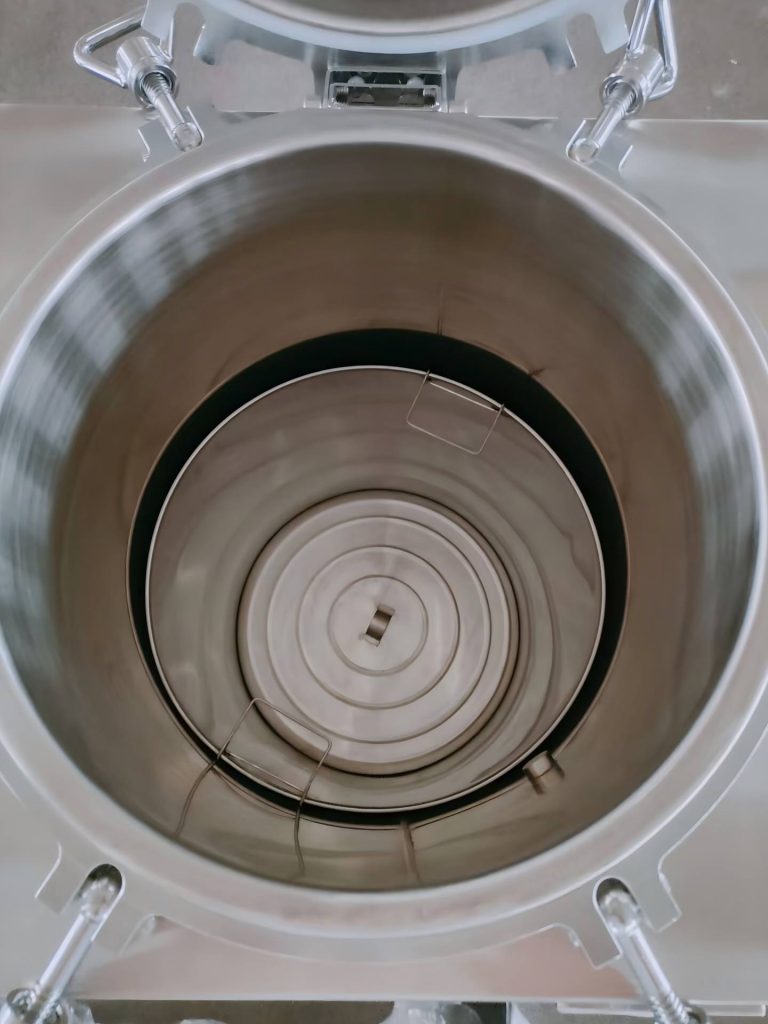

  • DW B50L Digital 1
    DW-B50L Digital

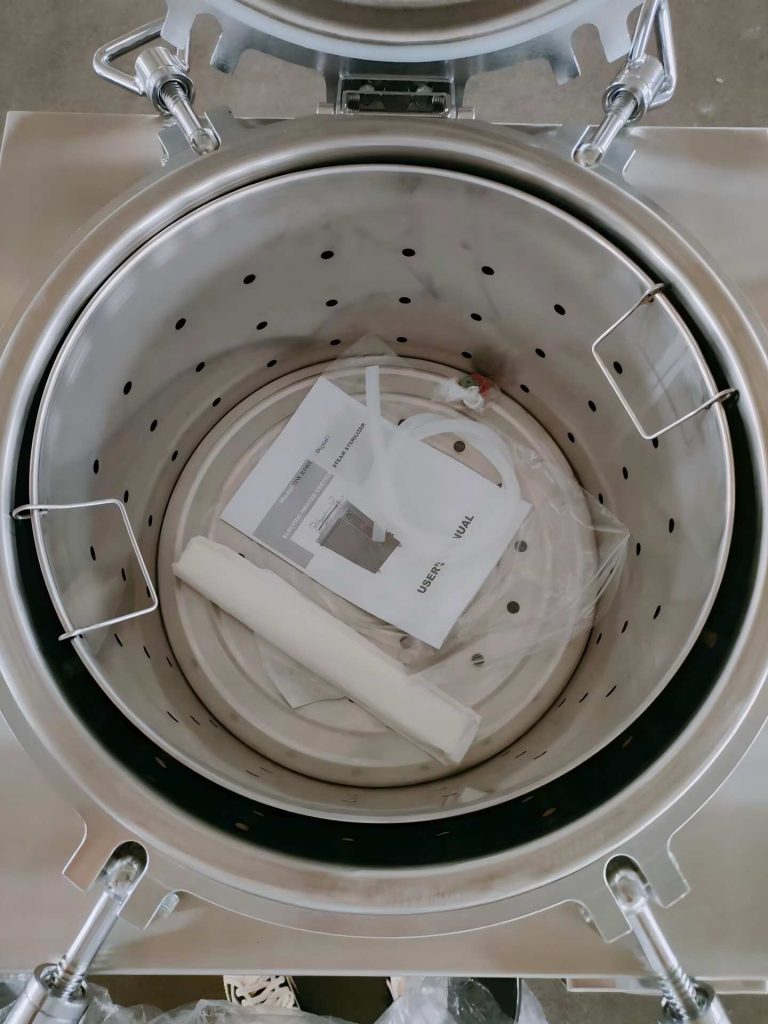

  • DW B50L Digital 2
    DW-B50L Digital

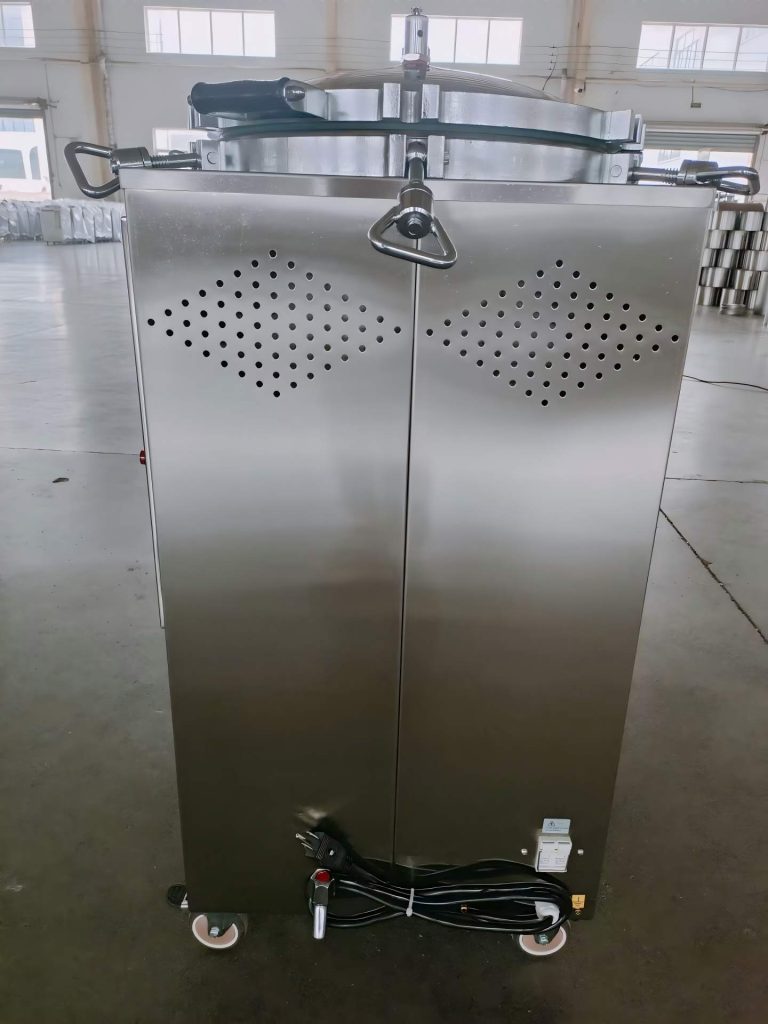

  • DW B50L Digital 4
    DW-B50L Digital

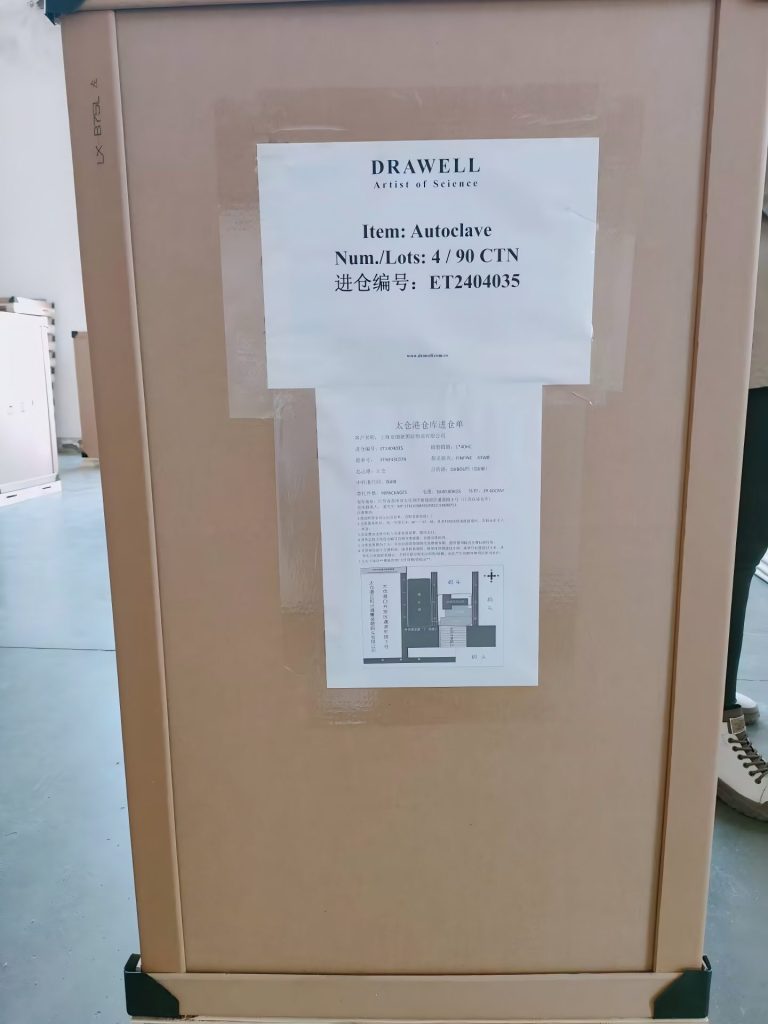

  • DW B75L Digital 5
    DW-B75L Digital

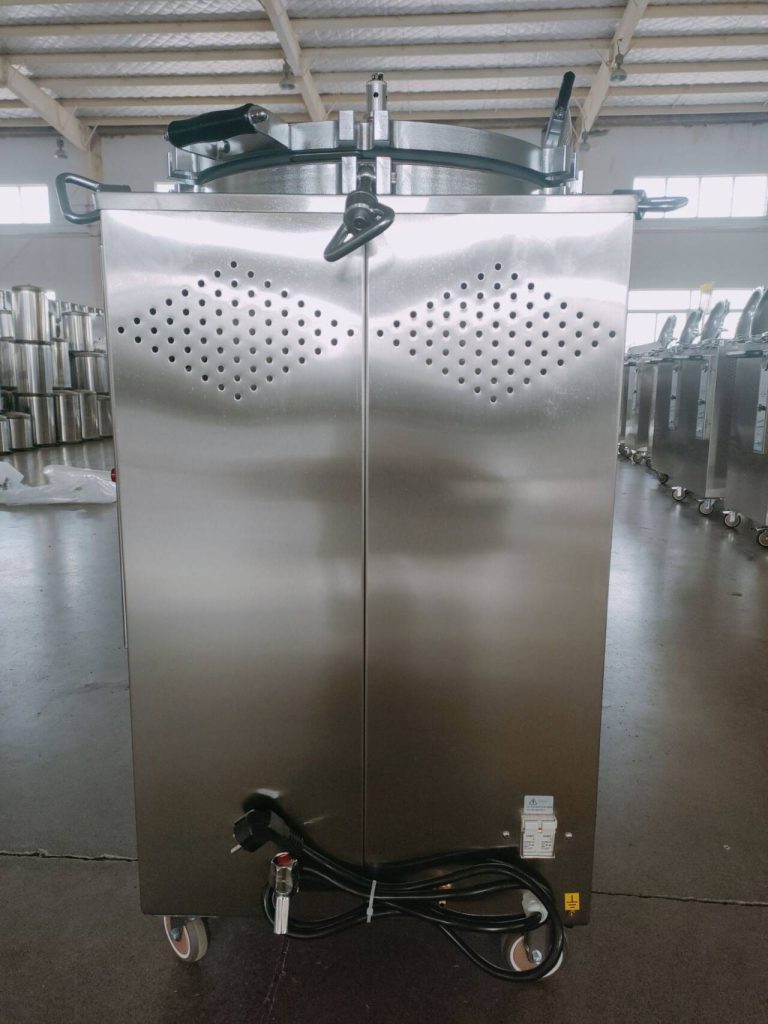

  • DW B75L Digital 1
    DW-B75L Digital

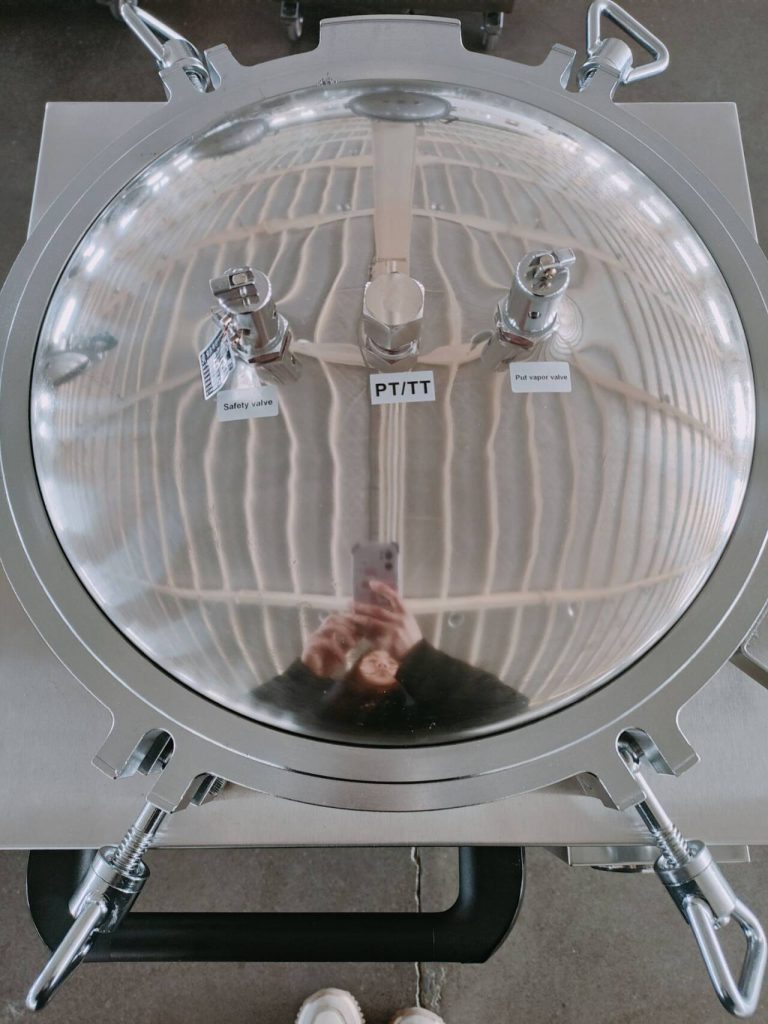

  • DW B75L Digital 2
    DW-B75L Digital

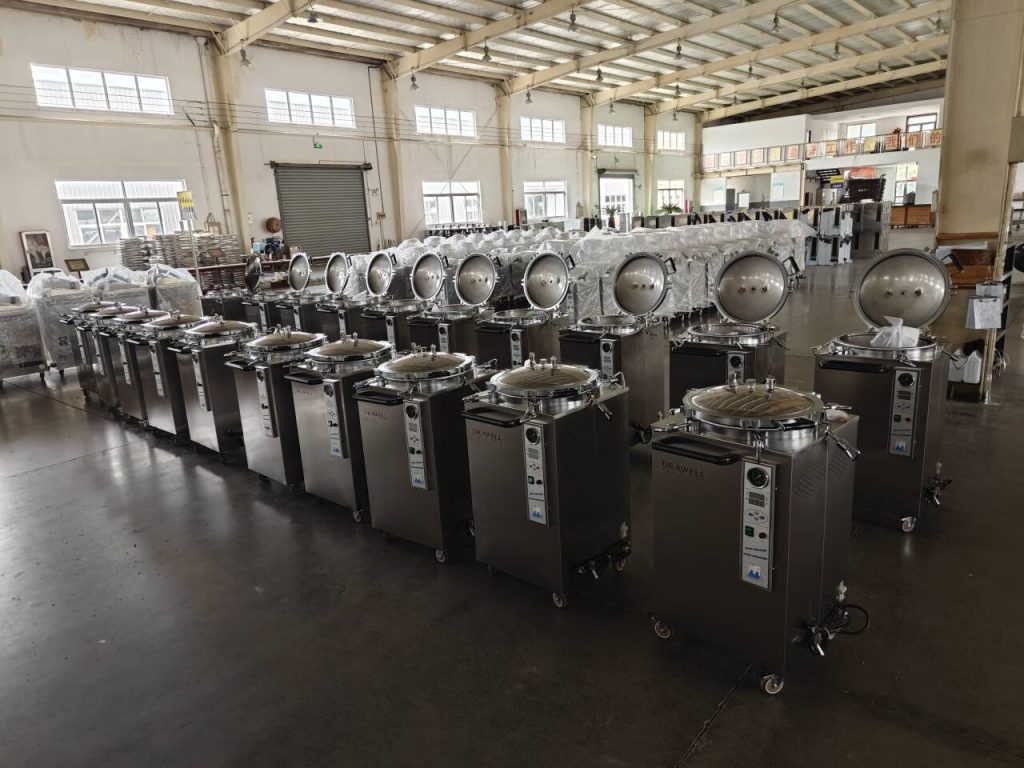

  • DW B75L Digital 4
    DW-B75L Digital
