DW-B Vertical Autoclave
The DW-B Vertical Autoclave is designed for routine steam sterilization in laboratories, research facilities and other applications requiring a practical 35–150 L chamber capacity. The series is available in six sizes and provides adjustable sterilization temperature and time settings for different batch requirements.
- Capacity: 35 / 50 / 75 / 100 / 120 / 150 L
- Working Temperature: 115–129°C
- Timer: 0–80 min
- Chamber Material: SUS304 Stainless Steel
Features of DW-B Vertical Autoclave
- High-quality SUS304 stainless steel material
- Dual scale indicate pressure gauge
- Light indicate working status
- Temperature and time of sterilization can be set.
- Water lack auto-protection
- Overpressure auto-discharging
- Over-current auto-protection
- Over temperature auto-protection
- A drying function can be added (best large than 75L）
What Can the DW-B Vertical Autoclave Sterilize?
DW-B vs DW-B Digital?
| DW-B | DW-B Digital | |
| Capacity | 35–150 L | 35–150 L |
| Temperature | 115–129°C | 100–134°C |
| Working Pressure | 0.145–0.165 MPa | 0.22 MPa |
| Timer | 0–80 min | 0–999 min |
| Display | Working-status indicators | LED digital display |
| Control | Standard control configuration | Microcomputer control |
| Best For | Routine sterilization with simpler operating requirements | Applications requiring wider settings and digital control |
Tips: Choose the DW-B for straightforward routine sterilization. Consider the DW-B Digital when a wider temperature range, longer timer range or microcomputer-based operation is required.
FAQ

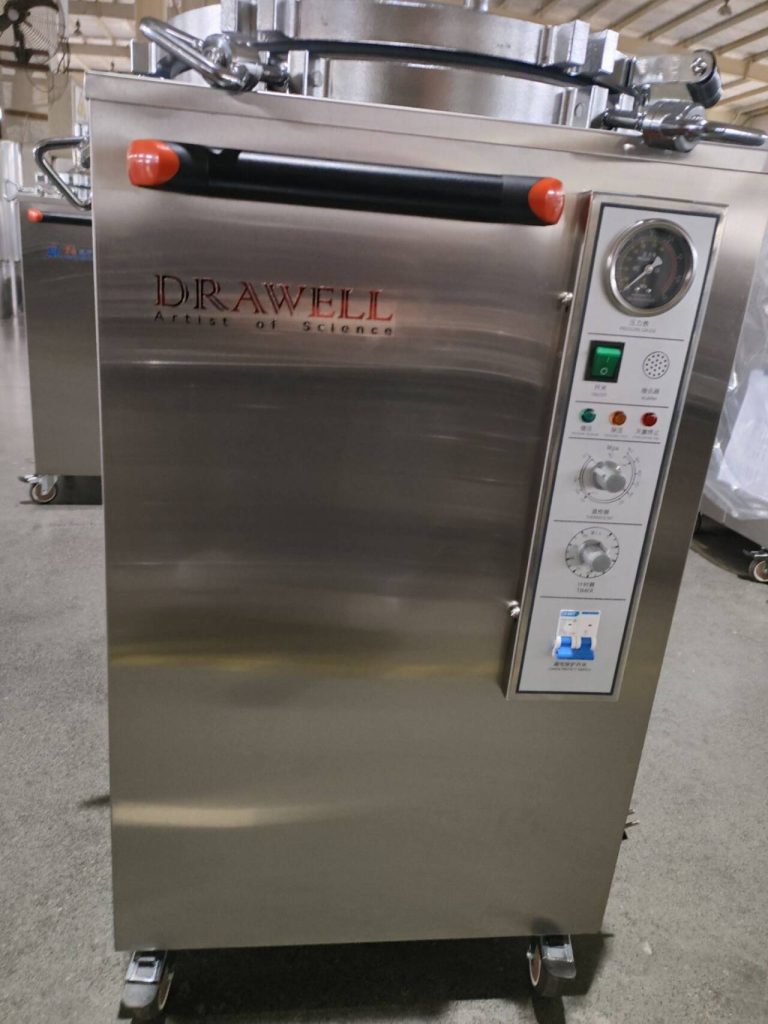

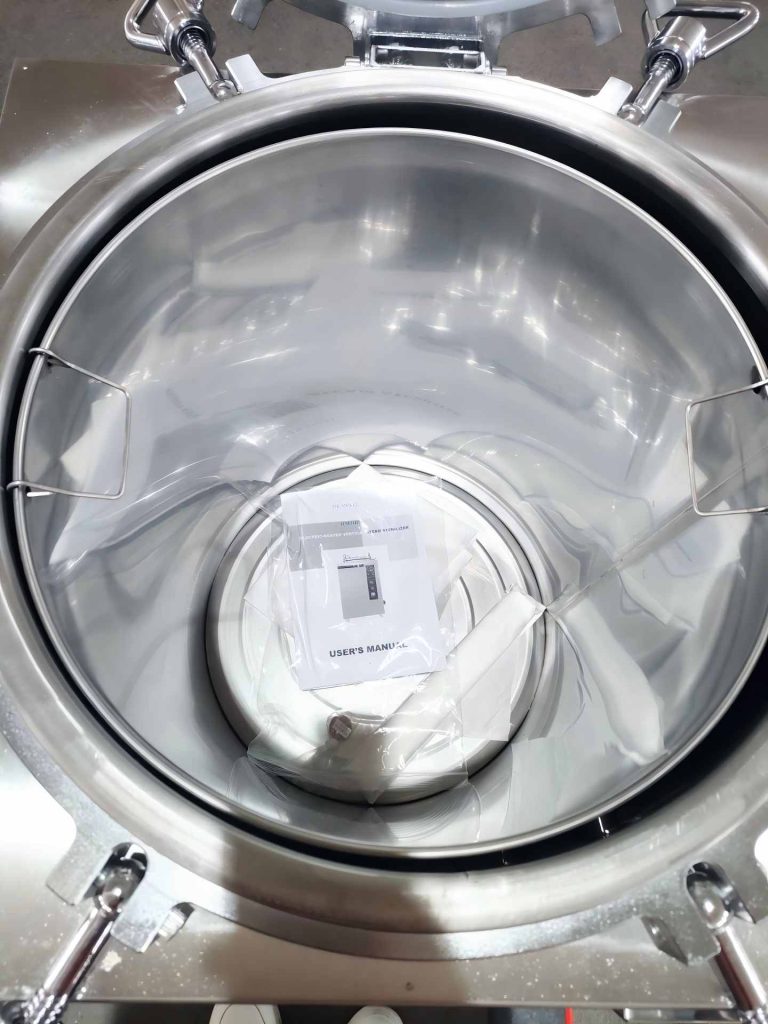

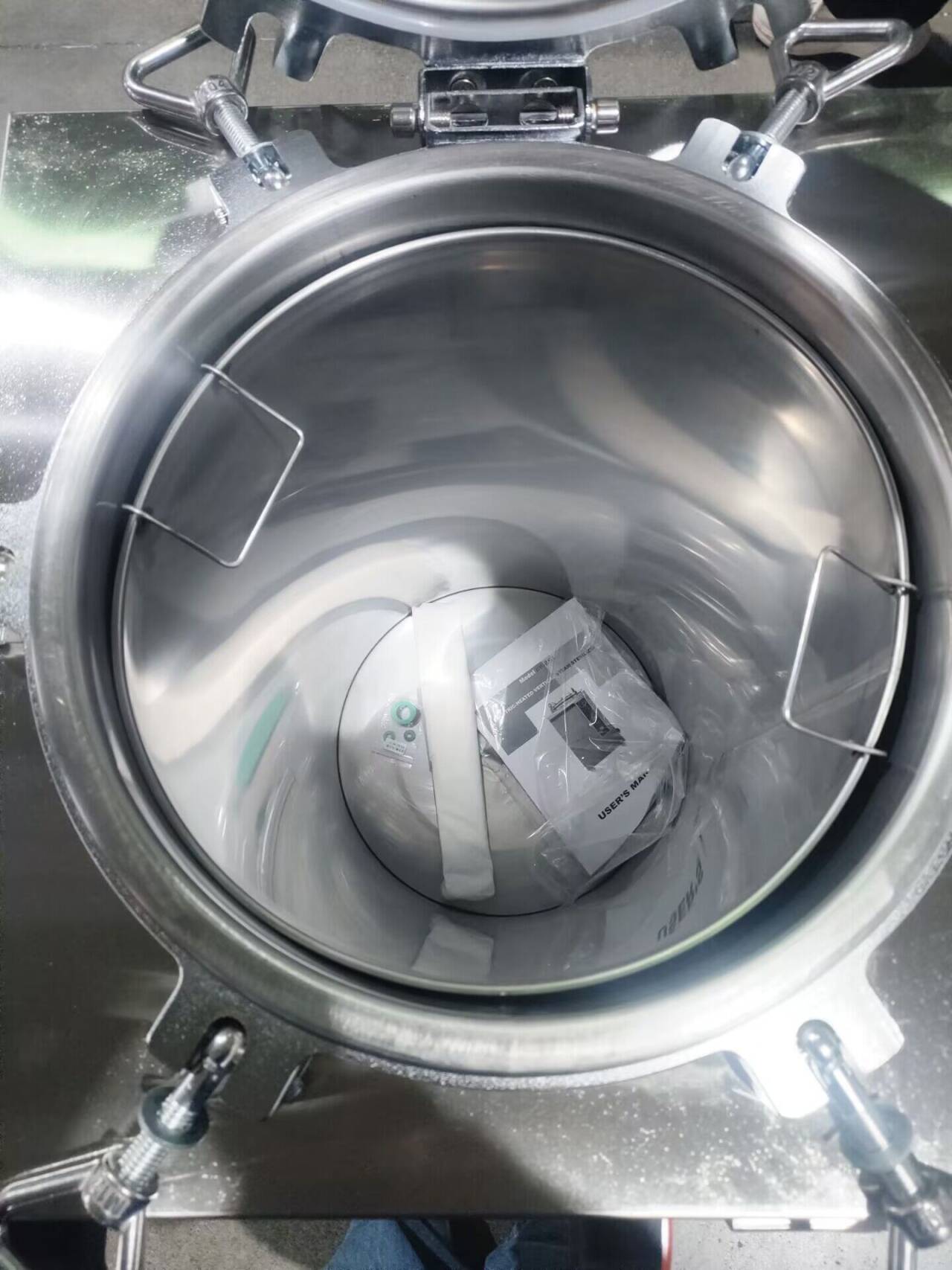

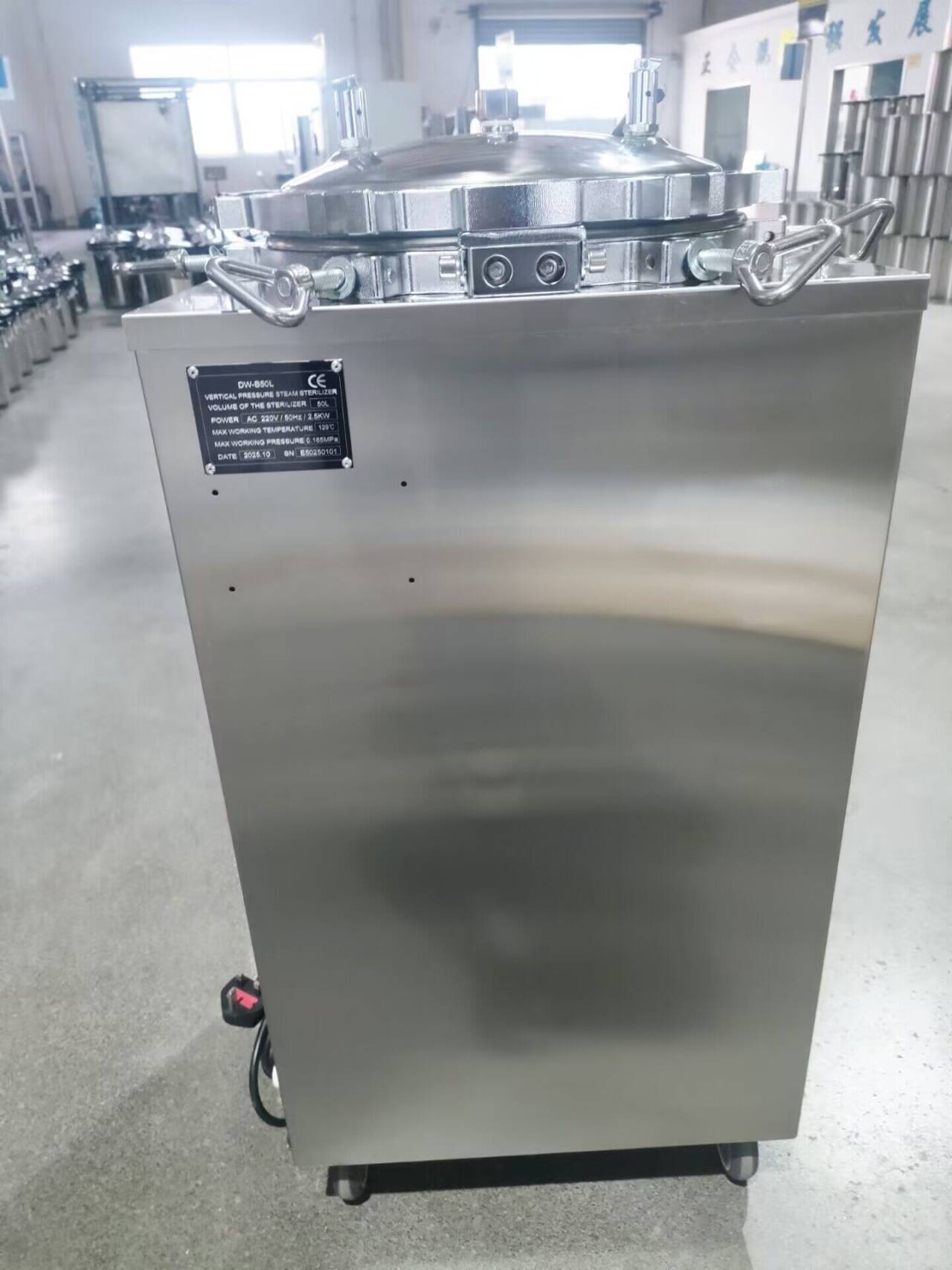

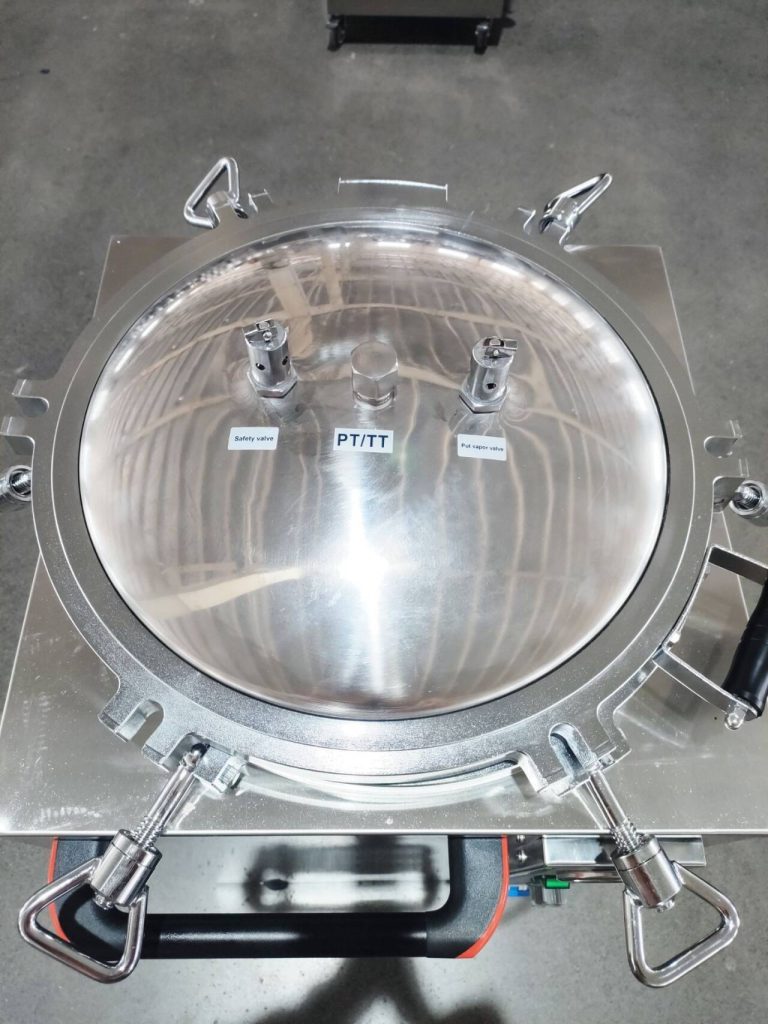

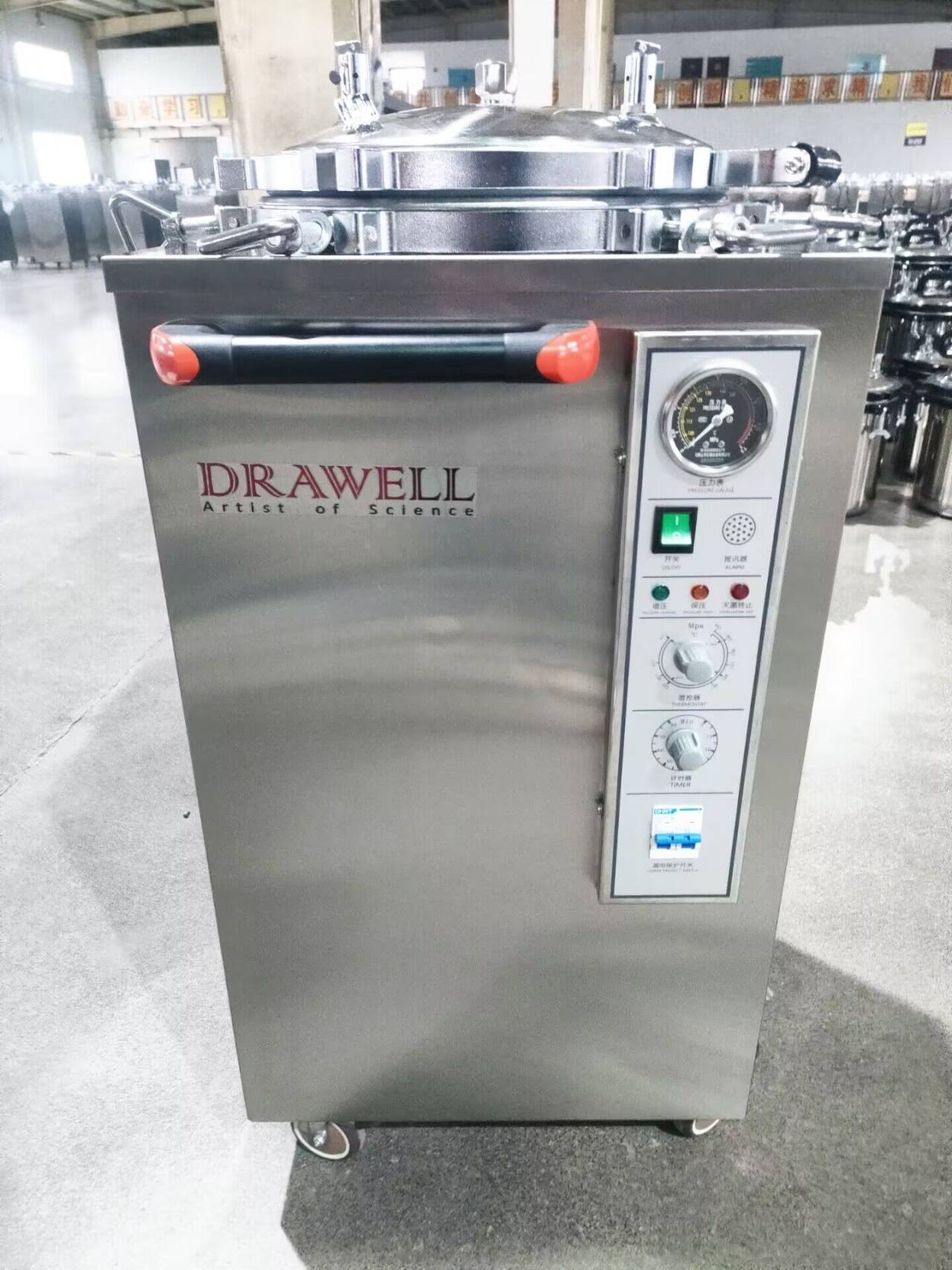

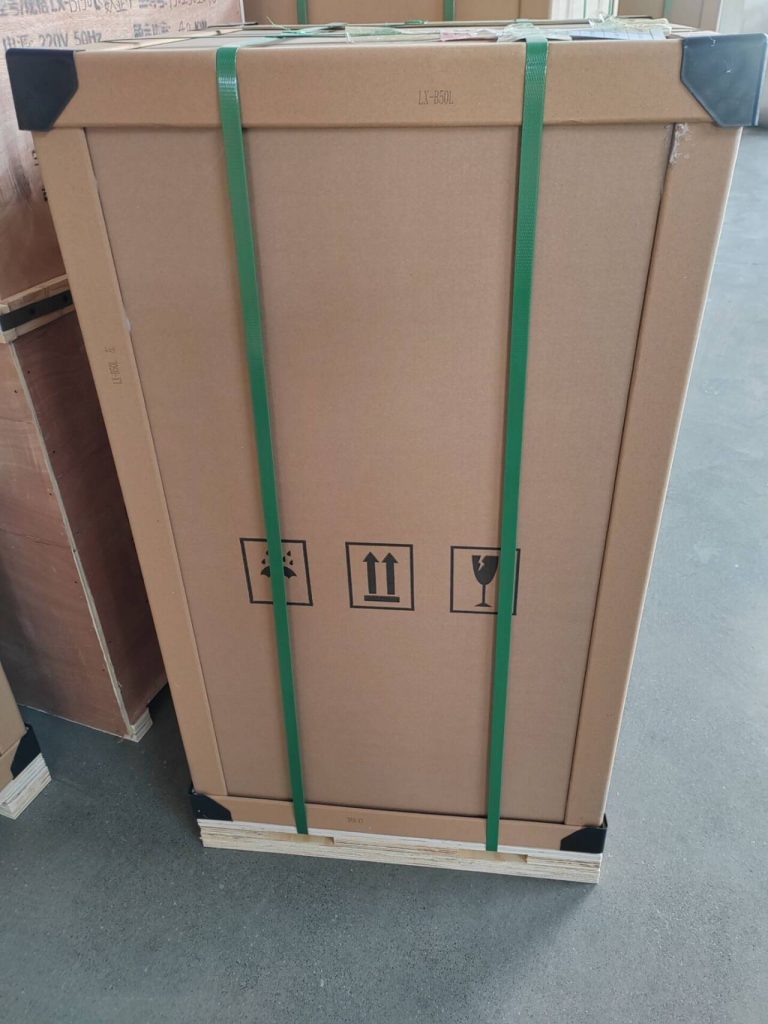

DW-B Vertical Autoclave Display
Specifications of the DW-B Vertical Autoclave
| Model | DW-B35L | DW-B50L | DW-B75L |
| Volume | 35L | 50L | 75L |
| Chamber size | Φ300*485mm | Φ320*545mm | Φ388*480mm |
| Working temperature | 115-129℃ | 115-129℃ | 115-129℃ |
| Working pressure | 0.145-0.165Mpa | 0.145-0.165Mpa | 0.145-0.165Mpa |
| Time scope | 0-80min | 0-80min | 0-80min |
| Packing size | 53*52*92cm | 56*56*105cm | 62*60*109cm |
| G.W/N.W | 49kg/34kg | 60kg/40kg | 80kg/57kg |
| Power | AC220V/50Hz/2.5KW | AC220V/50Hz/2.5KW | AC220V/50Hz/3.5KW |
| Model | DW-B100L | DW-B120L | DW-B150L |
| Volume | 100L | 120L | 150L |
| Chamber size | Φ388*630mm | Φ460*590mm | Φ460*700mm |
| Working temperature | 115-129℃ | 115-129℃ | 115-129℃ |
| Working pressure | 0.145-0.165Mpa | 0.145-0.165Mpa | 0.145-0.165Mpa |
| Time scope | 0-80min | 0-80min | 0-80min |
| Packing size | 63*61*118cm | 66*67*121cm | 67*68*128cm |
| G.W/N.W | 85kg/66kg | 97kg/75kg | 110kg/80kg |
| Power | AC220V/50Hz/4.0KW | AC220V/50Hz/4.0KW | AC220V/50Hz/4.0KW |
