DW-GF Series Vertical Autoclave

Safety Features of DW-GF Series Vertical Autoclave

1. Triple protection for lack of water: The bottom of the sterilization chamber is equipped with three different dry burning protection devices: liquid expansion type, copper temperature sensing type,and electric ion type(water level sensor),to avoid misjudgment caused by a single method.
2. Saturated steam monitoring: The system automatically monitors the purge out of cold air to ensure the pure steam environment.
3. Humanized design: The lid and bench corners are covered with insulation to avoid getting scald.
4. Auto trouble shooting: System will monitor the working status, and will cut the power, send out alarm, and report the error information once any abnormal situation detected.
5. Electrical protection: Prevention for over current,short ciucuit and electricity leakage.
6. Cooling LOCK open temperature: Each program can set different lid OPEN temperatures, especially for liquid program ,so as to prevent user from opening lid and causing burns when the articles are still in a high temperature state.
7. Evenly distributed interlock: Evenly distributed interlock device is safer and more reliable than ordinary interlocking devices.
8. Real time monitor: System will monitor the lid locking, pressure and temperature status on a real time basis to guarantee the safe and successful work of the autoclave.
9. Double protection for over pressure: Mechanical pressure gauge and electric sensing system,once pressure is abnormal, system will cut power, release the pressure and send out alarm.
10. Safety test function: Regular testing of system security and safety protection measures is possible.
11. Temperature monitor: Power cut and alaraming sent, if there is temperature is too high or themperature rising is abnormal.

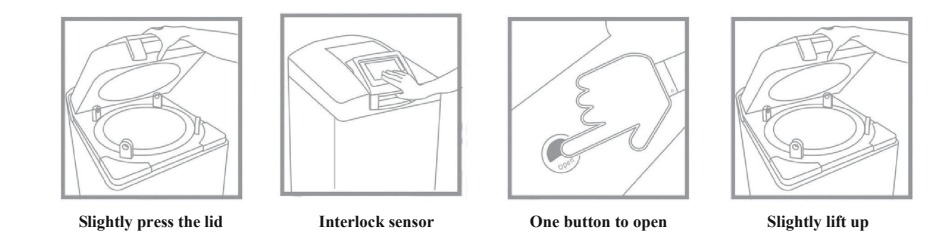

12. One button to open: Press slightly to close, one button to open (if not safe inside, can not open).

Advanced Features of DW-GF Series Vertical Autoclave

1. Touch screen

7-inch color LCD touch screen with Chinese /English choice , supporting glove wearing or pen touch sensing operation.

2. Data reading and curve conversion

Provide USB interface for easy reading or storage of sterilization data. The sterilization data is converted into curves for easy data analysis.

3. 6 level of exhaust speed control (DA,DF,DR only)

After sterilization,you can choose different exhaust speed, and you can adjust it freely at any time of exhausting.

4. Auto drainage/Auto cleaning(option)

Added with a water pump, press the drainage button to start drainage, or set it to timed automatic drainage, Automatic cleaning can be set to regular cleaning or cleaning after each sterilization cycle.

5. 5 level access permission

The operation permissions for instruments are divided into five levels, with each level of user having an independent password and multiple IDs that can be assigned. Each level of user has limited access to certain usage permiss1ons.

6. Sterilization record storage

Built in large capacity memory, can store 999 sterilization cycles and can be queried, printed or exported for easy traceability management.

7. F0 value caculation

F0 value is automatic caculated, can print out by micro-printer.

8. Air inlet filter(DR,DX only)

Filtration is higher than 99.99% in particlewith diameter of 0.2 um.

9. Biosafety function(DWS,DRS only)

Use a 0.2 μm PTFE filter packed in a housing to ensure that no biohazard aerosols, microorganisms and viruses are passing out through the filter during exhausting, so as to make sure the biology safety of the lab.

10. Drying(DR only)

Fully automatic drying: Equipped with an air pump and a 0.2um air filter, it automatically starts drying after sterilization. After sterilization, clean air will be put in to replace the wet air inside, so as to improve drying efficiency (Fully automatic drying is an option for DR only).

11. Dedorization(DX only)

A unique odor treatment system that can absorb odors and remove smell generated during the sterilization process, ensuring fresh laboratory air.

12. Monitor of exhaust filter(DWS,DRS only)

Exhaust filter is put inside a pressure resistant housing(stainless steel material) with an extra PT100 temperature sensor to monitor the temperature, so as to make sure the filter and housing are also being sterilized thoroughly,and will not.

13. Auto water fill(only for DF、DR models)

Equipped with automatic water feeding function, standard is with 28L water tank at the back to store water, option is direct water supply by pipe connection from water source while manufacturing.

14. Condenser(Option)

Equipped with a professional condenser, the steam generated during the sterilization process is converted into water through the condenser, achieving zero discharge of water vapor/mist.

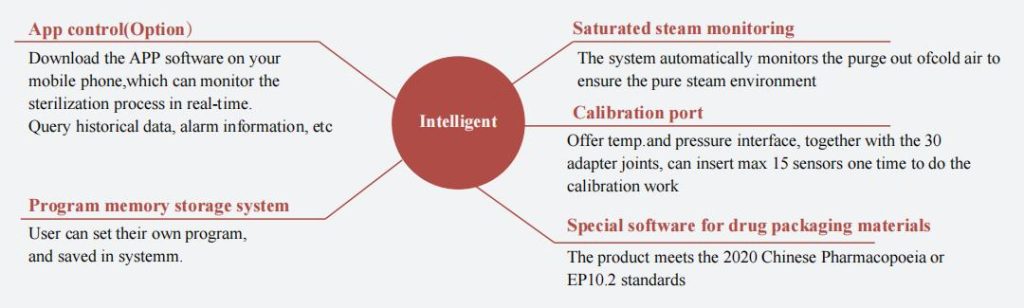

Intelligent Features of DW-GF Series Vertical Autoclave

Humanization

1. Just right depth: Conforming to ergonomics, the chamber depths of 29/54/88/120/150L Chamber are 394/726/733/658/819(mm) making it easy to take and place samples and maintain the instrument.
2. Front water tank: Front water tank, easy to plug in and out.

Technical Data of the DW-GF Series Vertical Autoclave

Model	Standard	DW-GF29DA	DW-GF54DA	DW-GF88DA	DW-GF120DA	DW-GF150DA	DW-GF175DA
	Auto water fill		DW-GF54DF	DW-GF88DF	DW-GF120DF	DW-GF150DF	DW-GF175DF
	Auto drying		DW-GF54DR	DW-GF88DR	DW-GF120DR	DW-GF150DR	DW-GF175DR
	Dedorization		DW-GF54DX	DW-GF88DX	DW-GF120DX	DW-GF150DX	DW-GF175DX
Capacity(L)		29	54	88	120	150	175
Outer dimension (Dia*H)(mm)(mm)		460x570x925	SA:460x570x1050	SA:565x650x1066	SA:665x790x1040	SA:665x790x1140	SA:660x794x1260
			SF:460x820x1050	SF:565x950x1066	SF:665x1090x1040	SF:665x1090x1140	SF:660x1090x1260
			SR:460x570x1050	SR:565x950x1066	SR:665x1090x1040	SR:665x1090x1140	SR:660x1090x1260
			SX:460x720x1050	SX:565x800x1066	SX:665x940x1040	SX:665x940x1140	SX:660x940x1260
Chamber dimension (Dia*H)(mm)		Φ320×394	φ320×726	φ400×733	φ500×658	Φ500×808	Φ500×936
Rated power (W)		2300	2600	4600(option 2900)	4600	6000	6000
Sus304 basket size (pcs)		(Φ300×265) x1	(Φ300×205) x3	(Φ370×280) x2	(Φ480×250) x2	(Φ480×205) x3	(Φ480×250) x3
Working environment		220V±10% 16A 50HZ/60HZ		220V±10% 32A 50HZ/60HZ		380VAV/16A
Temperature display accuracy		0.1℃
Working environment		5℃~40℃, Relative humidity not greater than 85%
Chamber material		SUS304 steel(option SUS316L)
Sterilization temp.range		105℃~138℃
Lid open way		One button open Interlock sensor
Sterilization time range		1～6000 min
Melting temp.		60℃~115℃
Melting time		1~6000 min
Warming temp.		45℃~79℃
Warming time		1～9999 min
Exhaust speed control		Fully automatic internal discharging with 6 levels choice
Memory function		60 program saved in system,999 cycles saved by USB
Appointment timer range		Auto start up appointment)0～15 days
Pressure gauge		-0.1～0.5MPa
Pressure valve set pressure		0.29MPa
Cooling lock OPEN temp.range		40℃~99℃ for solid,waste,agar,self-defined,40℃~80℃ for liquid
Sterilization mode		Liquid, liquid with warming, solid, wrapped instrument, fabric, rubber, fast, waste, agar, self-defined
Drying(DR, DP only)		Drying time:1~300min Drying temp.:80~160℃
Controller		“Inspiration II”smart microcomputer controller
Cooling way		Fast cooling fan
Safety device		“evenly distributed”interlock device, electric double inter lock, lid closing checking, dry scorch protection,„ safety valve, water level sensor, over temperature/pressure protection, temperature/pressure monitor, electricity safety(over current/short circuit/leakage), cooling lock,anti-scald lid and bench corner, automatic troubleshooting
Biosafety function		Option for 0.2um biosafety filter(basic model+S)

Note: Baskets can also be customized, as well as melting and warming temperature range.

Model	DW-GFDA	DW-GFDF	DW-GFDR	DW-GFDX
6 level exhaust speed control	Standard	Standard	Standard	–
Auto water fill	–	Standard	Standard	–
Drying	–	–	Standard	–
Dedorization	–	–	–	Standard
Access permission	5 level	5 level	5 level	5 level
S Biosafety function	GFDAS only	GFDAS only	GFDAS only	–
Exhaust air monitor	GFDAS only	GFDAS only	GFDAS only	–
Fast cooling fan	Standard	Standard	Standard	Standard 2 pcs
Sterilization record	Standard	Standard	Standard	Standard
USB port	Standard	Standard	Standard	Standard
Micro-printer	Option	Option	Option	Option
Condensor	Option	Option	Option	Standard
SUS316L steel	Option	Option	Option	Option
Pharma package testing program	Option	Option	Option	Option
Air inlet filter	–	–	Standard	Standard
Display system	LCD	LCD	LCD	LCD
Load thermometer(Floating PT100 sensor)	Option	Option	Option	Option
Printing set (printer+digital pressure sensor)	Option	Option	Option	Option
Auto drainage	Option	Option	Option	Option
APP control/Remote control	Option	Option	Option	Option
Steam collecting way	Internal	Internal	Internal	Internal
Auto cleaning	–	Option	Option	–

Note: Requirements for sterilization water: distilled water (conductivity not less than 3μ  S/cm)

When configured as an S biosafety type, a condenser is standard

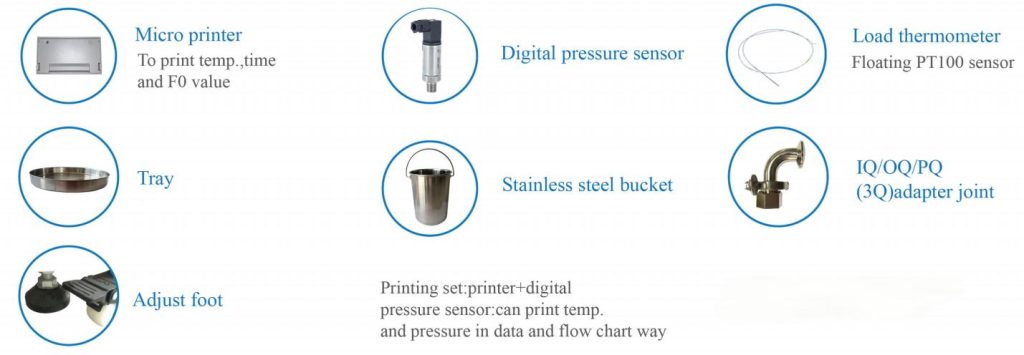

Spare Parts Option
