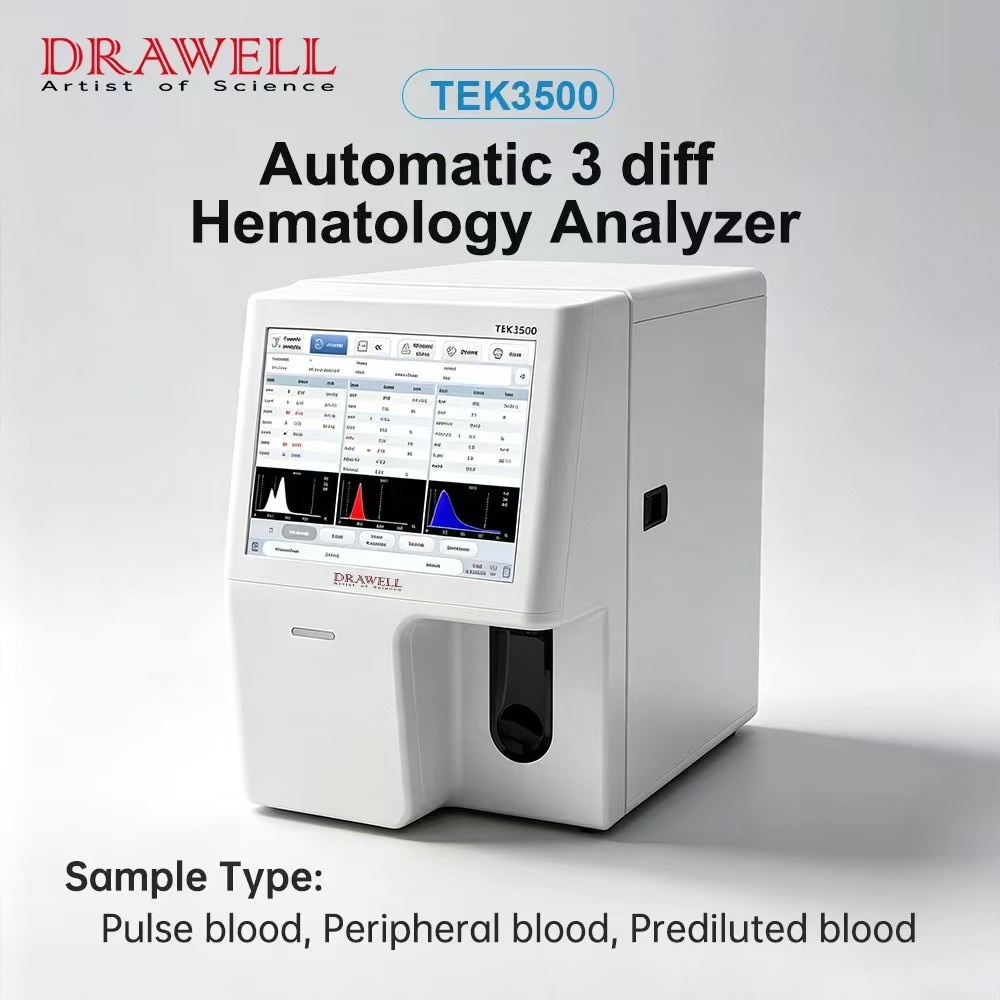

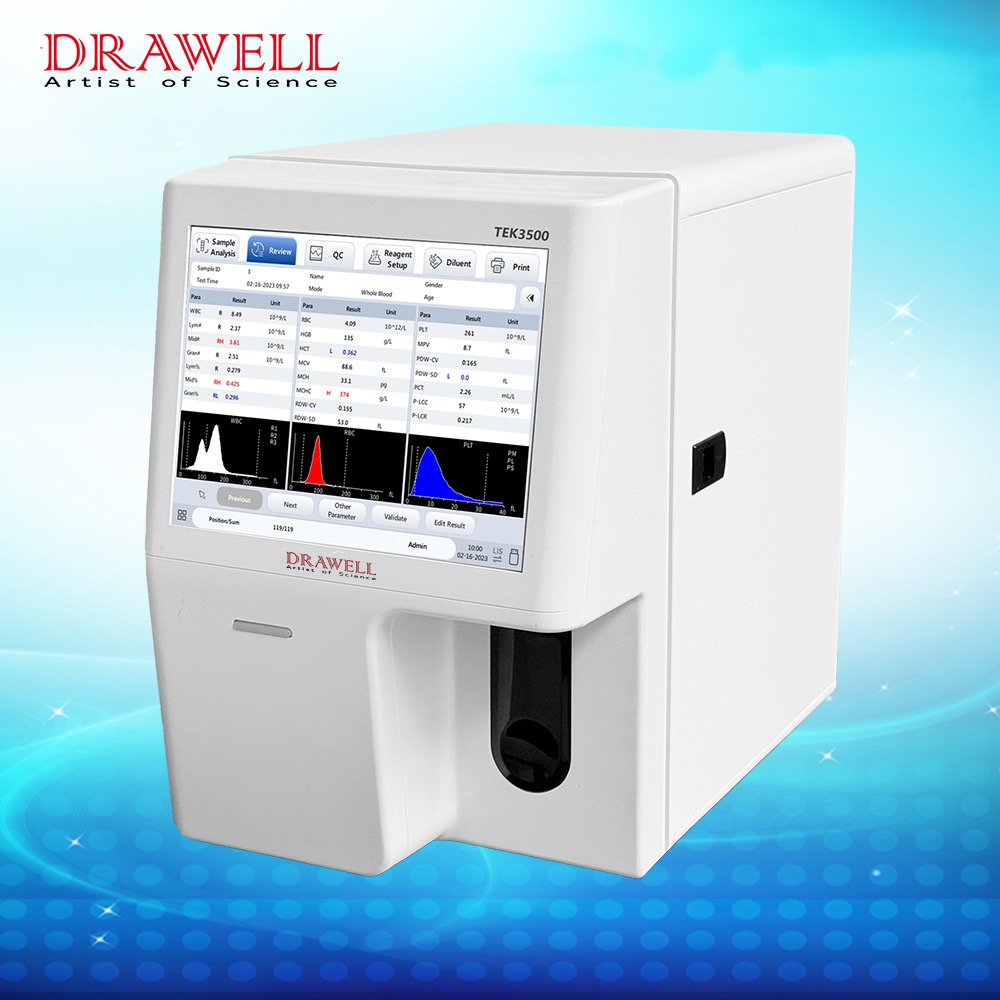

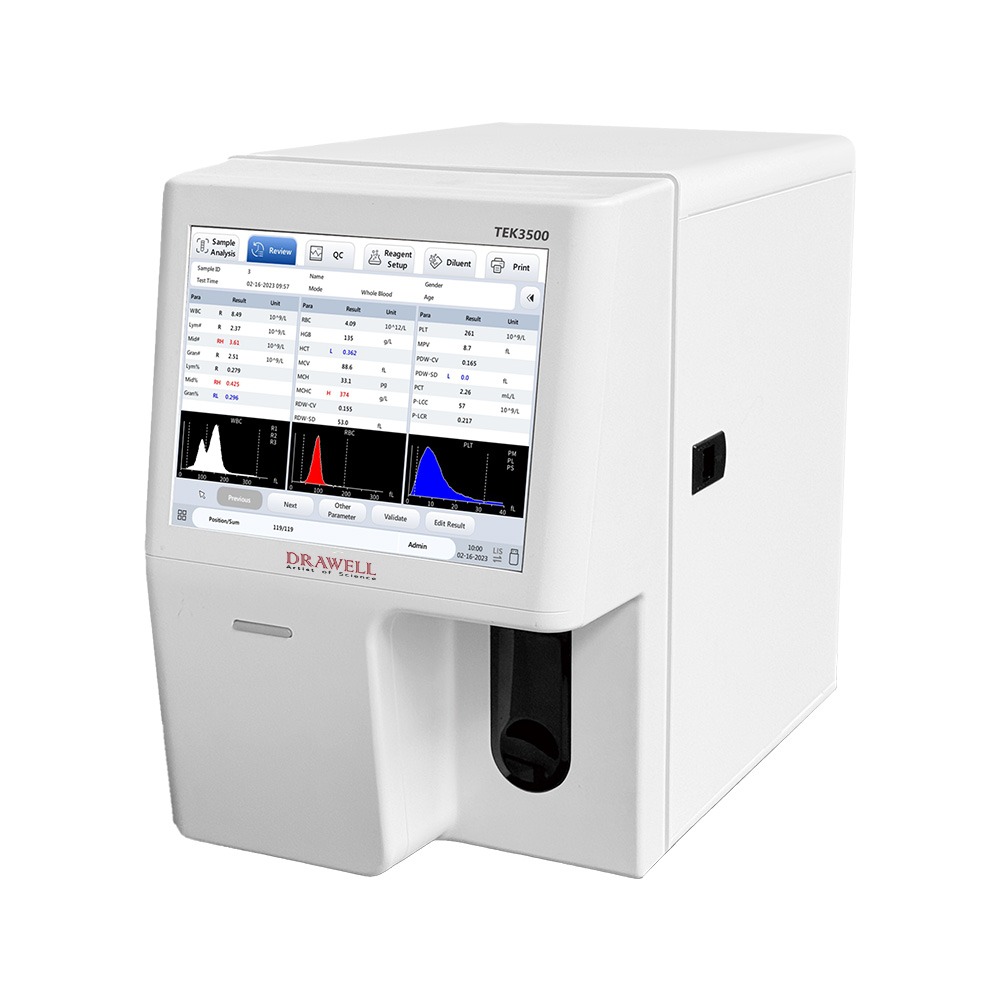

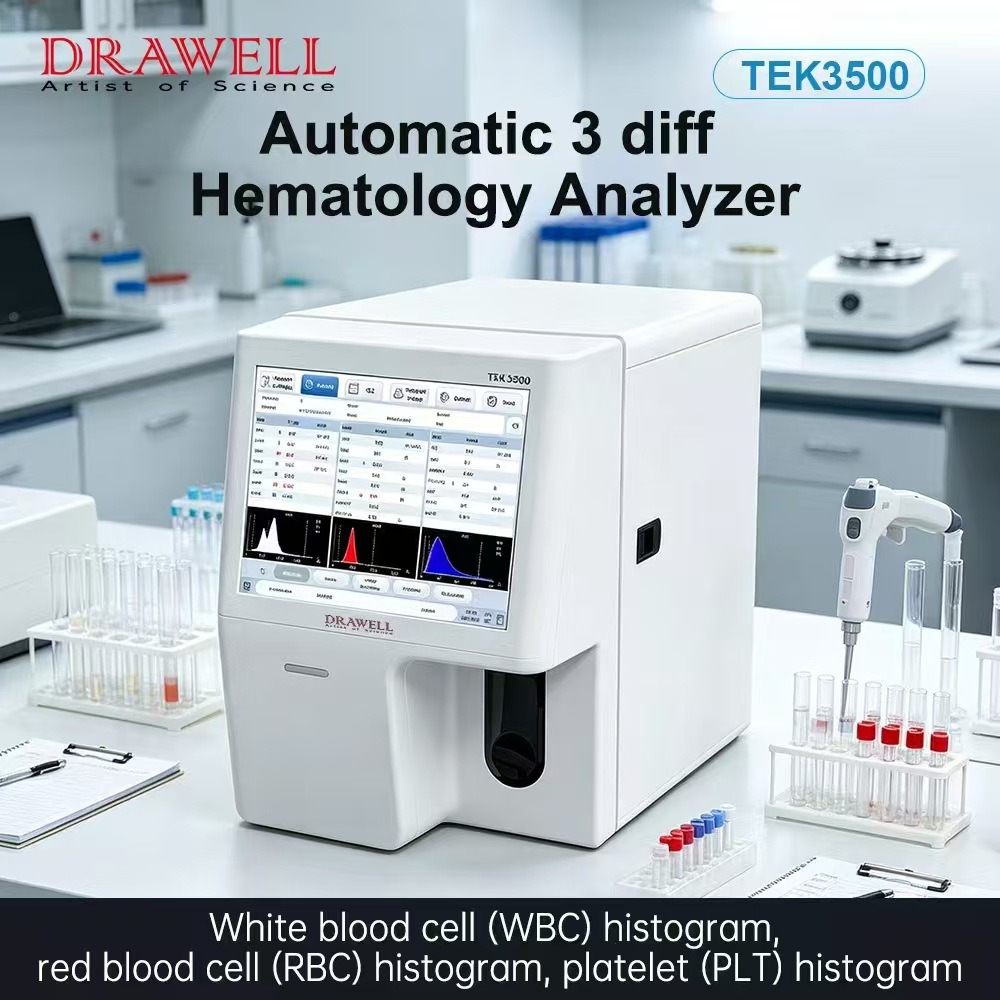

TEK3500 Automatic 3 diff Hematology analyzer

TEK3500 is a compact automatic 3-part hematology analyzer designed for routine whole blood and predilution testing. The system includes the main analyzer with a built-in thermal printer, while an external printer, software, peripherals, and consumables are available as optional configurations.

  • 60 Samples/Hour
  • 21 Parameters
  • WBC / RBC / PLT: 3 Histograms
  • 10 μL Blood Sample
  • Up to 200,000 Results
TEK3500 Brochure

Features of TEK3500 Automatic 3 diff Hematology Analyzer

  1. 60 Samples/Hour: Processes up to 60 samples/hour and supports continuous operation with customizable sleep time.
  2. 21 Parameters + 3 Histograms: Reports 21 hematology parameters with WBC, RBC and PLT histograms displayed on the same screen.
  3. Low Sample Volume: Requires 10 μL of venous or peripheral blood, with 20 μL for prediluted blood testing.
  4. Multiple QC Methods: Supports L-J, X-R and floating mean QC for routine quality-control management.
  5. Data & LIS Connectivity: Stores up to 200,000 sample results and supports bidirectional LIS communication and HL7 transmission.
  6. Compact & Easy to Integrate: Compact 265 × 380 × 420 mm body with a net weight of approximately 17 kg, suitable where bench space is limited.

Applications of TEK3500 Automatic 3 diff Hematology Analyzer

Used for qualitative and quantitative analysis of formed elements in blood, providing relevant information.

Venous Whole Blood
Routine Hematology Testing
Used for routine analysis of formed elements in blood, providing WBC, RBC, HGB, platelet and related hematological parameters.
Peripheral Blood Sample
Venous Blood Testing
Supports routine venous whole-blood analysis with a 10 μL sample volume.
Predilution Preparation
Peripheral Blood Testing
Suitable for peripheral blood samples where a low sample volume is required.

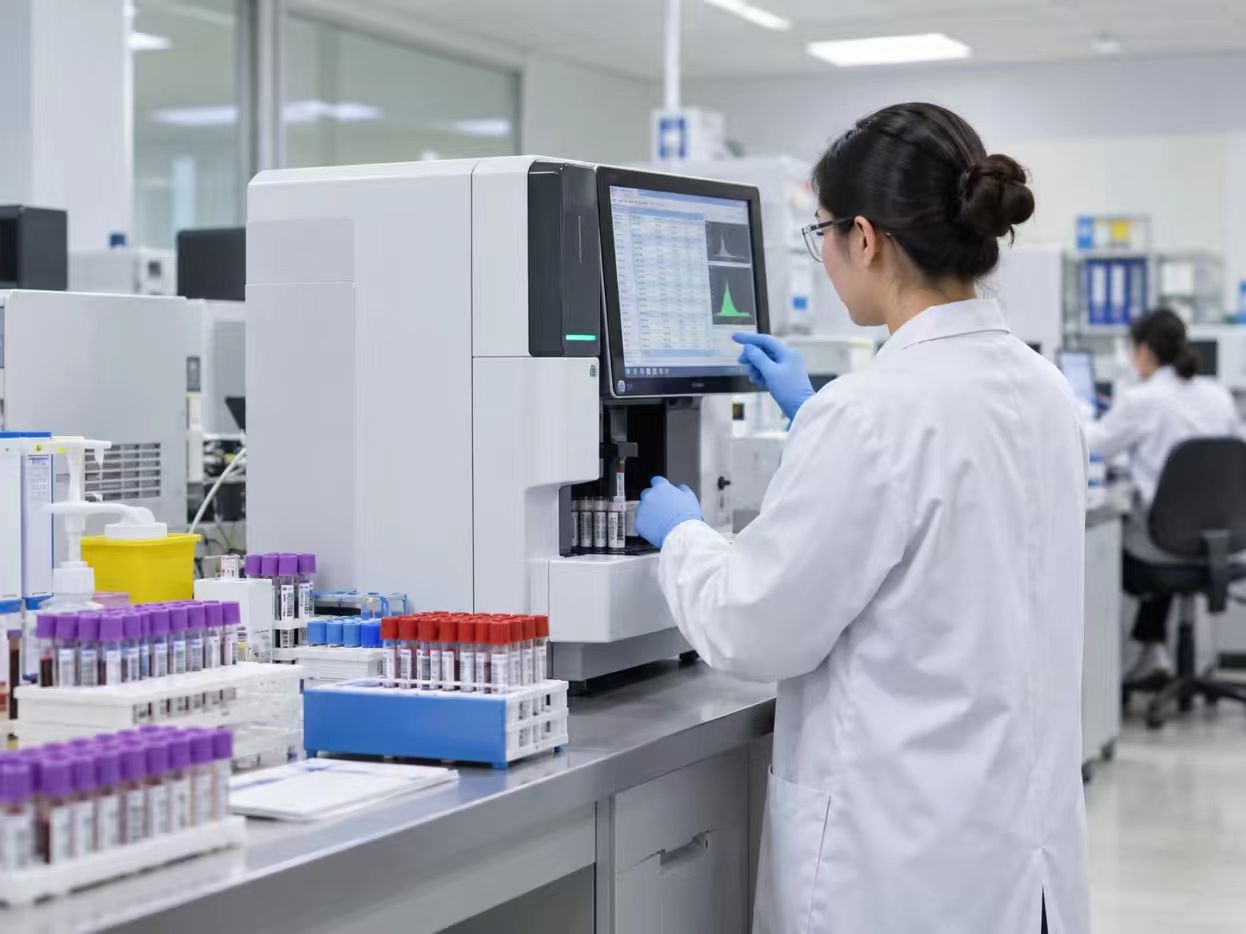

Routine Hematology Laboratory
Prediluted Blood Testing
Supports a predilution mode using a 20 μL sample volume.

FAQ

The TEK3500 reports 21 hematology parameters together with WBC, RBC and PLT histograms.

The analyzer processes up to 60 samples per hour.

The specified sample volume is 10 μL for venous and peripheral blood and 20 μL for prediluted blood.

The TEK3500 supports whole blood and predilution modes.

Up to 200,000 sample results, including sample information, can be stored automatically.

Yes. It supports bidirectional LIS communication with HL7 and other transmission protocols.

Yes. Stored data can be queried using multiple search methods and exported in Excel format.

Yes. A built-in thermal printer is included, and an external printer can also be connected.

Yes. A barcode scanner is optional.

Optional Wi-Fi and Bluetooth are available according to the brochure.

Specifications of TEK3500 Automatic 3 diff Hematology Analyzer

ModelTEK3500
Test itemsWBC、LYM#、MID#、GR#、LYM%、MID%、GR%、RBC、HGB、HCT、MCV、MCH、MCHC、RDW-CV、RDW-SD、PLT、MPV、PDW、PCT、P-LCC、P-LCR
HistogramWhite blood cell (WBC) histogram, red blood cell (RBC) histogram, platelet (PLT) histogram
Sample Typepulse blood, peripheral blood, prediluted blood
Test modewhole blood mode, pre-dilution mode
Blood volume10 μ L of venous blood and peripheral blood, 20 μ L
StorageAutomatic storage, maximum of 200,000 sample results (including sample information)
Test speed60 samples / hour, can be turned on for 24 hours, custom sleep time
Data query methodSample number query, patient data query, test date query, multi-keyword query. And support for data export to the EXCELL format
Operating characteristicsForward and backward flushing and blockage removal technology, combined with high-pressure burning and blockage removal, with extremely low blockage rate
DisplayLarge size color touch LCD screen, all results and histograms are displayed on the same screen
Operation modeSupport keyboard, mouse operation, graphic touch operation, handwritten input
Quality controlL-J, X-R, floating mean value, etc
PrintingBuilt-in thermal printer, a variety of printing formats, and support for external printer
Information transmissionBidirectional LIS communication, HL7 and other transmission protocols
Wireless connectionWIFI, Bluetooth (optional) and other wireless transmission of data, wireless printing, LIS connection, laboratory LAN
Interface:LAN, RS232, HDMI, 4 USB

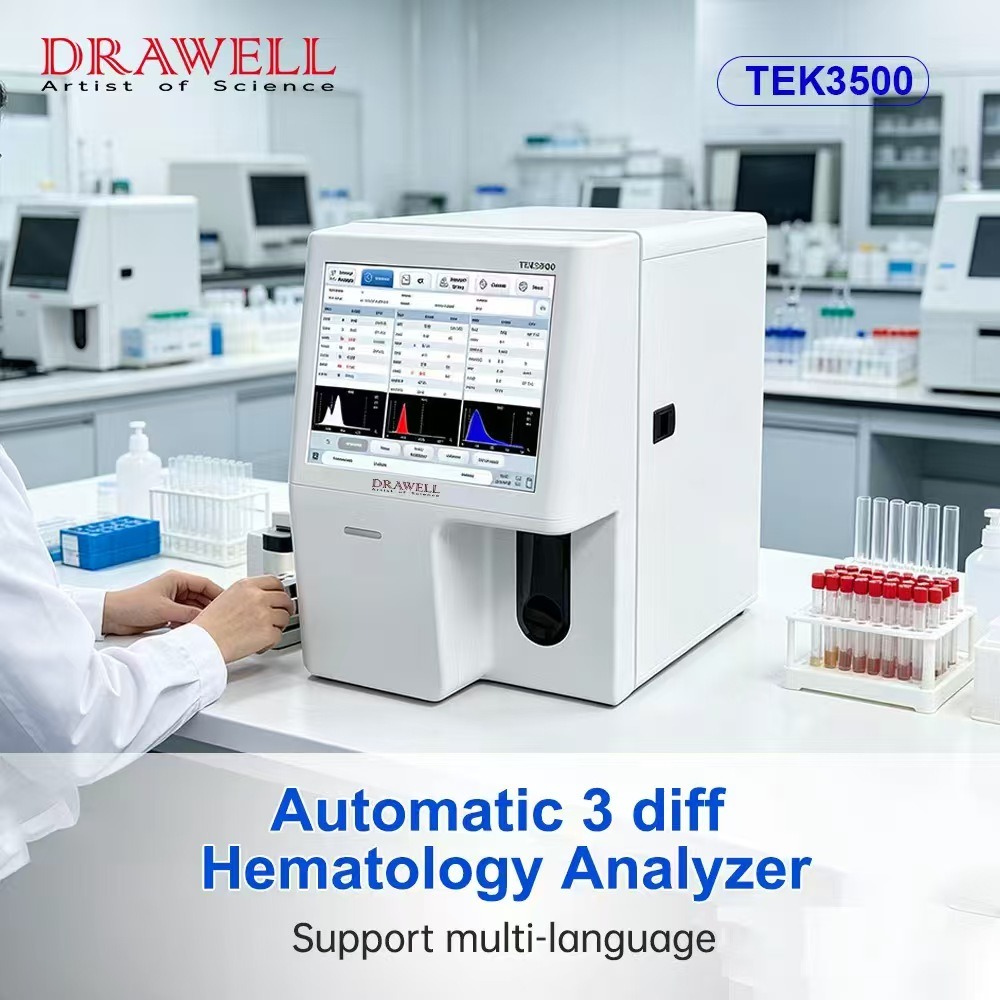

LanguageSupport multi-language
OptionsBar code scanner (optional)
Power supply and power~100-240V
WeightNet weight: about 17kg  Gross weight: about 20kg
VolumeMachine size: 265 * 380 * 420mm   package size: 465 * 580 * 545mm
