DW-KDN-D Series Digital Display Program Temperature Control Digestion Furnace

DW-KDN-D series digital display temperature control digestion furnace is designed for users who need to digest Kjeldahl nitrogen samples in batches, and can digest multiple samples at the same time. This device is simple, high digestion efficiency, ideal measurement results, easy to use and maintenance, is an ideal digestion device for users.

4/8/12/20 Samples per Batch
RT to 550°C
±1°C Accuracy
50°C/min Heating Speed

DW-KDN-D Series Brochure

Description
Specification
DW-KDN-08D
DW-KDN-12D
DW-KDN-04D
DW-KDN-20D
Why Drawell?

Features of DW-KDN-D Series

Infrared quartz tube heating – fast heating, acid/alkali resistant, and long service life.
Digital temperature control for stable and easy operation.
Uniform heating between positions for consistent sample digestion.
30-step programmable temperature/time control with step or linear heating modes.
Stainless steel construction for corrosion resistance.
PTFE sealing ring provides strong acid/alkali resistance and reliable sealing.
Observation window allows real-time checking of sample digestion.

FAQ

Do not weigh excessive samples; add mixed perchloric and sulfuric acid. Pre-carbonize at low temperature before heating up, and add anti-bumping boiling stones to avoid rapid temperature rise.

Sulfuric acid volatilizes at high temperature and organic matter decomposes violently. Equip waste gas absorption device, operate entirely in fume hood, and control staged heating rate.

The digestion reaches the end when the liquid turns clear light blue-green. Incomplete digestion traps nitrogen inside carbon particles, leading to low titration results and invalid test data.

Two-stage heating is standard: 150 °C for carbonization and foam removal, 380–420 °C for high-temperature digestion. Too low temperature slows digestion; excessive temperature evaporates sulfuric acid and causes nitrogen loss.

Clean digestion tubes while hot after tests; regularly wipe furnace cavity with dilute alkali solution. Prevent long-term residual strong acid, and replace severely corroded tubes timely to avoid acid leakage damaging equipment.

Technical Parameters

Main function	Can digest 4/8/12/20 samples at the same time, digestive tube capacity 300ml
Temperature control range	room temperature ~550℃
Temperature control accuracy	±1℃
Digestion time	1 min-120 min; 5, heating speed: 50℃/min
Time setting range	0-9999min; Timing error: < 1%
Rated power	1500W
Power supply	220V/50Hz
Overall size (length * width * height)	650310200mm

Models

Name	Model	Specification	Power Rating	Power
DW-KDN-D series digital display program temperature-controllable digestion furnace	DW-KDN-04D	4 samples of each lot	1000W	220V，5A
	DW-KDN-08D	8 samples of each lot	1500W	220V，10A
	DW-KDN-12D	12 samples of each lot	2000W	220V，10A
	DW-KDN-20D	20 samples of each lot	3000W	220V，16A

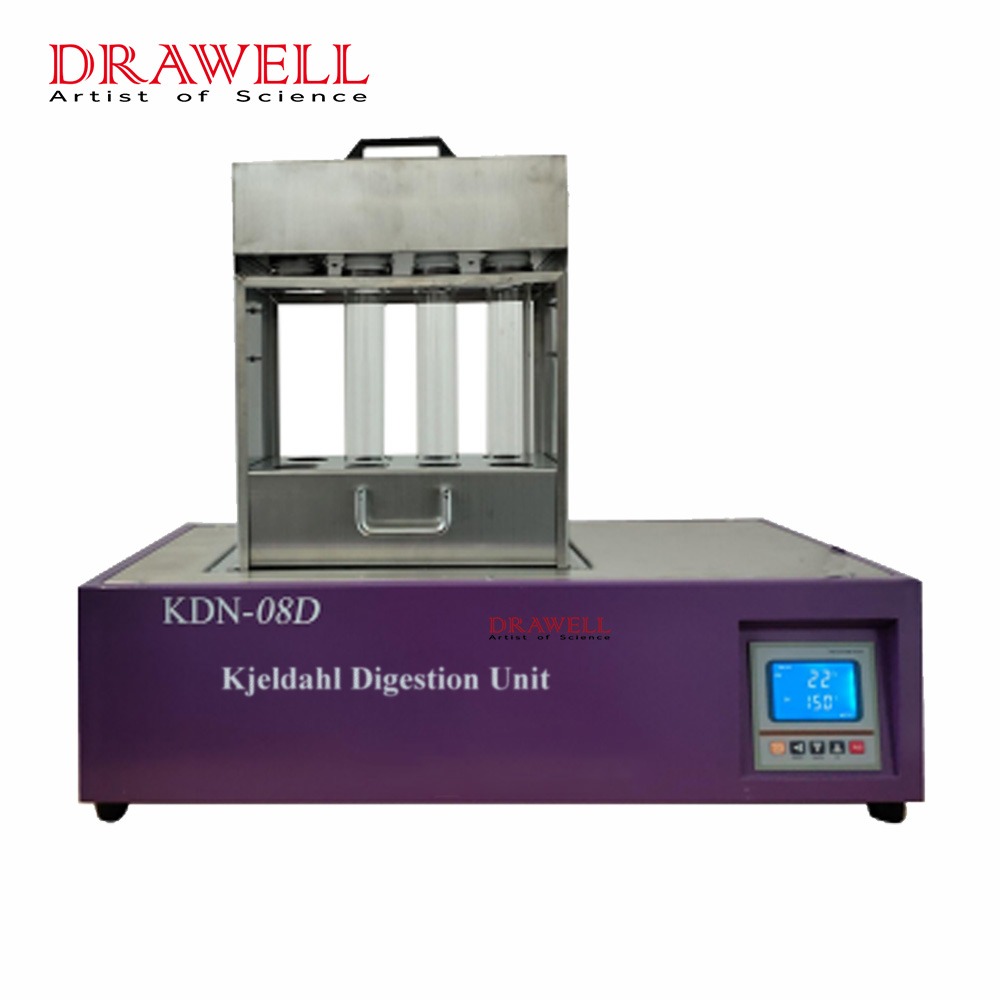

DW-KDN-08D Display

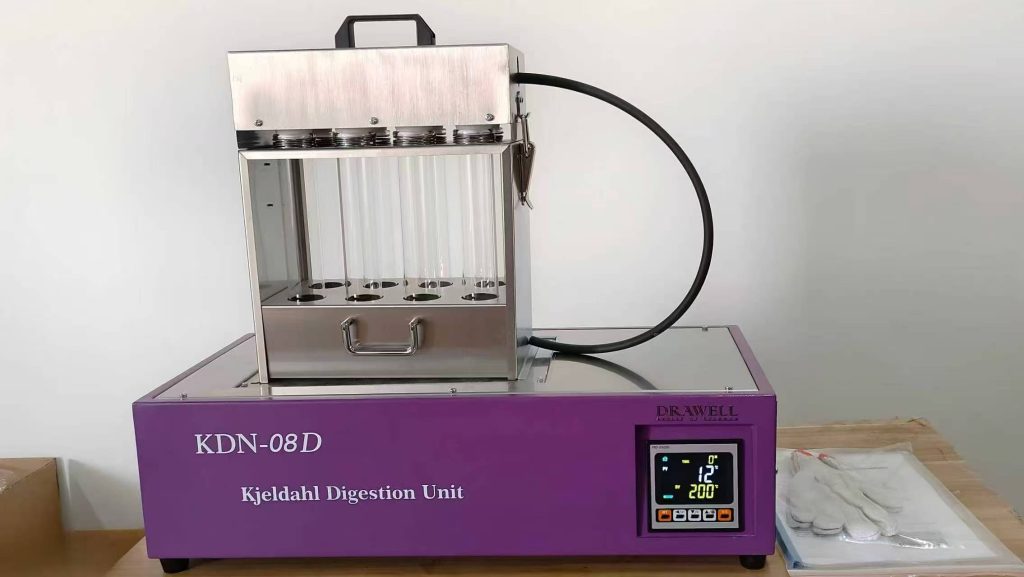

KDN-08D

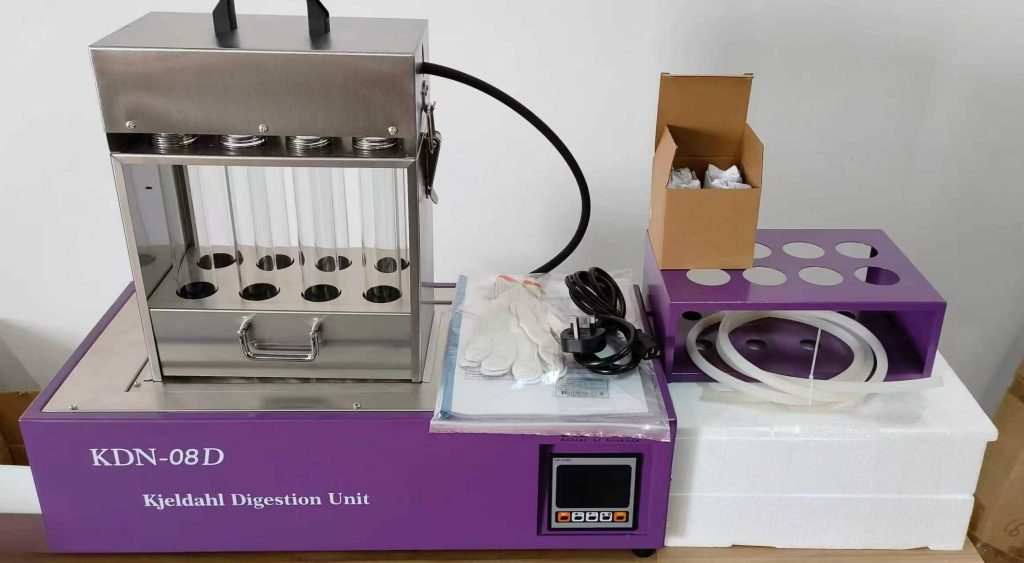

Accessories of KDN-08D

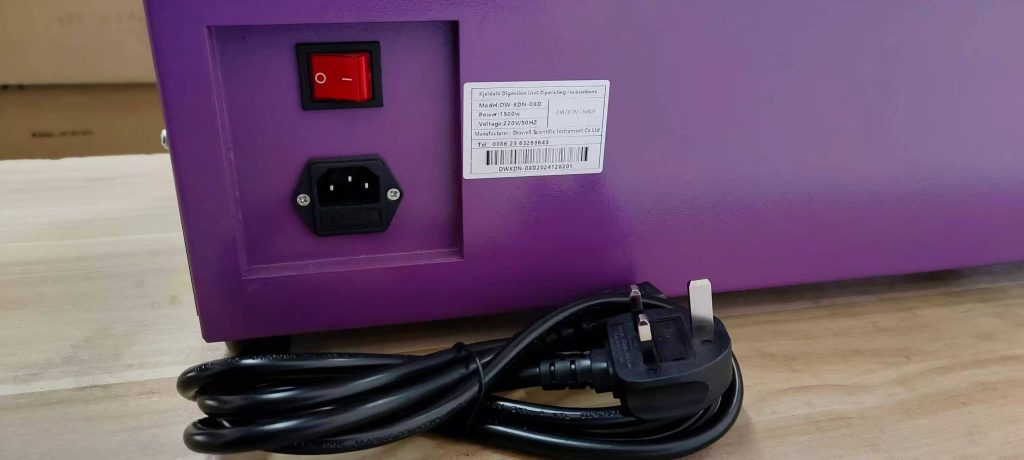

Nameplate and Plug

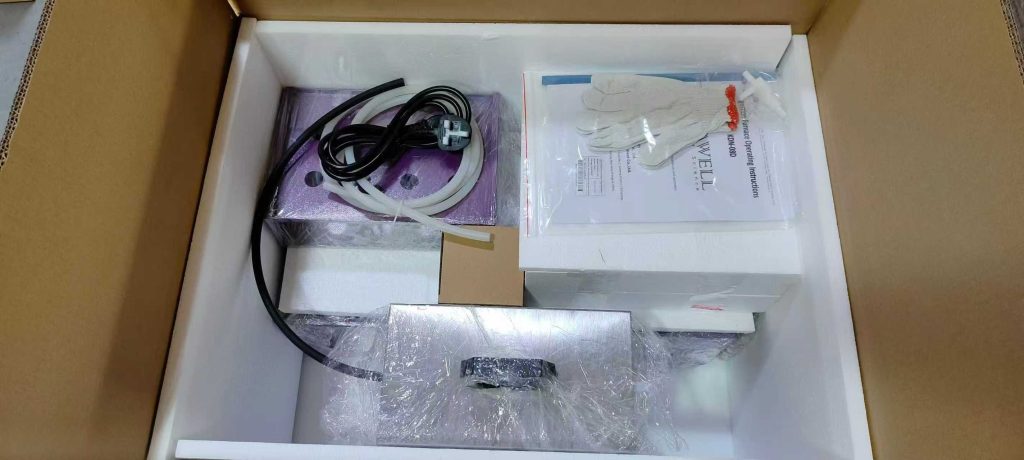

before seal the box
after the package

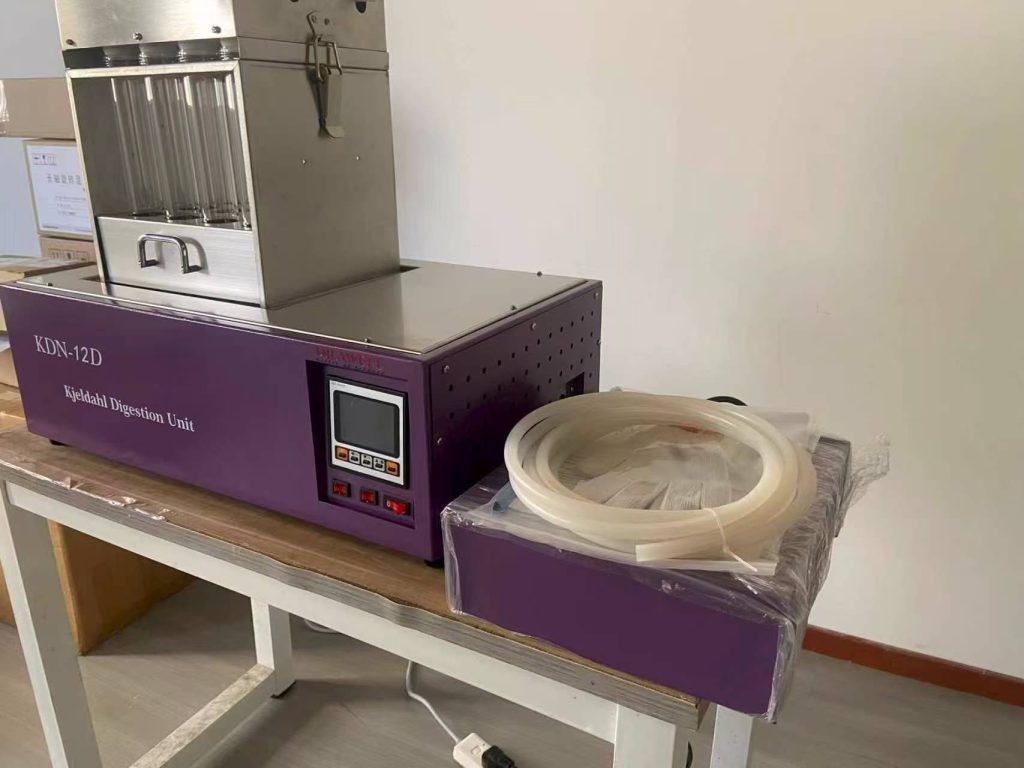

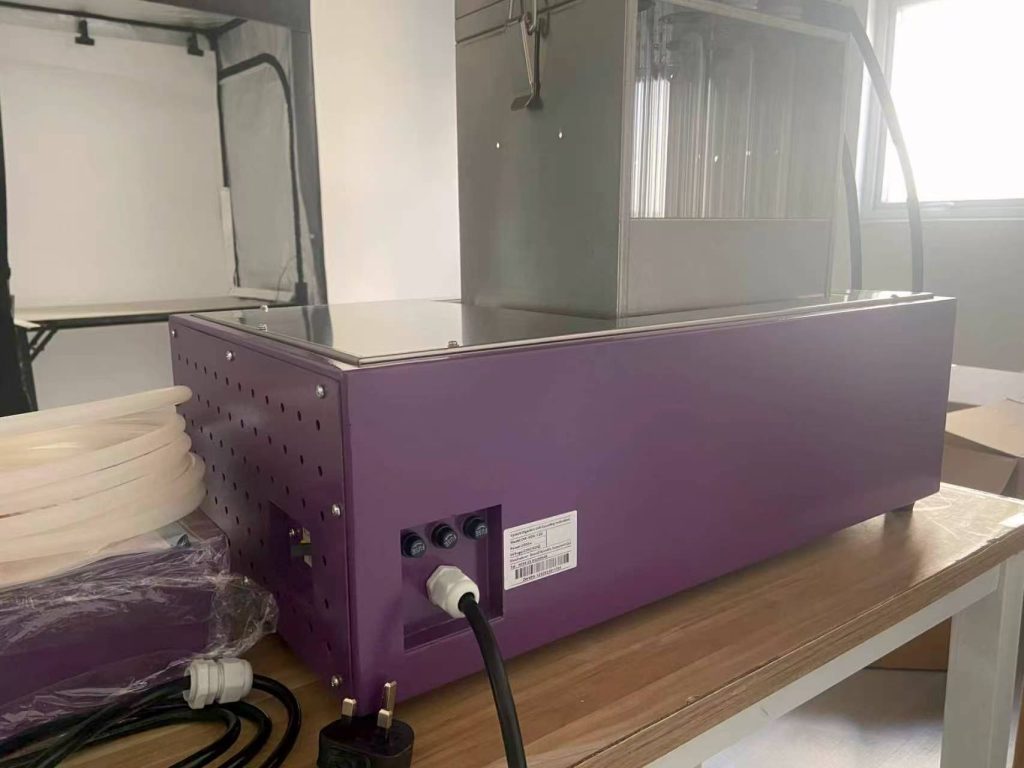

DW-KDN-12D Display

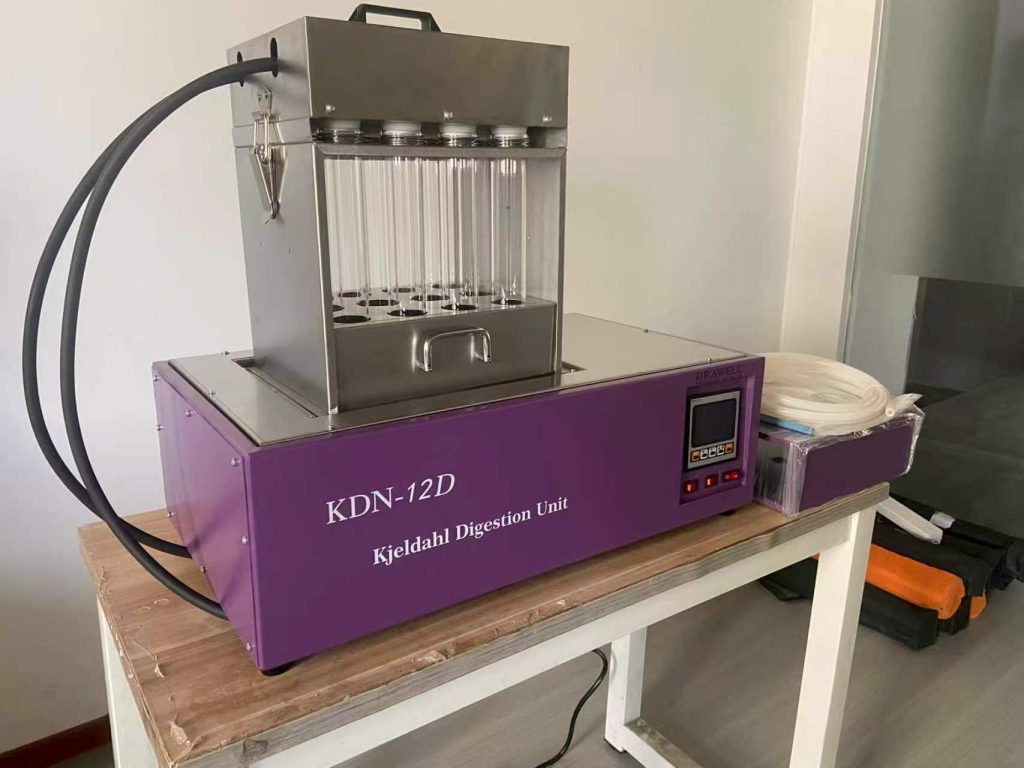

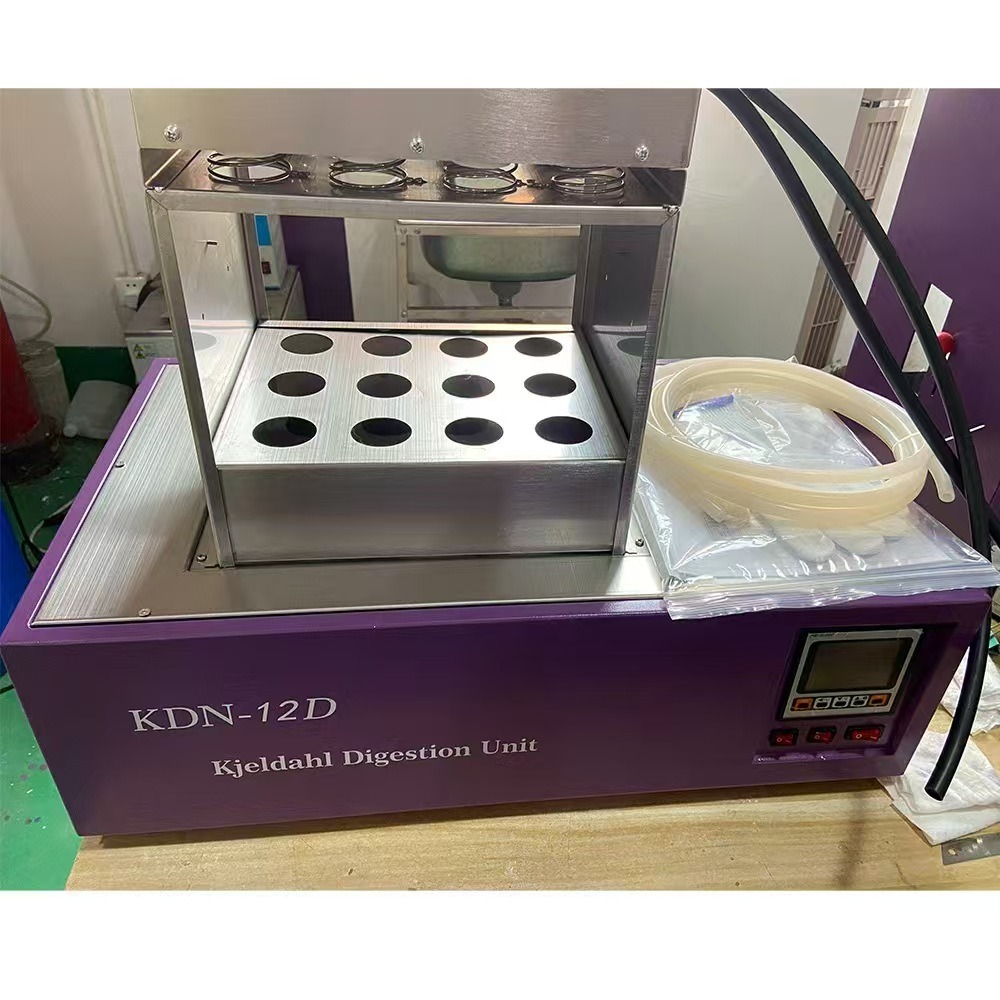

DW-KDN-12D
DW-KDN-12D
DW-KDN-12D

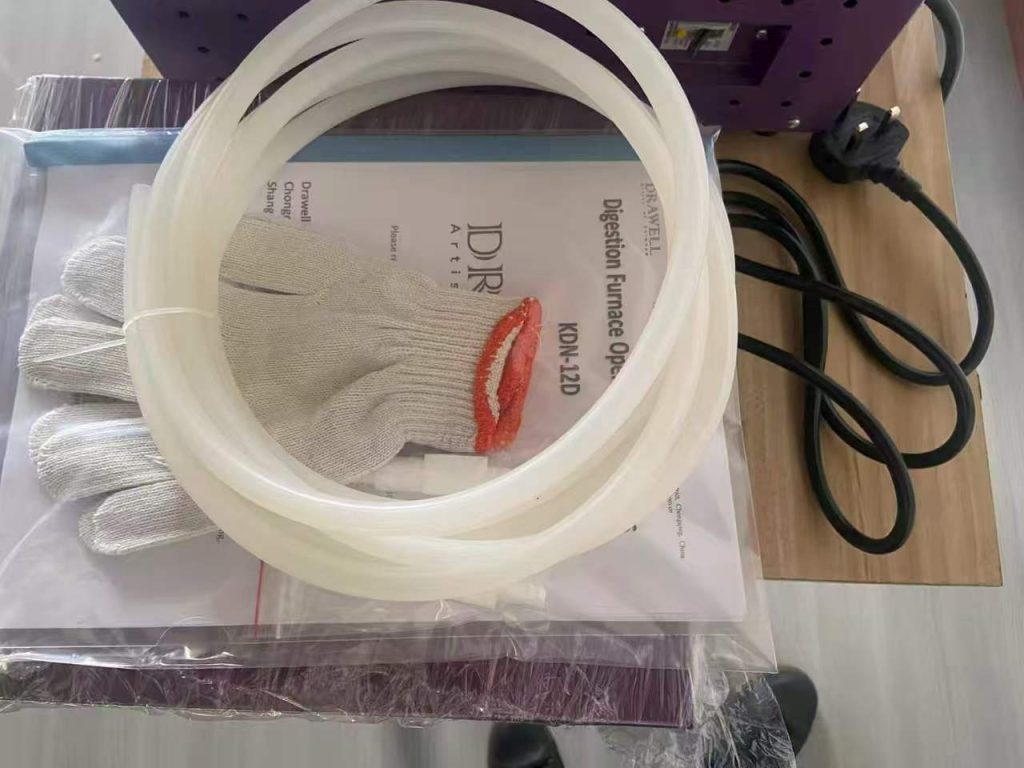

Specification and Accessories

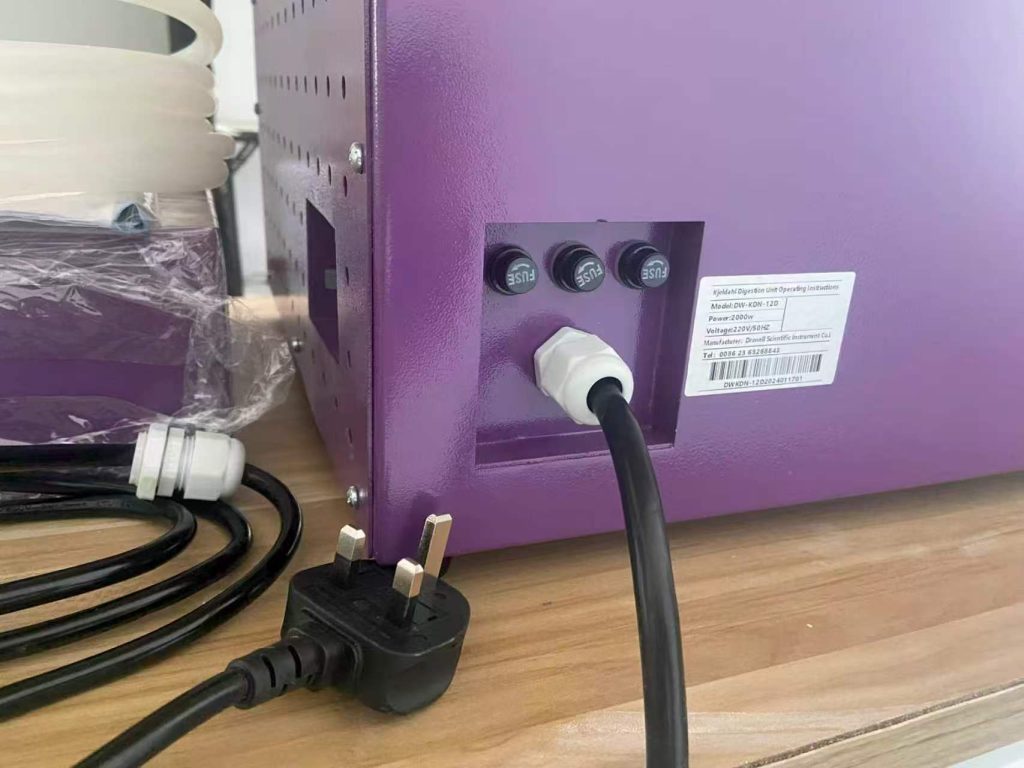

Nameplate

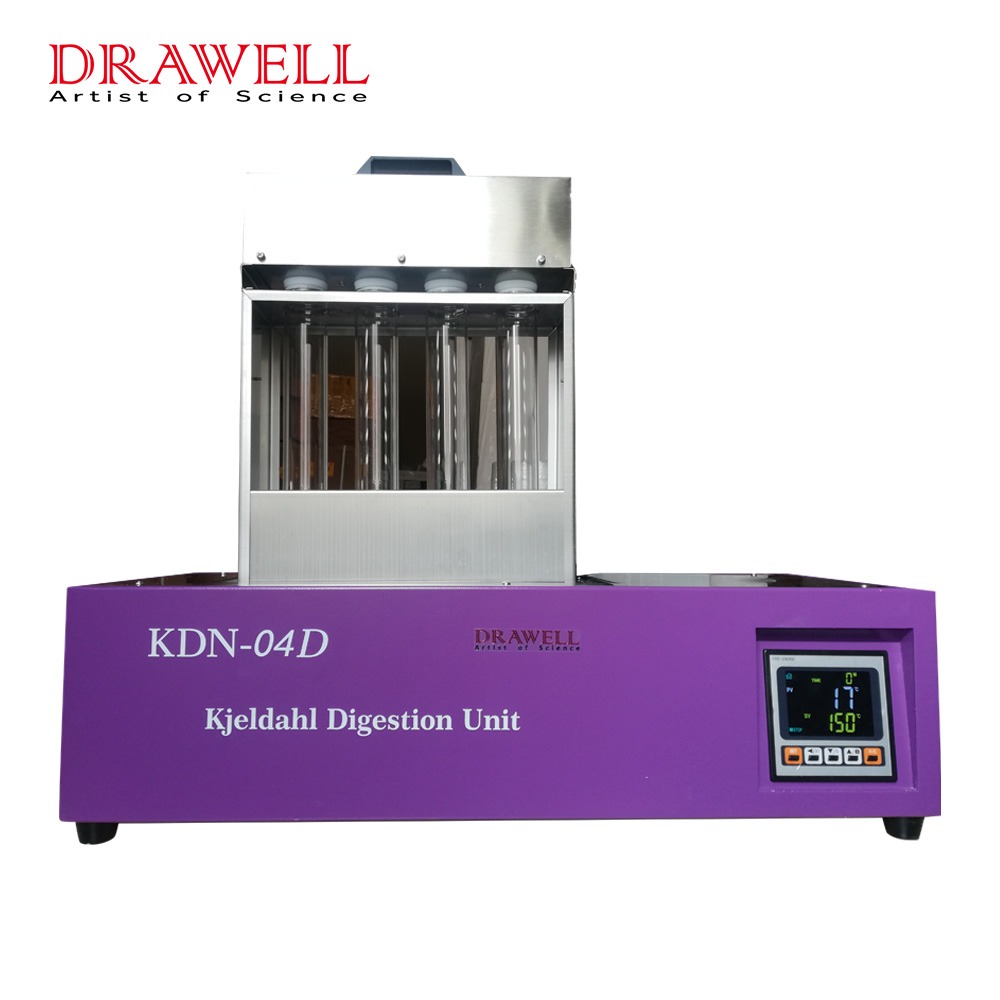

DW-KDN-04D Display

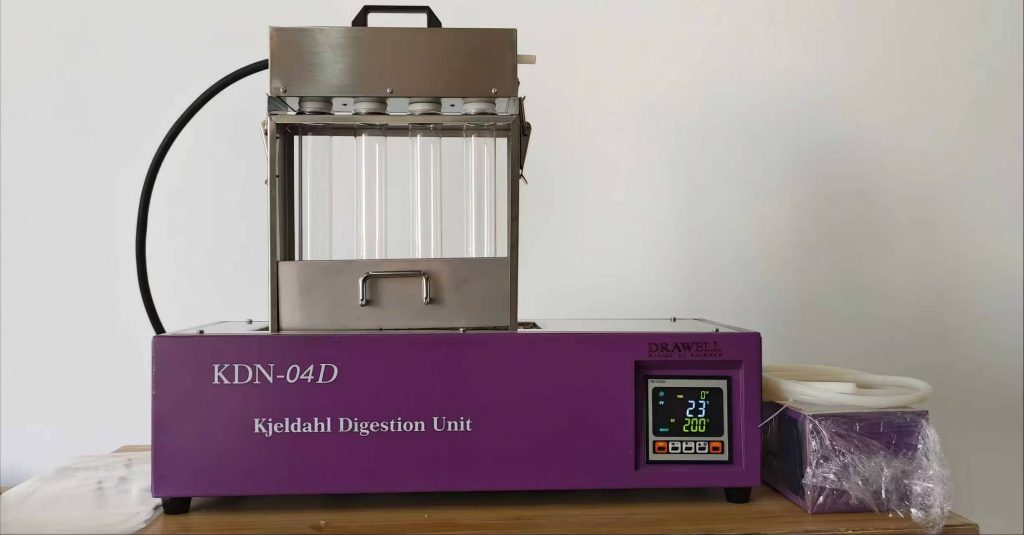

DW-KDN-04D
DW-KDN-04D

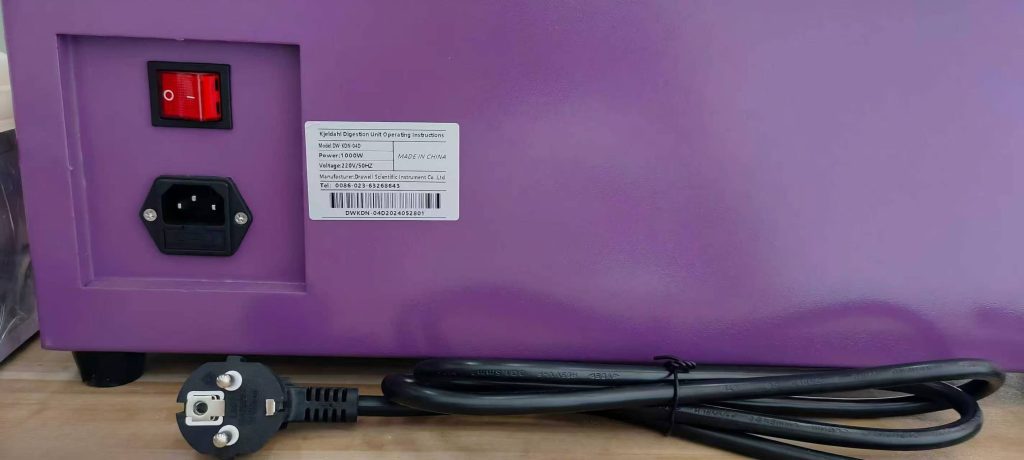

Nameplate and Plug

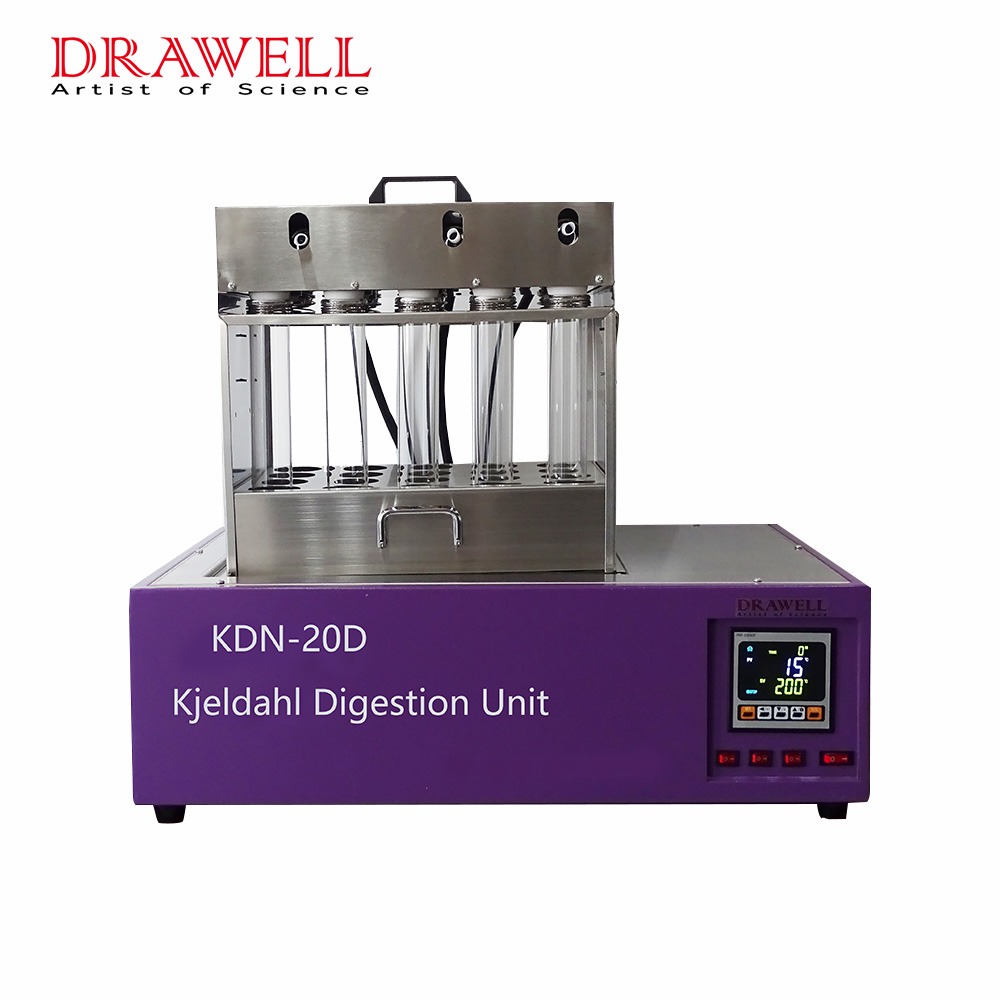

DW-KDN-20D Display
