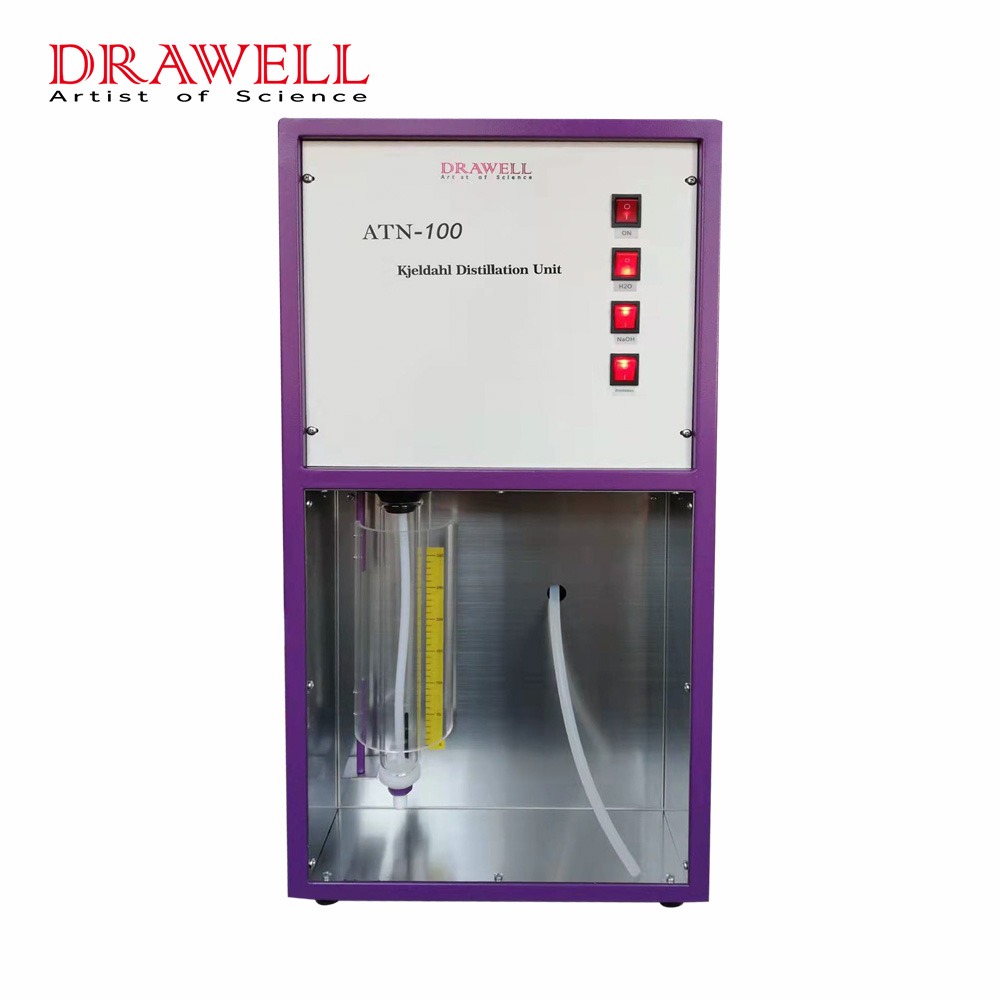

DW-ATN-100 Semi-automatic Azotometer

DW-ATN-100 semi-automatic azotometer(protein determinator) is designed by our company in accordance with the Kjeldahl method, mainly for assaying the content of ammonia nitrogen, protein nitrogen in cereals, food, dairy products, beverages, feed, soil, water, medicine, sediment and chemicals. The determination conforms to national standards, AOAC, ISO, etc.

  • ≥99.5% Recovery
  • 3–7 min/sample
  • 0.1–240 mg N
  • 0.02–95% Nitrogen Content
  • Repeatability ≤±1%
ATN-100 Brochure

Features

  1. The cover is made of specific powder-coated steel plate, resists chemical reagents and mechanical erosion
  2. Simple structure, button control, easy to operate
  3. Optimized internal configuration, convenient to install and maintain
  4. Touch buttons to add distilled water, alkali, and vapor-controlled, no need to contact with the reagent
  5. Short distillation duration, work efficiency enhanced

Differences between different models of Kjeldahl Analyzers

The DW-ATN-100 is Manual, While The DW-ATN-300 is Automatic.

Neither the DW-ATN-100 nor the DW-ATN-300 Includes a Titration Device; The User Can Perform The Titration Process Manually.

Both the DW-ATN-100 And DW-ATN-300 Require An Optional Pretreatment Digestion Furnace.

Applications of DW-ATN-100 Semi-automatic Azotometer

Food and Agricultural Products Industry2 scaled

Food and Agricultural Products Industry: Safeguarding Safety and Quality

Protein content testing; Adulteration identification and safety supervision; Nutritional assessment of agricultural products;

Feed and Pet Food Industry2

Feed and Pet Food Industry: Precise Nutritional Formulation

Raw material quality control; Formula optimization and cost control;

Pharmaceutical and Biotechnology Fields1

Pharmaceutical and Biotechnology Fields: From R&D to Clinical Trials

Drug quality control; Biological product analysis;

Environmental Science and Soil Research2

Environmental Science and Soil Research: Protecting Ecological Balance

Water pollution monitoring; Soil fertility evaluation; Solid waste treatment and resource utilization;

Agricultural Research and Education1

Agricultural Research and Education: Combining Theory and Practice

Crop nutrition research; Teaching experiments and talent cultivation.

Other Fields1 scaled

Other Fields: Diverse Application Scenarios

Chemical and Materials Science; Cosmetics and Daily Chemical Industry;

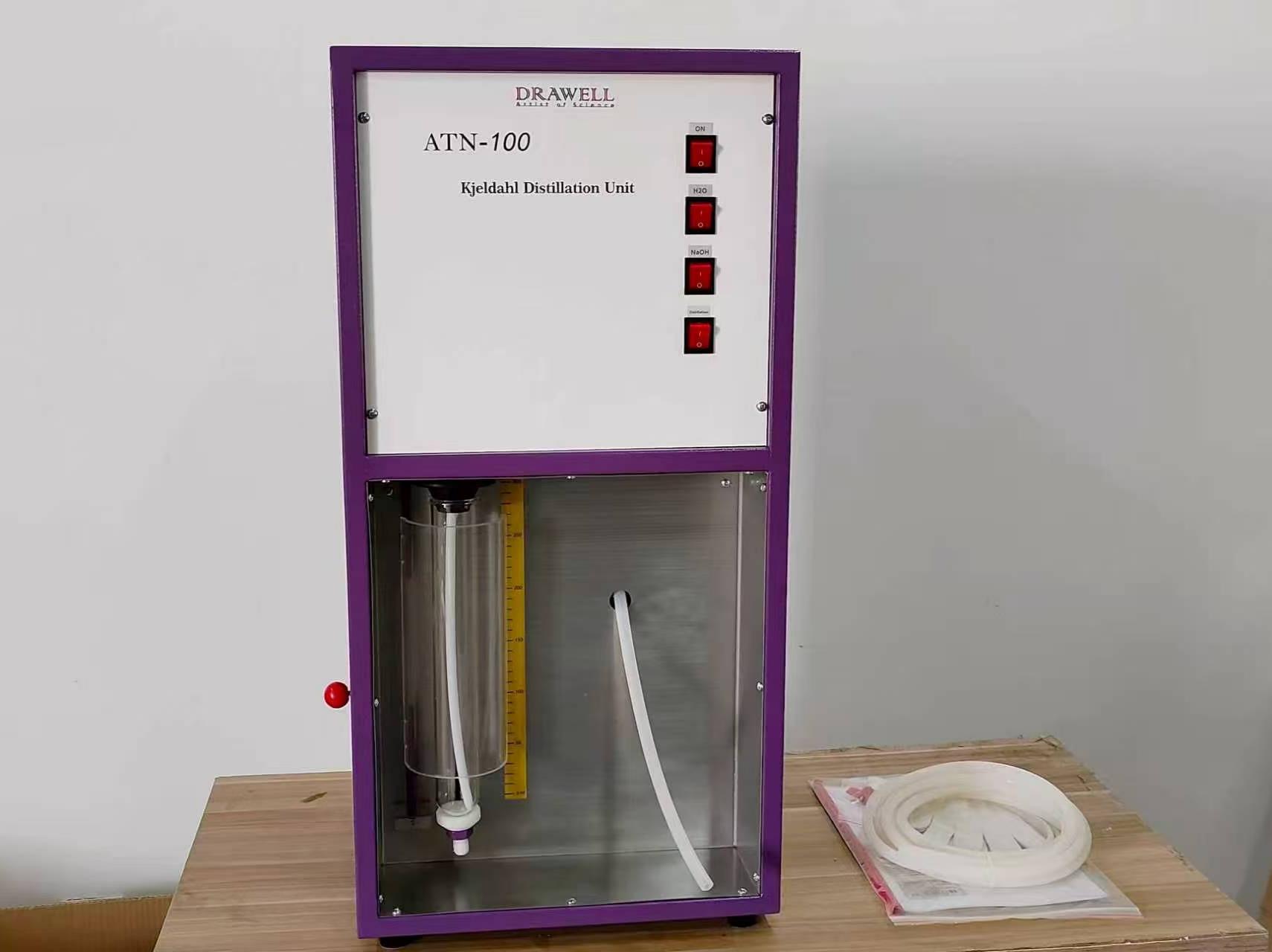

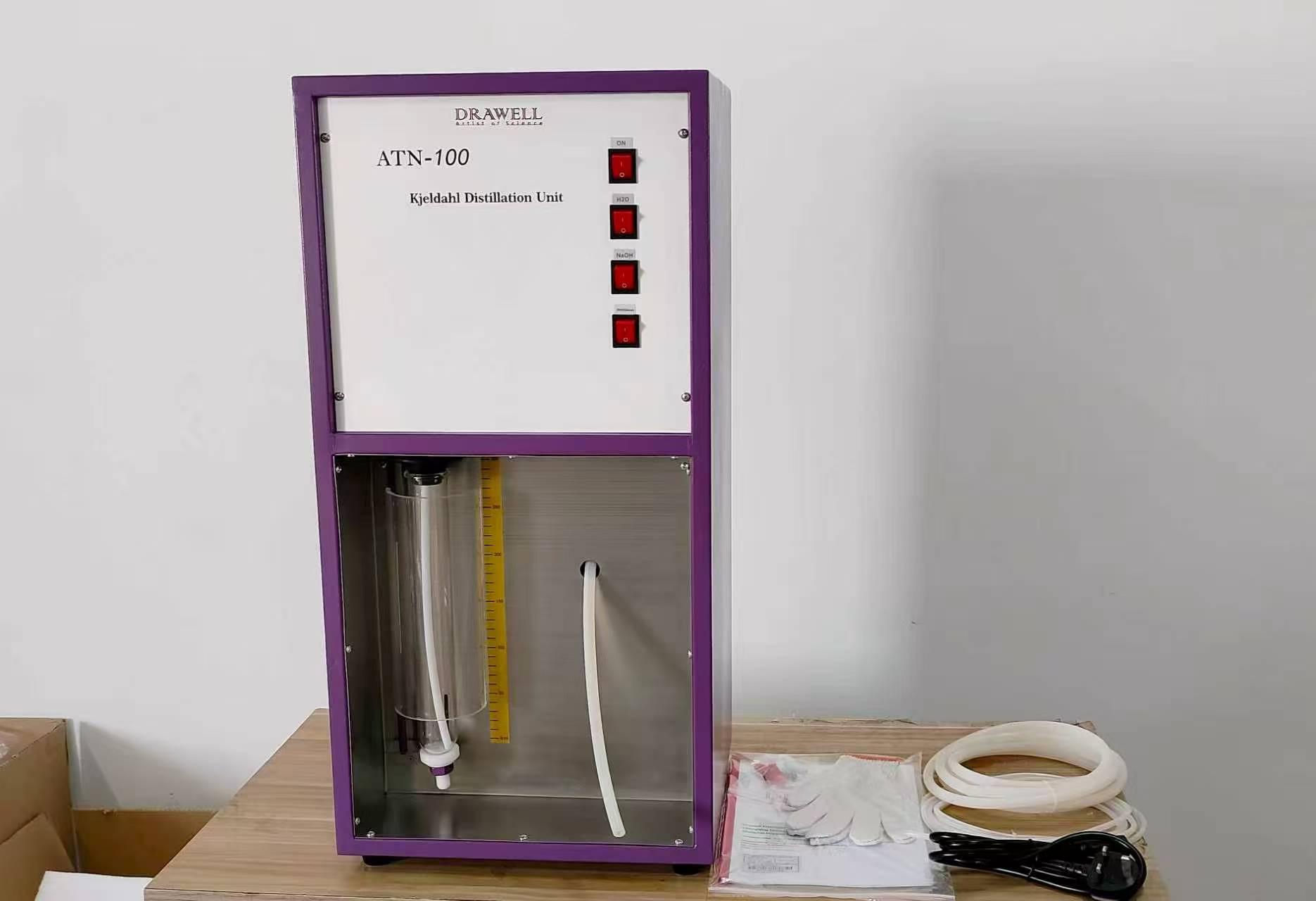

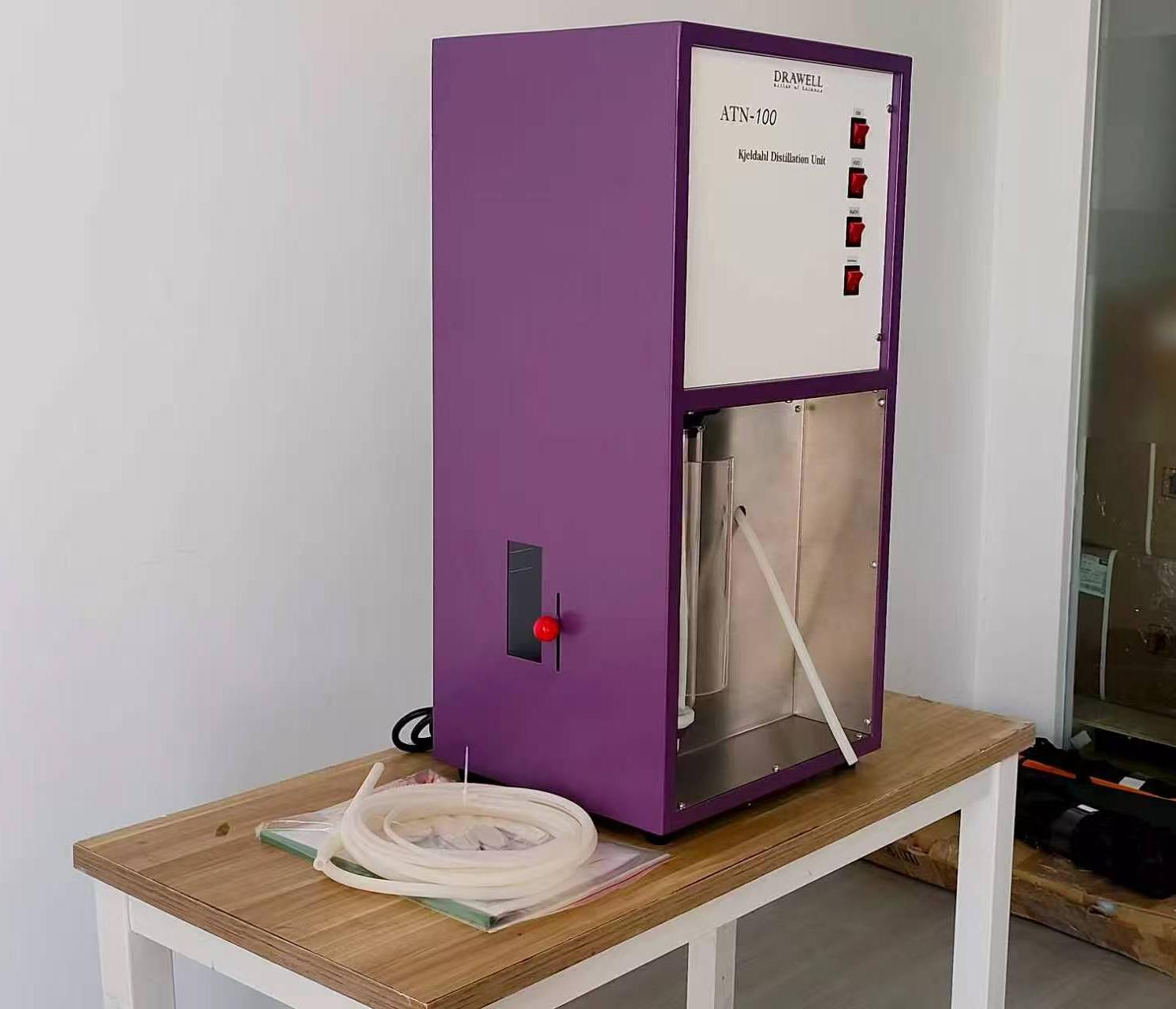

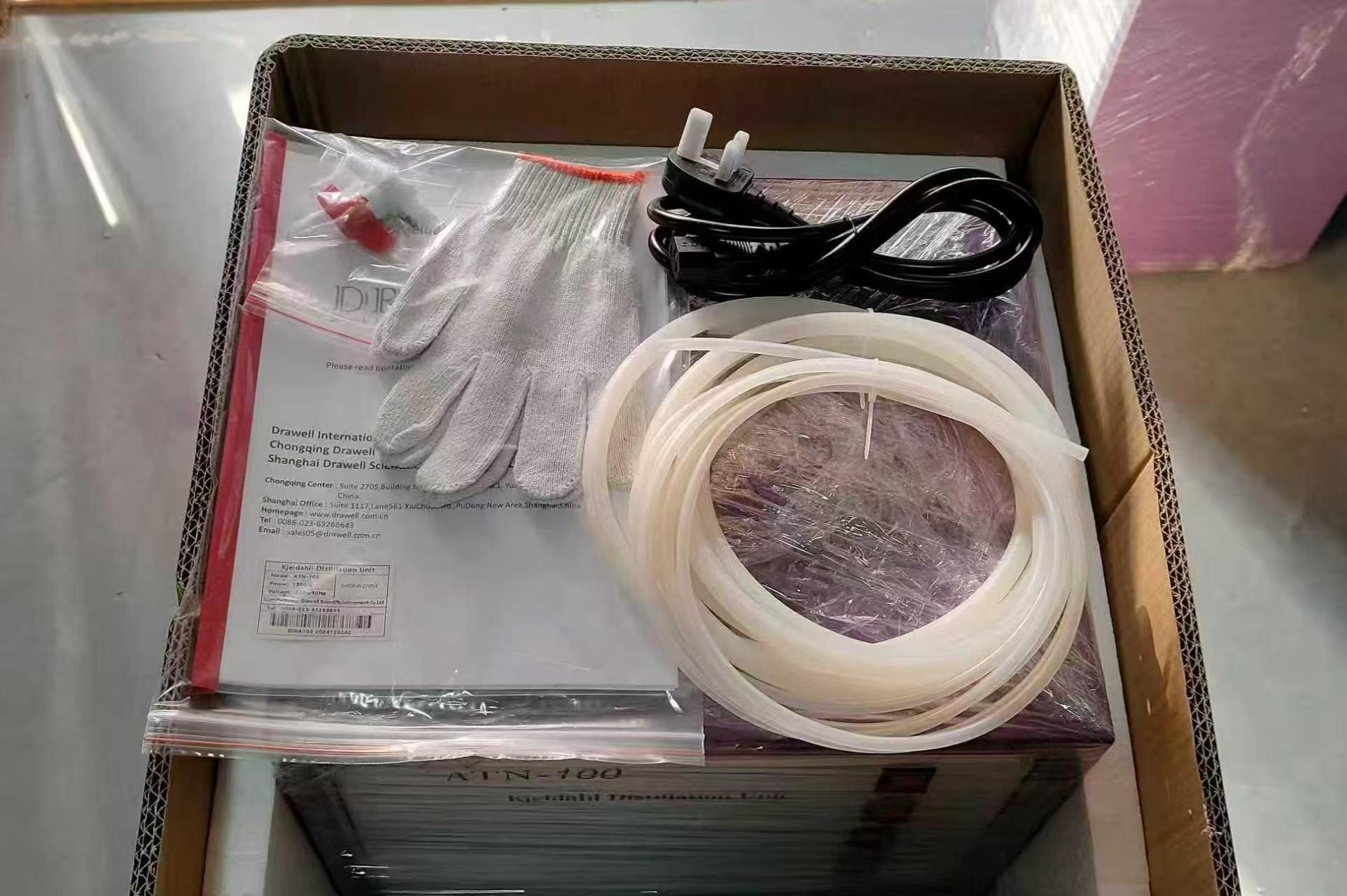

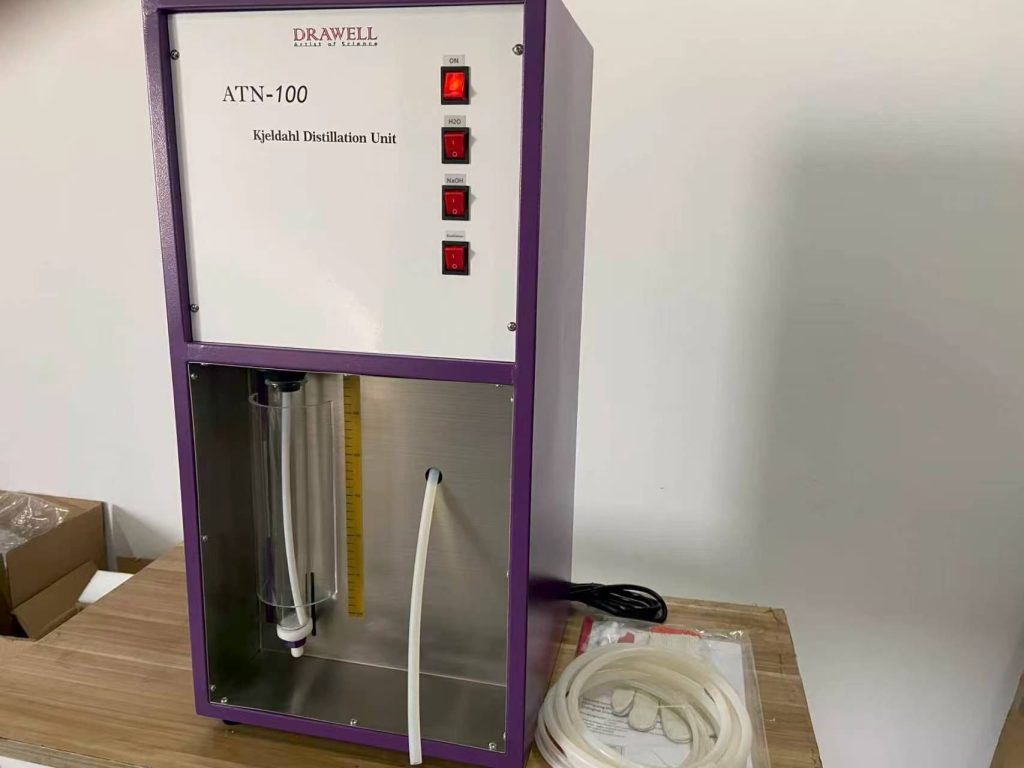

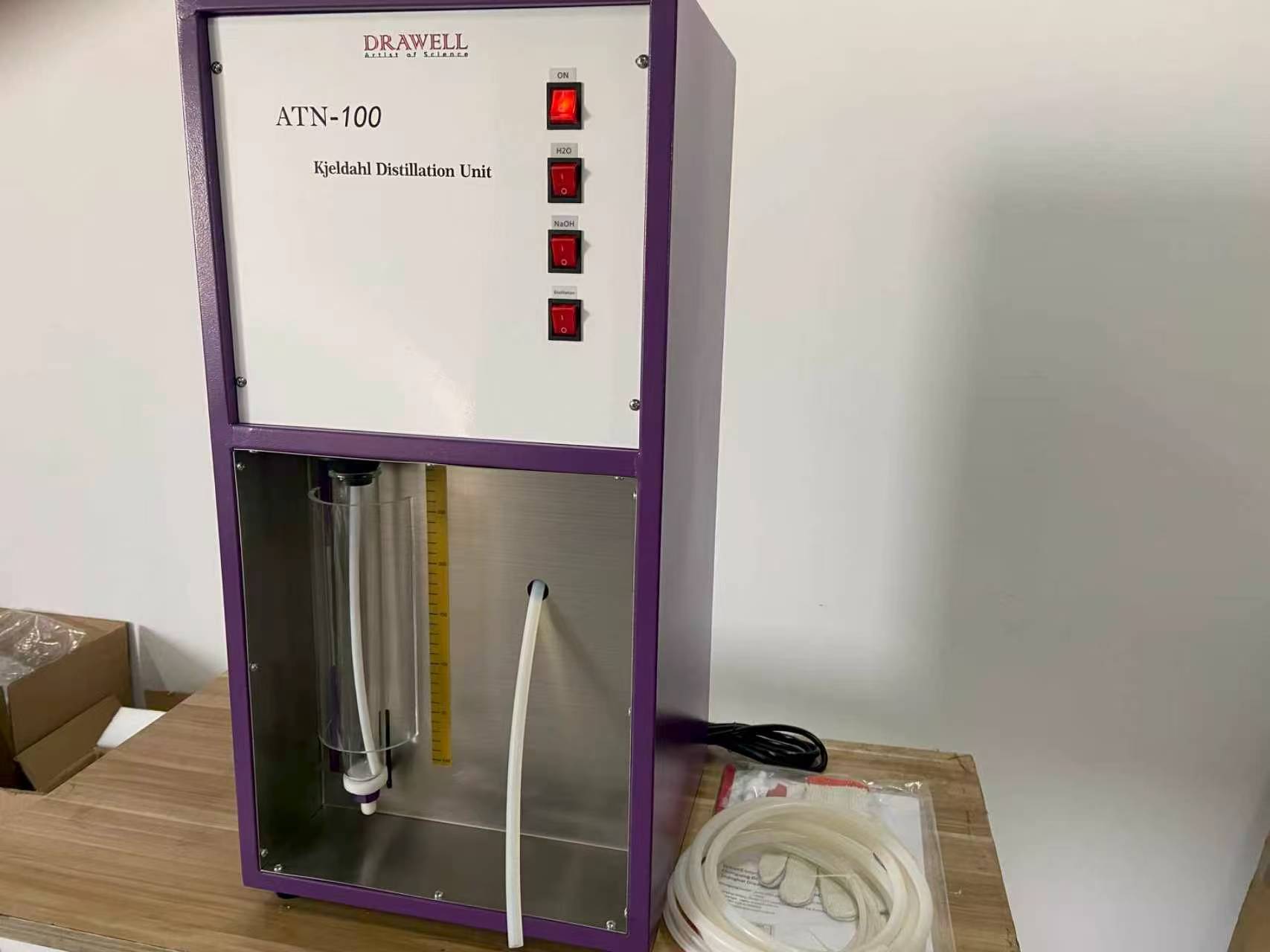

DW-ATN-100 Semi-automatic Azotometer Display

ATN-100-A

FAQ

Check cooling water circulation switch and unclog condenser pipeline to maintain continuous cooling water flow, otherwise ammonia gas will escape and lead to low test results.

Insufficient sodium hydroxide or excessive acidity of digested liquid. Appropriately increase the injection volume of lye to fully neutralize acid and release ammonia.

Check whether the indicator fails and eliminate air bubbles in titration pipeline. Replace mixed indicator regularly and observe the end point in standard operation.

Rinse distillation and titration pipelines with pure water after each test. Regularly clear crystal blockages in waste pipelines to avoid pipeline corrosion caused by residual strong acid and alkali.

Nitrogen impurities exist in distilled water or reagents, and digestion tubes/distillation cups are unclean. Replace nitrogen-free pure water and fresh reagents, thoroughly clean all containers and retest blank.

Technical Parameters

MaterialsCereals, food, dairy products, beverages, feed, soil, water, medicine, sediment and chemicals;
Range0.1mgN ～ 240mgN（nitrogen content 0.02% ～ 95%);
Sample quantitysolid ≤5g/unit, liquid ≤15ml/unit;
Recovery≥99.5%;
Repeatability≤ ±1%;
Distillation rate3~7 min/sample;
Cooling water consumption2L/min;
Power220V 50Hz
Power rating2000W
External dimension775×380×335mm
Weight26kg

Optional digestion furnace for DW-ATN-100 semi-automatic azotometer

DW-KDN-D series digital-display temperature-controllable digestion furnace have models of 4 holes, 8 holes, 12 holes and 20 holes for user to choose, depending on their detection amount. SO2 and other poisonous gas escaping from digestion furnace will be discharged by relevant waste gas absorption system, guaranteeing the safety and cleanness of your lab.

NameModelSpecification
Digital-display temperature-controllable digestion furnaceDW-KDN-04D4 samples/batch
DW-KDN-08D8 samples/batch
DW-KDN-12D12 samples/batch
DW-KDN-20D20 samples/batch
