Kjeldahl Digestion system DW-SH420F

DW-SH420F kjeldahl digestion system adopts globally advanced high-temperature infrared tradiation heating technology and microprocessor control platform, boasts accurate temperature control and quick temperature rise. It has two kinds of temperature rise mode: linear and curve temperature rise mode, and offers 20 digestion programs for control of temperature rise curves.

Drawell neutralization system has many functions such as triple filtration, condensate recovery of exhaust gas, filtration and neutralization device. The product adopts high-quality Anticorrosive Pumps, low noise, strong suction, reduce exhaust emissions,eco-friendly.

20 Samples per Batch
RT +5°C to 450°C
±0.1°C Temperature Stability
±0.1°C Temperature Precision
400°C in Approximately 25 Minutes

Description
Specification
Why Drawell?

Feature

Anti-corrosion design: TEFLON coating on the surface, acid/alkali proof.

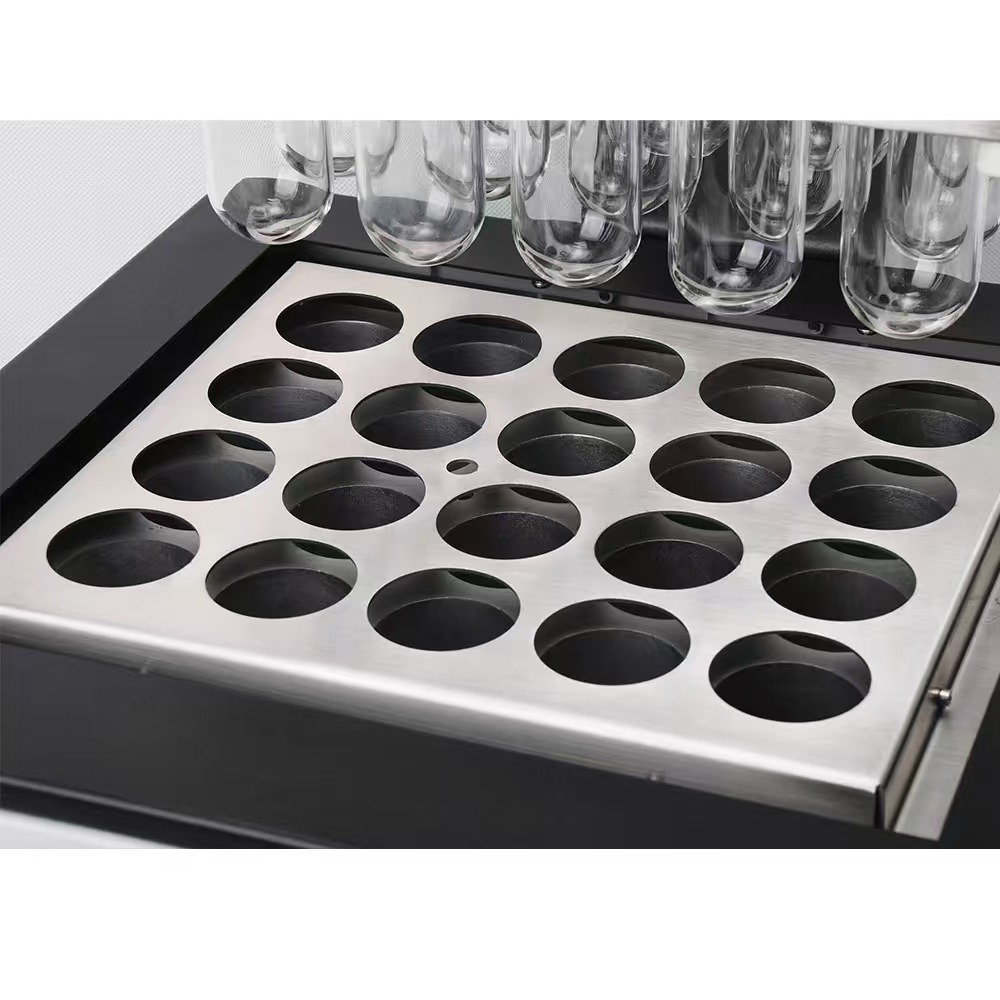

Heating uniform and fast: Adopt graphite block(antioxidant), heating faster and energy transfer faster, temperature between holes more uniform.
Safety protection: adopt unique air duct insulation tech, keep the temperature ultra low, protect operator

Characteristics

20 positions, enhance working efficiency rapidly.
Graphite block have longer life after special anti-oxidation processing and heating more uniform.
It adopt advanced insulation technology, eco-friendly, reduce energy intensity maximum limitedly.
Corrosion-resistant design.
It adopt advanced PID temperature control technology, high accuracy heating up to 400℃ only cost 25minutes.
Temperature control model: Program control, curve and linear temperature rise.
Multi-protection, Over-current protection, high temperature warning, overload protection.
It adopts 5.7” color screen, easy for use.
It can pretreat for microwave digestion or removing acid after digestion.
Standard configuration with waste gas collection hood.

Applications of DW- SH420F Kjeldahl Digester

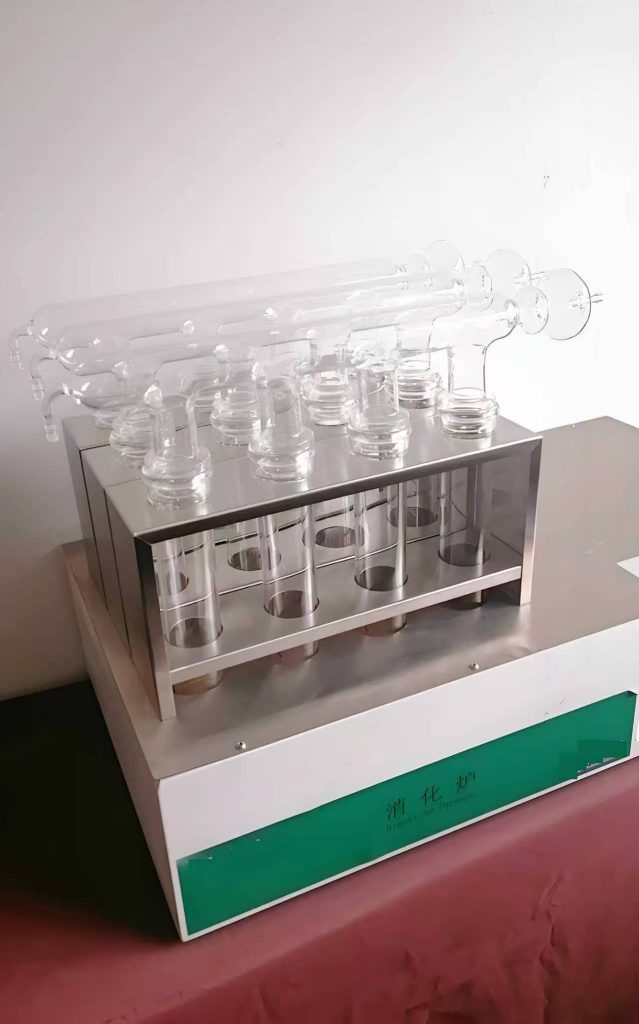

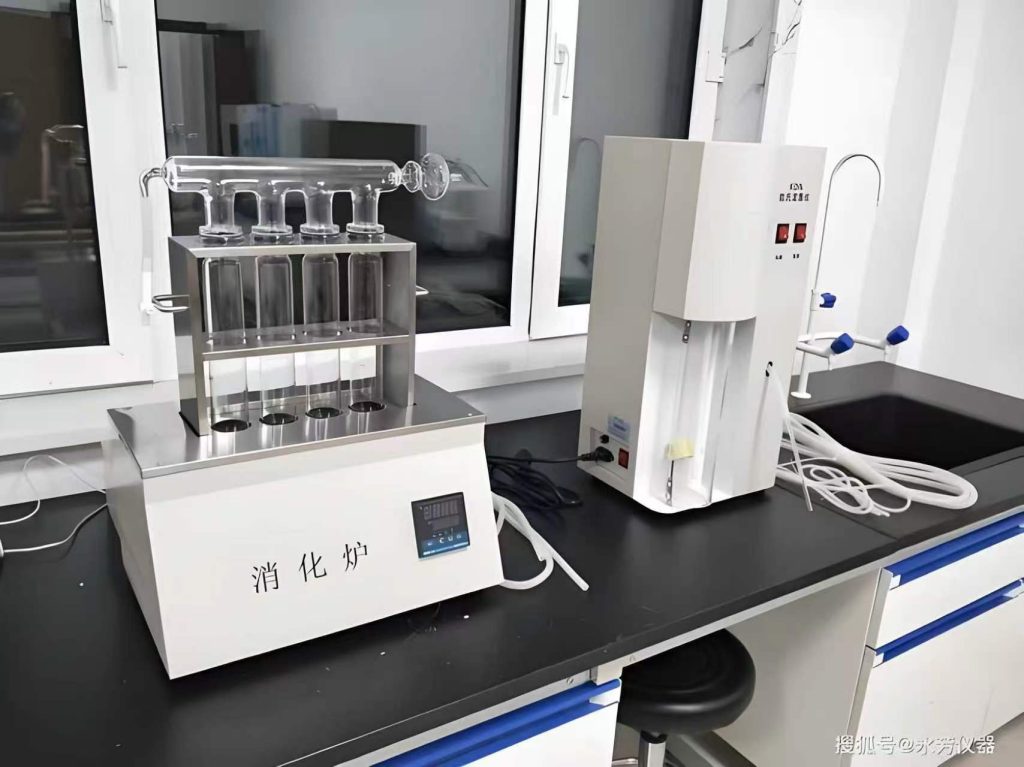

Application of DW SH420F Kjeldahl Digester 1

Application of DW SH420F Kjeldahl Digester 2

Application of DW SH420F Kjeldahl Digester 4

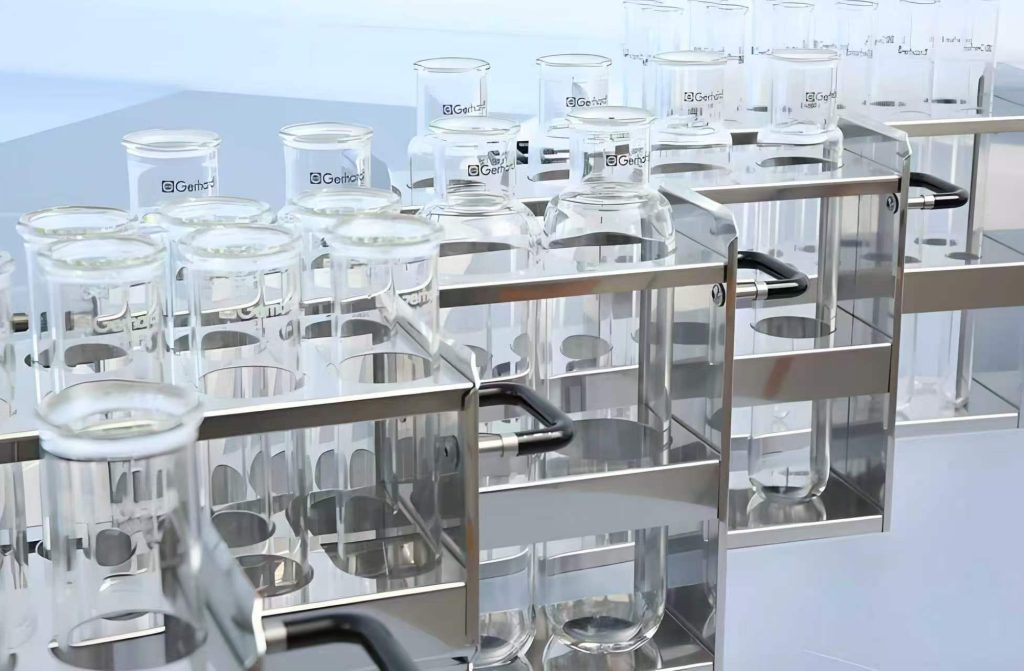

Application of DW SH420F Kjeldahl Digester 3

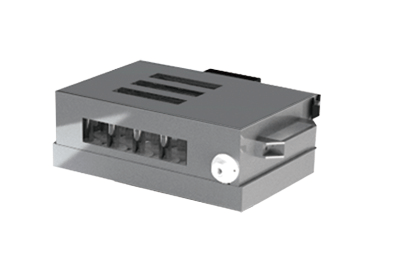

DW-WD03 Waste Gas Collection Hood(suction cap)

The drip tray on DW-WD03 design, reduce risk where from corrosion of acid gas.

Using PFA sealed cap, longer life, dealing effect well
Clip-on sealing cap, easy for changing
Specialized water jet vacuum pump is adopted, don’t need electric power
Drip tray design, reduce corrosion damage from acid solutions

DW- SH420F Kjeldahl Digester Display

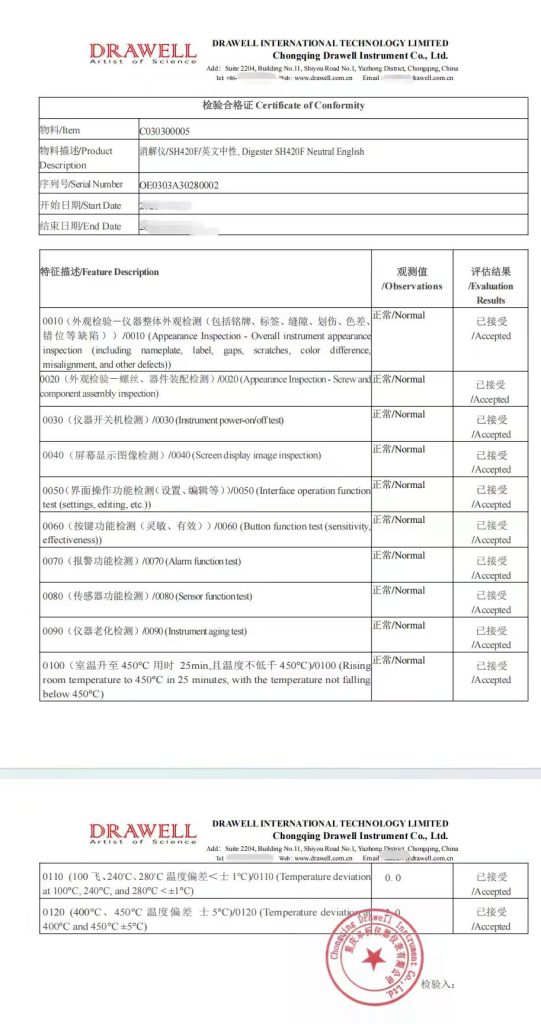

Kjeldahl Digestion System Certificate of Conformity

FAQ

The DW-SH420F supports program control, linear temperature rise, and curve temperature rise.

The system provides 20 digestion programs for controlling temperature-rise curves.

The specified tube size is 300 mL with an outer diameter of Ø42 mm.

Yes. The brochure lists the waste-gas collection hood as standard configuration.

The collection system uses a suction hood. The related DW-WD03 system includes a water-jet vacuum pump, PFA sealing caps, and a drip tray.

No. According to the brochure, the specialized water-jet vacuum pump does not require electrical power.

The DW-SH420F is a digestion system. A separate Kjeldahl distillation unit or automatic Kjeldahl analyzer is required for the subsequent distillation and nitrogen determination stages.

The brochure states that it can be used for pretreatment before microwave digestion and for acid removal after digestion.

Avoid rapid heating at the initial stage. Use gradient heating program and add glass boiling stones. Pre-carbonize high-fat and high-carbohydrate samples at low temperature to prevent splashing.

Uneven temperature is usually caused by carbon accumulation in tube holes, aging heating elements or drifted temperature sensors. Clean inner tube residues regularly, recalibrate sensors and keep the insulation lid fully covered during operation. Replace damaged heating modules if necessary.

Excessively long high-temperature digestion leads to slight nitrogen loss, which makes the final crude protein test result lower than the true value. After the liquid turns clear light blue-green, maintain constant temperature for 30 minutes only.

The crystals are sulfate precipitates formed after concentrated sulfuric acid cooling. Pour out waste liquid while hot and dilute with a little pure water before cooling. Stubborn black carbon residues can be re-digested with dilute sulfuric acid then soaked for cleaning.

It is mandatory to match an exhaust absorption device filled with water or dilute alkali. Massive white SO₃ smoke will escape without absorption, corroding furnace components and irritating human respiratory tracts. Full laboratory ventilation is also required.

Specifications of Kjeldahl Digestion system DW-SH420F

DW-SH420F
Temperature range	RT + 5℃ to 450℃
Stability of the heating block temperature	± 0.1℃
Precision of the heating block temperature	± 0.1℃
Heating method	Infrared heating and high purity graphite conduction
Heating insulation method	Unique air duct insulation technology
Digestion tube	300mL, Φ42mm
Capacity per bath	20pcs
Power	220AVC±10%， 50Hz, consumption: 3.6Kw
Dimension	515421730mm
Weight net	25Kg

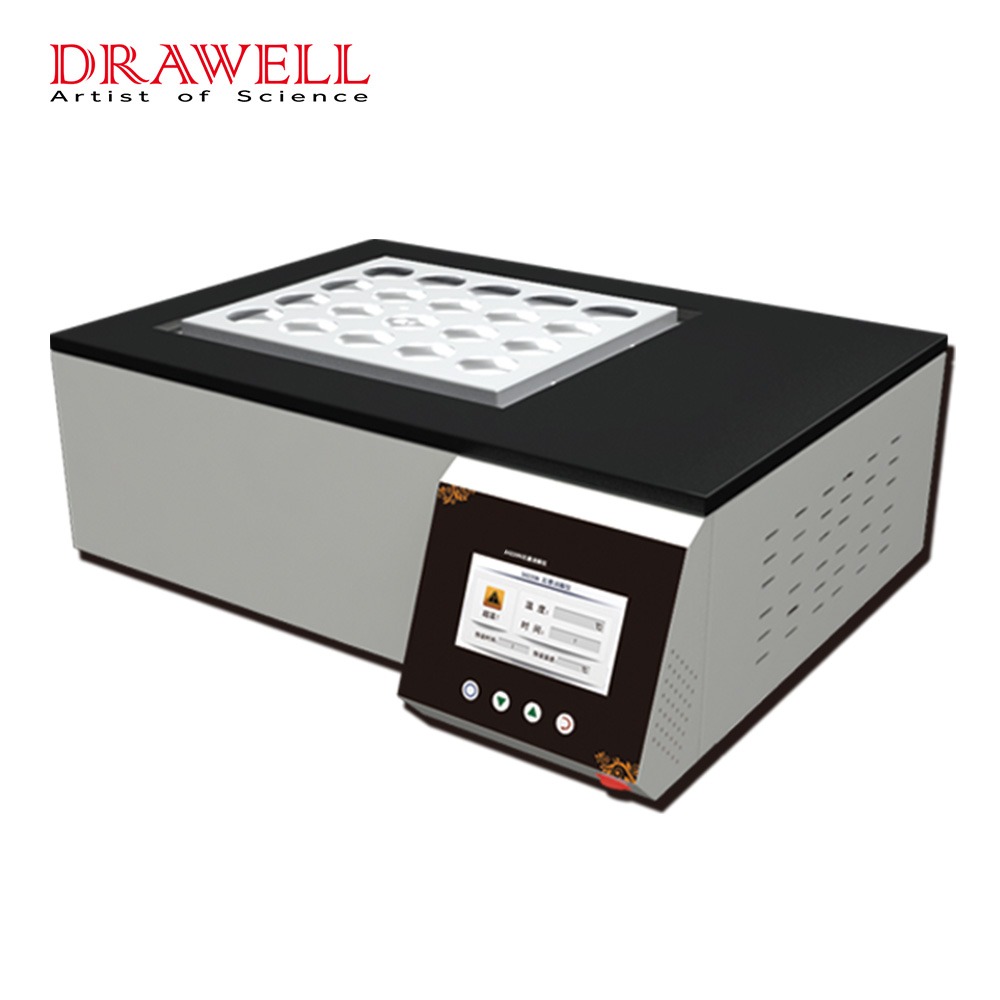

	DW-SH420F	DW-SH220F
Temperature range	Room temperature +5 – 450℃	●
Temperature accuracy	±1℃	●
Heating method	Infrared heating and high-purity graphite conduction	●
Heating insulation method	unique air duct insulation technology	●
Digestion tube capacity	300ml	300ml
Capacity per batch	20pcs/batch	20pcs/batch
Program storage	500	3
Temperature Ramping	5	5
Time Selection	1 to 1440 Minutes – 1 Minute Steps	●
Tube rack support	YES	NO
Power	3600W	●
Dimensions (mm)	515X458X730	534X453X218
Heating method	Infrared heating and high-purity graphite conduction	●
Heating insulation method	unique air duct insulation technology	●
Tube rack support	YES	NO

	DW-SH220N/SH420	DW-SH220F/SH420F
Tubes Capacity	280mL	300mL/280mL
Kjeldahl Model	K9860/K9840/K1100F	K9860/K9840/K1100F
Scrubber	S402	S402

	DW-SH420	DW-SH420F	DW-SH220N	DW-SH220F
Heating method	Infrared heating and high-purity graphite conduction	●	●	●
Heating insulation method	unique air duct insulation technology	●	●	●
Temperature Ramping	YES	YES	NO	NO
Tube rack support	YES	YES	NO	NO
