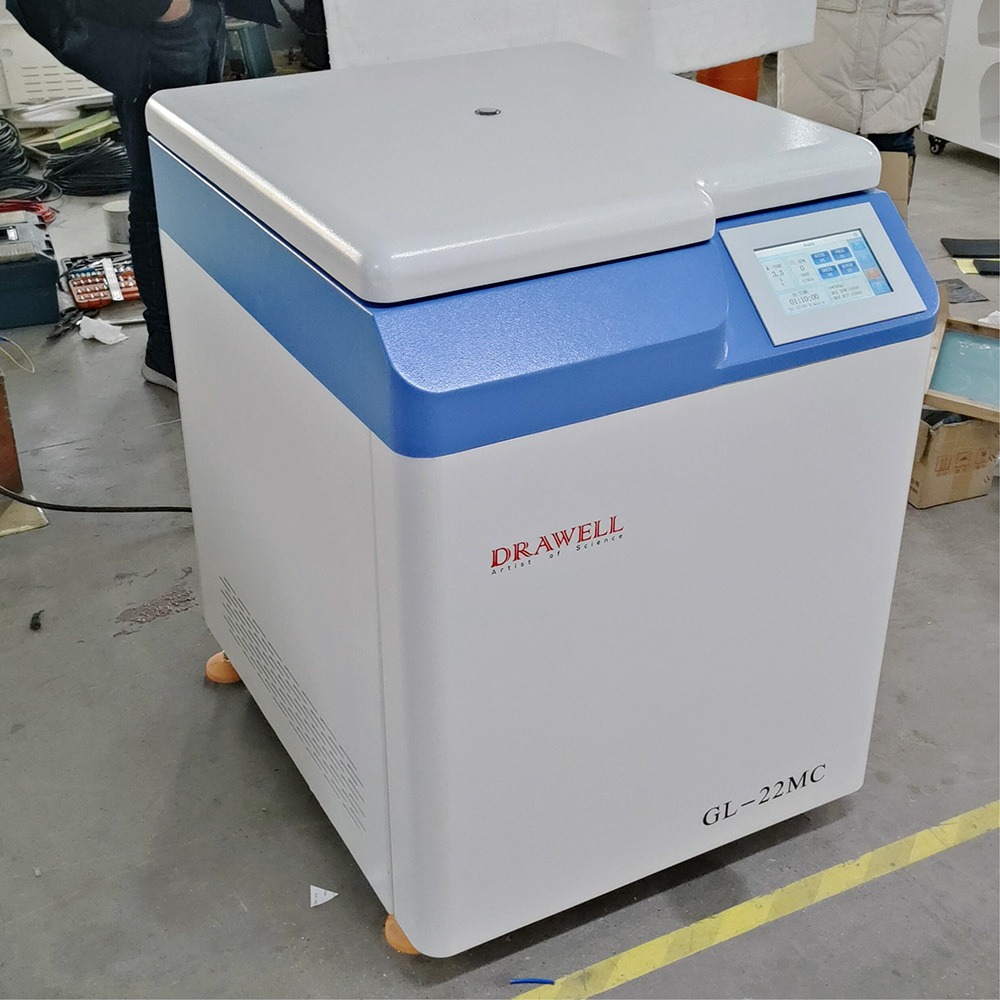

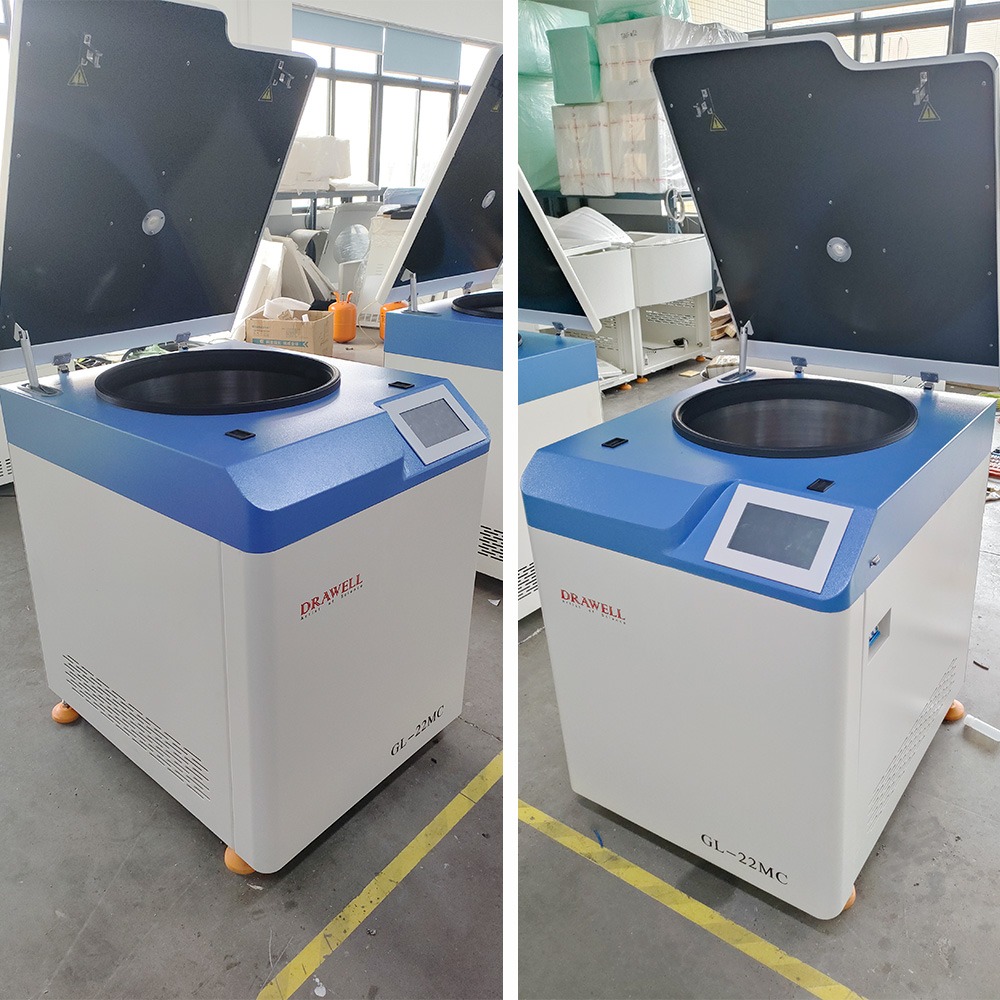

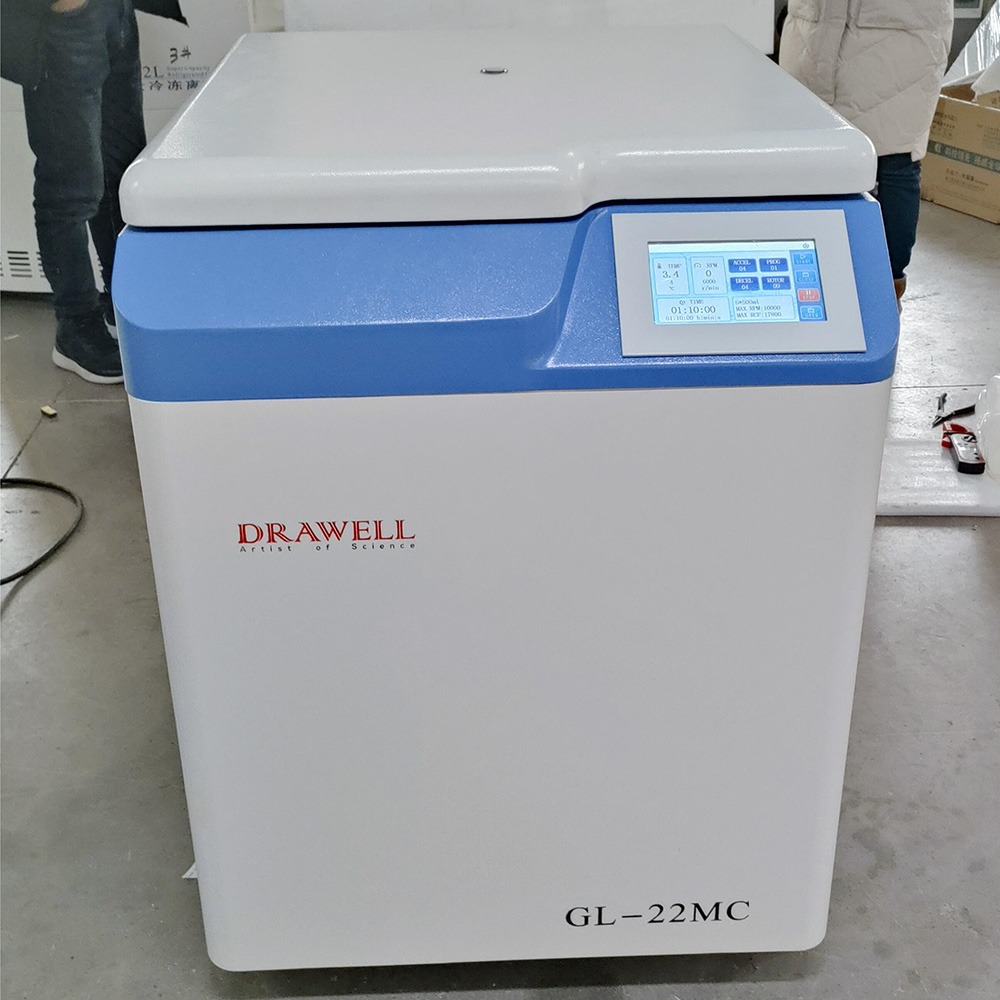

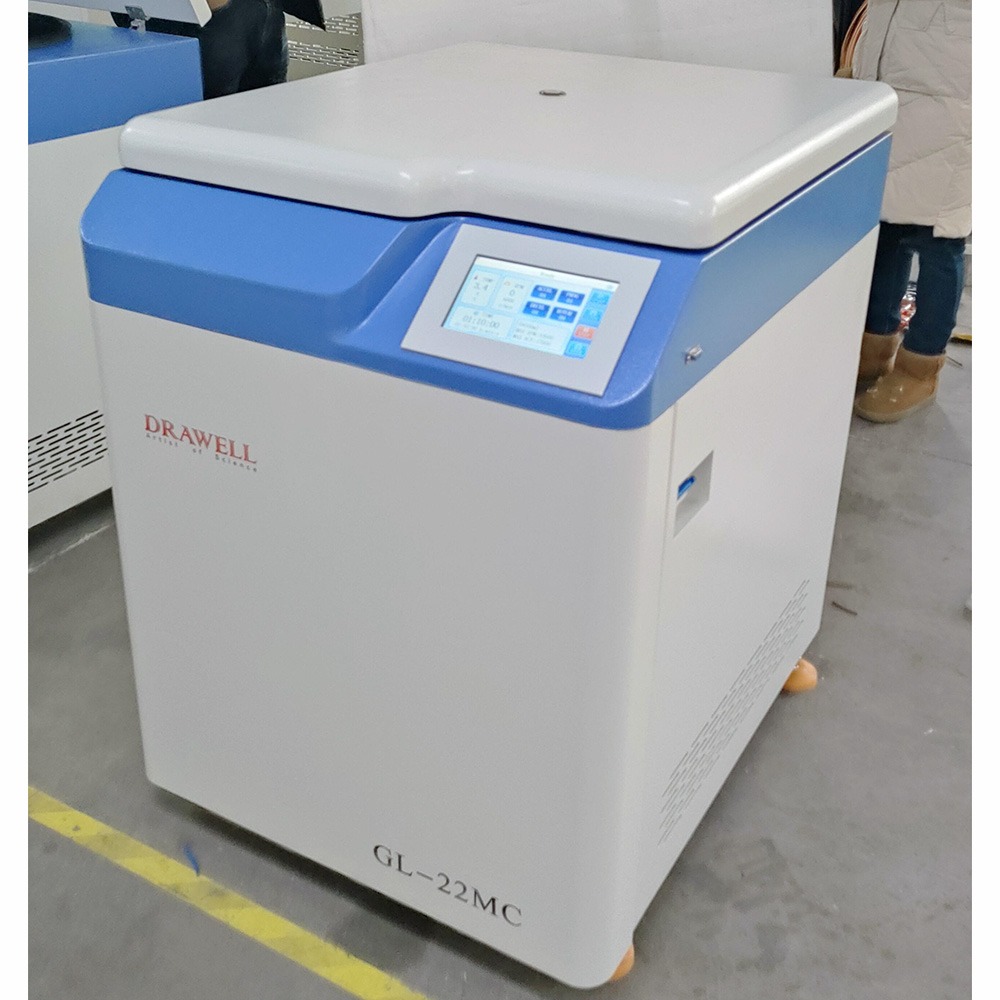

GL-21/22MC iGL-21/22MC Floortype High Speed Refrigerated Centrifuge
Drawell GL-22MC/GL-21MC can meet high speed centrifuge and 3000ml large capacity. It has a refrigeration function and can be adapted to a variety of rotors. It is widely used in biochemistry, serum and blood stations, and other fields.
Features of High-Speed Refrigerated Centrifuge GL-22MC/GL-21MC
Superior performance
- Microcomputer controlled AC frequency variable motor drive, without toner power pollution.
- Lower noise and less vibration, equipped with multiple types of rotors.
- Efficiency has been greatly improved.
Easy operation
- Large LCD with touch function display.
- Programmable application.
- Freely select various rotors.
Good effect
Freely set the acceleration time, and deceleration time, and automatically calculate RCF, which can achieve a good centrifugal effect.
Safe and reliable performance protection from over speed, over temperature, and imbalance.
- Protection of automatic electronic or mechanical lock.
- Ensure the safety of operators and machines.
iGL-21/22MC Intelligent Type Centrifuge has following features:
- With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
- Electric control for both closing and openning door lid, with backup power to avoid power off unexpected, Backup power automatically recharges when machine powered on.
- Adopt microprocessor control, high efficiency frequency inverter motor, R404a environmentally friendly refrigerant compressor.
- With large 7 Inches color panel show all parameters, and can operate with gloves. .
- With wheels easy to short distance move, and wheels can be fixed.
- Automatic Rotor Identification to avoid over-high speed running of rotor.
- With USB Cord , Data can be stored and download by connecting with PC. (Option function)
- 99 programs can be store, and can set 9 programs for daily use
- When use with swing rotor, the rotor cover can be open with door lid openning, no need to operate by manual.
Technical Parameters of GL-22MC/GL-21MC
| Model | GL-21MC/iGL-21MC | GL-22MC/iGL-22MC |
| Max Speed | 21000r/min | 22000r/min |
| Max RCF | 52300xg | 53000xg |
| Max Capacity | 3000ml | |
| Speed Accuracy | ±20r/min | |
| Temp Range | -20℃~+40℃ | |
| Temp Accuracy | ±1℃ | |
| The shortest Acc time | 1min30s(0~21000 r/min) | 1min35s(0~22000 r/min) |
| The shortest Dec time | 1min40s(21000 r/min~0) | 1min45s(22000 r/min~0) |
| Refrigeration system | High-performance Compressor CFC-free Refrigeration System | |
| Timer Range | 0~23h 59min | |
| Motor | Microprocessor control, Frequency conversion motor | |
| Noise | ≤60dB(A) | |
| Power Supply | AC220V 50-60Hz 30A | |
| Dimension | 710×820×1200mm(L×W×H) | |
| Net Weight | 260kg | |
Rotors of GL-21/22MC iGL-21/22MC Floortype High Speed Refrigerated Centrifuge
|
No.1 Angle Rotor |
Max Speed:22000r/min Max Capacity:12×1.5ml Max RCF:53000xg |
No.2 Angle Rotor |
Capacity:16/12×10ml Max Speed :21000r/min Max RCF:52300×g |
|
No.3 Angle Rotor |
Capacity:6×50ml Max Speed :20000r/min Max RCF:43000×g |
No.4 Angle Rotor |
Capacity:6×70/80ml Max Speed :15000r/min Max RCF:25700×g |
|
No.5 Angle Rotor |
Capacity:4×250/300ml Max Speed :12000r/min Max RCF:22470×g |
No.6 Angle Rotor |
Capacity:6×250ml Max Speed :12000r/min Max RCF:22470×g |
|
No.7 Angle Rotor |
Capacity:8×100ml Max Speed :14000r/min Max RCF:26952×g |
No.8 Angle Rotor |
Capacity:6×300ml Max Speed :12000r/min Max RCF:22470×g |
|
No.9 Angle Rotor |
Capacity:6×500ml Max Speed :10000r/min Max RCF:17800×g |
No.10 Angle Rotor |
Capacity:8×50ml Max Speed :18000r/min Max RCF:37600×g |
|
No.11 Swing Rotor |
Capacity:4×750/500ml Max Speed :4000r/min Max RCF:5470×g |
No.12 Swing Rotor |
Capacity:4×300/250ml Max Speed :4000r/min Max RCF:4210×g |
|
No.13 Microplate Rotor |
Capacity:2×2×96holes Max Speed :4000r/min Max RCF:2300×g |
|
|
Continuous Flow Rotor
| NO. | Max Speed | Max RCF | Full capacity | Standard Flow |
| 1 | 14000r/min | 21500xg | 1000ml | 200-600ml/min |
| 2 | 8000r.min | 9500xg | 3000ml | 200-800ml/min |
| 3 | 16000r/min | 28100xg | 1000ml | 200-600ml/min |
| 4 | 10000r/min | 14800xg | 3000ml | 200-800ml/min |
