DL-5M/DL-6M Floortype Refrigerated Centrifuge

DL-5M / DL-6M Floortype Refrigerated Centrifuge is a model, which compact size with large capacity refrigerated function.

Widely used in hospitals, Blood banks, Bio-Chemistry, Bio-pharmaceutical, Scientific research, etc.

Features of Floortype Refrigerated Centrifuge

  1. Induction motor maintenance is free.
  2. Controlled by the microprocessor. Large screen, touch panel, shows rotor code, rpm, RCF, time, etc.
  3. Lid open programmable, motorized, Lid dropping protection.
  4. Imbalance cut off.
  5. Manual emergency lid release ( very useful in unexpected power interruption)Can’t run when lid open, neither open the lid when rotor runs.

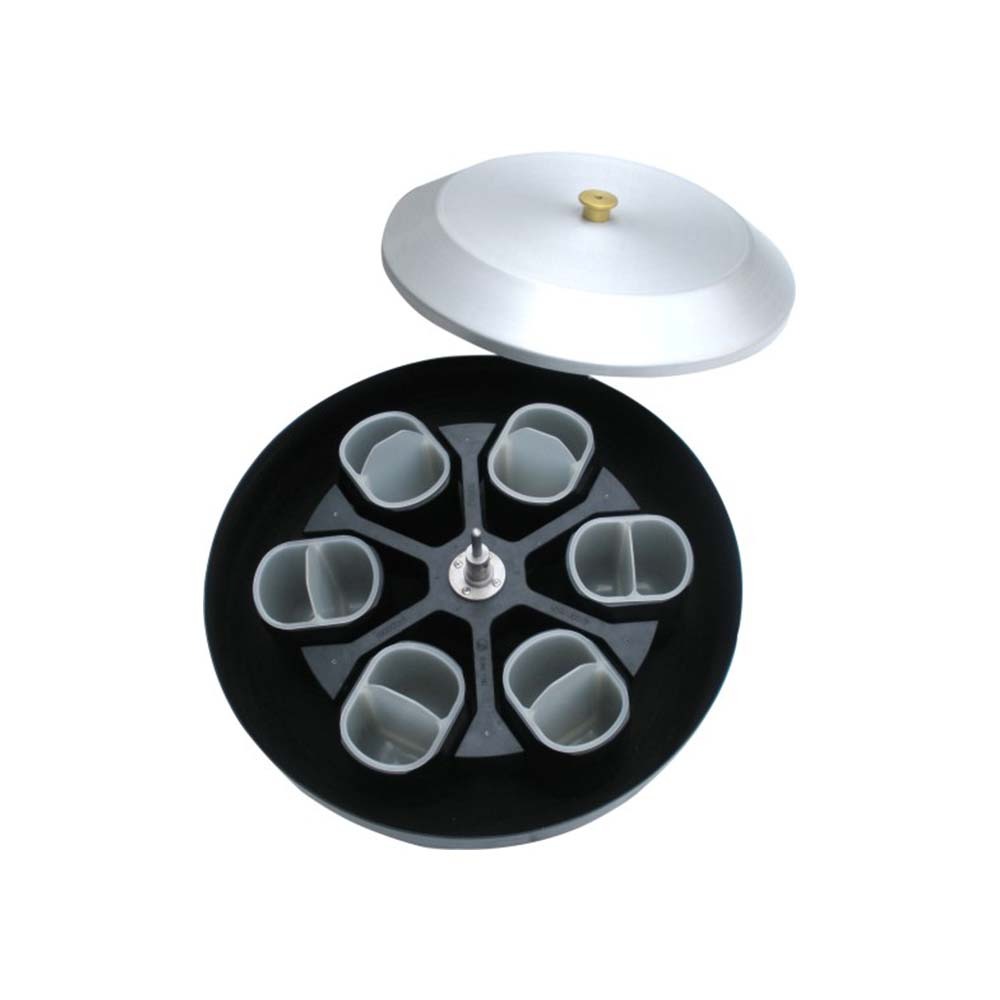

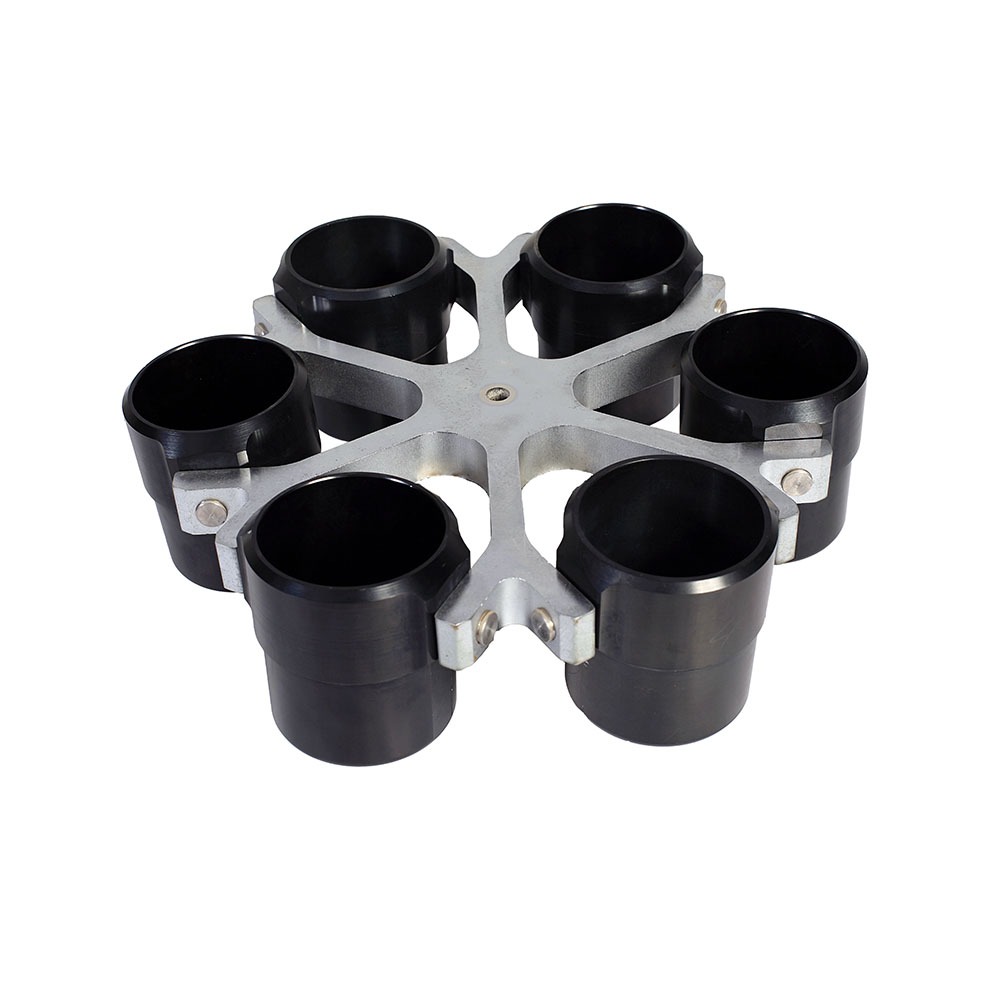

Rotors of DL-5M/DL-6M Floortype Refrigerated Centrifuge
DL-5M/DL-6M Floortype Refrigerated Centrifuge

Technical Parameters

Model

DL-6M

DL-5M

Max Speed

6000r/min ±20rpm

5000r/min

±20rpm

Max RCF

5120×g

4390×g

Max Capacity

6×500ml

Temperature Range

-20℃~+40℃

±1℃

Timer

0~99min

Noise

≤60dB(A)

Motor

Converter motor

Power Supply

AC220V & 110V50Hz 5A

Dimension

800×600×825mm(L×W×H)

Weight

150kg

Rotors

Rotor No.

Capacity

Max Speed

Max RCF

No.1 AR

12×15/10ml

6000 r/min

6680 xg

No.2 SR

4×750ml

4000 r/min

4390 xg

4×500ml

20×50ml

No.3 SR

4×250ml

4000 r/min

3600 xg

No.4 SR

4×500ml blood bag

4000 r/min

3940 xg

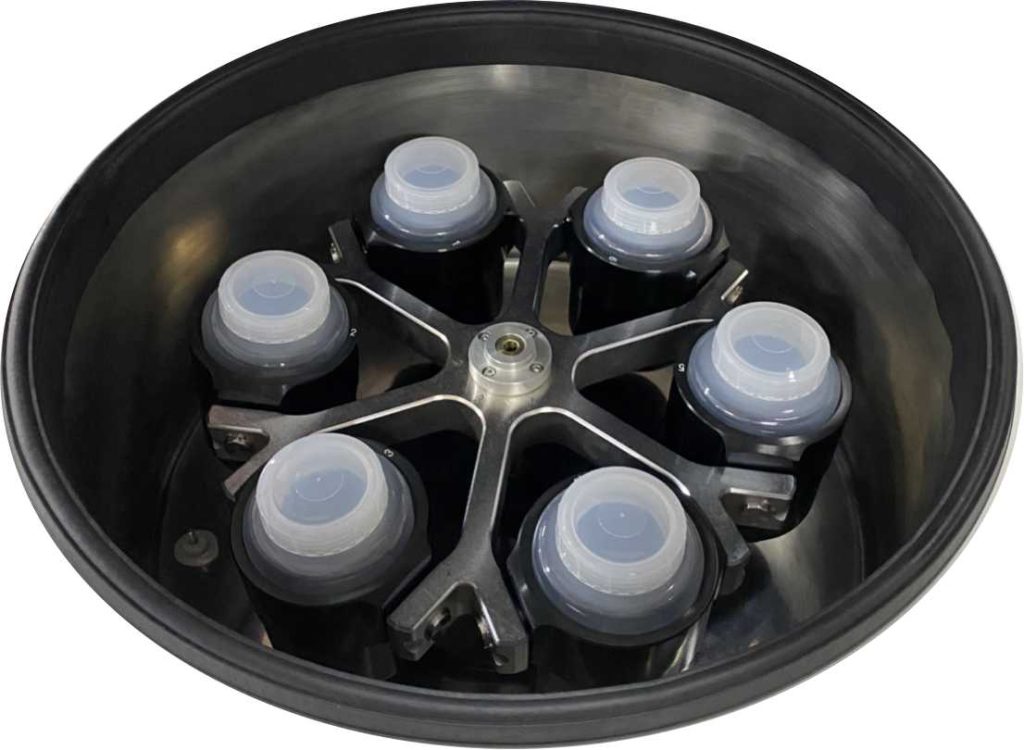

No.5 SR

6×500ml

4000 r/min

3780 xg

No.6 SR

72×5/7ml

4000 r/min

3440 xg

148×5/7ml

4000 r/min

No.7 SR

2×2×96 holes

4000 r/min

2300 xg

No.8 SR

8×50ml

4000 r/min

3020 xg

32×10/15ml

16/24×10/15ml

No.9 SR

4×100ml

5000 r/min

4390 xg

No.10 SR

8×100ml

4000 r/min

3360 xg

Note: Rotors can customize made
