Floortype High Speed Refrigerated Centrifuge GL-10MC iGL-10MC
- With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
- Electric control for both closing and openning door lid, with backup power to avoid power off unexpected, Backup power automatically recharges when machine powered on.
- Adopt microprocessor control, high efficiency frequency inverter motor, R404a environmentally friendly refrigerant compressor.
- With large 7 Inches color panel show all parameters, and can operate with gloves. .
- With wheels easy to short distance move, and wheels can be fixed.
- Automatic Rotor Identification to avoid over-high speed running of rotor.
- With USB Cord , Data can be stored and download by connecting with PC. (Option function)
- 99 programs can be store, and can set 9 programs for daily use
- When use with swing rotor, the rotor cover can be open with door lid openning, no need to operate by manual.
Features of Floortype High Speed Refrigerated Centrifuge GL-10MC
Superior performance
Microcomputer controlled, AC frequency variable motor drive, without power pollution,and longer lifetime. Lower noise and less vibration, equipped with multiple types of rotors for users to choose.Efficiency has been greatly improved.
Easy operation
Equipped with Large LCD with touch function display,programmable application, which can be operated freely with variety of rotors for selection.
Good effect
With function of freely setting the acceleration time, deceleration time, and automatically calculating RCF, which can achieve good centrifugal effect.
Safe and reliable performance
With protection from over speed, over temperature, imbalance and protection of automatic electronic or mechanical lock, to ensure the safety of operators and machines.
Floortype High Speed Refrigerated Centrifuge iGL-10MC Display
Parameters of Floortype High Speed Refrigerated Centrifuge GL-10MC/iGL-10MC
| Model | GL-10MC/iGL-10MC | ||
| Max Speed/RCF | 10000r/min 18300xg | ||
| Speed Accuracy | ±10r/min | ||
| Temp Range | -20℃~+40℃ ±1℃ | ||
| Refrigeration system | High-performance Compressor CFC-free Refrigeration System | ||
| Timer Range | 0~23h 59min | ||
| Motor | Microprocessor control, Frequency conversion motor | ||
| Noise | ≤60dB(A) | ||
| Power Supply | AC220V 50-60Hz 30A | ||
| Dimension | 710×820×1200mm(L×W×H) | ||
| Net Weight | 260kg | ||

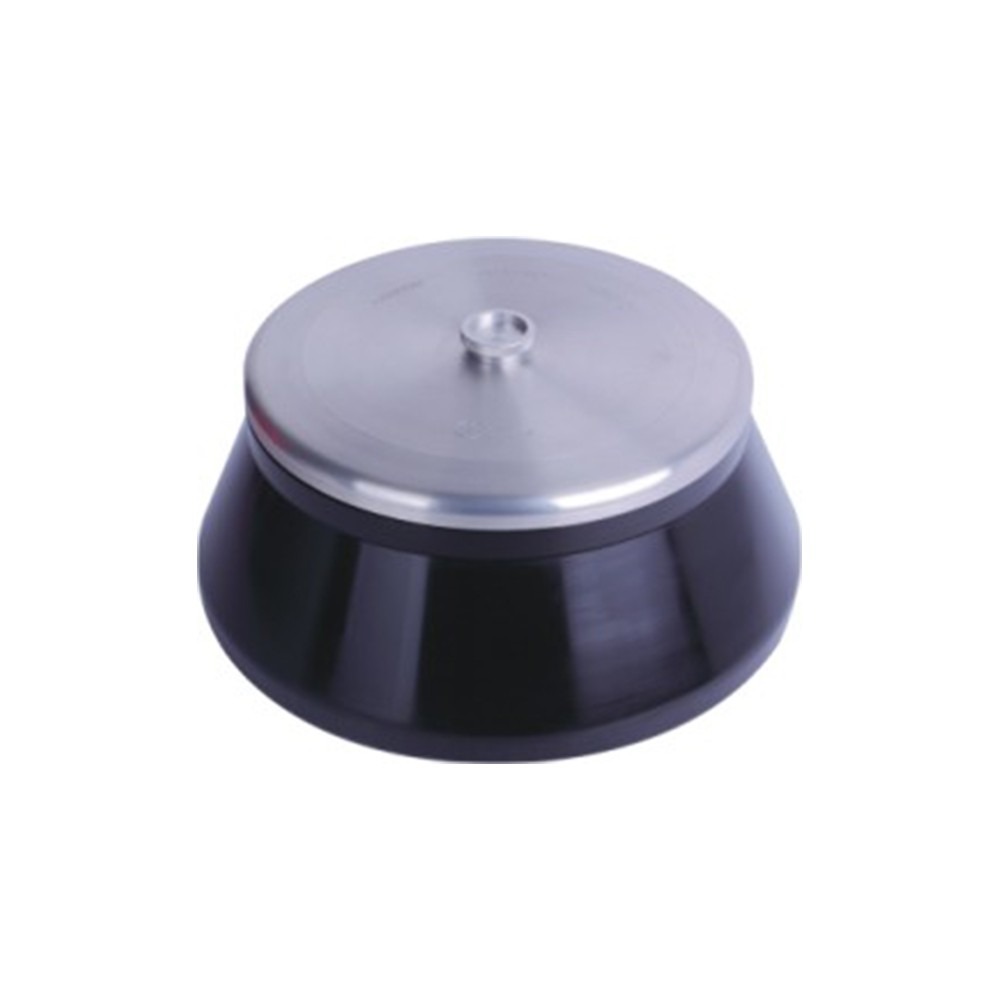

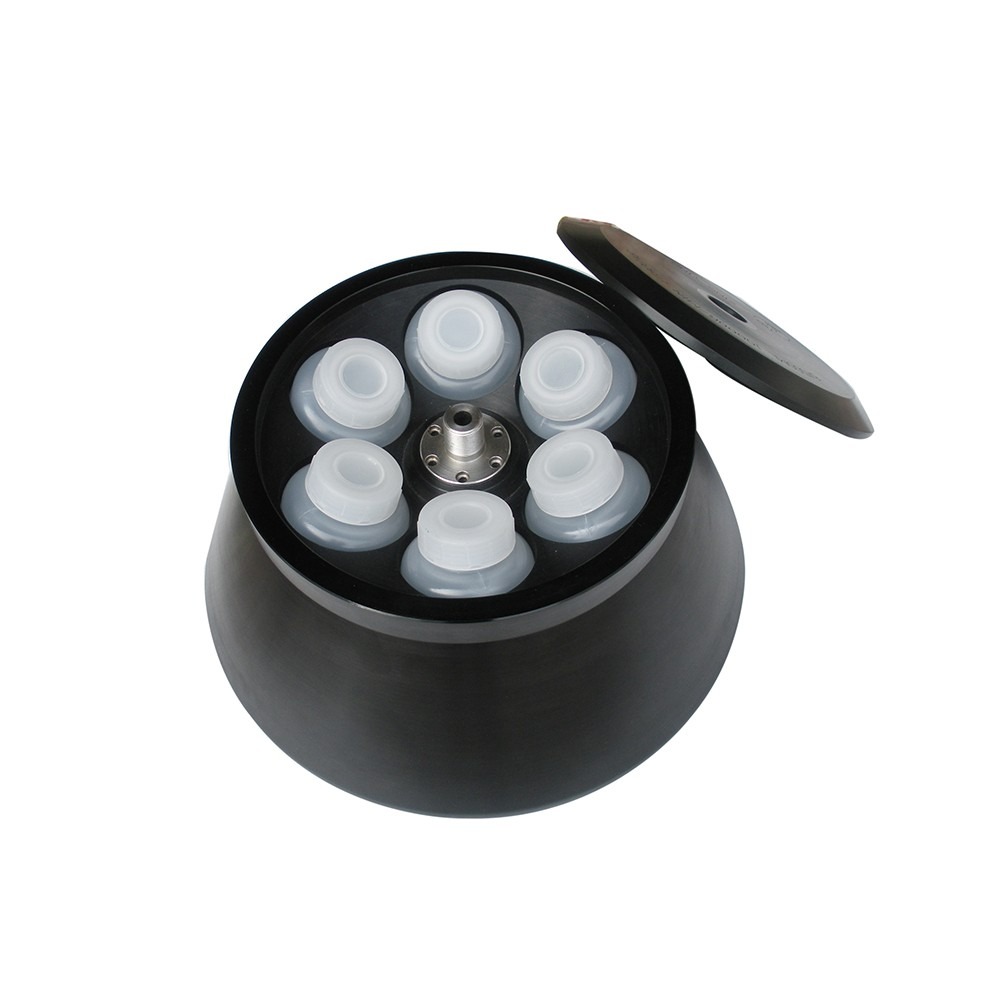

| Rotor No. | Max Capacity | Max Speed | Max RCF |
| No.1 AR | 6x300ml | 10000r/min | 18300xg |

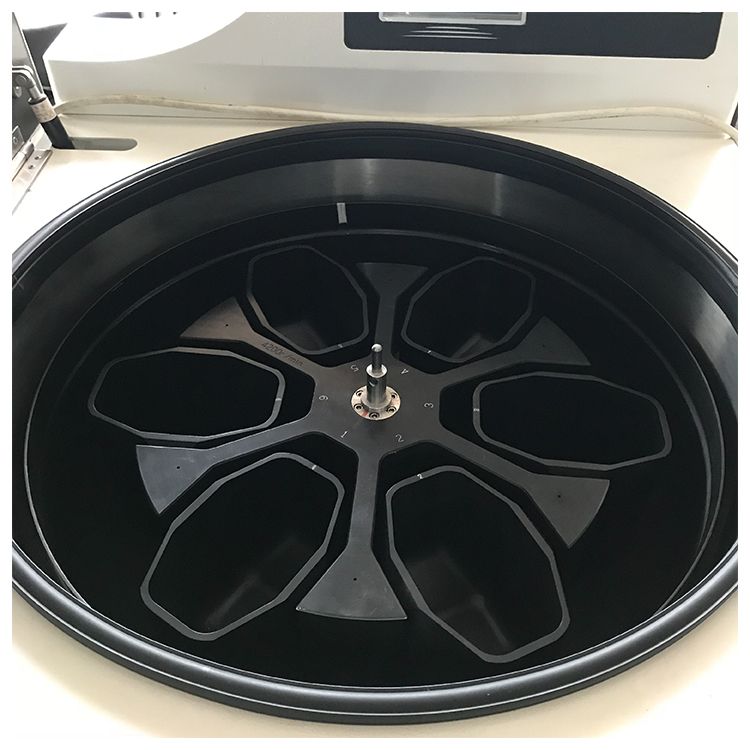

| No.2 AR | 6x500ml | 8000r/min | 11620xg |

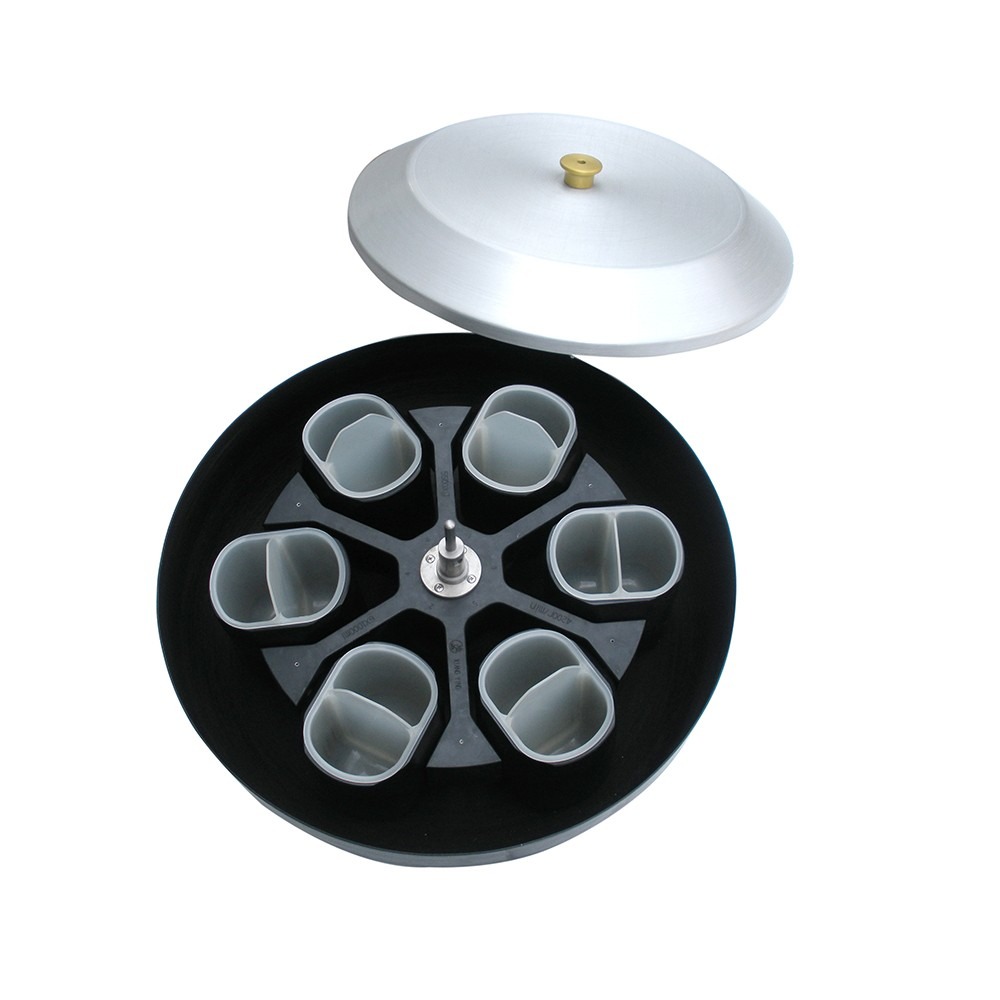

| No.3 SR | 6x1000ml | 7000r/min | 11500xg |
