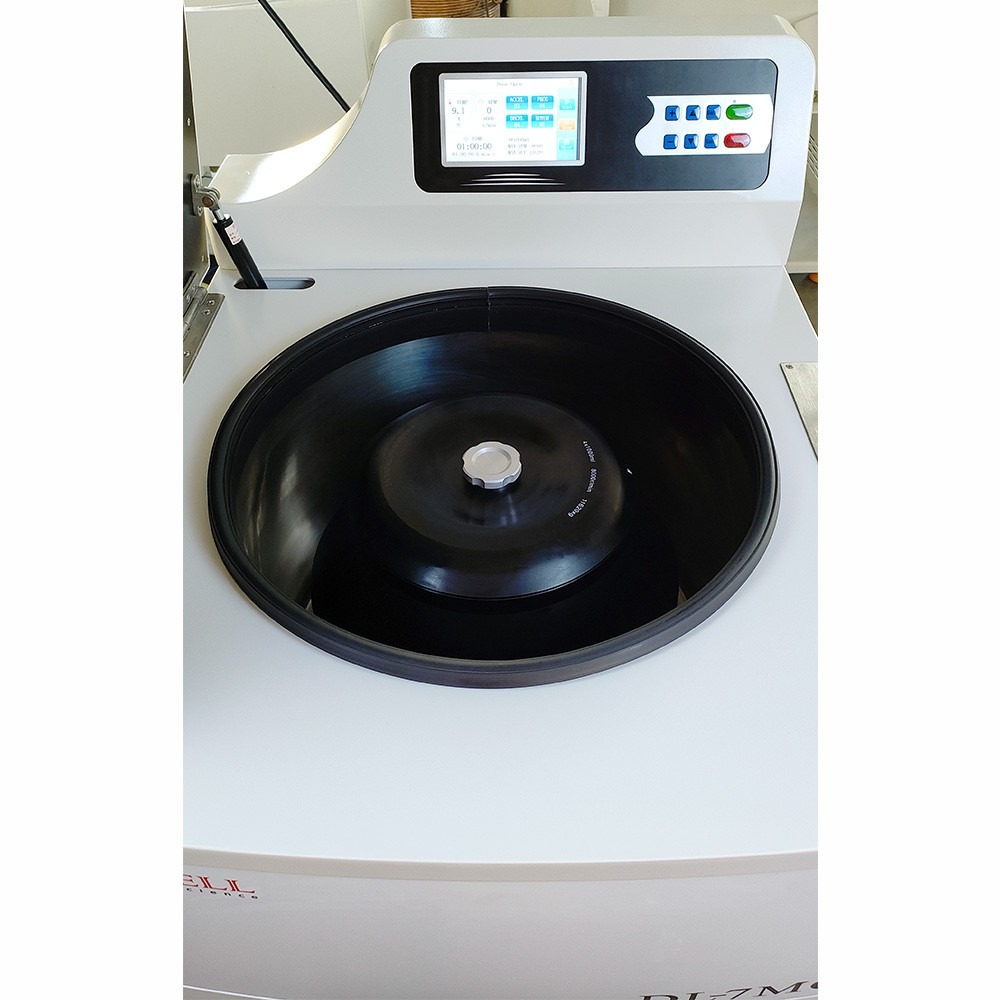

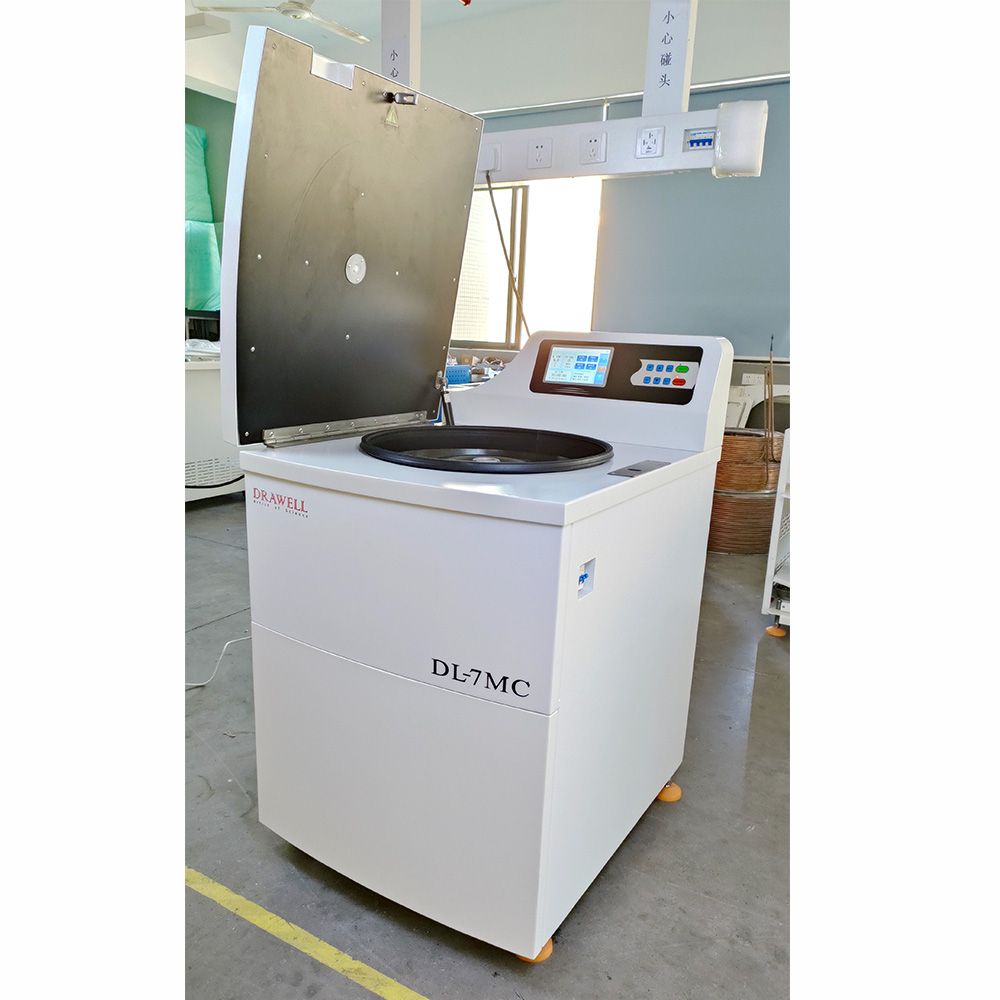

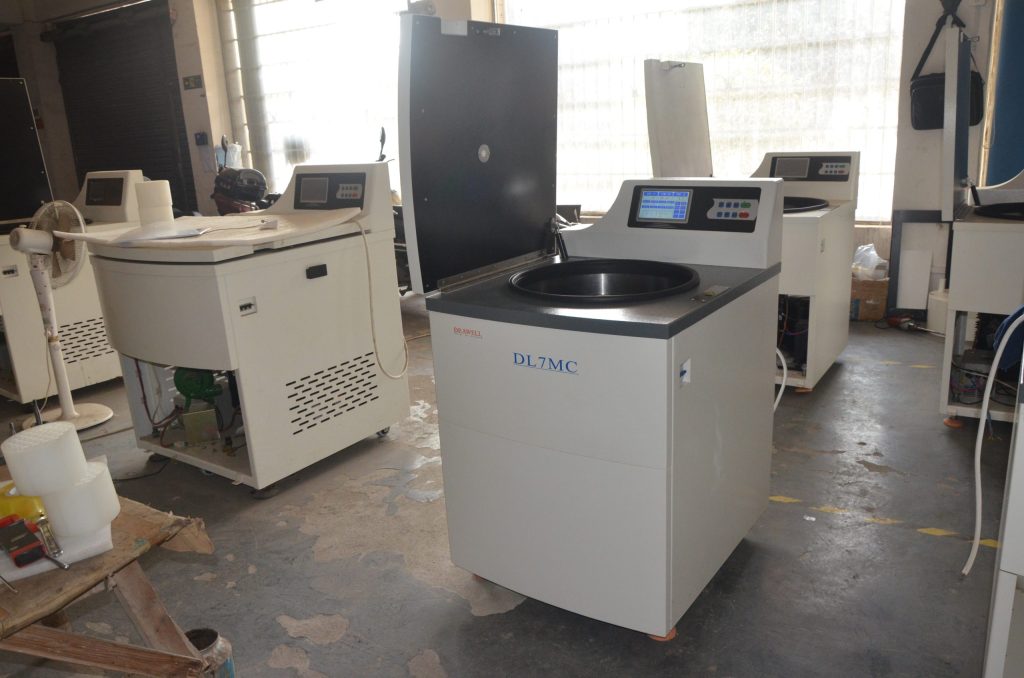

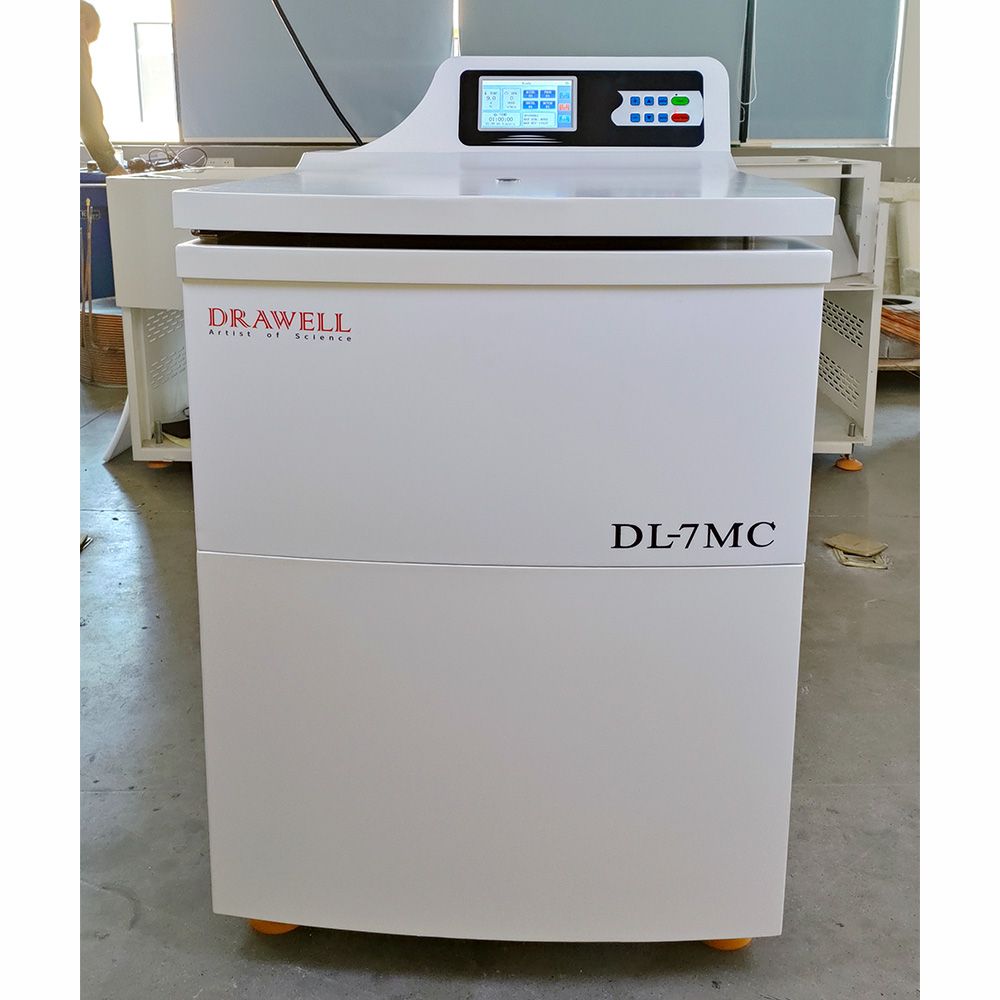

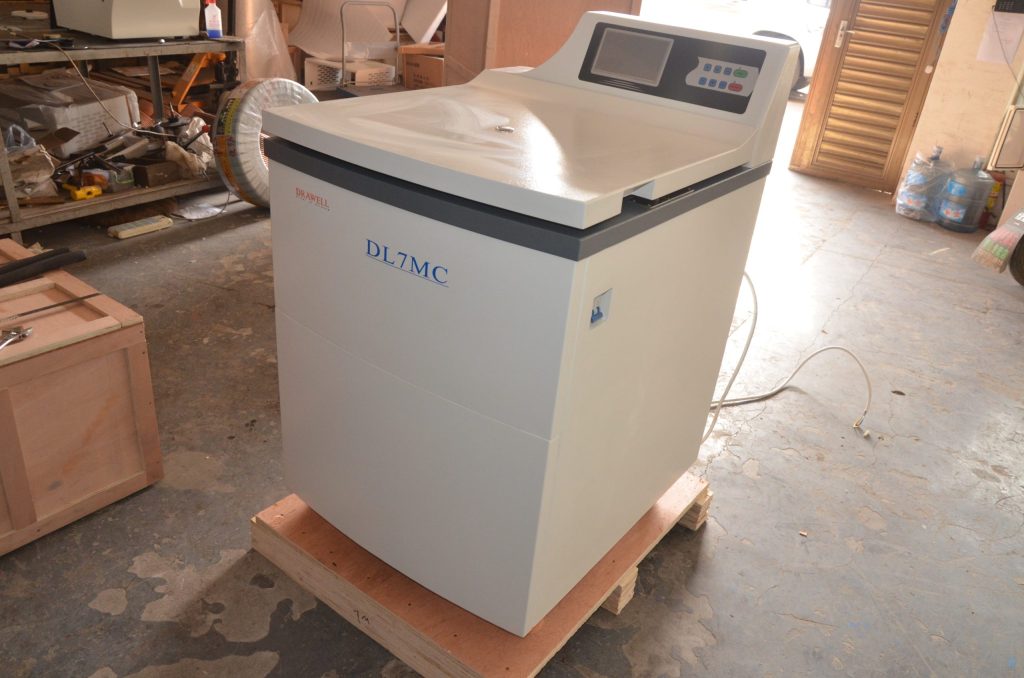

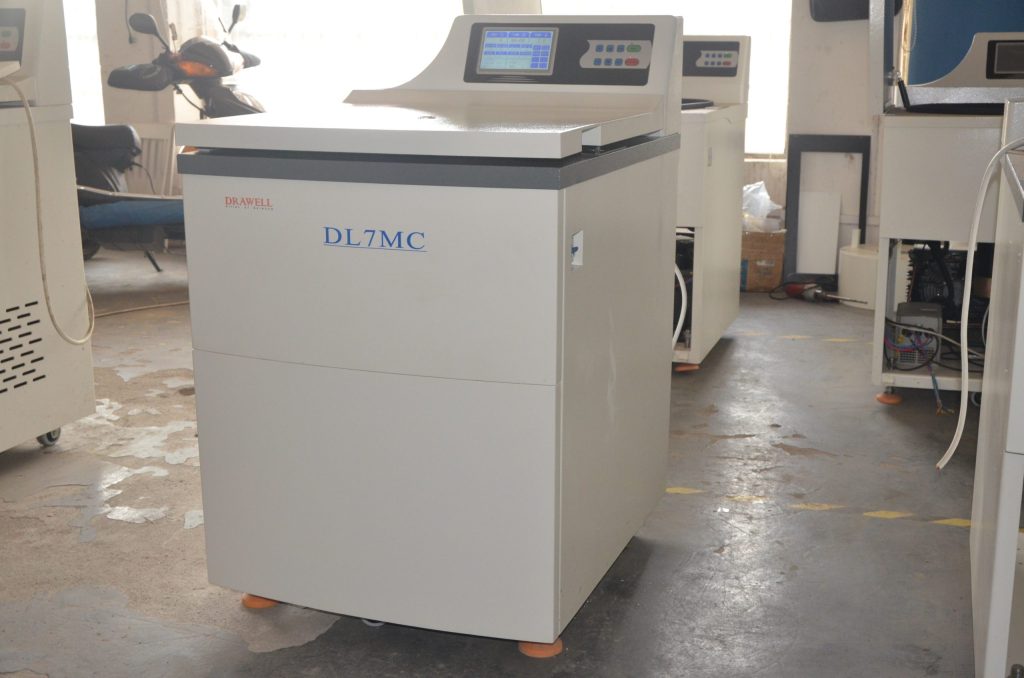

DL-7MC/iDL-7MC Large Capacity Refrigerated Centrifuge
The refrigerated centrifuge is specially designed for universal use in blood banks, clinic laboratories, serology investigations, molecular biology, serum separation, and pharmaceutical applications, where repeatability of reliability of speed time, temperature, acceleration, and deceleration are significant factors in obtaining perfect separations of the distinct blood fractions, Widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation, protein precipitation, and cell collection.
iDL-7MC is an intelligent refrigerated centrifuge with self-diagnosis and protection systems for imbalance, overspeed, and overtemperature. In addition, cavity ultraviolet germicidal lamps and lighting LED lamps are optional. Widely used in the field of blood station, pharmaceutical factory, biochemistry, biological products and so on. It’s the ideal instrument for blood separation, protein precipitation, and cell collection.
Features of DL-7MC/iDL-7MC Large Capacity Refrigerated Centrifuge
DL-7MC Features:
- With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
- Adopt microprocessor control, high efficiency frequency inverter motor, R404a environmentally friendly refrigerant compressor.
- Emergency door lid release system, in case of unexpected power off.
- Equipped with wheels, easy to short distance move.
- Both touch and button operation, high-light touch LCD display shows full parameters.
- 35 programs can be editable, storable and retrievable, users can set 9 programs for daily use.
iDL-7MC Features:
- With the self-diagnostic and protection system for imbalance, over-speed, over-temperature. Greatly ensured the safe of users and machine.
- Electric control for both closing and openning door lid, with backup power to avoid power off unexpected, Backup power automatically recharges when machine powered on.
- Adopt microprocessor control, high efficiency frequency inverter motor, R404a environmentally friendly refrigerant compressor.

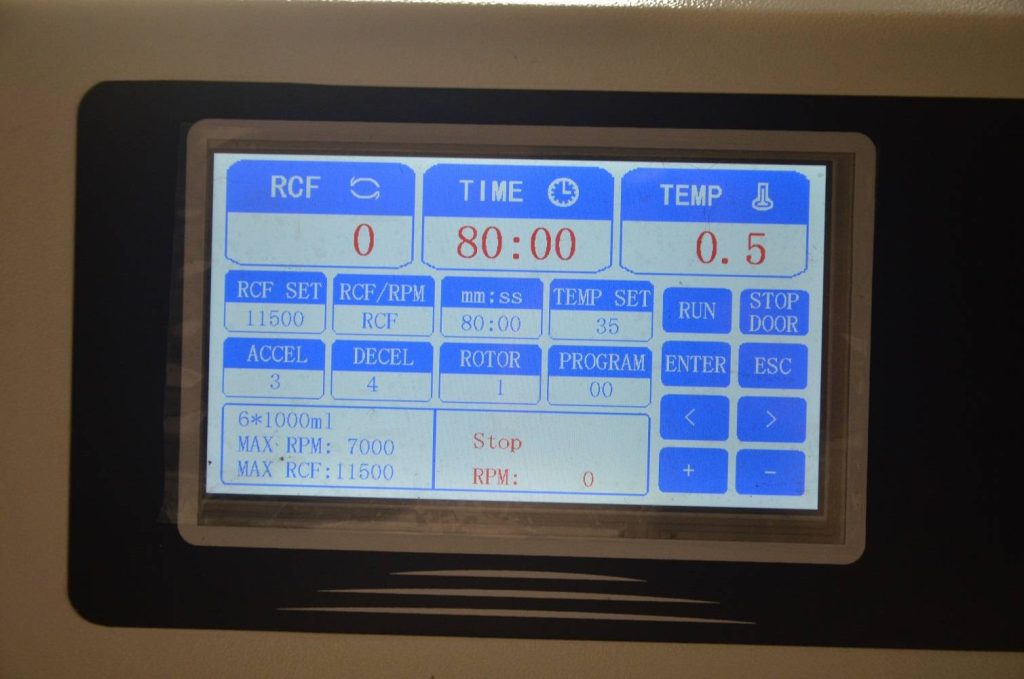

- With large 7 Inches color panel show all parameters, and can operate with gloves. .
- With wheels easy to short distance move, and wheels can be fixed.
- Automatic Rotor Identification to avoid over-high speed running of rotor.
- With USB cord, Data can be stored and download by connecting with PC. (Option function)
- 99 programs can be store, and can set 9 programs for daily use
Technical Parameters of DL-7MC/iDL-7MC Large Capacity Refrigerated Centrifuge
DL-7MC
| Model | DL-7MC | Max Speed | 7000r/min |
| Max RCF | 11500xg | Max Capacity | 6×1000ml |
| Speed Accuracy | ±10r/min | Timer Range | 0-99h 59 min |
| Temperature Range | -20~+40℃ | control&drive | microprocessor control/direct drive |
| Acc/dec Rate | 0-9(Grade) | Program Store | 35 |
| Motor Power | 4KW | Refrigerator Power | 2KW |
| Noise | ≤60dB(A) | Power Supply | AC220V/110V 50Hz 35A |
| Weight(Without Rotor) | 280kg | Dimensions | 730×840×1200mm(L×W×H) |
| Refrigeration System | Big Brand High-performance Compressor CFC-free Refrigeration System | ||
| Rotor | No.1 AR 4*1000ml (8000rpm 11620xg)No.2 AR 6*1000ml (7000rom 11500xg) | ||
iDL-7MC
| Model | iDL-7MC | Max Speed | 8000r/min |
| Max RCF | 11620xg | Max Capacity | 6×1000ml |
| Speed Accuracy | ±10r/min | Timer Range | 0-99h 59 min |
| Temperature Range | -20~+40℃ | control&drive | microprocessor control/direct drive |
| Acc/dec Rate | 0-9(Grade) | Program Store | 99 |
| Motor Power | 4KW | Refrigerator Power | 2.2KW |
| Noise | ≤60dB(A) | Power Supply | AC220V/380V 50Hz 35A |
| Weight(Without Rotor) | 280kg | Dimensions | 730×840×100mm(L×W×H) |
| Refrigeration System | Big Brand High-performance Compressor CFC-free Refrigeration System | ||
| Rotor | No.1 AR 4*1000ml (8000rpm 11620xg) No.2 AR 6*1000ml (7000rom 11500xg) | ||
Application of DL-7MC Large Capacity Refrigerated Centrifuge
