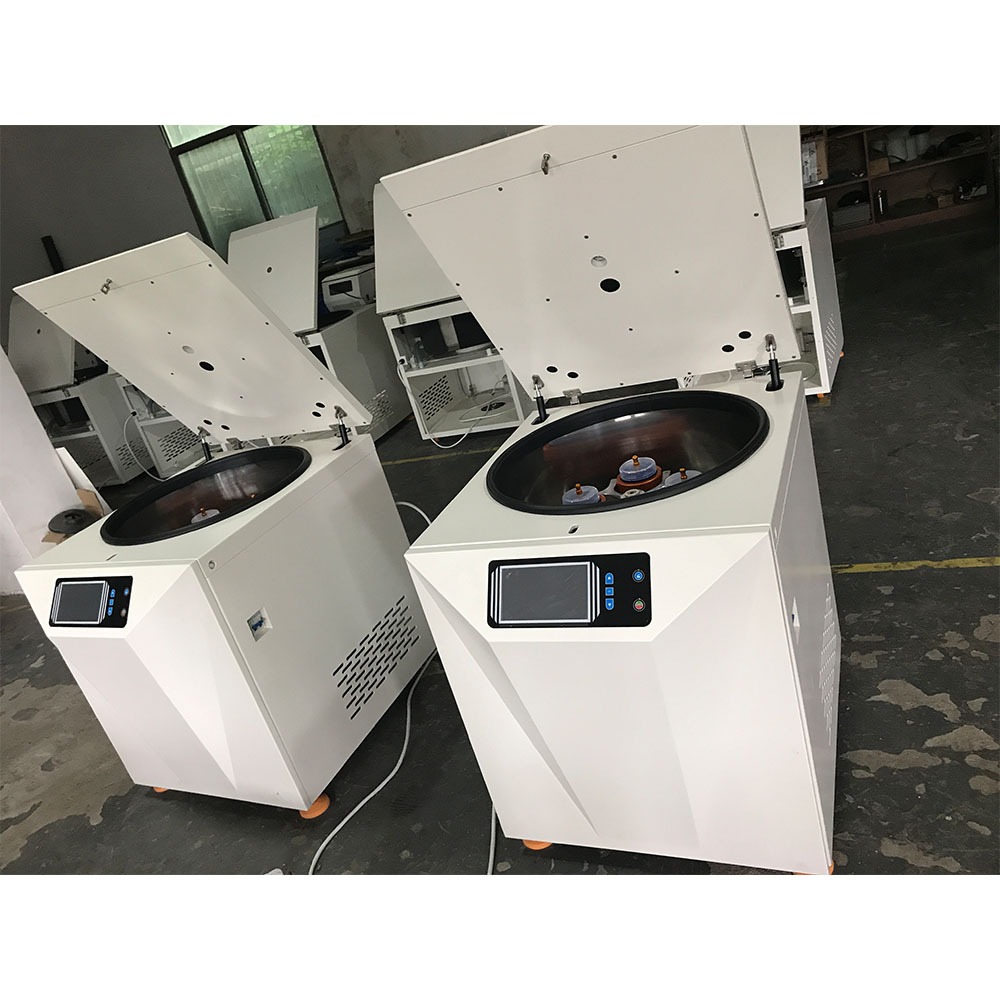

TM108R /TM162R/ TM120R Intelligent Full Automatic Uncap Centrifuge
TM108R TM120R TM162R is special design for hospital, blood station, radio-immunoassay and nuclear medicine. It can complete al action at a time and solve the difficulty of uncap in separation of vacuum blood tube, which to be the most advanced and efficient separation machine.
Features of TM108R TM120R TM162R Centrifuge
- Stable running ,Greatly improved the work efficiency and avoided the re-mix of blood after separation.
- Completely eradicated bacteria infection and It is suitable for every capacity of evacuated blood tube.
- Microprocessor control and AC conversion motor, with high speed accuracy and 100% uncap rate.

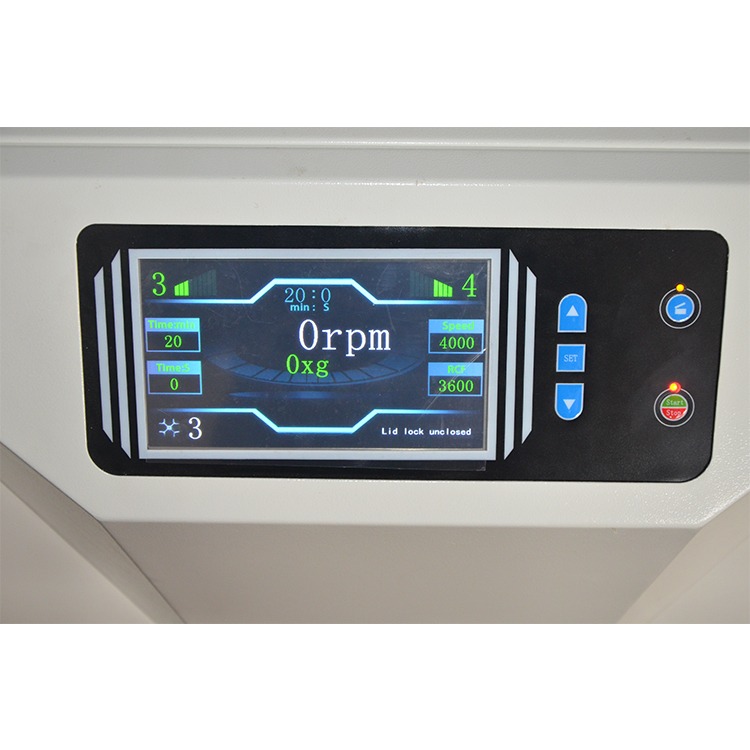

- 7 Inches Touch LCD display, showing RPM, RCF, Speed, Running Time, Errors etc.
- Patented bucket Layered design, Can use both 2ml 5ml 7ml vacuum tubes at one rotor and avoid caps dropping during running.
- Automatic rotor identification, to avoid over speed by mistake operate.
- Advanced door lid control can electric control for openning and close door lid, also with emergency lid lock release to avoid power off unexpected.

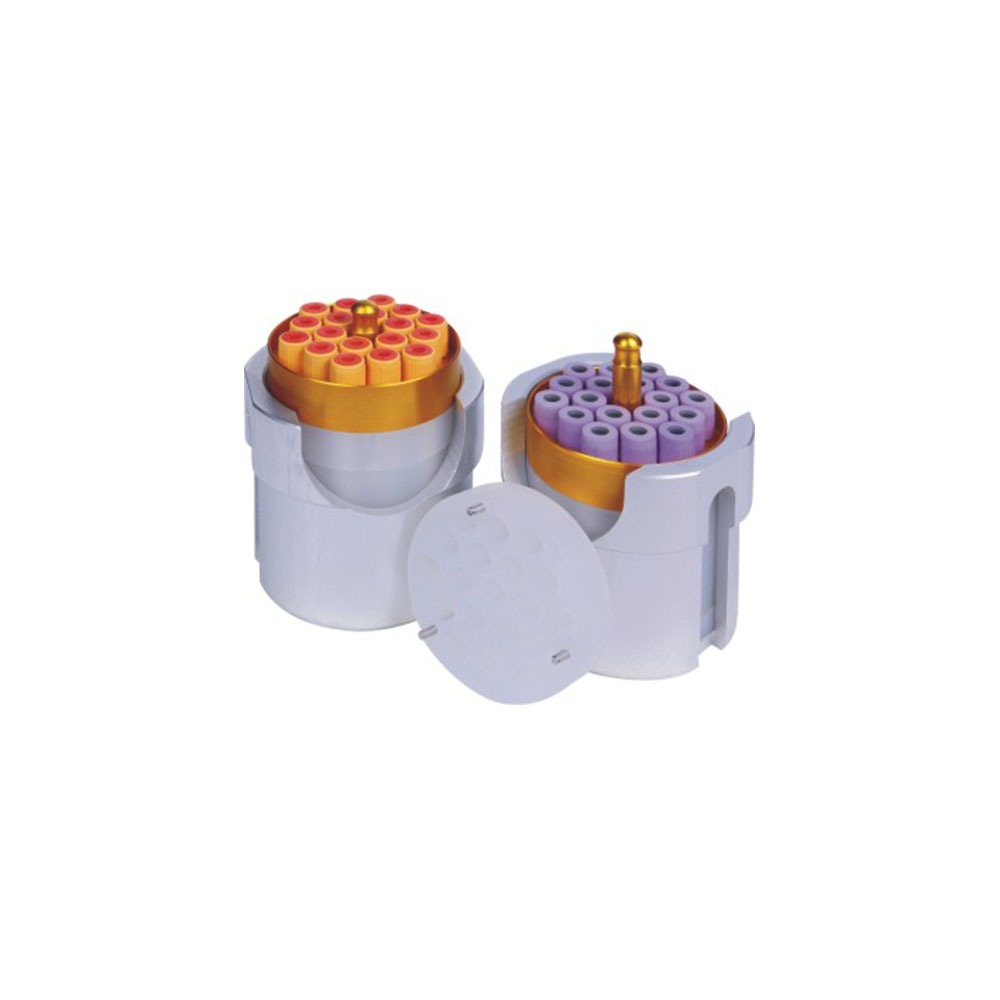

- With Bio-safe cover rotor:
Technical Parameters of TM108R TM120R TM162R Centrifuge
| Model | TM108R | TM120R | TM162R |
| Temperature Range | -20℃~+40℃ | ||
| Rotor No. | Capacity | Max Speed | RCF |
| NO1 Angle Rotor | 12×10/15ml | 5000r/min | 5200×g |

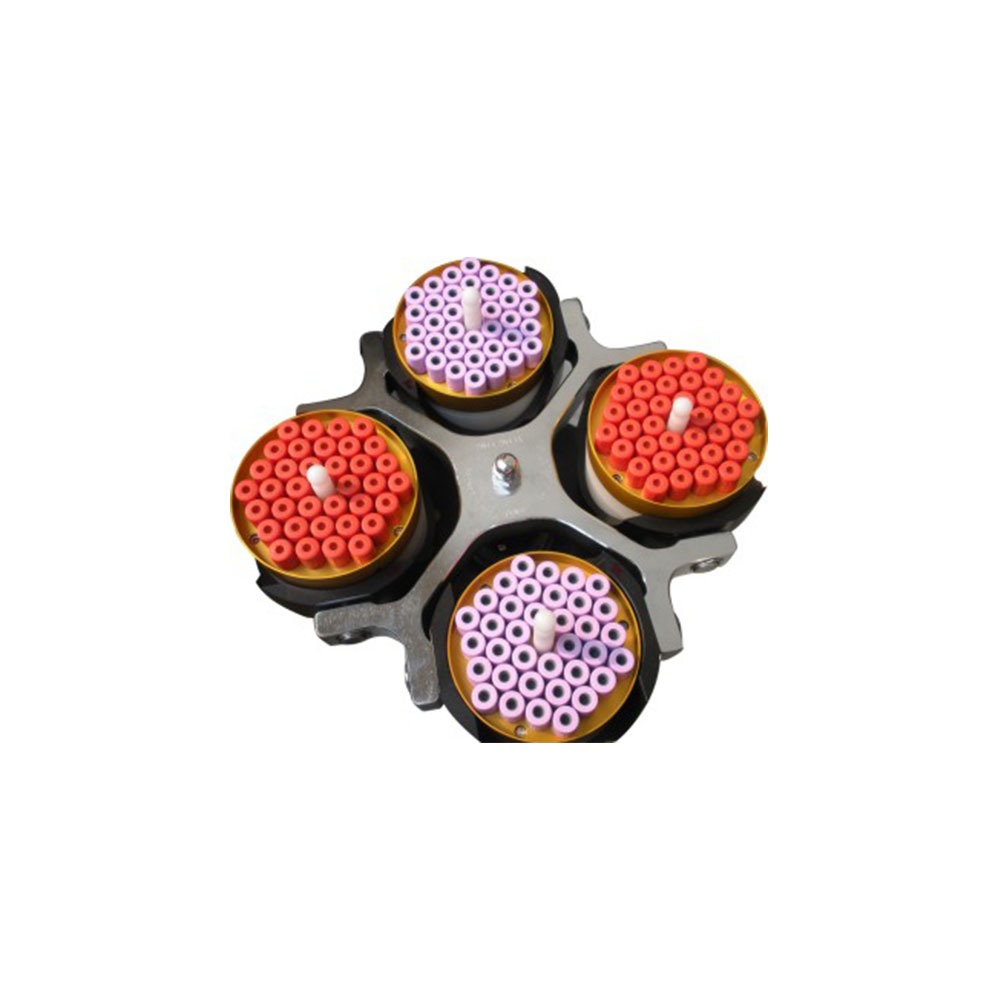

| NO.2 Swing Rotor | 108×2/5ml | 4000r/min | 3600×g |
| NO.3Swing Rotor | 120×2/5ml | 4000r/min | 3680×g |
| NO.4 Swing Rotor | 162×2/5ml | 4000r/min | 3850×g |
| Motor | Microprocessor Control, AC Frequency Motor | ||
| Timer Range | 0~99min | ||
| Noise | ≤60dB(A) | ||
| Power Supply | AC220V & 110V 50-60Hz 10A | ||
| Dimension | 790×610×820mm(L×W×H) | ||
| Weight | 190KG | ||
