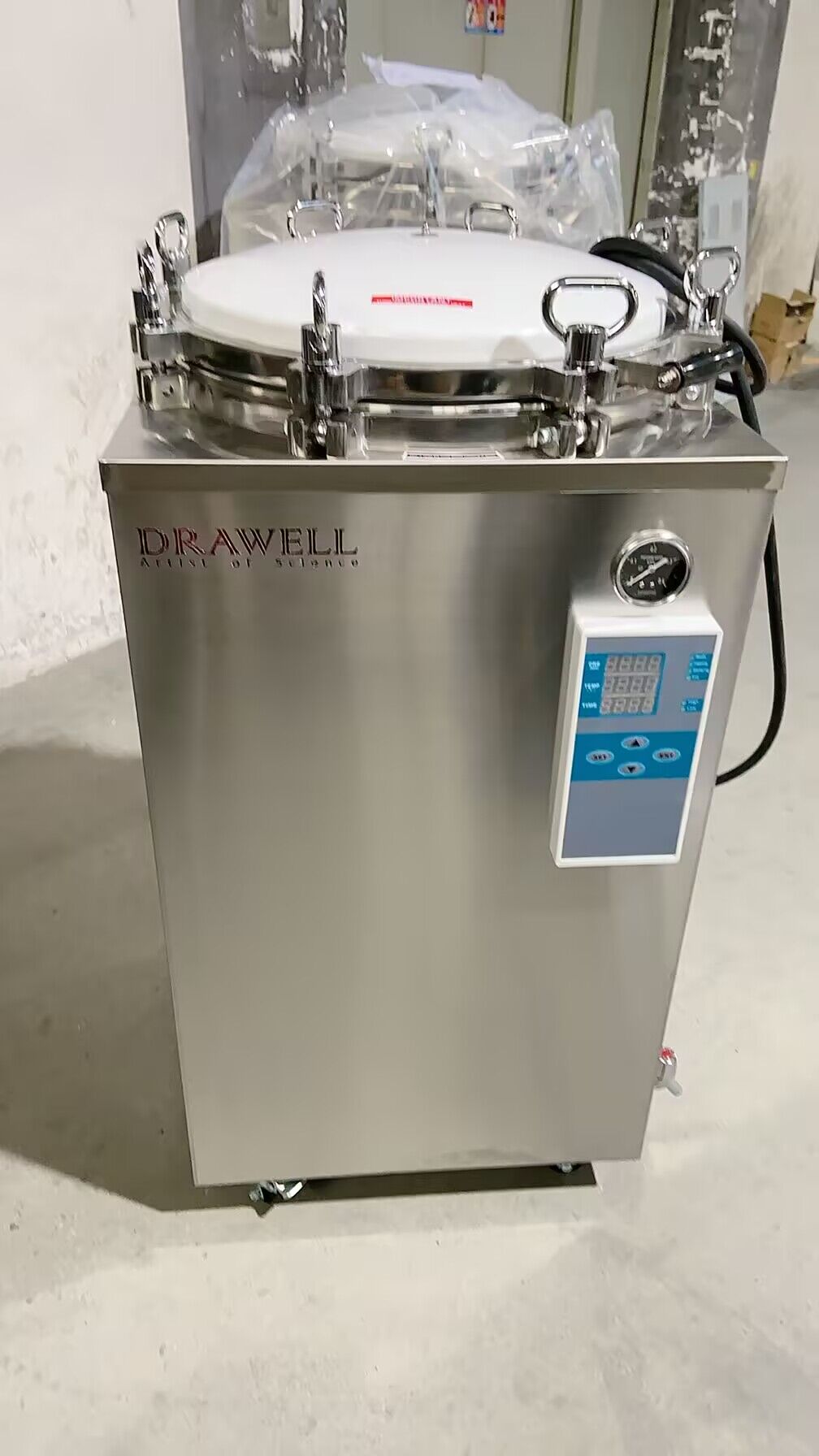

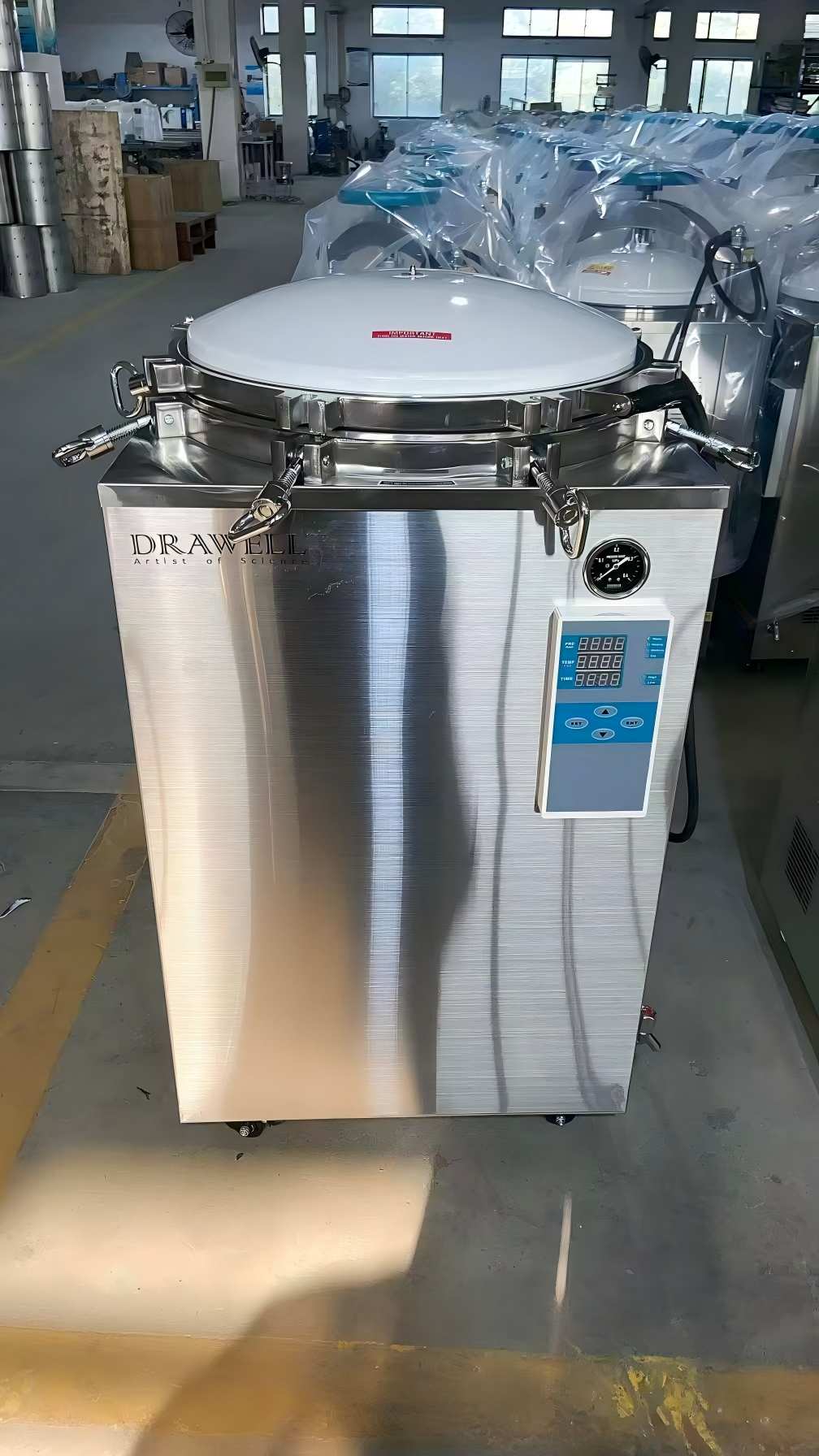

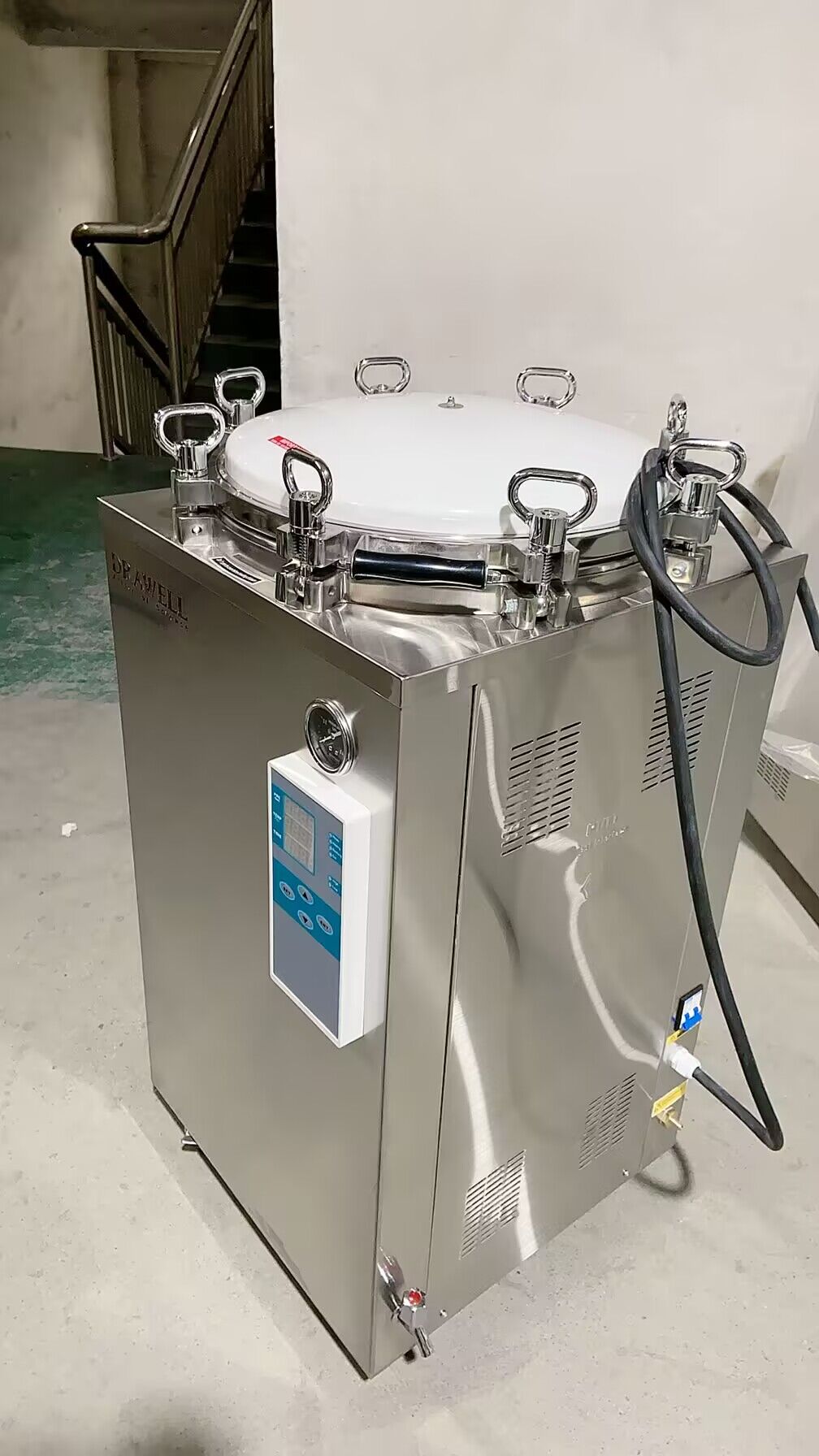

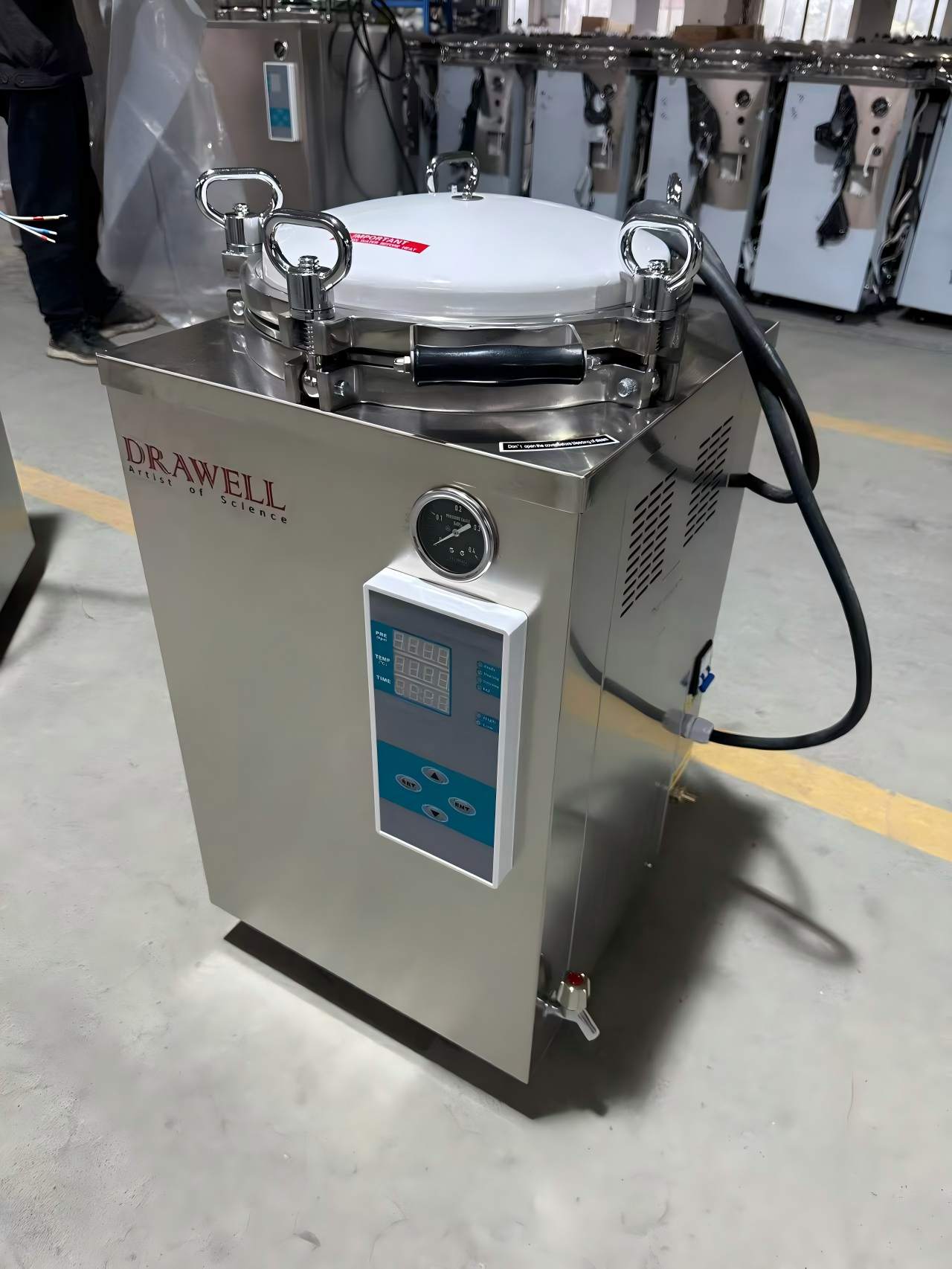

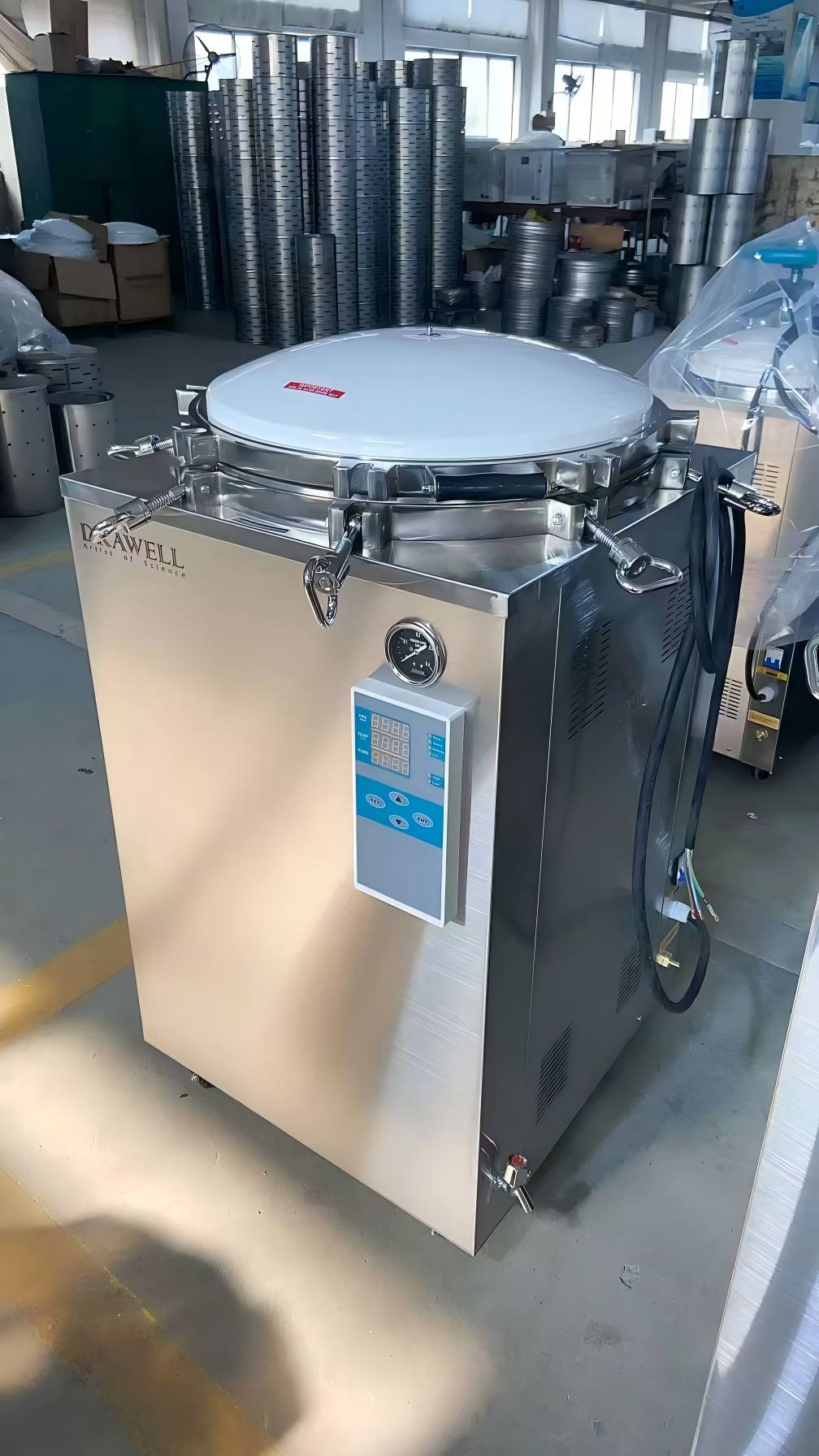

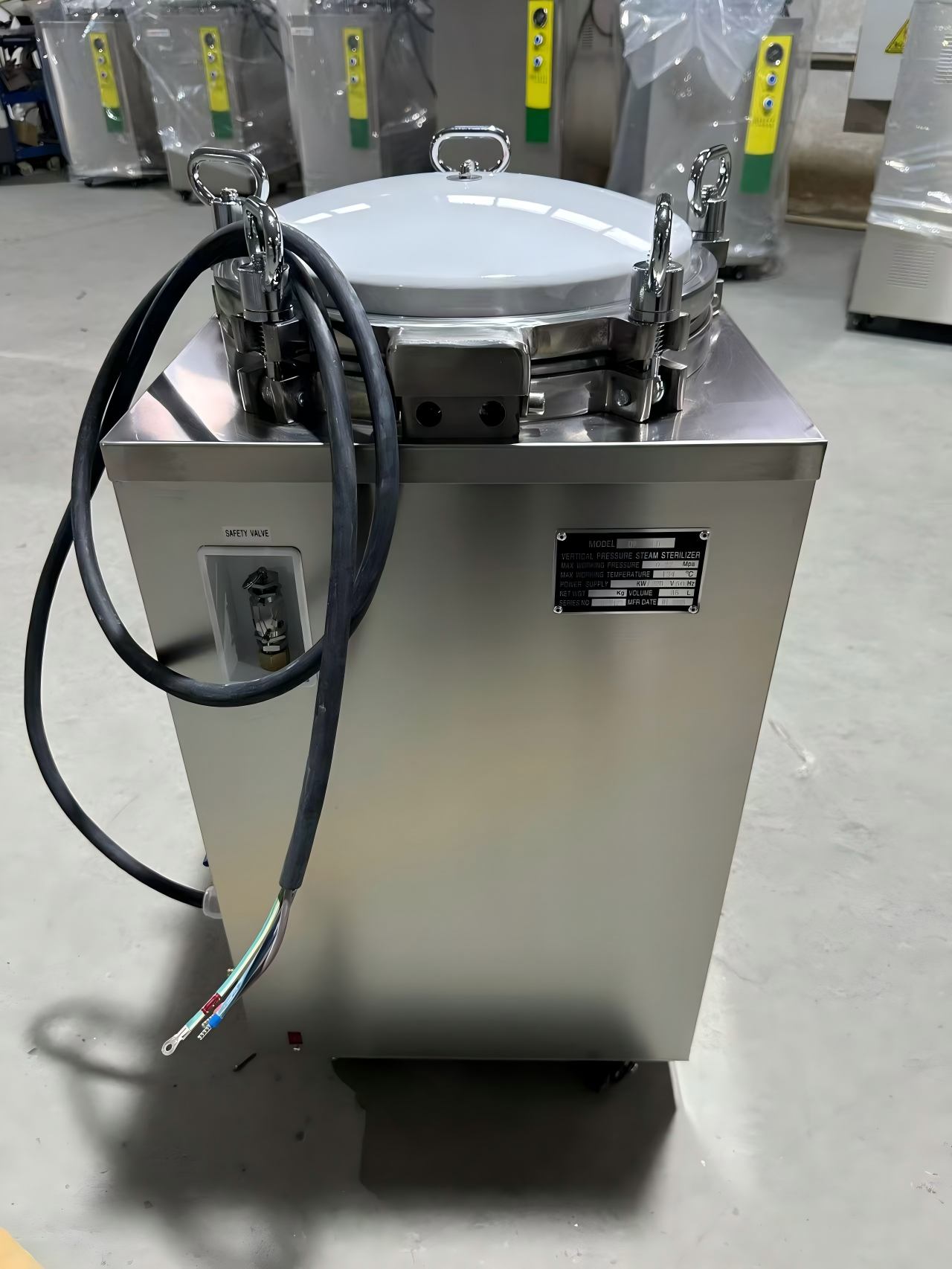

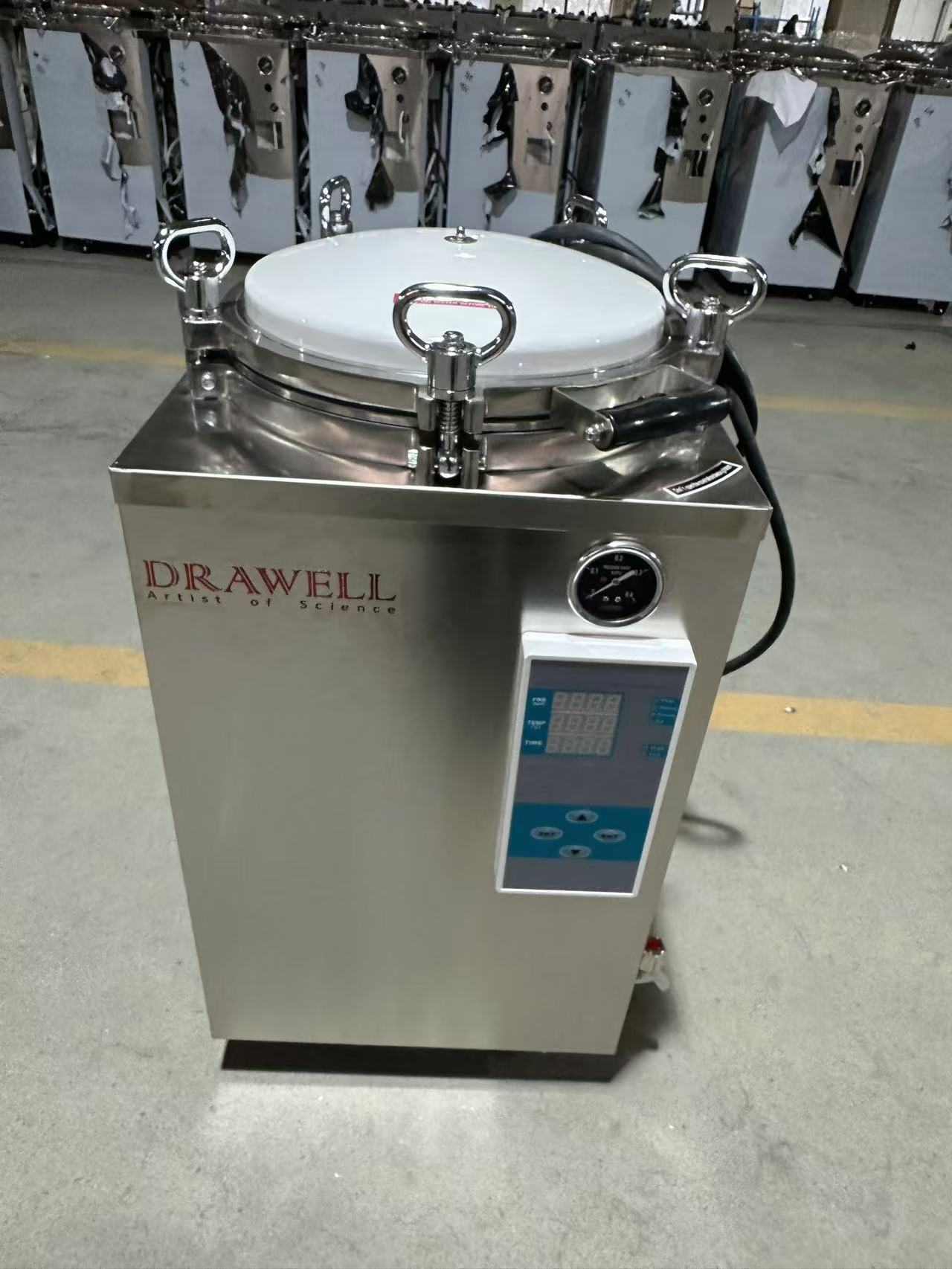

DW-LD Series Vertical Autoclave

This vertical sterilizer is a safe, reliable and automatically controlled sterilization equipment, which consists of a heating system, a microcomputer control system and an overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving and durability, low price and excellent quality, etc.

DW-LD Series Brochure

Characteristics of DW-LD Series Vertical Autoclave

  1. Fully stainless high-alloy steel structure
  2. Digital display of working status, touch of key
  3. Auto discharge the cool air, and steam discharging automatically after sterilization
  4. Automatically shut off with beep reminding after sterilization
  5. With two stainless steel sterilizing baskets
  6. Easy to operate, safe and reliable

Parameters of the DW-LD Series Vertical Autoclave

Model technical
data		DW-35LD
(automatic)		DW-50LD
(automatic)		DW-75LD
(automatic)		DW-100LD
(automatic)		DW-120LD
(automatic)		DW-150LD
(automatic)
Chamber volume35L
(φ318×450)mm		50L
(φ340×550)mm		75L
(φ400×600)mm		100L
(φ440×650)mm		120L
(φ480×660)mm		150L
(φ510×740)mm
Working pressure0.22MPa
Working temperature134℃
Max working pressure0.23 Mpa
Heat average≤±1℃
Timer0~99min or 0~99hour59min
Adjustment of temperature105~134℃
Power2.5Kw/AC220V
50Hz		3Kw/AC220V
50Hz		4.5KW AC220V.50Hz6KW/AC220V.50Hz
Overall dimension470x450x840520x500x970550x530x990580x560x1060630x610x1130660x640x1130
Transport dimension(mm)540x540x970580x580x1090610x610x1110640x640x1170690x690x1240730x730x1240
G.W/N.W(mm)61Kg/ 46Kg73Kg/56Kg87Kg/67Kg95Kg/73Kg116Kg/ IOIKg130Kg/111Kg
