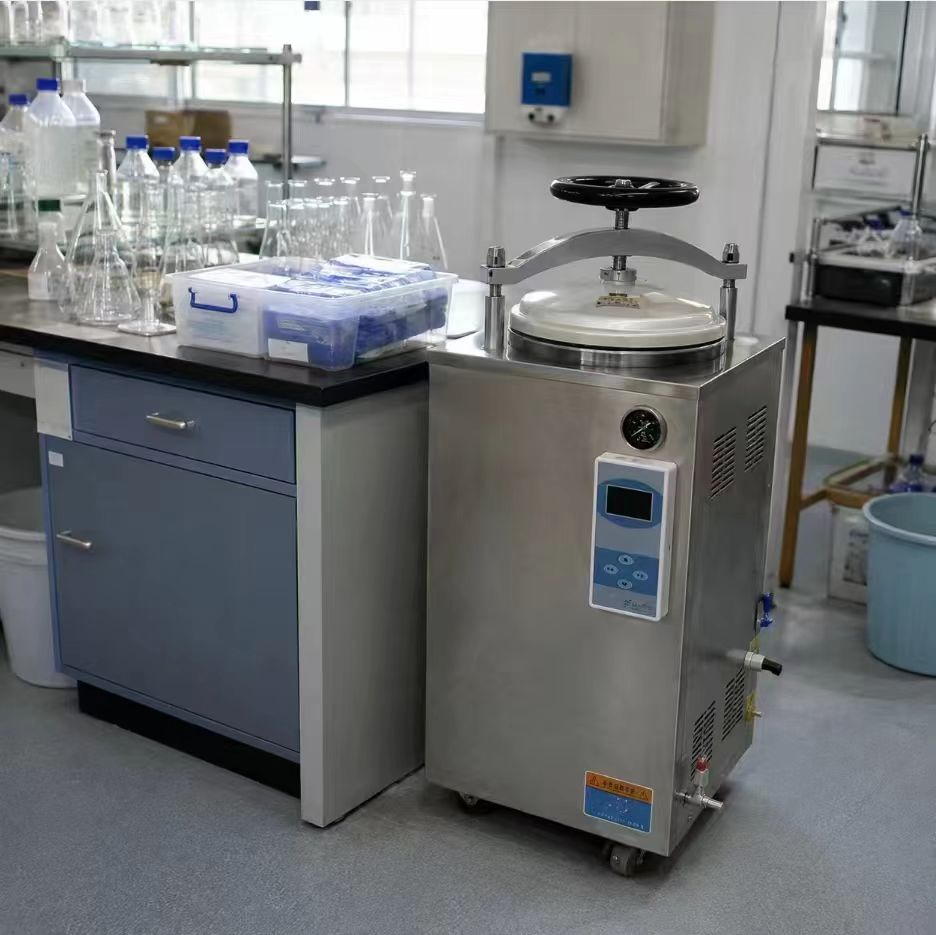

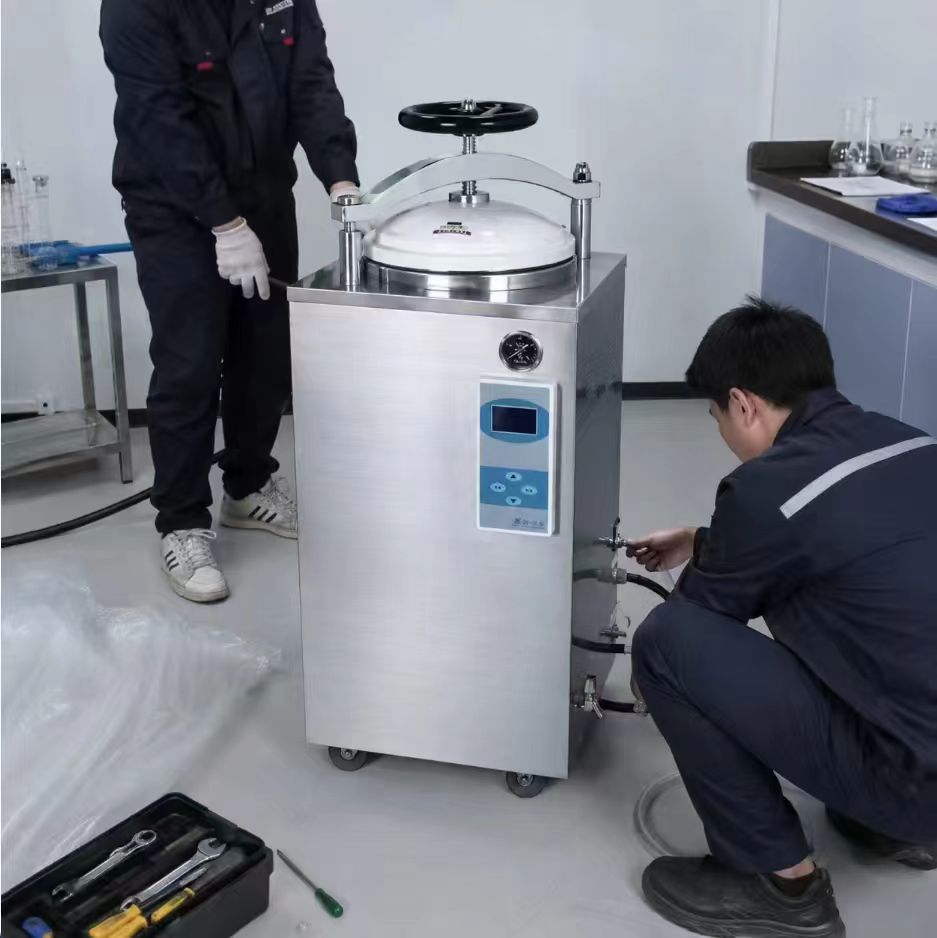

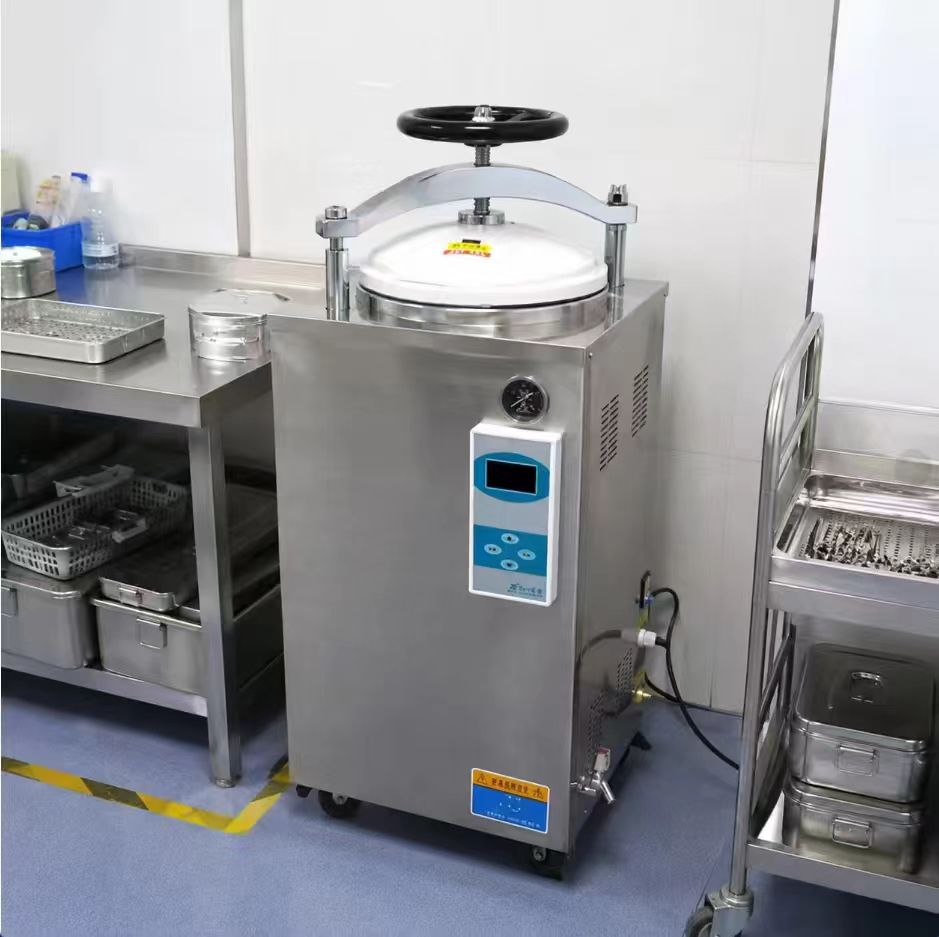

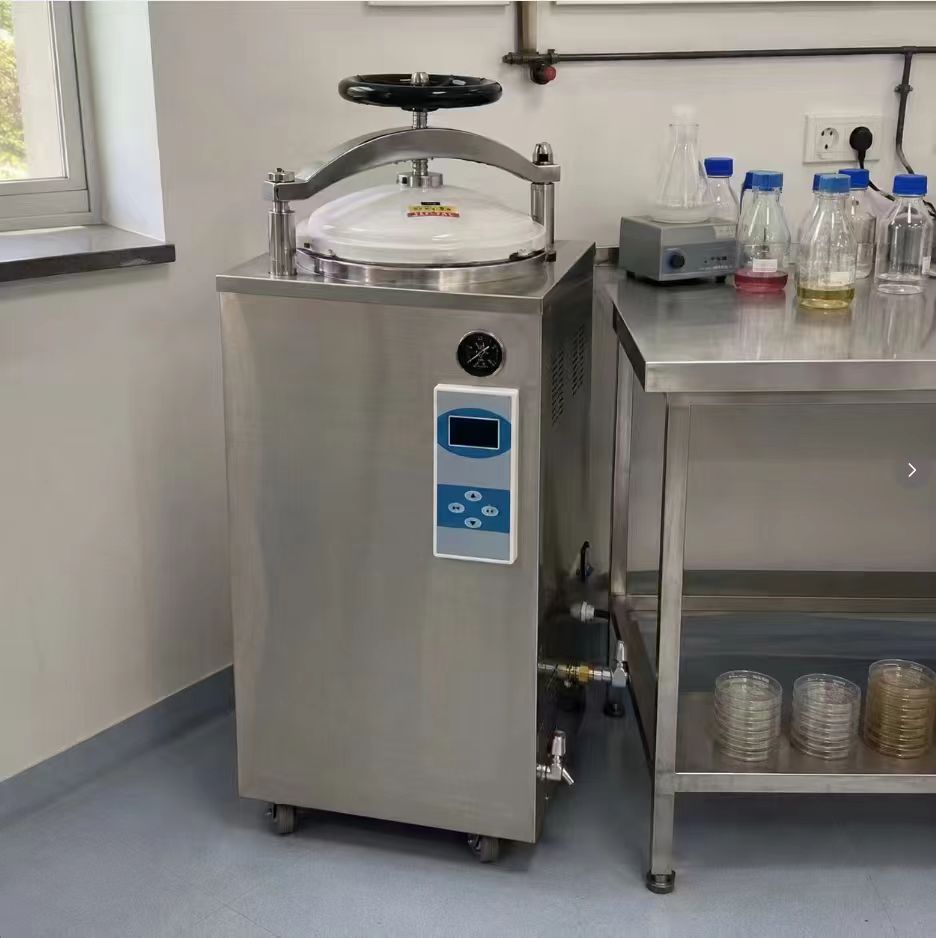

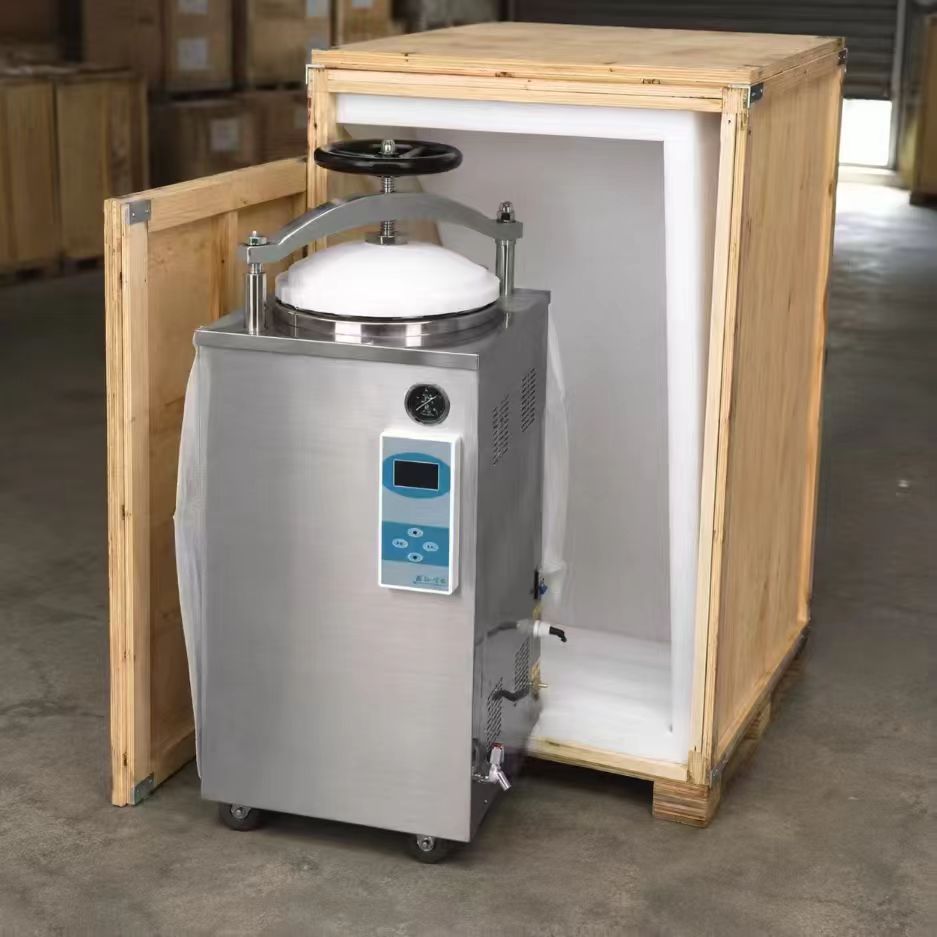

DW-HD Series Vertical Autoclave
This vertical sterilizer is a safe, reliable and automatically controlled sterilization equipment, which consists of a heating system, a microcomputer control system and an overheating and overpressure protection system. The container has the advantages of reliable disinfection and sterilization effect, convenient operation, safe use, power saving and durability, low price and excellent quality, etc.
Characteristics of DW-HD Series Vertical Autoclave
- Fully stainless steel structure
- Hand wheel type of quick-open door structure
- Door safety lock system
- LCD digital display of working status, touch of key
- Auto discharge the cool air, and steam discharging auto matically after sterilization
- Over temperature & over pressure auto-protection
- Safe protection of water lacking
- Self-inflating type seal
- Automatically shut off with beep reminding after sterilization
- With two stainless steel sterilizing baskets
- Easy to operate, safe and reliable
- The drying system is optional, which can be equipped according to the customers request
Parameters of the DW-HD Series Vertical Autoclave
| Model technical data | DW-35HD (automatic) | DW-50HD (automatic) | DW-75HD (automatic) | DW-100HD (automatic) |
| Chamber volume | 35L(φ318×450)mm | 50L(φ340×550)mm | 75L(φ400×600)mm | 100L(φ440×650)mm |
| Working pressure | 0.22MPa | |||
| Working temperature | 134℃ | |||
| Max working pressure | 0.23 Mpa | |||
| Heat average | ≤±1℃ | |||
| Timer | 0~99min or 0~ 99hour59min | |||
| Adjustment of temperature | 105~134℃ | |||
| Power | 2.5Kw/AC220V.50Hz | 3Kw/AC220V.50Hz | 4.5Kw/AC220V.50Hz | |
| Overall dimension | 470x450x1020(mm) | 520x500x1150(mm) | 550x530x1180(mm) | 580x560x1290(mm) |
| Transport dimension | 540x540x1140(mm) | 580x580x1250(mm) | 610x610x1280(mm) | 640x640x1360(mm) |
| G.W/N.W | 81Kg/63Kg | 94Kg/74Kg | 113Kg/93Kg | 125Kg/105Kg |
