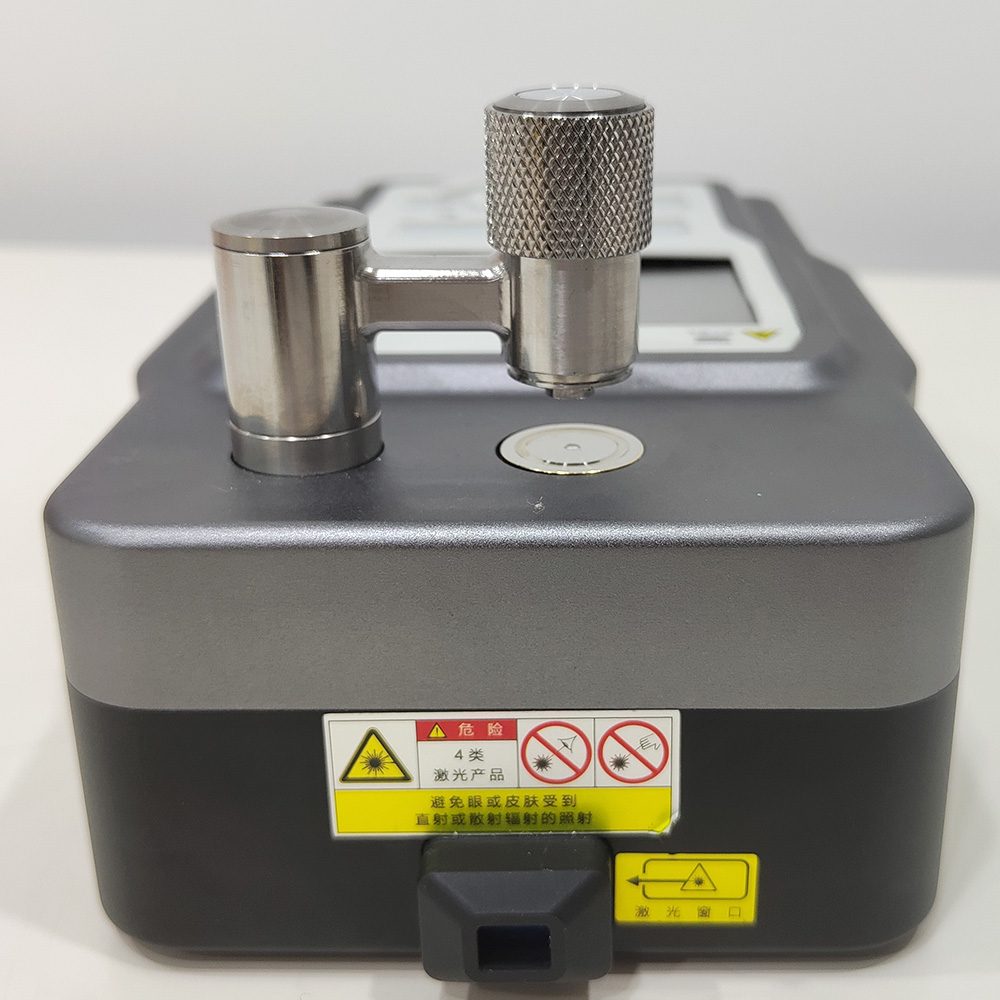

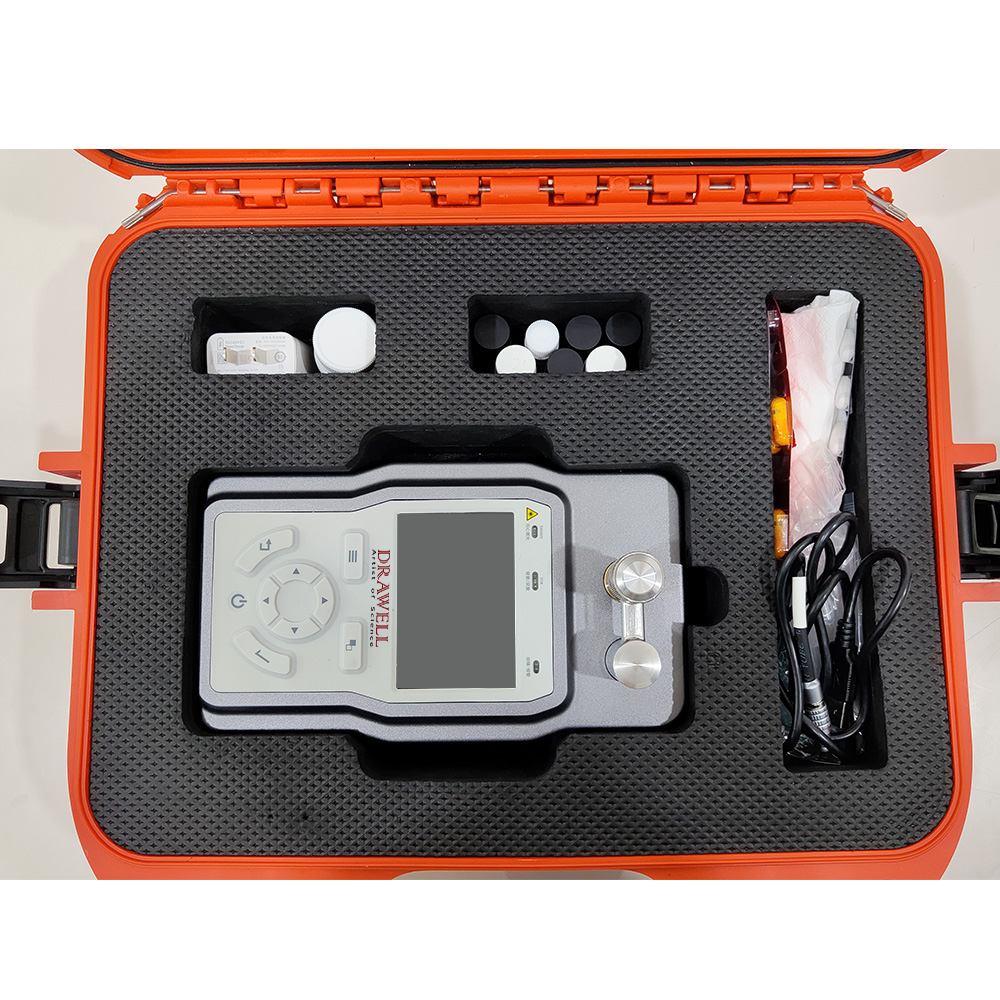

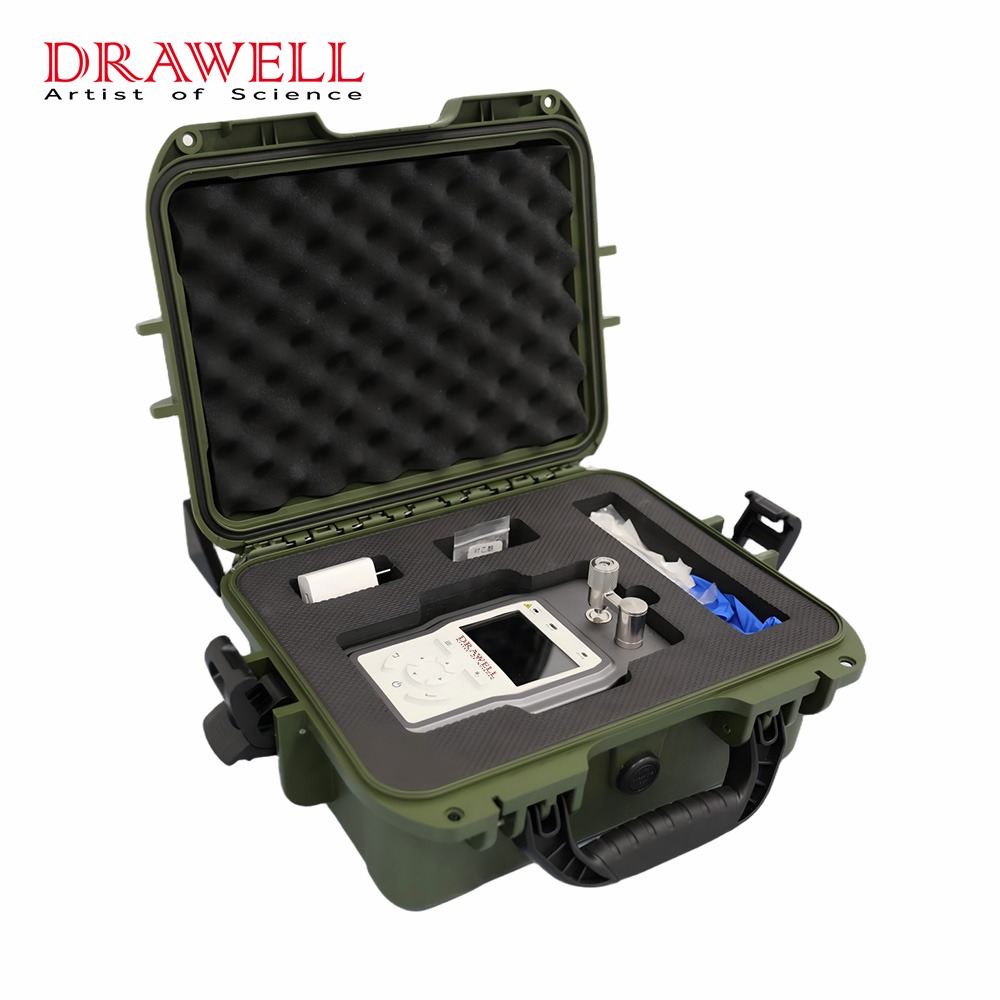

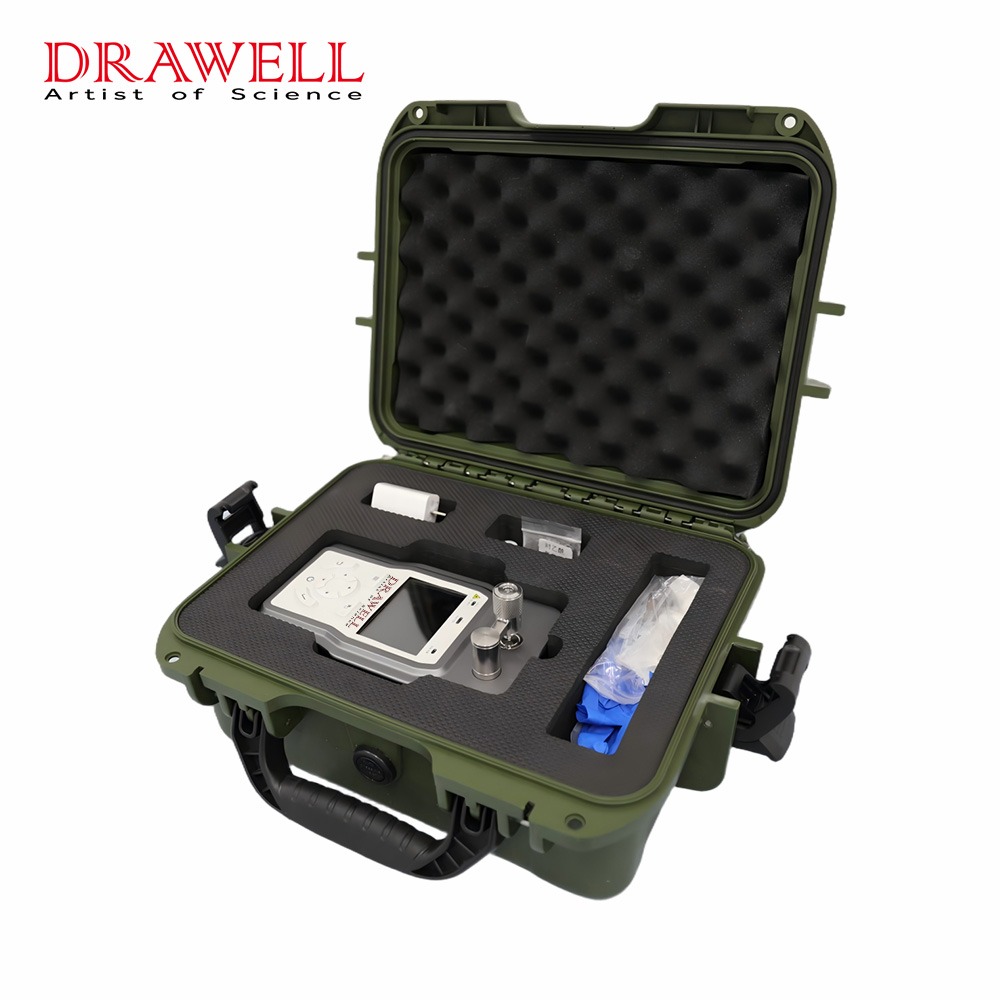

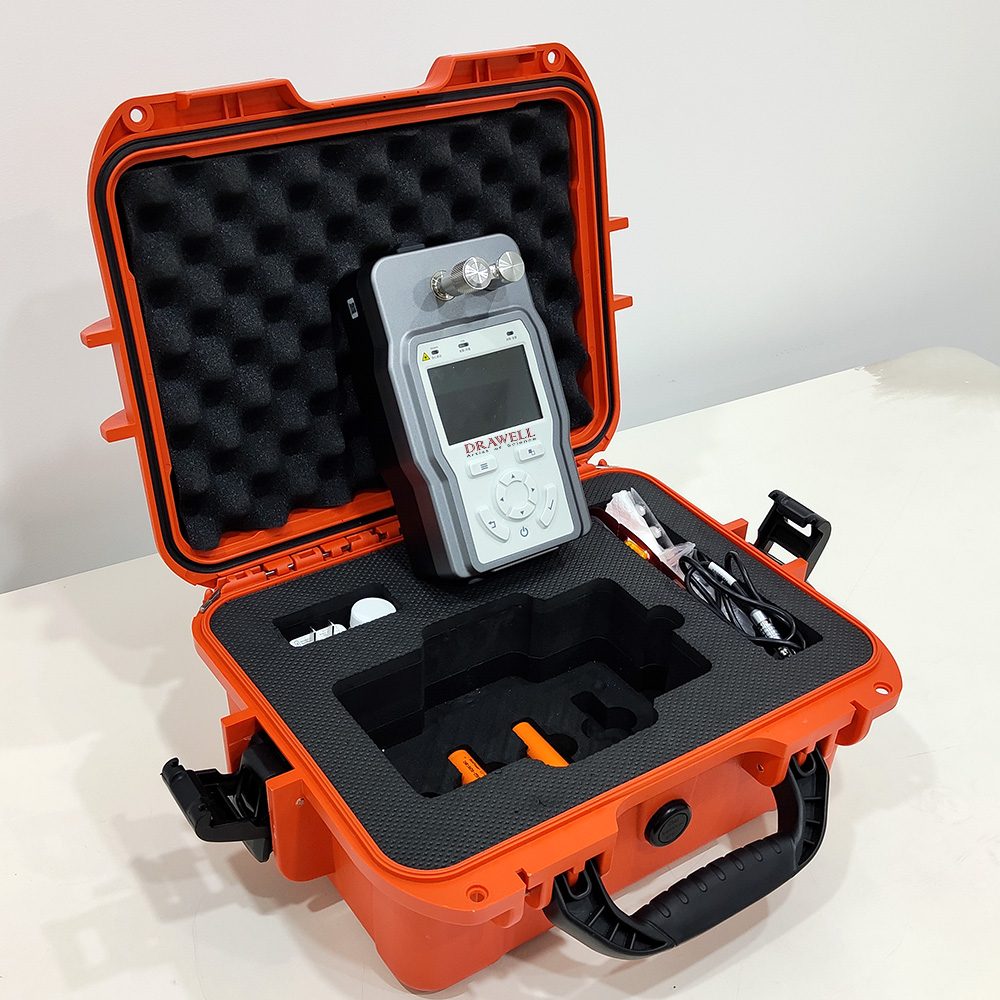

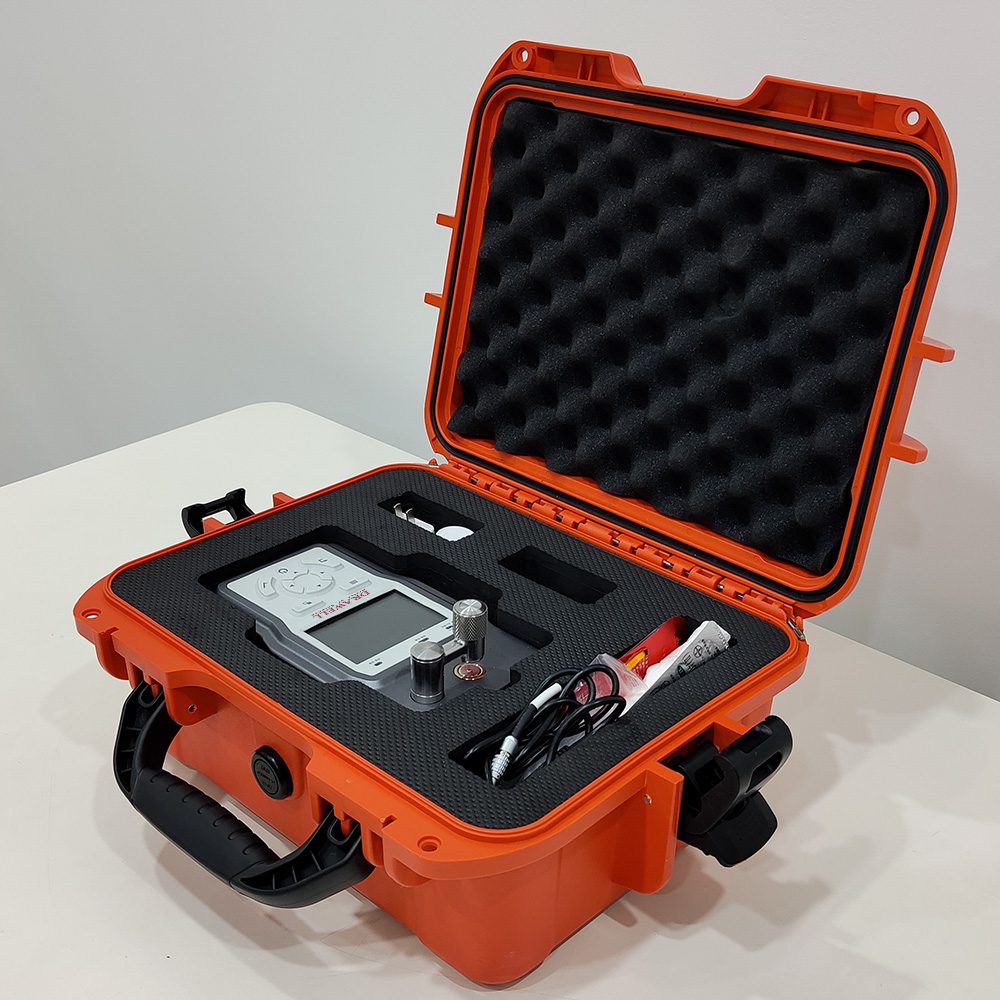

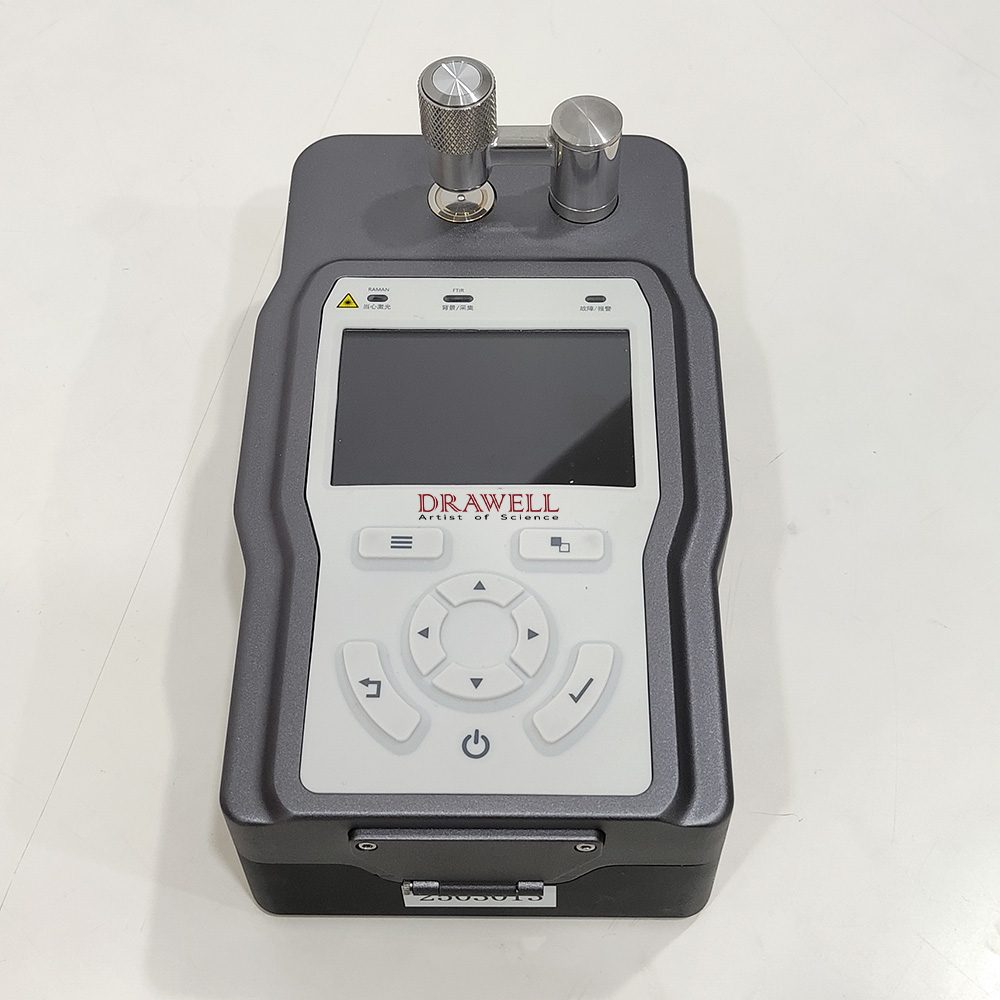

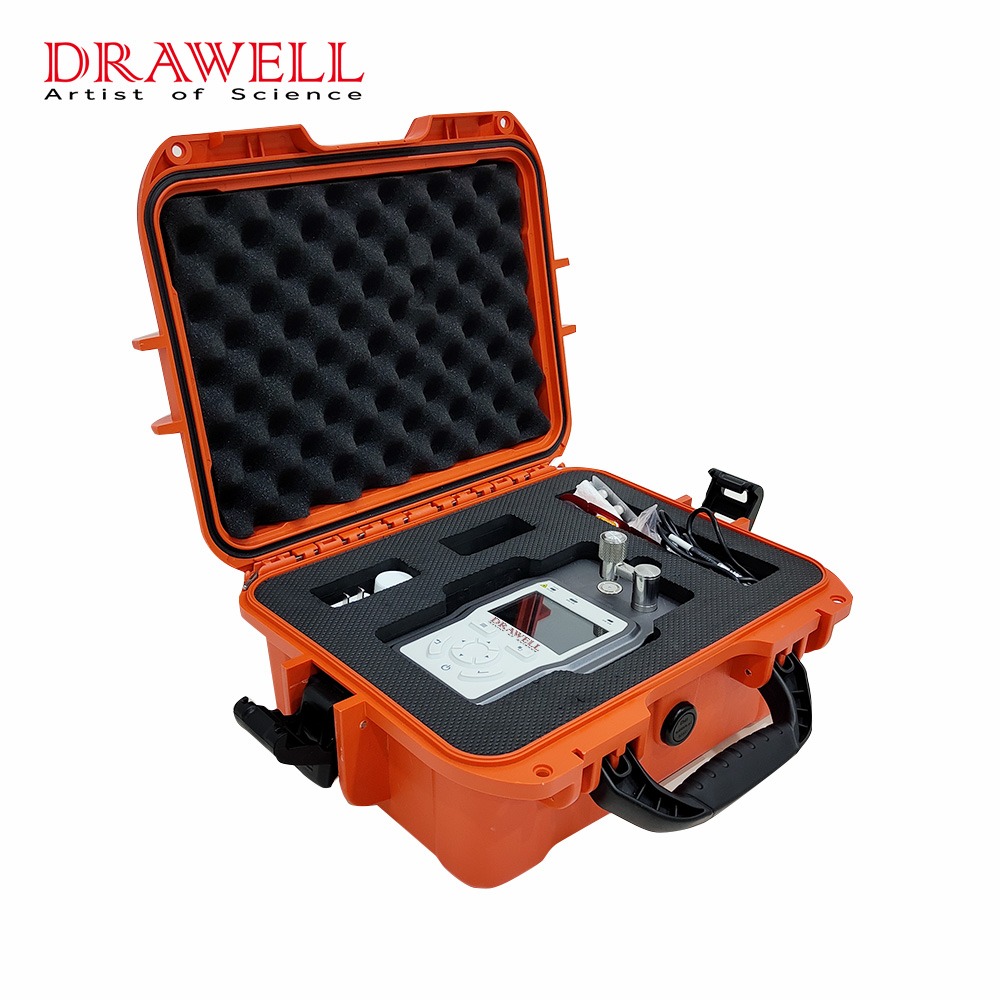

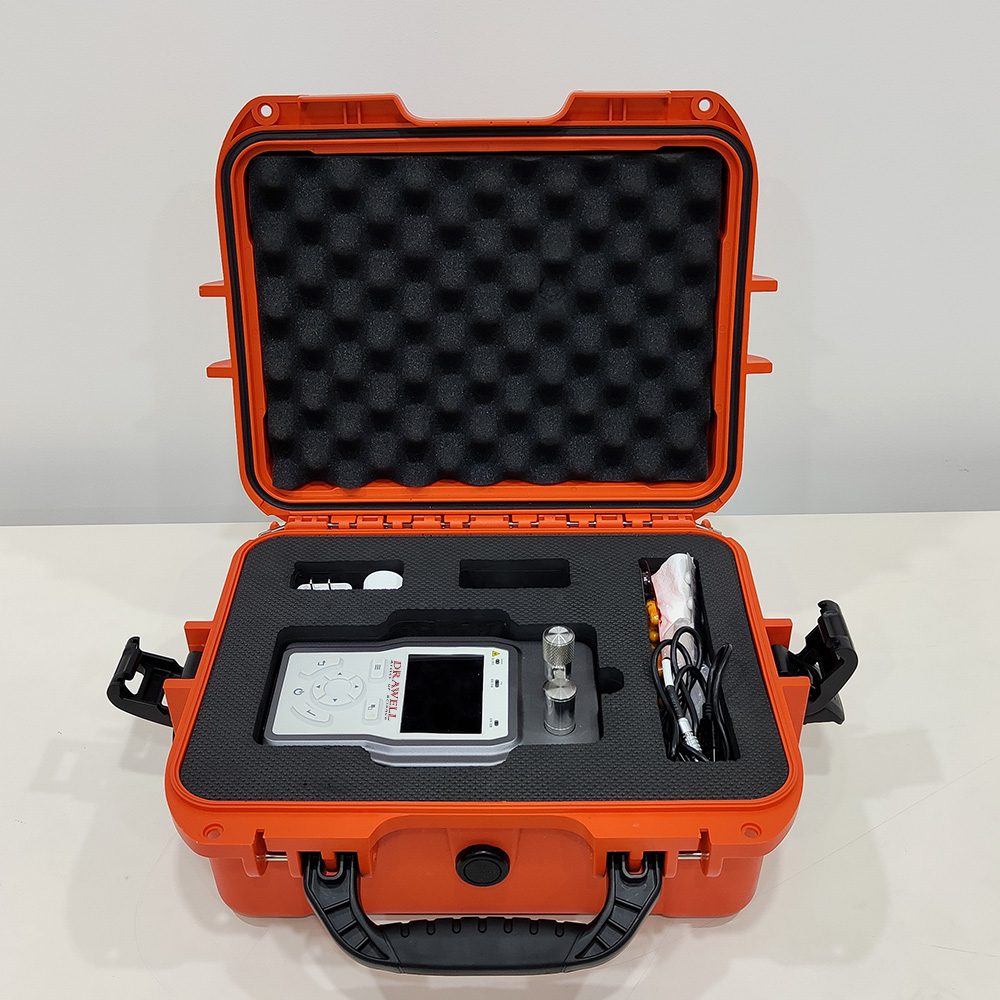

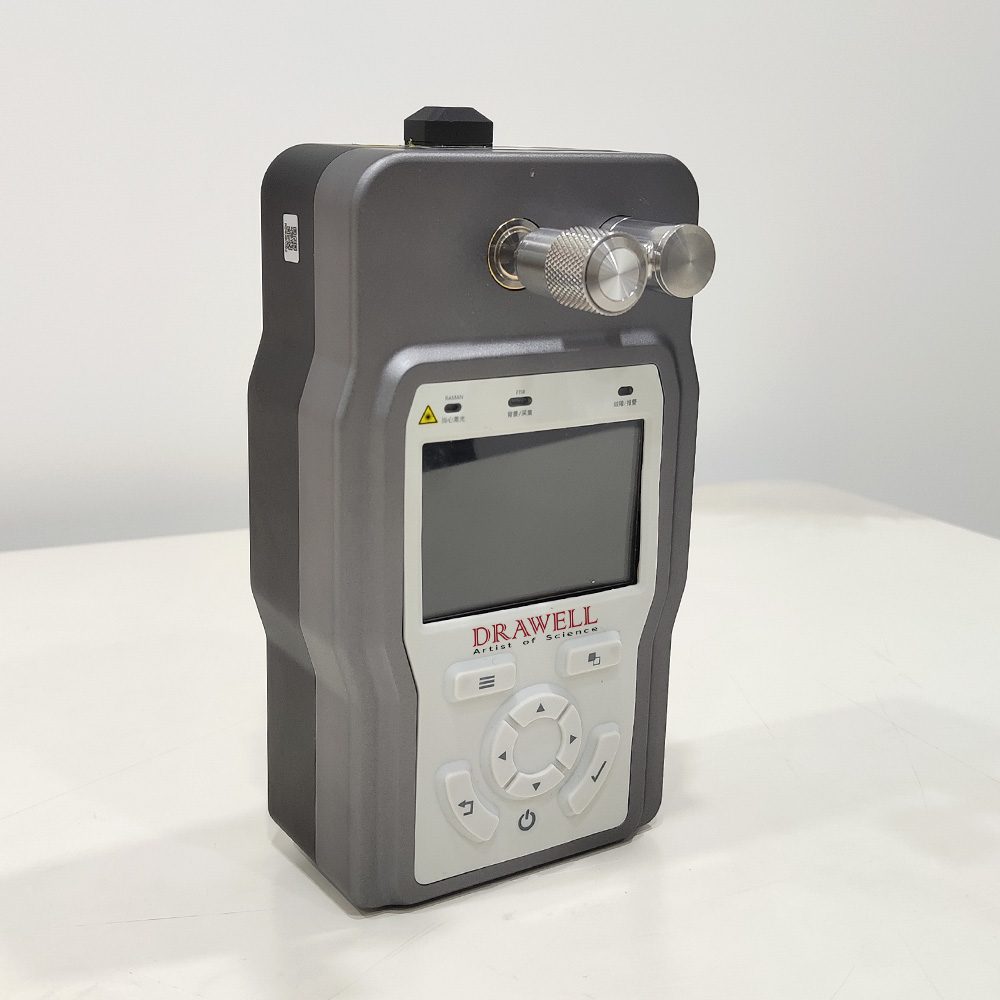

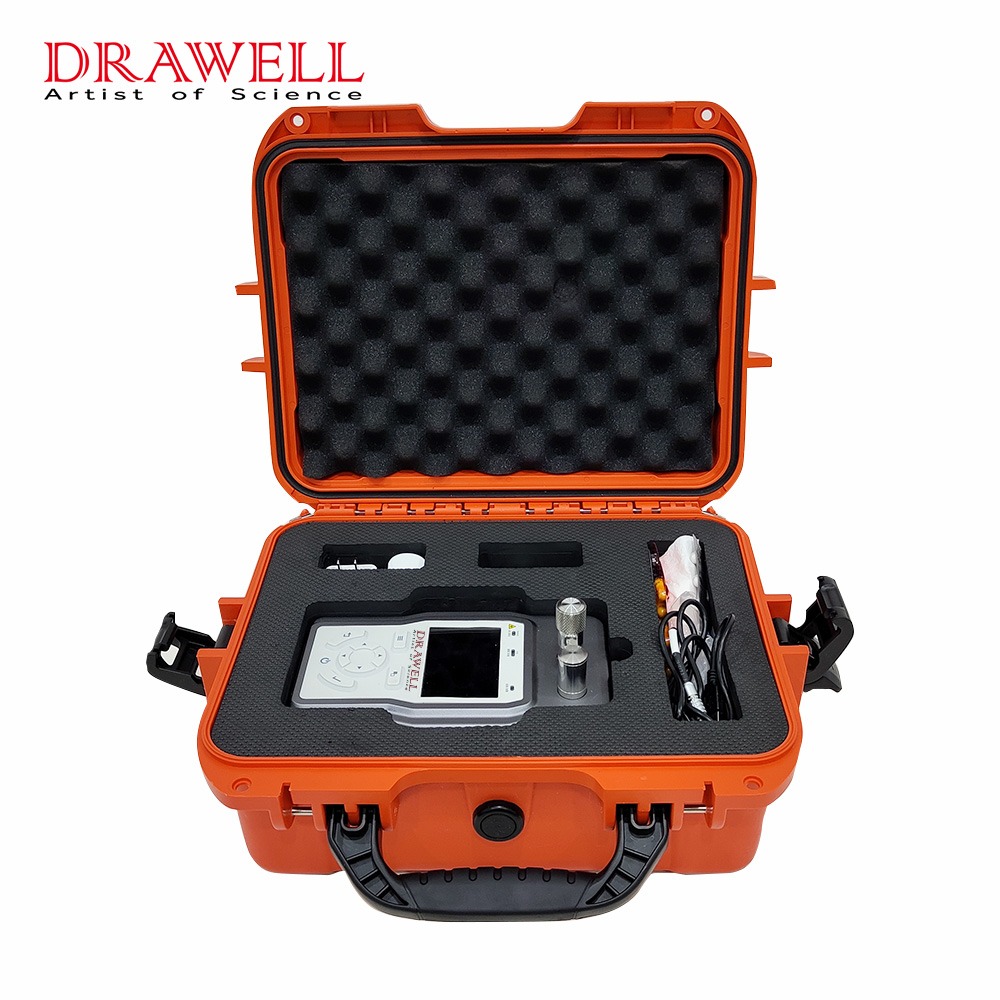

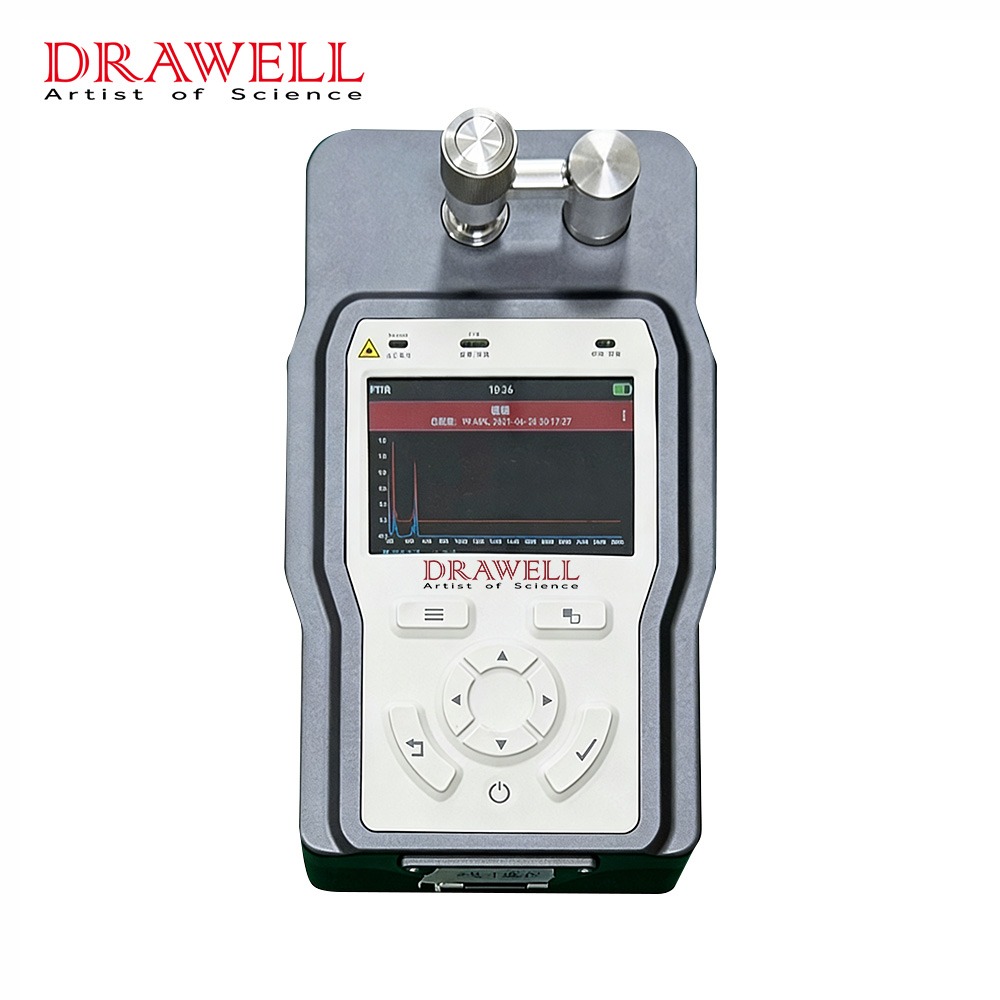

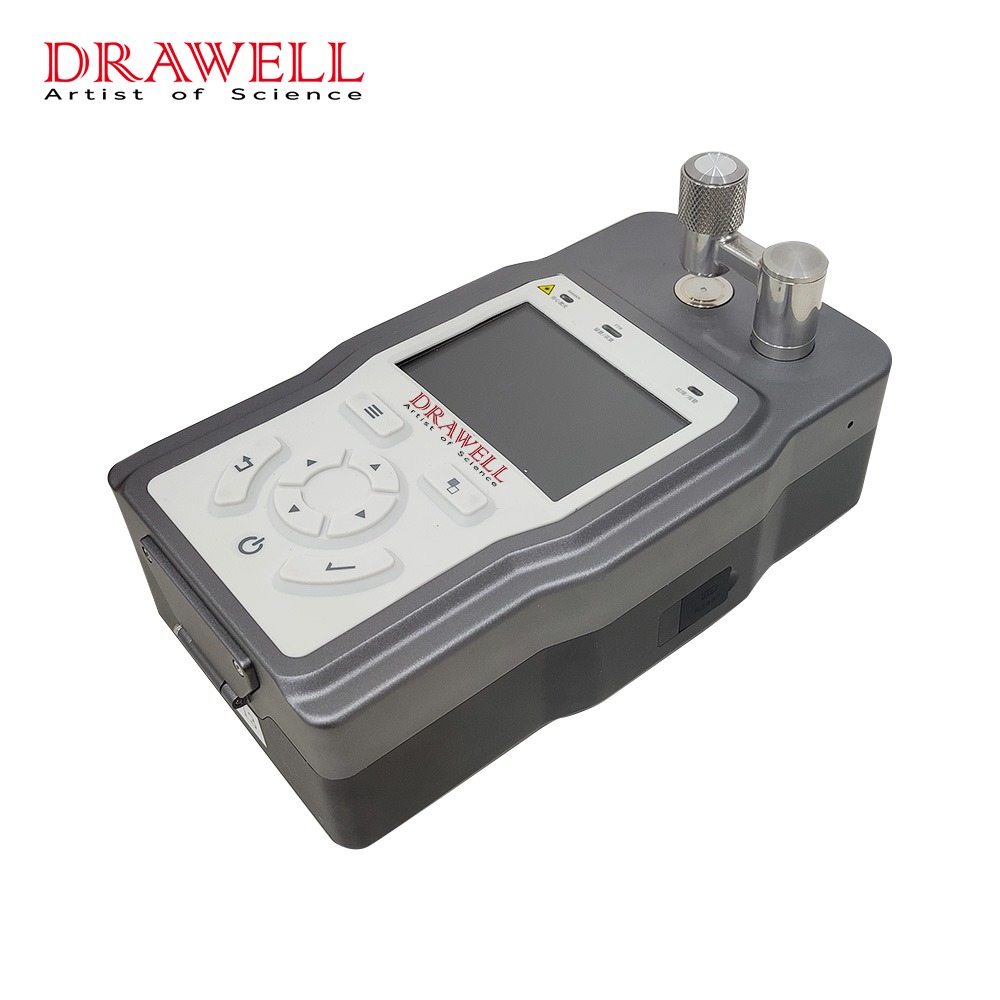

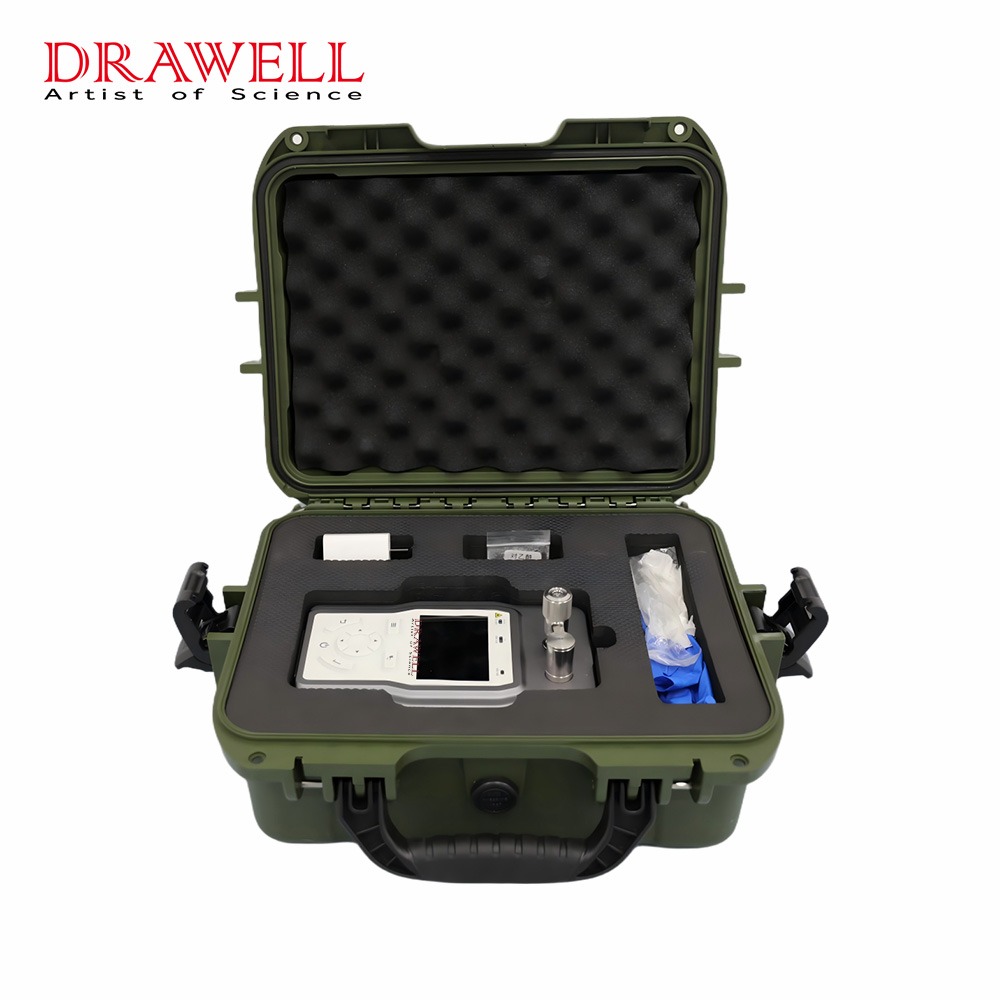

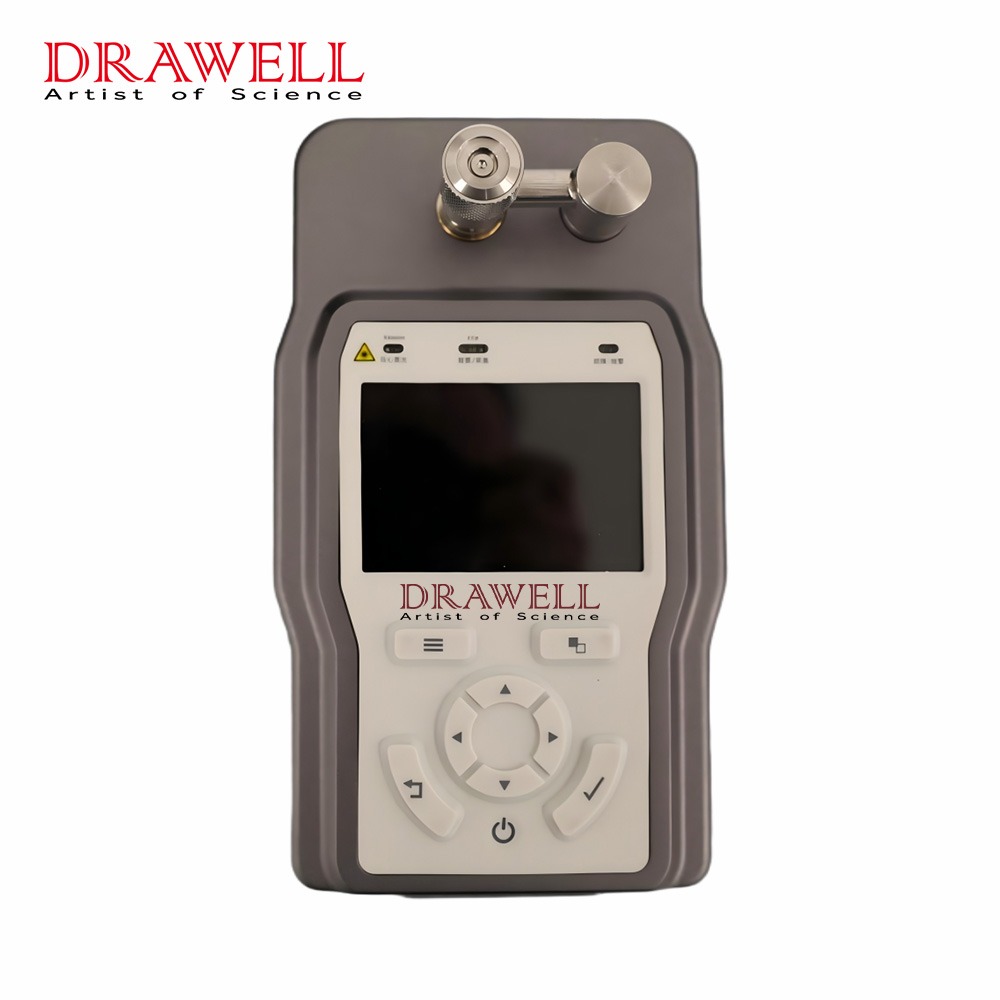

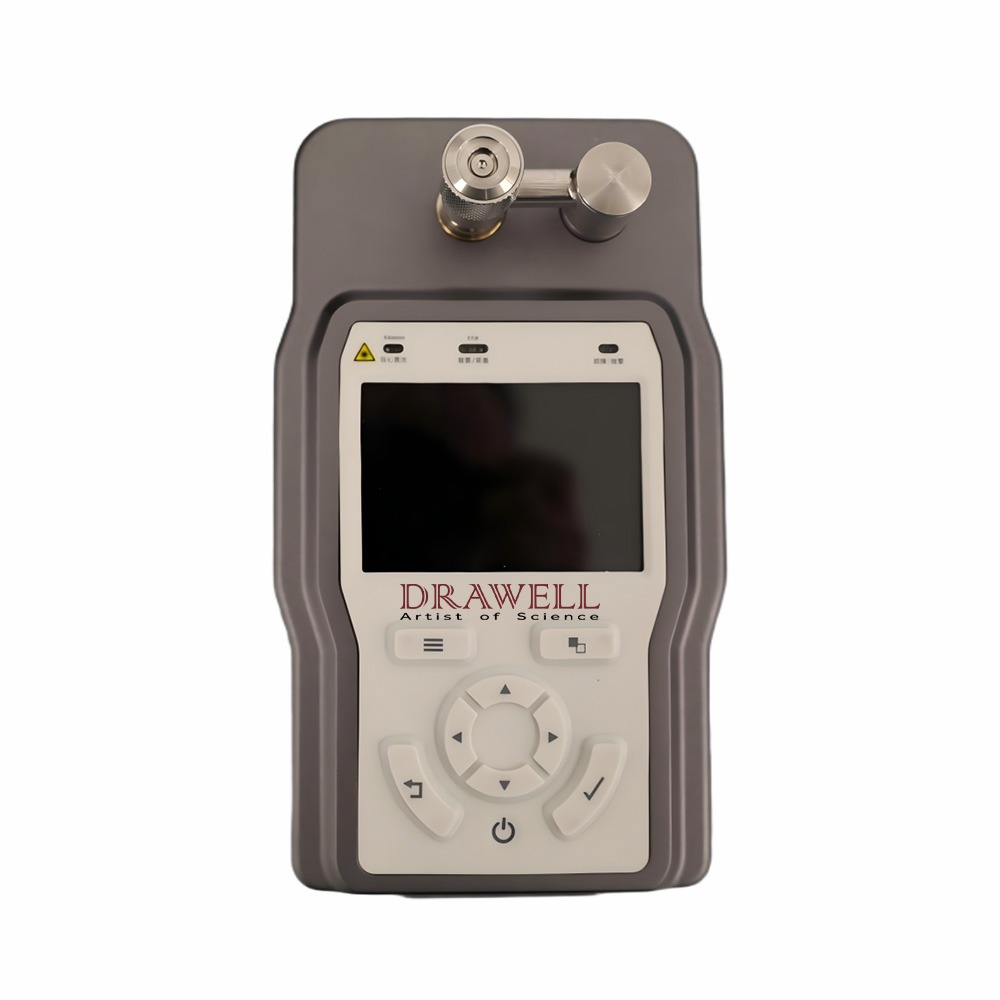

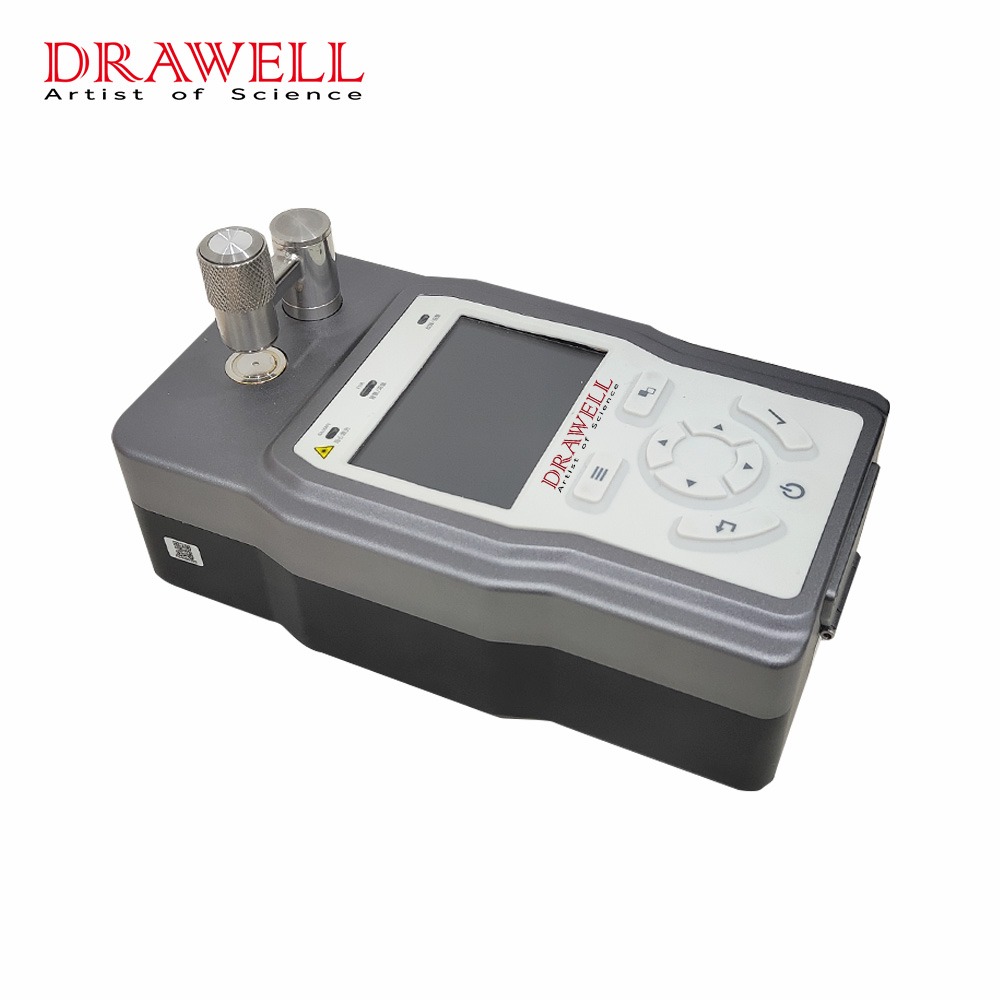

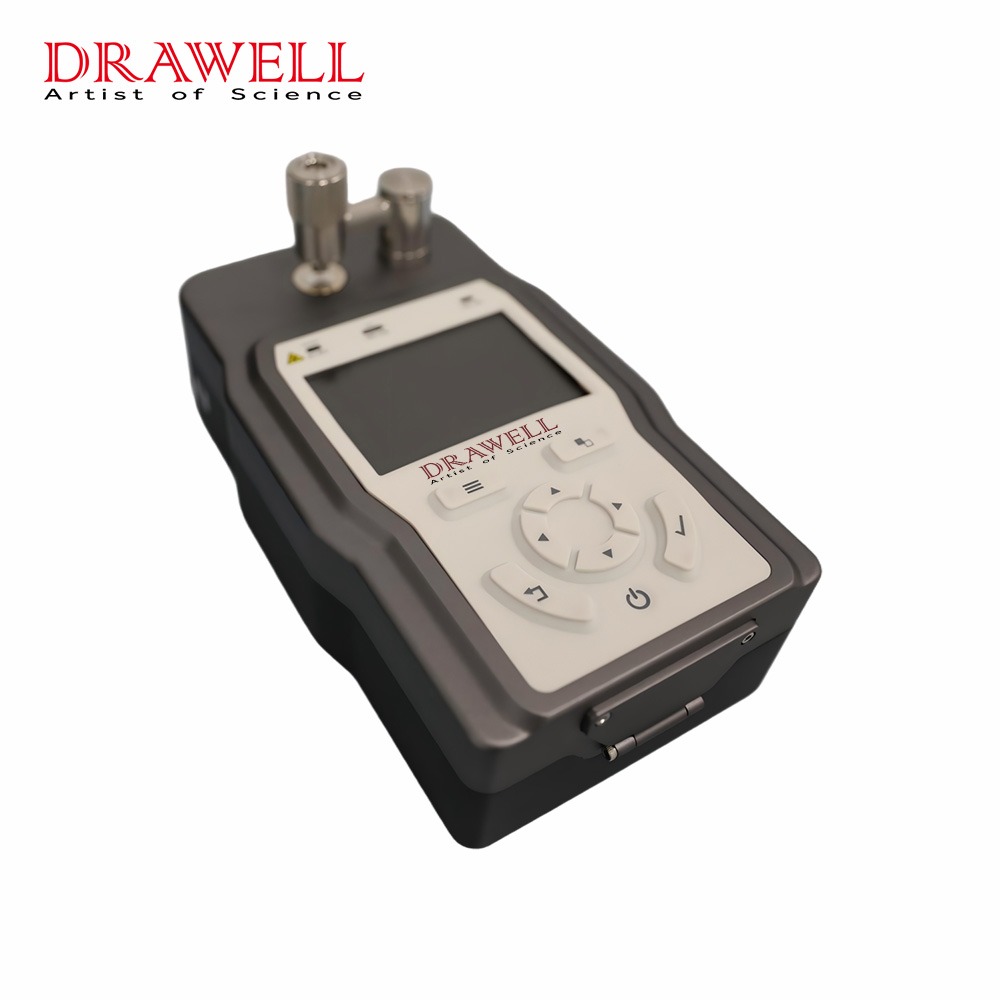

Portable Fourier Transform Infrared and Raman Spectrometer DW-FR10
As a lead manufacturer and supplier, Drawell Scientific has launched the DW-FR10 portable Fourier transform infrared and Raman spectrometer, combining the functionalities of both handheld Fourier transform infrared (FTIR) spectrometers and handheld Raman spectrometers, integrating FTIR technology with high-frequency Raman-based mapping spectroscopy. It not only achieves a wide range of chemical identification than standalone infrared or Raman spectrometers but also enables mutual validation of test results between the two technologies in specific applications, thereby enhancing credibility.
Advantages of Portable Fourier Transform Infrared and Raman Spectrometer DW-FR10
- Professional: Developed for on-site rapid testing needs, it supports handheld/portable operation and requires no complex pretreatment.
- Precise: By leveraging the synergy of complementary physical mechanisms (dipole moment and polarizability), it enables expanded capabilities in chemical substance identification, and improves the accuracy and reliability of analysis.
- Characteristic: Compact and lightweight, it meets unique requirements such as on-site rapid testing and mobile law enforcement.
- Innovative: The handheld integrated infrared-Raman spectrometer that combines Fourier transform infrared (FTIR) spectroscopy and high-frequency Raman-based mapping spectroscopy.
Application of Portable Fourier Transform Infrared and Raman Spectrometer DW-FR10
Applicable to rapid screening in multiple deployment scenarios across industries such as customs, military, armed police, public security, border defense, firefighting, and food & drug administration. It enables on-site qualitative analysis of suspicious substances (e.g., drugs, chemical agents, explosives, flammable/explosive materials) with various physical states (solids, powders, liquids, pastes, etc.), quickly obtaining test results to improve users’ disposal and decision-making processes.
Specifications of DW-FTIR-530Pro FT-IR Spectrometer
| Size | 214 mm × 124 mm × 63 mm |
| Weight | 1.95 kg |
| Spectral Range | Infrared: 4200–650 cm⁻¹; Raman: 175–2800 cm⁻¹ |
| Resolution | Infrared: Better than 4 cm⁻¹; Raman: Better than 10 cm⁻¹ |
| Testing Time | Infrared: ≤5 seconds; Raman: ≤3 seconds |
| Measurement Modes | Infrared: Single-reflection diamond ATR; Raman: Supports both single-point measurement and point-by-point mapping measurement |
| Operation Mode | Keypad operation |
| Battery | Built-in 18650 standard lithium battery (3.7V, 2 cells, usable for over 6 hours) |
| Database | 14,500 spectra, supporting self-built libraries |
| Language | Chinese/English, with one-click switching |
