DW-FTIR-530Pro FT-IR Spectrometer

The DW-FTIR-530Pro FT-IR Spectrometer is designed for laboratories that need higher sensitivity, stable long-term performance, flexible sample testing, and advanced FTIR application capability.

With a DLATGS detector, optional MCT detector, 7800–350 cm⁻¹ spectral range, 0.85 cm⁻¹ resolution, and signal-to-noise ratio better than 40,000:1, it is suitable for routine quality control, scientific research, pharmaceutical identification, polymer analysis, chemical testing, petroleum analysis, environmental testing, and advanced laboratory applications.

DW-FTIR-530Pro Manual DW-FTIR-530Pro Brochure
【Product Show】DW-FTIR-530 FT-IR Spectrometer New Design

Innovations of DW-FTIR-530Pro FT-IR Spectrometer

  • Real-time diagnosis of instrument status: real-time monitoring of instrument working status, performance and communication status.
  • Multiple detector options. Besides conventional normal temperature pyroelectric detectors, temperature-stabilized pyroelectric detectors and semiconductor refrigeration MCT detectors can also be selected to meet the needs of different customers.
DW-FTIR-530Pro
  • “Wire + Wireless” multi-communication mode. Adopting Ethernet and WIFI dual-mode communication to adapt to the development trend of “Internet + testing” instruments. Building a basic platform for users to conduct interconnection testing, remote operation, and maintenance, data cloud computing, etc.
  • DW-FTIR-530Pro
  • DW-FTIR-530Pro
  • Large sample room. With the large sample chamber design, besides the conventional liquid pool, ATR, and other commercially available conventional accessories, it can also be equipped with special accessories such as thermal red combination, microscope, etc. At the same time, it also reserves space for users to choose new accessories.
DW-FTIR-530Pro

Main FTOS Suite Software Workstation

DW FTIR 530Pro FT IR Main FTOS Suite Software Workstation
  • DW-FTIR-530Pro FT-IR Software
  • DW-FTIR-530Pro FT-IR Software-2
  • DW-FTIR-530Pro FT-IR Software
  • DW-FTIR-530Pro FT-IR Software

Features of DW-FTIR-530Pro FT-IR Spectrometer

  • High sensitivity optical system: cube-corner Michelson interferometer combined with patented fixing mirror alignment technology (Utility model ZL 2013 2 0099730.2: fixing mirror alignment assembly), to ensure long term stability, without the need of dynamic alignment which needs extra complicated electronic circuits. Reflecting mirrors are coated with gold to provide the maximum light throughput and ensure the detection sensitivity.
  • High stability modular partition design: compact structure modular design with layout on cast aluminum base and overall balance of mechanical robustness and partition heat dissipation, offering higher ability of deformation resistance and less sensitive to vibrations and thermal variations, greatly improves the mechanical stability and long-term working stability of the instrument.
  • Intelligent multi-sealed moisture-proof design: multiple sealed interferometers, large-capacity desiccant cartridge with visible window and easy replacement structure, real-time monitoring of temperature and humidity inside the interferometer, getting rid of influences of high temperature, high humidity and chemical corrosions to the optical system in many ways.
  • Innovated integration electronic system: high sensitivity pyroelectric detector pre-amplifier technology, dynamic gain amplification technology, high precision 24-bit A/D conversion technology, real-time control and data processing technology, digital filter, and network communication technology, ensuring high quality real-time data collection and high-speed transmission.
  • Good anti-electromagnetic interference capability: The electronic system is designed to meet CE certification and electromagnetic compatibility requirements, minimizing electromagnetic radiation in design and technology, in line with green instrument designing concept.
  • High intensity IR source assembly: High intensity, long lifetime IR source module, with the highest energy distributed in fingerprint region, adopts a reflex sphere design to obtain even and stable IR radiation.  External isolated IR source module and large space heat dissipation chamber design provide higher thermal stability and stable optical interference.

Why Choose DW-FTIR-530Pro?

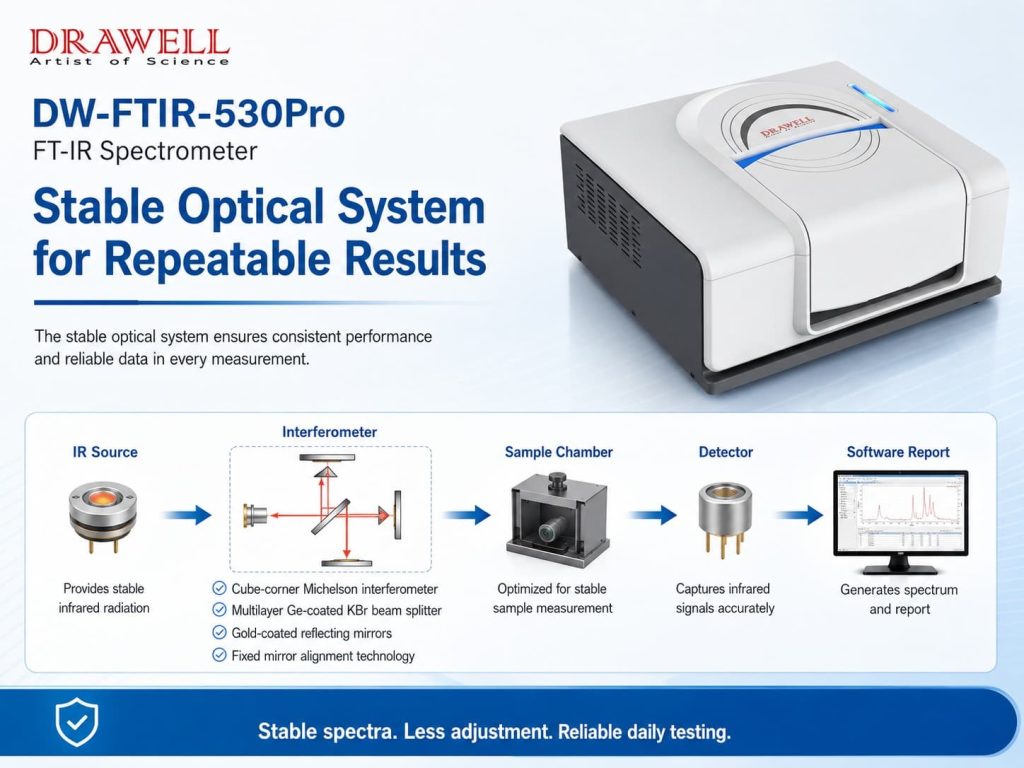

  • FTIR 530Pro 3

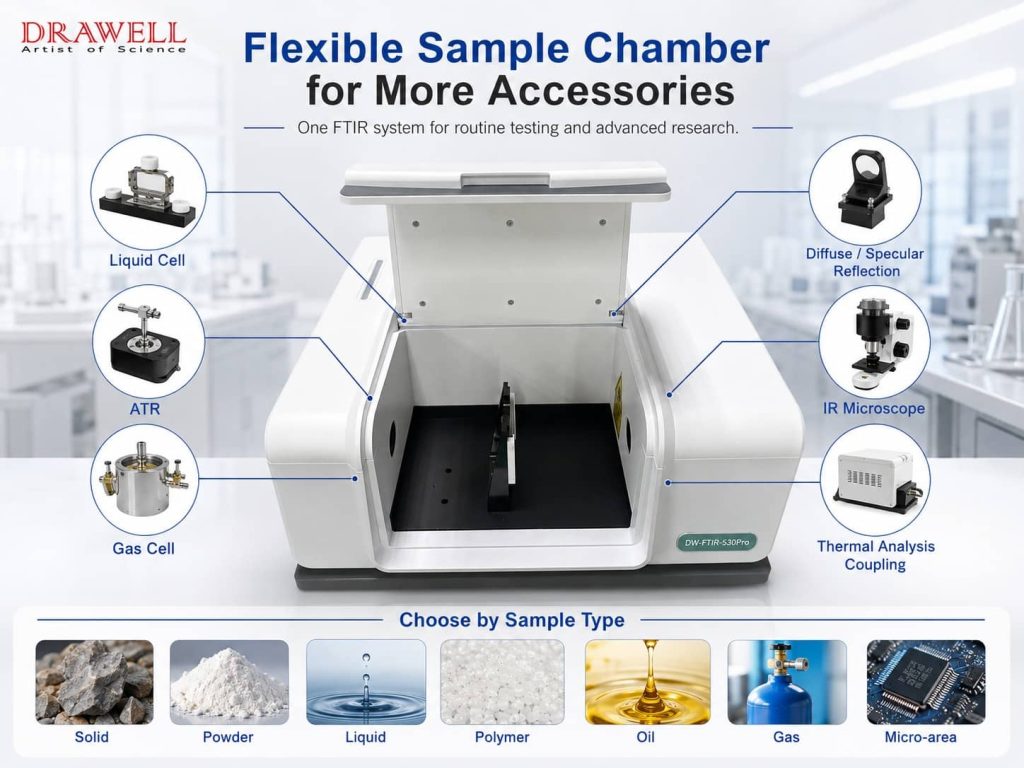

  • FTIR 530Pro 2

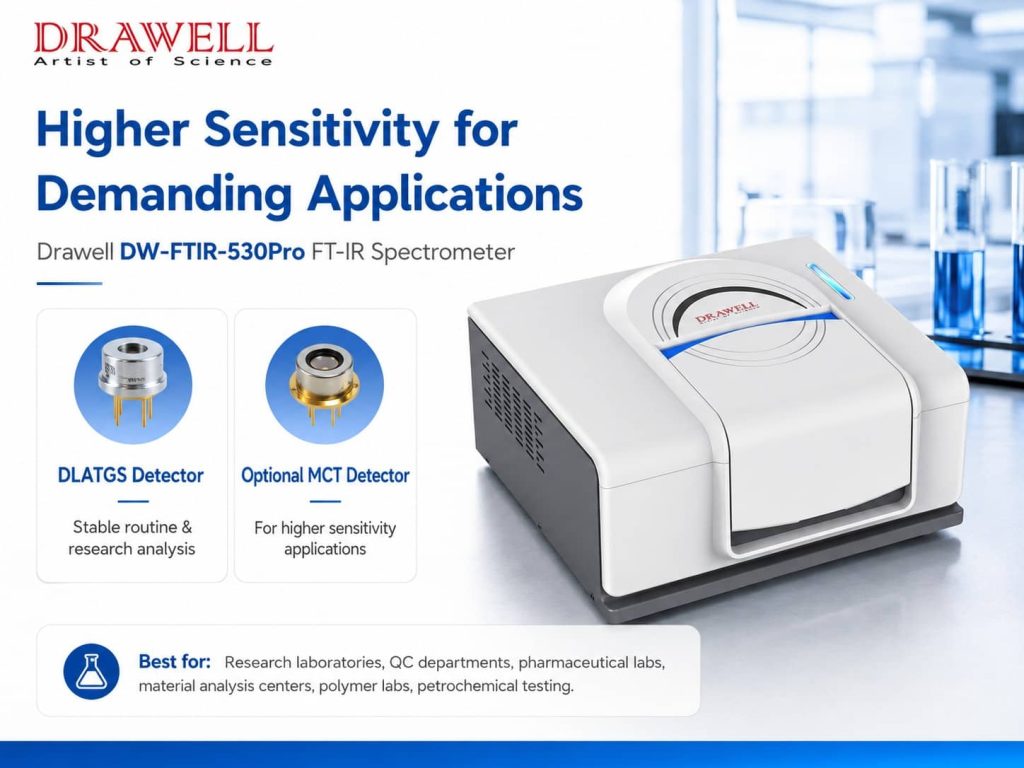

  • FTIR 530Pro 1

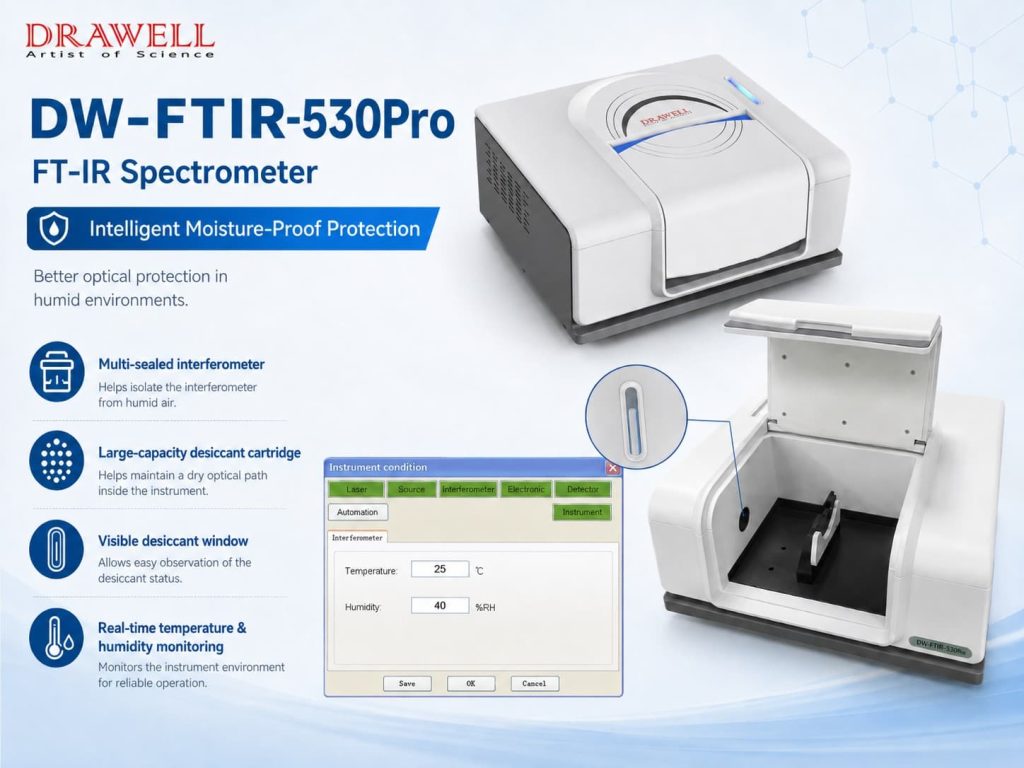

  • FTIR 530Pro 4

Recommended Configuration:

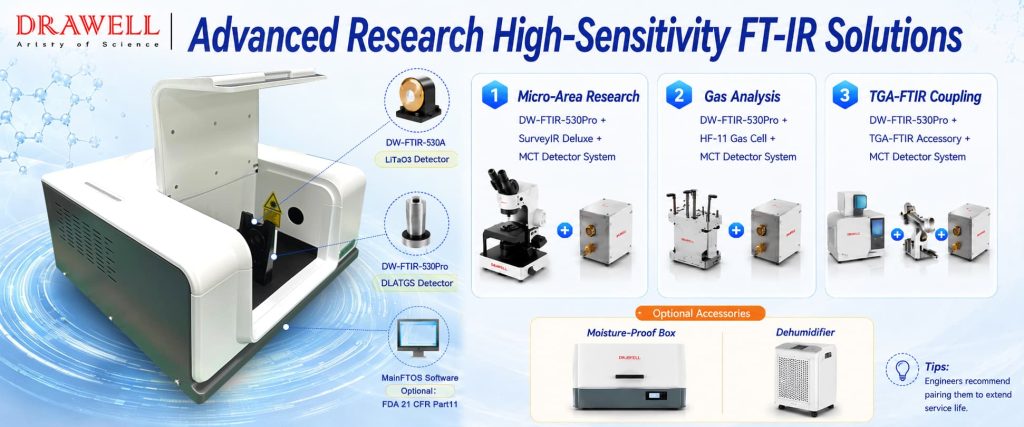

Advanced Research High Sensitivity FT IR Solutions1

Specifications of DW-FTIR-530Pro FT-IR Spectrometer

InterferometerCube-corner Michelson interferometer
Beam splitterMultilayer Ge coated KBr
DetectorDLATGSMCT detector (optional)
IR SourceHigh intensity, long lifetime, air-cooled IR source
Wavenumber Range7800cm-1~350cm-1
Resolution0.85 cm-1
Signal to noise ratioBetter than 40,000:1 (RMS value, at 2100cm-1 ~ 2200cm-1, resolution: 4cm-1, 1 minute data collection)
Wavenumber Accuracy±0.01 cm-1
Scanning SpeedMicroprocessor control, different scanning speed selectable.
SoftwareMainFTOS Suite software workstation, compatible with all versions of Windows OS
Optional SoftwareFDA 21 CFR Part 11 compliance software (optional)
InterfaceEthernet & WIFI wireless
Data OutputStandard data format, report generation and output
Status DiagnosisPower on self-check, real-time temperature and humidity monitoring and reminders
CertificationCEIQ/OQ/PQ (optional)
Environment Conditions Temperature: 10℃～30℃, humidity: less than 60%
Power SupplyAC220V/±22V, 50Hz/±1HzAC110V,60Hz (optional,free)
Dimensions & Weight 490×420×240 mm, 23.2kg
Standard AccessoriesTransmission sample holder
Optional Accessories Such as gas cell, liquid cell, Defused/Specular Reflection, single/multiple reflection ATR, IR Microscope etc.

DW-FTIR-530Pro FT-IR Spectrometer Display

  • DW-FTIR 530A
  • DW-FTIR 530A
  • DW-FTIR 530A
  • DW-FTIR 530A
  • DW-FTIR 530A plug
  • DW-FTIR 530A packaging

FAQ

The DW-FTIR-530Pro provides higher sensitivity, better expandability, and more flexible accessory compatibility than a routine FTIR system. It is suitable for both routine QC and advanced research applications.

The standard detector is DLATGS. An MCT detector is optional for applications that require higher sensitivity.

Yes. With ATR accessories and polymer spectral libraries, it can be used for polymer identification, material comparison, abnormal batch investigation, recycled material screening and reverse analysis.

Yes. Liquid samples can be tested with a demountable liquid cell, liquid ATR, horizontal ATR, or other suitable liquid sampling accessories depending on sample viscosity and volatility.

Yes. Gas samples can be tested with a gas cell. This configuration is suitable for gas-phase FTIR analysis and certain research applications.

Yes. The large sample chamber can support an optional IR microscope, which is suitable for micro-area analysis, trace sample testing, residue analysis and small defect investigation.

DLATGS is suitable for stable routine and research FTIR analysis. MCT detector is recommended for applications that need higher sensitivity, faster response, or advanced trace and micro-area analysis.

Yes. Optional FDA 21 CFR Part 11 compliance software and IQ/OQ/PQ documentation can be selected for pharmaceutical, GMP, regulated QC and data integrity applications.

The recommended environment is 10–30°C with humidity below 60%. A clean, stable, dry and well-ventilated laboratory environment helps protect the optical system and maintain stable performance.

For fine powder samples, KBr pellet transmission testing is common. For larger particle powders, diffuse reflectance can be selected after grinding.

ATR accessories, liquid cells, or horizontal ATR can be selected depending on the sample viscosity, testing purpose and required sensitivity.

Yes. It is suitable for teaching, scientific research, material analysis, chemical analysis, polymer studies, pharmaceutical research and multi-field laboratory applications.
