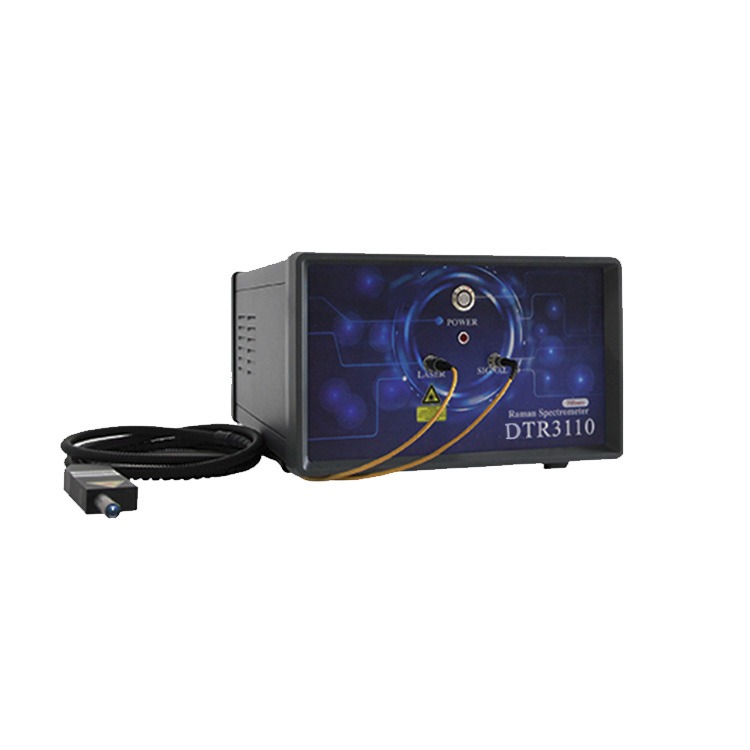

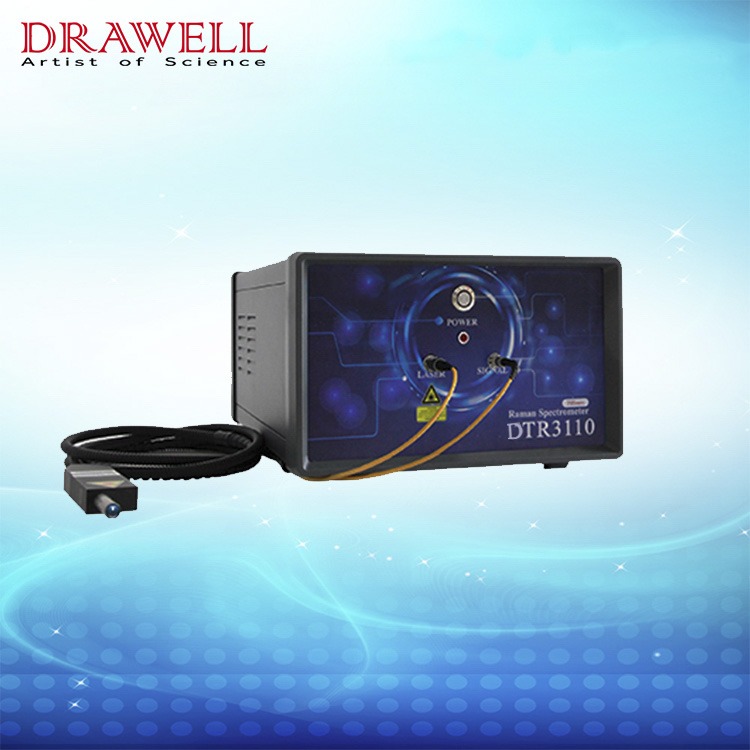

DTR3110-633 Portable Raman Spectrometer
DTR3110-633 portable Raman spectrometer is suitable for field operation. The outstanding reliability makes the detection result much more accurate. The excellent low stray light conditions that enable the spectrometer has a wide range of application, especially in public safety, food safety, and pharmaceutical engineering. The multi-function software facilitated the spectral analysis process in application and the remote experiment through internet access makes the test item much easier.
Features of DTR3110-633 Portable Raman Spectrometer
- Ultra-high sensitivity FFT-CCD TE-cooled;
- low noise circuit;
- Powerful embedded software;
- Fluorescent background eliminate;
- Peak finding and display;
- 10.1-Inch LCD;
- Win 10 operation system;
- 11.6-inch capacitive touch screen, multi-touch;
- USB 2.0;
- User friendly human-machine interface;
- Battery life> 3h;
- Remote control via LAN;
- IP67 case;
Application of DTR3110-633 Portable Raman Spectrometer
- Biological science
- Pharmaceutical engineering
- Forensic analysis
- Agriculture and food safety
- Gemstone
- Environmental science
Specifications of DTR3110-633 Portable Raman Spectrometer
|
DTR3110-633 System |
|
|
Interface |
USB 2.0/LAN |
|
Operate system |
Windows |
|
Integration time |
1ms – 64s |
|
Power voltage |
DC 5V(+/-5%) |
|
Operate temp. |
-5~40 °C |
|
Operate humidity |
< 95% |
|
Size (L*W*H) |
33×25.6×16.5cm3 |
|
Weight |
5.2Kg |
|
Reliability |
|
|
Spectral stability |
σ/μ < 0.5%(COT8hours) |
|
Temp. stability |
< 1cm-1(5-40 °C) |
|
Spectral intensity shift (in5~40 °C) |
<±5% |
|
Optical parameters |
|
|
Spectral range |
200-3700cm-1 |
|
Resolution |
12cm-1 |
|
SNR |
>1500:1 |
|
Incident slit |
50μm |
|
Optical path |
f/4 C-T |
|
Focus distance |
98 mm for incidence and output |
|
Detector |
|
|
Model |
Ultra-high sensitivity TE-cooled CCD |
|
Effective pixels |
2048 |
|
Dynamic range |
50000:1 |
|
Pixel size |
14μmx200μm |
|
Full well capacity |
300 Ke- |
|
Sensitivity |
25 μV/e- |
|
Laser |
|
|
Central wavelength |
633nm (±0.5nm) |
|
FWHM |
<0.1nm |
|
Power output |
<50mW |
|
Power stability |
σ/μ <±0.5% |
|
Raman probe |
|
|
Working distance |
6mm |
|
Rayleigh scattering resistance |
OD>8 |
|
Numerical aperture |
0.3 |
|
Light through aperture |
7mm |
