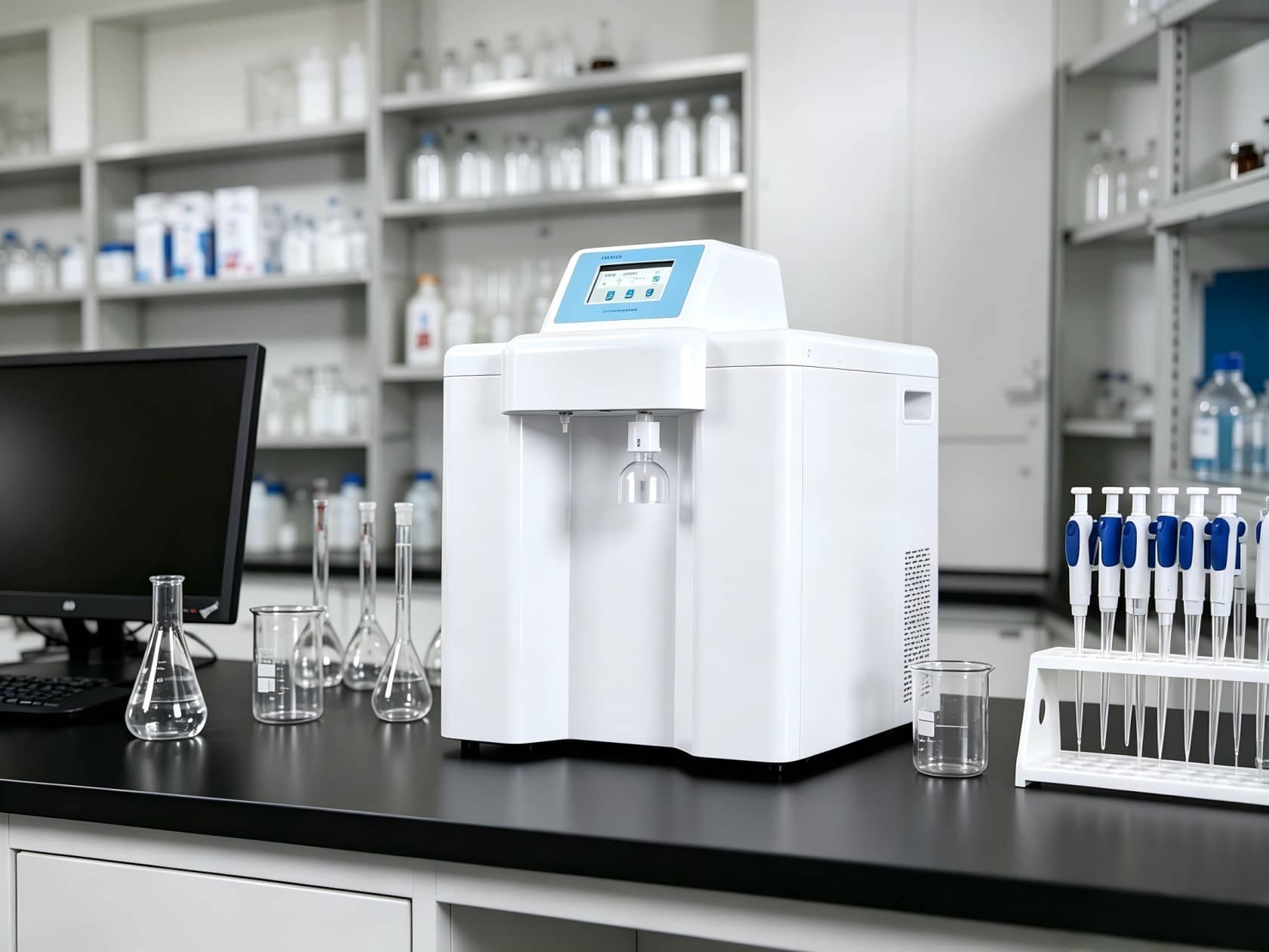

Master Touch-S/D series Ultrapure Water System (Tap water inlet)

  1. Master Touch series ultrapure water system with 5.0 inch touch screen system, 3 way water quality sensor, 2 way flow sensor for quantified dispensing and 1 pump.
  2. With pure water or distilled water inlet, its output is up to 2 liters/minute.
  3. It can produce deionized water and ultrapure water.
  4. The deionized water’s resistivity is above 5MΩ.cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm.
  5. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.
Master Touch series Manual
Master Touch series Brochure

Features and Advantages

  1. 5.0-Inch HD Touchscreen: 16:9 color interface provides intuitive operation and clear system monitoring.
  2. Up to 18.2 MΩ·cm Ultrapure Water: 4-in-1 cartridge with DOW polishing resin ensures high resistivity and low TOC.
  3. 185/254 nm Dual-Wavelength UV: Reduces TOC and inhibits microbial growth.
  4. MWCO 5,000 Da Ultrafiltration: Removes endotoxins for cell culture, IVF, and other sensitive applications.
  5. 0.45 + 0.10 μm PES Final Filter: Minimizes particles and microorganisms at the dispensing point.
  6. DOW RO Membrane: PP fiber, KDF, and activated carbon pretreatment support stable desalination and extend membrane life.
  7. 3-Point Water Quality Monitoring: Monitors feed, RO, deionized, or ultrapure water with automatic alarms.
  8. Quantitative Dispensing: Dual flow sensors enable preset-volume dispensing of RO, deionized, or ultrapure water.
  9. Automatic Circulation, Sanitization and Flushing: Maintains water quality, disinfects tubing and valves, and protects the RO membrane.
  10. Intelligent Cartridge Management: Displays cartridge usage and remaining life based on time and water quality.
  11. Multiple Safety Alarms: Alerts for no feed water, full tank, abnormal water quality, and cartridge expiration.
  12. Data Storage and USB Export: Built-in SD card records operating data for traceability and management.
  13. GLP-Compatible Design: Includes Level II password protection, 0–60-minute standby, 0–24-hour shutdown, three-door cartridge access, NSF-certified tubing, and multiple tank options.

Applications

Scientific Research and Laboratories

Scientific Research and Laboratories

General Experiments: Reagent preparation, solvents for physicochemical analysis, and water for cleaning glassware used in universities and research institutes.
Precision Instruments: High-purity water for instruments such as HPLC, AAS, and ICP.

Industry and Electronics

Industry and Electronics

Microelectronics: Cleaning and ultrapure water preparation for integrated circuits, semiconductors, circuit boards, and cathode ray tubes, as well as surface cleaning and treatment.
Fine Chemicals: Raw materials used in the production of high-end daily chemical products, fine chemicals, and inks and coatings.

Pharmaceuticals and Medical Services

Pharmaceuticals and Medical Services

Pharmaceutical Water: Used for the production and preparation of large-volume parenteral solutions, injections, oral liquids, and other pharmaceutical products.
Medical Devices: Water supply for hospital central laboratories, hemodialysis centers, and the cleaning of medical equipment.

Food and Beverages

Food and Beverages

Beverage Purification: Water used in the production of bottled water, carbonated beverages, fruit juices, and beer.
Brewing and Processing: Blending of food additives and cleaning and disinfection of food processing equipment.

Accessories

Filter cartridge filter bottle


Filter cartridge + filter bottle

  • It intercepts silt and rust, adsorbs residual chlorine and organic matter, and protects the downstream RO membrane.(prevents scaling)
  • Removes 95-99% of ions
  • Removes bacteria, viruses, and organic matter

Ultrapure water circulating tank

The inner layer is made of low-leaching, surfactant-free, adhesive-free, and colorless filler HDPE; the top is equipped with a standard side-mounted air filter (adsorbing CO2 and organic matter); the water tank is equipped with a standard immersion 254nm germicidal UV lamp to control microbial growth and reduce TOC.

Ultrapure water circulating tank
RO membrane scaled

RO membrane

The main function of RO membranes is to remove salt, heavy metals, bacteria and colloids from water on a large scale, to preliminarily purify water sources and significantly reduce the consumption of downstream purification columns.

Ultrapurification Module

  • Removes organic matter
  • Increases to 18.2 MΩ·cm
  • Removes trace ions
Ultrapurification Module
Master seriesItem No.CommodityService life/ Replacement term
PC-M-PP5μmPP spun fiber cartridgeAbout 2-6 months
PC-M-KDFKinetic degradation fluxion cartridgeAbout 12 months
PC-M-AC-GGranular active carbon cartridgeAbout 6 months
RO-100GPD100GPD RO membraneAbout 12-24 months
RO-200GPD200GPD RO membraneAbout 12-24 months
PTC-AC-HZB1Post active carbon filterAbout 9000 liters pure water
PTC-MBR-MMixed bed resin cartridgeAbout 1000 liters pure water
PTC-MBR-M4 About 4000 liters pure water
PTC-UPPR-MUltrapure polishing resin cartridgeAbout 1000 liters pure water/ pc
PTC-UPPR-M4 About 4000 liters pure water
PTC-UPPR-MV About 1000 liters pure water
PTC-UPPR-M4V About 4000 liters pure water
TF-(0.45+0.1) um-S(0.45+0.1)μm terminal filter–
UF-5000DMWCO5000D UF cartridgeAbout 9000 hours
UV-(185nm&254nm)-10W-MDouble wavelength (185nm&254nm)UV cartridge–
LAMP-(185nm&254nm)-10W-MDouble wavelength (185&254nm) UV lampAbout 9000 hours
UV-254-10W-M254nm wavelength UV cartridge
LAMP-254-10W-M254nm wavelength UV lampAbout 9000 hours

Master Touch S/D series Ultrapure Water System Pictures

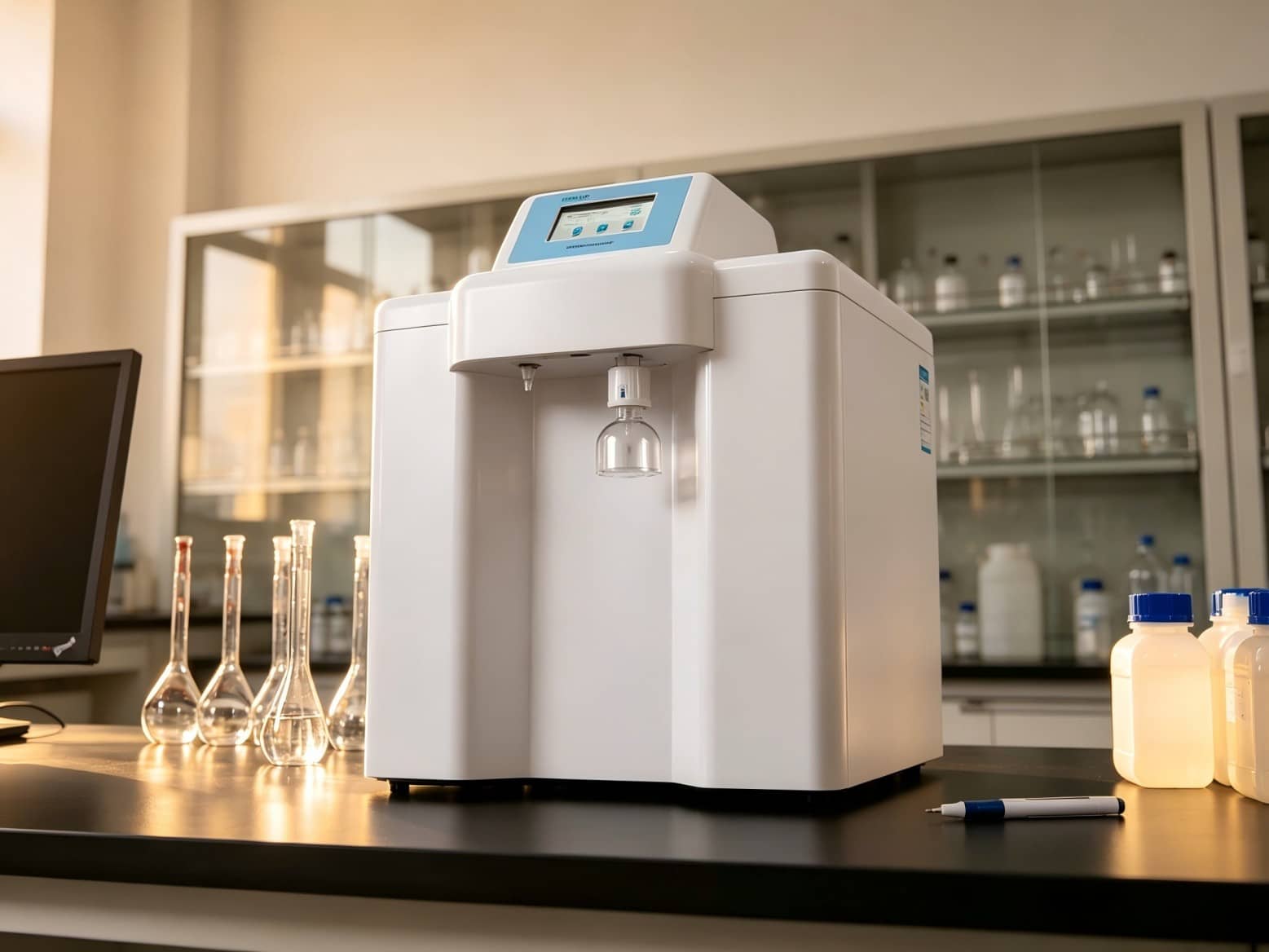

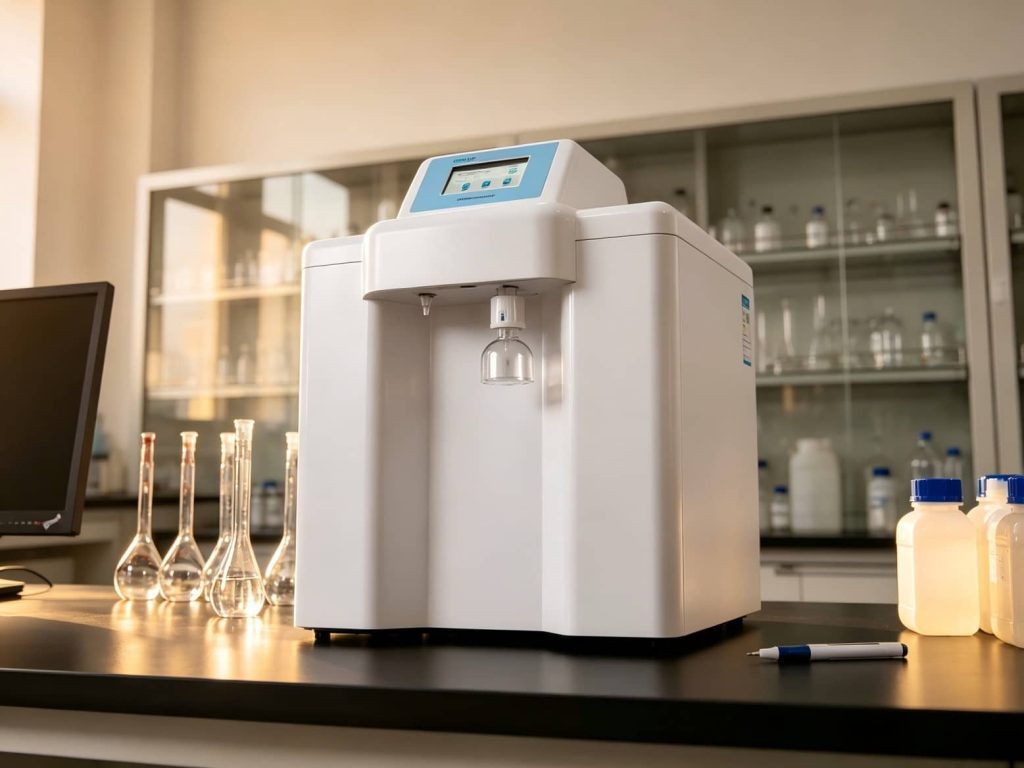

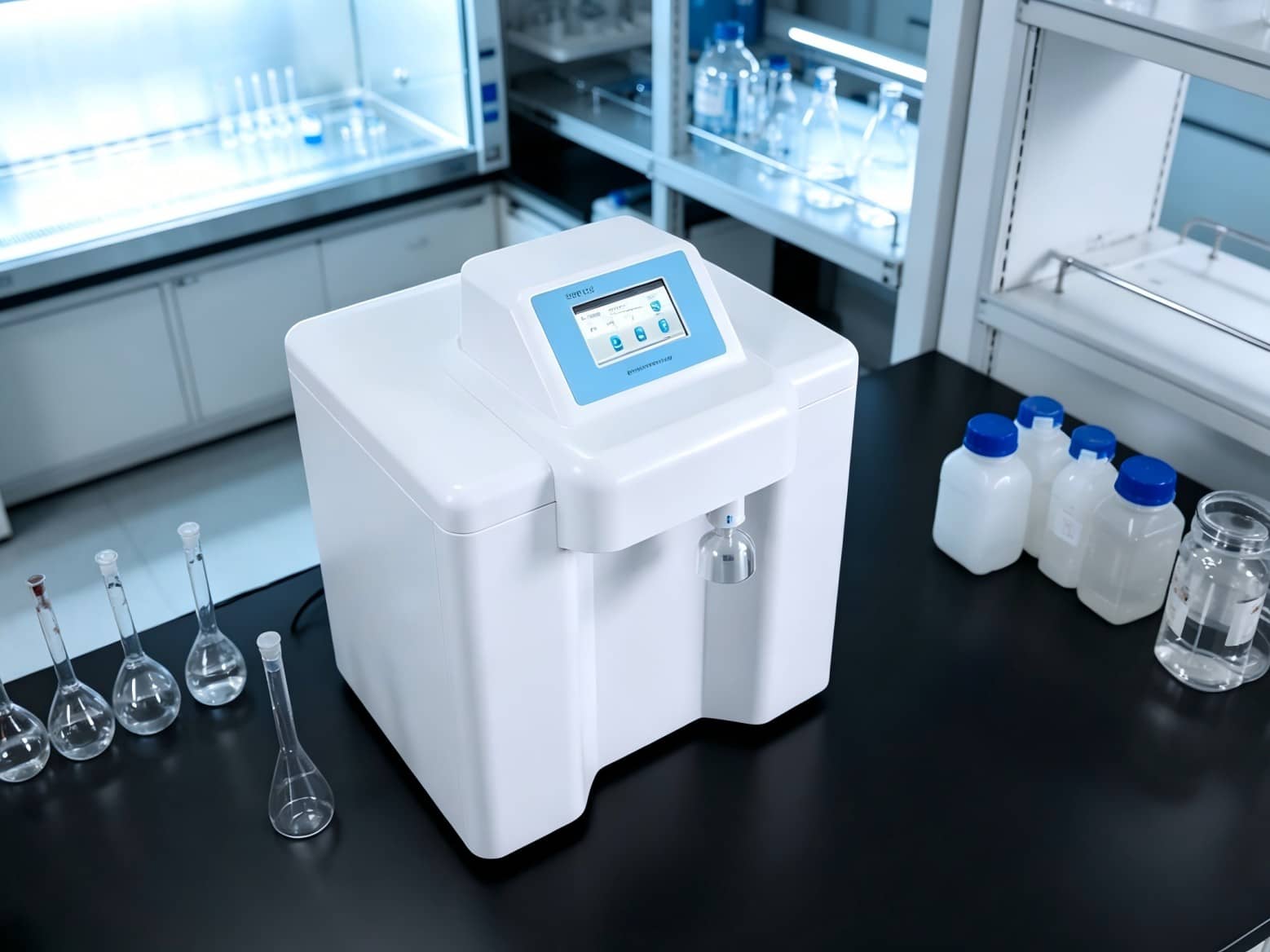

MASTER TOUCH SERIES-A

Reviews of Drawell Master Touch-S/D series Ultrapure Water System

  • Master Touch D Touch series
  • Master Touch S Touch series

FAQ

5-inch color touchscreen; built-in storage can store one year’s worth of operation, water intake, and alarm records; USB export to Excel; complies with GLP and laboratory audit requirements.

It has two-level access passwords, separate for users and administrators, restricting unauthorized modification of water quality, consumables, and rinsing parameters.

3 water quality sensors (raw water/RO water/UP ultrapure water) + 2 flow sensors; ECO only monitors a single water quality channel, while Master provides real-time monitoring of all three water quality levels.

S/Q models connect to tap water; D series models connect only to distilled water/purchased pure water, requiring no pretreatment, suitable for mass spectrometry and high-end molecular experiments.

The D series does not have a tap water pretreatment filter, eliminating the need for pretreatment consumable replacement, but the influent must be pure water that meets standards, making it suitable for laboratories with existing water purification equipment.

Stable at 18.2 MΩ・cm, meeting ASTM, CAP, CLSI, EP, and USP Class 1 pure water standards.

The UVF model has RNase < 0.01 ng/ml and DNase < 4 pg/ul, fully suitable for PCR, nucleic acid, and protein experiments.

Endotoxin < 0.001 Eu/ml; works with automatic circulation for sterilization throughout the entire system.

It features UP water circulation throughout the system to maintain high resistivity; supports one-button sterilization of the entire system’s piping.

The flushing interval and duration can be freely set, and manual forced flushing is also possible.

Master Touch-D series ultrapure water system (Distilled water inlet)

With 5.0 inch touch screen system, 3 way water quality sensor, 2 way flow sensor for quantified dispensing and 1 pump, Master Touch-D series ultrapure water system is superior choice of ultrapure water for high grade experiments.

With pure water or distilled water inlet, its output is up to 2 liters/minute. It can produce deionized water and ultrapure water. The deionized water’s resistivity is above 5MΩ.cm, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

Specifications

ModelStandardEliminating endotoxinLow TOCSynthesizing
Master Touch-DMaster Touch-DUFMaster Touch-DUVMaster Touch-DUVF
OutputUp to 2 liters/minute (less output with UF cartridge)
Pure water outlet2: deionized water, ultrapure water
Ultrapure water quality
Resistivity(25℃)18.2MΩ.cm
TOC*<10ppb<10ppb<3ppb<3ppb
Bacteria<0.1cfu/ml
Particle(>0.1μm)<1/ml
EndotoxinN/A＜0.001Eu/mlN/A＜0.001Eu/ml
RNasesN/A<0.01ng/mlN/A<0.01ng/ml
DNasesN/A<4pg/μlN/A<4pg/μl
Deionized water quality
Resistivity(25℃)>5MΩ.cm
Feed water requirementsRO water, distilled water, deionized water, 5-45℃,1atm*
Dimension and weightLength×Width×Height:500×360×540mm / Weight: about 18Kg
Electrical requirementsAC110-240V, 50/60Hz
Power120W
Standard configurationMain body (Including 1 set of cartridge)

Remarks: The value will be influenced by temperature and feed water’s quality.

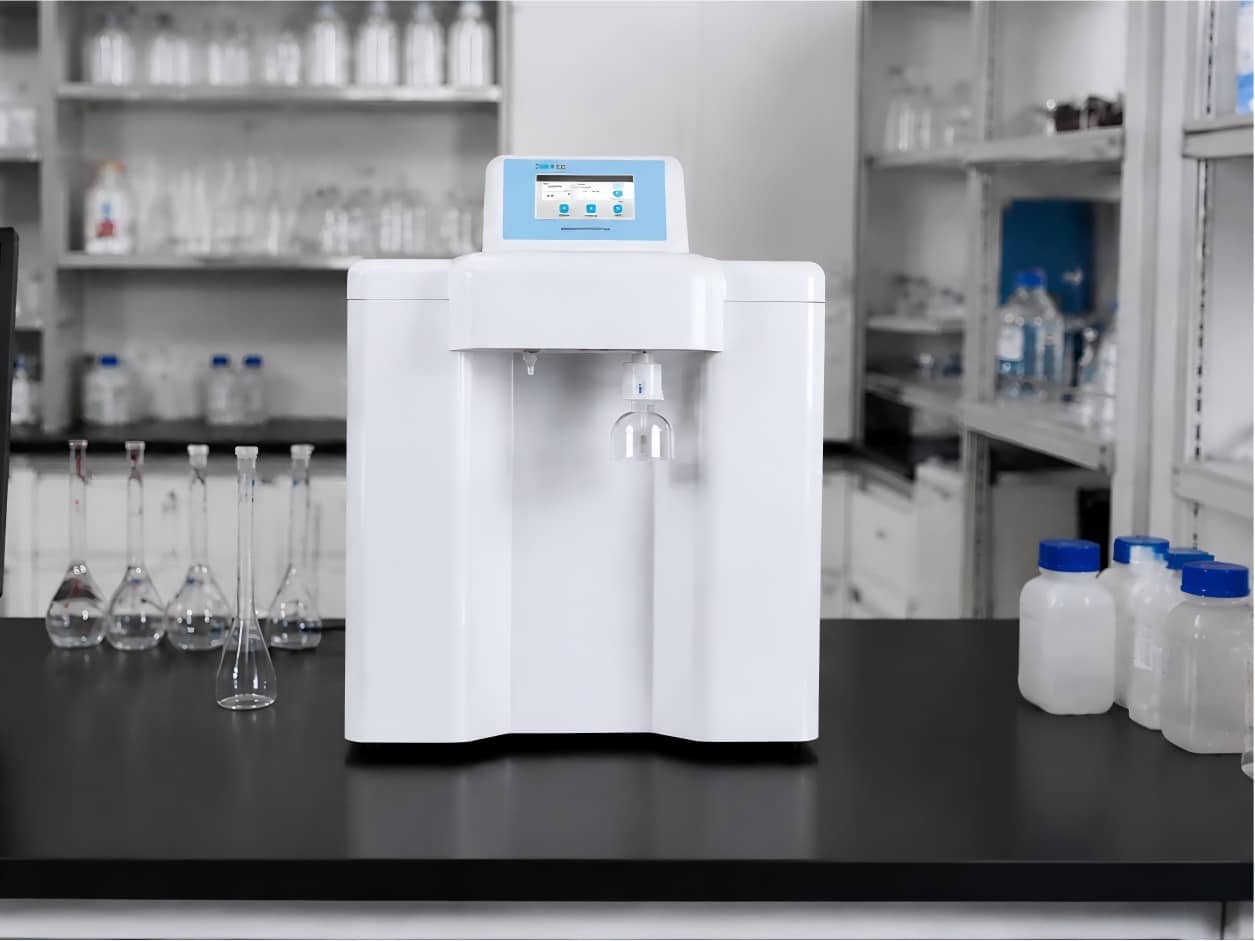

Master Touch-D Series Ultrapure Water System (Distilled water inlet) Display

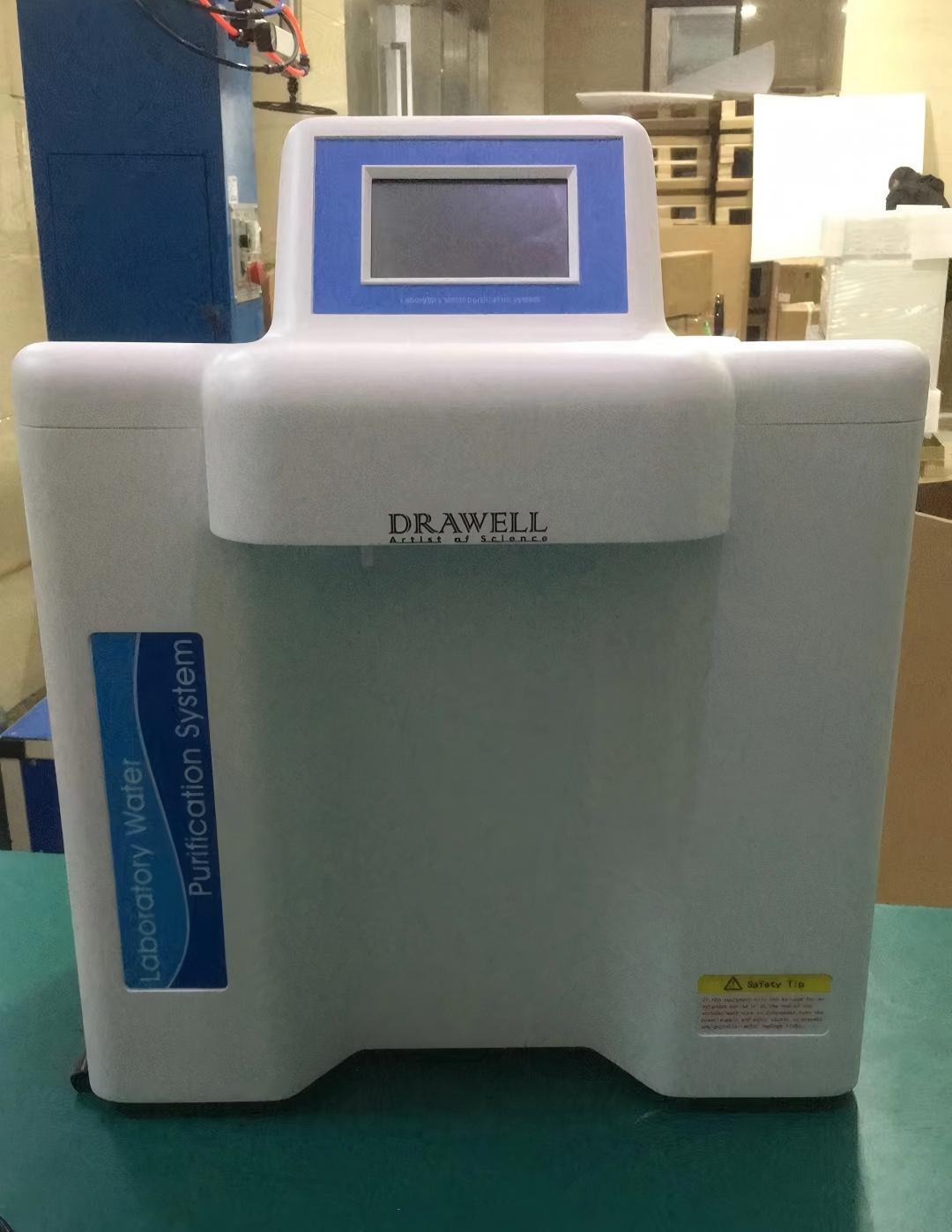

  • Master Touch-D series ultrapure water system (Distilled water inlet)

Master Touch-S series ultrapure water system (Tap water inlet)

With 5.0 inch touch screen system, 3 way water quality sensor, 2 way flow sensor for quantified dispensing, single stage RO system and 2 pumps, Master Touch-S series ultrapure water system is superior choice of ultrapure water for high grade experiments.

With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and ultrapure water. The single stage RO water’s ion rejection rate is more than 96%, and the ultrapure water’s resistivity absolutely reaches to 18.2MΩ.cm. It completely meets the highest grade I standard of ASTM, CAP, CLSI, EP and USP.

Specifications

ModelStandardEliminating endotoxinLow TOCSynthesizing
Master Touch-S15Master Touch-S15UFMaster Touch-S15UVMaster Touch-S15UVF
Master Touch-S30Master Touch-S30UFMaster Touch-S30UVMaster Touch-S30UVF
Output(25℃)*15series-15 liters/hour, 30 series-30 liters/hour
Flow rateUp to 2 liters/minute (with pressure tank)
Pure water outlet2: reverse osmosis water, ultrapure water
Ultrapure water quality
Resistivity(25℃)18.2MΩ.cm
TOC*<10ppb<10ppb<3ppb<3ppb
Bacteria<0.1cfu/ml
Particle(>0.1μm)<1/ml
EndotoxinN/A＜0.001Eu/mlN/A＜0.001Eu/ml
RNasesN/A<0.01ng/mlN/A<0.01ng/ml
DNasesN/A<4pg/μlN/A<4pg/μl
RO water quality
Ion rejection rate96%-99% (new RO membrane)
Organic rejection rate>99%, when MW>200 Dalton
Particles and bacteria rejection rate>99%
Feed water requirementsTap water, temperature:5-45℃,pressure:1.0-4.0Kgf/cm2
Dimension and weightLength×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirementsAC110-240V, 50/60Hz
Power120W
Standard configurationMain body (Including 1 set of cartridge)+15 liters pressure tank

Remarks: The value will be influenced by temperature and feed water’s quality.

Master Touch-S Series Ultrapure Water System (Tap water inlet) Display

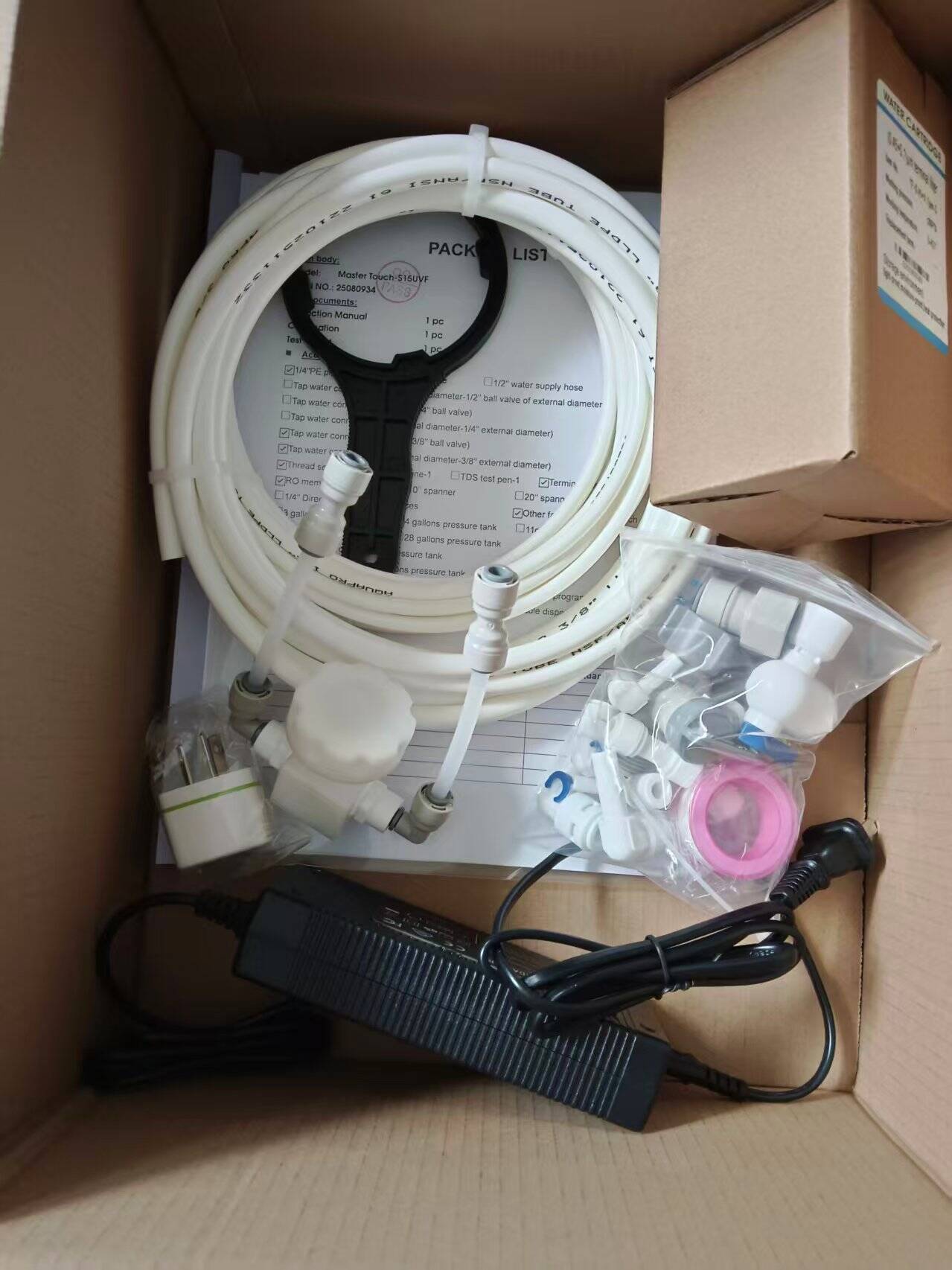

  • Master Touch-S series ultrapure water system (Tap water inlet)

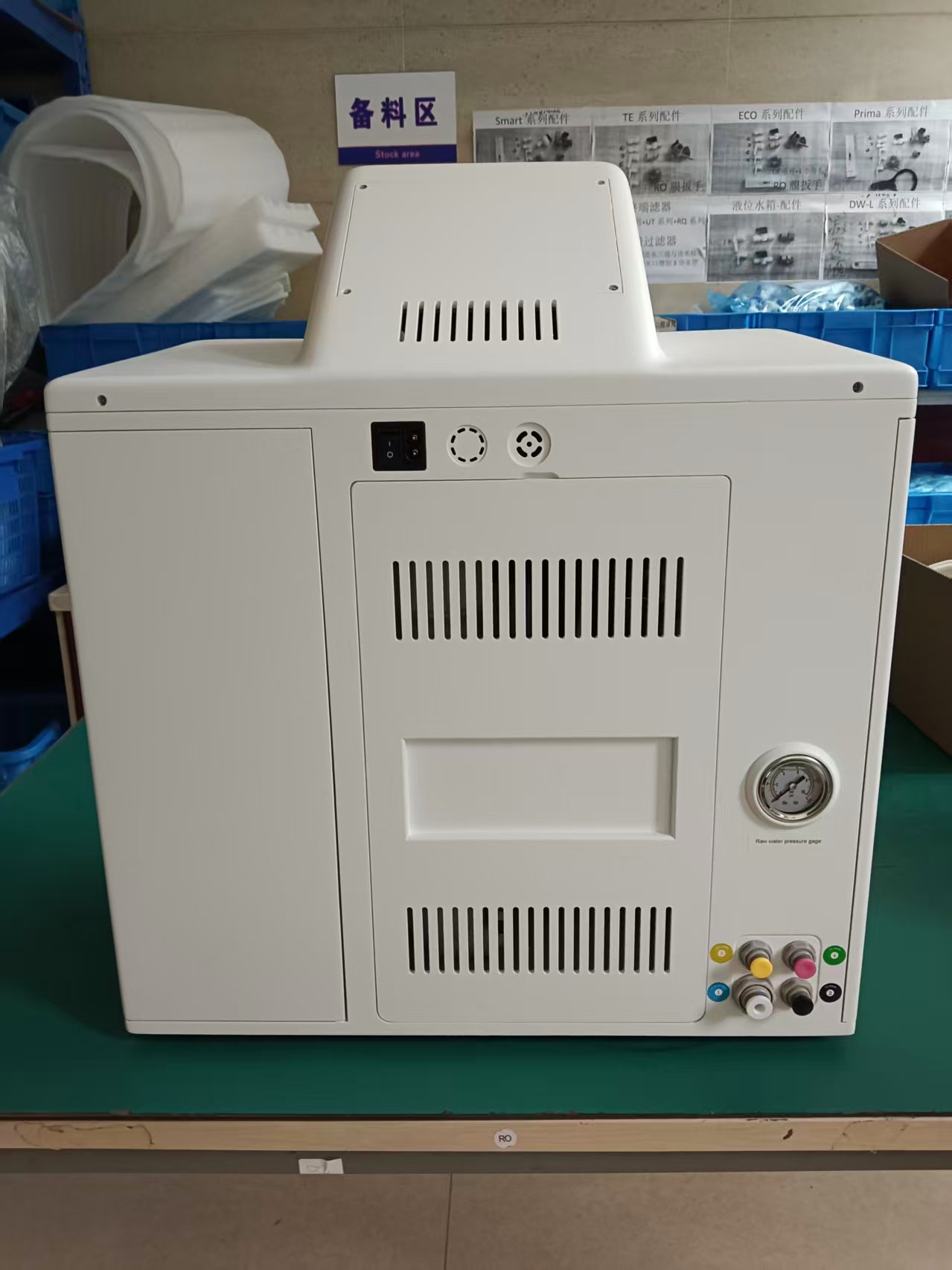

  • Master Touch-S series ultrapure water system (Tap water inlet)

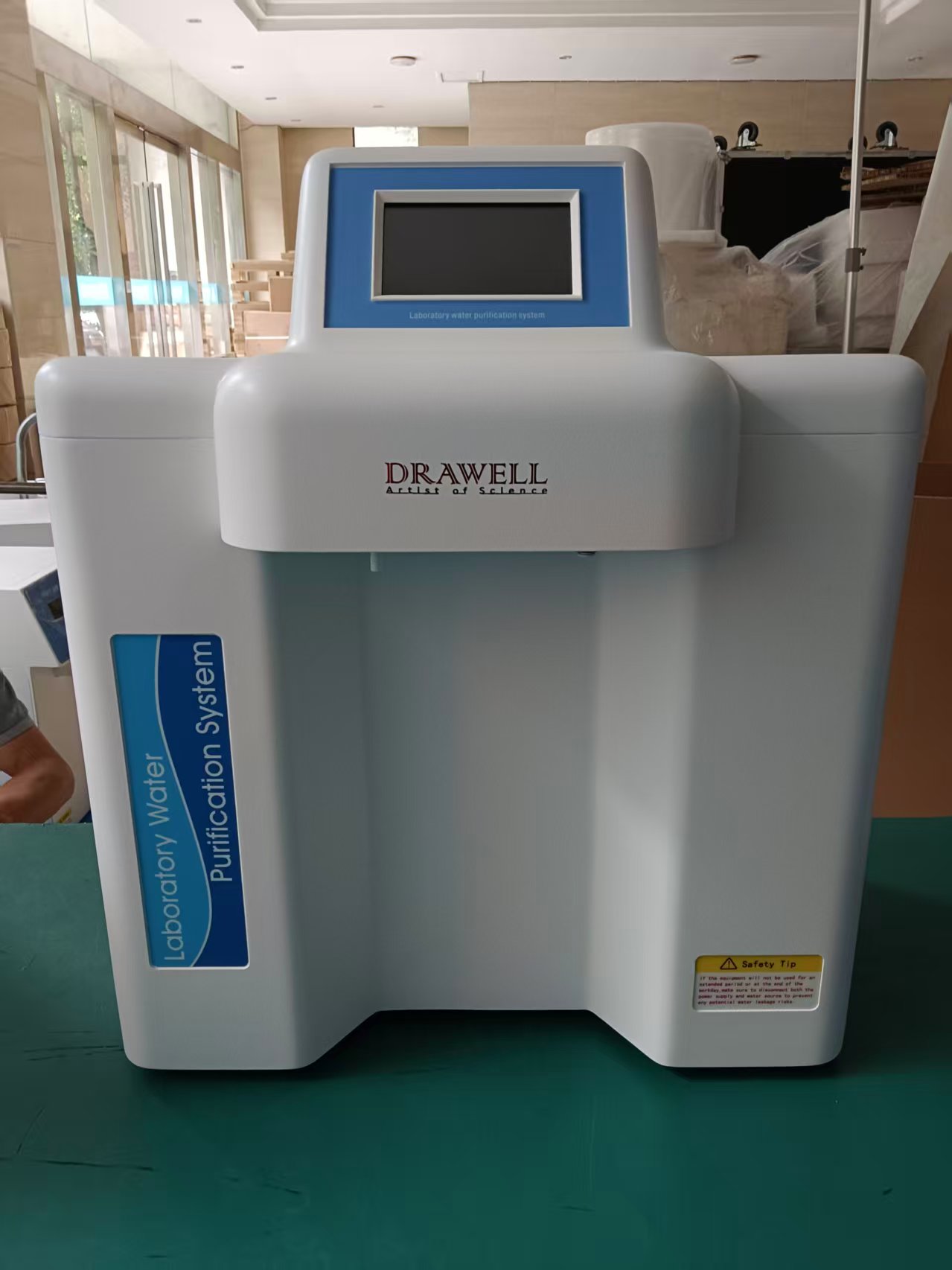

  • Master Touch-S series ultrapure water system (Tap water inlet)

Master Touch-Q series deionized water system (Tap water inlet)

With 5.0 inch touch screen system, 3 way water quality sensor, 2 way flow sensor for quantified dispensing, single stage RO system and 1 pump, Master Touch-Q series deionized water system is superior choice of deionized water for general grade experiments.

With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and the deionized water’s resistivity is more than 16MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

Specifications

ModelMaster Touch-Q15Master Touch-Q15UTMaster Touch-Q30Master Touch-Q30UT
Output(25℃)*15 liters/hour30 liters/hour
Flow rateUp to 2 liters/minute (with pressure tank)
Pure water outlet2: reverse osmosis water, deionized water
Deionized water quality
Resistivity16-18.2MΩ.cm
BacteriaN/A<0.1cfu/mlN/A<0.1cfu/ml
Particle(>0.1μm)N/A<1/mlN/A<1/ml
RO water quality
Ion rejection rate96%-99% (new RO membrane)
Organic rejection rate>99%, when MW>200 Dalton
Particles and bacteria rejection rate>99%
Feed water requirementsTap water, temperature:5-45℃,pressure:1.0-4.0Kgf/cm2
Dimension and weightLength×Width×Height:500×360×540mm / Weight: about 20Kg
Electrical requirementsAC110-240V, 50/60Hz
Power120W
Standard configurationMain body (Including 1 set of cartridge)+15 liters pressure tank

Remarks: The value will be influenced by temperature and feed water’s quality.
