Medium-Q Series Deionized Water System (Tap water inlet)
With LCD controlling system, 3 way water quality sensor, timing and quality dispensing, stainless steel shell, built-in 2 set pressure tanks, single stage RO system and 1 pump, Medium-Q series deionized water system is superior choice of deionized water’s mass usage for general grade experiments.
With tap water inlet, its output ranges from 45 to 125 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and the deionized water’s resistivity is more than 10MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

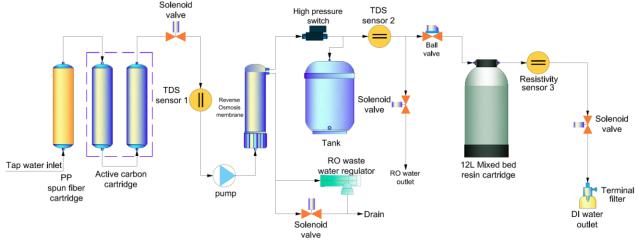

Flow Schematic
Specifications
| Model | Medium-Q300 | Medium-Q400 | Medium-Q600 | Medium-Q800 |
| Output(25℃)* | 45 liters/hour | 63 liters/hour | 94 liters/hour | 125 liters/hour |
| Pure water outlet | 2: reverse osmosis water, deionized water | |||
| Deionized water quality | ||||
| Resistivity | 10-18.2MΩ.cm | |||
| Bacteria | <0.1cfu/ml | |||
| Particle(>0.2μm) | <1/ml | |||
| RO water quality | ||||
| Ion rejection rate | 96%-99% (new RO membrane) | |||
| Organic rejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Feed water requirements | Tap water, temperature:5-45℃,pressure:1.0-4.0Kgf/cm2 | |||
| Dimension and weight | Length×Width×Height:640×540×1110mm / Weight: about 65Kg | |||
| Electrical requirements | AC110-240V, 50/60Hz | |||
| Power | 120W | 240W | ||
| Standard configuration | Main body (Including 1 set of cartridge) +2 set built-in 15 liters pressure tank | |||
Remarks:
*The value will be influenced by temperature and feed water’s quality.
