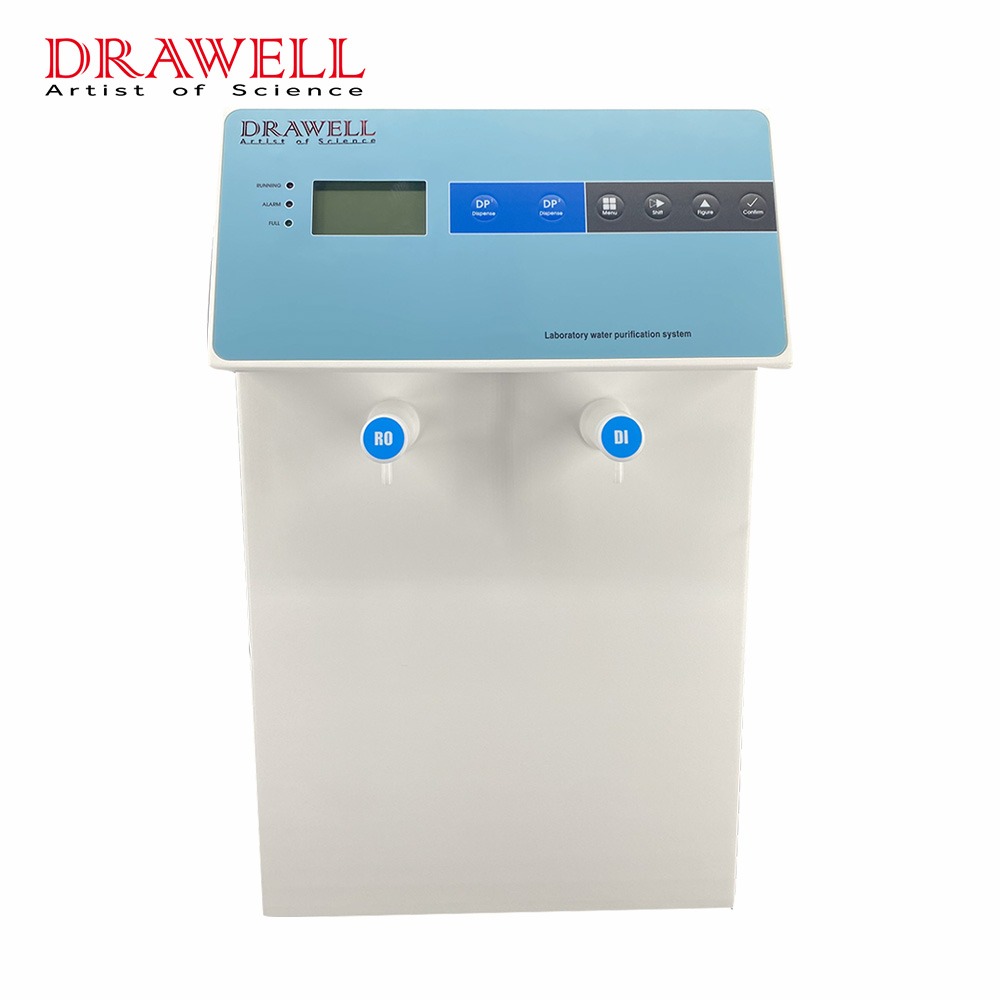

ECO-Q Series Deionized Water System (Tap water inlet)
With LCD controlling system, 2 way water quality sensor, timing and quality dispensing, single stage RO system,1 pump, and built-in 12 liters tank, Eco-Q series deionized water system is economic choice of deionized water for general grade experiments.
With tap water inlet, its output ranges from 15 to 30 liters/hour. It can produce single stage RO water and deionized water. The single stage RO water’s ion rejection rate is more than 96%, and the deionized water’s resistivity is more than 16MΩ.cm, near to18.2MΩ.cm. It completely meets the requirements of general chemical or biological experiments for pure water.

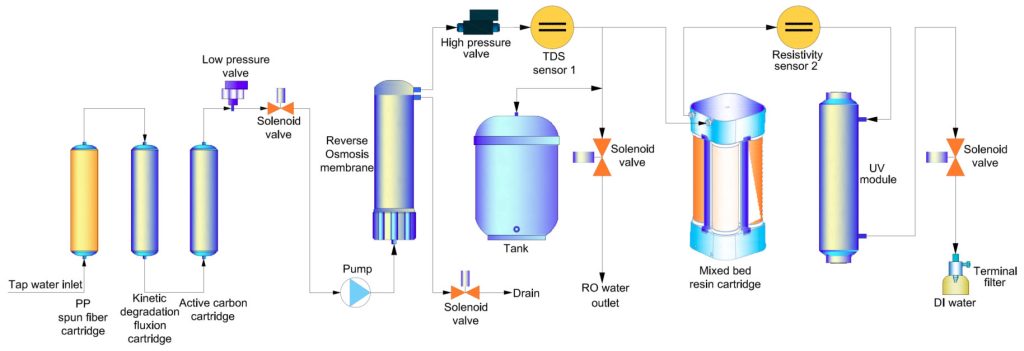

Flow Schematic
Specifications
| Model | Eco-Q15 | Eco-Q15UT | Eco-Q30 | Eco-Q30UT |
| Output(25℃)* | 15 liters/hour | 30 liters/hour | ||
| Flow rate | Up to 2 liters/minute (with pressure tank) | |||
| Pure water outlet | 2: reverse osmosis water, deionized water | |||
| Deionized water quality | ||||
| Resistivity | 16-18.2MΩ.cm | |||
| Bacteria | N/A | <0.1cfu/ml | N/A | <0.1cfu/ml |
| Particle(>0.1μm) | N/A | <1/ml | N/A | <1/ml |
| RO water quality | ||||
| Ion rejection rate | 96%-99% (new RO membrane) | |||
| Organic rejection rate | >99%, when MW>200 Dalton | |||
| Particles and bacteria rejection rate | >99% | |||
| Feed water requirements | Tap water, temperature:5-45℃,pressure:1.0-4.0Kgf/cm2 | |||
| Dimension and weight | Length×Width×Height:340×500×560mm / Weight: about 18Kg | |||
| Electrical requirements | AC110-240V, 50/60Hz | |||
| Power | 72W | |||
| Standard configuration | Main body (Including 1 set of cartridge)+built-in 12 liters pressure tank | |||
Remarks:
*The value will be influenced by temperature and feed water’s quality.
