L3 Split Beam VIS Spectrophotometer

L3 Split Beam VIS Spectrophotometer survey optical system, and blazed holographic gratings. They have outstanding test precision and very competitive prices. and blazed holographic gratings. Its 8-inch color touchscreen supports quantitative analysis, spectrum scanning, kinetics and multi-wavelength measurements for routine QC and research laboratories.

  • 325–1100 nm
  • 1.8 nm Bandwidth
  • ±0.5 nm Accuracy
  • ≤0.03%T Stray Light
  • Automatic 8-Position Cuvette Holder
L3 Brochure

Features of L3 Split Beam VIS Spectrophotometer

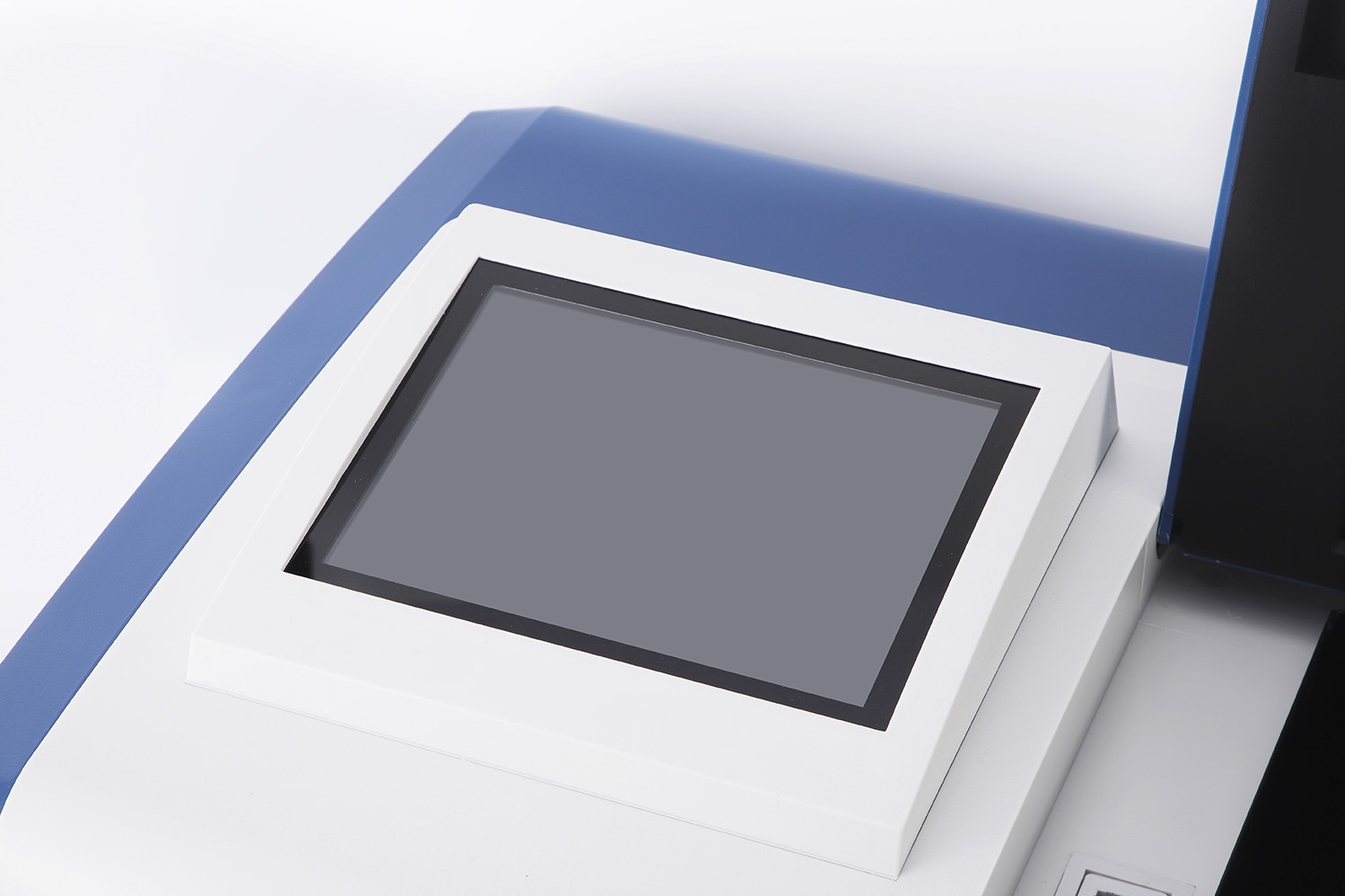

  1. 8-Inch Color Touchscreen: Provides clear data display and convenient operation.
  2. Automatic 8-Position Cuvette Holder: Reduces manual sample switching for repeated and multi-sample measurements.
  3. Advanced Analysis Functions: Supports linear regression, direct concentration reading, spectrum scanning and time-based kinetics.
  4. Multi-Wavelength & Peak/Valley Detection: Includes multi-wavelength measurement, peak/valley detection and GOTO λ function.
  5. Automatic Zero & Full Scale: Simplifies routine measurement preparation and calibration.
  6. Internal Memory & Power Protection: Stores test results, scanned spectra, regression equations and correction data for fast restart.
  7. USB PC Connectivity, Optional Software

Applications of L3 Split Beam VIS Spectrophotometer

DV-8200 Application in Education & Teaching Laboratories

Education & Teaching Laboratories

Widely used in teaching laboratories for demonstrating Beer-Lambert Law, calibration curves, and basic qualitative and quantitative analysis of colored solutions.

DV-8200 Application in Chemical & Industrial Process Control

Chemical & Industrial Process Control

Measuring absorbance-based color intensity and tracking reaction kinetics in dyes, coatings, inks, and electroplating solutions for routine industrial quality control.

DV-8200 Application in Pharmaceutical & Biotech Quality Control

Pharmaceutical & Biotech Quality Control

Used for quantitative analysis of APIs and finished products with visible absorbance, dissolution testing, and optional basic DNA/protein quantification and reaction kinetics monitoring via PC software.

DV-8200 Application in Water & Environmental Analysis

Water & Environmental Analysis

Used for routine colorimetric determination of ammonia nitrogen, total phosphorus, Cr⁶⁺, nitrite, and volatile phenols in environmental water quality monitoring.

DV-8200 Application in Food & Agricultural Quality Control

Food & Agricultural Quality Control

For colorimetric detection of nitrite, nitrate, phosphate, peroxide value, and pigments in food and agricultural products for quality control compliance.

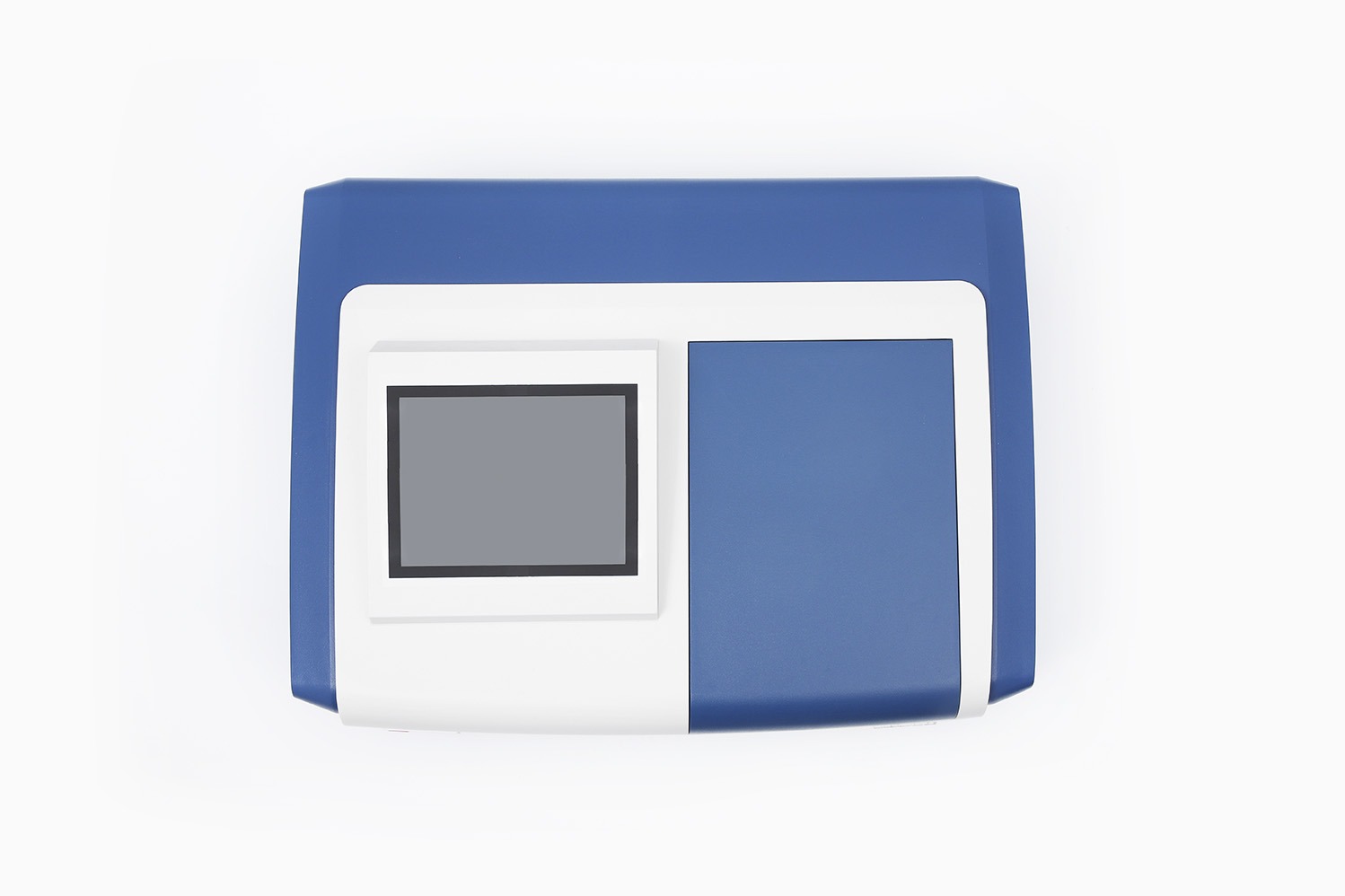

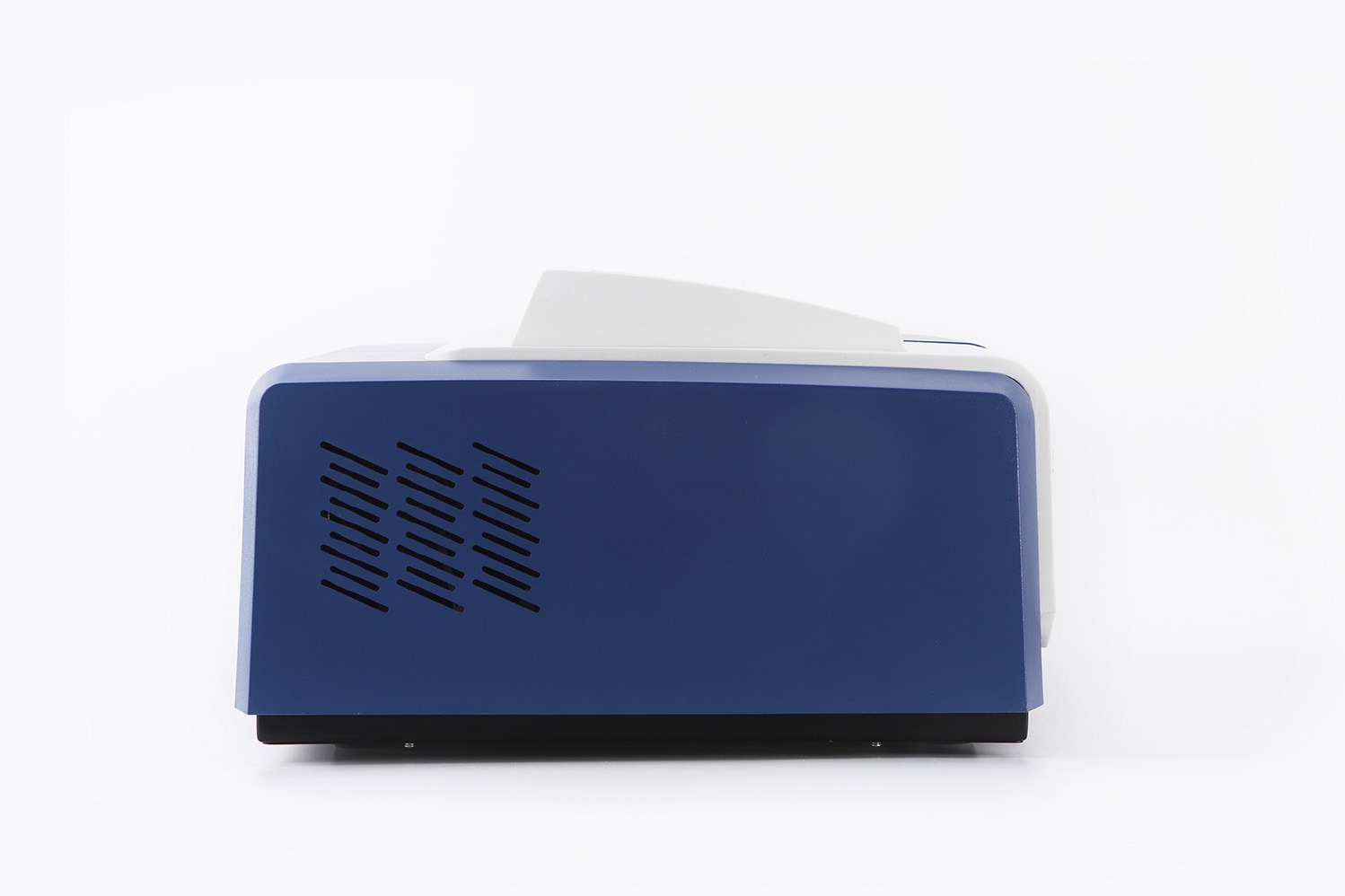

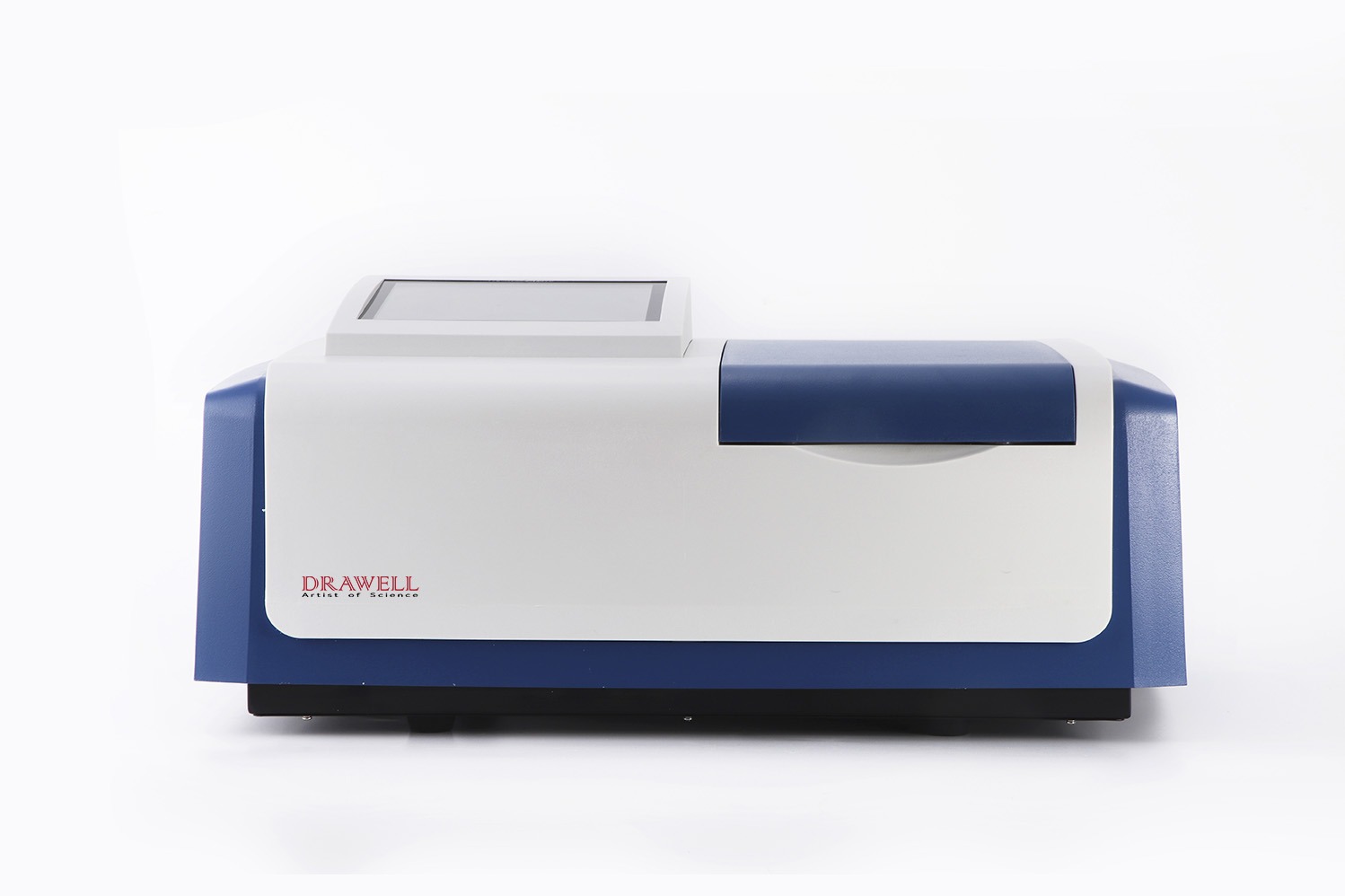

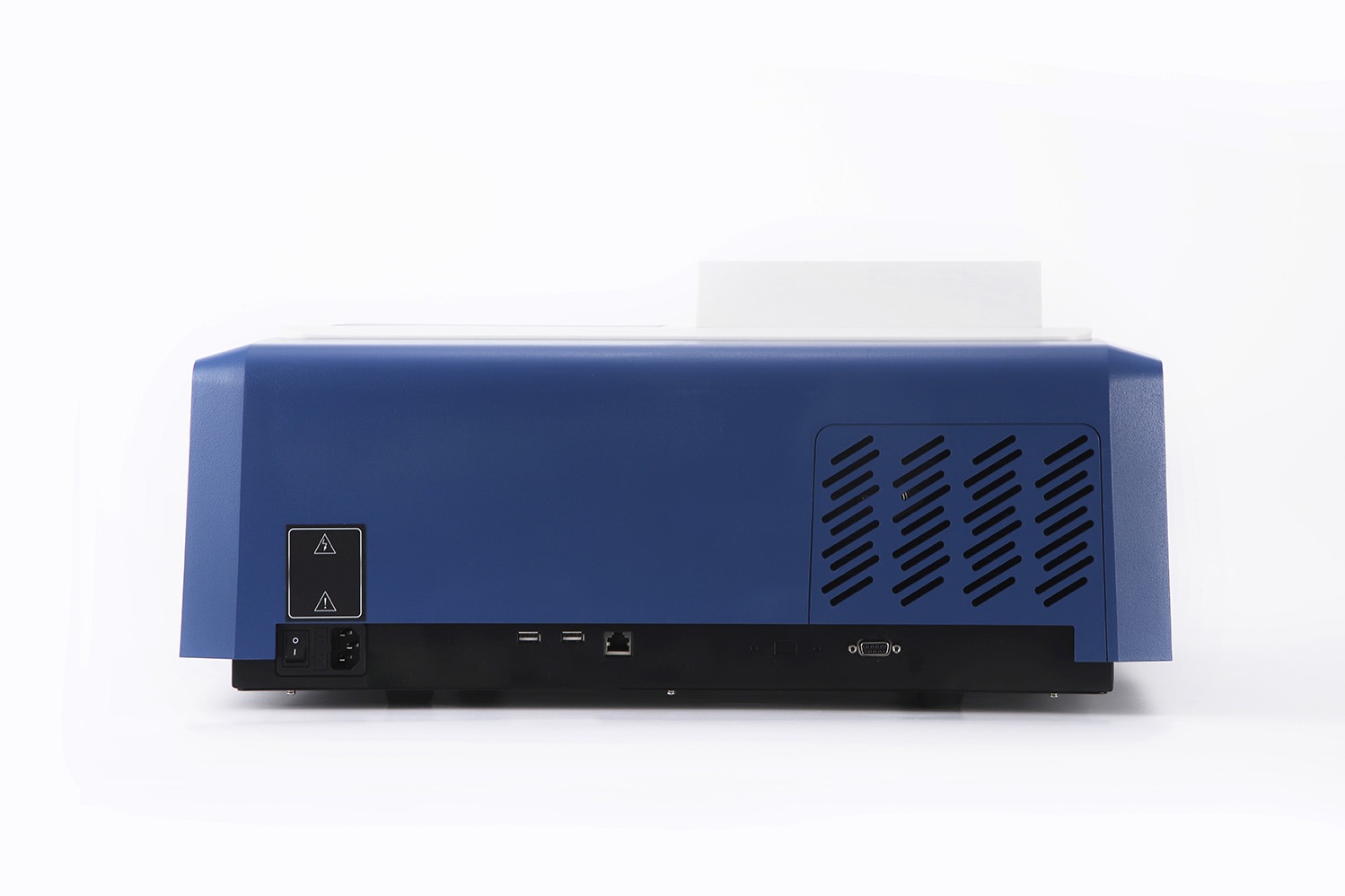

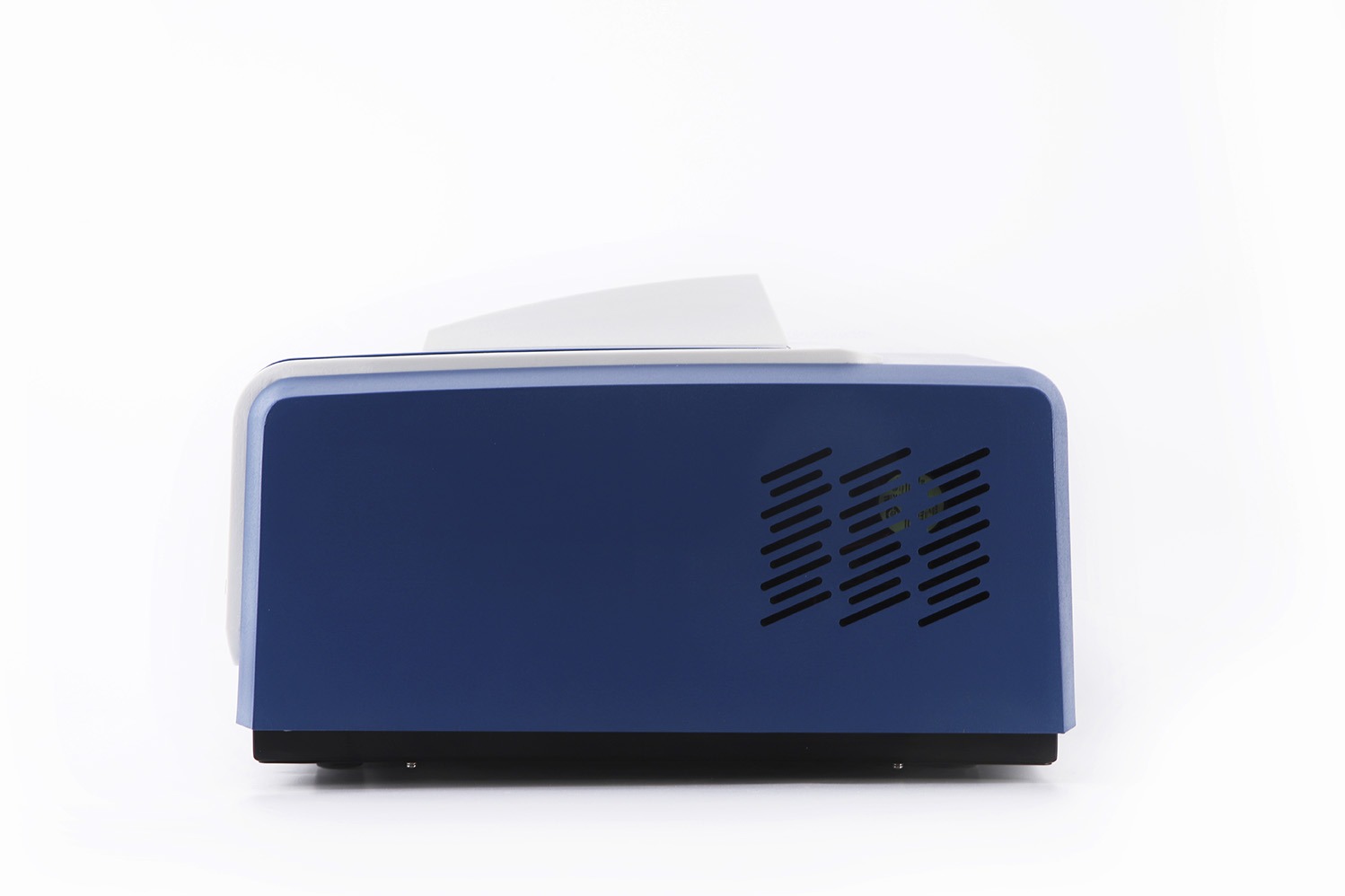

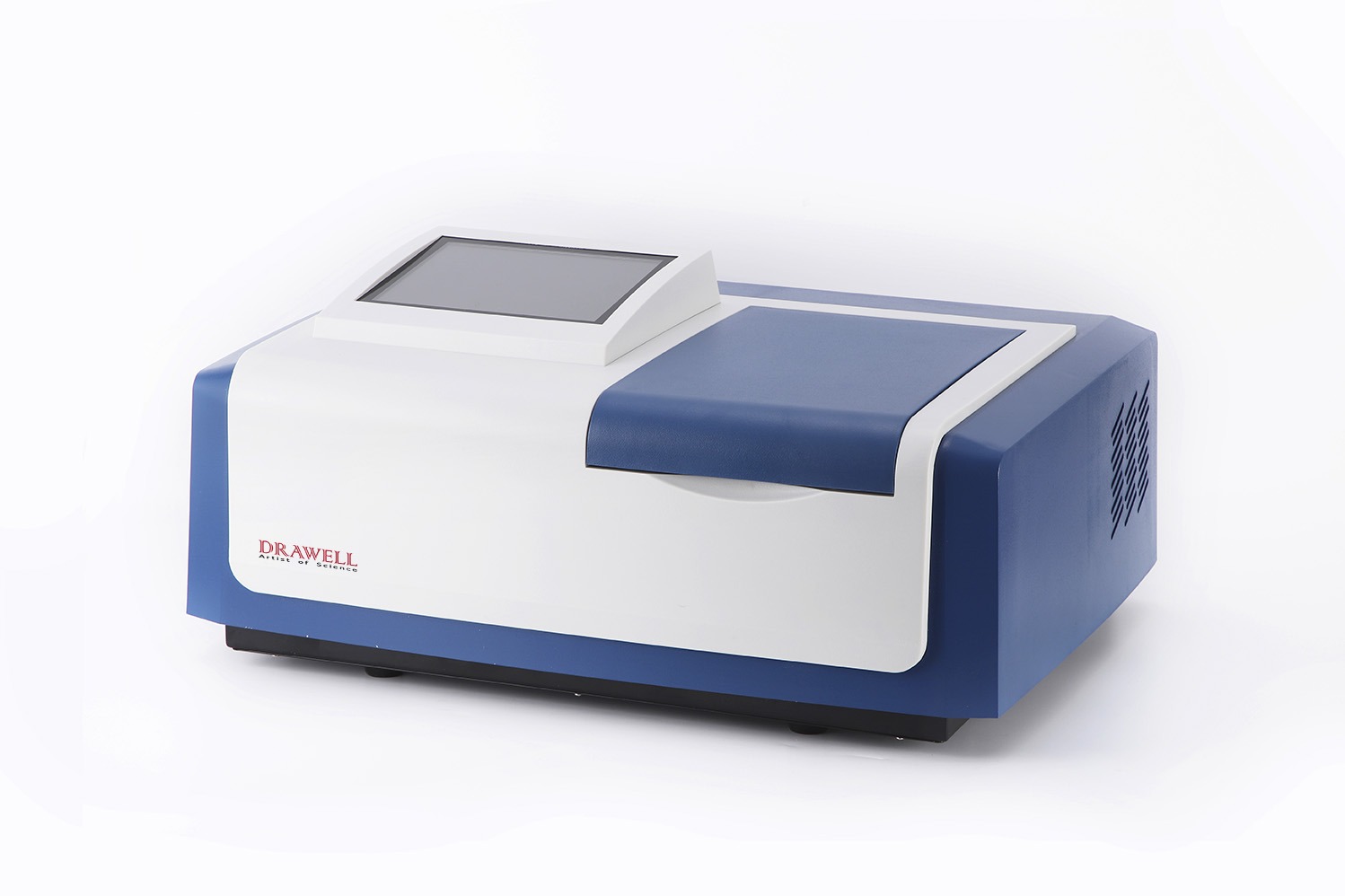

L3 Split Beam VIS Spectrophotometer Display

  • L3 L3S detail
  • L3 L3S Outer box

FAQ

Stray light is specified at ≤0.03%T at 360 nm using NaNO₂.

Yes. Wavelength selection and positioning are automatic through the touchscreen interface.

Yes. The instrument supports detailed spectrum scanning.

Yes. It supports fixed-wavelength time-based kinetic analysis.

Yes. The L3 supports direct concentration readout and linear regression.

Yes. Multi-wavelength measurement is included among its analytical functions.

The instrument supports peak and valley detection during spectral analysis.

The L3 uses an automatic 8-position cuvette holder.

Yes. Internal memory can retain test results, scanned spectra, regression equations and correction data.

Yes. A USB communication port is provided, and optional PC software can expand data processing and storage capabilities.

Specifications of L3 Split Beam VIS Spectrophotometer

ModelL3
Product nameSplit Beam VIS Spectrophotometer
PhotometrySplit Beam
Monochromator TypeCzerny-Turner
Focal Length160mm
Grating1200 lines/mm
DetectorSilicon Photocell
Spectrum Bandwidth1.8nm
Wavelength Setting8-inch color touch-screen
Wavelength Range325-1100nm
Wavelength Accuracy±0.5nm
Wavelength Repeatability≤0.2nm
Stray Light≤0.03%T( at 360nm NaNo2 )
Photometric Range0.0-200.0% T-0.301-4.000 A0.000-9999 C
Photometric Accuracy±0.5% T±0.002 Abs (0-0.5A)±0.004 Abs (0.5-1A)
Photometric Repeatability±0.5% T±0.002 Abs (0-0.5A)±0.004 Abs (0.5-1A)
Noise100%（T）noise≤0.2%(T) ， 0%（T）noise≤0.1%(T)
PowerAC220V±22V 50Hz±1Hz, 120W
Packaging Size710mm X 590mm X 505mm 0.21M3 40kg

Standard Accessories

Operation manual1pc
Glass cuvette 10mm4pcs
Power cable1pc
Fuse2pcs
Cuvette holder 10mm1pc

Optional Accessories

Cuvette holder50mm 100mm
Cuvette20mm 30mm 50mm 100mm
