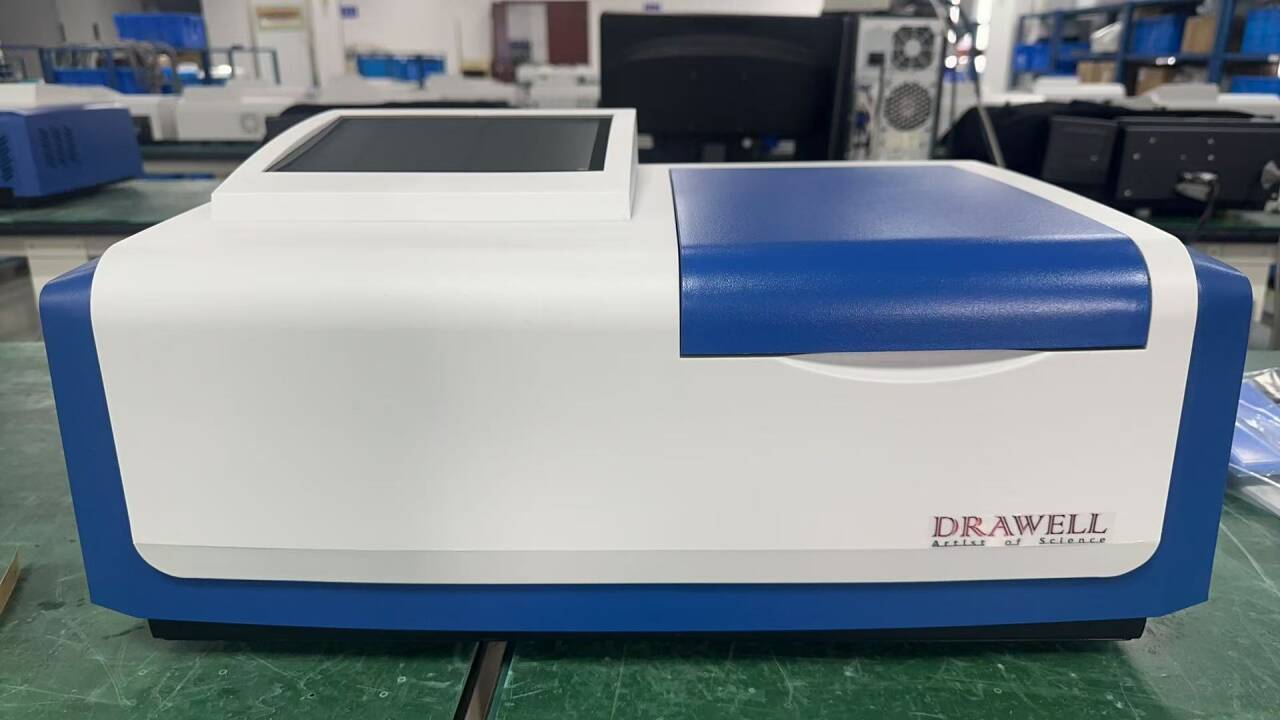

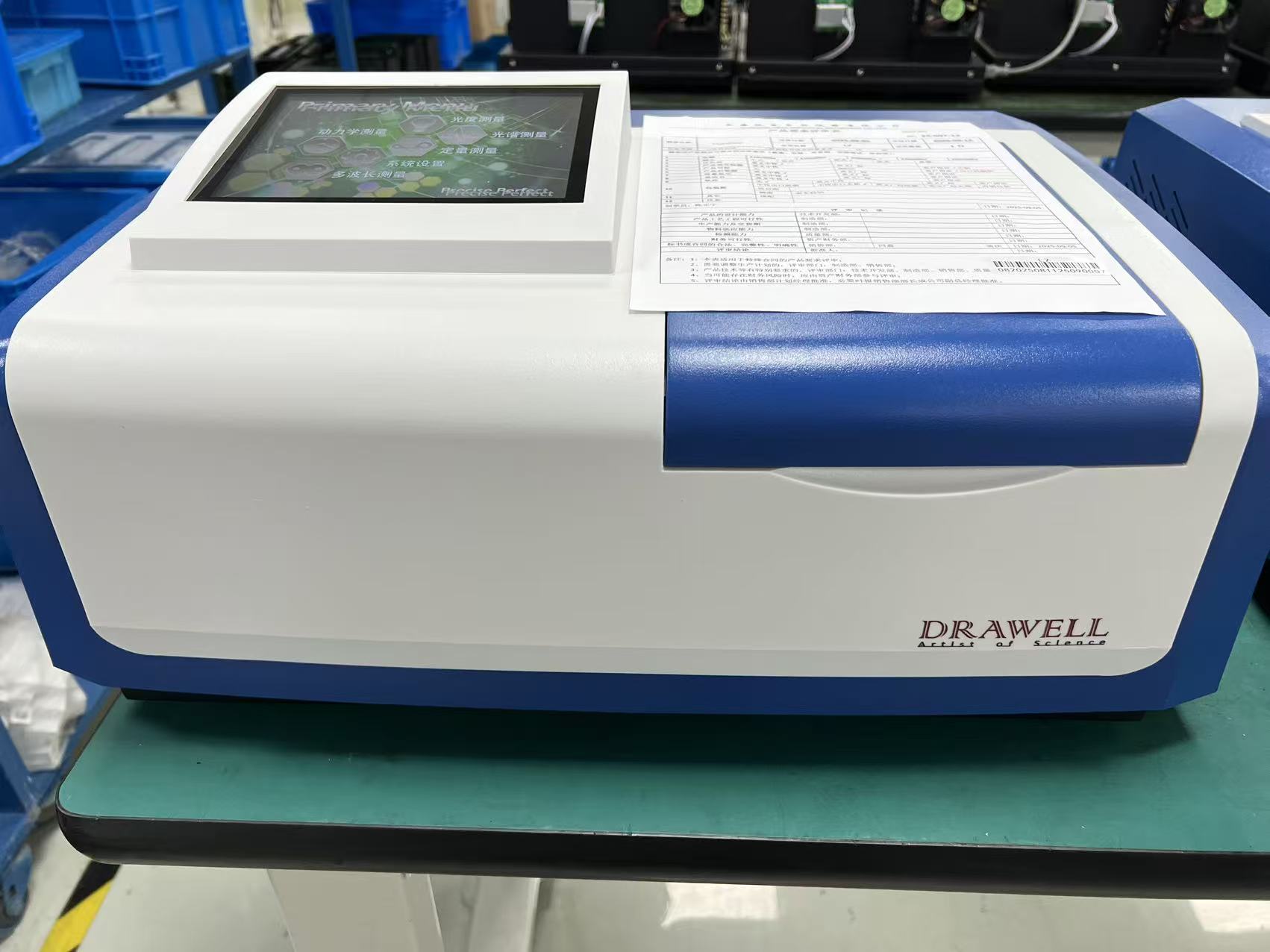

L7 Double Beam UV-VIS Spectrophotometer

L7 double beam UV-VIS spectrophotometers adopt double beam optical system, and blazed holographic gratings.

  • 190–1100 nm
  • 1.8 nm Bandwidth
  • ±0.3 nm Accuracy
  • ≤0.03%T Stray Light
L7 Manual
L7 Brochure

Features of L7 Double Beam UV-VIS Spectrophotometer

  • Double beam optical system
  • 8-inch color touch-screen
  • Automatic zero and full-scale adjustment
  • Automatic wavelength settings
  • Equipped with USB COM port
  • UV WIN8 Spectrum Data Processing Software optional
  • Kinetic scanning
  • Inear regression curve analysis
  • High-capacity internal memory
  • Power-off protection
  • Full-spectrum scanning
  • Linear regression
  • Detailed spectrum scanning
  • Concentration on direct reading
  • Time-based kinetics determination
  • Peak / Valley detecting
  • GOTO λ
  • Multi-wavelength measurement

Applications of L7 Double Beam UV-VIS Spectrophotometer

DV-8200 Application in Education & Teaching Laboratories

Education & Teaching Laboratories

Widely used in teaching laboratories for demonstrating Beer-Lambert Law, calibration curves, and basic qualitative and quantitative analysis of colored solutions.

DV-8200 Application in Chemical & Industrial Process Control

Chemical & Industrial Process Control

Measuring absorbance-based color intensity and tracking reaction kinetics in dyes, coatings, inks, and electroplating solutions for routine industrial quality control.

DV-8200 Application in Pharmaceutical & Biotech Quality Control

Pharmaceutical & Biotech Quality Control

Used for quantitative analysis of APIs and finished products with visible absorbance, dissolution testing, and optional basic DNA/protein quantification and reaction kinetics monitoring via PC software.

DV-8200 Application in Water & Environmental Analysis

Water & Environmental Analysis

Used for routine colorimetric determination of ammonia nitrogen, total phosphorus, Cr⁶⁺, nitrite, and volatile phenols in environmental water quality monitoring.

DV-8200 Application in Food & Agricultural Quality Control

Food & Agricultural Quality Control

For colorimetric detection of nitrite, nitrate, phosphate, peroxide value, and pigments in food and agricultural products for quality control compliance.

FAQ

Yes. Full-spectrum and detailed spectrum scanning are supported.

Yes. It supports linear regression and direct concentration readout.

Yes. Time-based kinetic measurement at a fixed wavelength is supported.

Yes. Multi-wavelength measurement is one of the standard analytical functions.

Yes. Peak / Valley detection is supported during spectral analysis.

The Brochure specifies ≤±0.002 A from 200 to 1090 nm.

Stray light is ≤0.03%T at 220 nm using NaI and 360 nm using NaNO₂.

Yes. Internal memory stores testing results, scanned spectra, regression equations and correction data.

Yes. It includes a USB COM port, with optional PC software available for additional data processing and spectrum analysis.

Specifications of L7 Double Beam UV-VIS Spectrophotometer

ModelL7
PhotometryDouble Beam
Monochromator TypeCzerny-Turner
Focal Length160mm
Grating1200 lines/mm
DetectorSilicon Photocell
Spectrum Bandwidth1.8nm
Wavelength Setting8-inch color touch-screen
Wavelength Range190-1100nm
Wavelength Accuracy±0.3nm
Wavelength Repeatability≤0.1nm
Scanning SpeedFast-Medium-Slow
Stray Light≤0.03%T (at 220nm NaI, 360nm NaNo2)
Photometric Range0.0-200.0% T
0.301-4.000 A
0.000-9999 C
Photometric Accuracy±0.3% T
±0.004 Abs (0-0.A)
±0.008 Abs (0.5-A)
Photometric Repeatability≤0.15% T
0.001 Abs (0-0.5A)
0.002 Abs (0.5-1A)
Baseline≤±0.002 A(200-1090nm)
Noise100% (T) noise≤0.15%(T), 0% (T) noise≤0.1%(T)
Drifting≤0.0009 Abs/h (250nm and 500nm after 2h warm up)
PowerAC220V±22V 50Hz±1Hz, 200W
Packaging Size710mm X 590mm X 505mm 0.21m³ 36kg

Accessories of L7 Double Beam UV-VIS Spectrophotometer

Standard Accessories

  • Operation manual 1pc
  • Glass cuvette 10mm 4pcs
  • Quartz cuvette 10mm 2pcs
  • Power cable 1pc
  • Fuse 2pcs
  • Cuvette holder 10mm

Optional Accessories

  • UV WIN8 station pro software
  • NO optional cuvette holder
