Axial vs Centrifugal Fan: 7 Key Differences and How to Choose the Right One

So you’re stuck between an axial vs centrifugal fan. Maybe you’re speccing out a lab instrument, designing a ventilation rig, or just trying to keep a crowded electronics cabinet from overheating. Whatever the case, picking the wrong fan is surprisingly easy – and the results are never pretty. You end up with weak airflow, annoying noise, or a system that just can’t push air through its own filters and ducts.

This guide walks you through everything you actually need to know. We’ll compare how each fan works, line up their performance side by side, and give you a simple stepbystep way to choose. By the end, you’ll know exactly which one fits your application.

Axial vs Centrifugal Fan: What Is the Difference?

Let’s start with the big picture. The real difference between an axial and a centrifugal fan comes down to two things: how they move air, and how well they handle resistance.

An axial fan pulls air in and shoots it straight out – parallel to the shaft. Think of a standard desk fan or a plane propeller. It moves a ton of air, but only when the path is wide open.

A centrifugal fan (sometimes called a blower) does the opposite. It draws air into the centre of an impeller, then spins it outward at a 90degree angle using centrifugal force. That design builds up higher pressure – exactly what you need when airflow has to push through filters, coils, or long winding ducts.

Core distinction: Axial fans push air in a straight line – great for highvolume, lowresistance spaces. Centrifugal fans change direction and deliver the static pressure needed for restrictive systems.

Here’s a quick cheat sheet comparing their key engineering metrics:

Comparison Metric	Axial Fan	Centrifugal Fan
Airflow Direction	Straightthrough, parallel to shaft	90degree turn at discharge
Airflow Volume	Very high in open, lowresistance settings	Stays high and stable even with resistance
Static Pressure	Relatively low – struggles against backpressure	High – excellent at pushing through obstructions
Best Environment	Open spaces with freeflowing air	Ducted systems, setups with filters or dense components



How Do Axial and Centrifugal Fans Work?

To really understand why one fan excels at moving massive volumes while the other thrives under pressure, you need to peek inside.

How Does an Axial Fan Work?

An axial fan uses propellerstyle blades mounted on a central hub. When the motor spins the hub, the blades slice through the air and force it along the axis – straight in, straight out. No change in direction, so energy loss is minimal. That’s why these fans can shift huge CFM numbers while drawing surprisingly little power. The catch? They hate obstacles. Add a filter or a sharp bend, and performance drops like a stone.

How Does a Centrifugal Fan Work?

Centrifugal fans are a whole different story. Air enters axially (along the shaft) into the impeller, then gets flung outward radially by the spinning blades. That radial acceleration boosts the air’s speed and pressure. Then the scrollshaped housing collects that air and directs it to the outlet – usually at a right angle to the inlet. This whole process – the directional change, the centrifugal force, the volute – converts rotational energy into usable static pressure. The payoff? A fan that keeps pushing steady airflow even when the system fights back.

7 Key Differences Between Axial and Centrifugal Fans

Theory is nice, but real insight comes from seeing how they stack up across specific performance points. Here are the seven areas where these two fan types really separate.

1. Airflow Direction

This one’s obvious. Axial fans move air in a straight line – inlet and outlet are perfectly aligned, which makes installation simple in many cases.

Centrifugal fans pull air in along the shaft and discharge it perpendicularly. That rightangle turn gives you more flexibility in duct routing, but it also changes the fan’s overall footprint.

2. Airflow Capacity (Volume)

In free air – no restrictions at all – axial fans win the volume race. They move massive amounts of air for their size. But that advantage vanishes fast once you introduce any resistance.

Centrifugal fans may not match the peak CFM of an axial in a freeblowing test, but they’re consistent. They keep moving air even when things get tight.

3. Static Pressure Performance

This is where the rubber meets the road. In real life, airflow always hits resistance – ductwork, bends, filters, densely packed components. Static pressure is the fan’s ability to overcome that resistance.

Axial fans are inherently lowpressure devices. They simply don’t generate enough force to push through dense filter media or long runs.

Centrifugal fans? They’re the highpressure champions. They deliver the muscle to maintain airflow in demanding environments.

4. Duct System Performance

Connecting an axial fan to a long, twisty duct system is usually a mistake. The pressure drops will choke it, leading to unstable airflow and poor efficiency.

Centrifugal fans, on the other hand, are a natural match for ducted systems. Their high static pressure handles friction losses from long runs, multiple elbows, and transitions. That’s why you rarely see axial fans in commercial HVAC, but centrifugal fans are everywhere.

5. Noise Level

This one’s tricky. Noise isn’t just about the fan type – it’s about how you use it. An axial fan running free at low speed can be very quiet. But force it to work against high resistance, and it starts to struggle – the noise jumps up noticeably.

Centrifugal fans often produce a characteristic whine, especially at high speeds, which can be more irritating. In highpressure applications, you might need sound attenuators no matter which fan you pick.

6. Energy Efficiency

Efficiency depends heavily on operating conditions. In lowresistance setups, axial fans are incredibly efficient – they move a lot of air per watt. But in highresistance systems, an axial fan’s efficiency plummets as it stalls and recirculates.

The centrifugal fan, in that same highresistance environment, actually becomes the more efficient choice because it’s designed for that exact scenario.

7. Size, Cost, and Maintenance

Axial fans are simple, compact, and generally cheap. Their straightforward design means lower upfront costs and easier servicing.

Centrifugal fans are more complex – the scroll housing and specialised impeller make them larger, heavier, and more expensive to buy and maintain. That said, the price gap is usually justified by the performance gains in challenging applications.

How to Select the Right Fan for Your Application?

Choosing the right fan isn’t guesswork. It’s about matching performance to realworld requirements. Here’s a quick reference guide, followed by a practical fourstep method.

Your Requirement or System Feature	Recommended Fan
High airflow needed; system has very low resistance	Axial Fan
System requires high static pressure to overcome resistance	Centrifugal Fan
Airflow must pass through HEPA filters or multiple media layers	Centrifugal Fan
Compact electronics cooling in an open chassis	Axial Fan



FourStep Fan Selection Process

Step 1: Figure out your airflow requirement (CFM)
Start with the total volume you need to move. For cooling, base it on the heat load you have to dissipate. For ventilation, use room volume and desired air changes per hour. Get your target CFM.

Step 2: Calculate your system static pressure
This step is often skipped – and that’s where many selections go wrong. Add up every resistance component in your airflow path: filter pressure drops, losses from straight ducts and elbows, restrictions from heat sinks, inlet and outlet grilles. The total is your system static pressure. The higher that number, the more you’ll lean toward a centrifugal fan.

Step 3: Look at installation conditions
Check the physical space. Is the airflow path straightthrough, or do you need a rightangle turn? How much room do you have for the fan assembly? Also think about environmental factors – corrosionresistant coating? Explosionproof ratings?

Step 4: Match fan type to your application
Now you have the data. If you need high CFM and your static pressure is low, an axial fan is usually the most costeffective choice. If static pressure is high, centrifugal is the way to go – even if it costs a bit more upfront.

Why Are Centrifugal Fans Often Used in Laboratory Equipment?

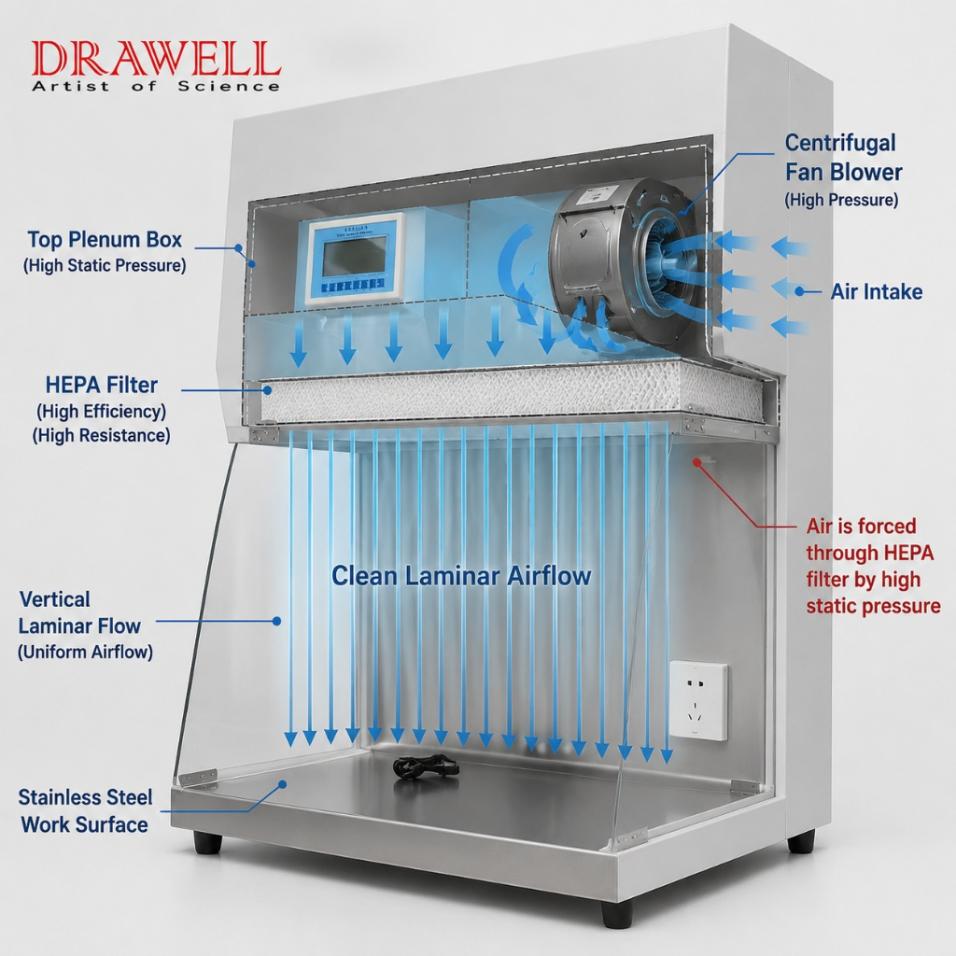

Walk into any lab or analytical facility, and you’ll see centrifugal fans inside laminar flow cabinets and biosafety hoods. Because these units must meet strict CDC containment & HEPA filtration standards, air is forced through ultra-dense filter media that creates substantial initial static resistance. An axial fan would stall under that backpressure, whereas a centrifugal blower maintains the continuous upward or downward pressure needed for clean air delivery.

Take a highperformance liquid chromatography system (HPLC) or a gas chromatographmass spectrometer (GCMS). Inside the chassis, you’ve got tightly packed boards, heat sinks, and often a layer of filters to keep dust away from sensitive optics and detectors. All that clutter creates backpressure. An axial fan would struggle to keep air moving through that maze – you’d get hot spots and drift in your measurements.

Centrifugal fans solve that. Their high static pressure maintains a steady airflow regardless of the internal mess. That stable airflow supports consistent thermal management, which helps sensitive instruments stay within their temperature specs – keeping baseline drift low and measurements reliable.

You also see this in lab cooling units, fume hoods, and biosafety cabinets. Anywhere air has to pass through a dense HEPA filter or navigate a complicated exhaust path, the centrifugal fan’s ability to deliver sustained pressure makes it the default pick.

FAQ About Axial vs Centrifugal Fan

Which fan has higher pressure?

Centrifugal fans, hands down. The combination of radial acceleration and the volute housing gives them the muscle to push through ducts and filters.

Which fan moves more air?

In an open, unrestricted setting, an axial fan moves more air per watt. The straightthrough design minimises losses, so it’s a volume champion in free air.

Which fan is better for laboratory equipment?

Centrifugal fans, almost every time. Lab equipment has internal resistance – filters, tight packing, long paths – and only a centrifugal fan can deliver the static pressure to handle it.

Conclusion

Bottom line? The decision between an axial vs centrifugal fan comes down to one simple question: are you moving air through a wideopen space, or are you pushing it through a restricted system? If you need high volume at low pressure, axial fans are unbeatable for cost and simplicity. If you need to maintain airflow against filters, ductwork, or internal components, centrifugal fans are your workhorse.

For lab equipment and analytical instruments – where reliability and consistent thermal management are nonnegotiable – the choice usually lands on the centrifugal side. Working with an experienced partner like Drawell can help you confirm that your chosen fan matches your system’s performance needs and operational constraints.

Take your time, run the numbers, and remember: the right fan is the one that keeps your gear running smoothly, quietly, and reliably – day after day.
