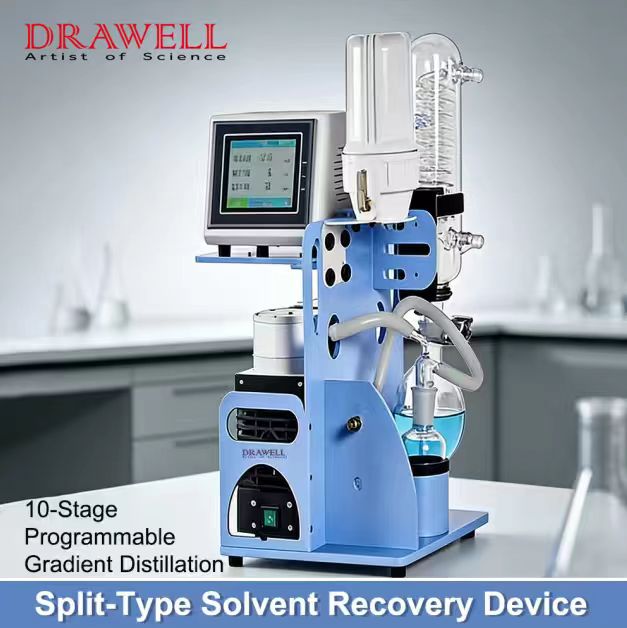

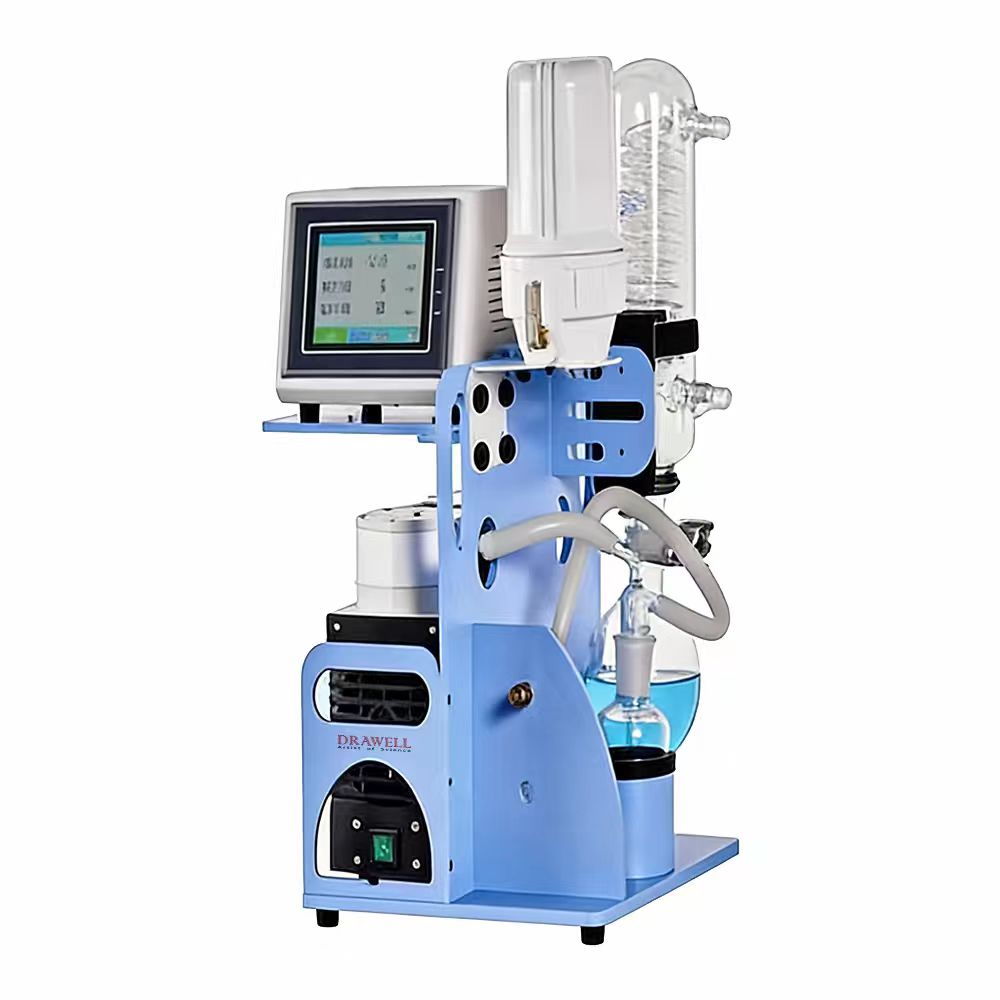

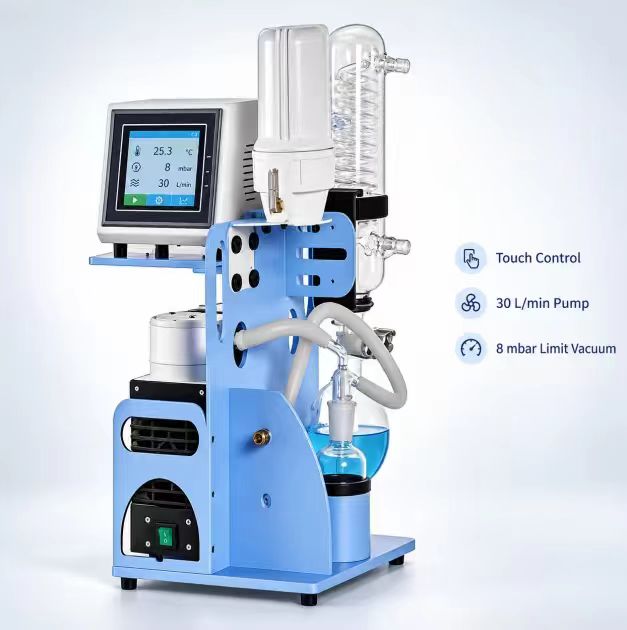

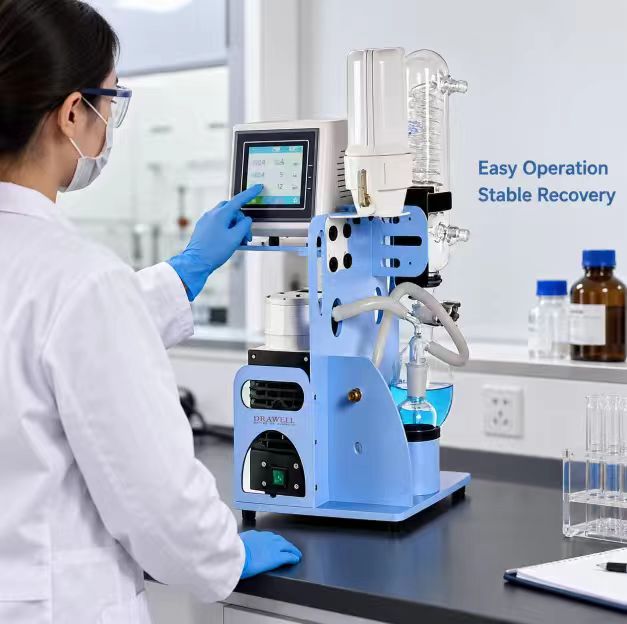

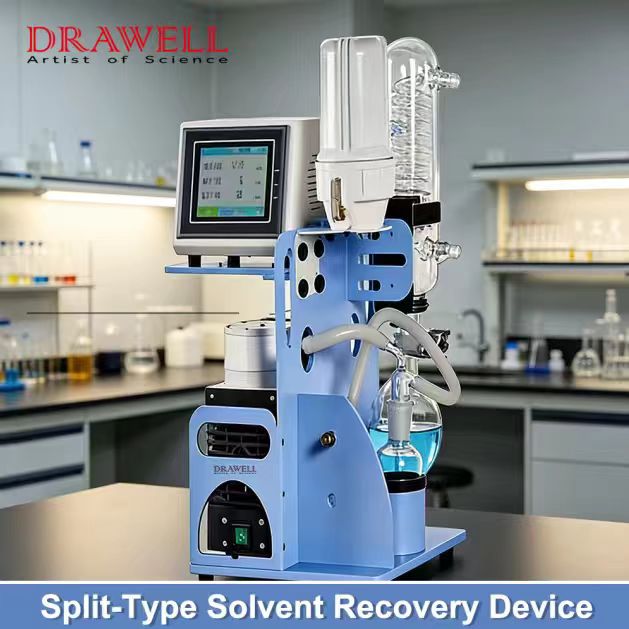

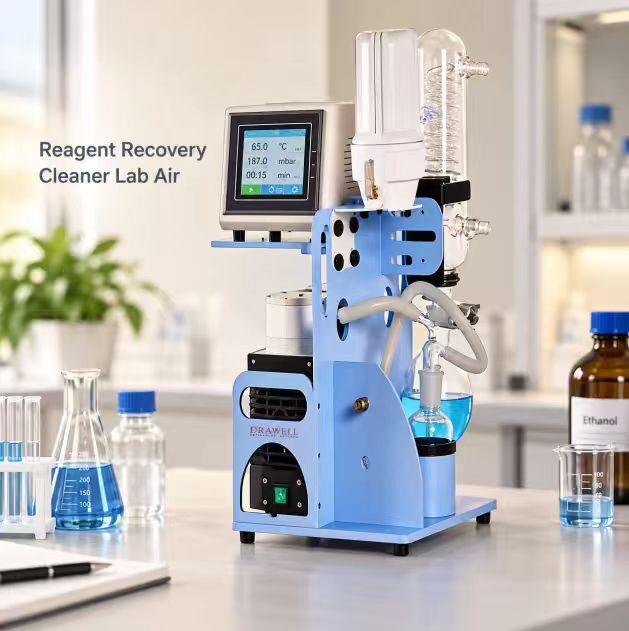

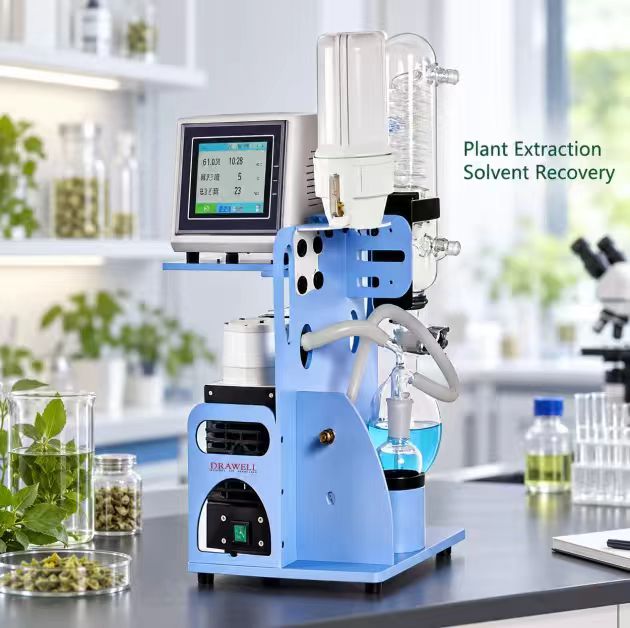

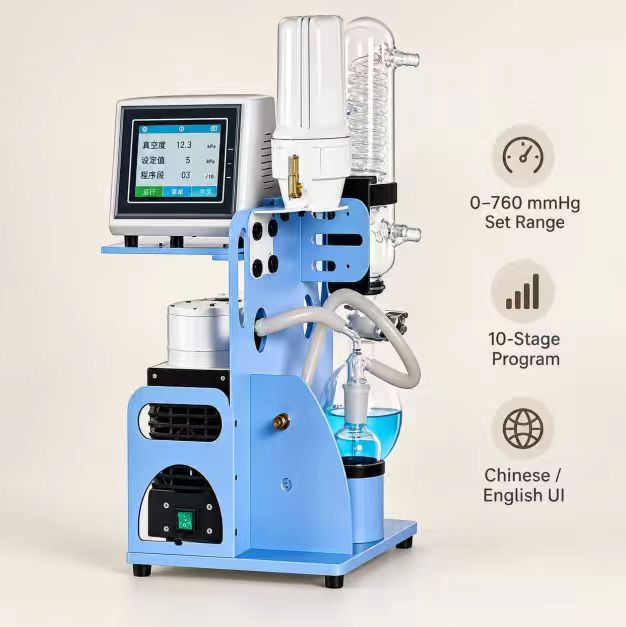

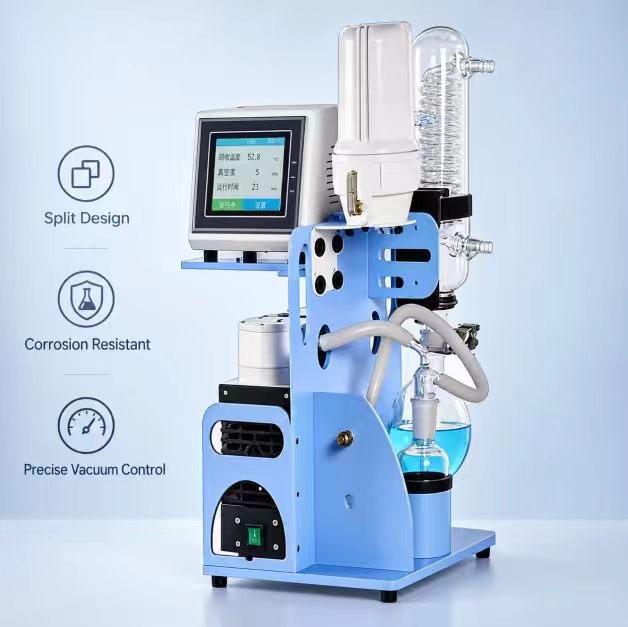

DWPE-1250A Split-Type Solvent Recovery Device
DWPE-1250A is a split-type solvent recovery system combining programmable vacuum control, an anti-corrosion diaphragm pump, secondary condensation and exhaust-vapor treatment. Designed for rotary evaporation, reduced-pressure concentration, drying and distillation workflows, it recovers solvent vapor that may escape primary condensation through an additional condenser and adsorption unit, helping improve solvent recovery and reduce residual vapor and laboratory odors.
- 30 L/min Diaphragm Pump
- 8 mbar Limit Vacuum
- 10 Stages Gradient Vacuum Control
- 0–1013 mbar Vacuum Setting Range
- 1–999 min Program / Time Control
- 500 mL Recovery Flask
Features of DWPE-1250A
- The solvent recovery device is composed of vacuum controller, diaphragm vacuum pump, cooler, waste liquid recovery bottle, waste gas adsorption device, etc.
- The matching cooler and activated carbon adsorption device are small in design and can effectively absorb harmful gases to improve the experimental environment air.
- In order to protect the diaphragm vacuum pump, inhibit the exhaust gas leakage, equipped with self-circulating purification function.
- Host: Integral diaphragm pump integrated vacuum control system, with high control accuracy, corrosion resistance, long valve life.
- The large screen touch color LCD screen can display the detected and set vacuum degree, and the vacuum degree can be adjusted directly on the LCD screen.
- Can be imported or domestic brand rotary evaporator, with good vacuum control vacuum controller.
- The vacuum inside the rotary evaporator can be controlled to improve the low boiling point reagent (e.g., methyldichloride, benzene, trichloroethane, ethanol, etc.)The recovery rate can also be replaced by inert gas on decompression concentration when the interior is free from oxidation and contamination.
- It can control 10 stages of gradient distillation program (time and vacuum arrangement operation), and gradually control the vacuum degree when synthesizing experimental tomographic vacuum distillation.
- Interface operation: Chinese/English system interface operation switch function.
- Experimental operation vacuum pressure unit double switching, curve tracking query, USB interface data export.
- Combined with vacuum controller VC-3000pro vacuum controller, the pressure setting value can be set at will on the main menu, without steam sensor, and the use of simple automatic control and sensor precision control, just press the Start key, select solvent discharge, under the appropriate vacuum degree, can be automatically adjusted program control, More convenient for the purpose and use of the enrichment operation under appropriate conditions.
Applications of DWPE-1250A
- Rotary Evaporation: Secondary solvent recovery during rotary evaporation and concentration.
- Solvent Recovery: Additional condensation and collection of solvent vapor during vacuum processing.
- Reduced-Pressure Concentration: Vacuum-controlled sample concentration with secondary vapor recovery.
- Vacuum Distillation: Programmable vacuum control for staged distillation workflows.
- Corrosive Vapor Handling: PTFE diaphragm and adsorption configuration for applicable acidic or alkaline vapor environments.

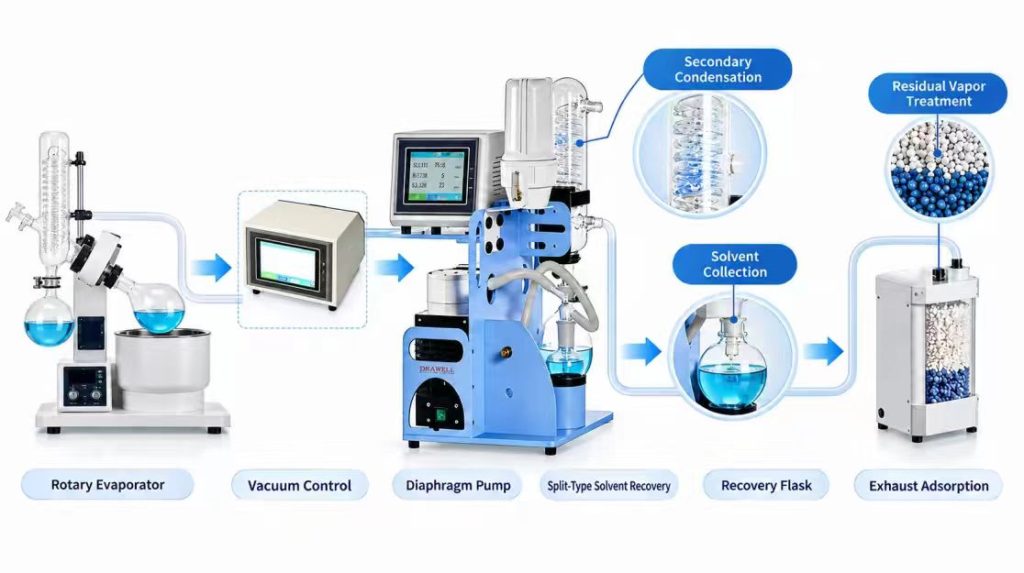

Secondary Solvent Recovery
When rapid vacuum pumping prevents complete solvent recovery in the primary process, the remaining vapor can be condensed again through the recovery condenser before the exhaust stream reaches the adsorption unit.
Integrated or Split-Type?
| DW-GMVC-3000RM | DWPE-1250A | |
| System Design | Integrated | Split-Type |
| Vacuum Controller | Integrated system | VC-3000pro |
| Vacuum Pump | Integrated | Separate XDMG-20 |
| Pump Rate | 20 L/min | 30 L/min |
| Limit Vacuum | 5–8 mbar | 8 mbar |
| Recovery Flask | 500 mL | 500 mL |
| Secondary Recovery | Yes | Yes |
| Exhaust Adsorption | Yes | Yes |
