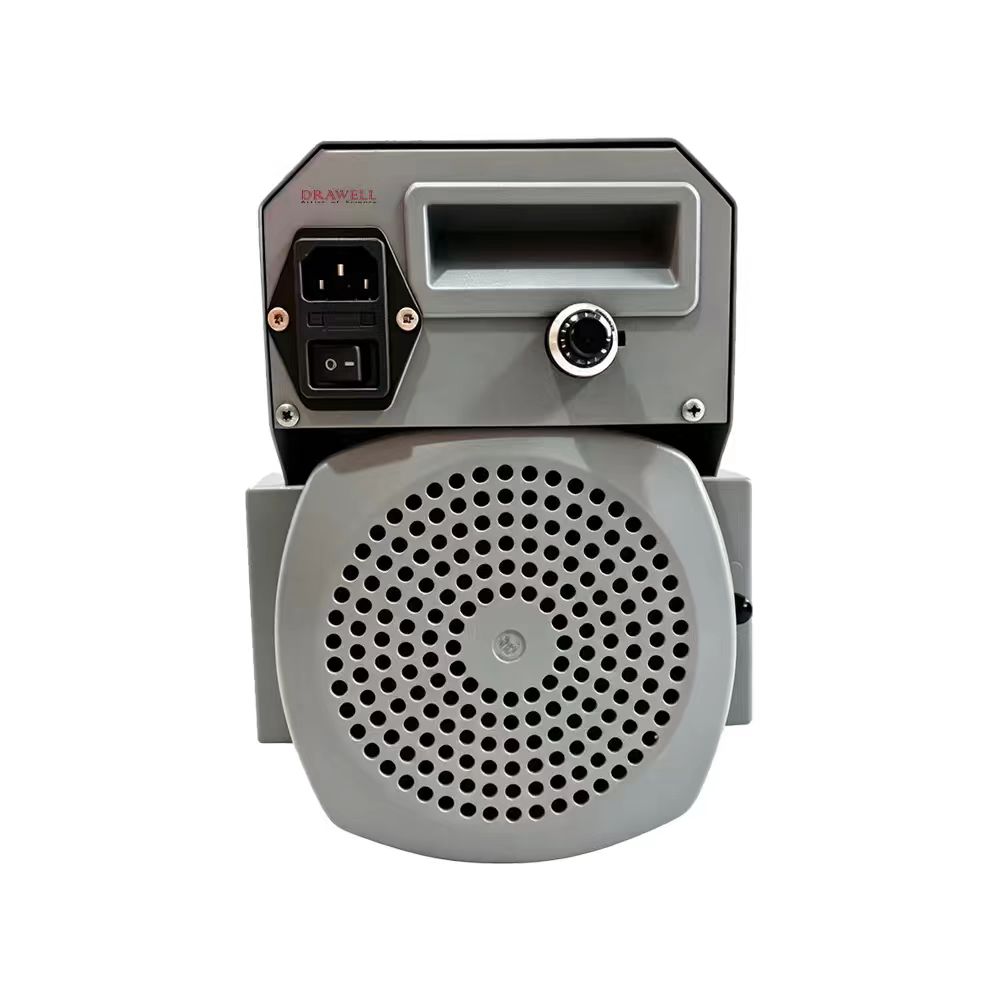

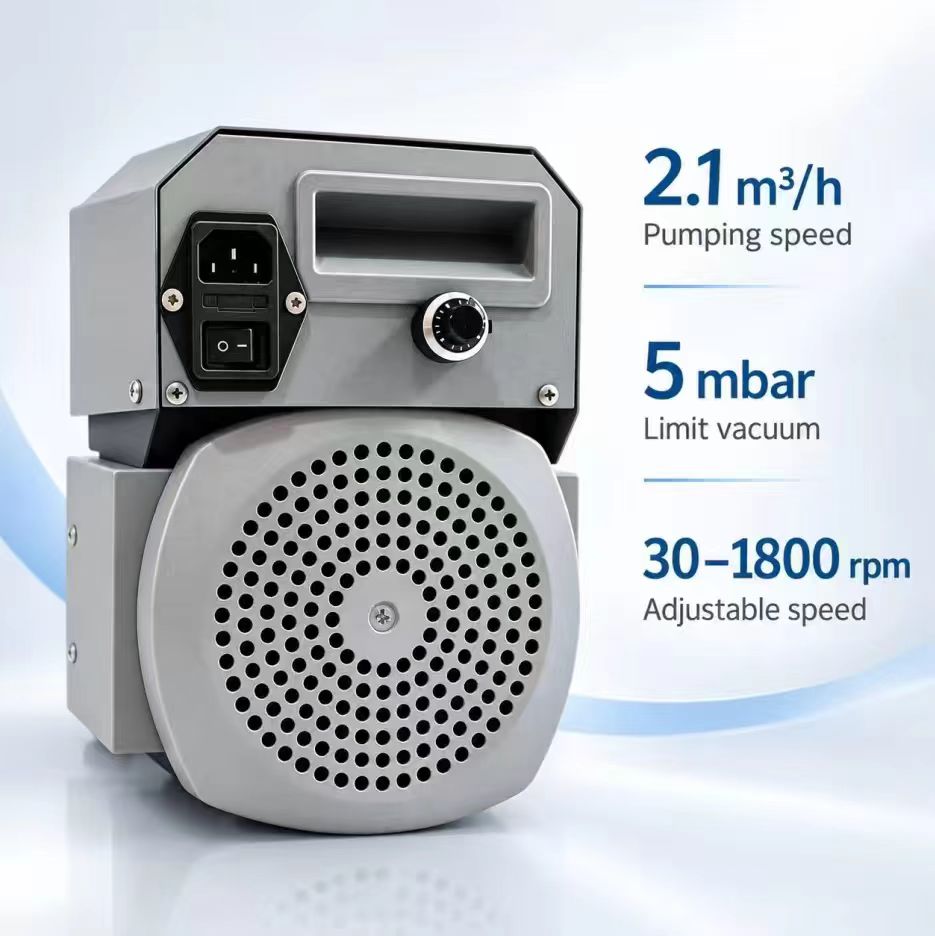

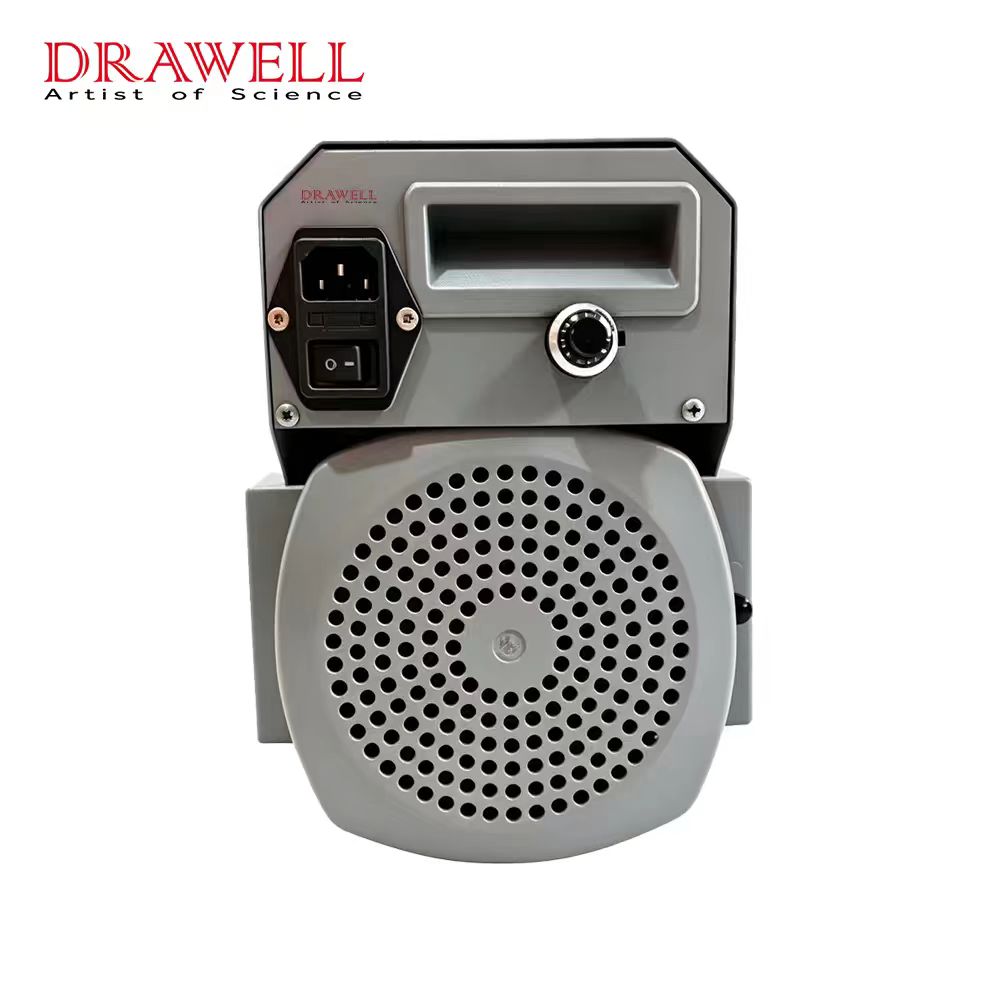

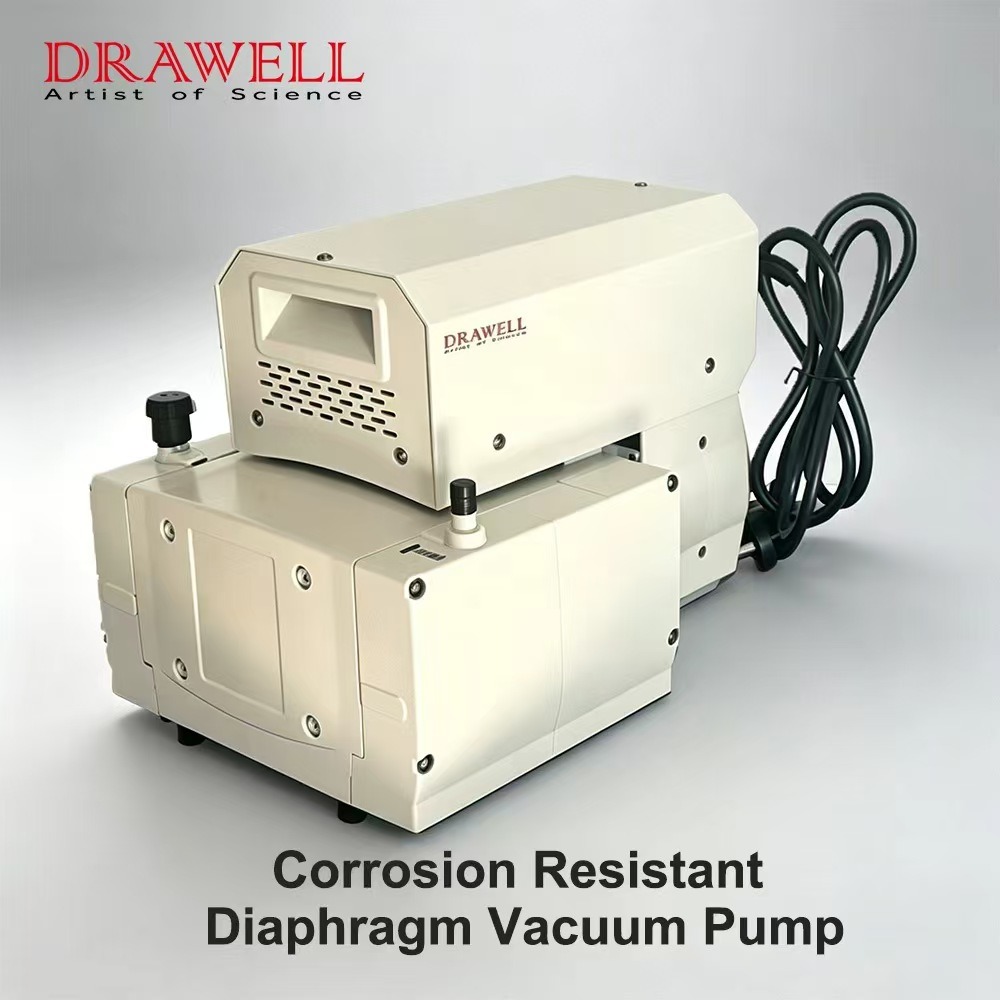

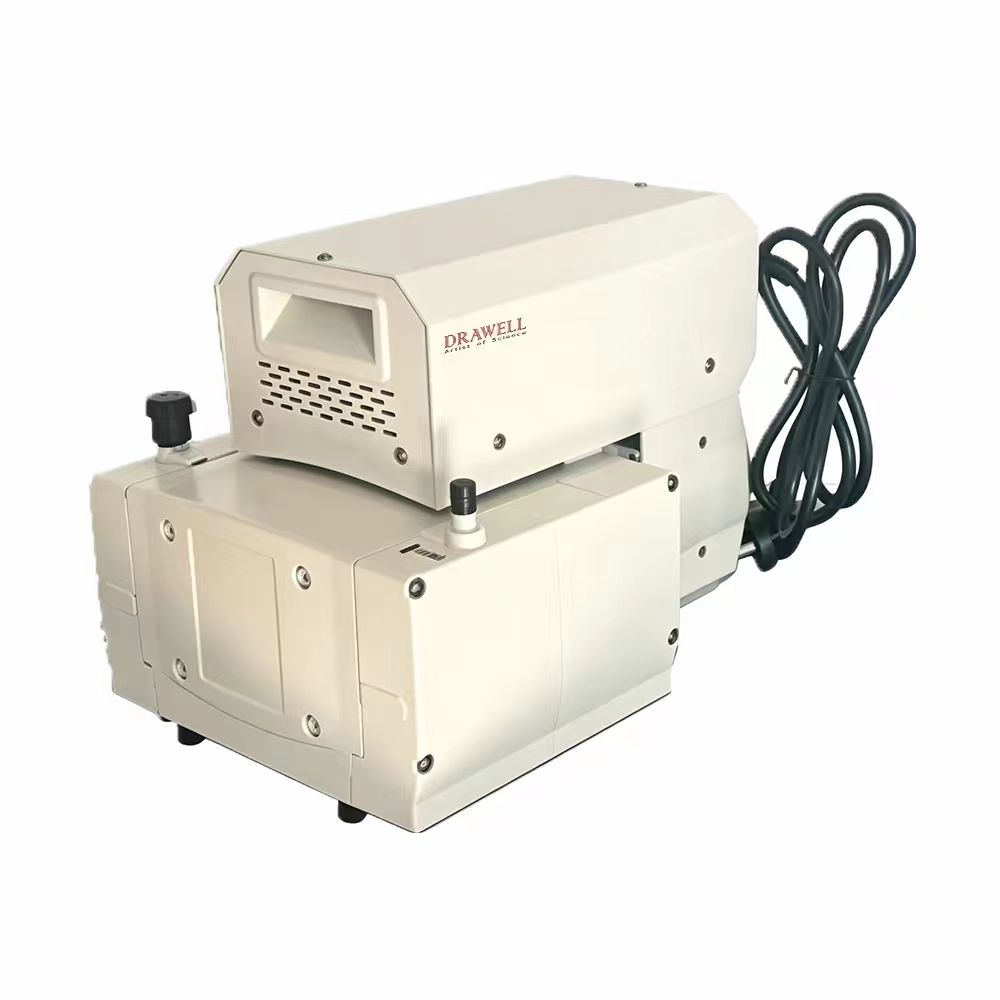

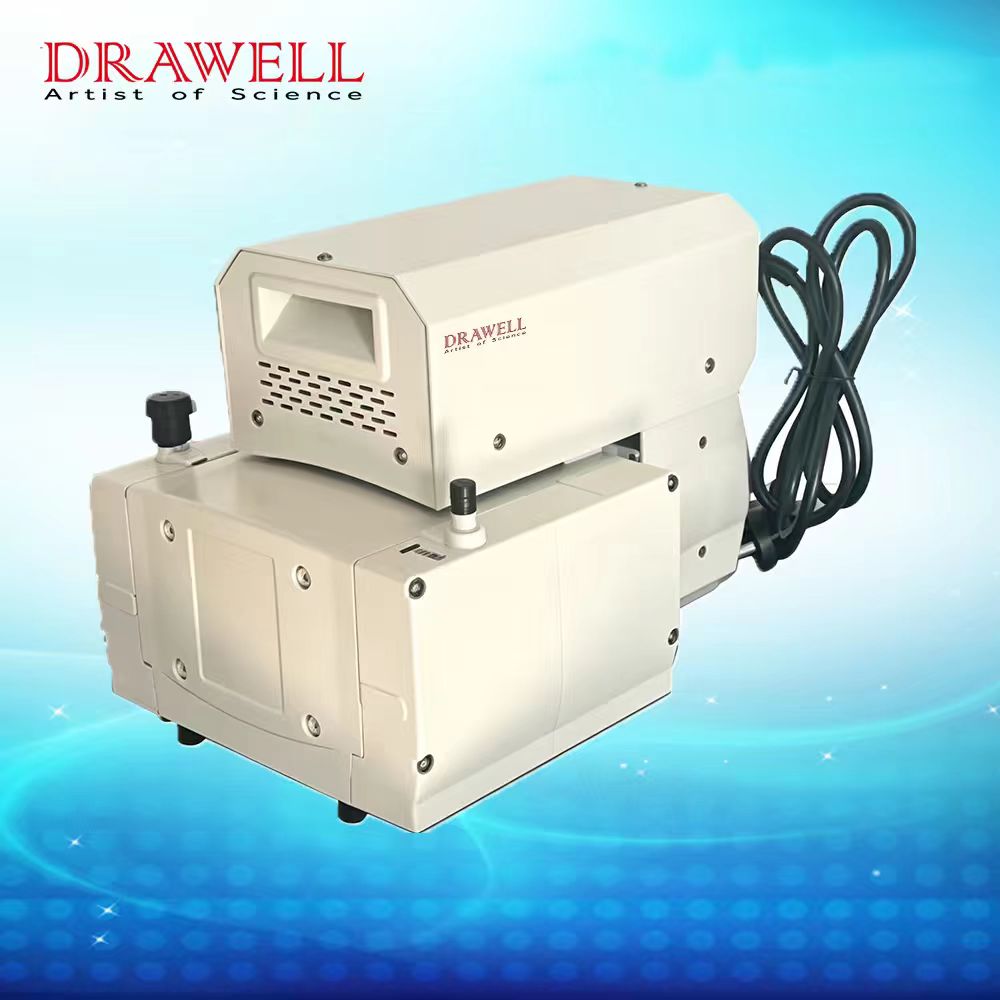

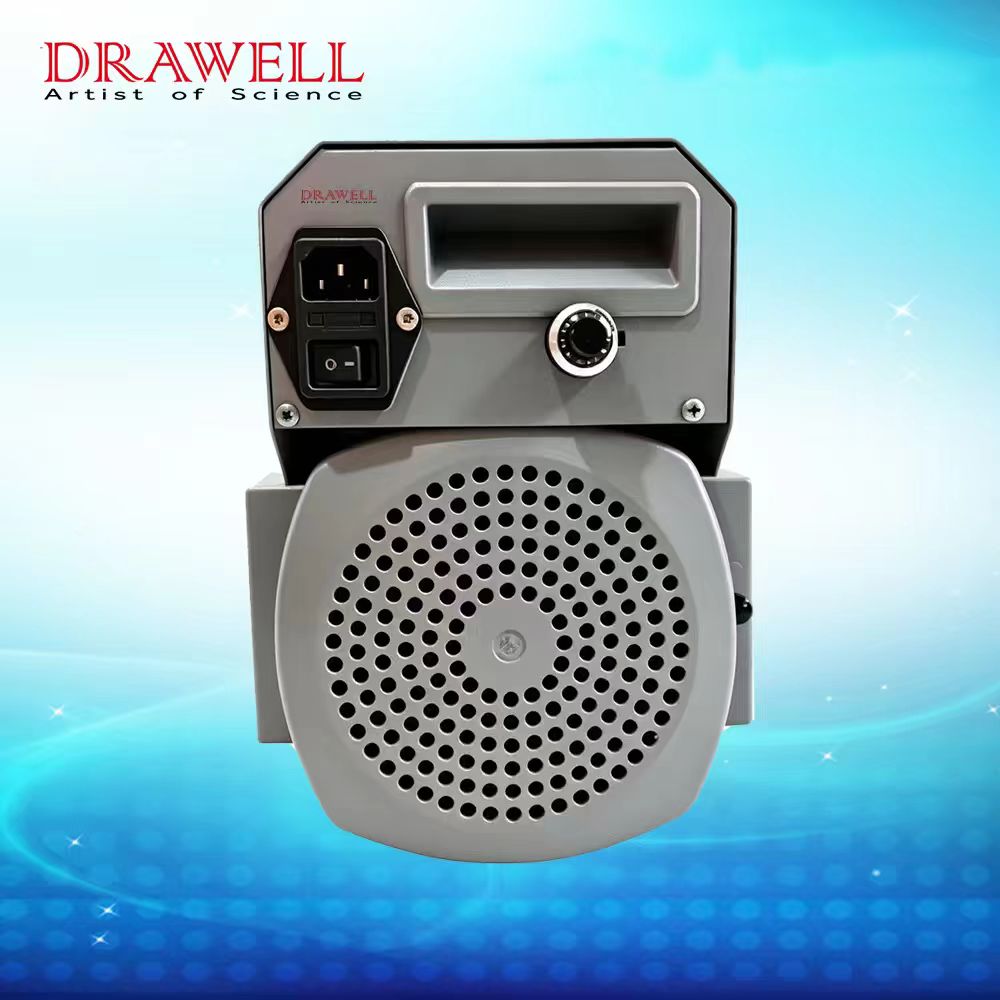

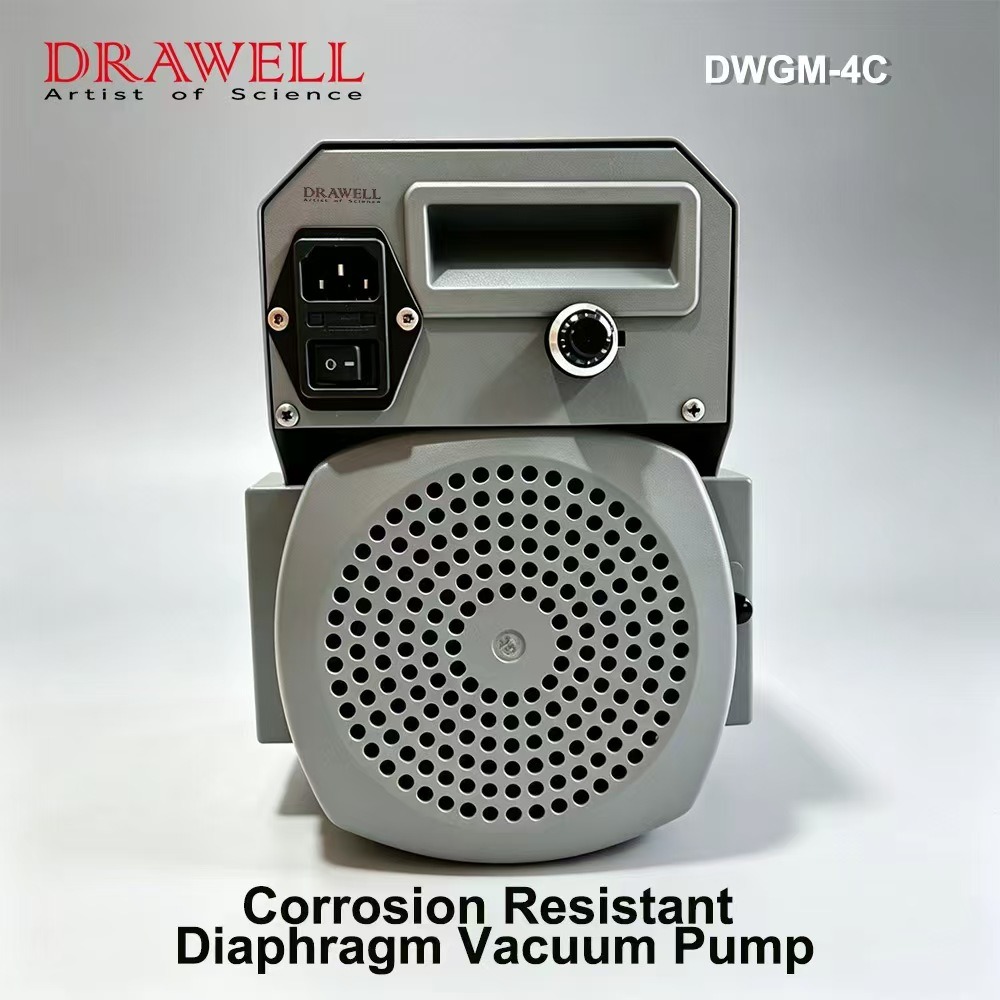

DWVP-30pro DWGM-4C Corrosion Resistant Diaphragm Vacuum Pump

DWVP-30pro DWGM-4C Brochure

Applications of DWVP-30pro and DWGM-4C

  • Rotary Evaporation: Vacuum support for solvent mixtures, extracts and concentrated solutions during rotary evaporation.
  • Vacuum Concentration: Provides vacuum for reaction solutions, solvent extracts and purified fractions during reduced-pressure concentration.

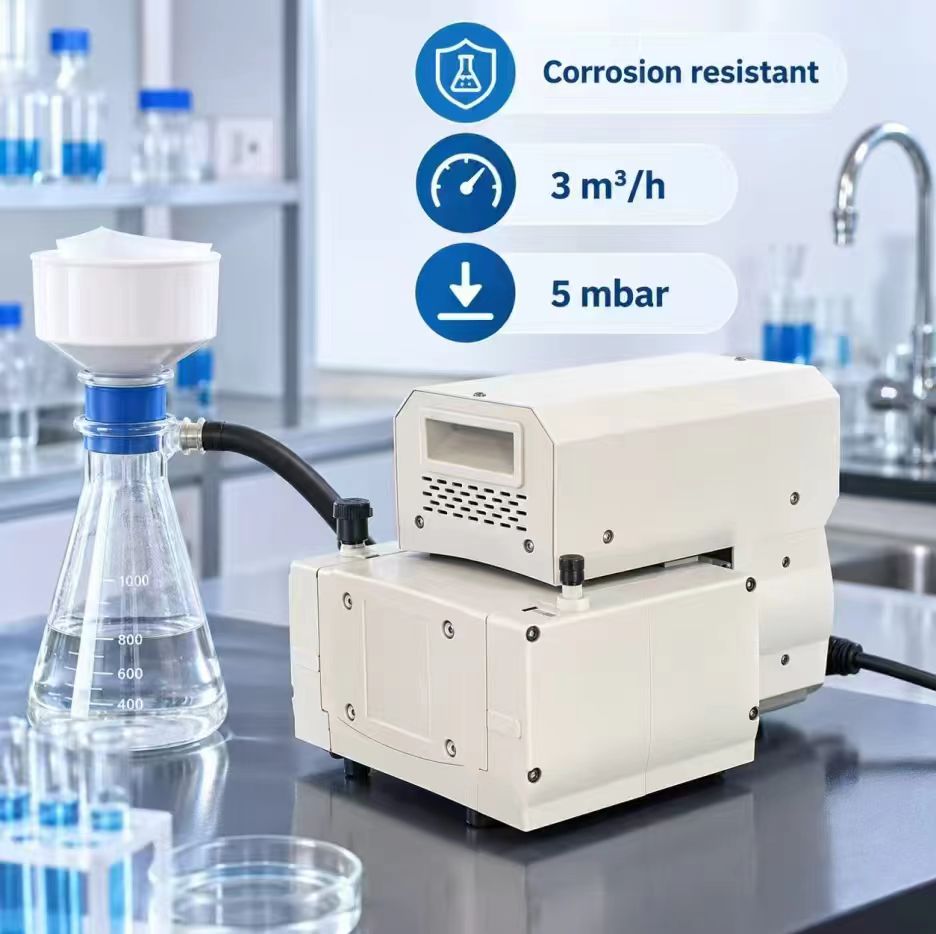

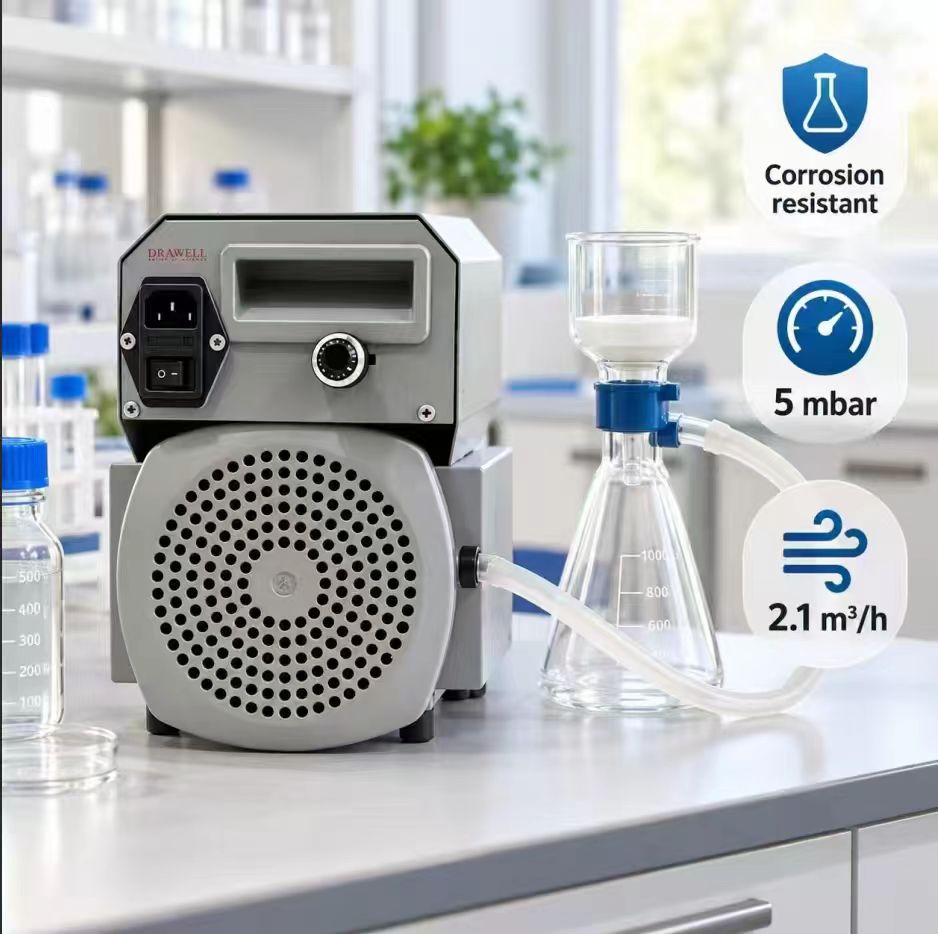

  • Vacuum Filtration: Vacuum source for suspensions, precipitates and liquid samples using compatible filtration systems.
  • Corrosive Vapor Processes: PTFE vacuum path supports compatible processes involving acidic, alkaline or organic solvent vapors, subject to medium compatibility.
  • Laboratory Vacuum Processes: Suitable as a vacuum source for compatible reduced-pressure synthesis, evaporation and sample-preparation workflows.
Applications of Circulating Water Vacuum Pump

FAQ

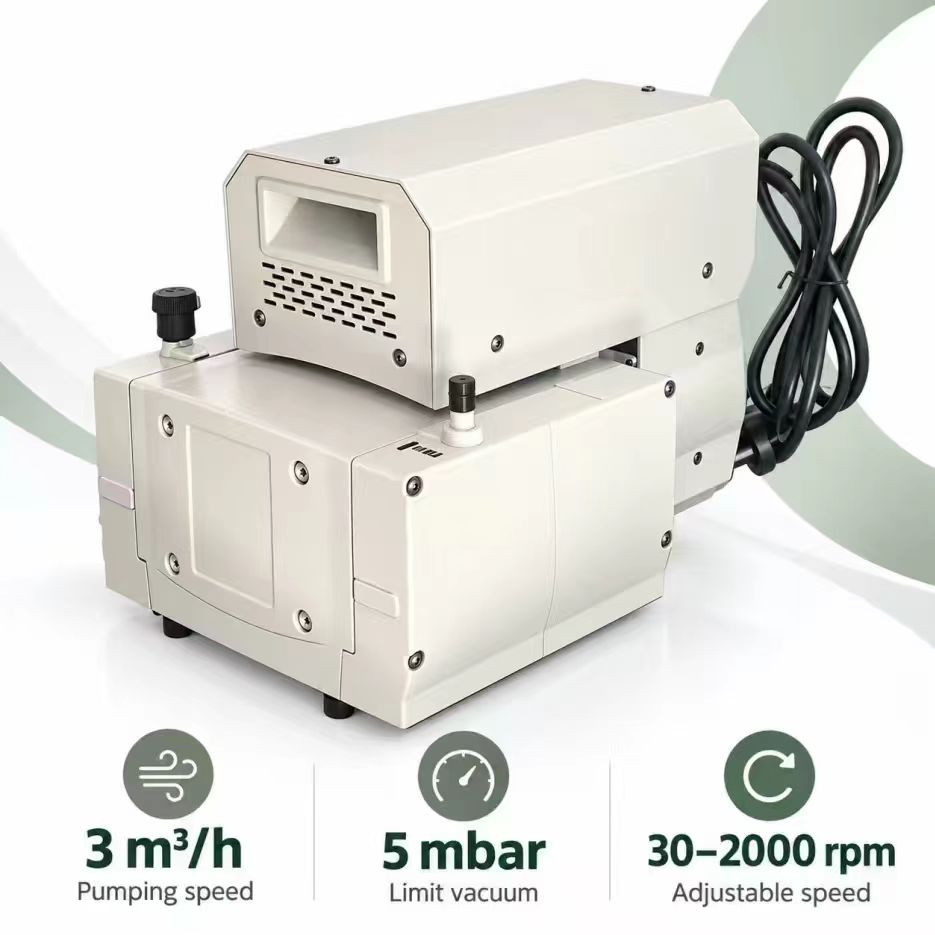

DWVP-30pro provides 2.1 m³/h, while DWGM-4C provides 3 m³/h maximum pumping speed.

Both models are specified at 5 mbar.

Yes. DWVP-30pro operates from 30–1800 rpm, while DWGM-4C operates from 30–2000 rpm.

No. The DWGM-4C data shows pumping speed decreasing from 50 L/min at 1013 mbar to 5 L/min at 5 mbar.

Both inlet and outlet use an 11 mm / 1/2″ hose joint.

The specified ambient operating range is 10–40°C.

They are marketed as corrosion-resistant diaphragm vacuum pumps, but this brochure does not specify wetted materials. Compatibility with the actual medium should therefore be confirmed before use.

Specifications of DWVP-30pro and DWGM-4C

ModelDWVP-30pro DWGM-4C
Maximum pumping speed at 50/60 Hz2.1m³/h 3m³/h
Limit vacuum5mbar / 3.6torr

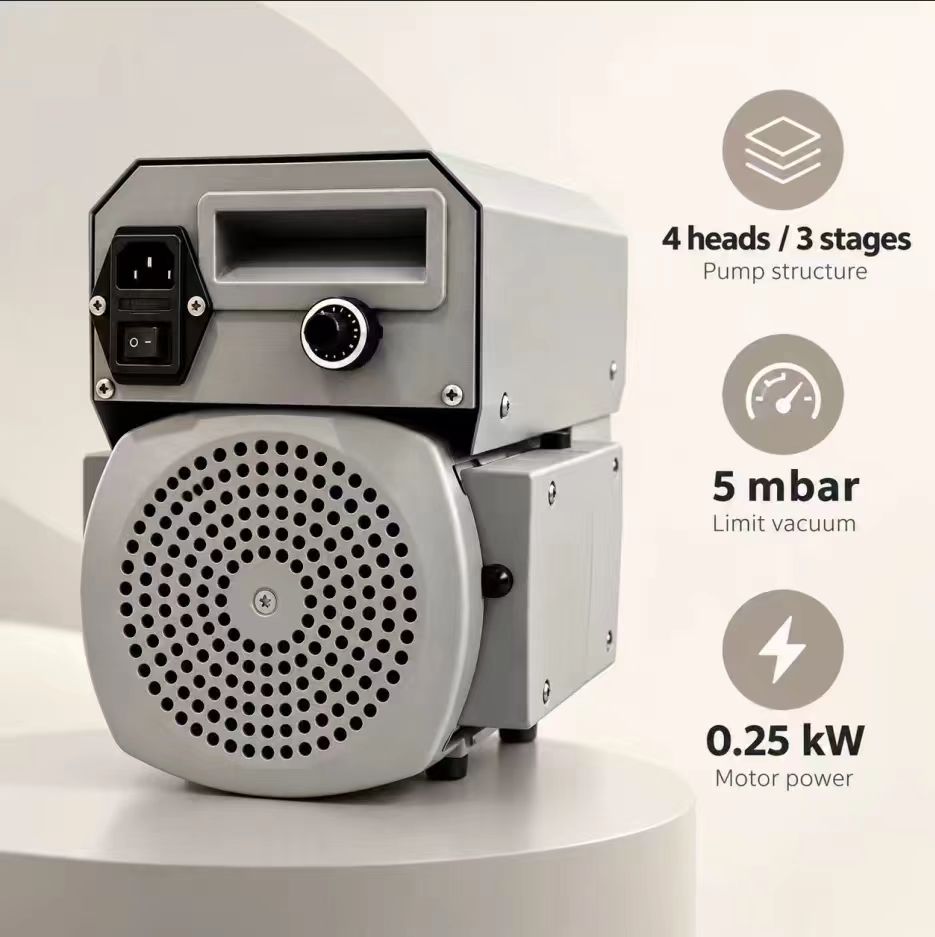

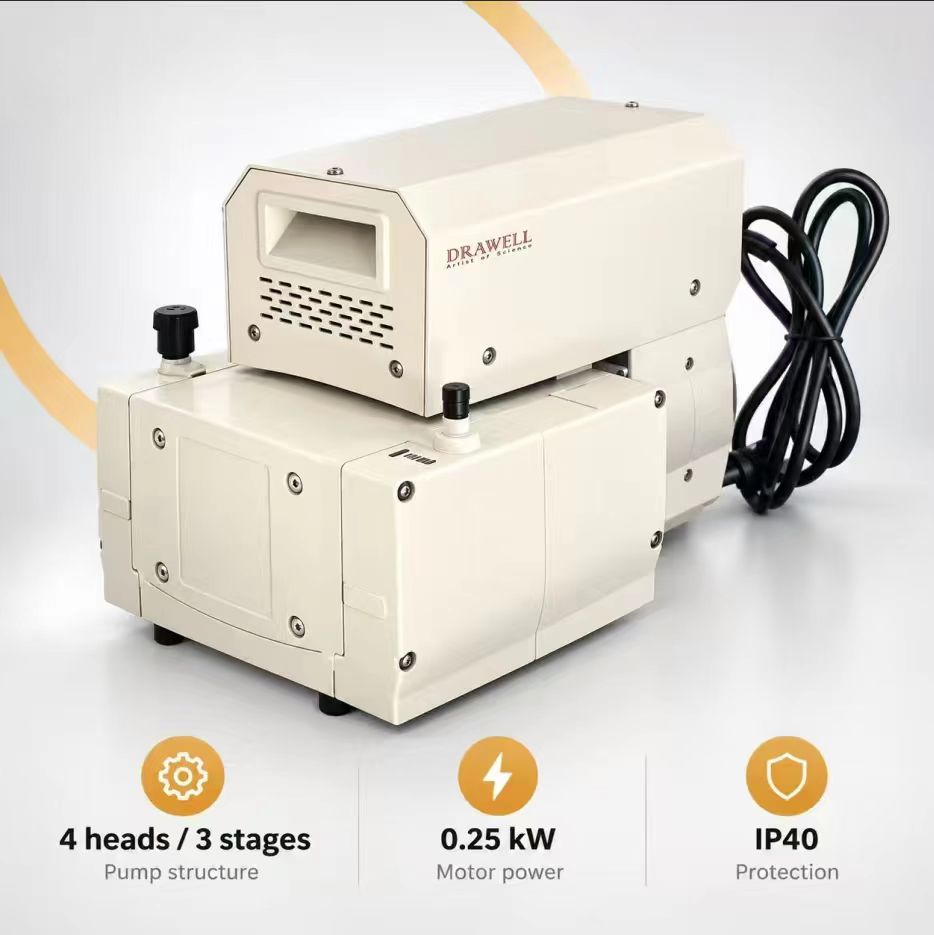

Number of pump heads/series4 / 3
Operating ambient temperature10 – 40°C
Storage ambient temperature-10 – 60°C
Maximum outlet absolute pressure1.1bar

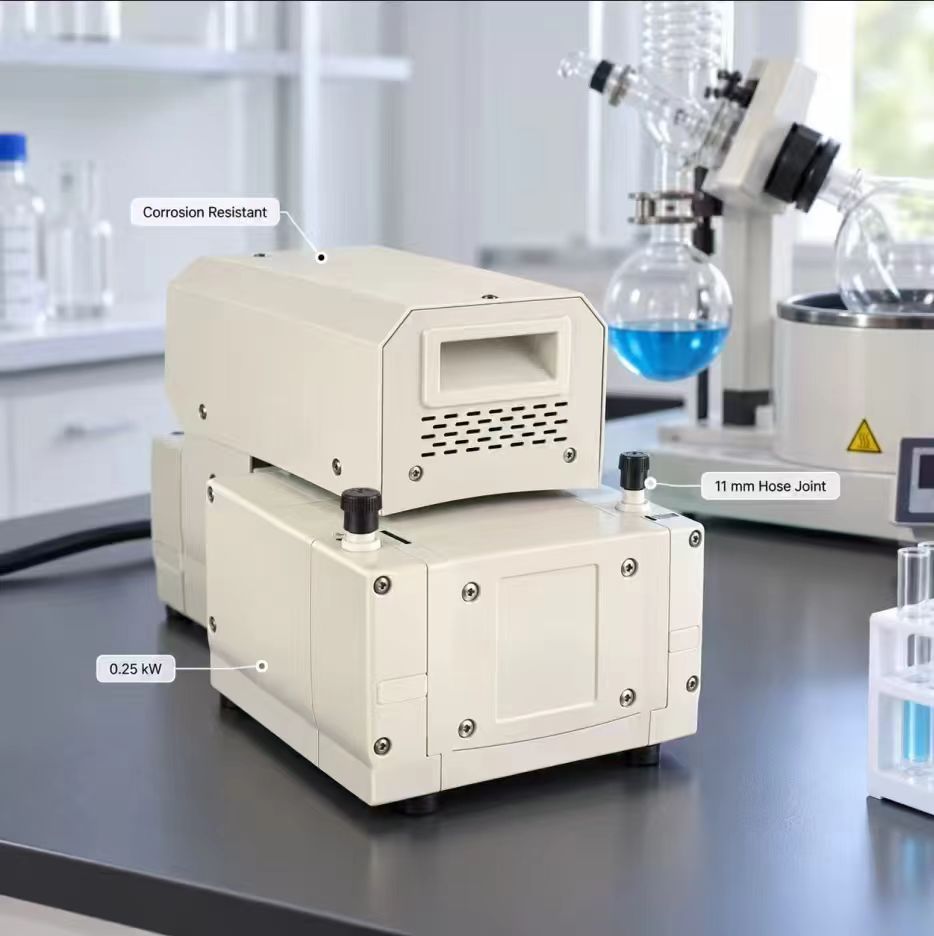

Air inlet interface（DN）11mm / 1/2 Hose joint
Air outlet interface（DN）11mm / 1/2 Hose joint
Rated motor power0.25kW
Adjustable speed at 50/60 Hz30 ~ 1800 RPM/min30 ~ 2000 RPM/min
Speed of air extraction/1013 mbar：50L/min900 mbar：45 L/min750 mbar：40 L/min600 mbar：35 L/min480 mbar：30 L/min360 mbar：25 L/min250 mbar：20 L/min150 mbar：15 L/min50 mbar：10 L/min5 mbar：5L/min
Degree of protectionIP 40
Overall size360*260*260mm
Weight16kg16kg
