SZ Series Automatic Pure Water Distiller

The SZ Series automatic pure water distillers are designed for laboratory preparation of primary, secondary and tertiary distilled water. The series uses quartz-tube heating and a glass distillation path so that the distilled water does not contact metal components during the distillation process. Automatic water-level control and protection functions support continuous and safer laboratory operation.

  • Distillation Stage: Primary / Secondary / Tertiary
  • Flow Rate: 1800 / 1600 / 1500 mL/h
  • Input Power: 1.5 / 3 / 4.5 kW
  • Power Supply: AC 220 V / 50 Hz
  • Heating Method: Quartz Heating Tube
  • Water-Level Control: Automatic Power On / Off

With different requirement of the pure water, SZ series automatic water distiller can be classified into the following 3 types:

Single stage automatic pure water distillerDouble stage automatic pure water distillerTriple stage automatic pure water distiller
Pure waterPurer waterPurest water

Features of SZ Series Automatic Pure Water Distiller

  • The SZ series automatic pure water distiller is heated with quartz heating tube, which is energy-saving,pure, durable and of high radiation rate.
  • The adoption of stainless steel in supporting shelf and clamp; special engineering plastics made of control panel and mian distiller body made of quality glass.
  • The pure water distillated does not contact with any metal products.
  • The SZ series automatic water distiller is ideal for the distillation of pure water.
  • All SZ series automatic pure water distiller is equipped with reply protection, which is safe and reliable to use.
  • The distiller switch can be controlled with temperature controller and spring gauge controller, which helps avoid glass breakage caused by dry heating of loop heat pipe.
  • Power supply will be automatically connected or cut off in high water line or low water line. So the pure water distiller is fully automatic.
DW SZ 96 5

Choose by Distillation Stage

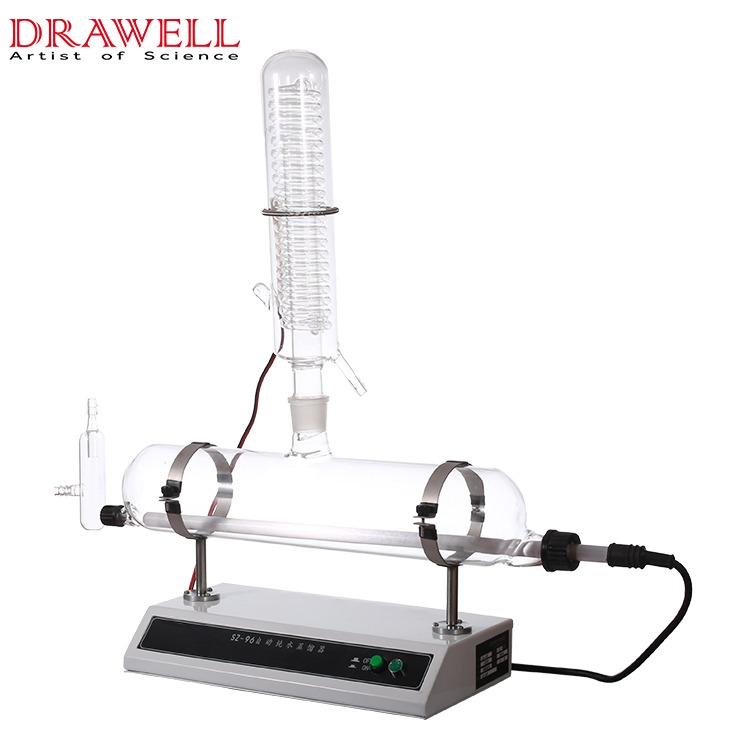

SZ-96: Suitable for preparing primary distilled water in laboratory.

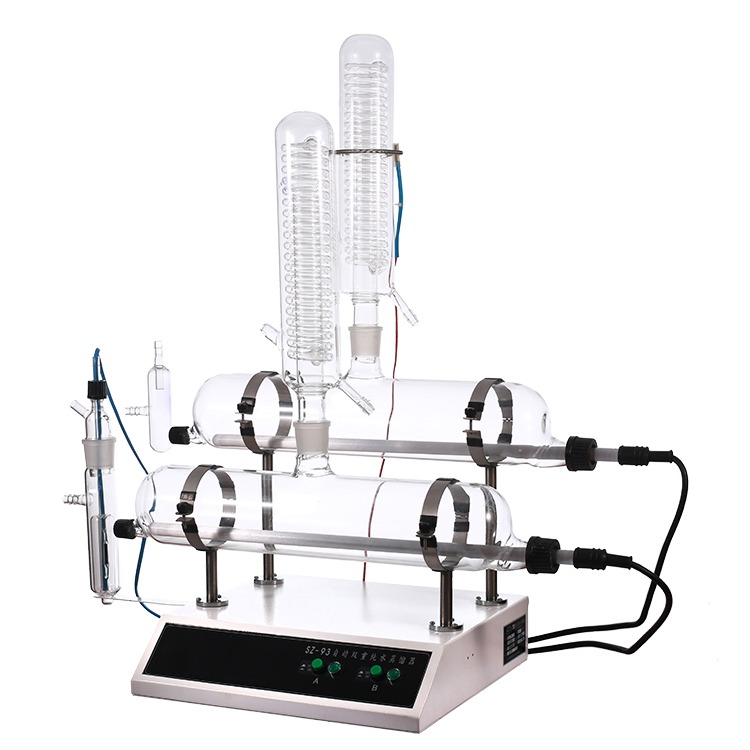

SZ-93: Uses a second distillation stage for laboratories requiring secondary distilled water and a higher purification level than single-stage distillation.

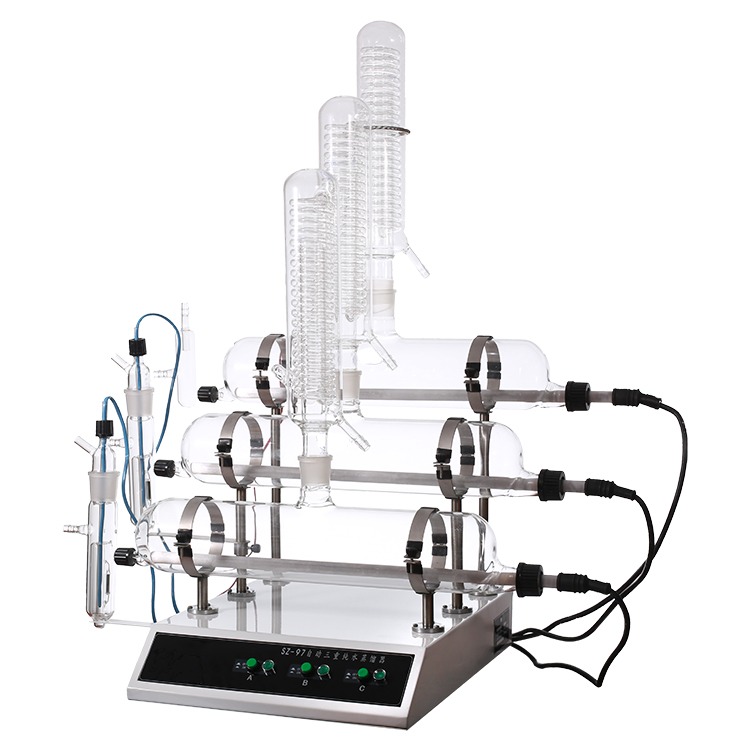

SZ-97: Adds a third distillation stage for laboratory workflows requiring a higher distilled-water purity level than secondary distillation. The instrument has relay protection device for primary, secondary and tertiary distillation, which is safe and reliable to use.

Choose by Distillation Stage

Technical Parameter of SZ Series Automatic Pure Water Distiller

Model SZ-96SZ-93SZ-97
Flow rate1800ml/h1600ml/h1500ml/h
Input power1.5Kw3Kw4.5Kw
Voltage AC220v/50HzAC220v/50HzAC220v/50Hz
Pack size (mm)660*370*310mm570*480*390mmCondenser 570*480*390mm,5.8kgHost 610*450*440mm,10kg
Weight5.4kg10kg15.8kg
Size (mm)770*200*68mm 770*360*780mm770*490*890

Applications of SZ Series Automatic Pure Water Distiller

Laboratory Water Preparation

Laboratory Water Preparation

Preparation of primary, secondary or tertiary distilled water according to the selected model.

Routine Laboratory Support

Routine Laboratory Support

Provides distilled water for compatible general laboratory workflows requiring laboratory-prepared distilled water.

Multi Stage Distilled Water Preparation

Multi-Stage Distilled Water Preparation

SZ-93 and SZ-97 support secondary and tertiary distillation when additional distillation stages are required.

SZ Series Automatic Pure Water Distiller Display

FAQ

SZ-96 prepares primary distilled water, SZ-93 uses secondary distillation, and SZ-97 uses tertiary distillation.

SZ-96 has the highest specified flow rate at 1800 mL/h.

No. The specified output decreases from 1800 mL/h to 1500 mL/h as the number of distillation stages increases.

According to the brochure, the distilled water does not contact metal products during the distillation process.

The SZ Series uses a quartz heating tube.

Yes. The power supply is automatically connected or disconnected according to the high and low water levels.

These parameters should be confirmed separately if required for a specific laboratory method.
