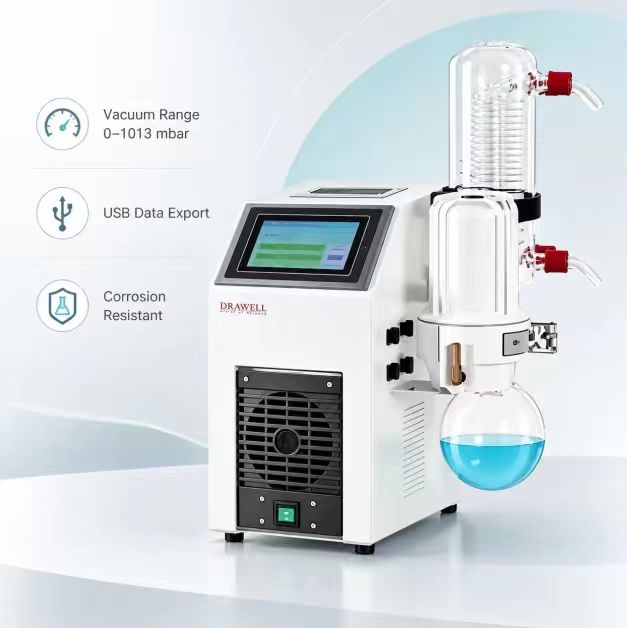

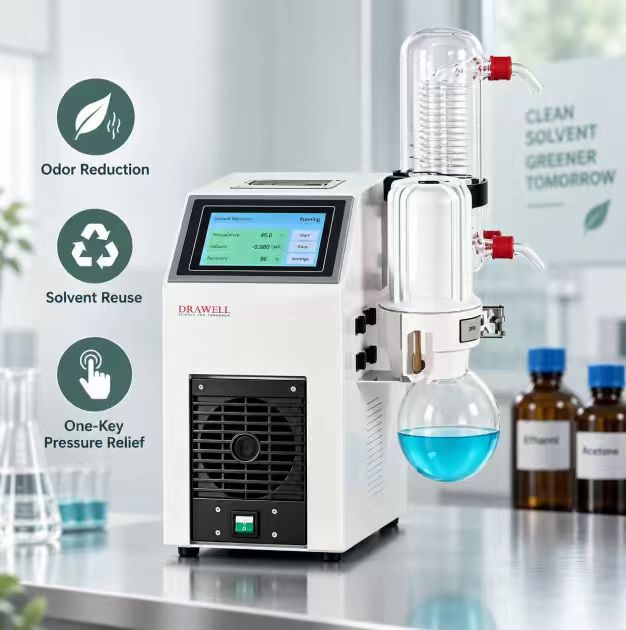

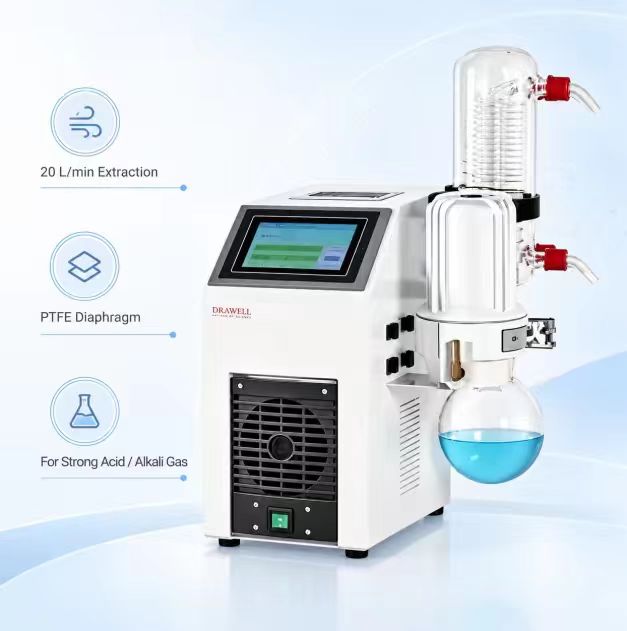

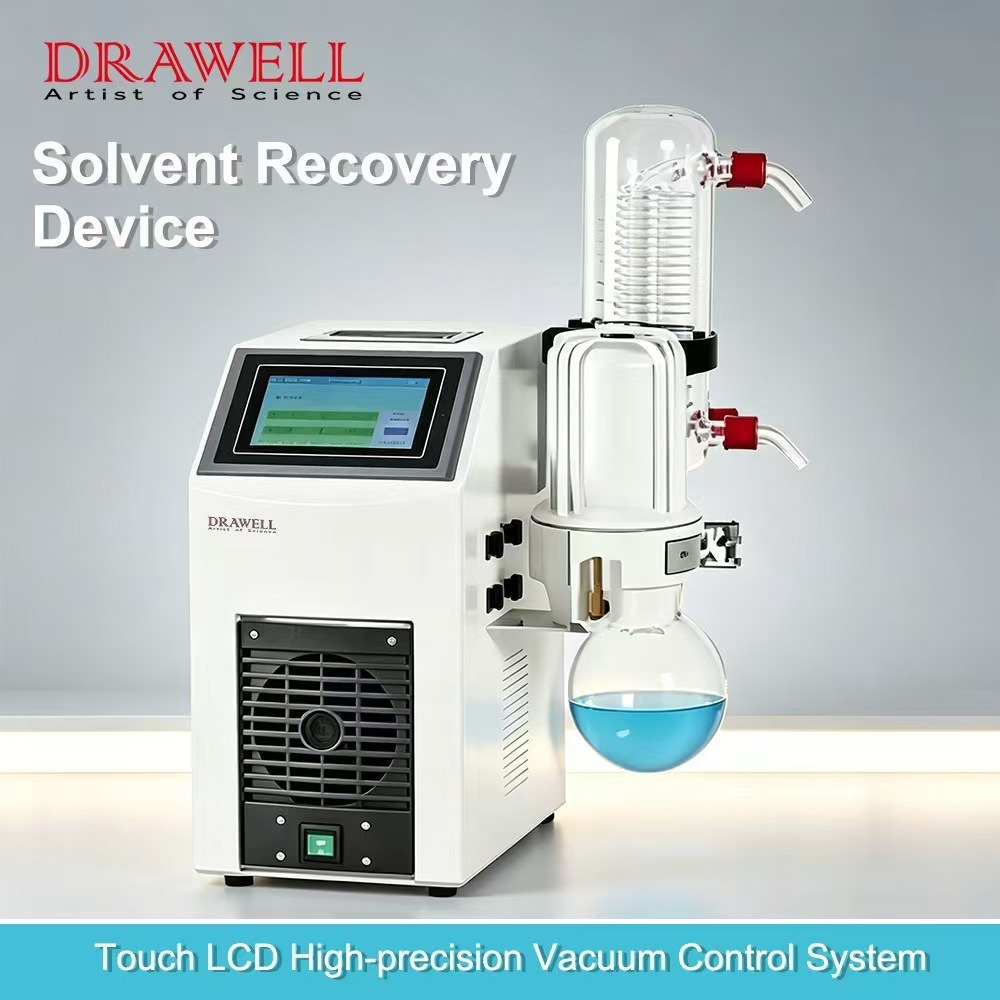

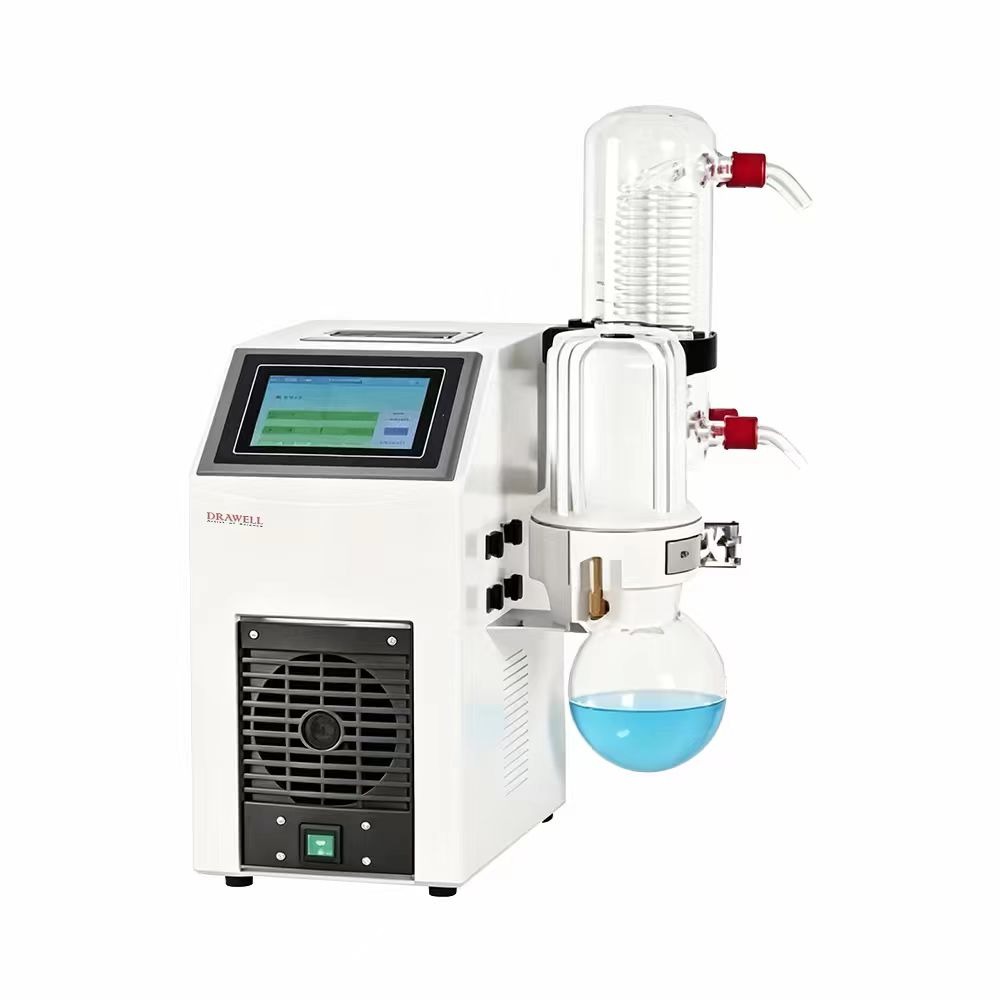

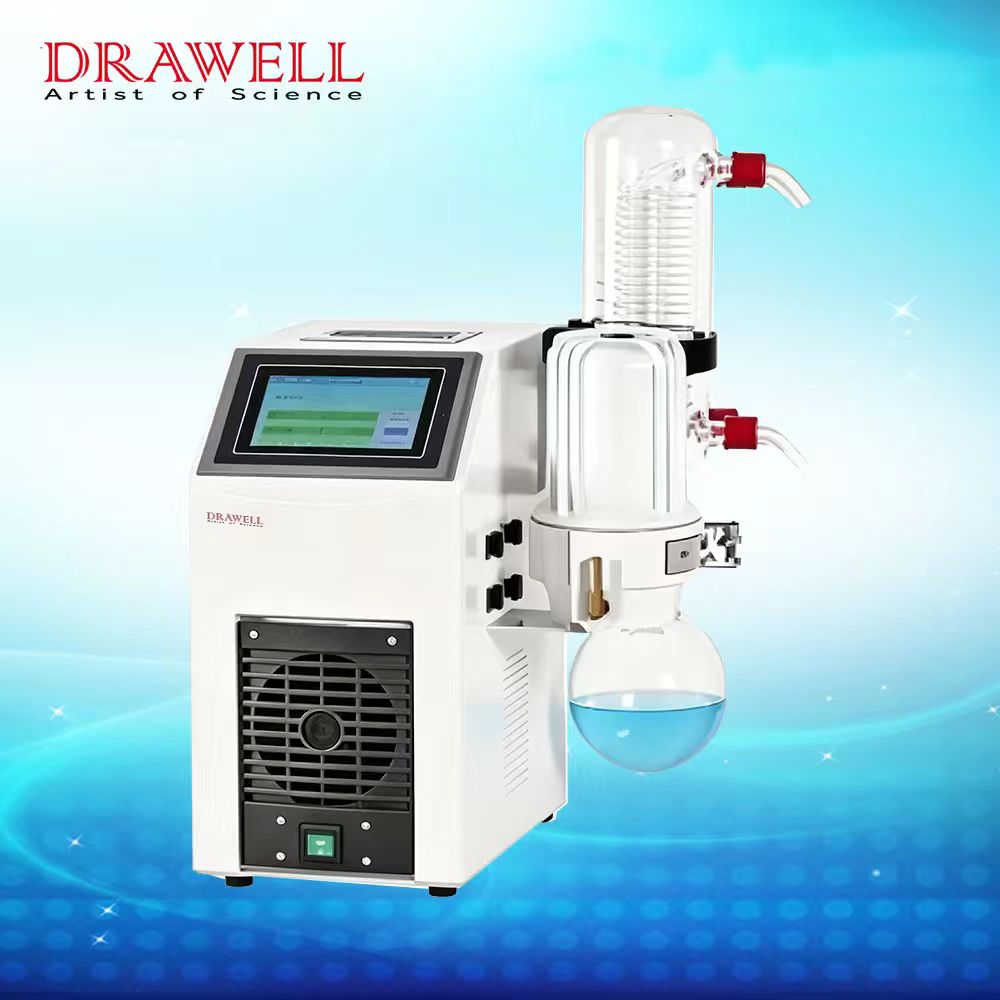

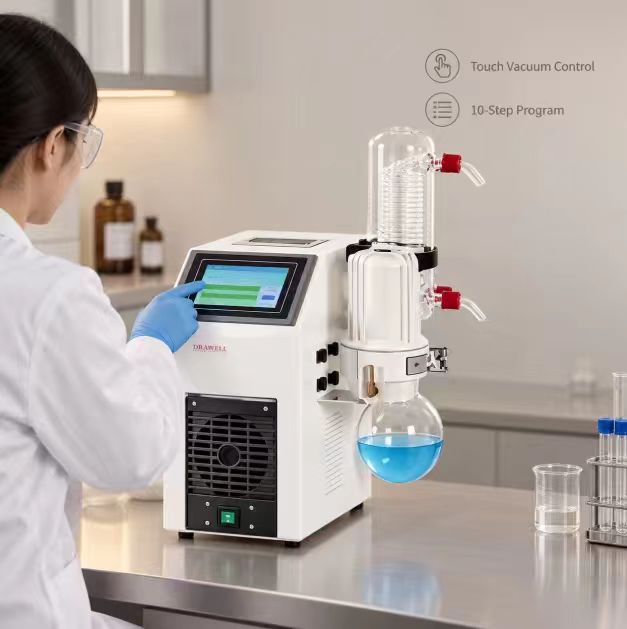

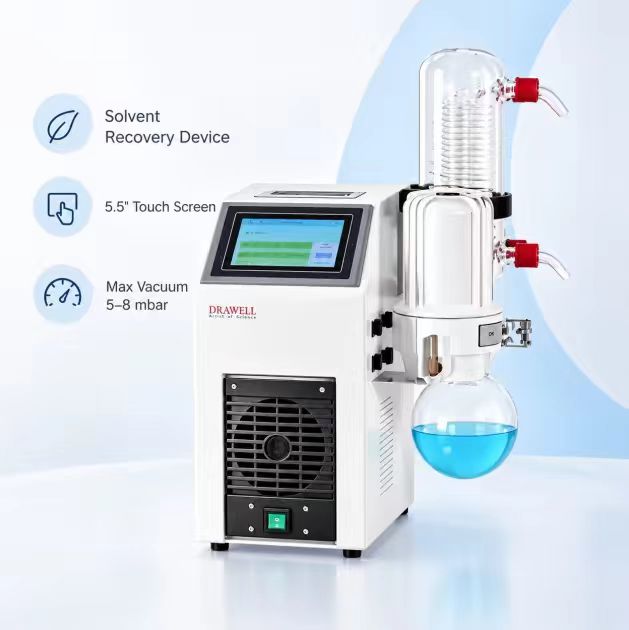

DW-GMVC-3000RM Solvent Recovery Device

DW-GMVC-3000RM solvent recovery device integrates vacuum generation, programmable vacuum control, secondary condensation and vapor adsorption in one system. Designed for rotary evaporation, reduced-pressure concentration, drying and distillation, it helps recover solvent vapor that may escape primary condensation through an additional condenser and activated-carbon adsorption unit, improving solvent recovery while reducing residual vapor and laboratory odors.

  • 5–8 mbar Maximum Vacuum
  • 20 L/min Maximum Extraction
  • 10 Stages Gradient Vacuum Program
  • 5.5″ Touch Screen
  • 500 mL Receiving Flask
DW-GMVC-3000RM Brochure

Features of DW-GMVC-3000RM

  • Host: Integrated diaphragm pump integrated vacuum control system, with high control accuracy, corrosion resistance, long valve life.
  • 5.5-inch touch color LCD screen can display the detection and set vacuum, and can directly adjust the vacuum on the LCD screen.
  • Can be matched with imported or domestic brands of rotary evaporator, with good vacuum control vacuum controller, connected with rotary evaporator.
  • The vacuum inside the rotary evaporator can be controlled to increase the boiling point (e.g., methylene dichloride, benzene, trichloroethane, ethanol)
  • The low recovery rate of reagents can also be carried out by the replacement of inert gas to concentrate under reduced pressure without internal oxidation and contamination.
  • Can carry out 10 stages of gradient distillation program control (time and vacuum degree of the arrangement of operation), synthetic experimental chromatographic distillation, the gradual control of vacuum degree.
  • Interface operation: Chinese/English system interface operation switch function.
  • Vacuum controller (mbar) and (Mpa) unit switching, graph tracking query, USB interface data export.
  • Optional steam temperature (-20~200℃) monitoring function.
  • Point action type/one key pressure relief function.

Applications of DW-GMVC-3000RM

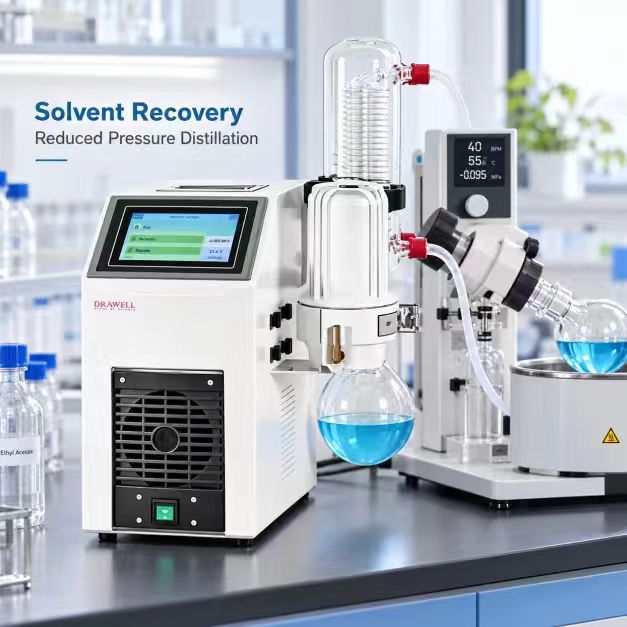

  • Rotary Evaporation: Secondary solvent recovery during rotary evaporation and concentration.
  • Solvent Recovery: Additional condensation and collection of solvent vapor during vacuum processing.
  • Reduced-Pressure Concentration: Vacuum-controlled sample concentration with secondary vapor recovery.
  • Vacuum Distillation: Programmable vacuum control for staged distillation workflows.
  • Corrosive Vapor Handling: PTFE diaphragm and adsorption configuration for applicable acidic or alkaline vapor environments.
Applications of DW GMVC 3000RM

Why Need a Solvent Recovery Device?

Fast vacuum pumping can sometimes carry solvent vapor beyond the primary condenser before it is completely recovered. DW-GMVC-3000RM adds a secondary condensation and collection stage to help recover more solvent before the remaining vapor reaches the adsorption unit.

  • Incomplete Solvent Recovery?
  • Residual Solvent Vapor?
  • Odor from Exhaust Gas?

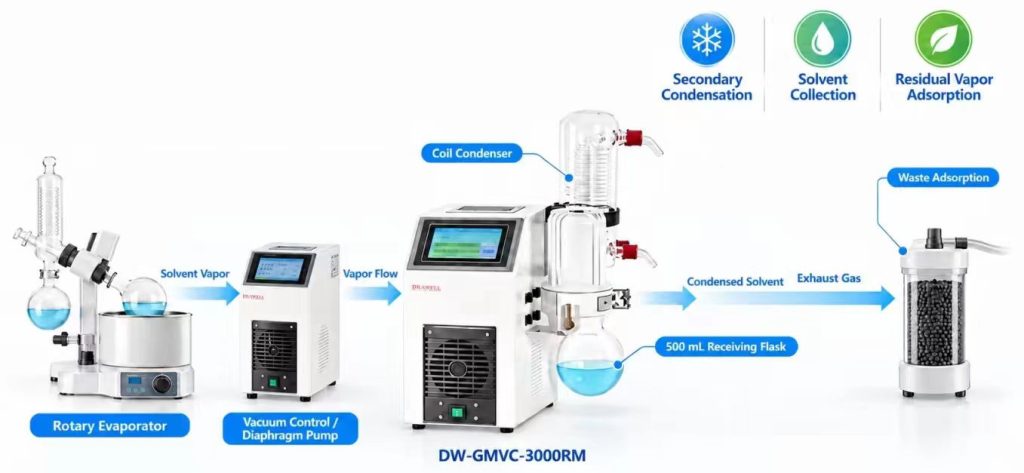

DW GMVC 3000RM Secondary Solvent Recovery

FAQ

It combines vacuum control with secondary solvent condensation, collection and residual-vapor adsorption.

Yes. The standard configuration includes a diaphragm pump.

The specified maximum vacuum is 5–8 mbar.

The maximum extraction rate is 20 L/min.

Yes. A coil condenser is included in the standard configuration.

A 500 mL S35 receiving flask is included.

Yes. It supports a 10-stage gradient vacuum program.

The brochure specifies a PTFE diaphragm for strong-acid and strong-alkali gases.

Specifications of DW-GMVC-3000RM

ModelDW-GMVC-3000RM
Display5.5 inch LCD color touch screen with indipendent intelligent vacuum control system
Vacuum adjust range0~760mmHg(Toor),0~1013hPa(mbar)0~101.3kPa,0~0.01Mpa
Vacuum detect range1~800mmHg(Toor),1~1066hPa(mbar)0~106.6kPa,0~ -0.01Mpa
Vacuum ControllerCan realize the program automatic control vacuum degree, built-in one key vacuum unloading stop distillation
Max. Vacuum degree 5-8mbar
Max. extraction20L/min
Interface sizeOutside diameterφ10mm
Voltage AC 220V/50Hz
Total power130W
Applicable MediumStrong acid, strong alkali gas
Diaphragm materialPTFE
Noise 60db
Environment temp5~40℃
Protection Class IP20
Standby Power 3W
ConfigurationVacuum controller*1,Diaphragm pump*1 ,Coil condenser*1, S35 Receiving flask 500ml*1,Waste absorption*1
Instrument Size330*310*460mm
Weight15KG
