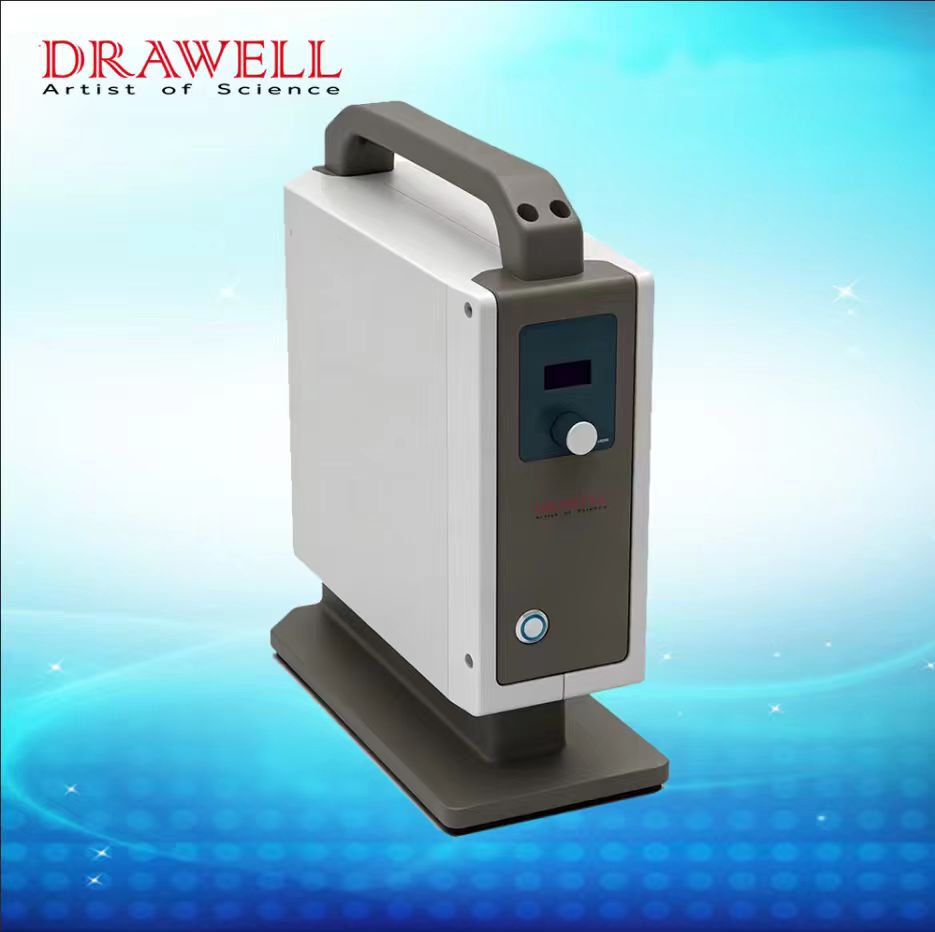

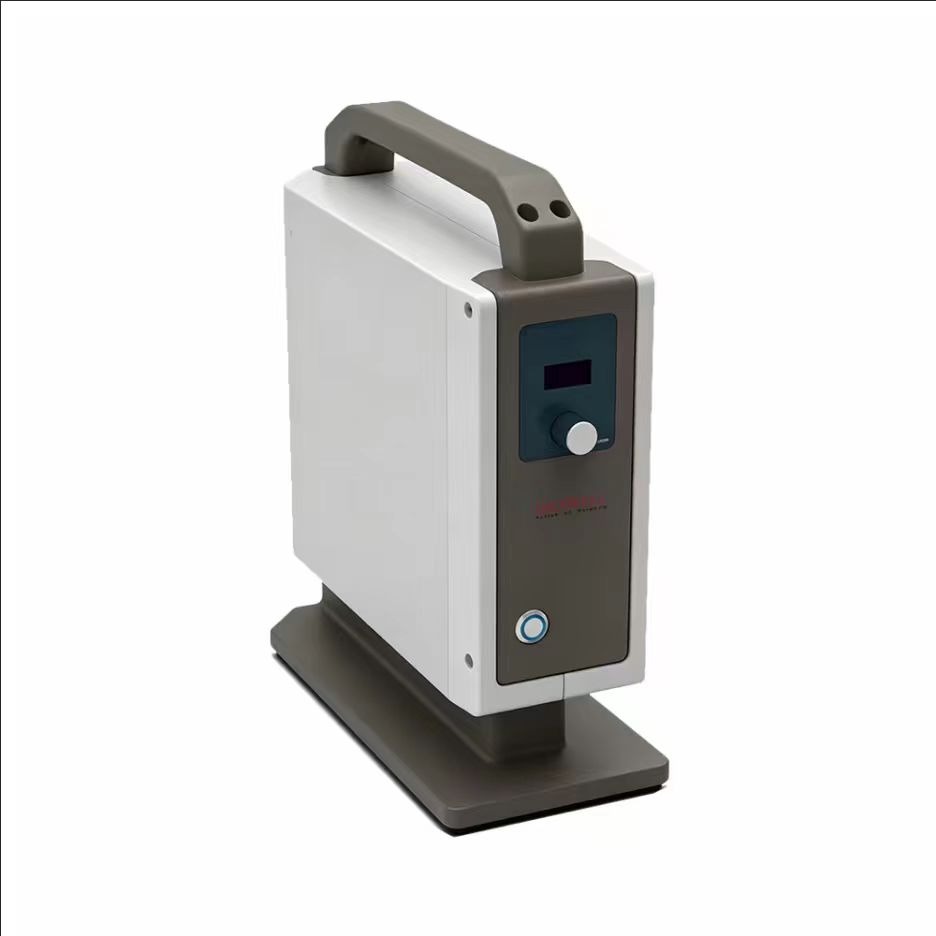

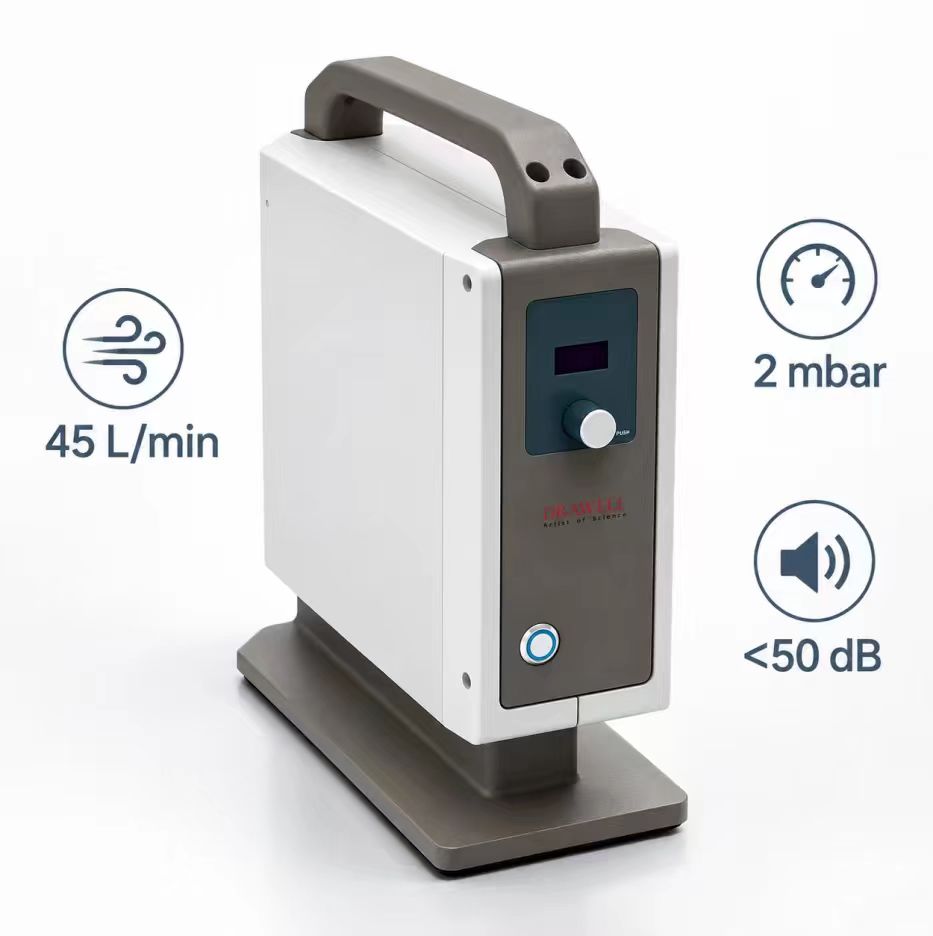

DWGM-45L Corrosion Resistant Diaphragm Vacuum Pump
DWGM-45L is a variable-speed, four-stage corrosion-resistant diaphragm vacuum pump designed for reduced-pressure laboratory processes involving corrosive gases and organic solvent vapors. A frequency-controlled DC motor drives the diaphragm system, while the air chamber and vacuum path are made of PTFE for chemical resistance. With its highly integrated design, the pump occupies less than 6 square decimeters, significantly improving space utilization efficiency.
- 45 L/min Pumping Speed
- 2 mbar Ultimate Vacuum

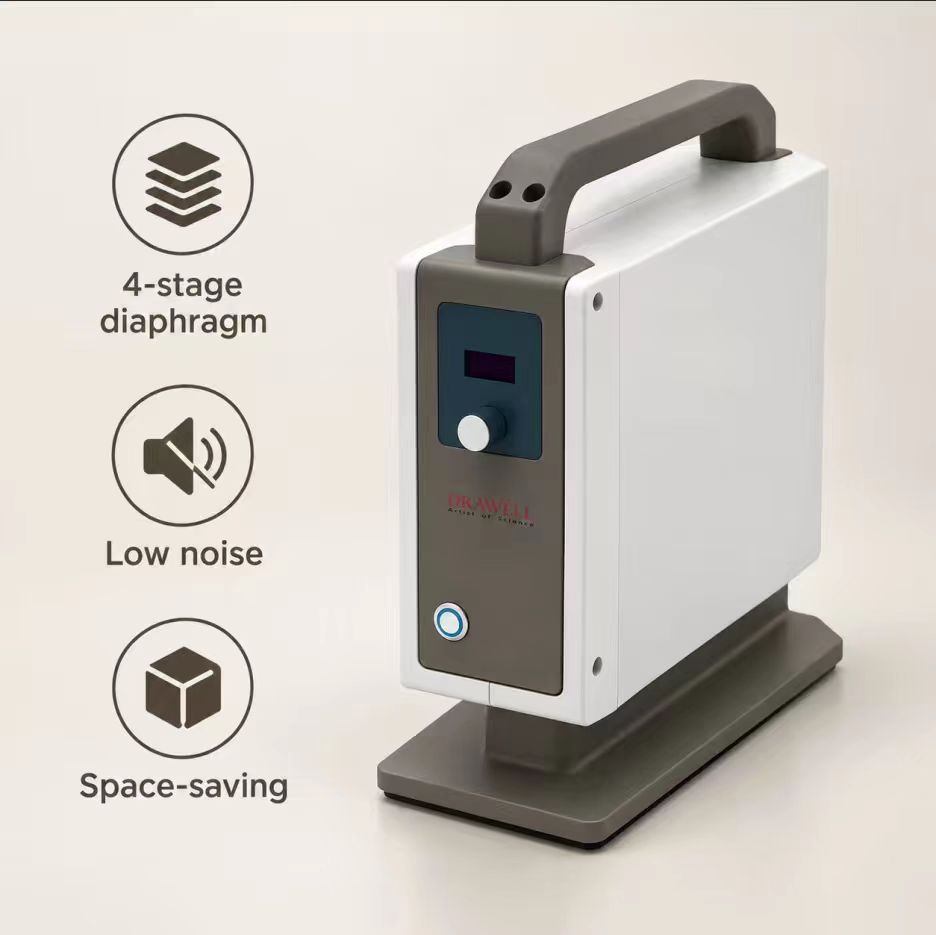

- Four-Stage Pump Chamber

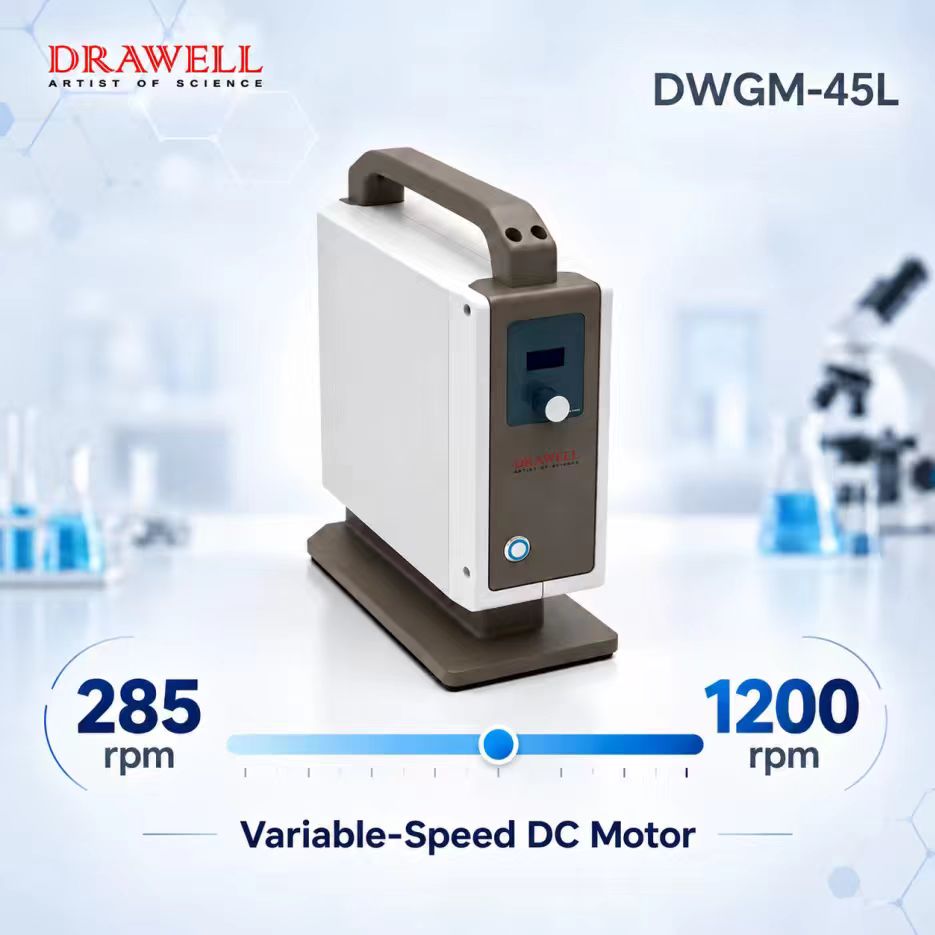

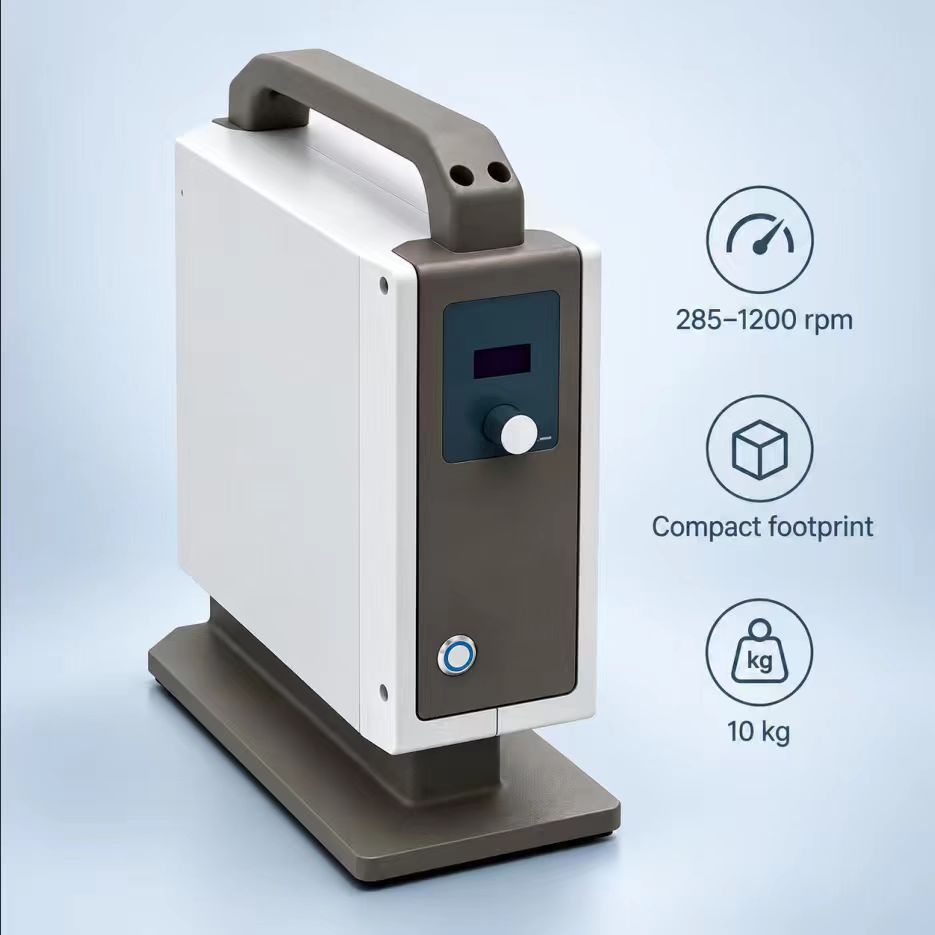

- 285–1200 rpm Variable Speed

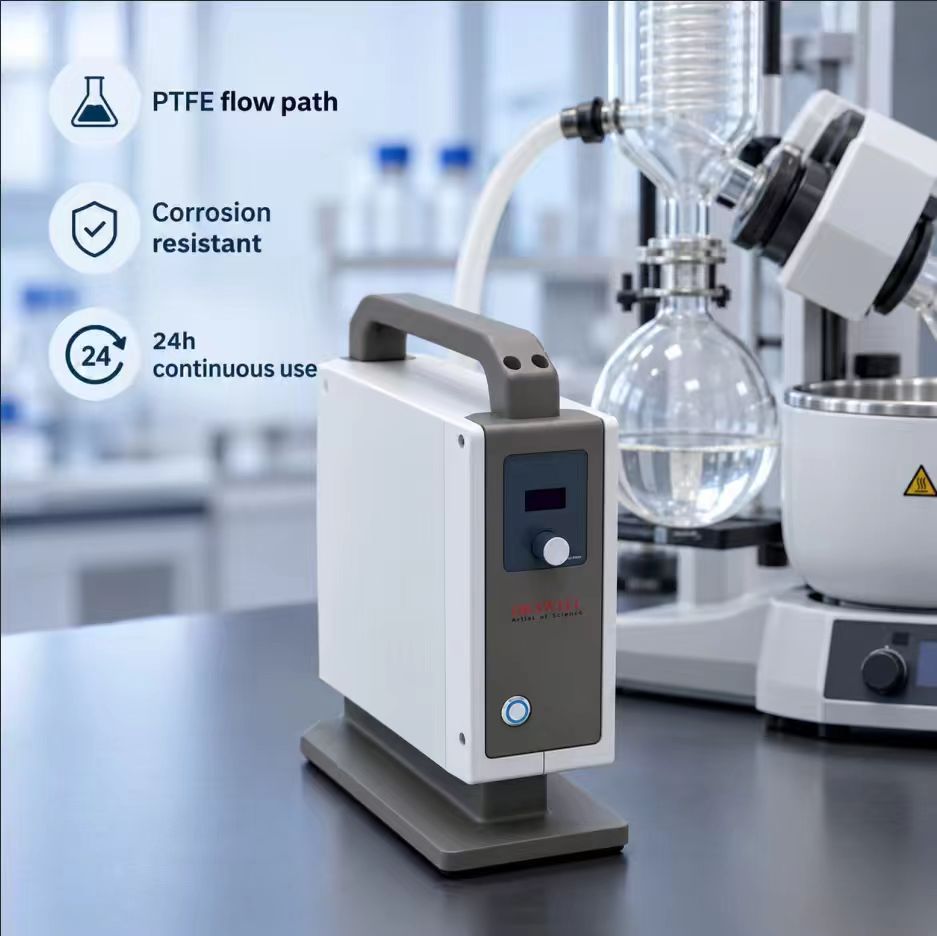

- PTFE Air Chamber & Vacuum Path
Features of DWGM-45L
- All adopt international advanced brand of imported bearings, stable operation, small vibration, low noise < 50 decibels.
- With overheat protection function, it can run at full load for 24 hours, with low temperature rise and large torque.
- High vacuum precision design and manufacturing greatly improve the efficiency of laboratory work.
Applications of DWGM-45L

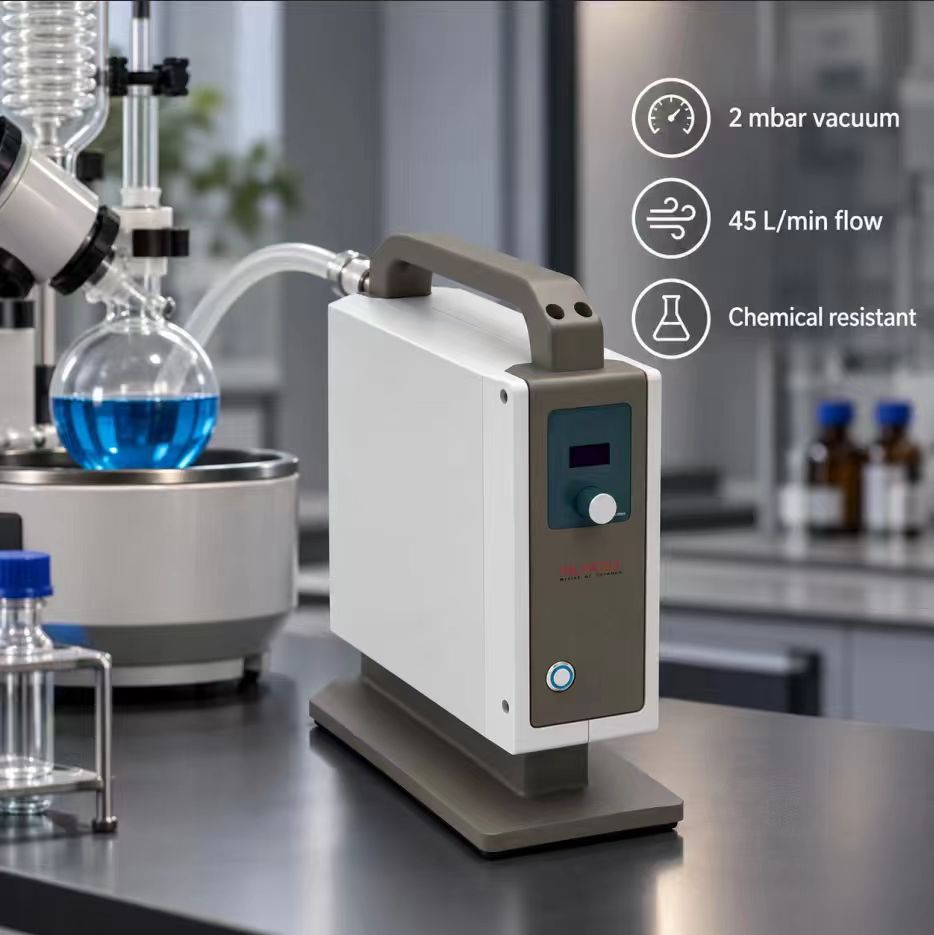

- Rotary Evaporation: Vacuum support for solvent mixtures, extracts and concentrated solutions during rotary evaporation.
- Vacuum Concentration: Provides vacuum for reaction solutions, solvent extracts and purified fractions during reduced-pressure concentration.

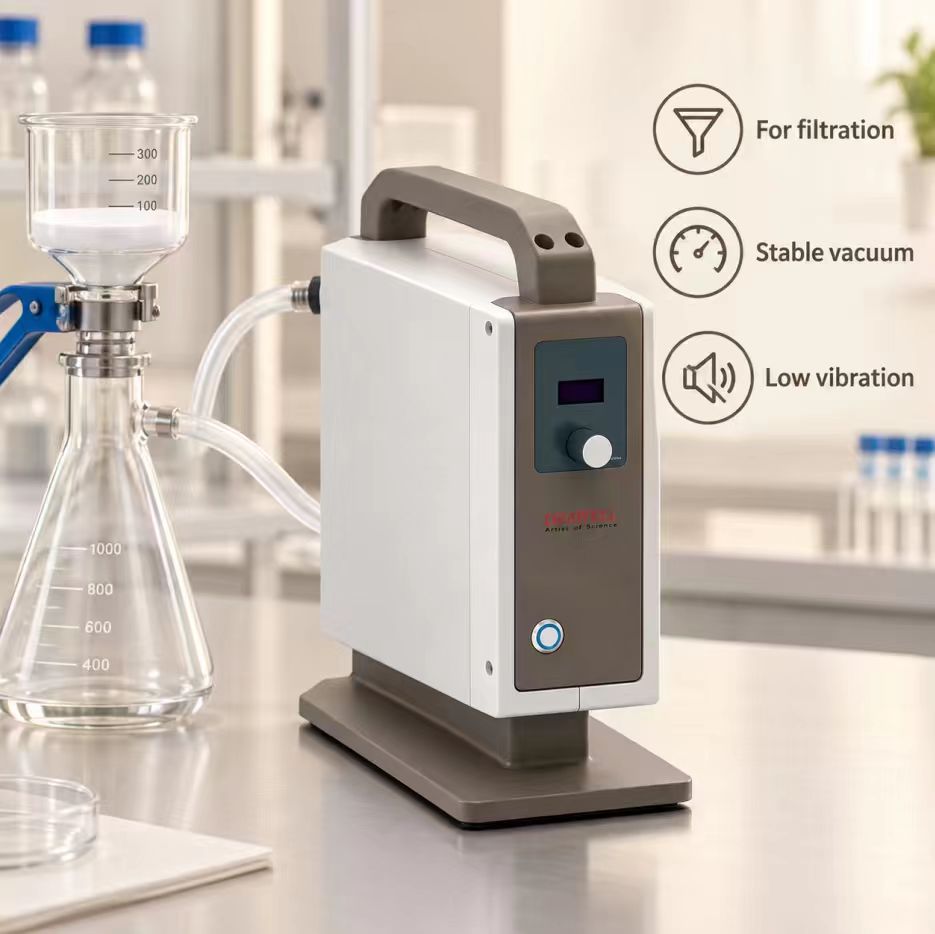

- Vacuum Filtration: Vacuum source for suspensions, precipitates and liquid samples using compatible filtration systems.
- Corrosive Vapor Processes: PTFE vacuum path supports compatible processes involving acidic, alkaline or organic solvent vapors, subject to medium compatibility.
- Laboratory Vacuum Processes: Suitable as a vacuum source for compatible reduced-pressure synthesis, evaporation and sample-preparation workflows.
When to Choose DWGM-45L
Choose DWGM-45L when your process requires:
- 2 mbar deeper vacuum
- 45 L/min pumping speed
- Variable-speed operation
- PTFE gas-contact path
- Organic solvent / corrosive vapor resistance
- Extended full-load operation
