DW-SOX606 Fat Analyzer

The DW-SOX606 Automatic Soxhlet Extractor uses gravimetric Soxhlet extraction for reliable fat determination and soluble organic compound extraction. It offers five extraction modes, fast and uniform metal-bath heating, water temperature and flow monitoring, and built-in ether leak detection for safer operation. It is suitable for food, agriculture, pharmaceuticals, chemicals, soil, sludge, detergents, and environmental samples.

  • 6 Samples per Batch
  • 5 Extraction Methods
  • 0.5–15 g Sample Weight
  • RT +5°C to 300°C
  • ±1°C Temperature Accuracy
  • ≥85% Solvent Recovery
DW-SOX606 Manual
DW-SOX606 Brochure

Features & Advantages of DW-SOX606 Automatic Soxhlet Extractor

  1. Apply to all organic solvents to satisfy all demands.
  2. Automatic Soxhlet standard method, it customized by glass and PTFE, which can block all impurities and possess high rate of accuracy.
  3. One-click manipulation for start and pause, that makes operation with high proficiency.
  4. Analyzer allows its controller to adsorb on any surface that made by iron.
  5. Vertical screen, more humanization.
  6. In-built 5 methods of extraction, handy operation.
  7. Preset common reagent options, one-click manipulation for repeated trials
  8. The overall heating module, that possesses features of warming faster, favorable effect and low power consumption.
  9. Solvent can be recycle automatically.
  10. Full temperature and flow control for environmental and economy.
  11. In-built ether leak detection device to ensure experiment safety.
  12. Efficient solvents recovering system for reduce experimentation costs.
SOX606-A
SOX606-B

Highlight Advantages:

  • Automatic extraction: One touch to start extraction, lifting, pre-heating, extraction, dilution, solvent recovery automatically.
  • In-built 5 unique methods of extraction, handy operation: Include Soxhlet Extraction, Soxhlet Hot Extraction, Continue Flow Extractioin, Hot Extraction, CH Standard methods.
  • Apply to all organic solvents: Customized by glass and PTFE, which can block all impurities and possess high rate of accuracy, apply to all organic solvents, satisfying the requirements of users.
  • ECO- friendly and conservation: Full temperature and flow control for reduce consumption of condensed water.

Application areas of fat analyzer

Food and Beverage Industry 1

Food and Beverage Industry

Comprehensive Quality Control from Raw Materials to Finished Products

Agriculture and Animal Husbandry 1

Agriculture and Animal Husbandry

Crop Quality Assessment and Feed Nutrition Management

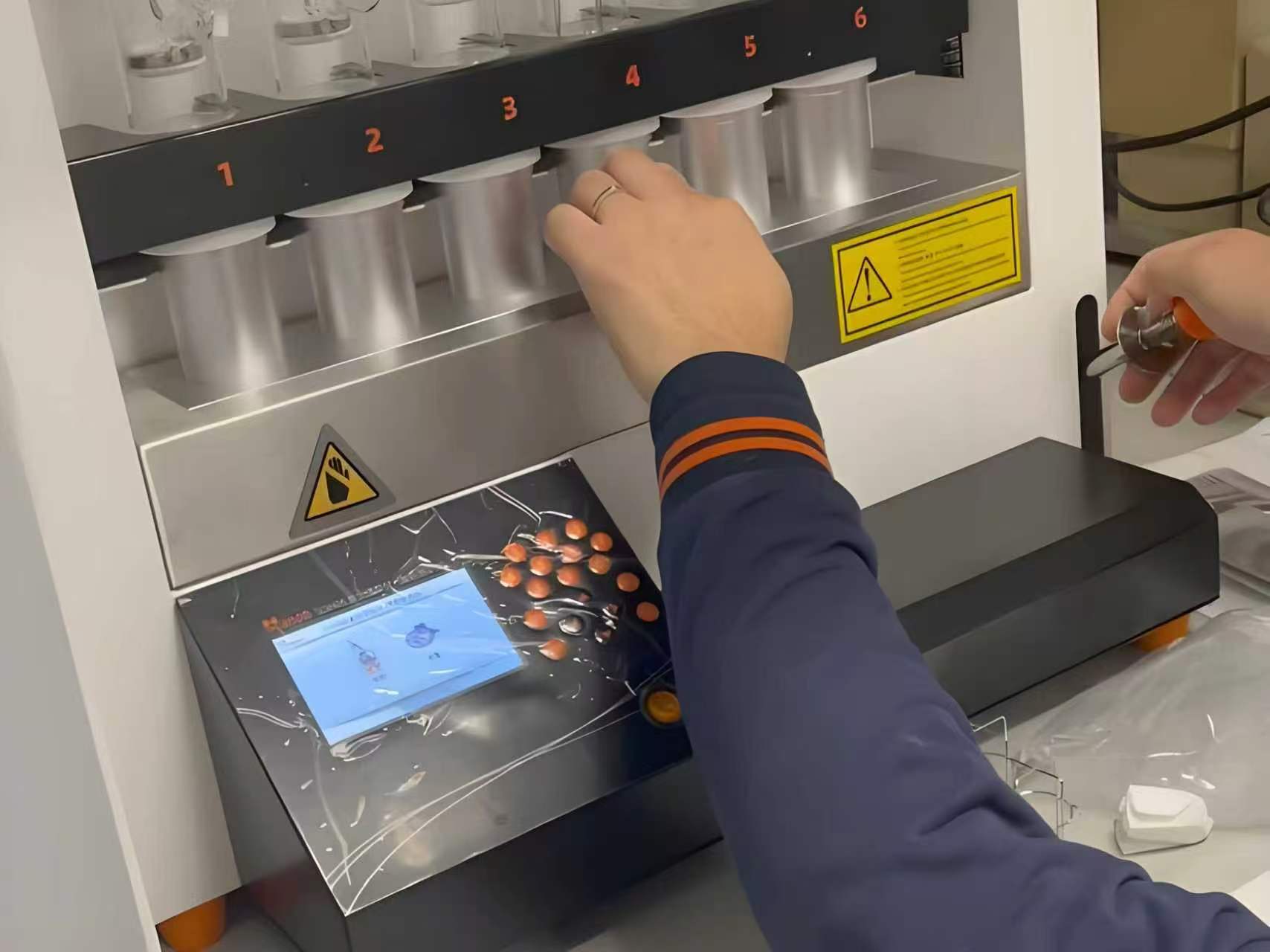

Pharmaceutical and Health Products Industry 1

Pharmaceutical and Health Products Industry

Precise Control of Raw Materials and Efficacy

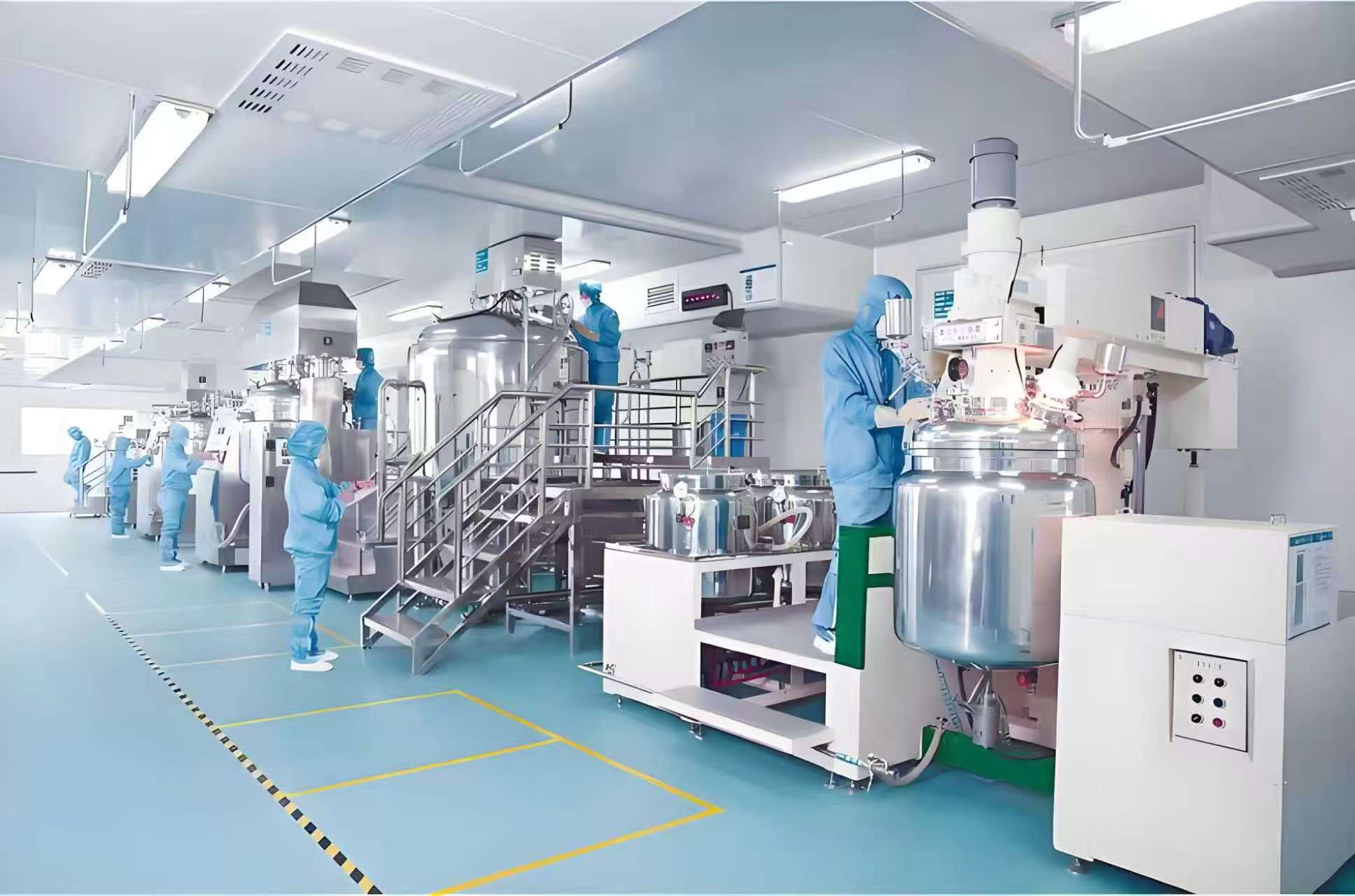

Chemical and Daily Chemical Industry 1

Chemical and Daily Chemical Industry

Raw Material Testing and Product Performance Optimization

Scientific Research and Education 2

Scientific Research and Education

Basic Research and Teaching Practice

FAQ

Instruments come in different configurations, commonly 4-position, 6-position, 12-position and 24-position models. A full procedure including soaking, reflux and drying & weighing generally takes 4–8 hours. Fully automatic models greatly cut down manual waiting time.

Recover residual solvent after each test, clean extraction cups and thimbles. Wipe heating blocks and condensing pipes regularly to avoid grease buildup. Empty the solvent tank for long-term storage and keep the unit ventilated and dry. Replace sealing rings periodically to prevent leakage.

No. The Soxhlet method measures crude fat, which includes triglycerides as well as fat-soluble vitamins, waxes, pigments and resins. It is only a standard reference index instead of pure fat content.

Common causes include insufficient cooling water flow, low heating temperature, blocked pipelines and air leakage. Solutions: increase cooling water flow, raise heating power moderately, clean grease inside pipelines and replace worn sealing gaskets.

Standard consumables: fat-free filter paper, extraction cups and sealing rings. Filter paper is replaced per test; sealing rings are replaced every 3–6 months. Intact glass extraction cups can be reused long-term.

Technical Data of DW-SOX606 Automatic Soxhlet Extractor

Temperature rangeRT +5℃～300℃
Measuring range0.1～100%
Temperature accuracy±1℃
ReproducibilityRelative error 1%
Sample weight0.5～15g
Capacity per batch6pcs/batch
Solvent cup volume150mL
Solvent recovery≧85%
Power supply220VAC±10%, 50Hz
Power2.6KW
Dimensions650mm×380mm×720mm
Net Weight50Kg
