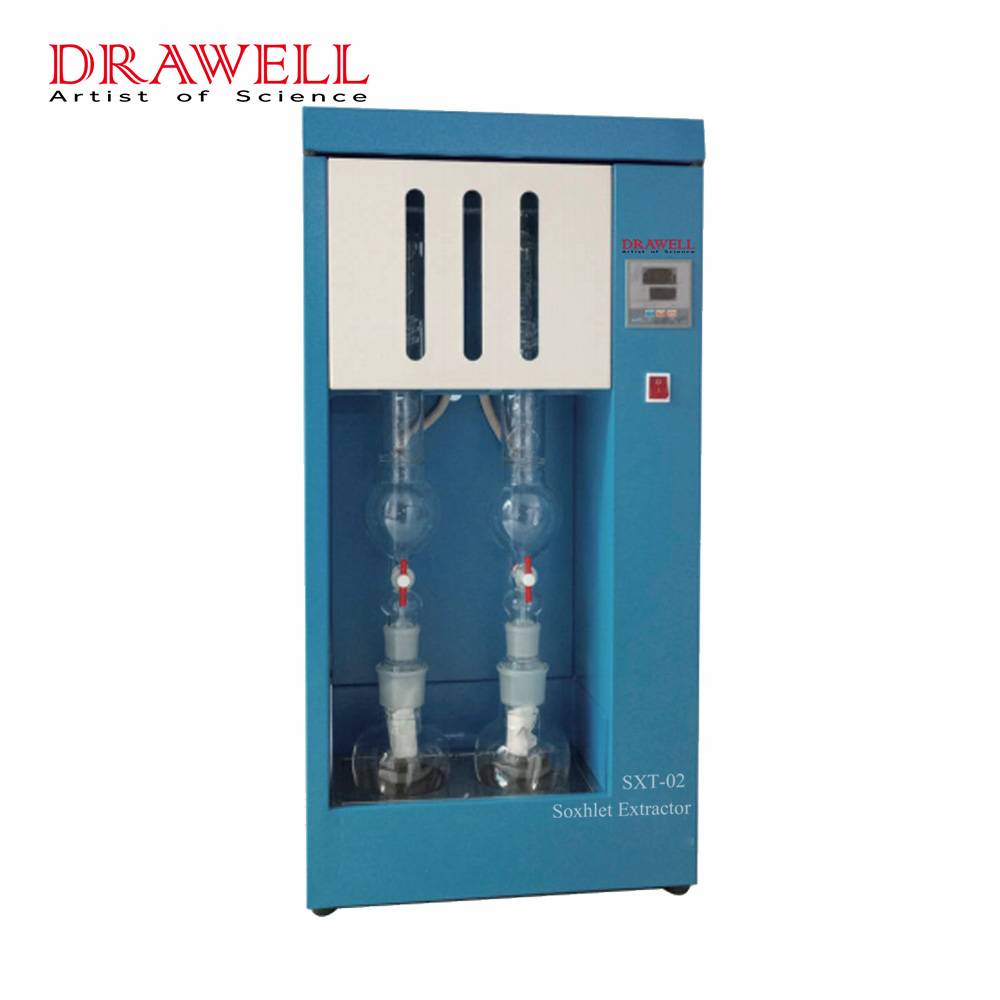

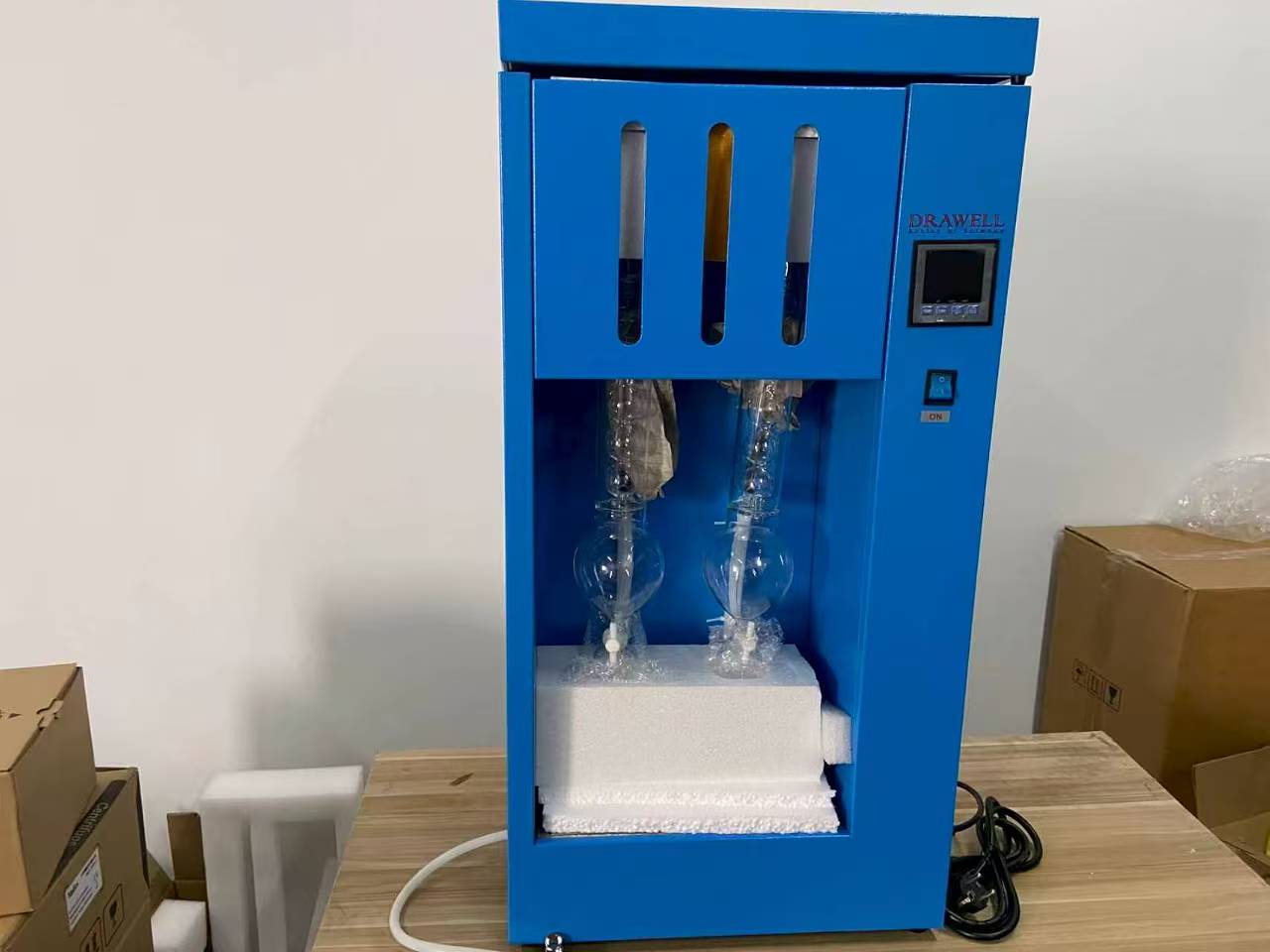

DW-SXT-02 Soxhlet Extractor

DW-SXT-02 Soxhlet Extractor is for labs to make Soxhlet extraction, designed in accordance with the classical Soxhlet extraction method. This apparatus is reasonably designed, provides stable performance, high precision, time-saving operation, is an ideal Soxhlet extraction apparatus for foodstuff, oil&fat, feedstuff and other industries.

  • 2 Samples per Batch
  • 0.5–20 g/sample
  • 500 mL Flask Capacity
  • Ambient +5°C to 100°C
DW-SXT-02 Manual
DW-SXT-02 Brochure

Features

  • Take water bath to heat, providing more even warming;
  • Solvent for extraction can be recovered and used repeatedly;
  • Extraction duration can be set up at random, alarm when time is out.

Applications of Soxhlet Extractor

Natural Product Extraction

Natural Product Extraction 1
Natural Product Extraction 2

Food And Agricultural Product Testing: Determination Of Oil And Fat Content

Food And Agricultural Product Testing 1
Food And Agricultural Product Testing 2

Environmental Monitoring: Pretreatment Of Soil And Water Samples For Pollutants

Environmental Monitoring 1 1
Environmental Monitoring 2 1

Extraction And Analysis In Materials Science

Extraction And Analysis In Materials Science 1
Extraction And Analysis In Materials Science 2

Petrochemical Industry: Separation Of Asphalt And Heavy Oil Components

Petrochemical Industry 1
Petrochemical Industry 2

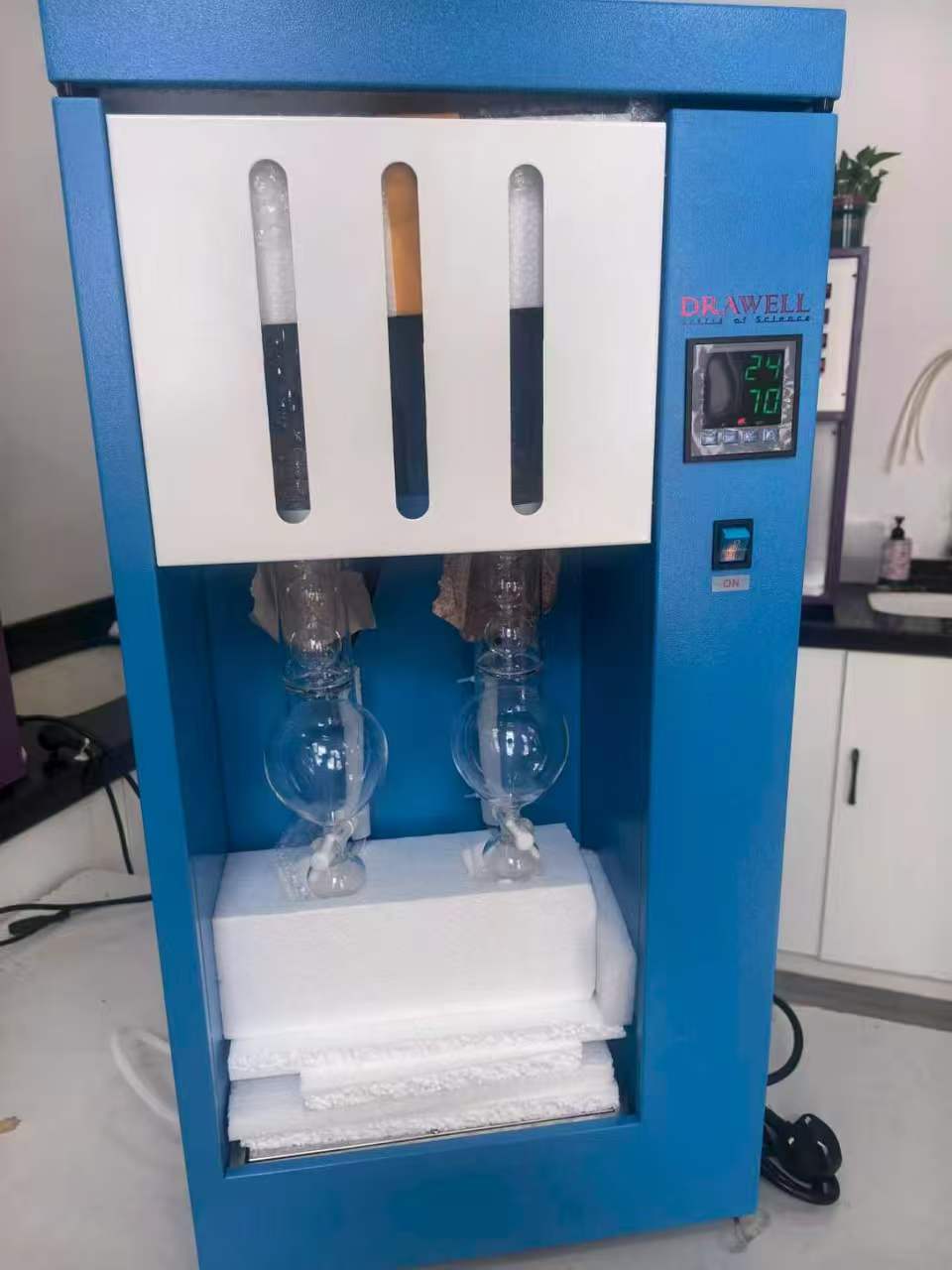

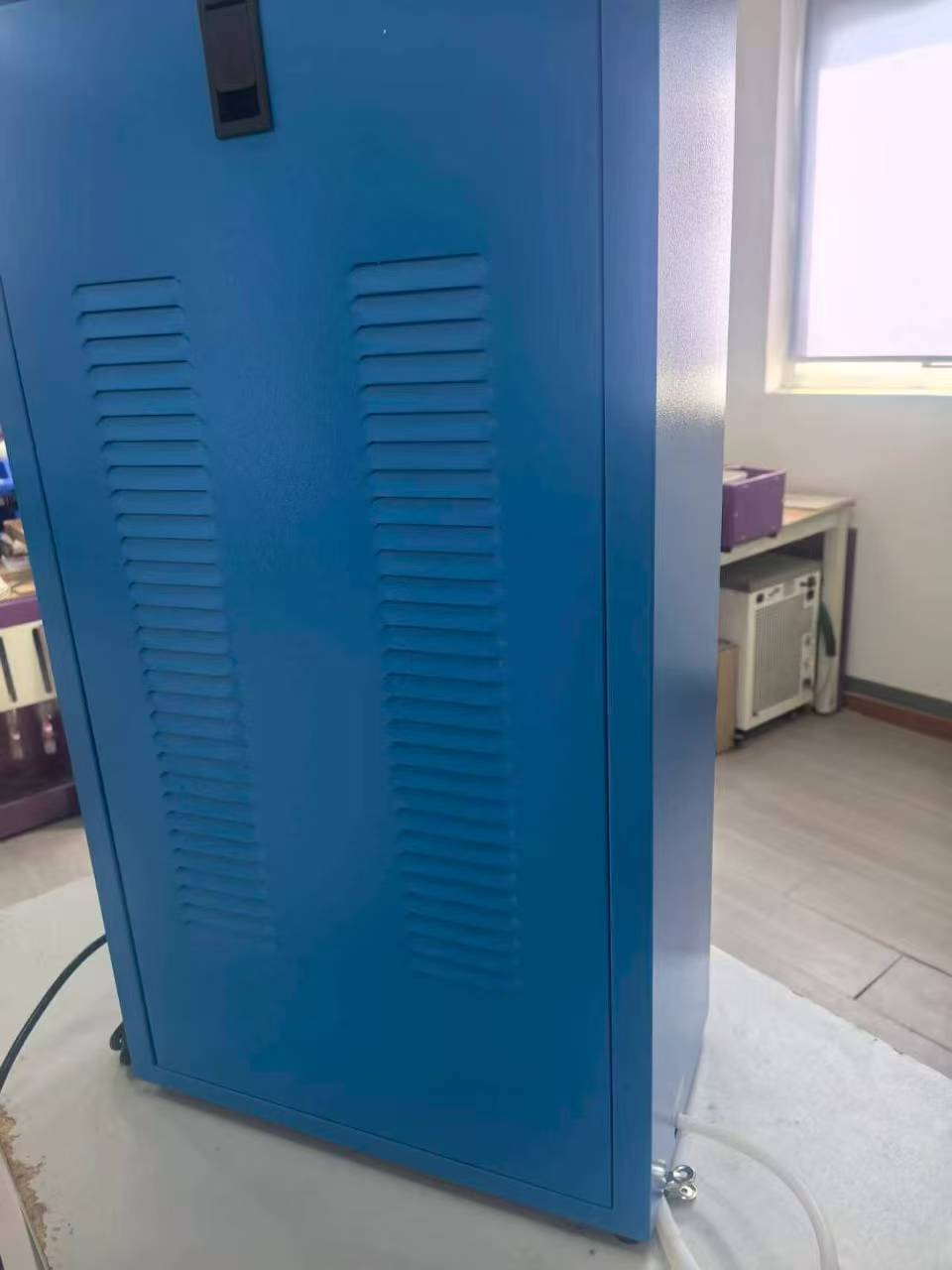

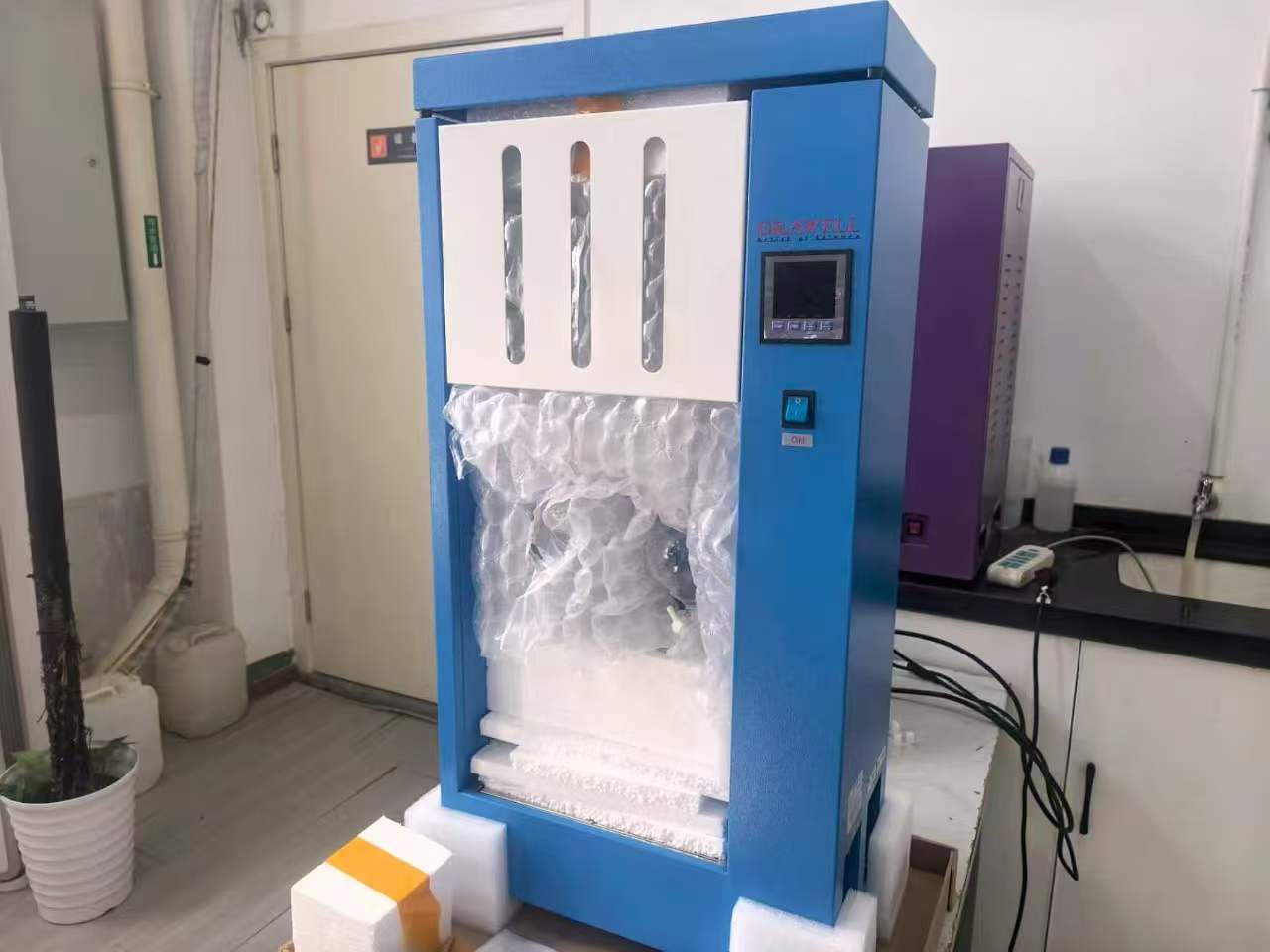

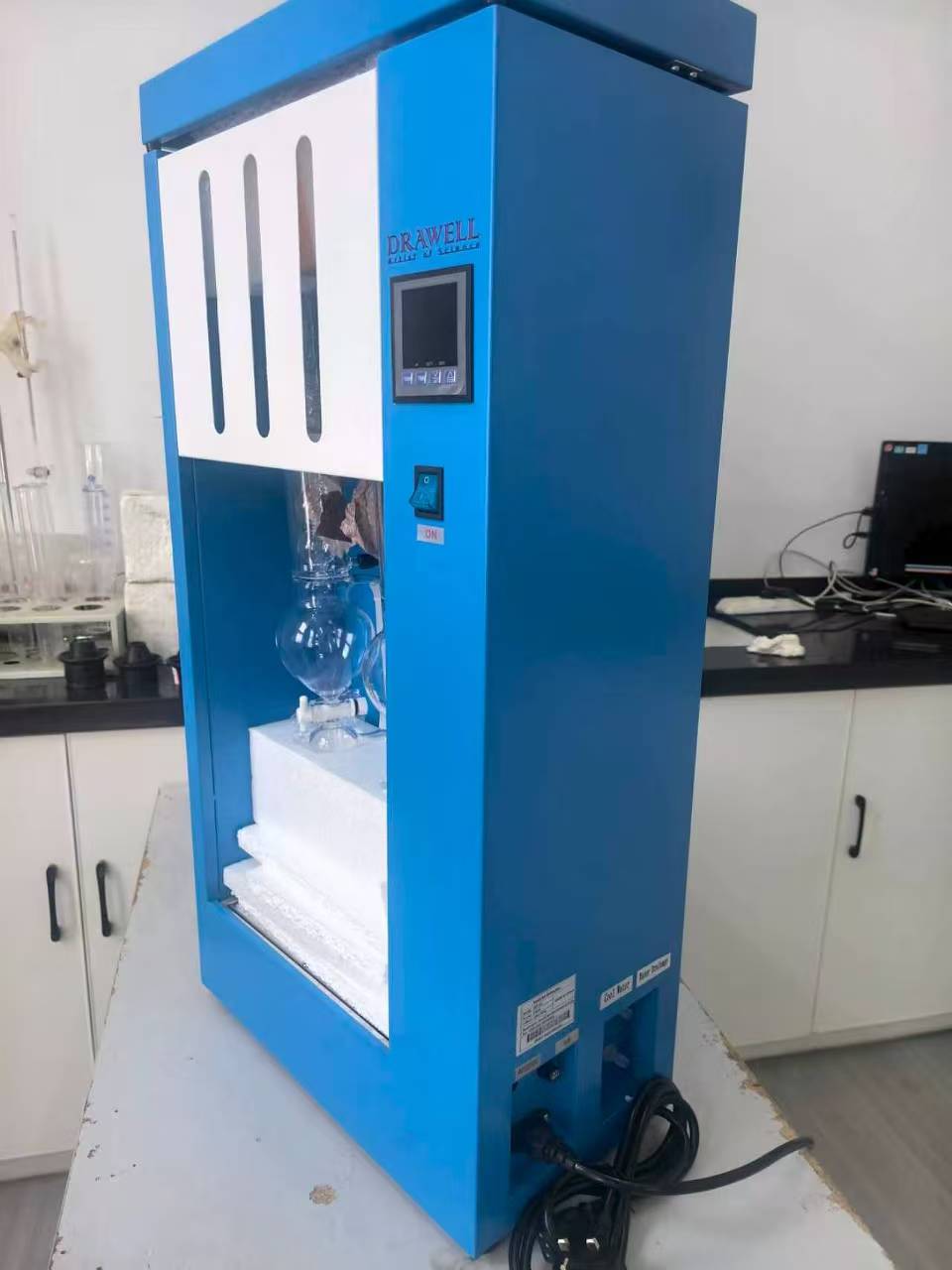

DW-SXT-02 Soxhlet Extractor Display

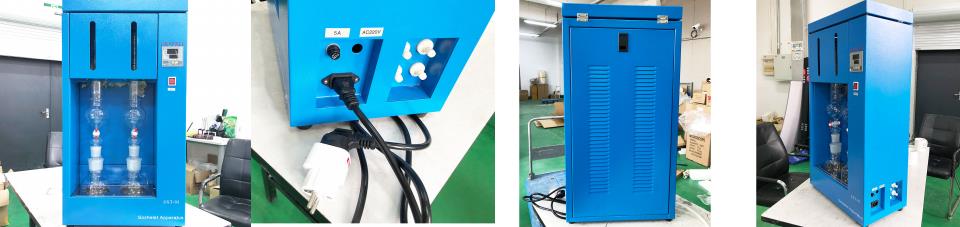

SXT-02-A

FAQ

Adjust the heating power to control the solvent reflux rate, ensuring 4–6 siphon cycles per hour. The temperature should not be too high to avoid bumping, solvent loss or thermal degradation of target substances.

Excessively long extraction time may lead to oxidation or decomposition of active target components, dissolve more interfering impurities, and waste large amounts of organic solvents.

Mixed solvents are allowed. Operators must check the boiling point, volatility and flammability of each component. Keep good ventilation and avoid mixing solvents that are chemically incompatible.

First remove residual solvent by distillation. Rinse all parts with the extraction solvent, then clean with ethanol or distilled water, and dry completely before storage to prevent cross-contamination in the next test.

Possible reasons: the sample particles are too large to be fully contacted by solvent; the target component is tightly bound to the sample matrix; the solvent selected has poor solubility for the analyte; or partial loss occurs during solvent recovery.

Technical Parameters

Measurement rangefor extract samples like cereals, feedstuff, oily seed, soil, etc.
Sample number2/batch
Capacity of extraction flask500ml/per
Sample amount0.5-20g/per
Temp. rangeambient+5℃~100℃

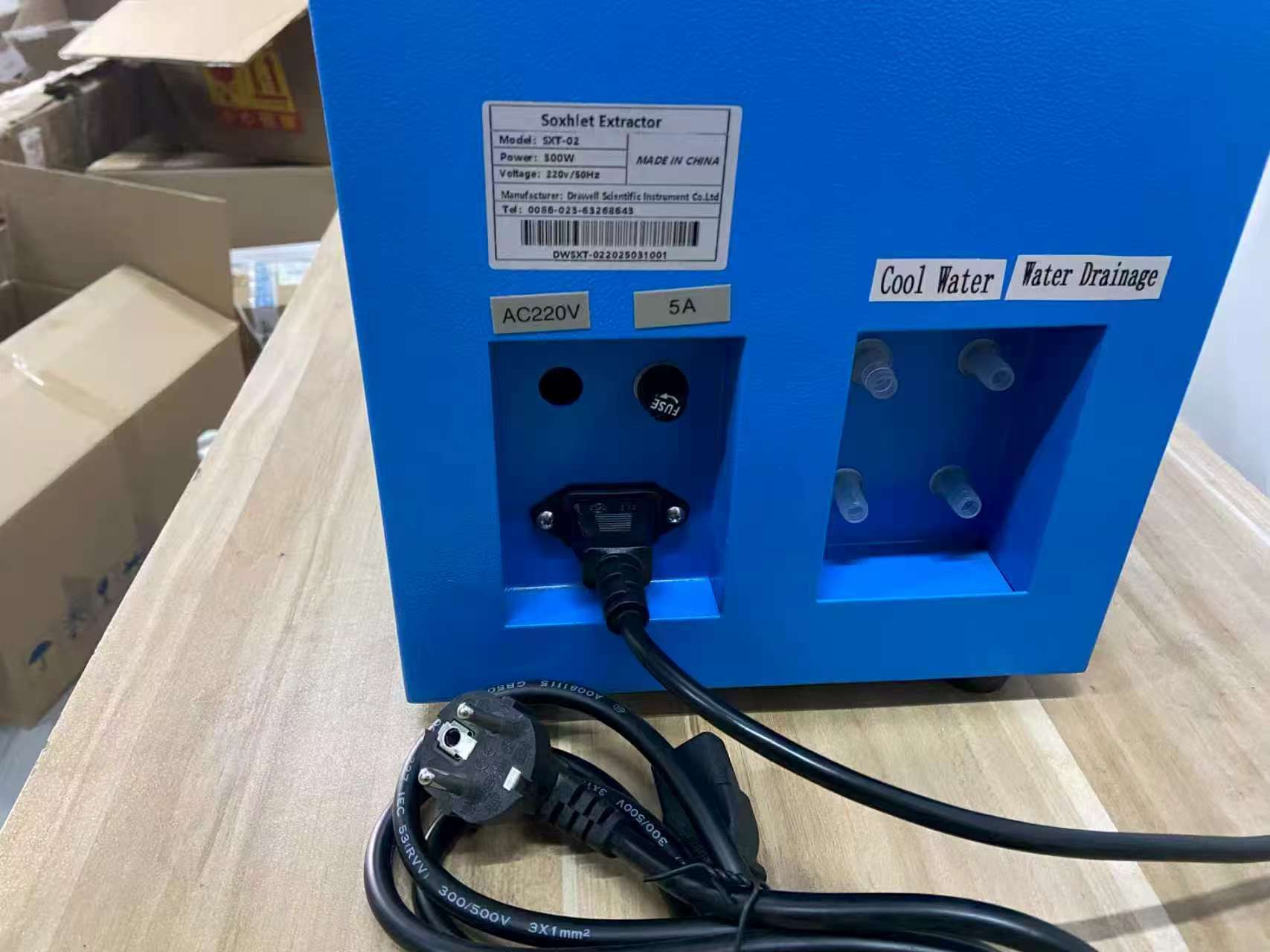

Power220V+10V, 50Hz
Heating power300W
Dimensions(mm)750×360×550
Weight16kg

Why Choose Us?

One-Station Shopping

“Multiple suppliers” have always been an issue in the procurement process. Drawell as a one-stop laboratory equipment and scientific instruments supplier, can perfectly solve this problem.

Customer-centric Services

User Training – Training by Drawell skilled engineers about installation, debug tests, technical services, etc. It can happen in our factory in China, or at the site in the customers’ country.

Online Support

To discuss the problem and get it resolved, online chats, real-time video calls, and remote guidance. For the after-sales stage, our online technical guidance is free and ready forever.

100% Quality Guarantee

1-year free warranty includes repairing damaged parts and replacing selected ones (shipping extra). 5% is charged to extend it before it expires.

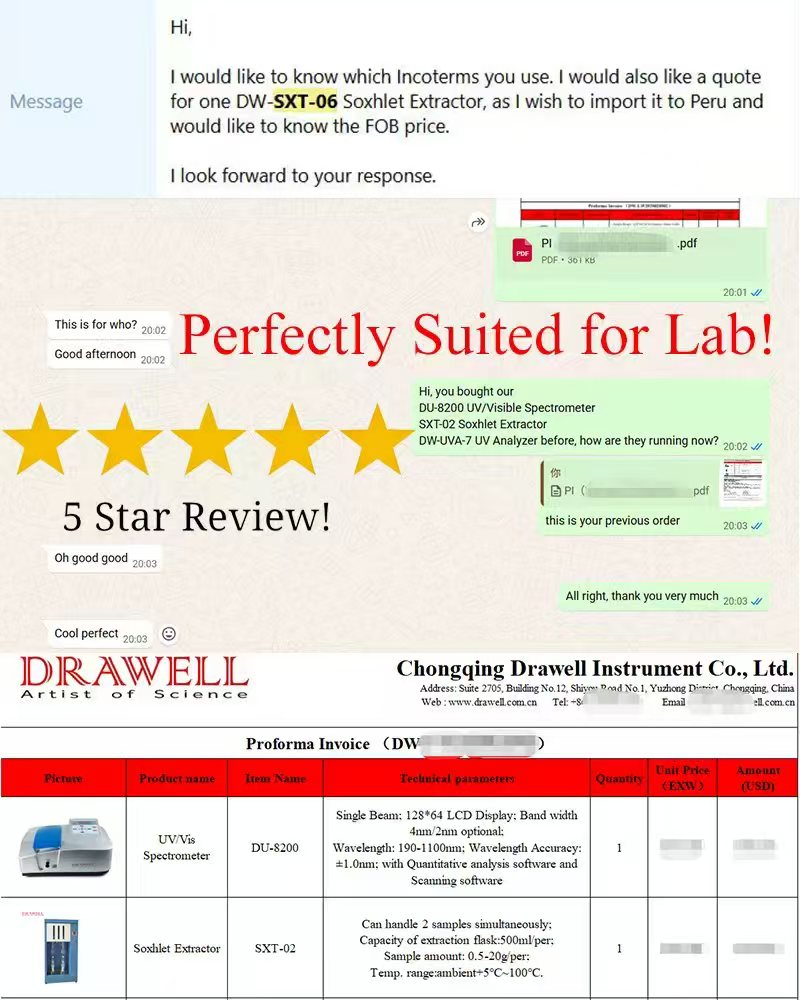

Customer Service of DW-SXT-02 Soxhlet Extractor
