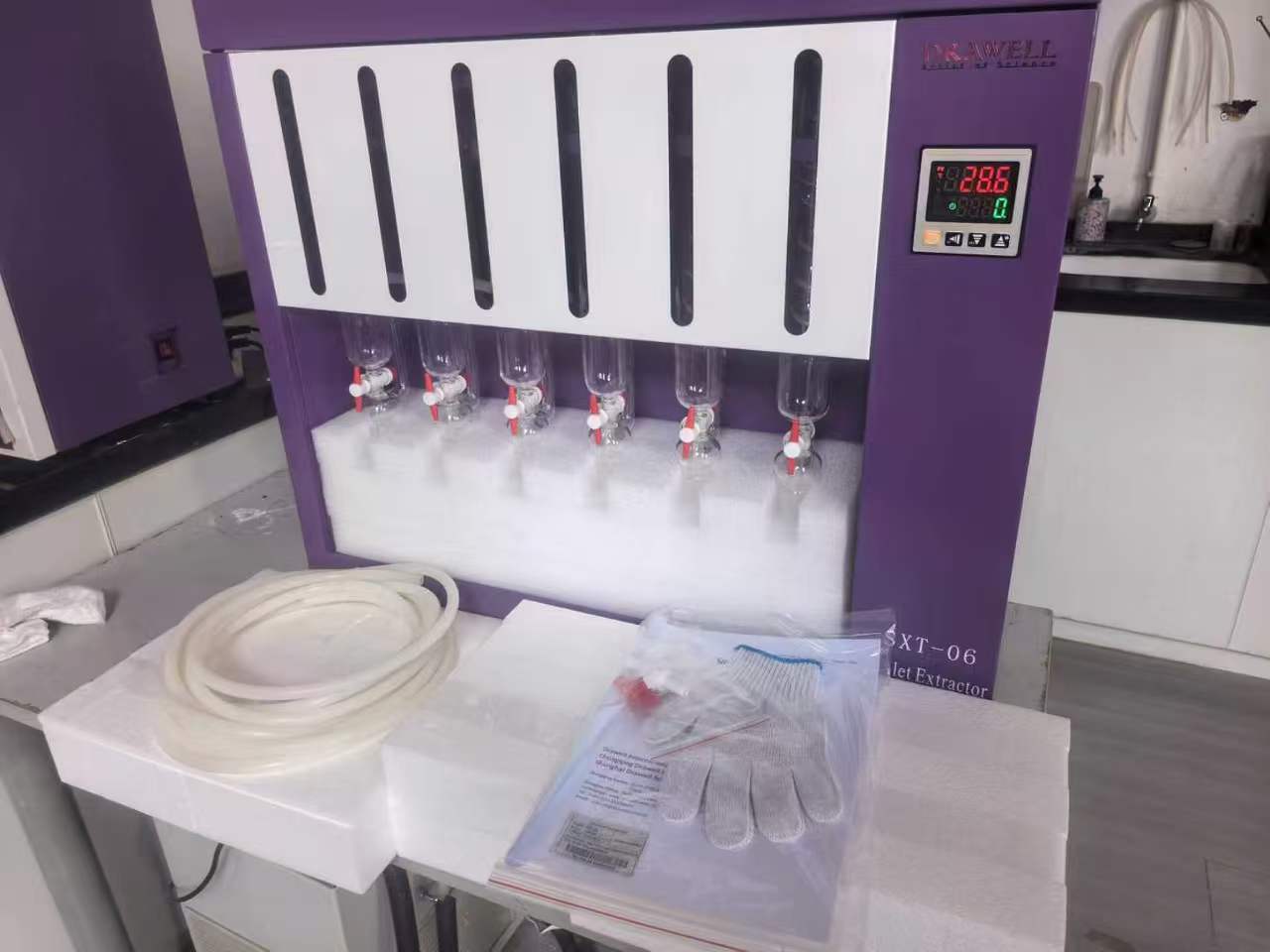

DW-SXT-06 Soxhlet Extractor

DW-SXT-06 Soxhlet Extractor is for labs to make Soxhlet extraction, designed in accordance with the classical Soxhlet extraction method. This apparatus is reasonably designed, provides stable performance, high precision, time-saving operation, is an ideal Soxhlet extraction apparatus for foodstuff, oil&fat, feedstuff and other industries.

  • 6 Samples per Batch
  • 0–5 g/sample
  • 150 mL Flask Capacity
  • Ambient +5°C to 100°C
DW-SXT-06 Manual
DW-SXT-06 Brochure

Features

  • Take water bath to heat, providing more even warming;
  • Solvent for extraction can be recovered and used repeatedly;
  • Extraction duration can be set up at random, alarm when time is out.

Applications of Soxhlet Extractor

Food And Grain Testing

Extracting And Testing Crude Fat In Food And Feed; Also Used For Extracting Fat-Soluble Vitamins And Pesticide Residues.

Food And Grain Testing1
Food And Grain Testing2

Pharmaceutical And Natural Drug Development

Extracting Fat-Soluble Active Ingredients From Medicinal Herbs For New Drug Development Or Quality Control Of Medicinal Materials.

Pharmaceutical And Natural Drug Development1
Pharmaceutical And Natural Drug Development2

Environmental Monitoring And Analysis

Extraction Of Soil Pollutants.

Environmental Monitoring And Analysis1
Environmental Monitoring And Analysis2

Chemical Engineering And Materials Science

Extraction And Analysis Of Chemical Material Additives And Residual Monomers.

Chemical Engineering And Materials Science1
Chemical Engineering And Materials Science2

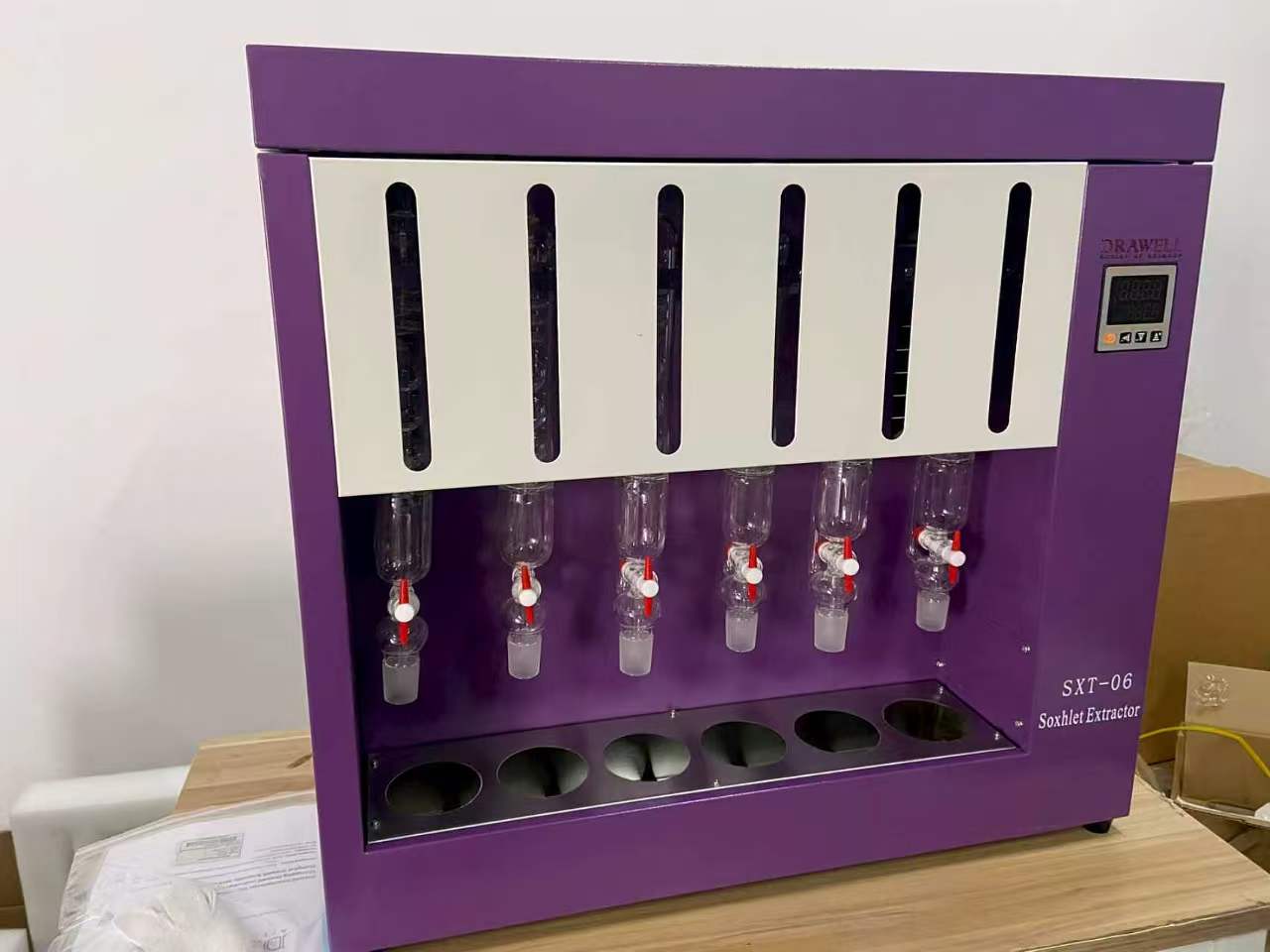

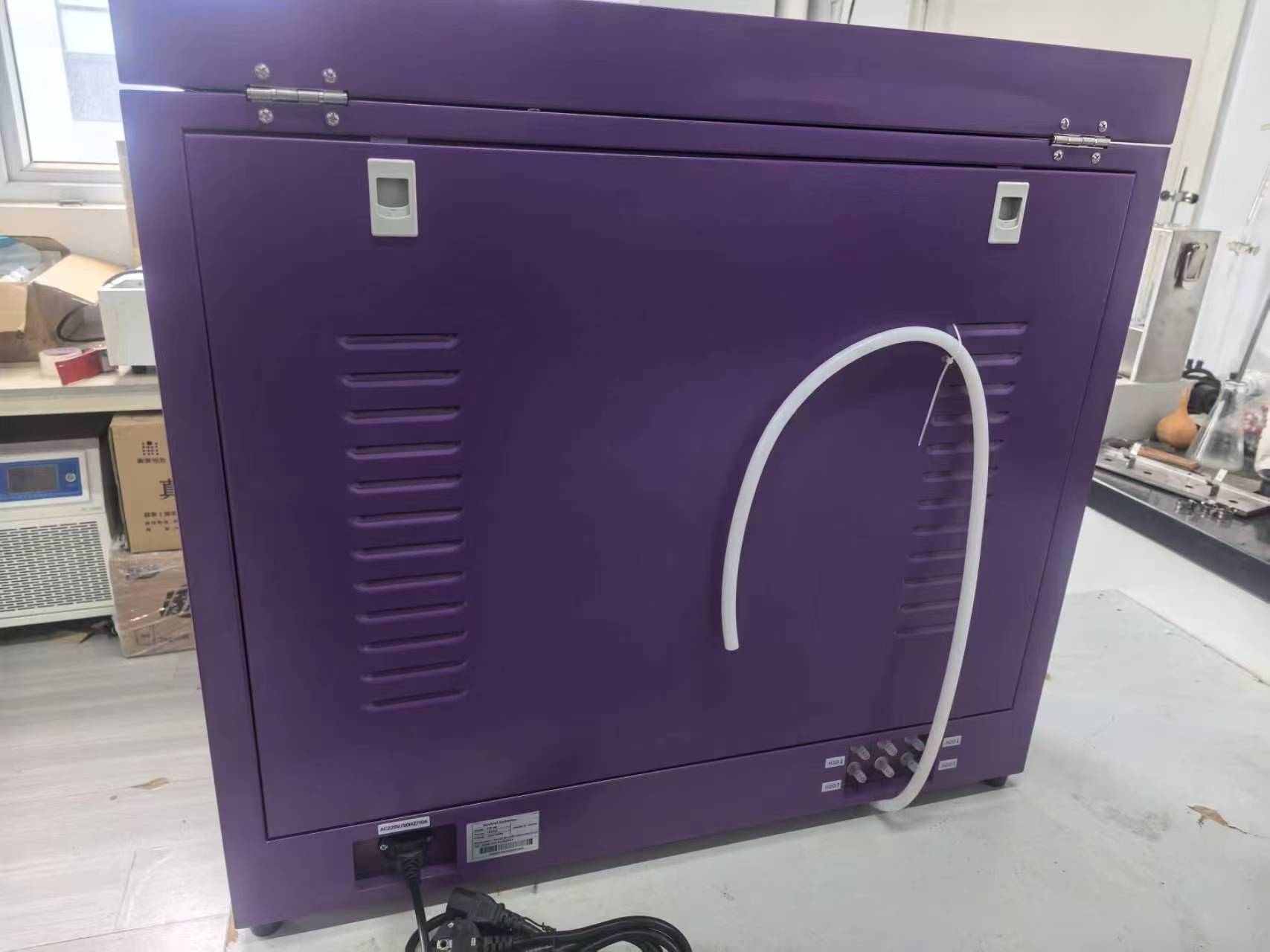

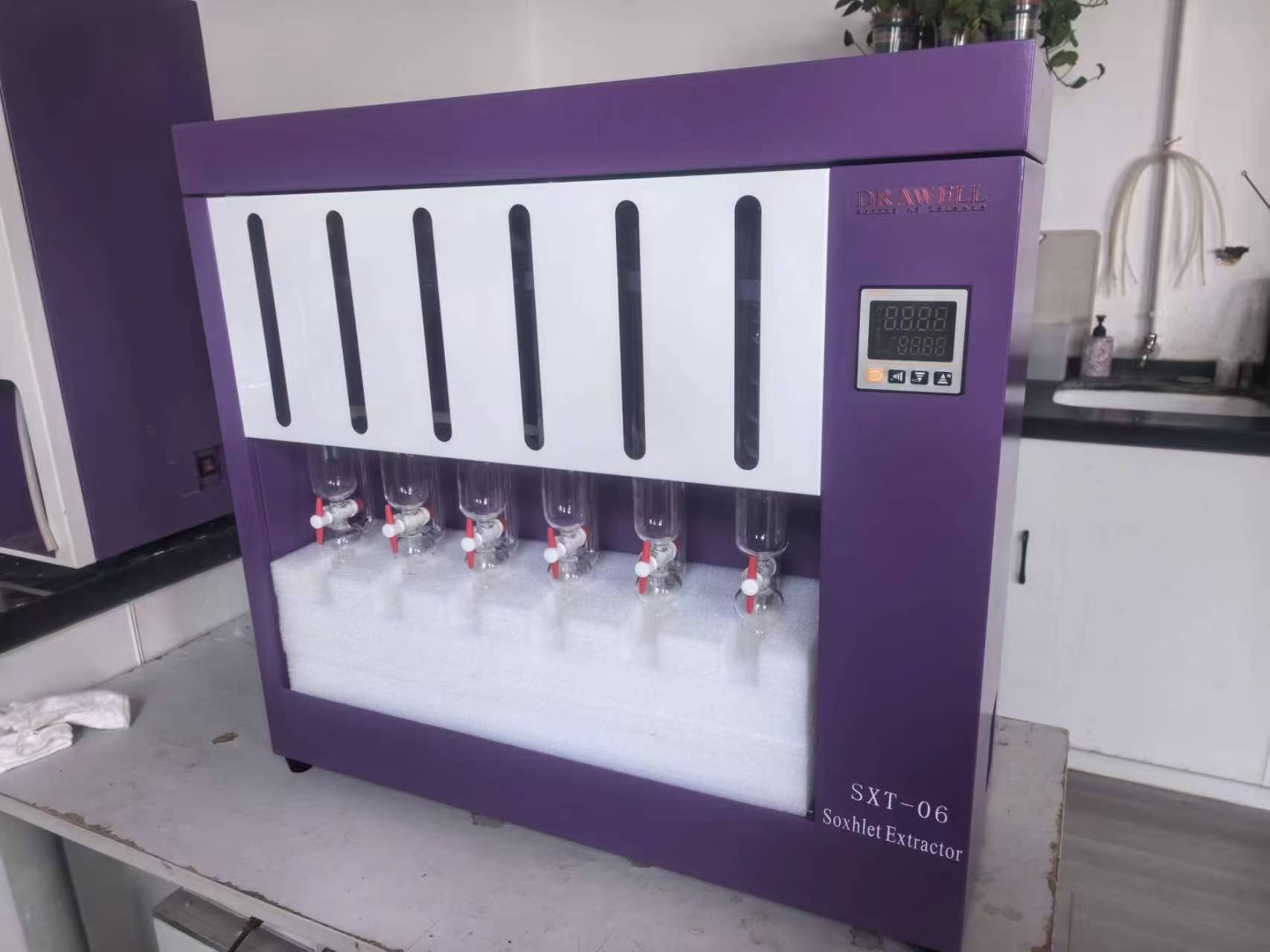

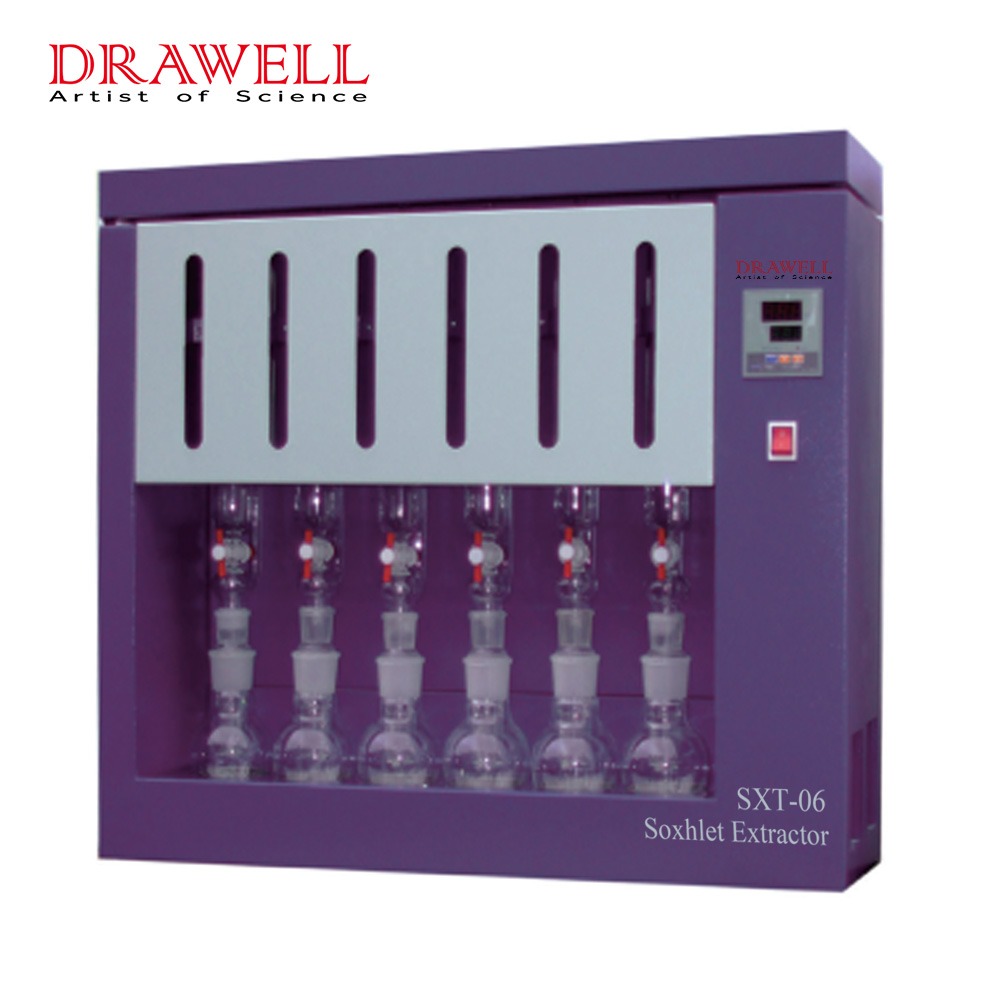

DW-SXT-06 Soxhlet Extractor Display

SXT-06-A

FAQ

It relies on solvent reflux and siphon circulation. Solid samples are repeatedly exposed to pure hot solvent, delivering higher extraction efficiency. In conventional reflux extraction, solvent concentration keeps decreasing, leading to slower extraction and lower recovery rates.

Common causes:

  • Insufficient heating temperature leading to low solvent evaporation;
  • Overfilled filter paper cartridge blocking the rising vapor path;
  • Air leakage of the device or poor condensation performance;
  • Blockage of the siphon tube by residual solid particles.

The sample level must not exceed the overflow line of the cartridge, and the cartridge top shall be well folded and sealed. If powder sample leaks into the extraction flask, it will cause local overheating and bumping, as well as dissolution of impurities, which interferes with subsequent content measurement.

Stop heating and cool down the device first. Continue distilling to recycle organic solvent until the liquid level is below the siphon tube, then take out the filter paper package. Remaining solvent can be dried in a low-temperature water bath. Open flames must be avoided throughout the whole process to prevent fire caused by volatile organic solvents.

Samples prone to thermal decomposition or swelling/dissolving in organic solvents cannot be used. Main error sources include incomplete extraction, residual solvent, leaked sample powder, thermal degradation of target compounds under excessive temperature, and insufficient siphon cycles.

Technical Parameters

Measurement rangeFor extract samples like cereals, feedstuff, oily seed, soil, etc.
Sample number6/batch
Capacity of extraction flask150ml/per
Sample amount0-5g/per
Temp. rangeambient+5℃ ~ 100℃
Power220V±10V, 50Hz
Heating power800W
Dimensions(mm)550×320×626
Weight23kg

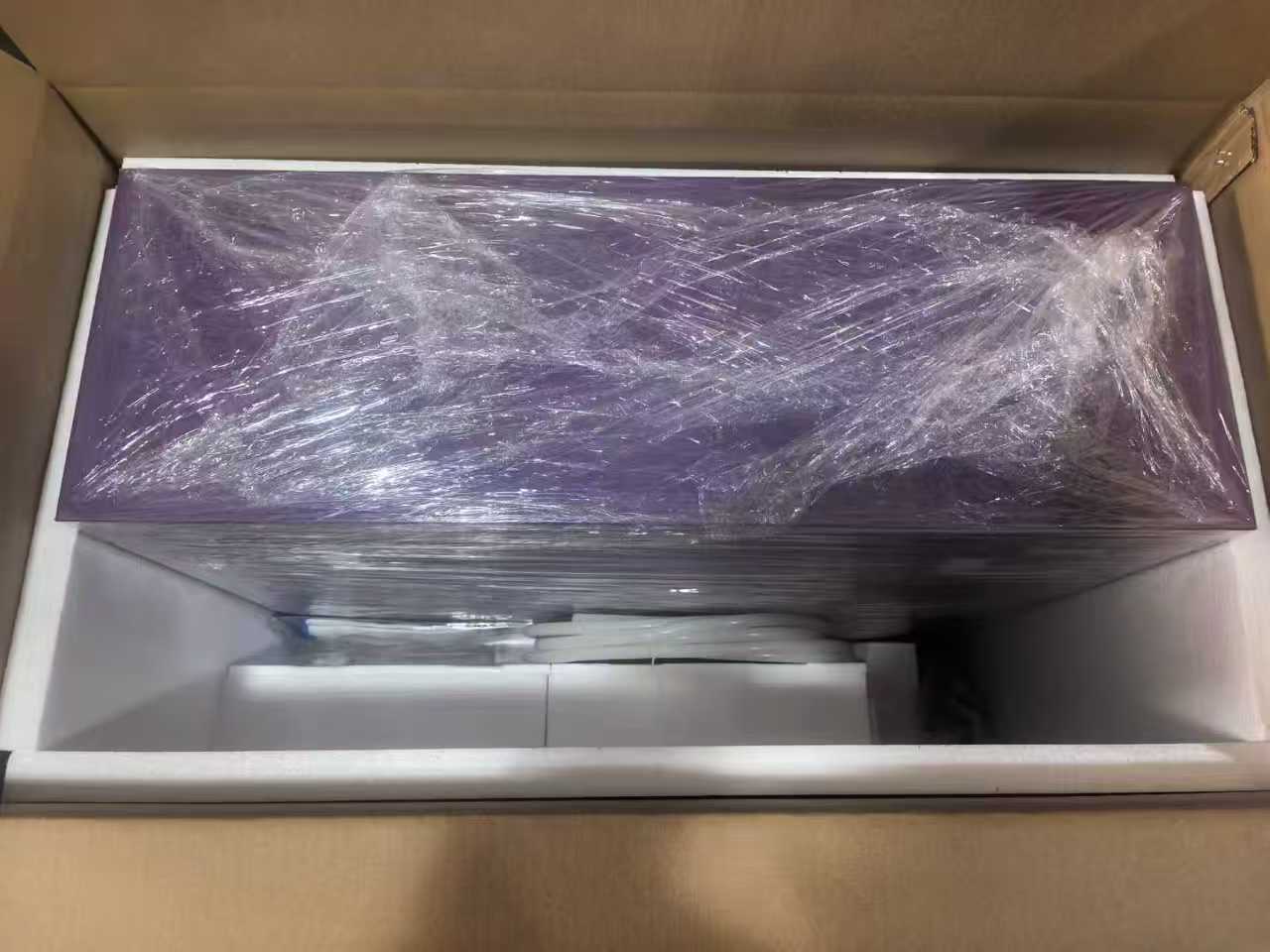

  • DW-SXT-06

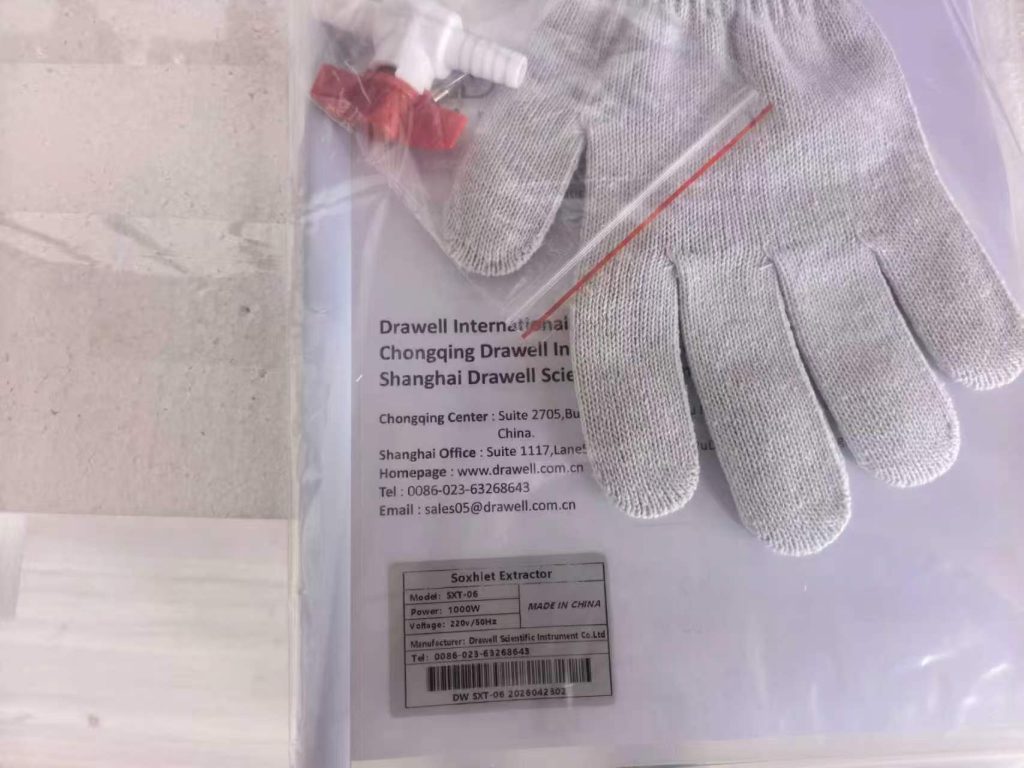

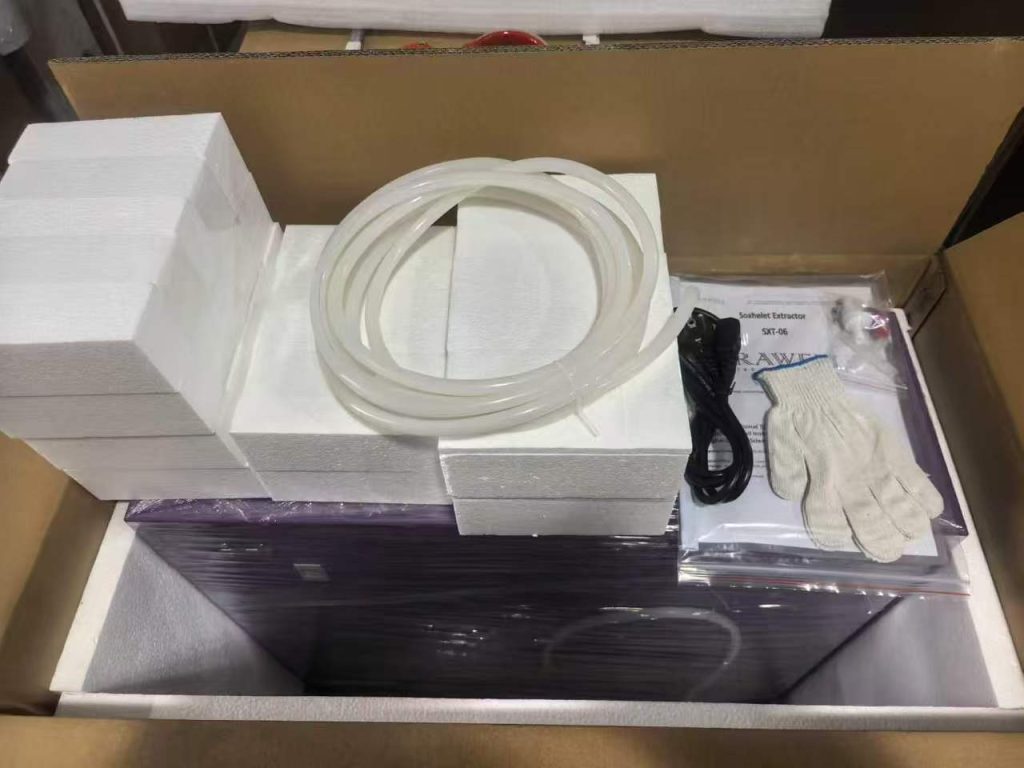

    Accessories of DW-SXT-06
  • DW-SXT-06
    Specification of DW-SXT-06
