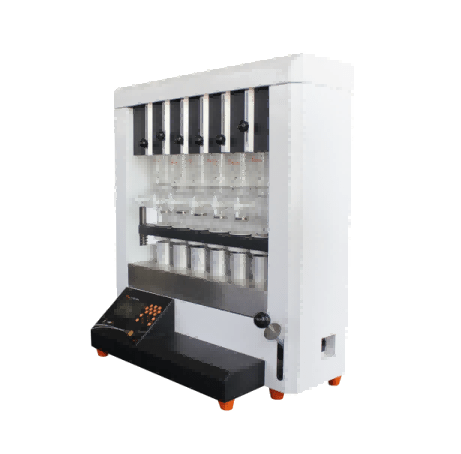

DW-SOX406 Fat Analyzer

The DW-SOX406 Fat Analyzer provides efficient soxhlet extraction for up to six samples at the same time. It integrates soaking, extraction, heating, condensation, and solvent recovery into one streamlined process.

Uniform metal bath heating, automatic temperature control, and adjustable extraction conditions help ensure consistent results. Solvent recovery reduces reagent consumption and testing costs, making the DW-SOX406 a practical solution for routine laboratory fat analysis.

DW-SOX406 Manual
DW-SOX406 Brochure

Characteristics of DW-SOX406 Fat Analyzer

  1. Integral metal heating, wide scope and high precision of temperature control.
  2. Electric circuit is isolated from the extraction space, ensuring device security.
  3. Timer and timing functions are available.
  4. Over-temperature alarming and timer reminding functions are available.
  5. Triple alarms i.e. sound, light, LCD screen word prompts are available.
  6. Abundant interface contents give simultaneous display of given temperature, actual temperature, given time and heating time.
  7. Intelligent man-machine dialogue control system.
  8. Exclusive air insulation technique leaves the case in room temperature, and has thermal insulation and temperature maintenance two functions.
  9. 4.3” LCD screen and microcomputer control system are adopted.

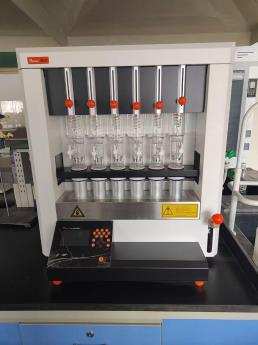

SOX406-A

Applications of DW-SOX406 Fat Analyzer

DW-SOX406 Fat Analyzer can quickly separate one substance from solid or semi-solid mixtures, can determine the soluble organic compounds contained in foods, feeds, medicines, soil, sludge, polymers, fiber products, petrochemical products, detergents, rubber, plastics and other materials.

Food and Grain Industry

Determines the crude fat content in grains (rice, corn), meat, dairy products, oilseeds, and processed foods for nutrition labeling, quality control, and process optimization, conforming to national standards such as GB 5009.6.

Food and Grain Industry 1

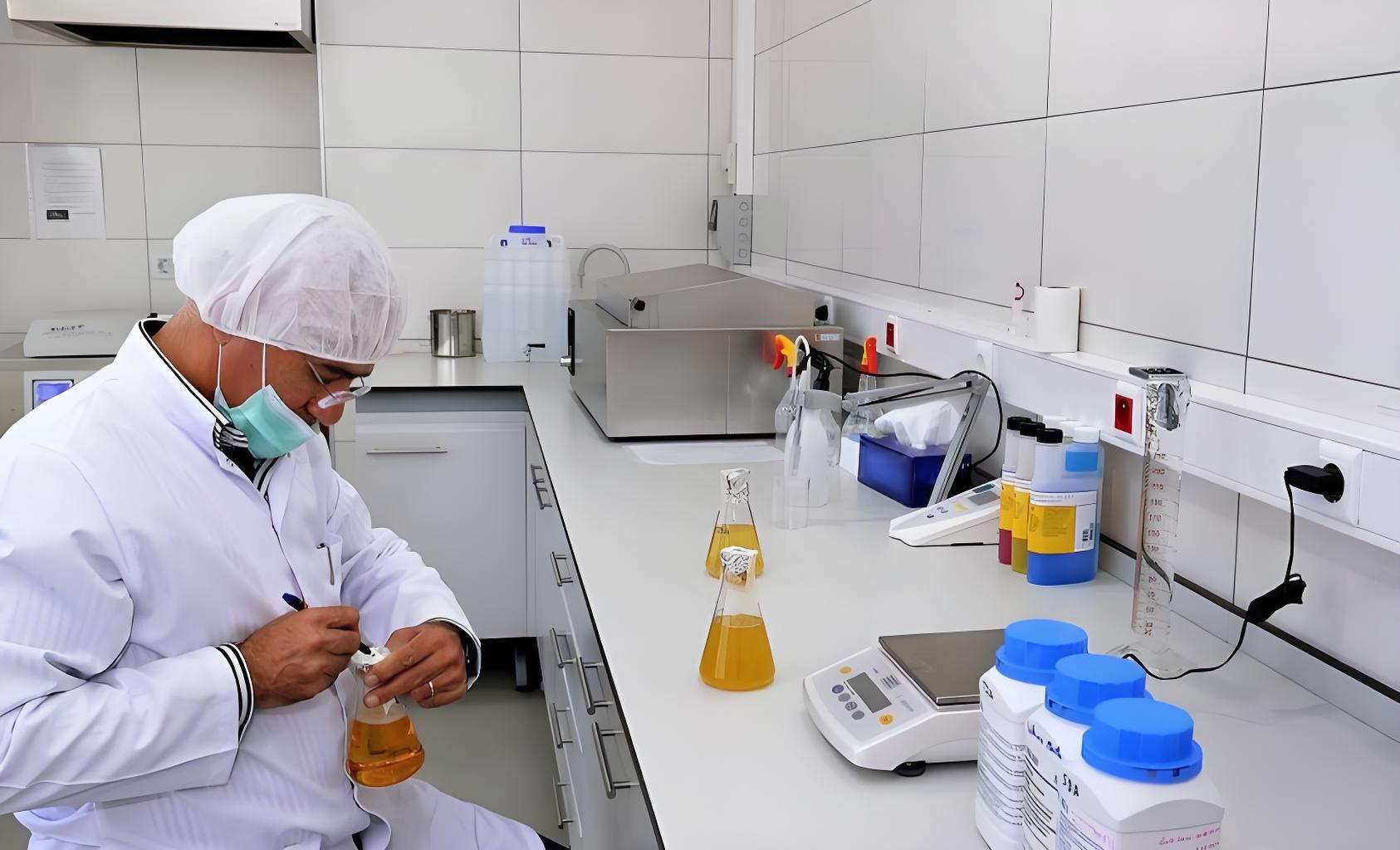

Food and Grain Industry 2

Feed and Agricultural Research

Analyzes the fat ratio of feed ingredients and finished products to guide animal nutrition programs; monitors seed oil content to assist crop breeding and assess grain storage quality (fatty acid value).

Feed and Agricultural Research 1
Feed and Agricultural Research 2

Pharmaceuticals and Chemicals

Detects volatile oils in traditional Chinese medicine, fat impurities in pharmaceutical excipients, stability of cosmetic emulsions, and extracts and analyzes soluble organic compounds in samples such as rubber, plastics, and soil.

Pharmaceuticals and Chemicals 1
Pharmaceuticals and Chemicals 2

Medical Health and Sports Rehabilitation

Measures body fat percentage, visceral fat, and muscle mass using bioelectrical impedance analysis (BIA) or dual-energy X-ray ablation (DXA) techniques for obesity diagnosis, chronic disease management, fitness guidance, and clinical nutritional assessment.

Medical Health 1
Medical Health 2

FAQ

The mainstream method is the Soxhlet extraction method, including fully automatic Soxhlet and crude fat determination. It is suitable for solid and semi-solid samples such as grain and oil, feed, meat, eggs, dairy products, nuts and Chinese medicinal herbs. Liquid oils can be tested directly with simplified pre-treatment.

Low results are usually caused by incomplete extraction, caked samples, insufficient extraction time or solvent volatilization. High results are mainly due to moisture in samples, co-extracted impurities, undried solvent or residual contaminants in crucibles.

Standard reagents are petroleum ether and diethyl ether. Both are flammable and volatile. All operations must be performed in a fume hood; open flames and direct high-temperature baking are prohibited. The equipment shall be grounded for static prevention, and waste liquid shall be sealed and recycled separately.

Key steps include crushing and sieving, drying to remove moisture, and wrapping samples with fat-free filter paper. Excessively large sample particles hinder fat separation, and moisture will co-dissolve with solvents, leading to significant test errors.

Fully automatic equipment can automatically complete soaking, refluxing, rinsing and solvent recovery with stable temperature control, high recovery rate and low solvent consumption. Manual devices require complicated operations, unstable temperature control and long testing time, only suitable for simple testing of a small number of samples.

Specifications of DW-SOX406 Soxhlet Extraction Fat Analyzer

Temperature rangeRT  +5°C~280°C
Measuring range0~100%
Temperature accuracy±1°C
ReproducibilityRelative error 1%
Sample weight0.5g~15g
Capacity per batch6pcs./batch
Solvent cup volume80mL
Solvent recovery≥80%
Shortened extraction time20%~80%
Power supply220VAC±10%, 50Hz
Power1KW
Dimension650mmx348mmx875mm
Net weight61Kg

Why Choose Us?

One-Station Shopping

“Multiple suppliers” have always been an issue in the procurement process. Drawell as a one-stop laboratory equipment and scientific instruments supplier, can perfectly solve this problem. In addition to manufacturing our own equipment, we also represent other laboratory equipment. Our product lines are rich and diverse at competitive prices. Provide one-stop service to customers.

Customer-centric Services

User Training – Training by Drawell skilled engineers about installation, debug tests, technical services, etc. It can happen in our factory in China, or at the site in the customers’ country. Cost depends on where and when the training happens.

Online Support

To discuss the problem and get it resolved, online chats, real-time video calls, and remote guidance. For the after-sales stage, our online technical guidance is free and ready forever.

100% Quality Guarantee Policy

1 year free official warranty, including repairing quality-damaged parts, and offering replacements of selected parts (shipping cost is extra). 5% of the product price is charged for extending the warranty before the end of the official warranty.

Customer Service of DW-SOX406 Fat Analyzer

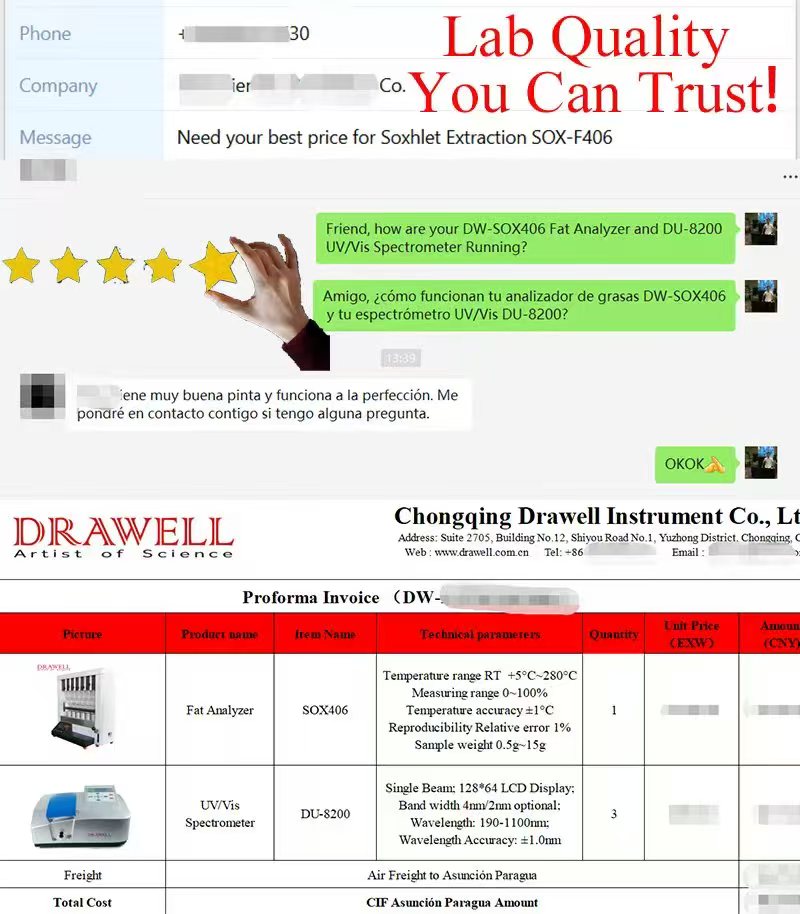

DW SOX406 Fat Analyzer

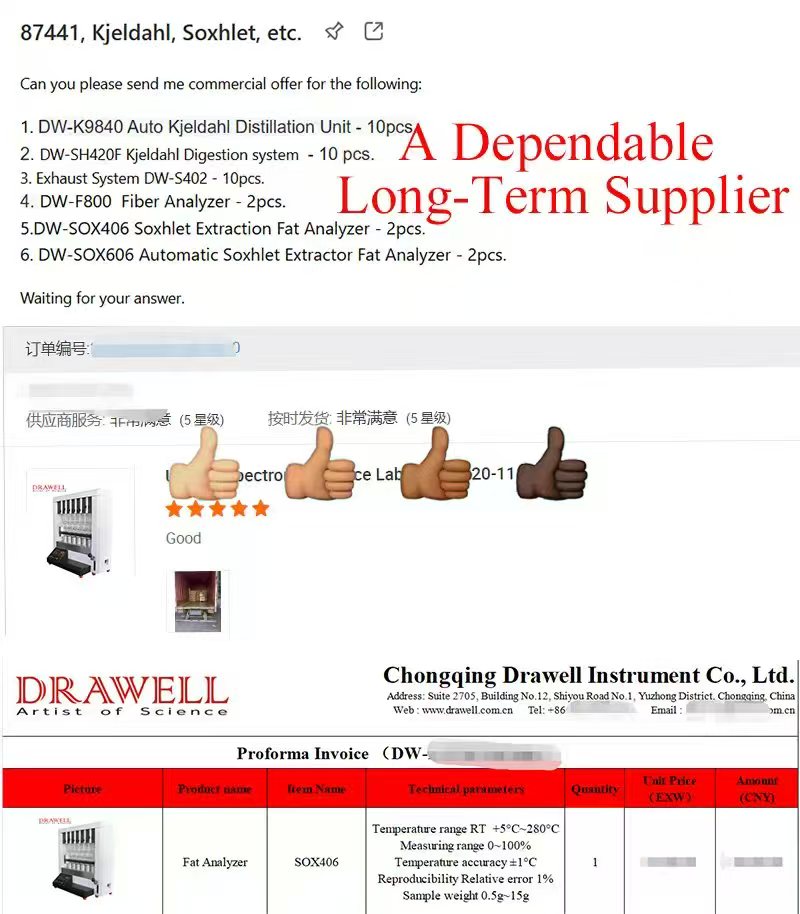

DW SOX406 Fat Analyzer 2
