Benchtop High Speed Refrigerated Centrifuge TGL-22M/MC

TGL-22M/MC is useful for routine application in biotechnology, PCR, life science and clinical labs, etc. This is suitable for routine sample analysis in Medical, Hospital, and Institutional laboratories. With a wide choice of rotor heads and adapters, this unit is truly versatile.

Features of Benchtop High Speed Refrigerated centrifuge TGL-22M/MC

  1. Advanced CPU control system: the micro-controller can more accurately control the speed, time, and relative centrifugal force.
  2. Reliable drive system: Brand CFC-free compressor, two-cycle refrigeration, no pollution, high accuracy of temperature. The temperature can be controlled within -20℃~﹢40℃. Rotors can be pre-cooling in a stopped state.
  3. Equipped with digital/Touch LCD screen, microprocessor control, brush-less AC frequency conversion motor, Stainless Chamber.
  4. Equipped with door protection, Overspeed, and an advanced electronic imbalance detection system, which can monitor the centrifuge process in real-time to ensure the safe operation of the instrument.
  5. Emergency lid lock, in case of power off
  6. Safety Interlock system that prevents opening the centrifuge lid during running.
  7. 10 programs can be stored, and quickly recall the last used program.
Benchtop High Speed Refrigerated centrifuge TGL-22M/MC
Digital Display
Benchtop High Speed Refrigerated centrifuge TGL-22M/MC
LCD Display

Technical parameters of the TGL-22M/MC centrifuge

Model

TGL-22M

TGL-22MC

Max Speed

22000r/min

Max RCF

34700xg

Display

Digital display

LCDDisplay

Max Capacity

4 x100ml

Speed  Accuracy

±10rpm

Timer Range

0~99min

Temp Range

-20℃~﹢40℃ /±1℃

Noise

≤60dB(A)

Power Supply

AC220v&110V 50Hz 18A

Dimension

610x622x360mm(L*W*H)

Weight

65kg

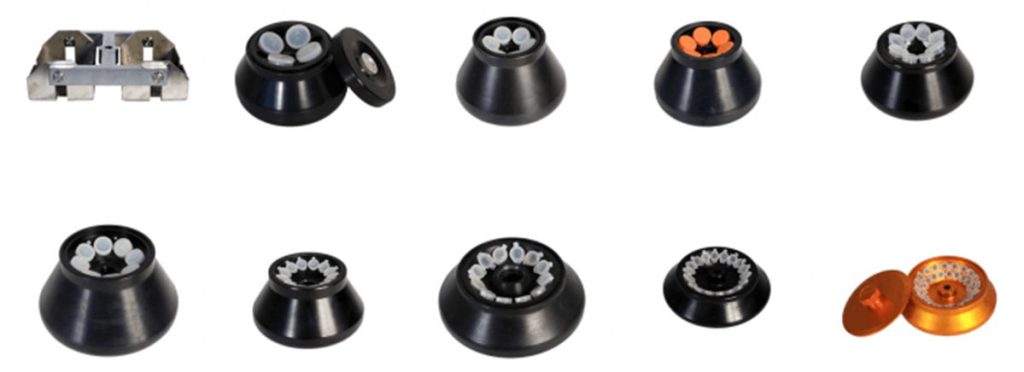

Rotor of TGL-22M/MC centrifuge

图片4 8No.1Max Speed:16000r/min Capacity:12×1.5/2.2ml AR Max RCF:17800xg图片6 副本No.2Max Speed:13000r/min Capacity:8×5ml AR Max RCF:11400xg
图片3 9No.3Max Speed:12000r/min Capacity:6/8×10/15ml AR Max RCF:14800xg图片2 14No.4Max Speed:15000r/min Capacity:24×1.5/2.2ml AR Max RCF:21800xg
图片5 4No.5Max Speed:13500r/min Capacity:48×0.5/1.5ml AR Max RCF:14800xg图片1 17No.6Max Speed:13500r/min Capacity:36×1.5/2.2ml AR Max RCF:17600xg
图片7 副本No.7Max Speed:11000r/min Capacity:6×50/30ml AR Max RCF:12000xg图片8 2No.8  Max Speed:10000r/min Capacity:4×100ml AR Max RCF:10460xg
图片9 2No.9Max Speed:4000r/min Capacity:2×2×48 holes Max RCF:1400xg图片10 2No.10Max Speed:8000r/min Capacity:8×50ml AR Max RCF:9800xg

TGL-22M/MC centrifuge Display

Benchtop High Speed Refrigerated centrifuge TGL-22M/MC
