Benchtop High Speed Refrigerated centrifuge TGL-16M/MC

TGL-16M/MC is useful for routine application in biotechnology, PCR, life science, clinical labs, etc. This is suitable for routine sample analysis in Medical, Hospital, and Institutional laboratories. With a wide choice of rotor heads and adapters, this unit is truly versatile.

Features of Benchtop High Speed Refrigerated centrifuge TGL-16M/MC

  1. Reliable drive system: Brand CFC-free compressor, two-cycle refrigeration, no pollution, high accuracy of temperature. The temperature can be controlled within -20℃~﹢40℃. Rotors can be pre-cooling in a stopped state.
  2. Equipped with digital/Touch LCD screen, micro-processor control, and brush-less AC frequency conversion motor, Stainless Chamber.
  3. Emergency lid lock, in case of power off.
  4. Safety Interlock system that prevents opening the centrifuge lid during running.
  5. 10 programs can be stored, and quickly recall the last used program.
Digital Display
Digital Display
LCD Display
LCD Display

Technical parameters

ModelTGL-16M/MCSpeed  Accuracy±50r/min
Max Speed16000r/minTimer Range0~99min
Max RCF21800xgTemp Range-20℃~﹢40℃
DisplayLCD /Digital displayNoise≤60dB(A)
Max Capacity4 x100mlPower SupplyAC220v&110V 50Hz 18A
Weight65kgDimension610x622x360mm(L*W*H)

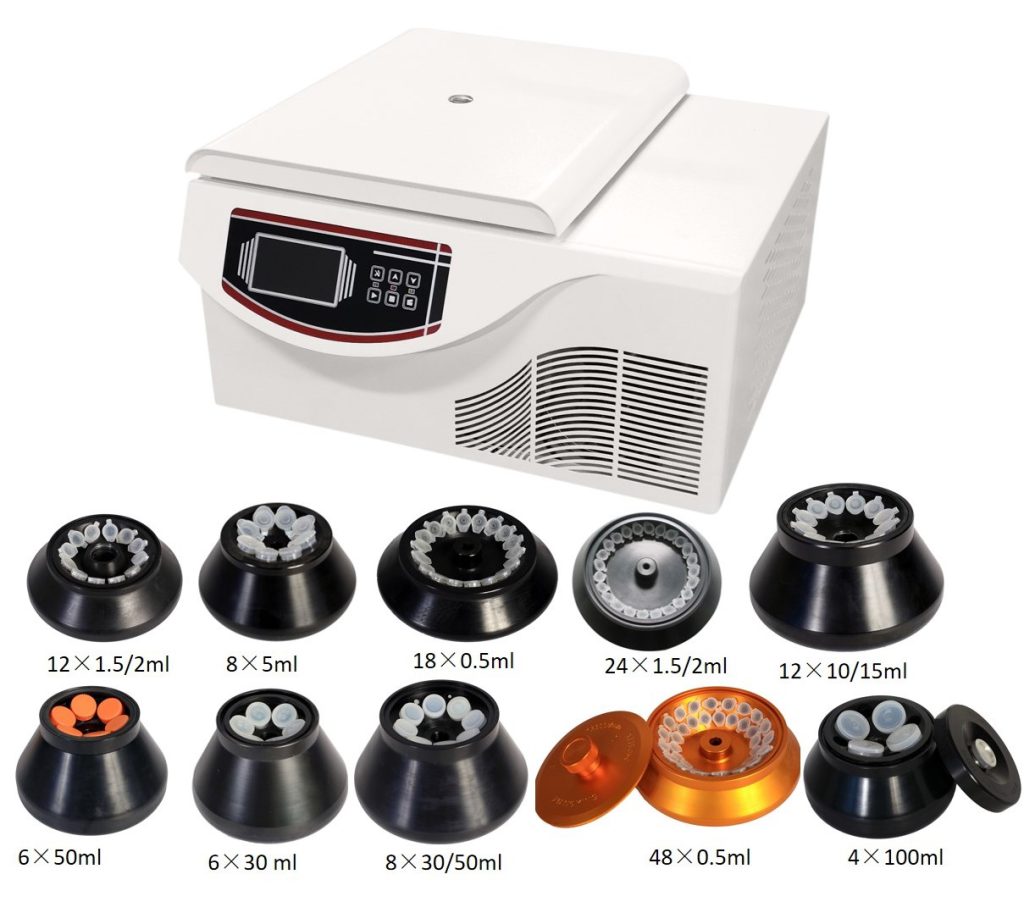

Rotor

图片4 8No.1Max Speed:16000r/min Capacity:12×1.5/2.2ml AR Max RCF:17800xg图片6 副本No.2Max Speed:13000r/min Capacity:8×5ml AR Max RCF:11400xg
图片3 9No.3Max Speed:12000r/min Capacity:6/8×10/15ml AR Max RCF:14800xg图片2 14No.4Max Speed:15000r/min Capacity:24×1.5/2.2ml AR Max RCF:21800xg
图片5 4No.5Max Speed:13500r/min Capacity:48×0.5/1.5ml AR Max RCF:14800xg图片1 17No.6Max Speed:13500r/min Capacity:36×1.5/2.2ml AR Max RCF:17600xg
图片7 副本No.7Max Speed:11000r/min Capacity:6×50/30ml AR Max RCF:12000xg图片8 2No.8  Max Speed:10000r/min Capacity:4×100ml AR Max RCF:10460xg
图片9 2No.9Max Speed:4000r/min Capacity:2×2×48 holes Max RCF:1400xg图片10 2No.10Max Speed:8000r/min Capacity:8×50ml AR Max RCF:9800xg
