NDJ-8S 20-2000000mPa·s Low Viscosity Viscometer
The NDJ-8S rotational viscometer is an instrument used to measure the viscosity of a fluid. It is mainly used to measure the viscosity of low viscosity and some medium viscosity fluids.
Application areas include:chemical and materials industry, petroleum and energy industry, food and pharmaceutical industry, daily chemical and personal care products industry, and other industrial and materials fields, etc.
Key features:
- Measuring Range (mPa-s): 20 ~ 2,000,000
- Standard Spindles (Code L1,L2,L3,L4)
- Accuracy ±1%; Return Capacity: ±0.5%
- Optional: L0, L5 spindle, RTD temperature probe, printer

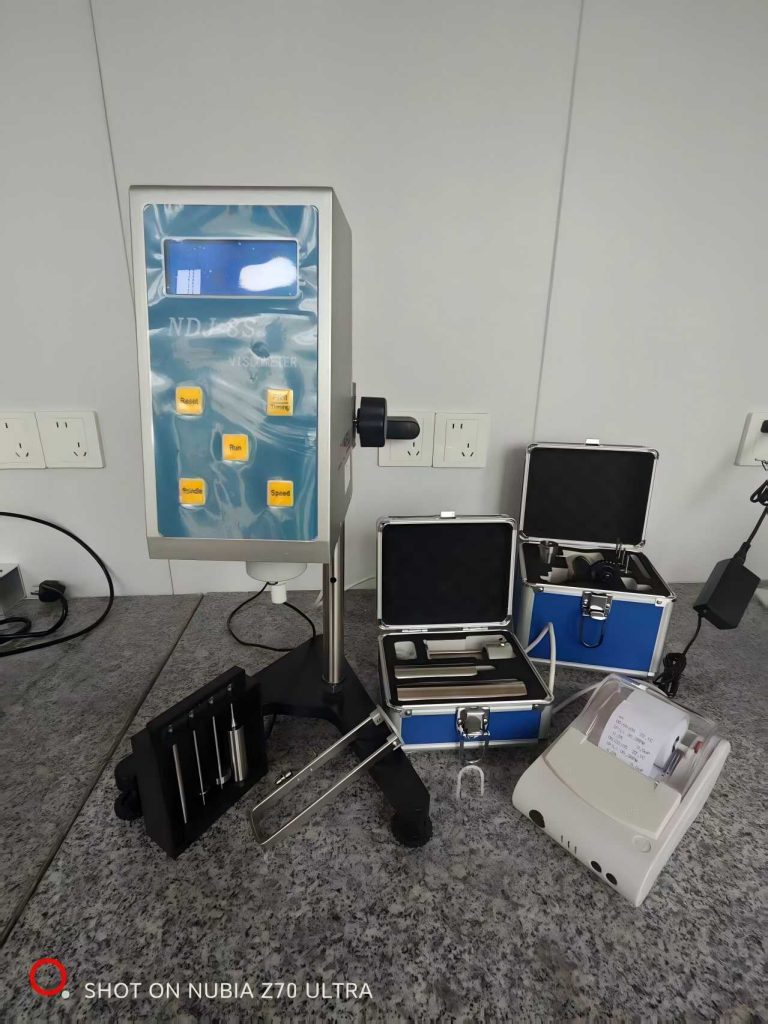

Options of NDJ-8S Digital Viscometer

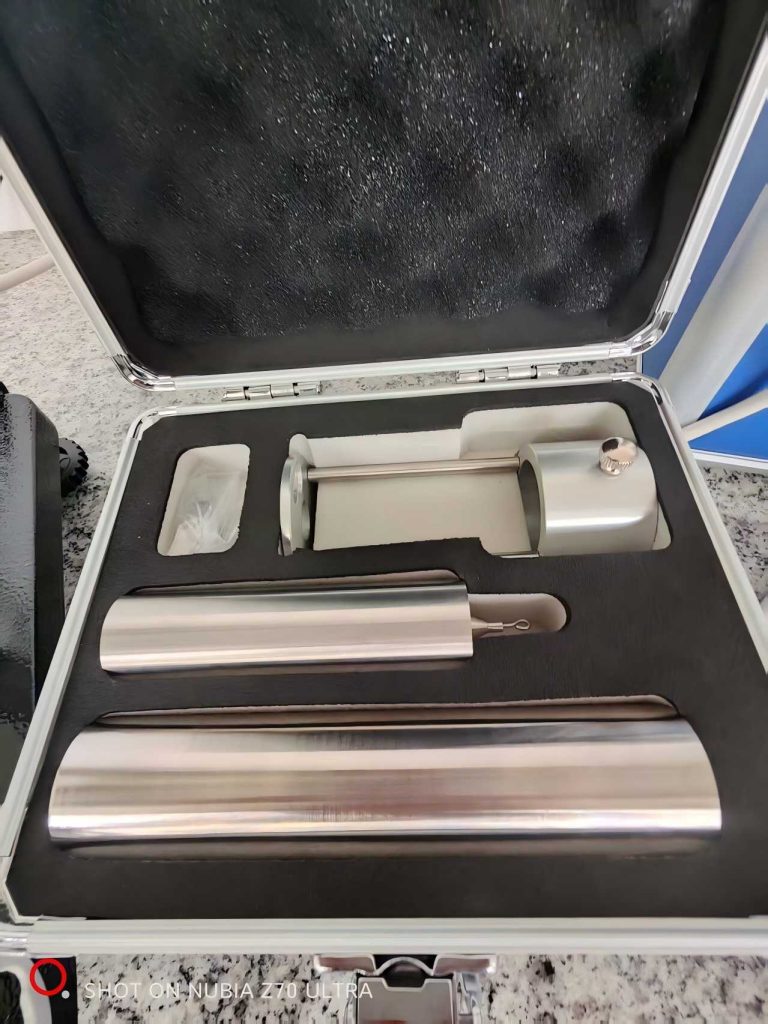

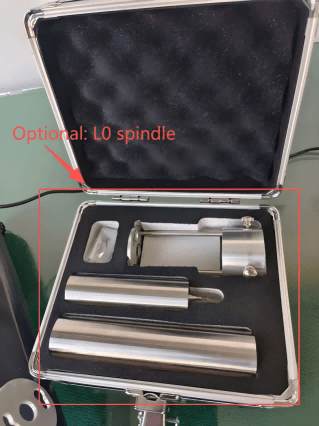

- Extreme low viscometer adapter (with one spindle L0)

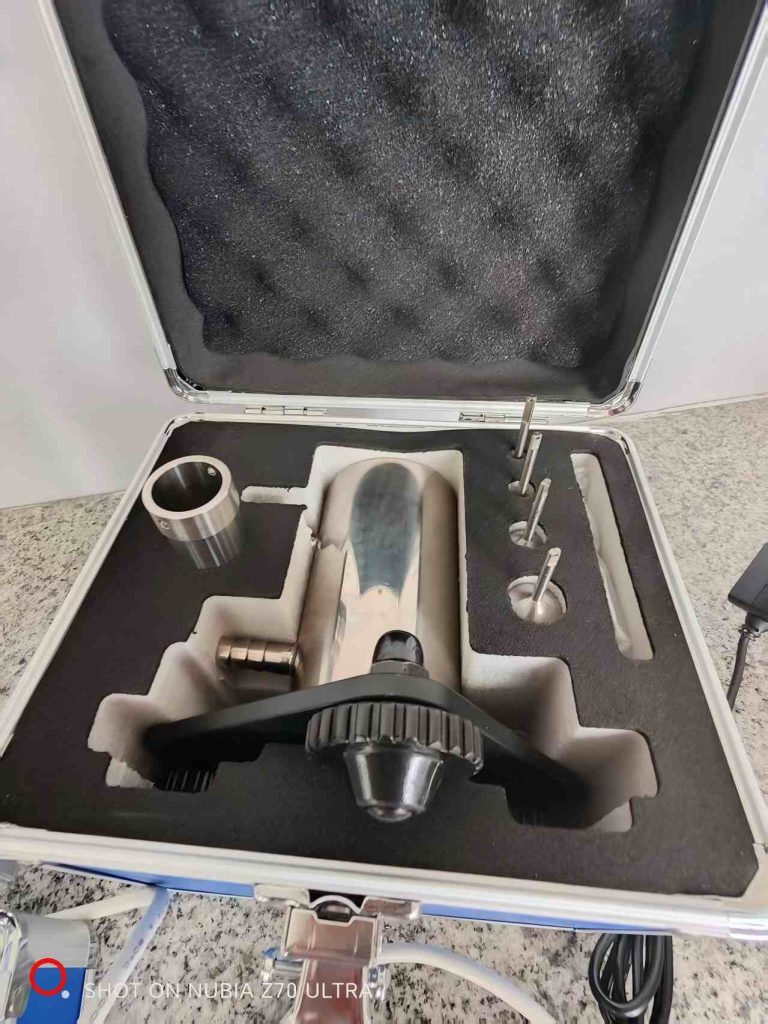

- Small sample adapter (with spindle 21, 27, 28 and 29 each)
- Spindle L5
- Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)

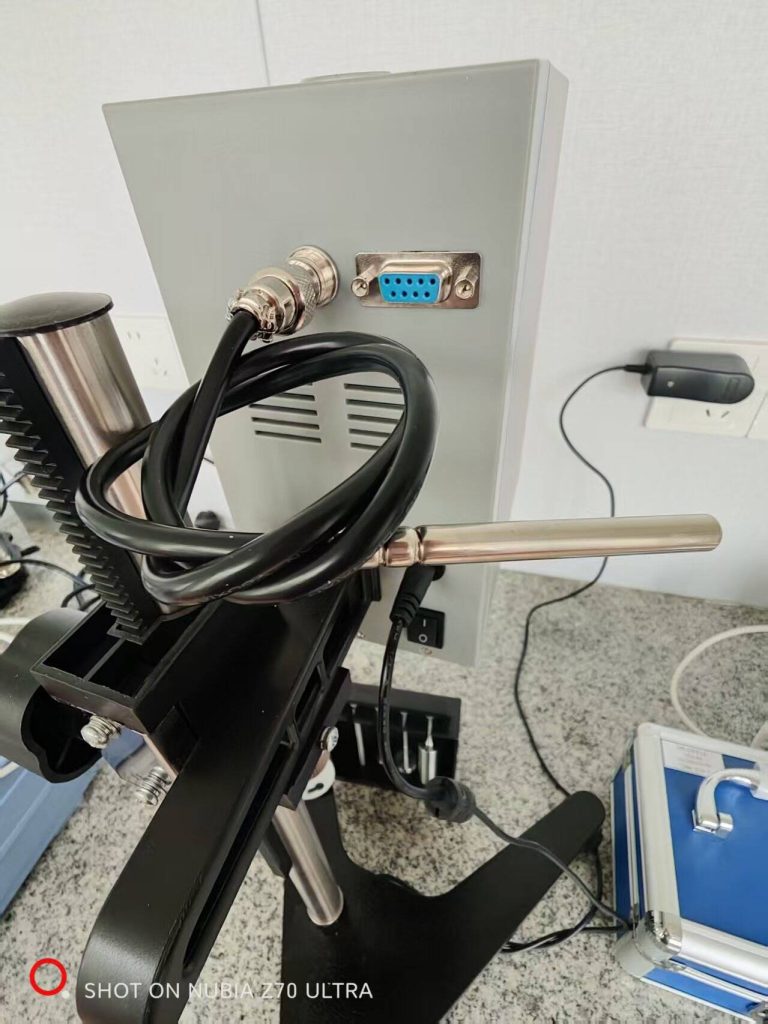

- RTD temperature probe

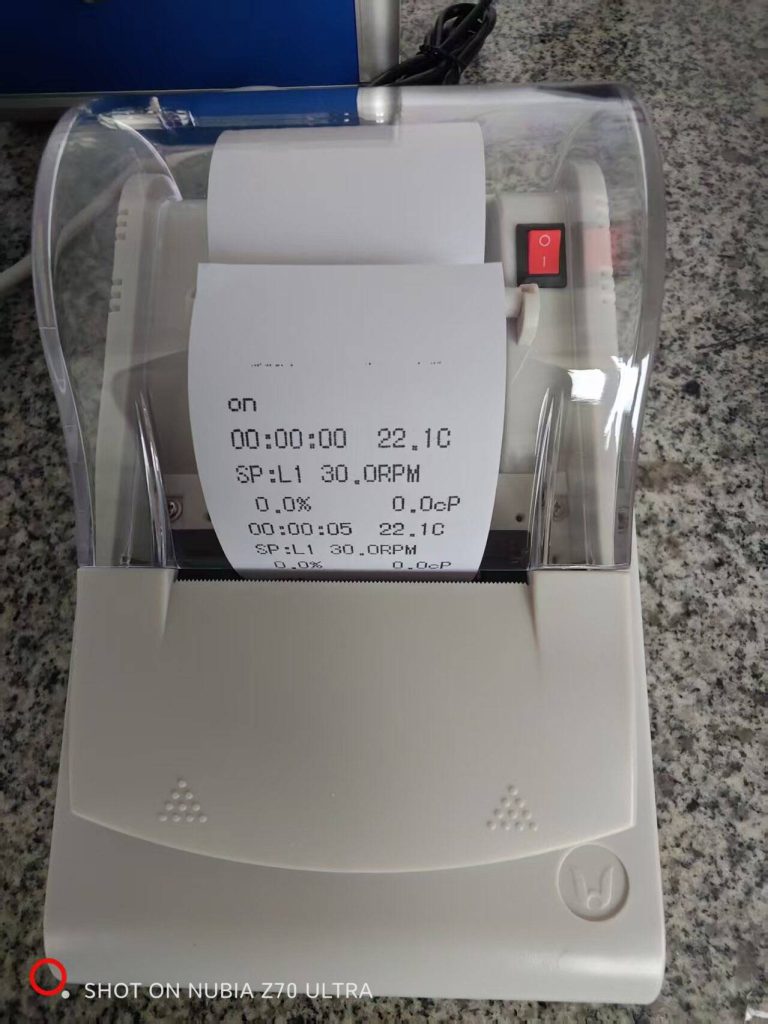

- Specially used printer
Parameters of the NDJ-8S Digital Viscometer
| Model | NDJ-8S |
| Measuring Range（mPa·s） | 20 ～ 2,000,000 |
| Rotating Speed (RPM) | Eight adjustable speed:0.3、0.6、1.5、3、6、12、30、60 |
| Number of Spindles | Spindles (Code L1, L2, L3, L4) are equipped with the product |
| Accuracy | ±1% full-scale range in use |
| Return Capacity | ±0.5% full-scale range in use |
| Power | Power adapter ( Input: 100-240V，50/60Hz) |
| LCD screen display | The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value. |

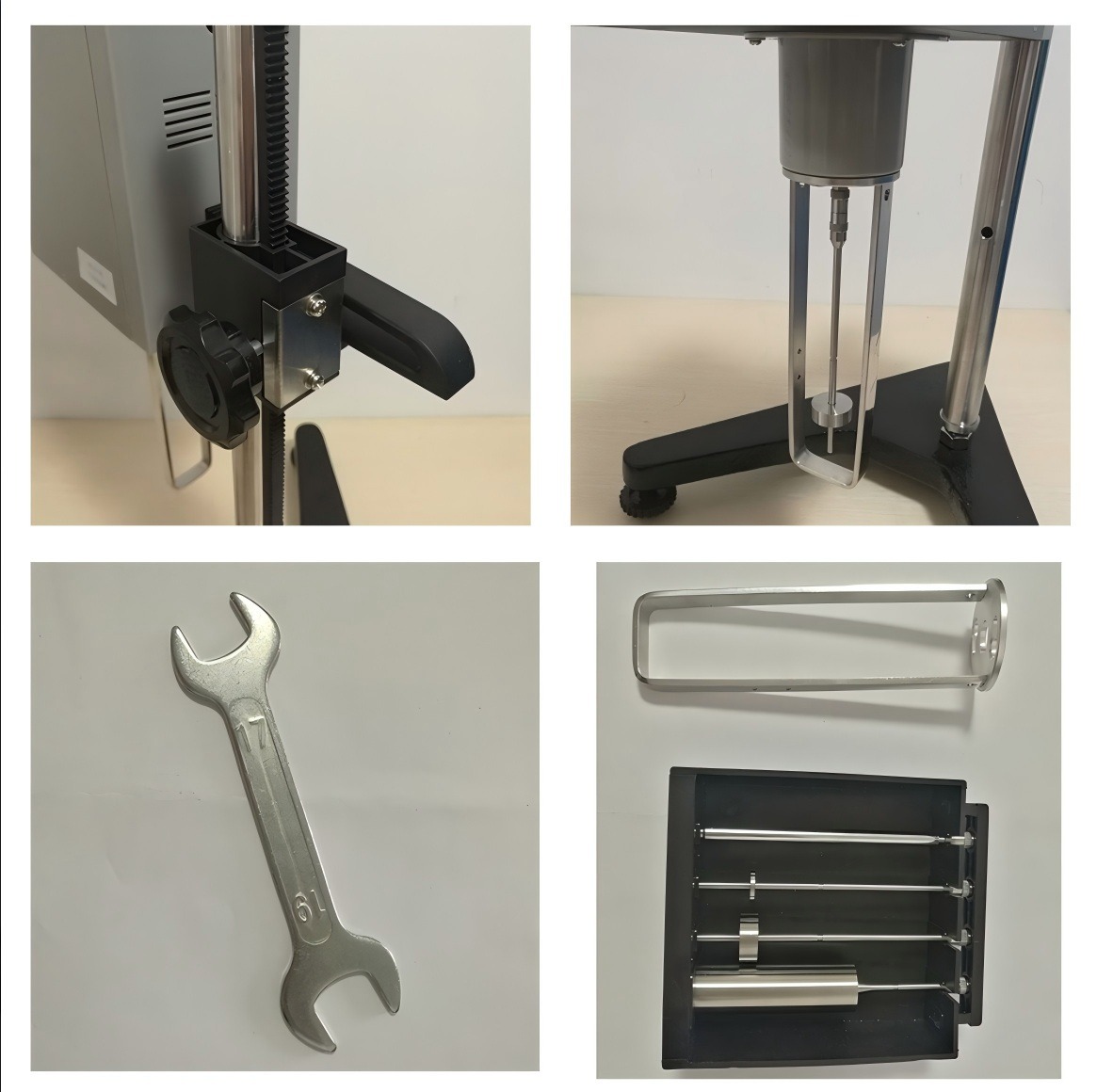

Apparatus to be Equipped
| Digital viscosity meter | 1 pce | Ascending and falling rack | 1 set |
| Standard spindle | 1 set | Power adapter | 1 pce |

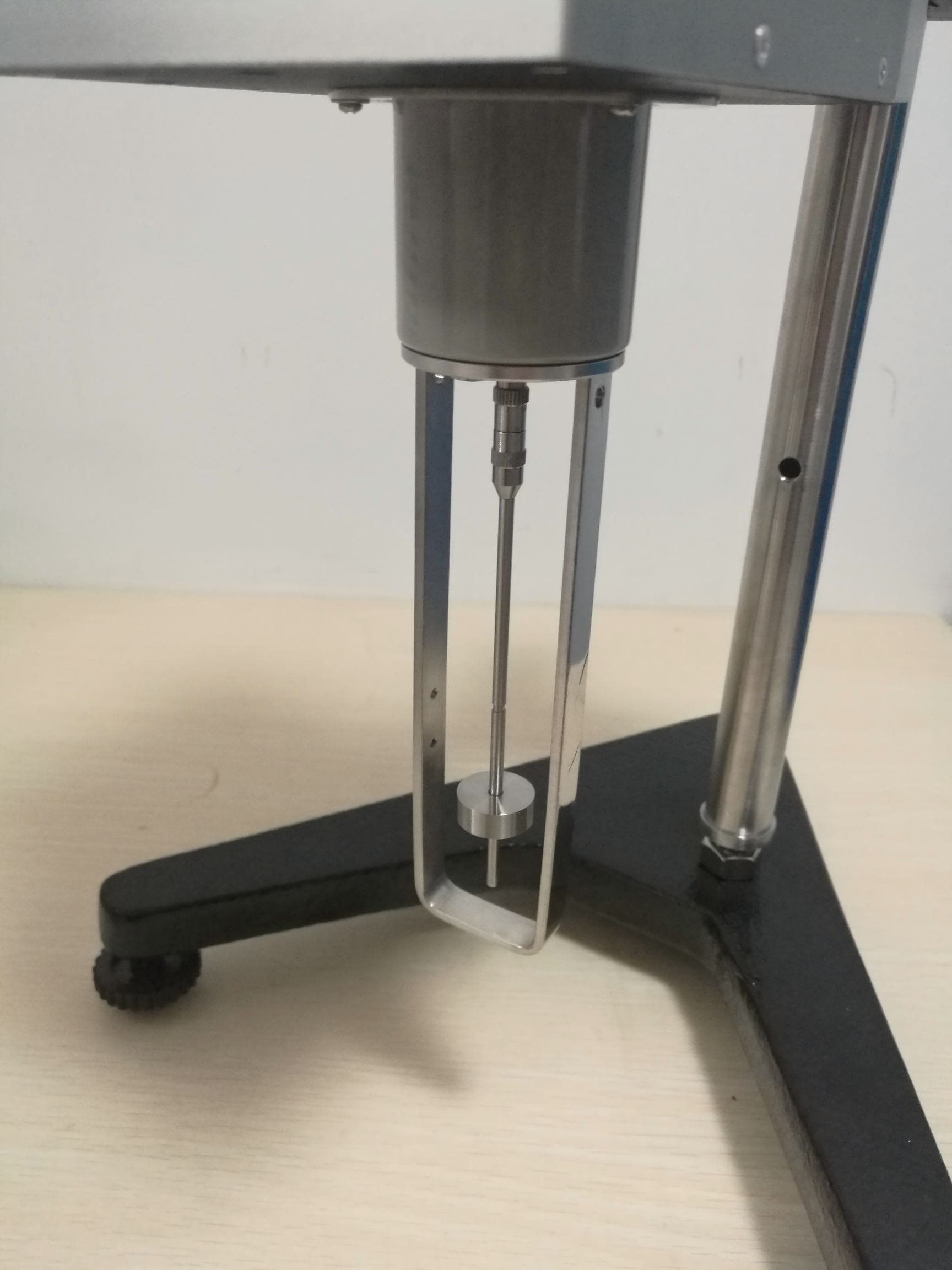

| Protective frame of spindle | 1 pce | Spanner | 1 pce |
| Seat and leveling feet | 1 set | RS232 standard output interface | 1 pce |
Application of NDJ-8S Viscometer
Chemical and Coating Industries
Application examples: paints, coatings and inks, adhesives and resins, plastics and paraffin waxes, detergents and cleaning agents.
Chemical & Industrial Process Control
Measuring absorbance-based color intensity and tracking reaction kinetics in dyes, coatings, inks, and electroplating solutions for routine industrial quality control.
Food and Pharmaceutical Industries
Application examples: fruit juice, condiments, starch paste, medicines, biochemical reagents, etc.
Daily Chemical and Personal Care Products Industry
Application examples: mineral oil, lubricating oil, reagent oil, drilling fluid and mud.
Other Industrial and Materials Sectors
Application examples: Semi-fluid materials such as pulp, ceramic slurry, building materials, various gels, and latexes, etc.

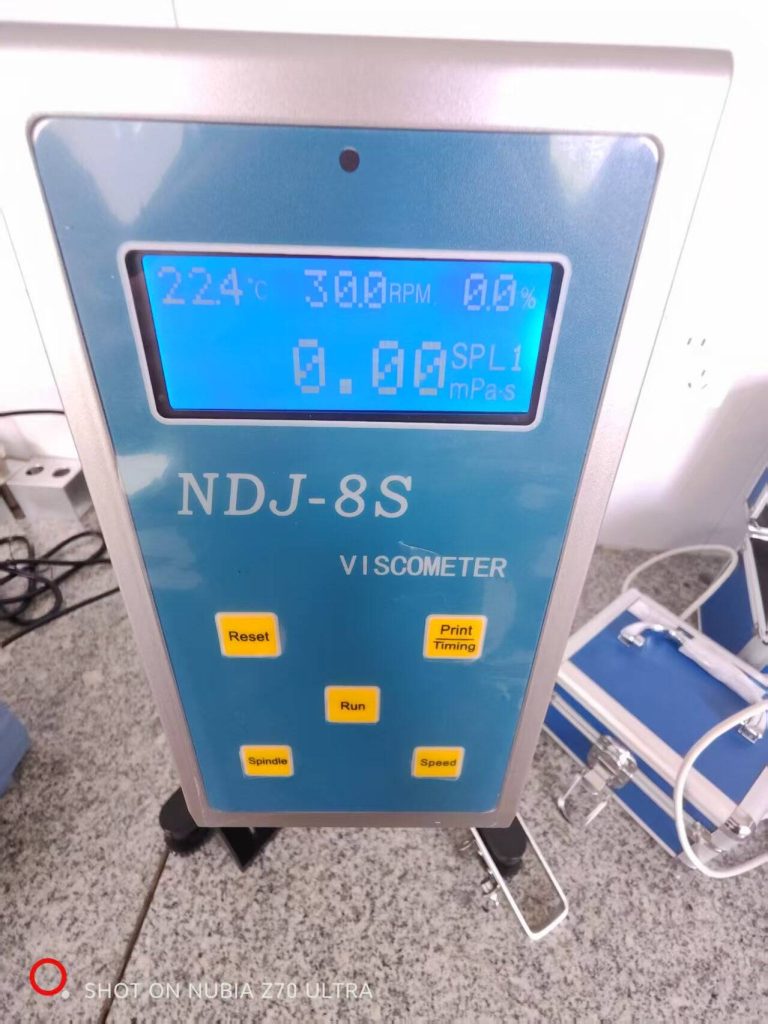

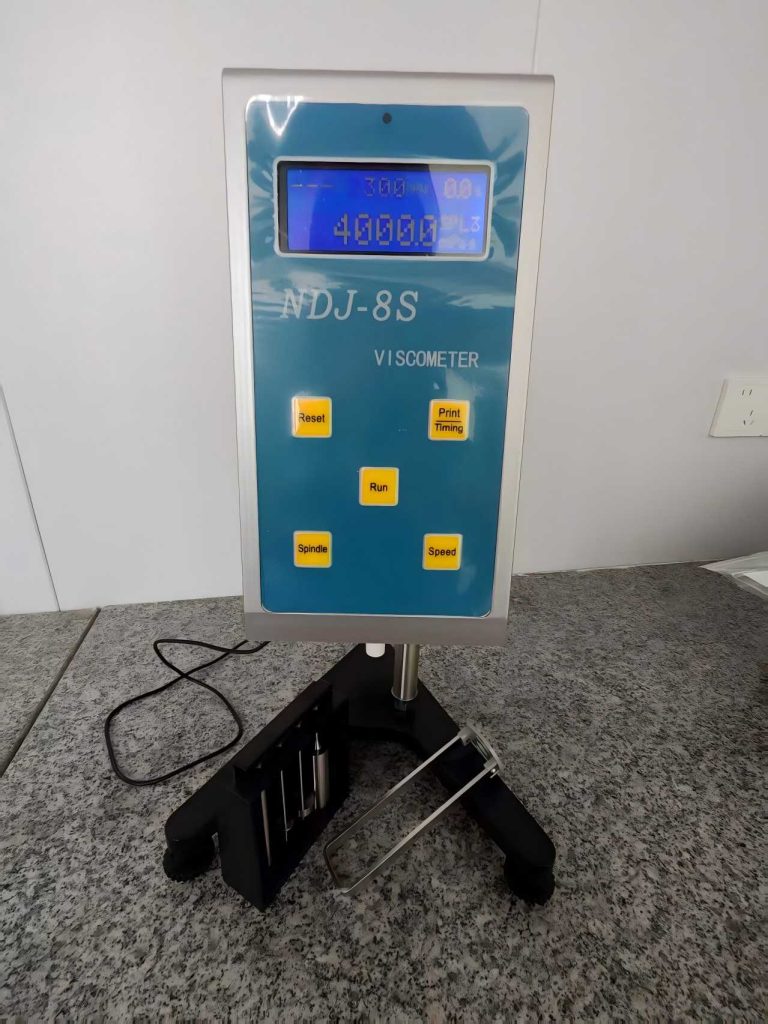

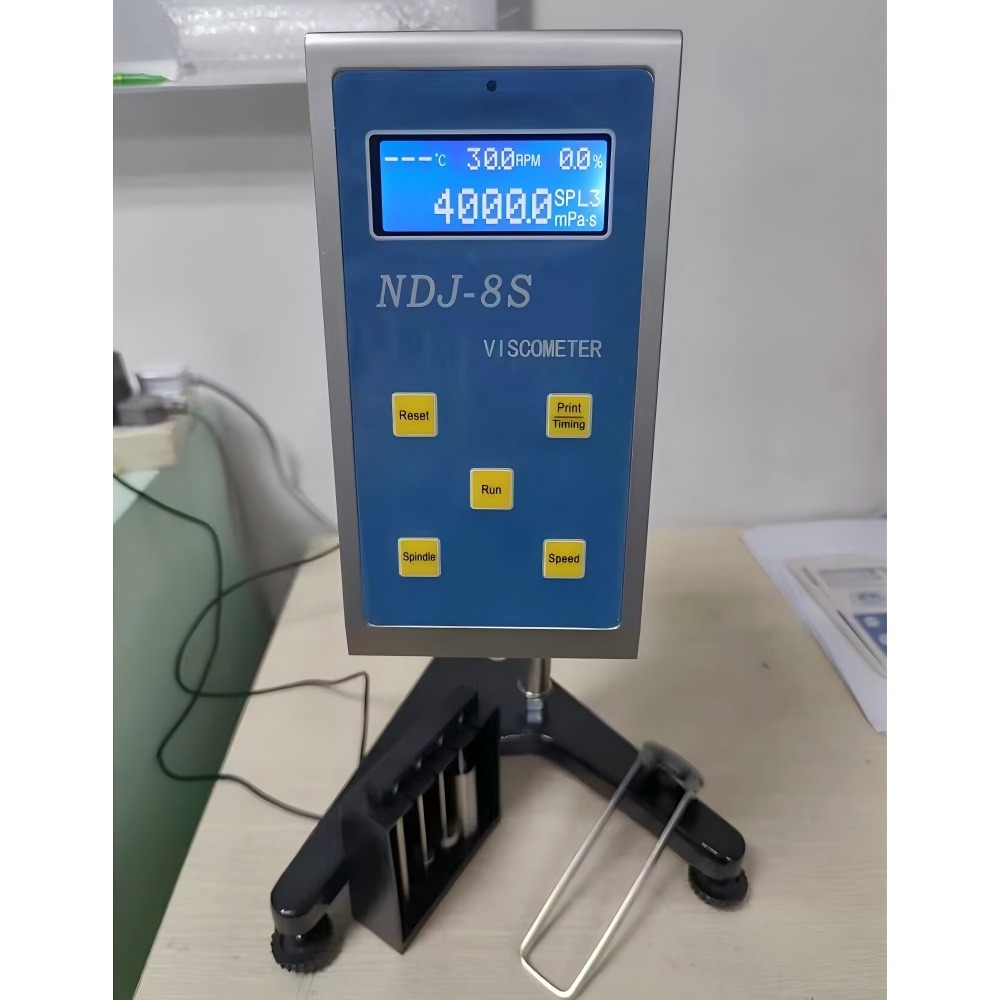

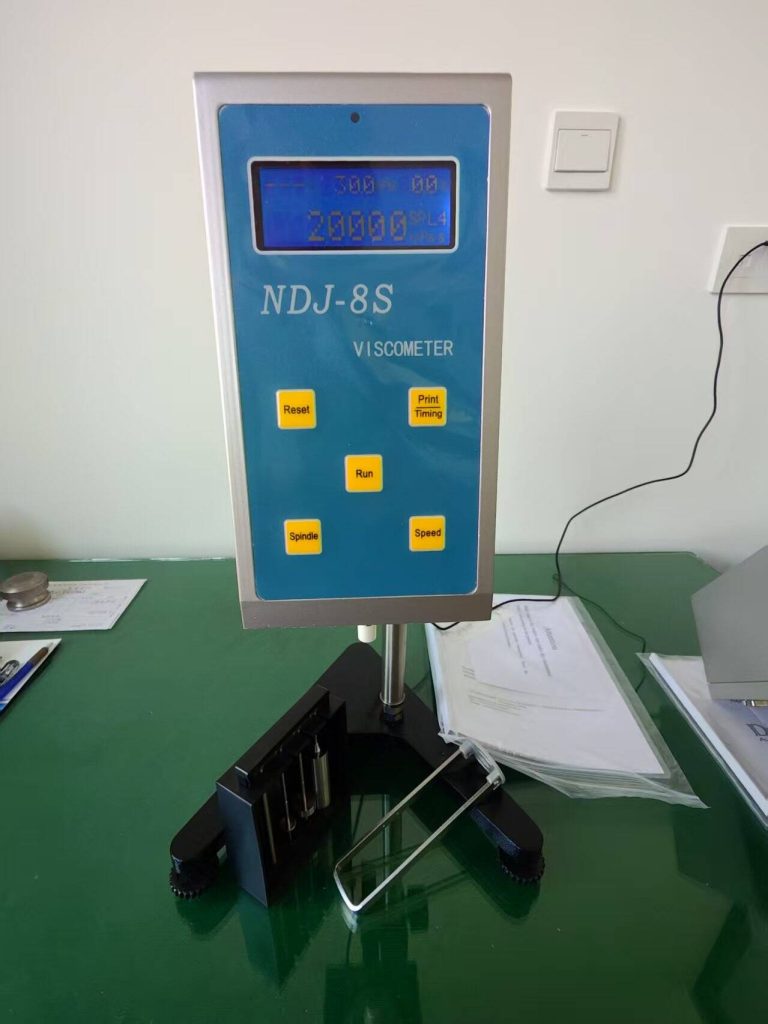

NDJ-8S Digital Viscometer Display
FAQ

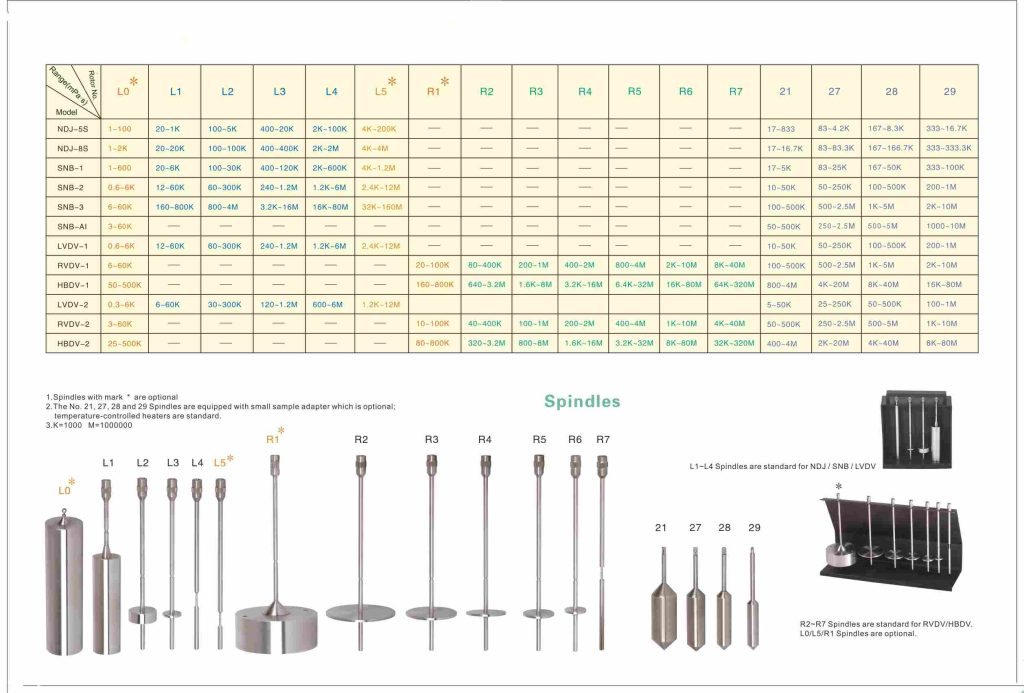

Accessories of NDJ-8S Viscometer
