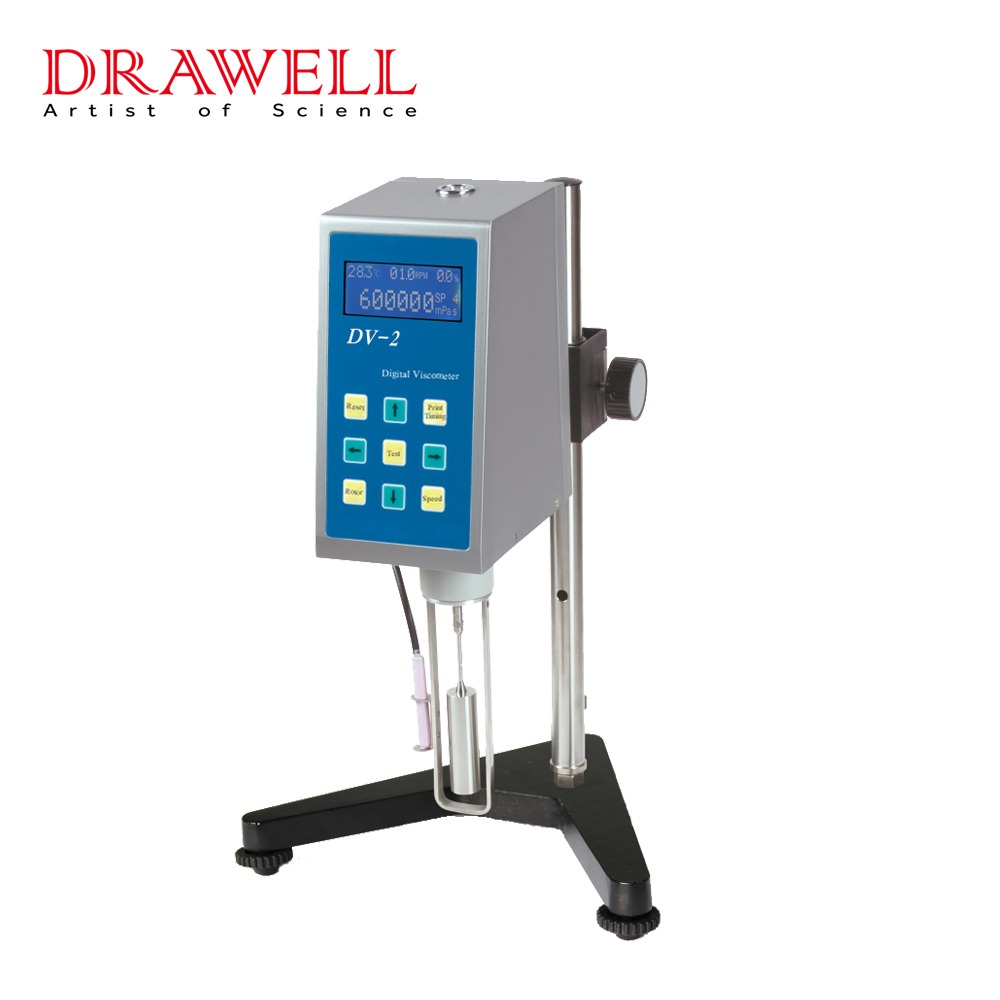

LVDV-2 6-6000000mPa·s Low Viscosity Viscometer

The LVDV2 rotational viscometer is an extremely versatile laboratory instrument. It is used in almost every industry that requires quality control or research and development of fluids (from thin liquids to high-viscosity semi-fluids).

Application areas include:chemical and petroleum industry, food and pharmaceutical industry, new materials and special materials, scientific research and quality control, etc.

Key features:

  • Measuring Range (mPa-s): 6~6,000,000
  • Standard Spindles (Code L1,L2,L3,L4)
  • Accuracy ±1%; Return Capacity: ±0.5%
  • Optional: L0, L5 spindle, RTD temperature probe, printer
  • DV program control download software
LVDV-2 Brochure
LVDV-2 Manual

Options of LVDV-2 Digital Viscometer

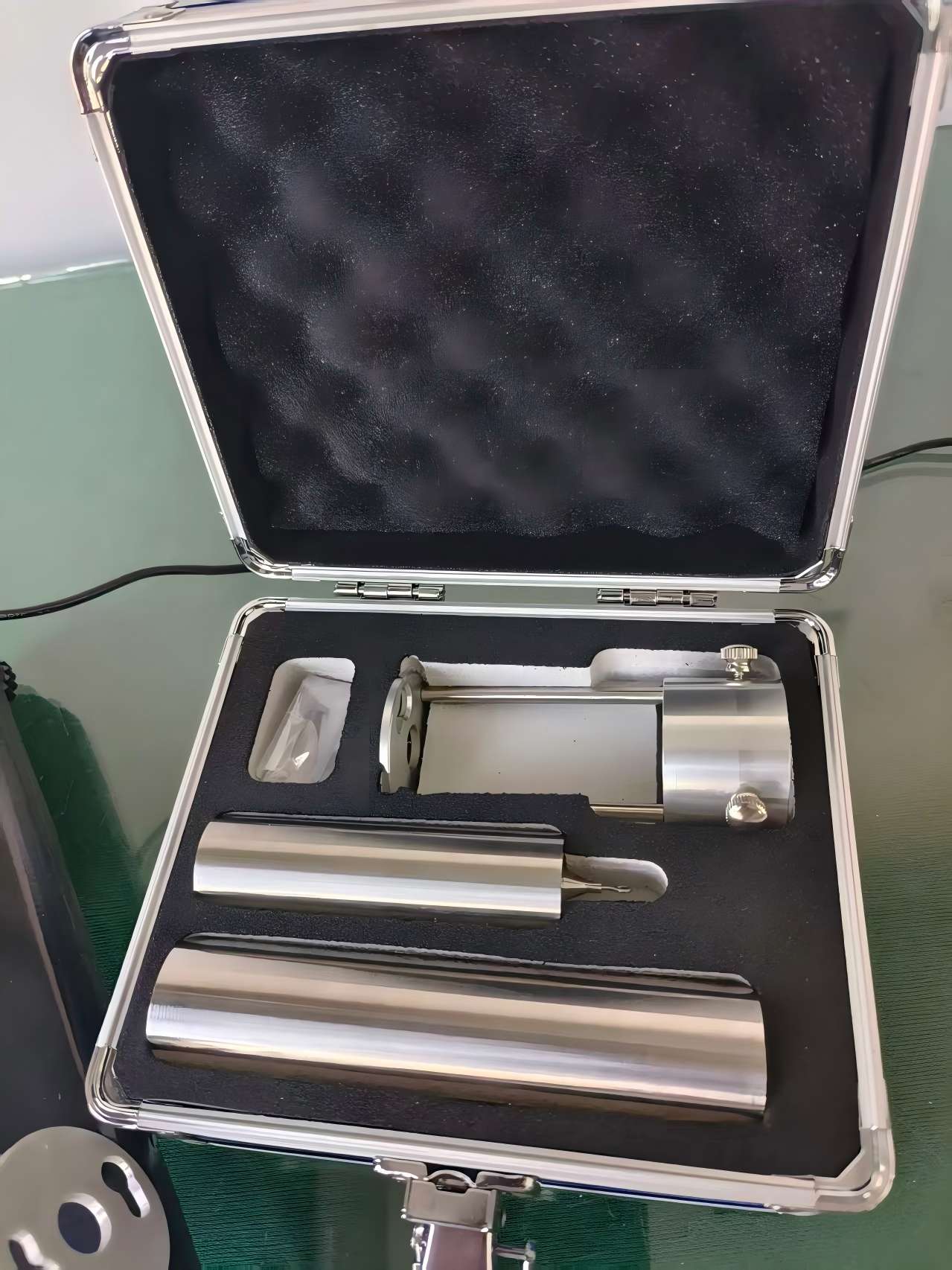

  1. Extreme low viscometer adapter (with one spindle L0)
  2. Small sample adapter (with spindle 21, 27, 28 and 29 each)
  3. Spindle L5
  4. Temperature-controlled heater (with spindle 21, 27, 28 and 29 each)
  5. Special software that can complete the function in collecting the data automatically
  6. DV program control download software
  7. Specially used printer

Parameters of the LVDV-2 Digital Viscometer

ModelLVDV-2
Measuring Range（mPa·s）6～6,000,000
Rotating Speed (RPM)0.1 ～ 200 （Stepless Gear）
Number of SpindlesSpindles (Code L1, L2, L3, L4) are equipped with the product
Accuracy±1% full scale range in use
Repeatability±0.5% full scale range in use
Readability1.when viscosity is lower than 10.0 cp : 0.01
2.when viscosity is lower than 10000 cp: 0.1
3.when viscosity is equal or higher than 10000 cp: 1
PowerPower adapter ( Input: 100-240V，50/60Hz)
LCD screen displayThe LCD screen can display the viscosity, speed, torque spindle, temperature，shear rate, shear force and the maximum viscosity can be measured in the current spindle speed value.

Apparatus to be Equipped

Digital viscosity meter1 pceAscending and falling rack1 set
Standard spindle1 setPower adapter1 pce
Protective frame of spindle1 pceSpanner1 pce
Seat and leveling feet1 setRS232 standard output interface1 pce
RTD temperature probe1 pce

Application of LVDV-1 Digital Viscometer

1.Chemical and coating industries-petroleum
Chemical and coating industries
Application examples: hydraulic oil, lubricating oil, cutting oil, mineral oil, paint, coating, ink, adhesive, resin, slurry, polymer solution.
2.Food industry fruit juices

Food and pharmaceutical industry

Application examples: fruit juice, milk, sauces, honey, syrup, starch paste, medicines, ointments, cosmetics, latex, capsules.
New materials and special materials-ceramic pulp
New materials and special materials
Application examples: asphalt, biofuels, hot melt adhesives, paraffin wax, paper pulp, ceramic pulp, etc.
Scientific Research and Quality Control-materials development
Scientific Research and Quality Control
Application examples: rheology is an important tool for ensuring product quality and consistency in rheological research, materials development, and production processes.

FAQ

LVDV2 measures viscosity from 6 to 6,000,000 mPa.s, suitable for almost every industry that requires quality control or research and development of fluids (from thin liquids to high-viscosity semi-fluids).

It is commonly used for paints, coatings, inks, adhesives, oils, lotions, food liquids, chemical solutions, and other fluid samples.

Yes. It typically offers higher measurement accuracy in the low to medium viscosity range, making it more suitable for applications involving low viscosity and some medium viscosity fluids.

LVDV2 provides rotating speeds 0.1 ~ 200 (Stepless Gear).

The instrument is supplied with L1,L2,L3,and L4 spindles for different viscosity ranges.

LVDV2 offers ±1% full-scale accuracy and ±0.5% full-scale repeatability for reliable routine viscosity testing.

1.when viscosity is lower than 10.0 cp : 0.01

2.when viscosity is lower than 10000 cp : 0.1

3.when viscosity is equal or higher than 10000 cp : 1

The LCD screen can display the viscosity, speed, torque, spindle and the maximum viscosity can be measured in the current spindle speed value.

Yes, we provide a user manual and installation videos, making installation very easy.

Normally 7- 15 days after deposit, if in stock, within a week.

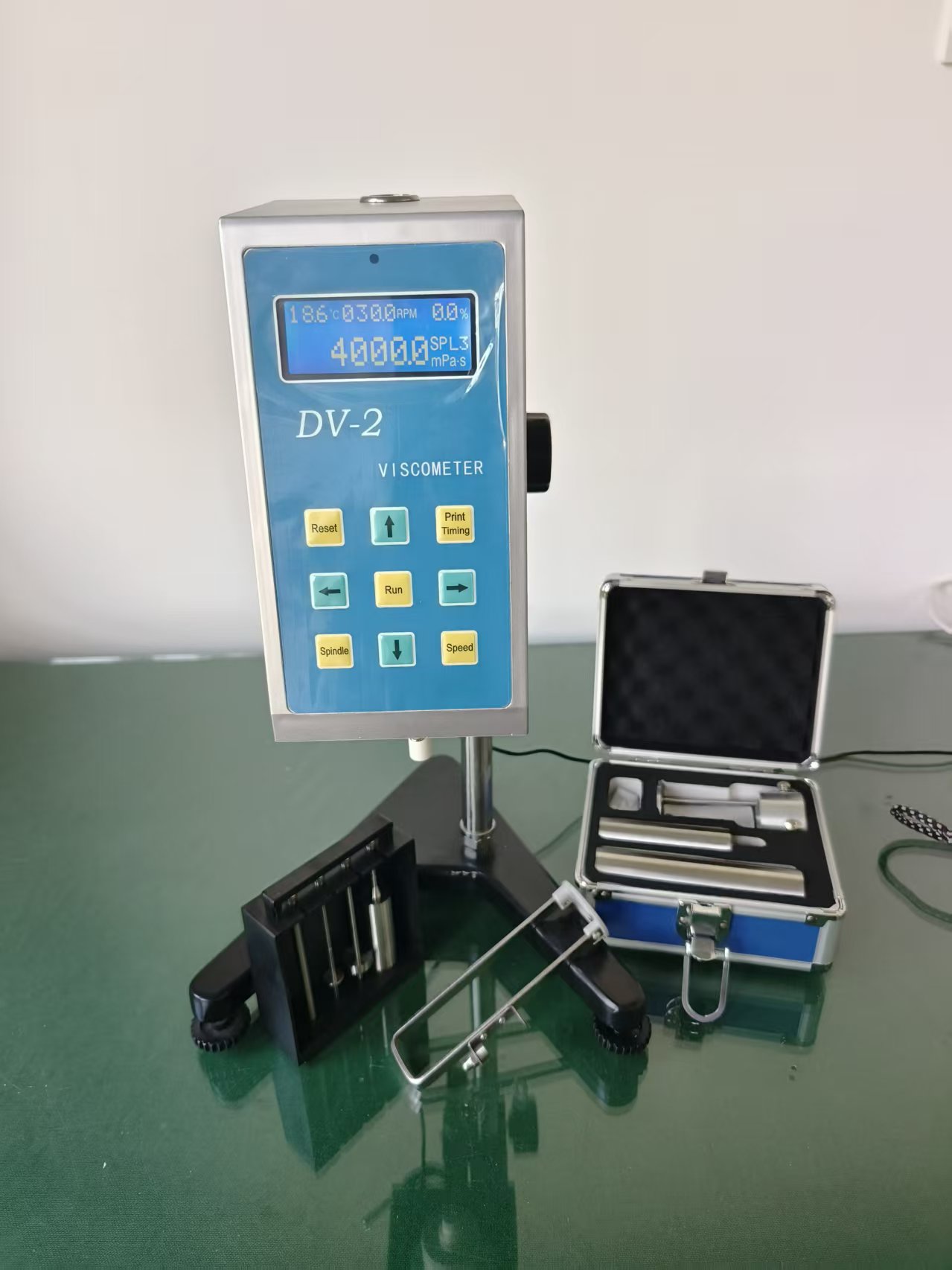

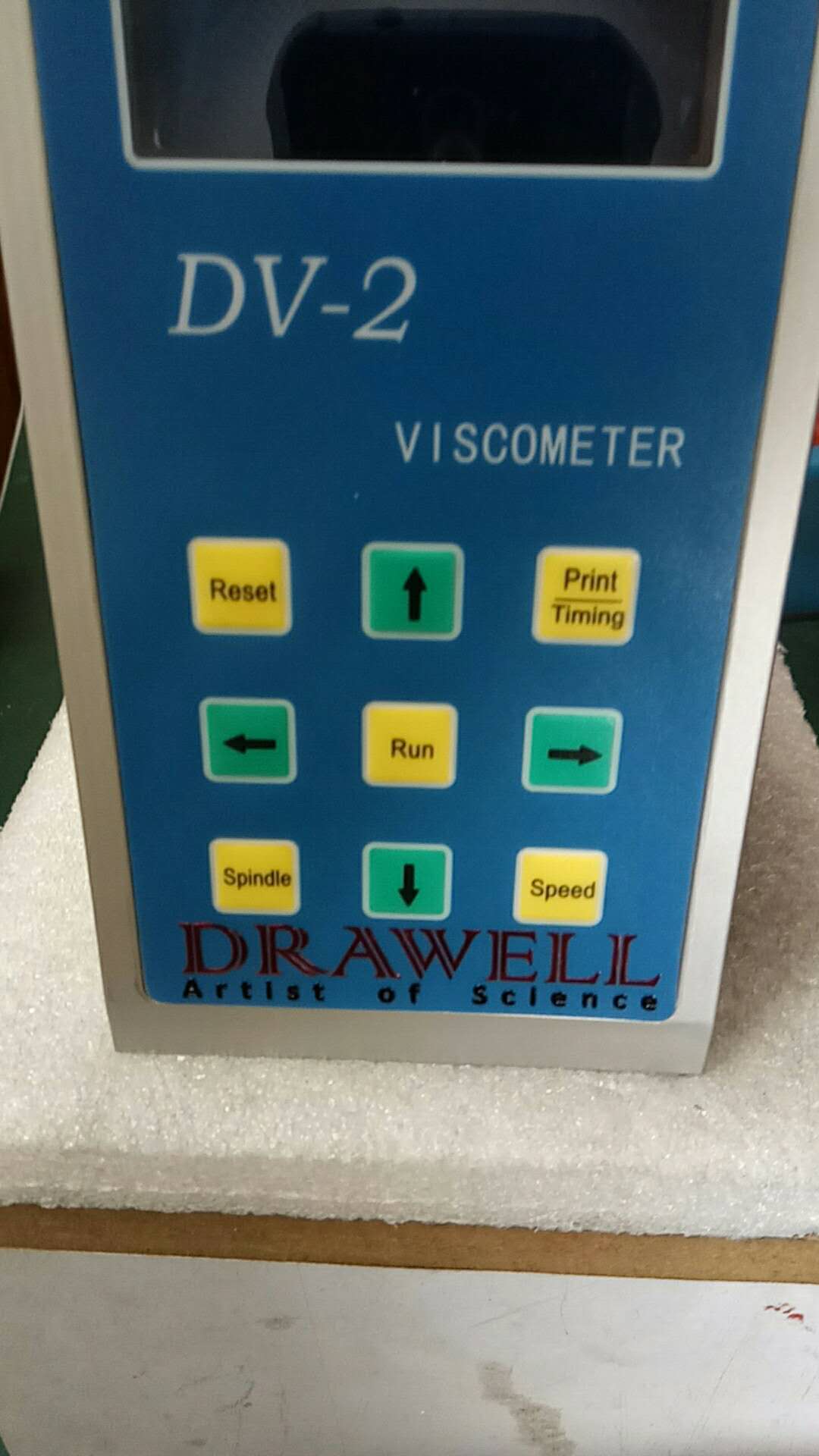

LVDV-2 Digital Viscometer Display

LVDV-2 6-6000000mPa·s Low Viscosity Viscometer display

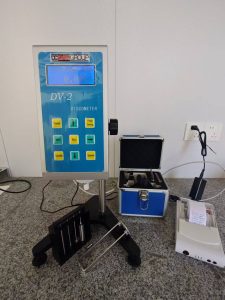

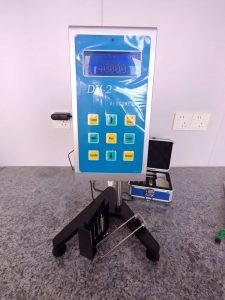

  • LVDV 2 1
  • LVDV 2Add 2
  • LVDV 2Add 3

Accessories of LVDV-2 Digital Viscometer

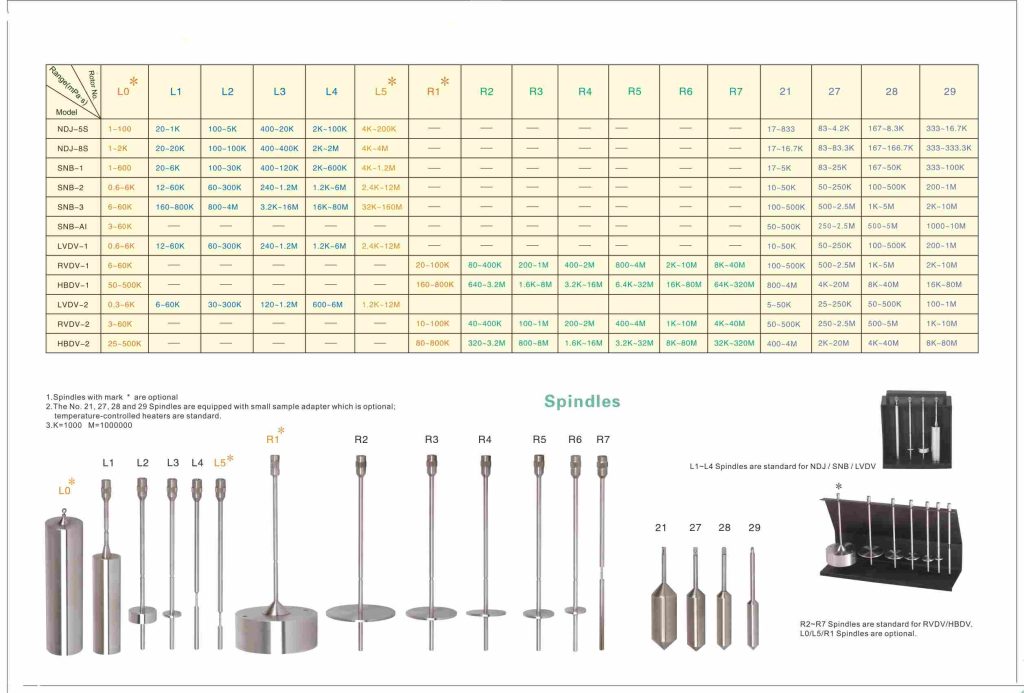

LVDV2 Accessories Specifications

Customer Service of LVDV-1 Digital Viscometer

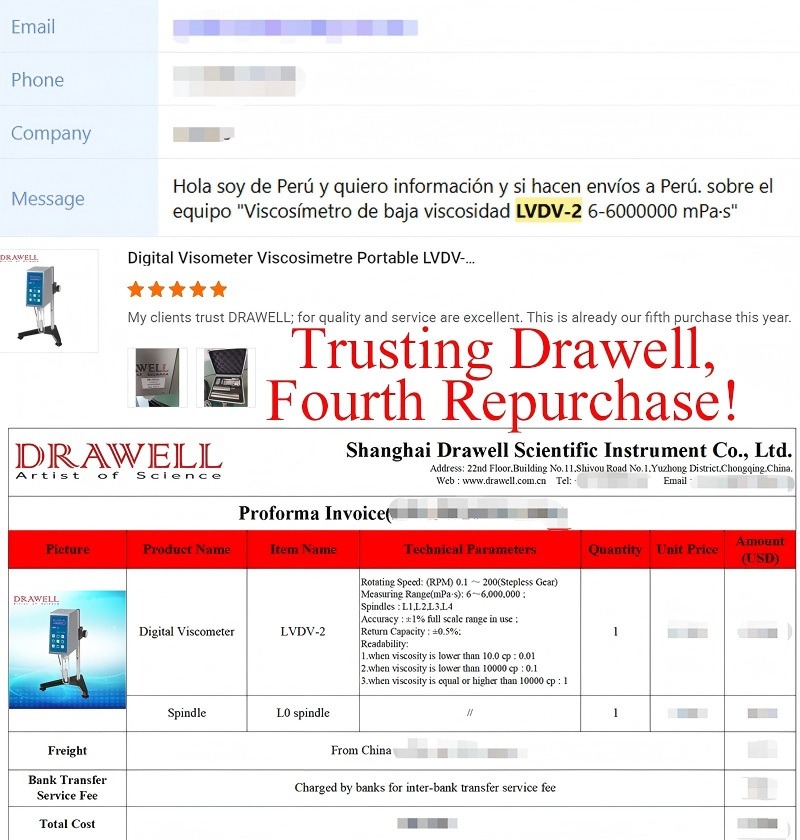

LVDV2 viscometer
